UOVISION PANDA UV535 8.0MP
Digital Scouting Camera
User’s Manual

www.uovisioneurope.com
Page 2
Quick Start
1. Load 8pcs of NEW 1.5V AA size alkaline batteries,
or connect 6 V external power supply. If external power
source connected, the batteries can remain inside the
camera
2. Insert the SD card (32GB or smaller). Make sure the SD
card is not locked. Please DO NOT USE the Micro SD card
with adapter. Many micro SD cards are not compatible with
trail cameras
3. Slide the power switch to the “SETUP” position to set up
the camera
4. Press the “menu” button to enter into the program menu,
then press the “up” or “down” arrow buttons for parameter
settings as described in the user’s manual. Press the “OK”
button to save parameter settings and exit
5. Place the camera at the target area and turn on the
camera（slide the power switch to “ON”）, the camera will
take pictures or videos as preset in step 4
6. Press the “►” to capture photos or record a video
manually;
7. Press the “OK” button to review the pictures. Use the
“up” or “down” arrow buttons to scroll through
pictures LCD display
8. To delete an image in SETUP mode, press the “OK” to
review the image, then press “menu” and choose

www.uovisioneurope.com
Page 3
Delete one, select yes to execute or No to Exit
Key Notes
a. “menu”: enter the program menu.
b. “▲”“▼”“◄”“►”: for parameter settings as described in
the user’s manual.
“▲”is the shortcut to choose “Video”, while “▼”for the
“Photo”.
c. “OK”: save parameter settings; Enter the playback
mode.
d. “►”: capture a photo or record a video manually.
e. Switch: ON in the upper position; SETUP in the middle;
OFF in the opposite down position
f. DC plug in diameter：4.0mm*1.7mm.

1 Instruction
Page 1
1Instruction
1.1 General Description
This camera, is a digital animal surveillance camera, triggered by
any movement of humans or animals monitored by a high sensitive
Passive Infrared (PIR) motion sensor, and then automatically captures
high quality pictures up to 8MP or records video clips (QVGA or VGA)
according to default settings or preset customer settings.
It takes color pictures or videos under sufficient daylight. While at
night, the built-in infrared LED’s take clear pictures or videos
(monochrome).
There is a 1.7” color LCD display screen on the camera.
It is resistant against water and snow. The camera can also be
used as a portable digital camera.
1.2 Camera Body Interfaces
The camera has the following I/O interfaces: USB connector,
SD-card slot and external DC power connector.
On the back of camera, there is a lock for theft-proof and an
adjuster to change the tilt when mounting on an irregular interface e.g.
tree.
Take a few moments to familiarize yourself with the camera
controls and displays. It is helpful to bookmark this section and refer
to it when reading through the rest of the manual.
Figure 1: Front View
IR Flash
Lens
Lock
PIR
Indication LED

1 Instruction
Page 2

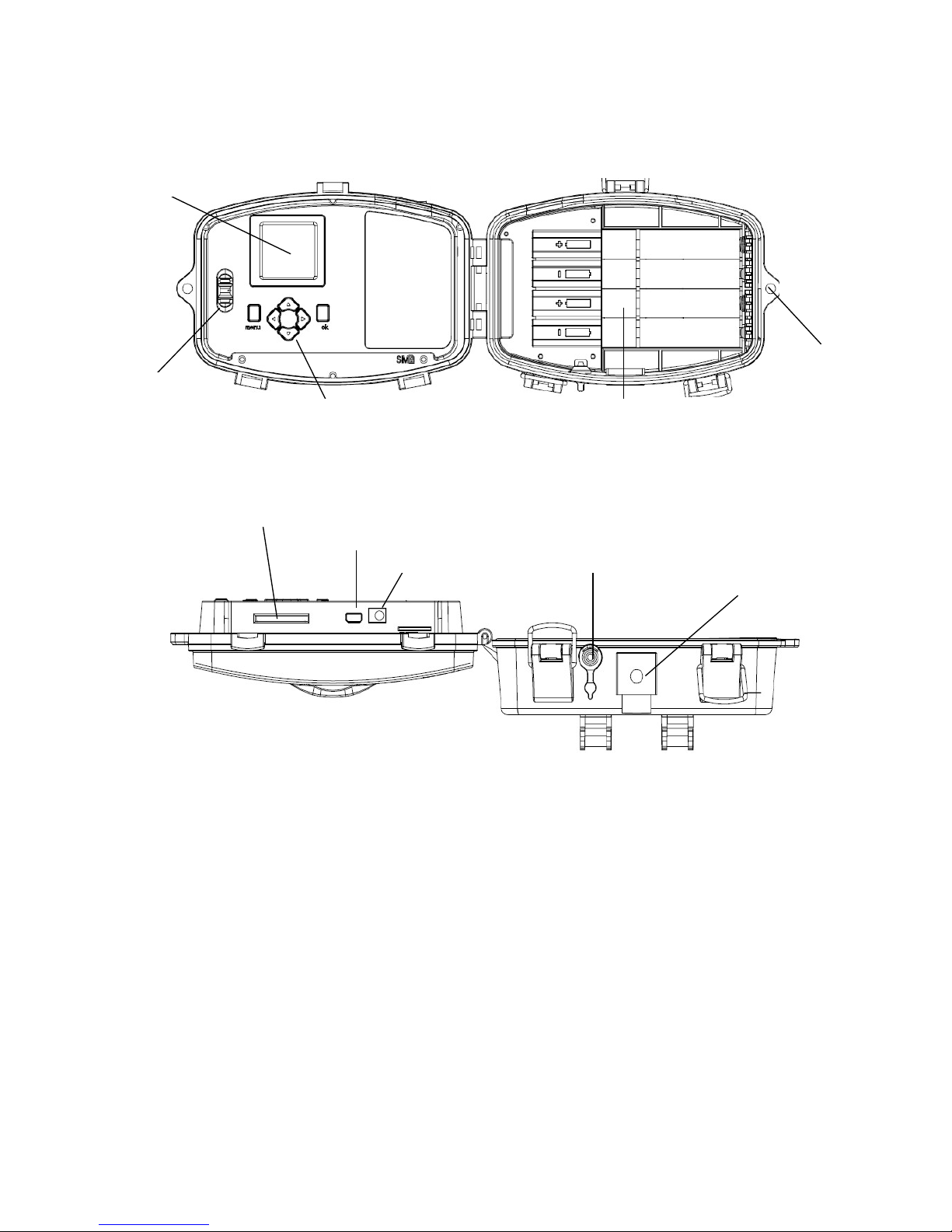

Figure 2: Operation Interface
Figure 3: Bottom view
1.2.1 Key Notes
a. “menu”: enter the program menu.
b. “▲”“▼”“◄”“►”: for parameter settings as described in the user’s
manual.
“▲”is the shortcut to choose “Video”, while “▼”for the “Photo”.
c. “OK”: save parameter settings; Enter the playback mode.
d. “►”: capture a photo or record a video manually.
e. Switch: ON in the upper position; SETUP in the middle; OFF in the
opposite down position.
f. DC plug in diameter：4.0mm*1.7mm.
Switch
Battery Depot
Lock Hole
SD-card Slot
DC In
USB
Bottom Screw
Display Screen
DC Hole and Stopper
Operation Panel

Page 3
2. Quick Start Guide
2.1 Power Supply
To supply power for the camera, 8size AA batteries are needed.
Confirm that the power switch is in the OFF position; load the fully
charged batteries into the pack according the polarities signs shown
below. The following batteries with 1.5V output can be used:
1. High-density and high-performance alkaline batteries
(Recommended)
2. Rechargeable alkaline batteries
3. Rechargeable NiMH batteries
There are 4 battery slots. Slot 1 and 2 form one group and is
marked “1”,slot 3 and 4 form the other group and is marked “2”. Only
one “group” of batteries is needed to supply power for the camera, but
both can be used and is recommended.
2.2 Insert the SD-card
Open the bottom cover. Insert an SD-card into the card slot with
unmarked side upwards. Please note that the SD-card is on the
“write” (not locked) position, otherwise the camera will not function
correctly. Please do not use micro SD cards with adapter.

Page 4
2.3 Power on and Enter into the ON
Mode
Before switching on, please pay attention to the following:
1. Avoid temperature and motion disturbances in front of the
camera such as a big leaf, curtain, air-conditioner, air outlet of
the chimney and other heat sources to prevent from false
triggering.
2. The height from the ground for placing the camera should vary
with the object size appropriately. In general, three to six feet
is preferred.
Slide the power switch to the ON position to power on the camera
and enter into the ON mode.
2.4 Enter into the SETUP Mode
Slide the power switch to the SETUP position and enter into the
SETUP mode. There are some functions in SETUP mode: Custom
settings, manual capture and send MMS manually.
2.4.1 Custom Settings
Press menu on the user interface to enter into the menu setting.
The camera can be adjusted to manually customize the camera
settings which display on the LCD screen on the camera. The detailed
operations will be described in the “Advanced Operations” chapter.
2.4.2 Manual Capturing
You can press“►” to manually capture photos or record a video.
2.4.3 View Images or Videos
Use LCD screen to view the captured images or videos:
Press “OK”to view images, the latest image or video will be shown
in the LCD screen on the camera. Press “▼” to view the previous
image and press “▲” for the next.
The detailed operations like deleting images or videos will be
described in the “Advanced Operations” chapter.
2.5 Power Off
Slide the power switch to the OFF position to power off the camera.
Please note that even in the OFF mode, the camera still consumes a
small amount of battery power. Therefore, please remove the
batteries if the camera is not in use for some time.

Page 5
3Advanced Operations
Settings Menu and Default Settings
To view the camera settings menu, switch the camera to SETUP
mode and press menu, the main menu and the default settings are
under below charts:
Main menu
Setting Items Description
CAM
Camera Mode Choose Photo or Video.
Photo Size Choose the image size, 3MP, 5MP, 8MP
Photo Burst Choose the continuous shooting numbers
after each triggering.
Video Size Choose the video size (QVGA or VGA)
Video Length Set the video length as of required
PIR
Sensitivity High, Low ,Normal and Off selectable
Trigger Interval
The duration the camera will stop
functioning after each triggering.
Time Lapse
Time lapse function defines the camera
records/captures automatically every preset
time period (5seconds~8hours), which
doesn’t work if it is set to Off.
Start-Stop
Start-stop “On” means that the camera
works only during that preset time;
Start-stop “Off” means that the camera
works round the clock.
SYS
Set Clock Enter to set the Date and Time
Time Stamp Choose "On" or "Off" to show the time on the
picture or not.
Flash Range Infrared Flash range: 15m
Password The default password is 0000. Choose OFF
to stop this function.
Language English（Preset），we provide the choice for customer to choose the language, pls
contact your distributor for assistance.
Beep Customer can choose ON/OFF when
operating the cameras.
Overwrite
ON/OFF, if choose “ON” The camera writes
off the previous taken pictures and
continues to record new pictures/videos,
thus, the SD-card is recyclable, customer

Page 6
needs not to change SD card frequently.
Default Set Restore all customer settings to default
values.
Format Format the SD-card.
Press LEFT or RIGHT and UP or DOWN to select the desired options，And
then press OK to save.
4Playback
4.1. Viewing Photo or Video
a) Switch to SETUP mode;
b) Press “OK”to enter the playback mode and view the latest
picture (or video) in LCD screen on camera;
c) Press “▲”to view the next picture (or video) and “▼”for the
previous.
d) Press “OK” again to exit playback mode.
4.2. Delete Photo or Video
a) Press “OK”to view the image (or video) which to be deleted；
b) Press “menu”button；
c) Press “▲”or “▼”to choose Delete one, then press “OK”and
select yes to execute or No to Exit；
Please note that after deleting a picture or a video file, the
deleted files can’t be restored!
4.3.File Numbering
Images and videos are saved in the pre-named folder. File numbering
continues by adding one to the last number for each new image or
video. Saving names are IMAG0001.JPG or IMAG0001.AVI. Through
the suffix you can distinguish whether the file is an image (with
suffix .jpg) or a video (with suffix .avi).

Page 7
Appendix: Technical Specifications
Picture Resolution 8MP, 5MP, 3MP
Lens F/NO=3.0 FOV(Field of View)=52°
IR-Flash 15m
Display Screen 1.7” LCD
Memory Card From 8 MB to 32GB
Video Resolution VGA(16fps) ; QVGA(20fps)
PIR Sensor Multi Zone
PIR Sensitivity Adjustable (High/Normal/Low)
Trigger Time 1.2s
Weight 0.35 kg
Operating Temperature -20 - +60°C
Interval 0s – 60 min.
Photo Burst 1–3
Video Length 5–60s
Power Supply 8×AA
Stand-by Current < 0.25 mA (<6mAh/Day)
Power Consumption 600 videos（interval=5min,video
length=10s）;
>600 MMS(use 8*AA batteries)
Low Battery Alert LED Indicator
Display Screen LCD display on camera
Sound Recording Not Available
Mounting Rope/Belt/Python lock
Dimensions 103 x154 x76 mm
Operation Humidity 5% - 90%
Security authentication FCC, CE, RoHS
*without battery

Appendix Ⅱ: Parts List
Page 8
AppendixⅡ:Parts List
Part Name Quantity
Digital Camera One
USB Cable Not Available
Belt One
User Manual One
The camera manufacturer provides 12 months of warranty service
for this product against manufacturing defects or malfunctions. If your
camera fails to function under normal use within 1 year, the camera
manufacturer will repair or replace the camera at no charge. The
purchase receipt must be included from an authorized retailer
to validate the warranty. Improper use of the camera resulting in
damage is not covered by this warranty.
The camera manufacturer can provide repair service, after the
warranty expiration. The customer will be responsible for any charges
on parts, labor and shipping costs. Please contact the manufacturer for
more details.
Please remove the batteries when not in use. Warranty is not covering
battery leaks or battery related malfunctions.
