Uovision UM785-HD User manual

Wireless Scouting Camera
UM785-3G+ Cloud
Instruction Manual
(For UM785-HD Model)

Content
1 Camera Overview ..............................................................................................................1
2 Set power............................................................................................................................2
3 Installing your SIM card and SD card ...............................................................................2
4 Customizing camera settings .............................................................................................4
4.1 Power switch button and menu buttons....................................................................4
4.2 Setting maps..............................................................................................................5
4.3 Send a test photo .......................................................................................................8
5 Connecting CAM to cloud server ......................................................................................9
5.1 Send a photo to cloud server...................................................................................11
6 Setting CAM with Web Portal or APP.............................................................................11
2Mount tips .....................................................................................................................13
Appendix Ⅰ: Technical Specifications ..............................................................................14
Appendix Ⅱ: Parts List ......................................................................................................15

Page 1
1 Camera Overview
Figure 1 Front View
Figure 2Operation Interface

Page 2
Figure 3 Bottom View
2 Set power
To supply power for the camera, 4, 8 or 12 size AA batteries are
needed.
Notice
·Do not mix different types of batteries
·Please do not mix the old batteries with the new batteries
·Recommend high-density and high-performance batteries,
such as Alkaline or Lithium batteries.
3 Installing your SIM card and SD card

Page 3
Notice
·This product use UMTS/HSPA+ and GSM/EDGE cellular
network. Be sure that the PIN Code of the SIM card is disabled
·The maximum support SD memory is 64G

Page 4
4 Customizing camera settings
4.1 Power switch button and menu buttons
OFF: power off;
SETUP: setting the CAM;
ON: working mode (the screen will power off).
Toggle the power switch to SETUP. You will see the screen shown
below.

Page 5
Press the MENU button. Use▲▼◄►buttons for navigation.
►button in the preview can also be directly manual photo. OK button to
confirm operation/playback.

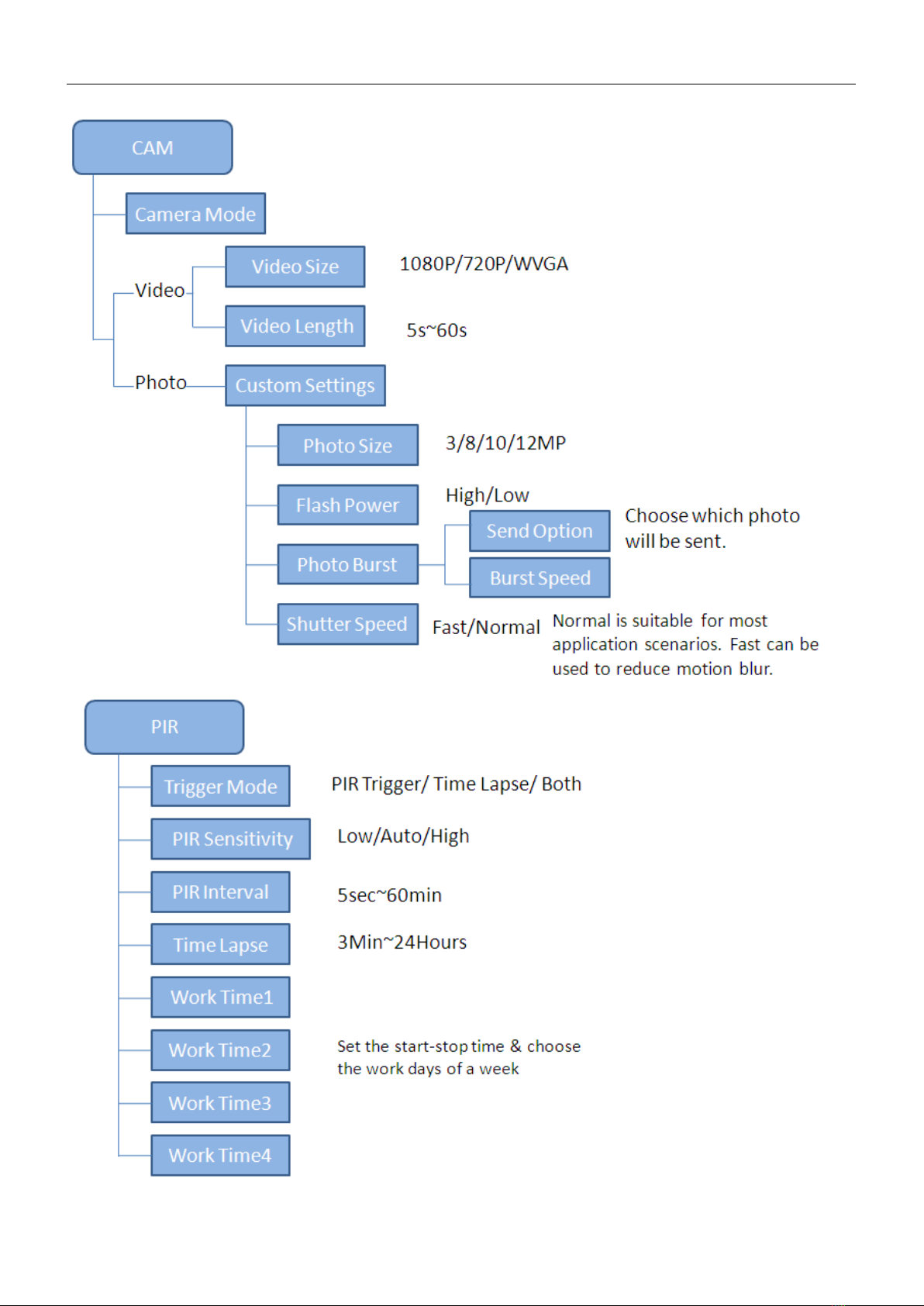

4.2 Setting maps
Note：
Send Mode: Off: disable the transmission function. Instant: enable the instant
transmission. Max Number of Instant means the number of photos that is allowed
to send out per day. If you want to control your data flow, set the maximum number.
The number 00 means infinity.
Remote Control: You can remote control your camera via mobile phone or
web-portal. Choose Real Time, the wireless module is keeping work so the power
consumption is huge. Delay 24H means the wireless module will wake up at least one
time in 24 hours.

Page 6

Page 7
Note：
Photo Burst: It’s the taken number of pictures when a triggering. If photo burst is 3,
it means the camera will take 3 pictures after one triggering. You also can choose
which one of the pictures will be sent via Send Option.
PIR Interval：It means how often the PIR sensor can be allowed to work. This
prevents the card from filling up with too many redundant images.
Time lapse：When choose time lapse, camera takes photos or videos even when it
is not triggered by a nearby live animal. It’s useful for constant monitoring of an area.
Work Time：The camera can work at a preset time and preset days. In the rest of the
time the camera is not work. Work hour: 00:00-00:00 means 24 hours. If the settings is cross
the day, for example: Start: 20:00 Stop: 10:00 means 00:00-10:00 am and 20:00-24:00 of the
chosen day.
Password：Make sure you write down your password or save it to your mobile phone
so you can access your camera if you ever forget your password.

Page 8
4.3 Send a test photo
1) Switch camera to Setup mode, press ►button to take a picture, then
press OK button to check this picture;

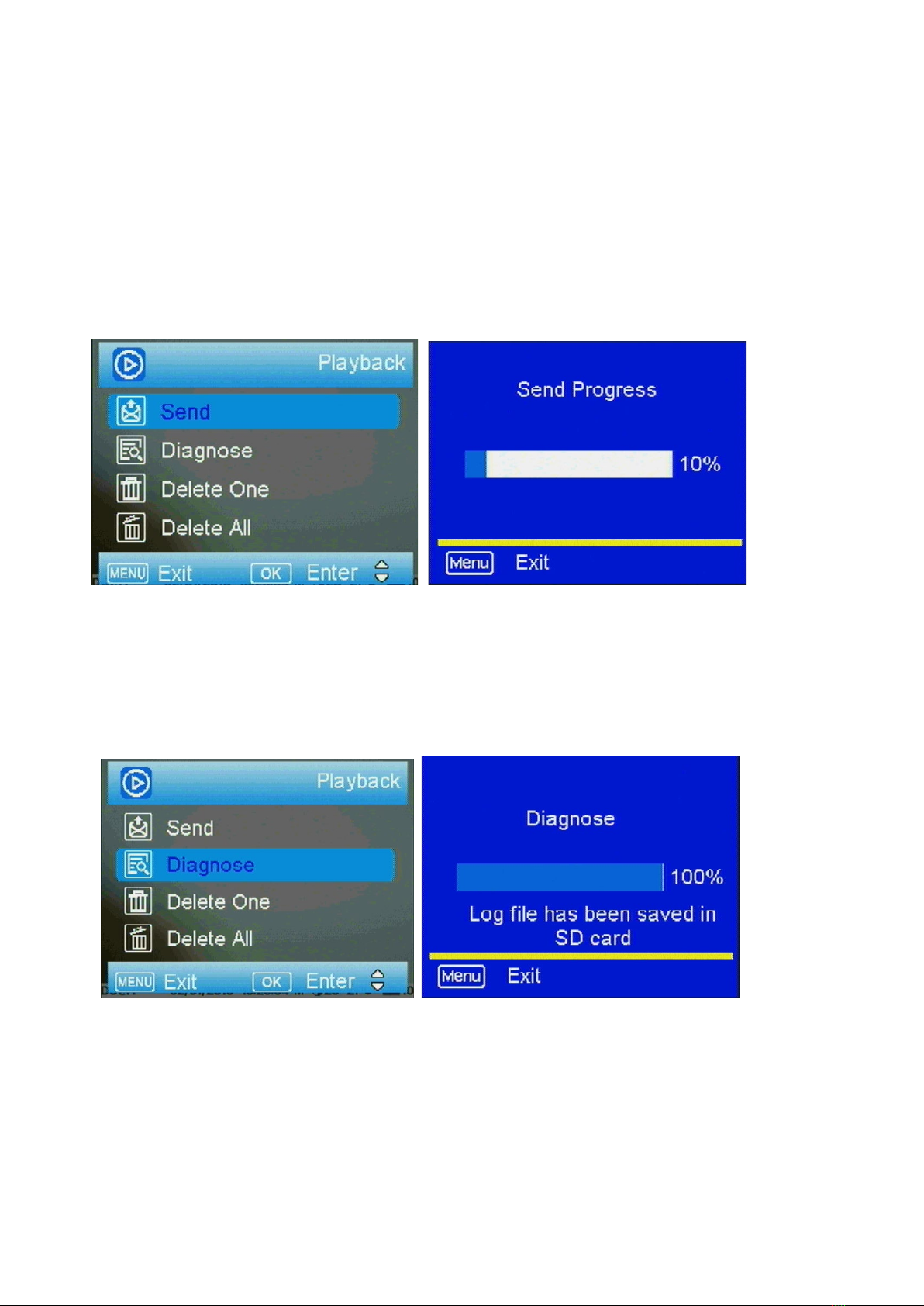

2) Press the MENU button, choose send. You will see sending progress
shows on the LCD screen.
Once you see send successful, check your email account or phone
see if you receive the correct photo.
If the sending is failure, choose Diagnose to generate a Log file and
the FAQ will help you with your Log file.

Page 9
5 Connecting CAM to cloud server
In order to ‘send’ your photo to your cloud account or mobile phone,
you need adding CAM towards them first
Open website: https://www.linckeazi.com/index.html
Login, if you already have an account, or simply register one with your
email account.

Page 10
Click ‘Add Device’, a form will pop out requesting basic information
for your CAM.
Name your CAM, and add location description if necessary, the SN and
IMEI can be found labeled inside CAM:
SN labeled at the side of SIM slit
IMEI labeled at the front panel

Page 11
5.1 Send a photo to cloud server
Choose a picture, press MENU, Select ‘send’, the process of sending
photo will present at screen, and within minutes your cloud account will
receive your photo.
If the above test has accomplished, then you can slide power switch
to ‘on’ and start using it take photo or video automatically.

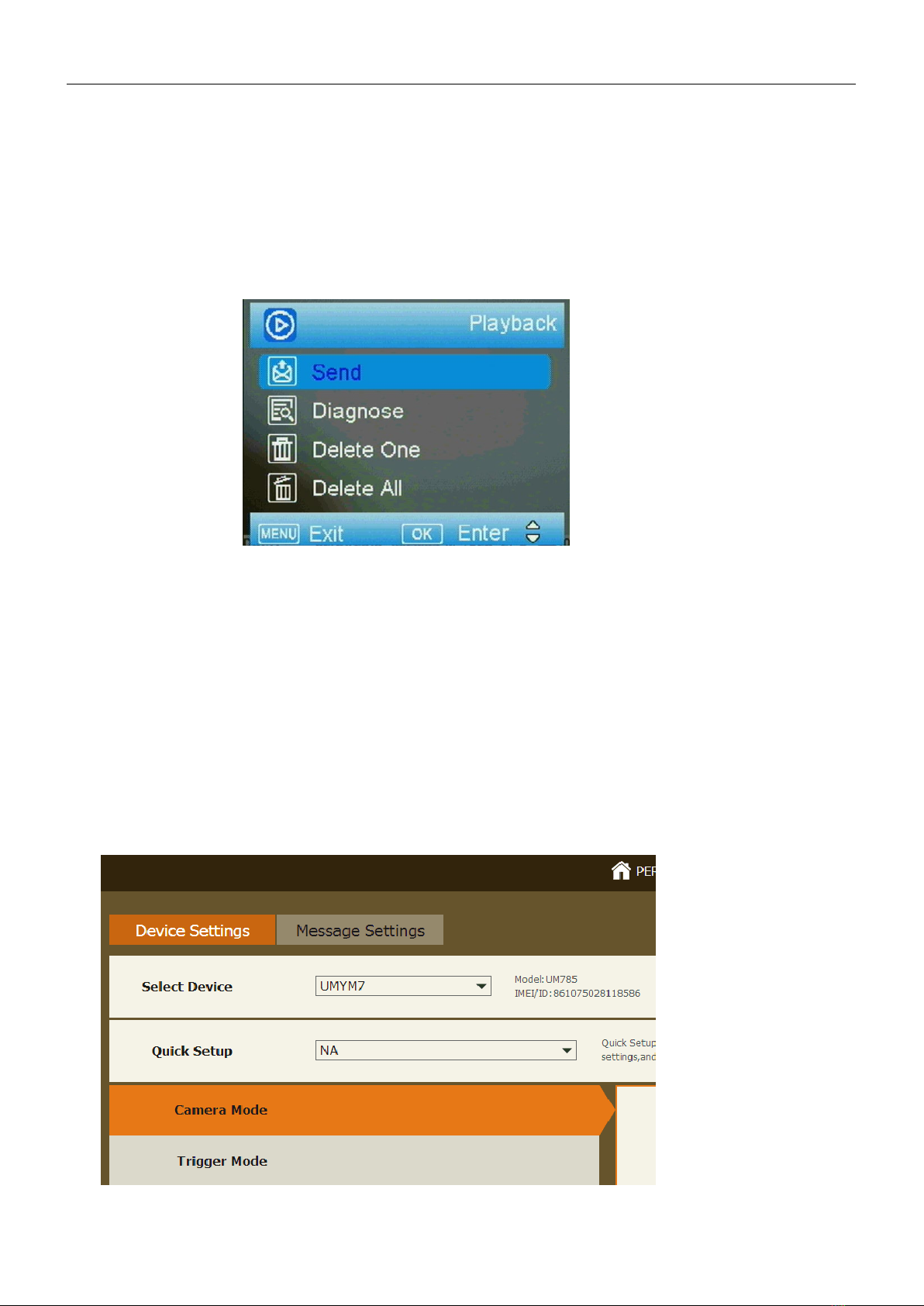

6 Setting CAM with Web Portal or APP
The CAM can be set up conveniently with cloud server and APP as well.

Page 12
As to APP, Please search“Linckeazi”
in Google play(or scan the QR code) and install the APK file to your
smart phone.
Android APP IOS APP
The adding and setting process is quite similar to cloud server.
Fig 18

Page 13

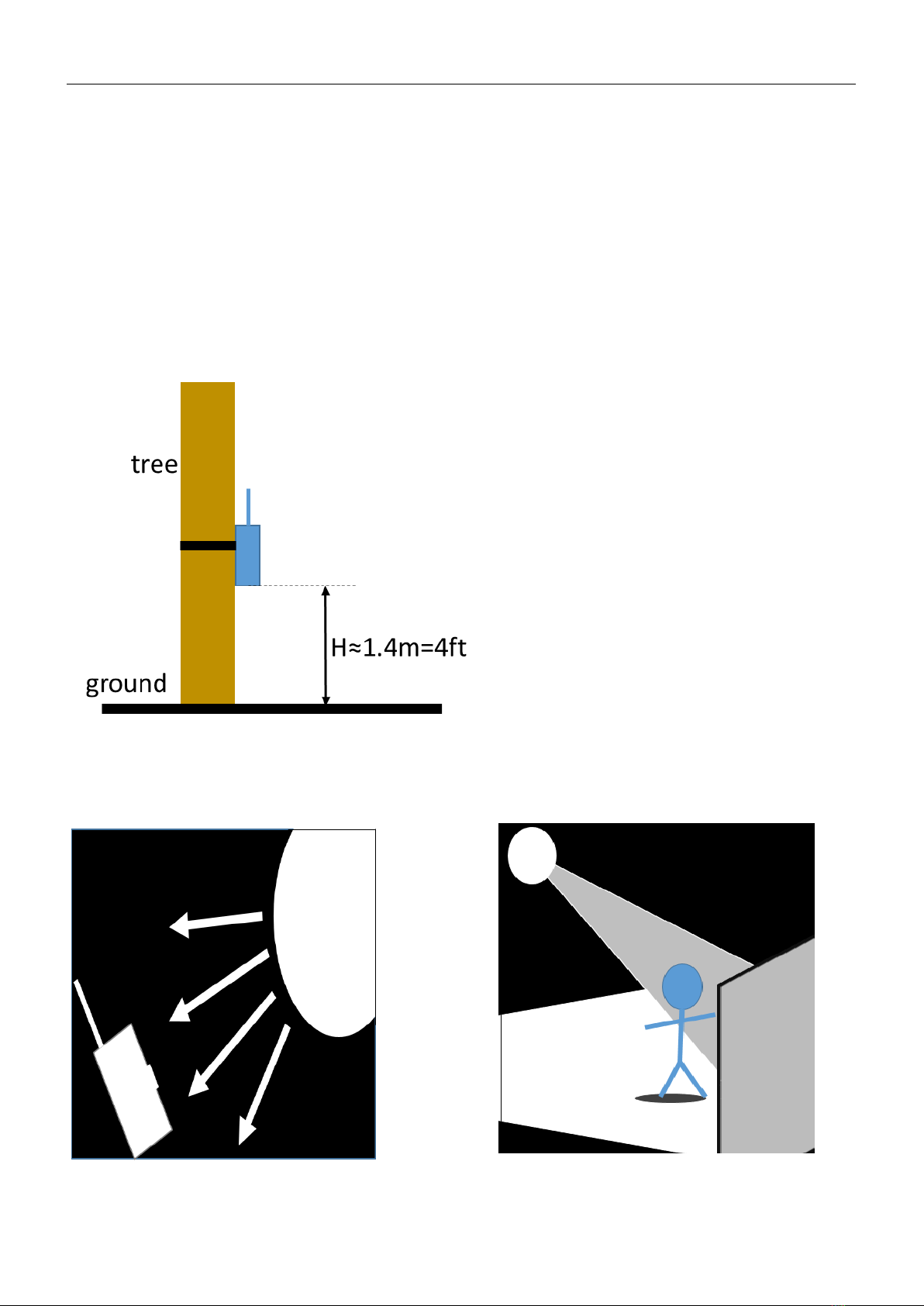

2Mount tips
Use cable or belt cross the holes or slits, tie it up at trees or anywhere
you want to mount.
Don’t not facing directly Use the forest for reflection,
towards light source.add more light to your target.
Fig 22
Mount the camera
approximately 1.4m off the
ground facing straight forward
as level as possible. For
instance, place the camera
7m-10m from a field edge facing
the woods. For the inside of
timber, positioning the camera
facing a thicket approximately
7m-10m away.

Page 14
Appendix Ⅰ: Technical Specifications
Picture Resolution 12MP, 10MP, 8MP(Interpolated), 3MP
Lens F/NO=2.4 FOV(Field of View)=46°
Frequency Bands
UMTS/HSPA+: 900/2100MHz
GSM/EDGE:850/900/1800/1900MHz
IR-Flash 6m, 12m
Display Screen 2.4” LCD
Memory Card Up to 64GB
Video Resolution WVGA,720P,1080P
PIR Sensor Multi Zone
PIR Sensitivity Adjustable (High/Normal/Low)
Trigger Time 0.6s
Operation/Storage Tem. -30 - +60°C / -40 - +80°C
Trigger Interval 0s – 60 min.
Time lapse
3,4,5‐55 min (in 5 min increments)
；
1-8 hours(in 1 hour increments)；
12 hours/16 hours/20 hours/24 hours
Photo Burst 1–10
Video Length 5–60s
Power Supply 4×AA, 8×AA or 12AA
Stand-by Current < 0.25 mA (<6mAh/Day)
Low Battery Alert LED Indicator; SMS alert
Mounting Rope/Belt/Python lock
Dimensions 140 x87 x55 mm
Operation Humidity 5% - 90%
Security authentication FCC, CE, RoHS

Page 15
Appendix Ⅱ: Parts List
Part Name
Quantity
Digital Camera
One
Belt
One
User Manual
One
Antenna
One

Declaration of Conformity to Directive
2014/53/EU
CE Caution：
Hereby, the manufacturer declares that this camera is in
compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU. Pls ask for
your distributor for a copy of the Declaration of
Conformity to Directive 2014/53/EU.

Customer Name:
Contact Tel:
Date of Purchase:
Series No:
Fault Description:
Retailer:
The camera manufacturer provides 24 months of warranty
service for this product against manufacturing defects or
malfunctions. If your camera fails to function under normal use
within 2 years, the camera manufacturer will repair or replace the
camera at no charge. The purchase receipt must be included
from an authorized retailer to validate the warranty.
Improper use of the camera resulting in damage is not covered by
this warranty.
The camera manufacturer can provide repair service, after the
warranty expiration. The customer will be responsible for any
charges on parts, labor and shipping costs. Please contact the
manufacturer for more details.
Please contact the area dealer for more details.
