URBANGLIDE URBANRIDE 80AE User manual

1
ENGLISH
URBANRIDE 80AE
USER MANUAL
PLEASE READ THE USER MANUAL AND WARRANTY
BOOK CAREFULLY BEFORE USE

2
WARNING
When using the electric scooter, you are exposed to the risk of collisions, falls or loss
of control. To ride safely, read and follow the instructions and warnings in the manual.
Check the regulations and laws in your country to know where and how you can
legally use your scooter. You must comply with the laws applicable to vehicles and
pedestrians.
This manual includes only the basic instructions of the scooter. It does not cover
serious or fatal accidents that may occur. The driver must use self-judgment and
common sense to detect potential hazards. By using the scooter, you accept all
possible risks that may result from the misuse of this product.

3
TABLE OF CONTENTS
The different parts 4
Security 5
Product 6
Demonstration 6
Unfolding 7
Folding 8
DRIVING OPERATION 9
Preparation 9
Getting started 9
ADVANTAGES OF THE SAFETY TRIGGER 10
BATTERY AND CHARGER 11
Battery 11
Charger 11
Description of the charge 11
MAINTENANCE 12
Battery 12
Daily maintenance 12

4
Parts name
Note:
The safety trigger is also the one that turns on and off the electrical system.
Handlebar
Support handlebar
Buckle of size adjustment
Front suspension
Front wheel
Battery + control device
Engine with rear wheel
Brake
Rear suspension
Anti-skid pedal
Folding buckle
Reflective light
Front mudguard
Security trigger
Crutch

5
SECURITY
1. This product is for adults, it is limited to one adult at a time. Do not try to get two
adults up at the same time on the product. This product is not suitable for minors.
2. Always inspect the scooter before using it. Proper maintenance and regular
inspection of your product reduces the risk of accidents.
3. Please wear a safety helmet and other protective equipment when riding.
4. Do not drive in heavy traffic or on dangerous roads. Do not violate local laws and
regulations.
5. Please use the product in spacious and unobstructed areas. Do not drive between
cars.
6. Do not attempt dangerous action while riding, keep both hands and feet on the
scooter.
7. Do not attempt to climb steps / sidewalks longer than 3cm, which could damage your
scooter and the internal electrical system.
9. Do not use the scooter when the temperature is below 0 ° C.
10. Get off the aircraft if you cross a poor road with holes and imperfections.
11. Do not use on oily or iced grounds.
12. Adjust the handlebars to your size to ensure maximum safety.
13. Avoid damage to the electronic parts, do not put your scooter in more than 4cm of
water, and do not wash your scooter with water at high pressure.
14. For your protection, do not use the scooter in bad weather, heavy rain or high
winds.
15. Do not ride if you have been drinking.

6
PRODUCT

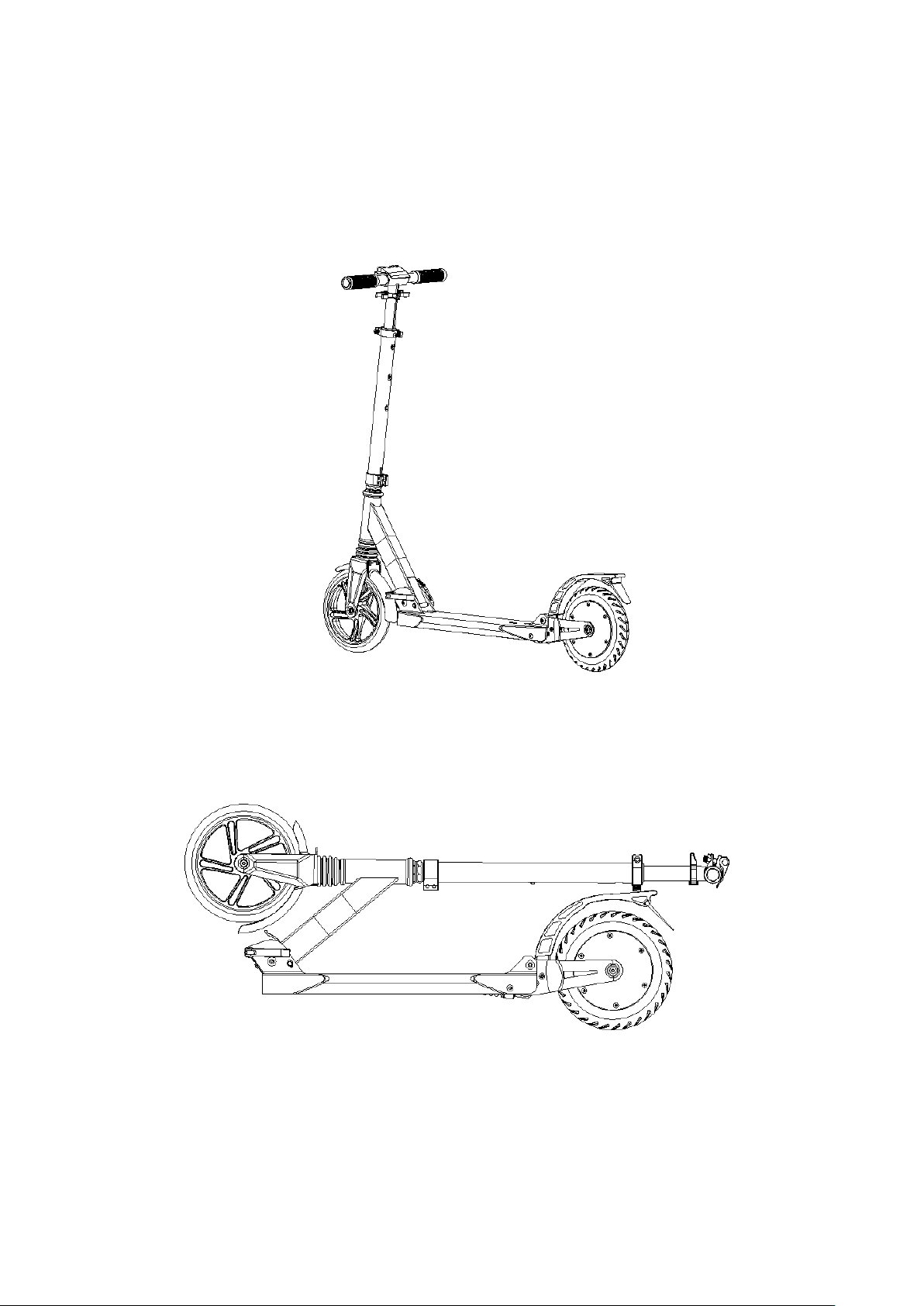

Demonstration
A –Unfolded
B - Folded

7
1st step: Unfolding
1. Unfold the stand to hold the scooter.
2. Press and hold the folding handle with your hand.
3. Pull the handlebar upwards until the handlebar is on its own. Place your left foot
on the board to keep the scooter.
4. Lock the hook in front to stabilize the handlebar.
5. Press down on the two balls on the handlebars, then straighten the two handles
on the handlebars to the stop.
6. Press the ball on the handle and raise the handlebar to adjust the height.
7. Lock the position with the buckle.

8
2nd Step: Folding
1. Loosen the loop.
2. Press the ball on the handle and lower the handlebar to retract it.
3. Press the balls on the handles and lower them.
4. Open the loop between the handle and the tray.
5. Retract the handle on the board to fold the scooter.
6. Tighten the loop.

9
DRIVING OPERATION
Preparation
1. Choose an appropriate place.
2. Open the scooter as described on page 7.
3. Adjust the handlebars to fit your size.
Getting started
1. Press the safety trigger for a moment until you hear a sound that means the
scooter is on.
2. Place both hands on the handlebars and one foot on the scooter.
3. If you accelerate enough, you can put your second foot on the scooter.
4. If you want to brake, press the rear wheel with one of your feet.
5. When the speed slows down, consider resting your foot on the ground so as not
to fall.
6. When you are stopped, you can restart by repeating the operation, or press the
safety trigger for a moment until you hear a sound that means the scooter is off.
Note:
The sound emitted during the ignition is longer than that emitted during the
extinction.

10

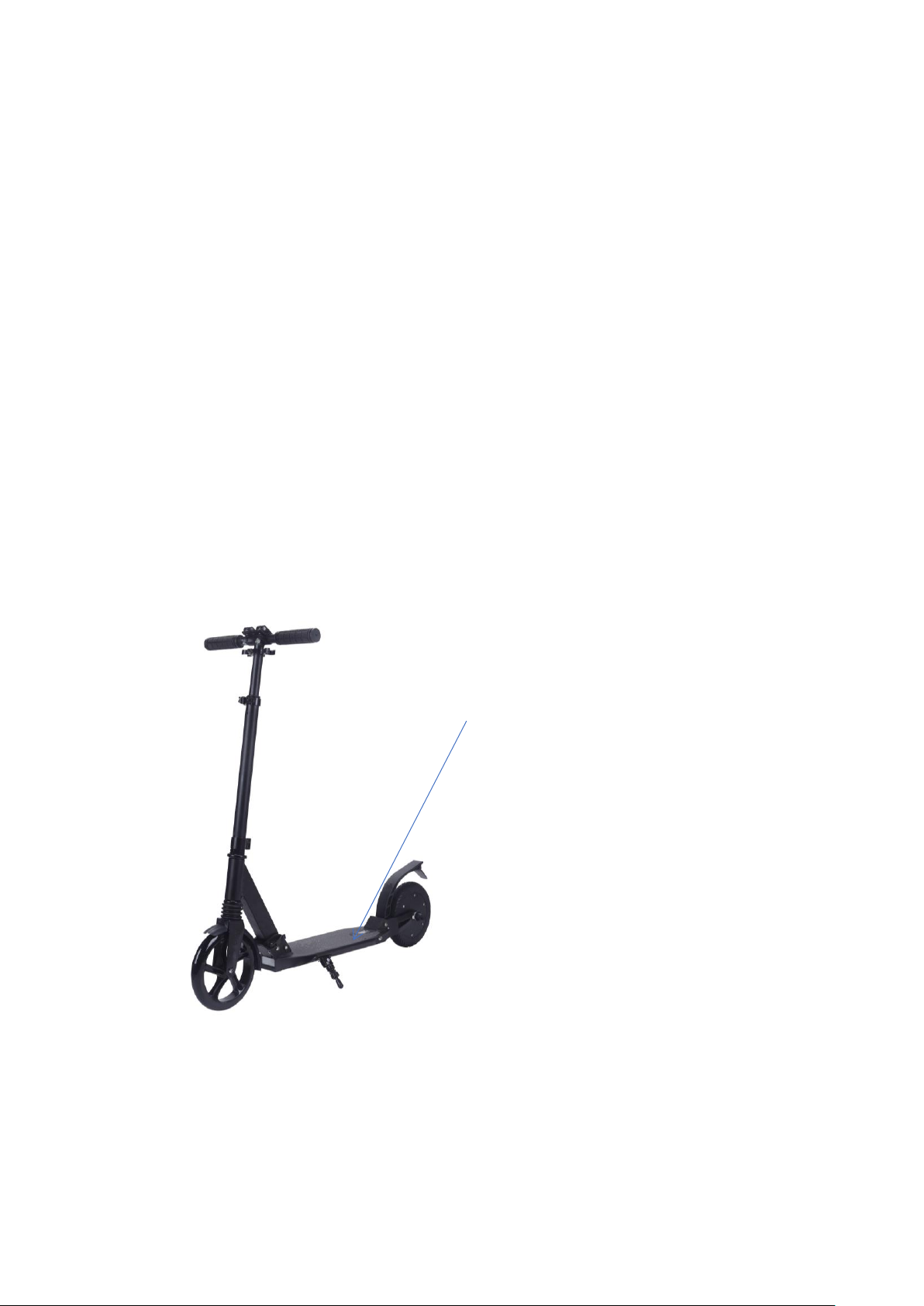

The benefits of the safety trigger
1. If you forget to turn off your device, it turns itself off after 5 minutes.
2. When you want to slow down, press the tab above the rear wheel to brake. This
action exits the recall mode. Compared to other scooters, the electric system will
help slow down to ensure safety and comfort.
3. The scooter provides efficient energy, allowing longer trips with the same battery.
4. If you do not wish to use the recall mode, simply remove your foot from the safety
trigger.
Security trigger

11
BATTERY AND CHARGER
Each scooter is composed of a special lithium battery and a smart charger. Please do
not use chargers of other brands as this may damage the battery. The bad charge of
the battery removes all responsibilities from the company.
Battery
When using for the first time, please charge the scooter. It is possible to charge the
battery at any time, to ensure constant power.
CAUTION: Do not use other brands of batteries, they will not work and may damage
your scooter.
Please charge your battery every 3 months if you do not use it. Avoid contact with
water, shock, and any other factors that may damage the battery and are not covered
by the warranty.
Charger
The company provides smart chargers, which stop when fully loaded 100%. The
charging time is normally not more than 5 hours.
Description of the charge
Remove the protective rubber, and insert the cable into the hole provided for this
purpose. Connect the cable to an electrical outlet.
A red light tells you when your device is charging. A green appears when your device
is charged.

12
MAINTENANCE
Battery
Please do not leave the battery in extreme temperature conditions. Not above 50 ° C
and not below 20 ° C. Do not dispose of the battery in fire and avoid all risks that
could damage the battery. Avoid draining the battery thoroughly to maximize its life.
Note: If you do not use your device for 60-90 days, the battery may be worse than it
was at the beginning. This loss of autonomy is due to lack of use and is therefore not
covered by the warranty.
Daily maintenance
Do not expose the scooter to the sun or wet places for a long time. Be sure to keep
the scooter clean and dry.
To clean your appliance, use a damp cloth and mild detergent.
Do not use alcohol, gasoline, kerosene, or other aggressive, corrosive chemical
solvents to clean your appliance, which will damage the appearance and internal
structure of the scooter.
When not using your scooter, please store it in a dry, cool and dust free place. Avoid
external exposure as much as possible, as this may damage the device and shorten
its life.

13
DECLARATION OF CONFORMITY
We undersigned PACT INFORMATIQUE hereby declare that the product.
Model: Urban Ride 80AE
Type: Scooter
Function: Electric scooter
Product description: Foldable scooter with electric assistance
Meets all standards and technical directives below:
DIRECTIVES
2014/30/EU
2014/35/EU
2006/42/EC
TESTS STANDARD
EN61000-6-3:2007+A1:2011
EN60335-1:2012+A11:2014
EN ISO 12100:2010
EN61000-6-1:2007
EN60204-1:2006+A1:2009
CERTIFICATES/REPORTS
TMC181108111
TMC181108112
All radio emission tests were carried out by the laboratories mentioned below:
Contact details of the manufacturer or agent:
PACT Informatique
33 rue du ballon
93160 Noisy le Grand –France
Contact details of the person authorized to edit the technical document:
Michael Barreira
33 rue du ballon
93160 Noisy le Grand - France
This declaration shall be issued under the responsibility of the manufacturer and, where appropriate, of his
representative
12/11/2018
Representative of the company:
PACT INFORMATIQUE
33 rue du ballon –
Noisy le Grand- France
Maurice Bodokh
CEO
SGS-CSTC Sandards Tachnical Servicies
(Shanghai) Co.,Ltd.
588 West Jindu Road, Xinqiao, songjiang,
201612 Shanghai, China
TMC Testing Services (Shenzhen) Co., Ltd.
1/F., Block A, Xinshindai Gongrong Industrial Park,
No. 2, Shihuan Road, Shilong Community, Shiyan
Street, Boan District, Shenzhen, China

14

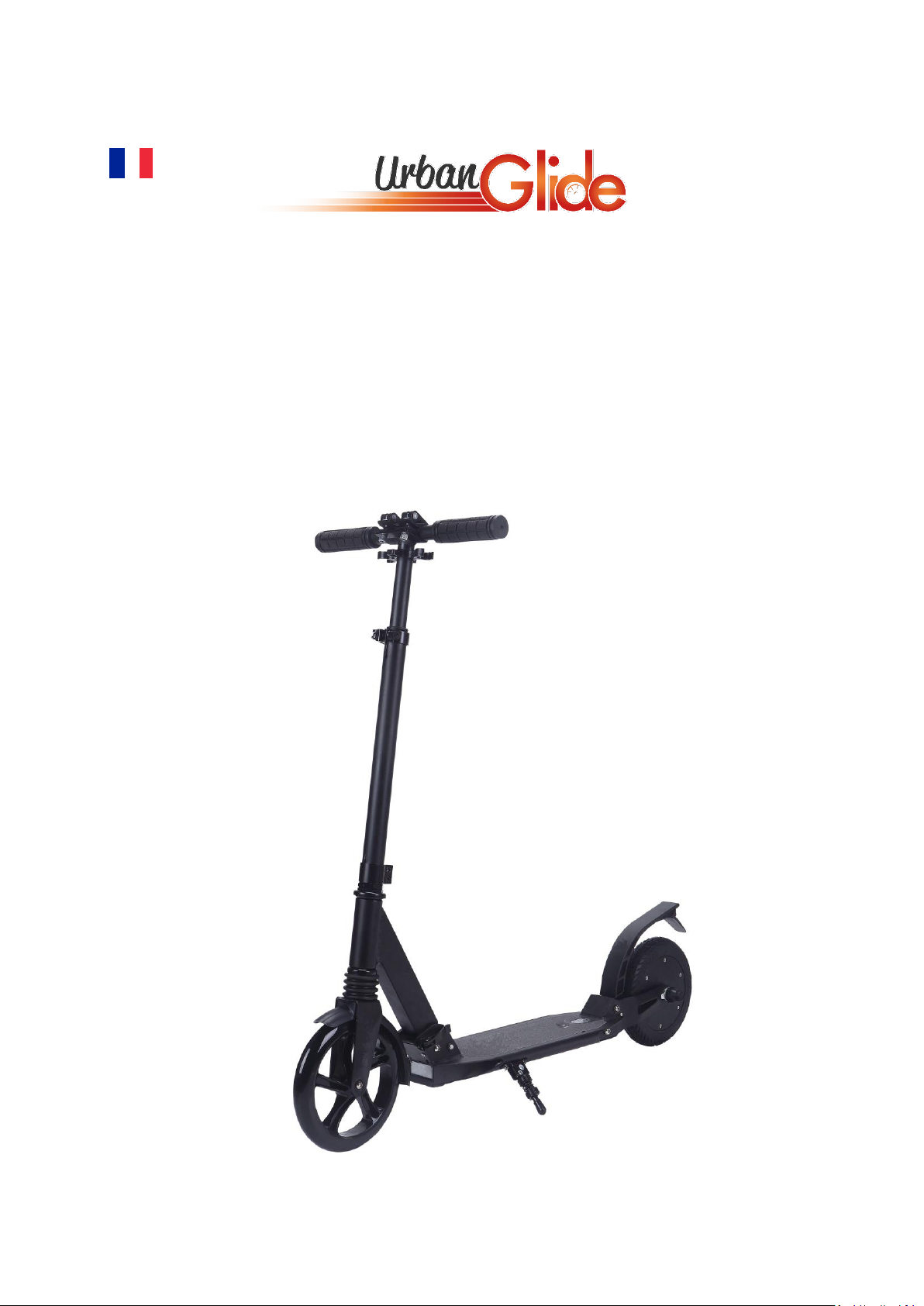

URBANRIDE 80AE
Manuel d’utilisation
VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D’UTILISATION ET LE
LIVRET DE GARANTIE AVANT UTILISATION
FRANÇAIS

15
ATTENTION
Lorsque vous utilisez la trottinette électrique, vous vous exposez à des risques de collisions,
de chutes ou de pertes de contrôle. Pour rouler en toute sécurité, veuillez lire et suivre les
instructions et les avertissements présents dans le manuel.
Vérifiez les réglementations et les lois en vigueur dans votre pays pour savoir où et comment
vous pouvez utiliser votre trottinette légalement. Vous devez respecter les lois applicables
aux véhicules et aux piétons.
Ce manuel inclut uniquement les instructions basiques de la trottinette. Il ne couvre pas les
accidents graves ou mortels qui peuvent survenir. Le conducteur doit faire preuve d’auto
jugement et de bon sens pour détecter les dangers éventuels. En utilisant la trottinette, vous
acceptez tous les risques éventuels que peut engendrer la mauvaise utilisation de ce produit.

16
SOMMAIRE
Les différentes parties 17
Sécurité 18
Produit 19
Démonstration 19
Dépliage 20
Pliage 21
OPERATION DE CONDUITE 22
Préparation 22
Mise en route 22
AVANTAGES DE LA GACHETTE DE SECURITE 23
BATTERIE ET CHARGEUR 24
Batterie 24
Chargeur 24
Description de charge 24
MAINTENANCE 25
Batterie 25
Entretien au quotidien 25

17
Les différentes parties
Note :
La gâchette de sécurité est aussi celle qui permet d’allumer et d’éteindre le système électrique.
Guidon
Support guidon
Boucle d’ajustement de la
taille
Suspension avant
Roue
avant
Batterie + dispositif de
commande
Moteur avec roue arrière
Frein
Suspension arrière
Pédale d’anti-
dérapage
Boucle de pliage
Lumière réfléchissante
Garde-boue avant
Gâchette de sécurité
Béquille

18
SECURITE
1. Ce produit est pour adulte, il est limité à un adulte à la fois. N’essayez pas de faire monter
deux adultes en même temps sur le produit. Ce produit n’est pas adapté pour les mineurs.
2. Pensez à toujours inspecter la trottinette avant de vous en servir. Le bon entretien et
l’inspection régulière de votre produit réduisent les risques d’accident.
3. Veuillez porter un casque de sécurité et autre équipement de protection lorsque vous
roulez.
4. Ne roulez pas dans des trafics denses ou sur des routes dangereuses. N’enfreignez pas les
lois et les réglementations locales.
5. Veuillez utiliser le produit dans des zones spacieuses et dégagées. Ne roulez pas entre les
voitures.
6. Ne tentez pas d’action dangereuse lorsque vous roulez, laissez vos deux mains et vos deux
pieds sur la trottinette.
7. Ne tentez pas de monter sur des marches/trottoirs de plus de 3cm, ce qui pourrait
endommager votre trottinette et le système électrique interne.
9. N’utilisez pas la trottinette lorsque la température est inférieure à 0°C.
10. Descendez de votre appareil si vous traversez une route de mauvaise qualité, avec des
trous et des imperfections.
11. N’utilisez pas votre appareil sur des terrains huileux ou glacés.
12. Ajustez le guidon à votre taille pour vous assurer un maximum de sécurité.
13. Evitez les dégâts sur les parties électroniques, ne pas mettre sa trottinette dans plus de
4cm d’eau, et ne pas laver sa trottinette avec de l’eau à haute pression.
14.Pour votre protection, n’utilisez pas la trottinette par mauvais temps, grosses pluies ou
vents violents.
15. Ne roulez pas si vous avez consommé de l’alcool.

19
PRODUIT
Démonstration
A –Déplié
B - Plié

20

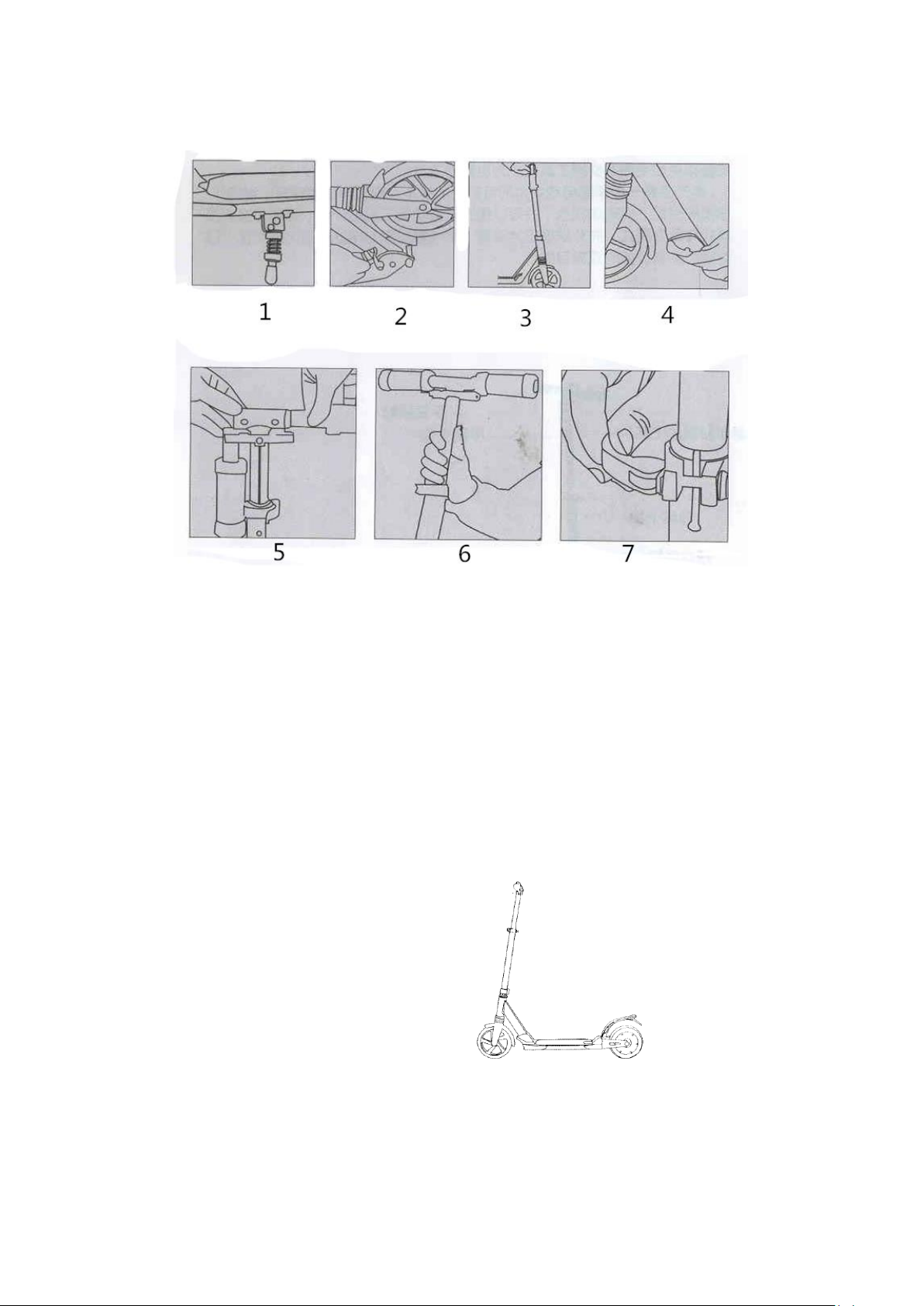

1ère étape : Dépliage
1. Dépliez la béquille pour maintenir la trottinette.
2. Appuyez et maintenez la poignée pliante avec votre main.
3. Tirez le guidon vers le haut jusqu’à ce que le guidon tienne tout seul. Placez votre pied
gauche sur le plateau pour maintenir la trottinette.
4. Verrouillez le crochet devant pour stabiliser le guidon.
5. Appuyez sur les deux billes présentes sur le guidon, puis redressez les deux manches
constituant le guidon jusqu’à la butée.
6. Appuyez sur la bille présente sur le manche puis levez le guidon pour régler la hauteur.
7. Verrouillez la position grâce à la boucle.
