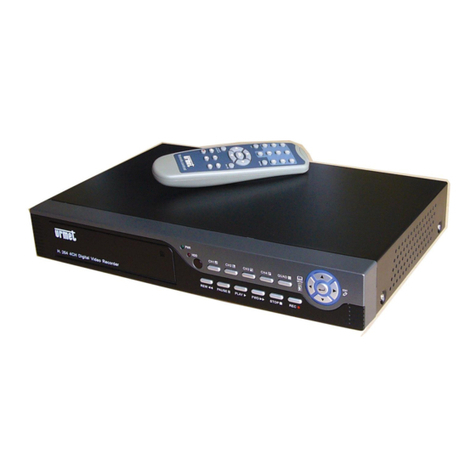

urmet domus 1093/040 User manual

DS1093-005C
Mod.
1093
8 VIDEO CHANNEL LOOPING DVR H.264 DCIF/CIF
Ref. 1093/040
16 VIDEO/AUDIO CHANNEL DVR H.264 DCIF/CIF
Ref. 1093/041
9 VIDEO CHANNEL LOOPING DVR H.264 CIF
Ref. 1093/042
16 CHANNEL VIDEO/1 OUT/4 SPOT MATRIX DVR H.264 CIF
Ref. 1093/043
16 VIDEO CHANNEL LOOPING DVR H.264 DCIF
Ref. 1093/045
INSTRUCTION MANUAL

TABLE OF CONTENTS
1General information ............................................................................................................................... 7
1.1 Product description................................................................................................................. 7
1.1.1 General features.................................................................................................................................... 7
1.2 Opening the package ............................................................................................................. 7
1.2.1 Contents of the package ....................................................................................................................... 7
1.3 Warnings ................................................................................................................................8
1.3.1 Power .................................................................................................................................................... 8
1.3.2 Safety precautions................................................................................................................................. 8
1.3.3 Installation precautions.......................................................................................................................... 8
1.3.4 Cleaning the device............................................................................................................................... 8
1.3.5 hard disk................................................................................................................................................ 8
1.3.6 Image recording .................................................................................................................................... 8
1.3.7 Privacy and Copyright ........................................................................................................................... 9
1.3.8 Software upgrades ................................................................................................................................9
1.3.9 Firmware upgrades ............................................................................................................................... 9
1.3.10 Network installation .............................................................................................................................. 9
1.3.11 Network connection.............................................................................................................................. 9
2Description of the parts ....................................................................................................................... 10
2.1 Front panel ........................................................................................................................... 10
2.2 Rear panel ............................................................................................................................ 14
2.3 IR remote control .................................................................................................................. 16
2.3.1 Batteries .............................................................................................................................................. 17
2.4 Mouse................................................................................................................................... 18
3Connections.......................................................................................................................................... 19
3.1 Alarm outputs ....................................................................................................................... 19
3.1.1 Terminal board for 1093/040 - 1093/041 - 1093/045 devices.............................................................. 19
3.1.2 Terminal board for 1093/042 - 1093/043 devices ................................................................................ 19
3.1.3 Example of alarm output use............................................................................................................... 20
4General settings ................................................................................................................................... 21
4.1 Switch-on.............................................................................................................................. 21
4.1.1 Switch-on from rear panel ................................................................................................................... 21
4.1.2 Switch-on from front panel................................................................................................................... 21
4.2 How to switch the device off................................................................................................. 22
4.2.1 Direct switch-off................................................................................................................................... 22
4.2.2 Switch-off from main menu.................................................................................................................. 22
4.3 Remote control enable ......................................................................................................... 22
4.4 Messages on the monitor ..................................................................................................... 22
4.5 Live mode ............................................................................................................................. 23
4.6 Programming menu.............................................................................................................. 24
5DVR configuration................................................................................................................................25
5.1 Display menu........................................................................................................................ 26
5.1.1 Display menu basic settings................................................................................................................ 26
5.1.1.1 Language ...................................................................................................................................................... 26
5.1.1.2 Require password ......................................................................................................................................... 26
5.1.1.3 Video standard .............................................................................................................................................. 27
5.1.1.4 Menu trasparency ......................................................................................................................................... 27
5.1.1.5 VGA resolution .............................................................................................................................................. 27
5.1.1.6 Date............................................................................................................................................................... 27
Time .............................................................................................................................................................. 275.1.1.7
5.1.2 Screen menu advanced settings ......................................................................................................... 27
5.1.2.1 Unit name...................................................................................................................................................... 27
5.1.2.2 Device ID....................................................................................................................................................... 29
5.1.2.3 Screen saver ................................................................................................................................................. 29
5.1.2.4 Enable scaler ................................................................................................................................................ 29
5.1.2.5 Brightness ..................................................................................................................................................... 29
5.1.2.6 Daylinght saving time .................................................................................................................................... 29
DS1093-005C 2

5.2 Camera menu....................................................................................................................... 30
5.2.1 Cameras menu basic settings ............................................................................................................. 31
5.2.1.1 Select camera ............................................................................................................................................... 31
5.2.1.2 Video signal loss ........................................................................................................................................... 31
5.2.1.2.1
2.1.2.2
Alarm in schedule..................................................................................................................................................31
Handle method ......................................................................................................................................................315.
5.2.1.3 Motion det.level ............................................................................................................................................. 32
5.2.1.3.1 Alarm.....................................................................................................................................................................33
5.2.1.3.2 Motion alarm handle..............................................................................................................................................33
5.2.1.3.3 Handle warning .....................................................................................................................................................34
5.2.1.4 Copy to camera............................................................................................................................................. 34
5.2.2 Camera menu advanced settings........................................................................................................ 35
5.2.2.1 Name............................................................................................................................................................. 35
5.2.2.2 Brightness ..................................................................................................................................................... 36
5.2.2.3 Contrast......................................................................................................................................................... 36
5.2.2.4 Hue................................................................................................................................................................ 36
5.2.2.5 Saturation...................................................................................................................................................... 36
5.2.2.6 OSD (date - day - time) ................................................................................................................................. 37
5.2.2.7 Privacy zone.................................................................................................................................................. 37
5.2.2.8 Video tampering ............................................................................................................................................ 38
5.2.2.8.1 Alarm in schedule..................................................................................................................................................40
5.2.2.8.2 Handle method ......................................................................................................................................................40
5.3 Recording menu ................................................................................................................... 41
5.3.1 Recording menu basic settings ........................................................................................................... 41
5.3.1.1 Hard disk full ................................................................................................................................................. 41
5.3.1.2 Duration......................................................................................................................................................... 41
5.3.1.3 Select camera ............................................................................................................................................... 42
5.3.1.4 Resolution ..................................................................................................................................................... 42
5.3.1.5 Bit rate........................................................................................................................................................... 42
5.3.1.6 Frame rate..................................................................................................................................................... 43
5.3.1.7 Enable rec ..................................................................................................................................................... 43
5.3.1.8 Schedule ....................................................................................................................................................... 43
5.3.1.8.1
3.1.8.2
Day........................................................................................................................................................................43
All day ...................................................................................................................................................................445.
Copy to camera............................................................................................................................................. 445.3.1.9
5.3.2 recording menu advanced settings...................................................................................................... 45
5.3.2.1 Stream type................................................................................................................................................... 45
5.3.2.2 Type bit rate .................................................................................................................................................. 45
5.3.2.3 Quality ........................................................................................................................................................... 46
5.3.2.4 Pre REC ........................................................................................................................................................ 46
5.3.2.5 Post REC ...................................................................................................................................................... 46
5.4 Network menu ...................................................................................................................... 46
5.4.1 Network menu basic settings............................................................................................................... 47
5.4.1.1 Type NIC ....................................................................................................................................................... 47
5.4.1.2 IP................................................................................................................................................................... 47
5.4.1.3 Mac ............................................................................................................................................................... 47
5.4.1.4 Port................................................................................................................................................................ 47
5.4.1.5 Mask.............................................................................................................................................................. 47
5.4.1.6 Gateway ........................................................................................................................................................ 47
5.4.1.7 E-mail ............................................................................................................................................................ 48
5.4.2 Net ork menu advanced settings ....................................................................................................... 49w
5.4.2.1 DNS............................................................................................................................................................... 49
5.4.2.2 MCast IP ....................................................................................................................................................... 49
5.4.2.3 IP Event Server ............................................................................................................................................. 50
5.4.2.4 Port................................................................................................................................................................ 50
5.4.2.5 NAS IP .......................................................................................................................................................... 50
5.4.2.6 Dir.................................................................................................................................................................. 50
5.4.2.7 Web port........................................................................................................................................................ 50
5.4.2.8 PPPoe ........................................................................................................................................................... 50
5.5 Alarms menu ........................................................................................................................ 51
5.5.1 Alarms menu basic settings................................................................................................................. 51
5.5.1.1 Alarm input .................................................................................................................................................... 51
5.5.1.2 Alarm type ..................................................................................................................................................... 51
5.5.1.3 Handling ........................................................................................................................................................ 52
5.5.1.3.1 Record camera......................................................................................................................................................52
5.5.1.3.2 Record schedule ...................................................................................................................................................52
5.5.1.3.3
5.1.3.4
Handle method ......................................................................................................................................................53
PTZ linkage ...........................................................................................................................................................535.
5.5.1.4 Copy to input ................................................................................................................................................. 54
5.5.1.5 Alarm out....................................................................................................................................................... 54
5.5.1.6 Time .............................................................................................................................................................. 54
5.5.1.7 Alarm out time ............................................................................................................................................... 55
5.5.1.7.1 Day........................................................................................................................................................................55
5.5.1.8 Copy to alarm out.......................................................................................................................................... 55
DS1093-005C 3

5.5.2 Exc ptions........................................................................................................................................... 56e
5.5.2.1 Exception ...................................................................................................................................................... 56
5.5.2.1.1 Hard disk full..........................................................................................................................................................56
5.5.2.1.2 Hard disk error.......................................................................................................................................................56
5.5.2.1.3 Network failure ......................................................................................................................................................57
5.5.2.1.4 IP addr conflict.......................................................................................................................................................57
5.5.2.1.5 Illegal acces ..........................................................................................................................................................57
5.5.2.1.6 NTSC/PAL differ....................................................................................................................................................57
5.5.3 Stop alarms ......................................................................................................................................... 57
5.6 PTZ menu............................................................................................................................. 58
5.6.1 PTZ menu basic settings ..................................................................................................................... 59
5.6.1.1 Select camera ............................................................................................................................................... 59
5.6.1.2 Baud rate....................................................................................................................................................... 59
5.6.1.3 Data bits ........................................................................................................................................................ 59
5.6.1.4 Stop bits ........................................................................................................................................................ 59
5.6.1.5 Parity ............................................................................................................................................................. 59
5.6.1.6 Protocol ......................................................................................................................................................... 59
5.6.1.7 Address PTZ ................................................................................................................................................. 59
Copy to camera............................................................................................................................................. 595.6.1.8
5.6.2 PTZ menu advanced settings.............................................................................................................. 60
5.6.2.1 Flow ctrl......................................................................................................................................................... 60
5.6.2.2 Preset............................................................................................................................................................ 60
5.6.2.2.1
6.2.2.2
Preset....................................................................................................................................................................61
Adjust ....................................................................................................................................................................615.
5.6.2.3 Pattern........................................................................................................................................................... 61
5.6.2.4 Patrol............................................................................................................................................................. 61
5.7 Preview menu....................................................................................................................... 62
5.7.1 Preview mode...................................................................................................................................... 63
5.7.2 Monitor (1093/043 model only)............................................................................................................ 63
5.7.2.1 Main chan...................................................................................................................................................... 63
5.7.2.2 Spot 1 - 2 - 3 - 4 ............................................................................................................................................ 63
5.7.3 Alarm aux out (1093/043 model only).................................................................................................. 63
5.7.4 Display delay ....................................................................................................................................... 63
5.7.5 switch time........................................................................................................................................... 63
5.7.6 Audio preview (1093/041 model only) ................................................................................................. 64
5.7.7 Layout ................................................................................................................................................. 64
5.8 User menu ............................................................................................................................ 64
5.8.1 Password change................................................................................................................................65
5.8.2 Add ng a new user............................................................................................................................... 66i
5.8.2.1 Defining a password for a new user.............................................................................................................. 66
5.8.2.2 Defining authorisations for a new user.......................................................................................................... 67
5.8.3 Deleting a user .................................................................................................................................... 68
5.9 Setting menu ........................................................................................................................ 69
5.9.1 Menu RS-232 ...................................................................................................................................... 70
5.9.1.1 Baud rate....................................................................................................................................................... 70
5.9.1.2 Data bits ........................................................................................................................................................ 70
5.9.1.3 Stop bits ........................................................................................................................................................ 70
5.9.1.4 Parity ............................................................................................................................................................. 70
5.9.1.5 Flow............................................................................................................................................................... 70
5.9.1.6 Mode ............................................................................................................................................................. 71
5.9.1.6.1 Console .................................................................................................................................................................71
5.9.1.6.2 Trasparent channel ...............................................................................................................................................71
5.9.1.6.3 PPP.......................................................................................................................................................................71
5.9.2 Restore default .................................................................................................................................... 72
5.9.3 Upgrade............................................................................................................................................... 72
5.9.4 Hard disk ............................................................................................................................................. 72
5.9.5 Settings ............................................................................................................................................... 73
5.9.6 Reboot................................................................................................................................................. 73
5.9.7 Pover off.............................................................................................................................................. 73
5.9.8 Events log............................................................................................................................................ 74
5.9.8.1 By type .......................................................................................................................................................... 74
5.9.8.2 By time .......................................................................................................................................................... 75
5.9.8.3 By type & time ............................................................................................................................................... 75
All .................................................................................................................................................................. 755.9.8.4
5.9.9 System info.......................................................................................................................................... 76
6DVR functions....................................................................................................................................... 77
6.1 Manual recording.................................................................................................................. 77
6.1.1 Channels ............................................................................................................................................. 78
6.1.2 Status .................................................................................................................................................. 78
6.1.3 Start/Stop ............................................................................................................................................ 78
DS1093-005C 4

6.1.4 Start all ................................................................................................................................................ 78
6.1.5 Stop all ................................................................................................................................................ 78
6.2 Recording search ................................................................................................................. 79
6.2.1 Channel ............................................................................................................................................... 79
6.2.2 Second ................................................................................................................................................ 79
6.2.3 Rec type(search by event)................................................................................................................... 79
6.2.4 Time (search by date and time)........................................................................................................... 79
6.2.5 Card No............................................................................................................................................... 79
6.2.6 Search................................................................................................................................................. 79
6.3 Playing a recording............................................................................................................... 80
6.3.1 Play ..................................................................................................................................................... 80
6.4 Backup.................................................................................................................................. 81
6.4.1 Save device......................................................................................................................................... 81
6.4.2 Copy a video segments ....................................................................................................................... 81
6.4.3 Copy to file .......................................................................................................................................... 82
6.4.4 Copy to video segment........................................................................................................................ 82
6.4.5 Backup today....................................................................................................................................... 82
6.5 Displaying information on installed hard disks ..................................................................... 83
6.6 PTZ control ........................................................................................................................... 83
6.6.1 Selecting the PTZ camera ................................................................................................................... 83
6.6.2 Adjusting the PTZ camera ................................................................................................................... 83
6.6.3 Recalling a preset position .................................................................................................................. 83
6.6.4 Adjusting the panning speed ............................................................................................................... 83
6.7 Spot outputs (1093/043 device only).................................................................................... 84
7Using the internet explorer interface.................................................................................................. 85
7.1 Minimum software installation requirements ........................................................................ 85
7.2 Protection and security configuration ................................................................................... 85
7.3 How to switch the device on................................................................................................. 87
7.4 Home page and descriptionof the interface ......................................................................... 88
7.4.1 Information area .................................................................................................................................. 88
7.4.2 DVR and connected channels status interface.................................................................................... 89
7.4.3 VIEW BUTTONS ................................................................................................................................. 89
7.4.4 Viewing grid......................................................................................................................................... 89
7.4.5 Function buttons.................................................................................................................................. 90
7.4.6 View settings ....................................................................................................................................... 90
7.4.7 PTZ interface....................................................................................................................................... 90
7.4.8 Management/configuration buttons ..................................................................................................... 91
7.4.8.1 Logout ........................................................................................................................................................... 91
7.4.8.2 Live (Play) ..................................................................................................................................................... 92
7.4.8.3 Playback........................................................................................................................................................ 94
4.8.3.1 Control panel.........................................................................................................................................................977.
7.4.8.4 Config............................................................................................................................................................ 98
7.4.8.4.1 DVR parameter configuration (DVSR Para)...........................................................................................................99
7.4.8.4.2 Video channel configuration (Chan Para) ............................................................................................................100
7.4.8.4.3 Serial port configuration (Serial Para)..................................................................................................................105
7.4.8.4.4 Alarm parameter configuration (Alarm Para) .......................................................................................................105
7.4.8.4.5 User configuration (User) ....................................................................................................................................108
7.4.8.4.6 Utilites (Other) .....................................................................................................................................................111
7.4.8.5 Log .............................................................................................................................................................. 112
8File player software use..................................................................................................................... 113
8.1 Main window and description of software .......................................................................... 113
8.1.1 Menu bar ........................................................................................................................................... 114
8.1.2 Scroll bar ........................................................................................................................................... 114
8.1.3 Control buttons .................................................................................................................................. 114
8.1.4 Playback interface ............................................................................................................................. 114
8.2 Advanced software functions ............................................................................................. 115
8.2.1 File (F)............................................................................................................................................... 115
8.2.1.1 Open ........................................................................................................................................................... 115
8.2.1.2 Close ........................................................................................................................................................... 115
8.2.1.3 Cut the file ................................................................................................................................................... 115
8.2.1.4 Exit .............................................................................................................................................................. 115
8.2.2 View (V)............................................................................................................................................. 115
8.2.2.1 Fullscreen.................................................................................................................................................... 116
DS1093-005C 5

8.2.2.2 Video size.................................................................................................................................................... 116
8.2.2.3 Information .................................................................................................................................................. 116
8.2.2.4 Watermarking.............................................................................................................................................. 116
8.2.2.5 Multi display ................................................................................................................................................ 117
8.2.3 Control (C)......................................................................................................................................... 117
8.2.3.1 Play/Pause .................................................................................................................................................. 117
8.2.3.2 Stop............................................................................................................................................................. 117
8.2.3.3 Step Forward............................................................................................................................................... 117
8.2.3.4 Step Backward ............................................................................................................................................ 117
8.2.3.5 Goto Start.................................................................................................................................................... 117
8.2.3.6 Goto End ..................................................................................................................................................... 117
8.2.3.7 Locate To .................................................................................................................................................... 117
8.2.3.8 Video Control .............................................................................................................................................. 118
8.2.3.9 Rewind ........................................................................................................................................................ 118
8.2.4 Option (P) .......................................................................................................................................... 118
8.2.4.1 File stream input.......................................................................................................................................... 119
8.2.4.2 Deflash ........................................................................................................................................................ 119
8.2.4.3 High image quality....................................................................................................................................... 119
8.2.4.4 High Fluid .................................................................................................................................................... 119
8.2.4.5 Image Sharpen............................................................................................................................................ 119
8.2.4.6 Throw B- frame ........................................................................................................................................... 119
8.2.4.7 Decode Type............................................................................................................................................... 119
8.2.4.8 Display type................................................................................................................................................. 119
8.2.4.9 Time select.................................................................................................................................................. 119
8.2.4.10 Reset buffer............................................................................................................................................... 119
8.2.4.11 Capture Picture Type ................................................................................................................................ 119
8.2.4.12 Set Capture Picture Path .......................................................................................................................... 119
8.2.4.13 Convert to AVI........................................................................................................................................... 119
8.2.5 Help (H) ............................................................................................................................................. 119
9Specifications (pal format) ................................................................................................................ 120
10 Maximum recording time with 320gb hard disk .............................................................................. 122
10.1 1093/040 (8 channel video looping H.264 DCIF/CIF) ........................................................ 122
10.2 1093/041 (16 channel video/audio H.264 DCIF/CIF) ......................................................... 123
10.3 1093/042 (9 channel video looping H.264 CIF).................................................................. 124
10.4 1093/043 (16 channel video/1 out/4 spot matrix H.264 CIF).............................................. 125
10.5 1093/045 (16 channel video looping H.264 DCIF) ............................................................. 126
Appendix - using Easy Dome // Ref. 1092/650 .......................................................................................... 128
1. Connecting Easy Dome //................................................................................................... 128
2. Easy Dome programming on DVR ..................................................................................... 129
3. Easy Dome // camera control ............................................................................................. 129
4. Recalling preset Easy Dome // camera positions............................................................... 130
DS1093-005C 6

1 GENERAL INFORMATION
Dear Customer,
Thank you for purchasing this product.
This document describes how to install and use URMET Domus Digital Video Recorder models 1093/040, 1093/041,
1093/042, 1093/043 and 1093/045.
Read this manual which contains information for correct, safe use carefully. Keep this manual at hand so that you can
refer to it when needed.
1.1 PRODUCT DESCRIPTION
URMET Domus DVR DVS series 1093/040, 1093/041, 1093/042, 1093/043 and 1093/045 products are digital video
recorders capable of recording several cameras on internal hard disk while showing live camera feed at the same time.
Alternatively, up to two recorded cameras can be shown at the same time.
1.1.1 GENERAL FEATURES
 High video image quality
 H.264 compression
 Alarm type events: motion detection, sensors, video tampering and video signal interruption
 400 fps live and recording, for all models on 16 channels
 225 fps live and recording, for all models on 9 channels
 200 fps live and recording, for all models on 8 channels
 10/100 network interface
 Full remote viewing and management using dedicated software and Internet Explorer web page
 Dual-stream function: possibility of generating two independent video streams: one main steam for recording to
local hard disk; one secondary steam for remote viewing via network (optional)
 Compatible with Urmet DVR DVS mobile video surveillance software
 Capable of housing up to eight internal hard disks (*) or four hard disks plus one CD burner for backup
 Management for various devices in a network using dedicated software
 Front control screen
 41 key IR remote control
 Mouse-compatible
 DVD burner-compatible
 Player watermarking function (certification that the pictures during playback were actually recorded by a certain
device)
 Simplified, multilingual configuration menu
 Compact size
eIMPORTANT NOTE
(*) Contact an authorised Service Centre for increasing the recording capacity of 1093/040, 1093/041, 1093/042,
1093/043 and 1093/045 devices.
1.2 OPENING THE PACKAGE
Check that the packing and the contents are not visibly damaged. Contact the retailer immediately if parts are either
missing or damaged. Do not attempt to use the device in this case. Send the product back in its original packing if it is
damaged.
1.2.1 CONTENTS OF THE PACKAGE
 DVR
 Power cord with Italian plug
 Power cord with Shuko plug
 RS232 cable
 Mouse
 USB cable
 IDE cable
 Brackets for installation in a rack
 Instruction manual
 IR remote control (two size AAA batteries included)
 Fastening screws
 CD-ROM containing software and manuals
 Straight UTP Cat-5 network cable with RJ45 connector
 Twisted UTP Cat-5 network cable with RJ45 connector
 RJ45 →RS485 adapter cables (1093/040, 1093/041, and 1093/045 models only)
eIMPORTANT NOTE
Accessories may be changed without prior notice.
DS1093-005C 7

1.3 WARNINGS
1.3.1 POWER
 Check mains rating before plugging the power unit in.
 Do not pull the cable to unplug the device.
 Switch the device off before unplugging power unit. This operation must not be performed when the DVR is
recording, playing or from the configuration menu. Stop recordings and playback in progress before
disconnecting power from the device to prevent damaging the hard disk beyond repair.
1.3.2 SAFETY PRECAUTIONS
 Keep the device away from rain and humidity to prevent risk of fire and electrocution. Do not introduce material
(solid or liquid) inside. If this should accidentally occur, disconnect the device from the mains and have it
inspected by qualified personnel.
 Never open the device. In all cases, contact a qualified personnel or authorised service centre for repairs.
 Keep the device away from children, to prevent accidental damage.
 Do not touch the device with wet hands to prevent electrical shock or mechanical damage.
 Do not use the device if it should fall or the external casing is damaged. Risk of electrocution if the device is
used in such conditions. Contact the retailer or authorised installer.
1.3.3 INSTALLATION PRECAUTIONS
 To prevent overheating the device, arrange it in a position allowing the flow of air through the slots in the casing.
Ensure at least 5 cm of free space when installing inside a rack. For the same reason, do not install sources of
heat, such as radiators or hot air ducts. Keep away from direct sunlight. Do not install in areas subject to
excessive dust, mechanical vibrations or shocks.
 Do not arrange this device on an unstable surface, such as a tottering or slanted table. The device could fall
causing injury or mechanical failures.
 Do not install the device in a place where it could be exposed to humidity or water. Do not direct a jet of water
onto the device: risk of fire, electrocution or mechanical failure.
 Stop using the device if water or other material should penetrate inside: risk of fire and electrocution. Contact
the retailer or authorised installer.
 Do not place heavy or heat generating objects on top of the device: this could damage the casing and/or
increase internal temperature causing faults.
 Do not cover the device with a cloth while it is running to prevent deforming the external casing and overheating
the internal parts: risk of fire, electrocution and mechanical failure.
 Keep magnets and magnetised objects away from the device to prevent faults.
 Do not use the device in presence of smoke, vapour, humidity, dust or intense vibrations.
 Wait for a while before operating a device immediately after transporting it from a cold place to a warm place
and vice versa. Wait on average for three hours: this will allow the device to adapt to the new ambient
(temperature, humidity, etc.).
1.3.4 CLEANING THE DEVICE
 Rub delicately with a dry cloth to remove dust and dirt.
 Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry cloth alone.
 Do not use volatile liquids (such as petrol, alcohol, solvents, etc.) or chemically treated clothes to clean the
device to prevent deformation, deterioration or scratches to the paint finish.
1.3.5 HARD DISK
 The hard disk installed in this device is sensitive to shocks, differences in temperature and vibrations.
Disrespect of these precautions can compromise correct operation of the device and cause loss of data stored
on the hard disk.
 If repairs are required, it is advisable to backup all important data before taking the device to the service centre.
URMET Domus S.p.A. is not liable for loss of stored data.
 The addition of a hard disk must be performed by qualified technical personnel or by contacting the technical
assistance service.
1.3.6 IMAGE RECORDING
 This device was designed to record images, not as a burglar alarm. URMET Domus S.p.A. cannot be held liable
for loss or damage following theft sustained by the user.
 Make a test recording before using the device to make sure that is working correctly. Please note that URMET
Domus S.p.A. is not liable for loss of stored data consequent to loss or damage caused by incorrect observation
installation, use, improper use or malfunctioning of the device.
 This device contains precision electronic components. Protect the device from shocks to ensure correct
recording of images.
DS1093-005C 8

1.3.7 PRIVACY AND COPYRIGHT
 The DVR DVS digital video recorder is a device for CCTV systems. Recording of imagines is subject to the laws
in force in your country. Recording of images protected by copyright is forbidden.
 Product users shall be responsible for checking and respecting all local rules and regulations concerning
monitoring and recording video signals. The manufacturing SHALL NOT BE LIABLE for use of this product not
in compliance with the laws in force.
1.3.8 SOFTWARE UPGRADES
 Regularly check the specific section of the manufacturer’s web site at http://www.urmetdomus.it for software
upgrades.
1.3.9 FIRMWARE UPGRADES
 Periodically check the URMET Domus SpA Customer Service Technical Area for firmware upgrades.
1.3.10 NETWORK INSTALLATION
 The factory default IP address of the DVR is the following: 192.0.0.64.
 Using the DVR Network OSD Menu, assign the DVR an IP address which hasn't been assigned to other
devices in order to prevent any network conflict.
 After assigning a proper IP address to the DVR, it can be connected to the Network.
1.3.11 NETWORK CONNECTION
 When connecting to a remote PC (using Client Software or I.E.), remember that all video channels used by the
PC correspond to a “unicast” type connection (TCP, RTP,UDP etc).
 The DVR is capable of supporting up to 24 “unicast” connections, i.e. up to 24 video channels connected in
TCP, RTP, UDP.
DS1093-005C 9

2 DESCRIPTION OF THE PARTS
2.1 FRONT PANEL
Closed flap
Figure 1: front panel for 1093/040 - 1093/041 - 1093/042 - 1093/043 - 1093/045 devices
Figure 2: front panel detail
ID PART DESCRIPTION
1
Flap
2
Video
wn on a remote
PC
 amber: this indicates that recording on hard disk is in progress
and the channel is being displayed on a remote PC
 red blinking: this indicates an error on the respective hard disk
channel/hard disk state LED
 green: this indicates that recording on the hard disk is in
progress
 red: this indicates that the channel is being sho
Power LED
 off: this indicates that the device is not powered ( switch at
“0”)
 red: this indicates that the device is powered ( switch at “1”)
 green: this indicates that the device is running.
Power button: press this button to switch the front panel on and off directly
3
IR sensor: receives the IR signals from the remote control.
1 2 3
DS1093-005C 10

DVR state LED
 READY
• green: this indicates that the device has successfully ended
initialisation operations and is ready for use
 STATUS
• off: this enables controls from front panel or IP keypad
• green: this indicates that use of the remote control is
enabled
• red: this indicates that use of the RS485 control is enabled
• amber: this indicates that use of the remote control and
keypad are enabled
 ALARM
• red: this indicates that an alarm has occurred
 MODEM
• green: this indicates that the modem is successfully
connected
 HDD
• red blinking: this indicates that the hard disk is in use.
 Link
• green: this indicates that the device is connected to the
network
 Tx/Rx
• green blinking: this indicates traffic on the
transmission/reception network
0
Numeric function 0 in input mode.
In “Preview” →“Preview mode” →“Layout” menu hides all LIVE video
signals
1 Numeric function 1 in input mode - input selection 1.
2 / ABC Numeric function 2/ABC in input mode (in rapid sequence) - input selection
2.
3 / DEF Numeric function 3/DEF in input mode (in rapid sequence) - input selection
3.
4 / GHI Numeric function 4/GHI in input mode (in rapid sequence) - input selection
4.
5 / JKL Numeric function 5/JKL in input mode (in rapid sequence) - input selection
5.
6 / MNO Numeric function 6/MNO in input mode (in rapid sequence) - input selection
6.
7 / PQRS Numeric function 7/PQRS in input mode (in rapid sequence) - input
selection 7.
8 / TUV Numeric function 8/TUV in input mode (in rapid sequence) - input selection
8.
9 / WXYZ Numeric function 9/WXYZ in input mode (in rapid sequence) - input
selection 9.
F1 / LIGHT Allows to display information on installed hard disks (total capacity - free
space - functional state). Press again to quit info mode.
F2 / AUX
This is used to display information on the device version, such as: name,
unit, model, serial number, firmware version, encoder version. Press again
to quit info mode.
DS1093-005C 11

▲
Selection button.
Plays images at different speeds faster than normal playback speed (1x);
press several times to change speed. In PTZ mode, moves camera position
and changes displacement speed.
▼
Selection button.
Plays images at different speeds slower than normal playback speed (1x);
press several times to change speed. In PTZ mode, moves camera position
and changes displacement speed.
►
Selection button.
Plays images forwards in defined steps (30 seconds). In PTZ mode, moves
camera position and changes displacement speed.
◄
Selection button.
Plays images backwards in defined steps (30 seconds). In PTZ mode,
moves camera position and changes displacement speed.
ENTER / ►
Confirmation button.
Enables/disenables options. In playback mode, starts, stops and pauses
and allows frame-by-frame feed.
MENU / WIPER
This is used to access the configuration menu.
To enables/disenable button buzzer (press for 5 seconds).
Hides/shows the control interface bar in playback mode.
ESC Quits the configuration menu and goes back by one step.
PLAY / AUTO Accesses playback mode.
Audio is cut off in playback mode (1093/041 only).
REC / SHOT Accesses manual recording mode. In PTZ mode, recalls preset functions.
EDIT / IRIS+
Confirmation button.
Enables/disenables options. In playback mode, selects recordings. In PTZ
mode, allows to adjust iris opening of the connected speed dome.
PTZ / IRIS- Accesses PTZ control mode. In PTZ mode, allows to adjust iris opening of
the connected speed dome.
A / FOCUS+
In LIVE mode, shows or hides the camera state bar. In character entry
mode, selects character type to be entered. In PTZ mode, adjusts focus of
connected speed dome.
PREV / FOCUS-
In LIVE mode, shows camera monitor in groups of 4-9-12-16. Allows to quit
configuration menu and go back to LIVE mode. In PTZ mode, adjusts focus
of connected speed dome.
In two-channel playback mode, allows to display the main channel and the
secondary channel.
ZOOM + In PTZ mode, adjusts zoom of connected speed dome.
3
MON / ZOOM-
Selects the spot output where to show the selected video channels (function
available for 1093/043 only).
In PTZ mode, adjusts zoom of connected speed dome.
DS1093-005C 12

Flap open
Press lightly at “▲” to open the front flap.
Figure 3: detail of 1093/040 - 1093/041 - 1093/045 devices
Figure 4: detail of 1093/042 - 1093/043 devices
ID DESCRIPTION
4 Slot for inserting a CD / DVD unit (optional)
5
USB port: port for connecting a USB device for:
• back-up to external hard disk
• back-up to CD / DVD burner
• firmware upgrades
• connecting a mouse
The port may also be used to connect a USB Hub * compatible** device
* A USB Hub is a sort of USB port extension. The DVR is provided with one only USB port. It you want to connect
several devices (hard disk, burner, etc.), you will need to use a device called ‘Hub’. This device may be plugged
directly into the DVR USB port.
** Recommended model: HUB USB 2.0 ultra compact 4 port, Trust 14591.
4
4 5
DS1093-005C 13

2.2 REAR PANEL
1093/040 (8 channel video looping H.264 DCIF/CIF)
1093/041 (16 channel video/audio H.264 DCIF/CIF)
1093/042 (9 channel video looping H.264 CIF)
1093/043 (16 channel video/1 out/4 spot matrix DVR H.264 CIF)
1093/045 (16 channel video looping H.264 DCIF)
1
2
3
4
5 6 7 8 9 10 11 12 13
14
15
1
17
3
4
5 6 7 8 9 10 11 13
14
15
1
2
7 13
14
15
4
1
2
14
15
9 11
1
2
3
4
5 6 7 8 9 10 11 12 13
14
15
18 12
12
7 134 9 11 18 12
19
16
16
16
16
16
DS1093-005C 14

ID DESCRIPTION
1 Vide np d to connect the cameras. They have 75 Ωterminals.o i ut BNC sockets: These are use
2 Video loopthrough BNC sockets: These are used to mirror the corresponding input video signal.
3 BNC LINE- IN sockets: These are used to connect the audio source (e.g. 1090/190 microphone)
4 BNC VOUT socket: Multi-screen main monitor output.
5 BNC AOUT socket: Audio output to be connected to monitors with audio input (e.g. 1090/435,
1092/415, 1092/417, 1092/419).
6
USB port: port for connecting a USB device for:
• back-up to external hard disk
• back-up to CD / DVD burner
• connecting a mouse
• firmware upgrades
The port may also be used to connect a USB Hub* compatible** device
7 VGA video output: Mirrors the video signal on VOUT ouput.
8 RJ45 sockets: For connecting keypad (input/output for cascading connections with other DVRs).
9 RJ45 socket: For connecting to a PC via RS-232 port (using wire provided).
10 RJ45 socket: For connecting to PTZ devices (Easy Dome // Ref.1092/650) via RS-485 port (using
connectors provided).
11 RJ45 network socket: For connecting to the network via UTP cat.5 wire.
12 Extractable terminal board: For alarm inputs/outputs for all models. For 1093/042 and 1093/043 only,
also RS-485 and keypad connections.
13 Ground terminal/wire connector
14 Power socket: Use the wire provided to power the device.
15 Power on/off switch.
16 Ventilation grid: Do not obstruct the flow of air: the device could be damaged.
17 Audio input BNC sockets.
18 RS-485 line impedance dip switch (for correct RS-485 line termination, all the dip switches must be
switched either up or down)
19 BNC AUX VOUT sockets: monitor spot/matrix outputs.
* A USB Hub is a sort of USB port extension. The DVR is provided with one only USB port. If you want to connect
several devices (hard disk, burner, etc.), you will need to use a device called ‘Hub’. This device may be plugged
directly into the DVR USB port.
** Recommended model: HUB USB 2.0 ultra compact 4 port, Trust 14591.
DS1093-005C 15

2.3 IR REMOTE CONTROL
Figure 5: IR remote control
ID BUTTON DESCRIPTION
1 POWER Off button.
2 DEV Remote control enabling button.
0 e.Numeric function 0 in input mod
In “Anteprima” →“Visualizzazione a” →“Disposizione” menu hides all LIVE video signals
1 Numeric function 1 in input mode - input selection 1.
2 Numeric function 2/ABC in input mode (in rapid sequence) - input selection 2.
3 Numeric function 3/DEF in input mode (in rapid sequence) - input selection 3.
4 Numeric function 4/GHI in input mode (in rapid sequence) - input selection 4.
5 Numeric function 5/JKL in input mode (in rapid sequence) - input selection 5.
6 Numeric function 6/MNO in input mode (in rapid sequence) - input selection 6.
7 Numeric function 7/PQRS in input mode (in rapid sequence) - input selection 7.
8 Numeric function 8/TU id sequence) - input selection 8.V in input mode (in rap
3
9 Numeric function 9/WXYZ in input mode (in rapid sequence) - input selection 9.
4 EDIT Confirmation button. Enables/disenables options. In playback mode, selects recordings.
5 A In LIVE mode, shows or hides the camera state bar. In character entry mode, selects
character type to be entered.
6 REC Accesses manual recording mode.
7 PLAY Accesses playback mode.
Audio is cut off in playback mode (1093/041 only).
8 INFO Not enabled.
9 VOIP/MON Selects the s
p
ot out
p
ut where to show the selected video channels
(
function available for
DS1093-005C 16

1093/043 only).
10 MENU
This is used to access the configuration menu.
To enables/disenable button buzzer (press for 5 seconds).
Hides/shows the control interface bar in playback mode.
11 PREV
In LIVE mode, shows camera monitor in groups of 4-9-12-16. Allows to quit configuration
menu and go back to LIVE mode. In two-channel playback mode, allows to display the
main channel and the second y channel.ar
▲
on button. Plays imag at different speeds faster than normal playback speed
(1x); press several times to change speed. In PTZ mode, moves camera position and
changes displacement speed.
esSelecti
▼
Selection button. Plays images at different speeds slower than normal playback speed
(1x); press several times to change speed. In PTZ mode, moves camera position and
changes displacement speed.
►Selection button. Plays images forwards in defined steps (30 seconds). In PTZ mode,
moves camera position and changes displacement speed.
◄Selection button. Plays images backwards in defined steps (30 seconds). In PTZ mode,
moves camera position and changes displacement speed.
12
ENTER / ►Confirmation button. Enables/disenables options. In playback mode, starts, stops and
pauses and allows frame-by-frame feed.
13 PTZ Accesses PTZ control mode.
14 ESC Quits the configuration menu and goes back by one step.
15 Not enabled buttons
16 F1 Allows to display information on installed hard disks (total capacity - free space -
functional state). Press again to quit info mode.
17 IRIS/FOCUS/ZOOM In PTZ mode, adjusts iris opening, focus and zoom of the connected speed dome.
18 F2 This is used to display information on the device version, such as: name, unit, model,
serial number, firmware version, encoder version. Press again to quit info mode.
2.3.1 BATTERIES
The remote control is powered by two size AAA batteries (included). To install, open the battery compartment cover and
insert in the compartment respecting the polarity shown. Close the cover after inserting the batteries. Point the remote
control towards the DVR receiver to use it.
Dispose of used batteries properly. Do not litter.
DS1093-005C 17

2.4 MOUSE
Figure m6: ouse and control buttons (picture as indication only)
ID BUTTON OPERATION DESCRIPTION
Click
• Selection function in CONFIGURATION MENU
• In LIVE mode, shows camera monitor in groups of 4-9-12-16 (function like that
of the PREV button).
• In INPUT mode, confirms.
• In CONFIGURATION AREA mode, selects/deselects the box.
1 Left
button
Double-click • Accesses the configuration menu (function like that of the MENU button).
Click
• ode, access PTZ control (function like that of the PTZ button).
eyboard’ for entering values.
In LIVE m
• In INPUT mode, views/displays a ‘virtual k
• In CONFIGURATION AREA mode, confirms the operation and goes back to
the previous menu.
Turn forwards
PLAY• In LIVE mode, access playback controls (function like that of the
button).
• In PTZ mode, displays the next channel.
• In CONFIGURATION MENU, selects the required value in the selected field.
In INP• UT mode, moves the cursor to the next character.
me time.• In CONFIGURATION AREA mode, selects all boxes at the sa
2 Scroll
wheel
Turn backwards
• In LIVE mode, access recording controls (function like that of the REC button).
• ION MENU, selects the required value/item in the selected
e cursor to the previous character.
• In PTZ mode, displays the previous channel.
In CONFIGURAT
field.
• In INPUT mode, moves th
• In CONFIGURATION AREA mode, deletes the set area.
Click
• and goes back by one step (function like that of
• In LIVE mode, displays the next channel.
• In INPUT mode, deletes.
• In CONFIGURATION AREA mode, exits without saving the set area and goes
back to the previous menu.
Exits the configuration menu
the ESC button).
3 Right
button
Double-click • In LIVE mode, displays the selected video channel full screen.
1 - Left button
3 - Right button
2 - Scroll wheel
DS1093-005C 18

3 CONNECTIONS
3.1 ALARM OUTPUTS
All devices are provided with the following four alarm outputs and extractable terminal board.
3.1.1 TERMINAL BOARD FOR 1093/040 - 1093/041 - 1093/045 DEVICES
Figure 7: terminal board for 1093/040 - 1093/041 - 1093/045 devices
PIN DESCRIPTION
1 Output 1
G GND
2 Output 2
G GND
3 Output 3
G GND
4 Output 4
G GND
3.1.2 TERMINAL BOARD FOR 1093/042 - 1093/043 DEVICES
Figure 8: t nal board for 1093/042 - 1 ices ermi 093/043 dev
PIN DESCRIPTION
1A Output 1
1B GND
2A Output 2
2B GND
3A Output 3
3B GND
4A Output 4
4B GND
1A 1B 2A 2B 3A 3B 4A 4B
1 G 2 G 3 G 4 G
DS1093-005C 19

3.1.3 EXAMPLE OF ALARM OUTPUT USE
Two examples of alarm output use are shown below:
 Connection to alarm siren
 Connection to flasher
CONNECTION TO ALARM SIREN
eIMPORTANT NOTE
In the case of external direct current use (DC), jumper “JJx” related to the alarm output used (“JJ1” in this example for
respective output 1) on the motherboard inside the device may be either open or closed (the jumper is closed by default).
CONNECTION TO FLASHER
eIMPORTANT NOTE
In the case of external alternating current use (AC), jumper “JJx” related to the alarm output used (“JJ1” in this example
for respective output 1) on the motherboard inside the device must be open (the jumper is closed by default).
