urmet domus IPercom VOG7 1761 Installation and operation manual

DS 1761-028 LBT 21068
Mod.
1761
OOOOOOOOOOO
VIDEO DOOR PHONE 7’’ IP USA
Ref. 1761/32
USER BOOKLET
Interactive Links

2DS1761-028
The information contained in this booklet has been carefully collected and checked; however, the
manufacturer may not be held responsible for any errors or omissions. The manufacturer reserves
the right to introduce at any time and without notice improvements or changes in the products and
services described in the booklet.
(Note: the Android apps may be subject to changes according to the product version).
This manual may also contain references to or information on products or services not yet available
commercially. Such references or information will not in any way imply that the company intends to
market such products or services.
All the trademarks mentioned in this document are the property of their respective owners.
All rights reserved. We hereby authorise the partial or total reproduction of this document for the
exclusive purpose of using the IP 1761/32 Video door phone.

DS1761-028 3
The features described in the following booklet refer to version: 2.1.0_49_VER_7_8_0_R7 of the IP 1761/32
Video door phone.
INDEX
1. DEVICE GENERAL DESCRIPTION .......................................................................................................5
1.1 In a nutshell .................................................................................................................................5
1.2 How to turn on the screen and access the various functions .....................................................5
1.3 How to navigate between applications .......................................................................................6
1.4 How to interpret the reports ........................................................................................................8
1.5 Howtoturnothescreen(Stand-by) .........................................................................................8
1.6 How to send a panic alarm..........................................................................................................8
1.7 Screen lock function....................................................................................................................9
1.8 How to control a Video door phone hardware reset ...................................................................9
2. USING THE DEVICE AS VIDEO DOOR PHONE TERMINAL ..............................................................10
2.1 How to answer an external call .................................................................................................10
2.1.1 How to answer a call with the “Remote” option enabled ................................................11
2.2 How to answer a call from the switchboard..............................................................................11
2.3 How to answer an intercom call ................................................................................................12
2.4 Receiving and answering a call from your smartphone via CallMe App ...................................13
2.5 How to access Video Door Phone functions.............................................................................14
2.6 Howtouseaudiomessages(Voice“Post-its”).........................................................................14
2.6.1 How to record an audio message....................................................................................14
2.6.2 How to listen to an audio message..................................................................................15
2.7 How to call the switchboard......................................................................................................15
2.8 How to activate an auxiliary function.........................................................................................16
2.9 How to open the entrance door without having been called.....................................................16
2.10 How to open the garage/driveway gate without having been called ........................................16
2.11 How to activate the Video Door Phone Voicemail.....................................................................17
2.12 HowtoturnotheVideoDoorPhoneVoicemail......................................................................17
2.13 Activating the “Remote” mode ..................................................................................................17
2.14 Deactivating the “Remote” mode..............................................................................................17
2.15 Activating the “Divert” mode .....................................................................................................18
2.16 Deactivating the “Divert” mode .................................................................................................18
2.17 How to view voicemail calls.......................................................................................................18
2.17.1 How to delete one or more voicemail recordings...........................................................19
2.18 MUTE function...........................................................................................................................19
2.19 Door open indication .................................................................................................................19
2.20 How to make an intercom call...................................................................................................20
2.21 How to check the call log ..........................................................................................................21
2.22 How to send a text message.....................................................................................................22
2.23 How to search for a name in the address book ........................................................................24
2.24 How to add new contacts to your address book ......................................................................24
2.24.1 How to resend a contact request ...................................................................................26
2.25 How to accept contact requests ...............................................................................................26
2.26 How to delete contact requests ................................................................................................27
The document contains INTERACTIVE LINKS for faster and more ecient consultation.
Interactive Links

4DS1761-028
2.27 Auto-onfunction........................................................................................................................27
2.28 How to view snapshots .............................................................................................................28
2.28.1 How to delete one or more snapshots ...........................................................................29
2.29 How to call the lift......................................................................................................................29
3. USE OF THE DEVICE AS TERMINAL FOR: HOME AUTOMATION, ACCESS CONTROL,
INTRUSION ALARM CONTROL UNIT, ANDROID AND MULTIMEDIA...............................................30
3.1 App My 1067+ ...........................................................................................................................30
3.2 Urmet Secure App .....................................................................................................................31
3.3 IPerHome Home Automation.....................................................................................................33
3.4 Android App...............................................................................................................................35
3.4.1 Preloaded Android Apps..................................................................................................37
3.5 MIFARE (Access control Application)........................................................................................37
3.5.1 How to change the access code for the administrator....................................................39
3.5.2 How to create, delete, or replace a key for the administrator..........................................40
3.5.3 How to manage users ......................................................................................................42
3.5.4 How to record accesses and exits...................................................................................46
3.5.5 How to view a user’s log..................................................................................................46
3.5.6 How to view all logs .........................................................................................................47
3.6 Media player ..............................................................................................................................48
3.7 Gallery........................................................................................................................................49
3.8 iUVS App ...................................................................................................................................51
3.9 CallMe App ................................................................................................................................52
3.9.1CallMeappcongurationasHomepage..........................................................................54
3.9.2CallMeappcongurationanduse....................................................................................55
3.10 CongurationofvideodoorphoneparametersandVideoDoorPhoneapplication ................56

DS1761-028 5
1. DEVICE GENERAL DESCRIPTION
The following booklet describes how to use the video door phone.
1.1 IN A NUTSHELL

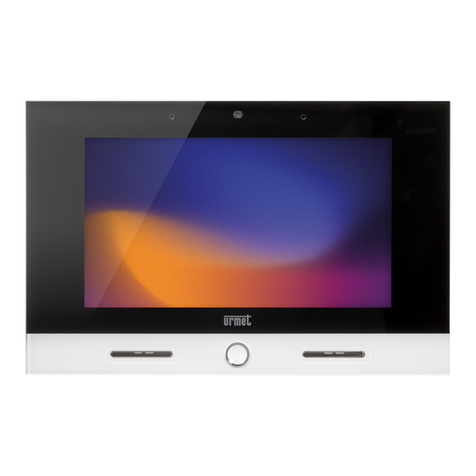

The Video door phone 1761/32 is an IP touchscreen device of the Ipercom system that can operate as:
•Advanced IP Video Door Phone;
•Terminal for displaying the intrusion alarm control unit status,
•IPerHome Home Automation Terminal,
•MIFARE Access Control,
•Android Applications Manager,
•iUVS Applications Manager,
The Video door phone uses the Android operating system and is able to perform both the specic
functionsofUrmetsystemsandthegenericfunctionsofAndroiddevices.Tooptimiseuser-friendliness,
theVideodoorphonecomeswithcertainfactory-preloadedapplications.
1.2 HOW TO TURN ON THE SCREEN AND ACCESS THE VARIOUS FUNCTIONS
The1761/32Videodoorphonescreenisnormallyoandautomaticallylightsupwhenitreceivesavideo
door phone call (see section How to answer an external call).
In this case, a screen page is displayed from which the user can answer the caller and open the entrance
door.
The screen can also be voluntarily turned on by the user, to access one of its many applications. To turn
on the screen simply:
•tap anywhere on the screen;
•press the Home button (at the bottom centre of the video door phone) to display the Homepage.
The default Home Page is the Video Door Phone application , from which you can access the
various video door phone functions (you can change this setting and choose another application as your
Home Page, for example one of the Home Automation ones).
Video Door Phone Home Page (default option)
The following information is displayed in the bottom right:
App 01: Indicates the name of the apartment where the video door phone is present.
Video door phone 1: This is the name assigned to the video door phone by the installer during
conguration.
010101020100: Video door phone ID code.

6DS1761-028
The video door phone functions are the following:
Recording short audio messages (Post.it)
Callingtheswitchboard(iftheIpercomsystemisadequatelypre-set)
Liftcontrol(iftheIpercomsystemisadequatelypre-set).
Activating an auxiliary function, e.g. turning on the stair lights (if the Ipercom system is
adequatelypre-set).
Opening a driveway or garage gate.
Opening the door
WARNING! The functions’ availability depends on how the video door phone system has
been designed and built. Some of the functions described below may not be available in
your system. You may want to check with your installer if a specic function is available
or can be implemented.
The other navigation icons in the top bar can be used to:
View footage from the cameras present in the system
Viewrecordedaudio-videomessages(videodoorphoneVoicemail)
Display the address book and the call log
Send text messages (Chat)
Change the video door phone settings and/or the operating language
To change the default application tap the icon , provided in the top left corner, to access the Top
Page,thentaptheSet-upicon andnally the Home Page menu.
1.3 HOW TO NAVIGATE BETWEEN APPLICATIONS
The various applications are accessible from the Top Page, by tapping the special icon.
Example of Top Page

DS1761-028 7
For all details on the Apps present on the video door phone, see the relevant paragraphs in the following
manual.
The key can be used to scan a QR Code and access with your smartphone a page on the Urmet
website, where you can check the datasheet of the product in question.
To return to the Home Page from any screen page, tap the icon in the middle of the bottom bar.
The default Homepage is the Video Door Phone application, but it can be replaced with one of
theotherapplicationsusingtheTopPageCongurationmenu .
The other navigation icons in the top bar can be used to:
Return to the previous page.
Go to the page that lists the recently opened applications.
Send a panic alarm signal (function enabled if the Ipercom system includes
asuitablyconguredconciergeswitchboardservice).
Mutethecall(Mute)totheVideodoorphoneforauser-settableperiodof
time.
Change the call volume.
Set the following device states: At home / Recording / Divert / Remote
(only one active at a time).

8DS1761-028
1.4 HOW TO INTERPRET THE REPORTS
The bar at the top right of the screen shows status information:
Automatic door opening (if this feature is enabled).
Set the following device states: At home / Recording / Divert / Remote
(only one active at a time).
Bluetooth Connection active.
Active WiFi or second LAN connection (only one active at a time).
LAN connection to Ipercom network
The icon does not appear in Link Local
Time.
AnewnoticationissignalledbytheblueLEDashingontheHomebuttonoftheIPVideoDoorPhone
1761/32, the relevant icon in the upper left corner and the corresponding item in the scrolling menu.
Thepossiblenoticationsare:
Micro SD Card in.
Presence of an unread text message (Chat).
New contact request.
NewPost-itnotyetlistenedto.
Missed Call.
Video message not yet viewed.
Panic Alarm sent/cancelled.
Gesture or voice commands enabled
Door open detection
1.5 HOW TO TURN OFF THE SCREEN (STAND-BY)
Tomanuallyturnothescreen,presstheHomekeyontheIPvideodoorphone1761/32.
Thescreenturnsoautomatically:
•when the user-programmable time-out delay has elapsed (see paragraph Congurations in the
Parameter conguration booklet”);
•attheendofanincomingcall,ifthescreenwaspreviouslyo.
1.6 HOW TO SEND A PANIC ALARM
WARNING! The Panic alarm function requires that:
•the video door phone system has a switchboard;
•the system has been properly set up (for more information, check the Ipercom
manual on www.urmet.com);
•there is a switchboard operator on duty;
•the switchboard operator has been properly trained on what to do in the event that
a panic alarm is received.

DS1761-028 9
How to send a panic alarm:
•Turnonthescreen,ifo,bytappingitatanypointorbypressingtheHomebuttonontheIPVideo
door phone.
•Touch the iconinthelowerleftcornerofthescreen,unlessitisdisabledintheconguration
parameters or there is no exchange in the system (for more information, refer to chapter Congurations
in the Parameter conguration booklet).
•Inthepop-uppagethatopens,presstheCONFIRM button to send the alarm.
ATTENTION! In any case, even in the absence of conrmation, the alarm message will
be sent at the end of the timeout (5 seconds), unless you cancel the sending by pressing
the CANCEL button.
On receiving the Panic Alarm message, the switchboard operator can listen to what is going on inside
the apartment, next to the Video door phone. Ambient listening can only be stopped by the switchboard
operator and can continue without any time limits. Ambient listening enabling in the apartment must be
done by the installer (for more information, refer to the Ipercom manual on www.urmet.com).
The panic alarm can also be activated via an external device, such as a button, connected to
the terminal block behind the Video door phone. In this case the Panic Alarm message will be
sentdirectlywithoutanyrequestforsendingconrmation.
1.7 SCREEN LOCK FUNCTION
To lock the video door phone screen, press and hold the Home key on the IP Video Door Phone until the
following screen is displayed.
The screen is inhibited for 20 seconds, after which it resumes operation.
It is possible to unlock the lock screen function early by pressing the Home key again or by following the
instructions shown on the screen.
The screen lock function is useful when you want to clean the screen, to avoid unintentional activation of
the Video Door Phone functions.
1.8 HOW TO CONTROL A VIDEO DOOR PHONE HARDWARE RESET
For a hardware reset of the Video door phone, press and hold the centre button of the Video door phone
until it restarts.

10 DS1761-028
2. USING THE DEVICE AS VIDEO DOOR PHONE TERMINAL
The Video Door Phone application is the main application of the IP 1761/32 Video door phone and it is
also the default Home Page. The application turns the device into an advanced video door phone terminal.
Some of the following operations can also be performed using gesture or vocal commands. For further
information, refer to “Complete booklet for use of gesture commands” or “Complete booklet for use
of vocal commands”by pressing the relevant link or downloading the booklet from www.urmet.com in
the relevant product data sheet.
2.1 HOW TO ANSWER AN EXTERNAL CALL
When the Video door phone receives an outdoor door phone video call, it rings and the screen lights up
fromitsdefaultswitched-ostate. The video door phone will show the image of the caller on the display.
If there are more than one video door phone in the apartment, when a call is received, only the Master
video door phone will display the caller image. To display the caller image on a Slave video door phone,
press “Tap here to see who is calling you” on the video door phone display.
By tapping the various icons you can:
Reject the call. If the external calling station is a call module, a message is displayed informing
that the call has been rejected.
Answerthecallandbeginahands-freeconversation.
Open the door.
Open a driveway or garage gate.
Take a snapshot of the image displayed on the screen.
Enlarge or shrink the image, also changing its format from 4:3 to 16:9
TurntheVideodoorphonemicrophoneoandthenbackon,topreventthecallerhearingwhat
youaresaying.Whenthemicrophoneisturnedo,thecorrespondingiconiscrossedout.The
icon is only displayed after the call has been answered.
Activateanauxiliaryfunction,e.g.turningonthestairlights.Tappingtheiconopensapop-up
window that lists the possible controls. The icon is only displayed if the Ipercom system includes
a correctly programmed special decoding function (for more information see the Ipercom
technical manual on www.urmet.com).
Close the call. The icon will only be active after the call has been answered.
Changetheaudiovolumeintheoutdoorstation-to-Videodoorphonedirection(Videodoorphone
speaker).
