©Vantage, 41739 / IS-0542-A / InFusion Equinox 73 LCD Touchscreen – MODEL: EQ73TB-TI page 1 of 4
INSTALLATION
VANTAGECONTROLS.COM VANTAGE INSTALL GUIDES
1061 South 800 East • Orem, Utah 84097 • Telephone [phone] • Fax [phone] Equinox 73 LCD Touchscreen – MODEL: EQ73TB-TI

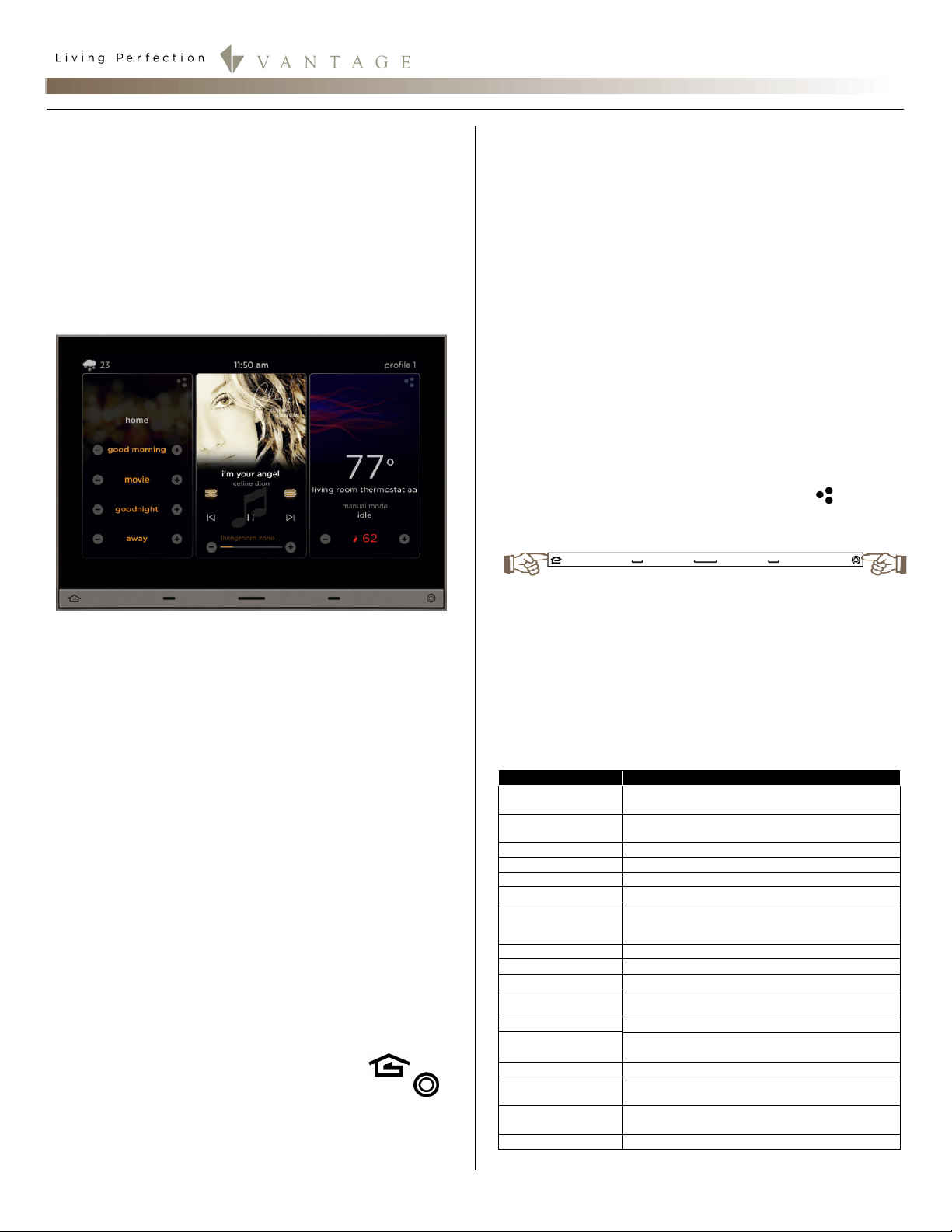

Overview
Vantage's Equinox 73 active matrix LCD touchscreen
continues the Vantage commitment to LCD in-wall control
centers. The Equinox 73 LCD Interface is a dedicated system
portal to whole home control. The 7" touchscreen displays
media rich widgets in a dashboard layout. Each widget’s
content has been carefully designed to provide the ultimate
user experience. Vantage's Equinox 73 system uses self
discovering technology, eliminating countless hours of tedious
programming. Navigate and control, with real-time feedback,
lighting, audio, video, climate, weather, security, cameras, and
more through a single layer navigation experience. For
additional personalization and control, select individual
widgets directly right on the touchscreen.
Equinox 73 Features/Operations
Wide screen orientation only.
Equinox platform provides built-in widgets using Vantage
proprietary auto discovery widgets for fast automatic
screen design.
Equinox 73 fully incorporates Vantage’s consistent user
experience interface, eliminating learning curves normally
associated with switching interface devices.
Power, 48VDC PoE*/PoE+ or AUX. 12VDC transformer.
o*Optional, 48VDC, 4 port, PoE Injector, #DA2400.
NOTE: The DA2400 complies with IEEE 802.3
(Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af
(Power over Ethernet) and 10/100Base-TX Ethernet
standards.
oAUX. power 12VDC adaptor, #VFA-0005.ernet ort.
Communicates over Vantage Ethernet bus (InFusion
controller and Equinox should be connected to the same
local network)
Firmware upgradable from Design Center over Ethernet.
Built-in ambient light sensor for “active,” AUTO mode
screen brightness and off when dark option when
“inactive”.
Inactive mode dims or turns screen off in 1 to 10 minutes
(adjustable) if no activity.
Built-in proximity activation, 6” maximum, may be
programmed to execute a task with a hand wave across
front of station..
Displays three widgets at a time.
Mechanical buttons, bottom left and right;
oleft navigates to home screen position---
oright may be assigned to a programmed task---
Profiles; personalize dashboard level and hardware settings:
oSelect dashboard, to arrange order of widgets to
display.
oSelect options to select language, 12/24 hour clock,
and fahrenheit/celsius temperature display.
oSelect device, to view and set hardware settings,
system information, network settings, reset user
settings, and view additional information settings.
oSelect profiles, to create, delete, or rename profiles.
Equinox 73 uses the same widgets as Android tablets and
phones, and iPads, iPhones, and iPods.
Top of screen displays:
o(left) icon for current weather conditions and
temperature, via Vantage weather service,
o(center) time of day, and
o(right) selected profile.
Middle to bottom of screen displays widgets (the order
may be changed within each profile).
oWidgets (some widgets require specific Vantage
drivers in the Design Center project file):
Scene,
Audio,
Video,
Climate,
Weather
Lighting,
Security,
Cameras,
Pool & Spa, and
more coming
Raise/Lower dimmable loads and volume control via minus
/ plus (-/+) graphical buttons.
Graphical icons and text color track load status, orange =
ON and white = OFF.
Press and release the upper right section on each
widget for additional control and/or personalization.
Manual reboot of Equinox 73 – press and hold both
mechanical buttons for 3 seconds, then release.
Manual reboot Equinox 73 into service mode – press and
hold both mechanical buttons for 10 seconds, then release.
oService mode is automatically used when updating
firmware from Design Center.
oIf the application code is corrupt it may cause the
screen to lock preventing Design Center from
updating or reloading the firmware. Use this option to
reboot the screen to service mode allowing Design
Center to update the corrupted firmware.
oTo manually exit server mode use the manual rebbot
of Equinox 73 (above)
Specifications
Description Specification
Dimensions, HWD
(at wall surface)
4.9” x 6.9” x 0.37”
124mm x 175mm x 9mm
Dimensions, HWD
(overall)
4.9” x 6.9” x 2.1”
124mm x 175mm x 53mm
Weight 1.6 lb or 725.75g
Display Active Matrix Color LCD
Display Size 7” diagonal
Display Resolution 800 x 480 pixels
Power
48VDC via PoE, PoE+,
or aux. power via 12VDC adaptor
(see back panel drawing on the last page)
Surge Suppression Yes
Mounting See Installation section below
Sound Option Adjustable volume level - touch interaction
Wiring Connections Communication: Ethernet RJ45 or WiFi dongle
Power: PoE/PoE+ or 12VAC adaptor
Addressing self addressing through software
Finishes TRIM - Titanium
TOUCHSCREEN – Black Glass
Glass Surface Chemically Strengthened
Ambient Operating
Temperature 32-95°F -or- 0-35°C
Ambient Operating
Humidity 5-95% non-condensing
CE & FCC Yes

I N S T A L L A T I O N
©Vantage, 41739 / IS-0542-A / InFusion Equinox 73 LCD Touchscreen – MODEL: EQ73TB-TI page 2 of 4
System Requirements
Equinox 73 is compatible with InFusion Design Center version
3.2 software or higher. For new projects it is recommended
that firmware and software be kept to the most current
release.
Installation
Installation of Vantage products should be performed or
supervised by a Certified Vantage Installer. Installation kits for
Equinox 73 touchscreens are compatible with global electrical
and installation standards. For new construction or retrofit
installations. Please see the additional installation sheets*
referenced below for Equinox 73 installation preparation.
*Installation Instructions
oStandard
Equinox 73 LCD Standard_EQ73ST-INSTALL_install.pdf
oRetrofit or TPT650 Replacement
Equinox 73 LCD Retrofit_EQ73RT-INSTALL_install.pdf
1. Connect Equinox 73 to Ethernet PoE and/or other wiring
connection options used in the installation.
2. Insert the Equinox 73 into the mounting ring from the
standard or retrofit kit.
3. Make sure the Equinox 73’s four Spring Clips lock into the
standard or retrofit mounting ring (click on Standard or
Retrofit install sheets above to open).
Configuration
1. Highlight the station in Design Center; click Configure
Stations.
2. Station displays configure mode and touch to configure.
3. When configured station goes back to ready until
programmed.
-OR-
4. The station may also be configured by typing the serial
number in the project file, using this method the station
will automatically be configured when the system is
programmed.

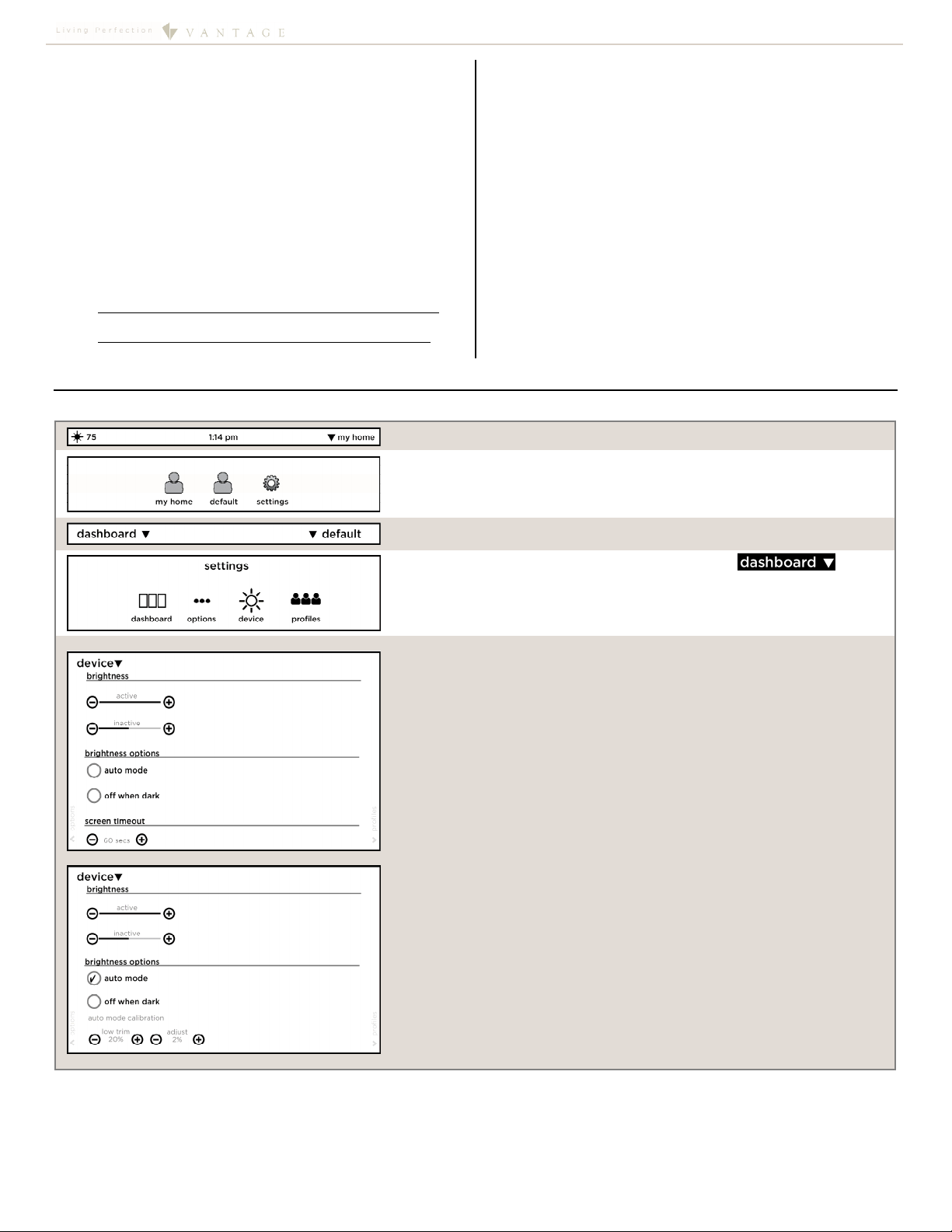

Device Settings
Device Settings are accessed through the Profile pages.
1. Press the profile button, (my home, upper right, in this example)
2. Press the settings button
3. The first time settings is pressed the screen will go to the dashboard edit
screen.
4. Pressing the upper left area on the dashboard page, opens
the settings thumbnail selections at left.
5. Select the device option from the four choices.
NOTE: The other three choices are covered in the Equinox Widgets_install.pdf
installation sheet – this instruction covers device.
The first time the controller is programmed, the Equinox 73 device should use
the brightness settings specified in the Equinox Widget Styles object in Design
Center. Subsequent system downloads depend on whether or not the Read and
Restore – Equinox Profiles and User Data is checked. When checked, it will retain
the brightness settings on the device. When unchecked, it will use the brightness
settings specified in the Equinox Widget Styles object in Design Center.
6. The device screens are accessed by swiping up or down to see all of the
screen choices. The first device screen allows settings for:
brightness – brightness level for active and inactive modes
brightness Options
auto mode*– uses ambient light to adjust screen brightness
off when dark – when ambient light is very low the screen illumination turns
off
screen timeout – adjusts from 1 to 10 minutes
*auto mode:
auto mode calibration – these options only appear when the auto mode box is
checked.
low trim – (range 1%-25%) If screen is too dim when used in a dark room,
increase the low trim setting and conversely when screen is too bright.
Adjust – (range, -5 to +5) If screen is too dim when used in a moderately lit
room, increase the adjust setting and conversely when screen is too bright.
NOTE: Adjustments take a few seconds for the screen brightness to change. This
delay action is deliberate to avoid sudden changes in screen brightness.

I N S T A L L A T I O N
©Vantage, 41739 / IS-0542-A / InFusion Equinox 73 LCD Touchscreen – MODEL: EQ73TB-TI page 3 of 4

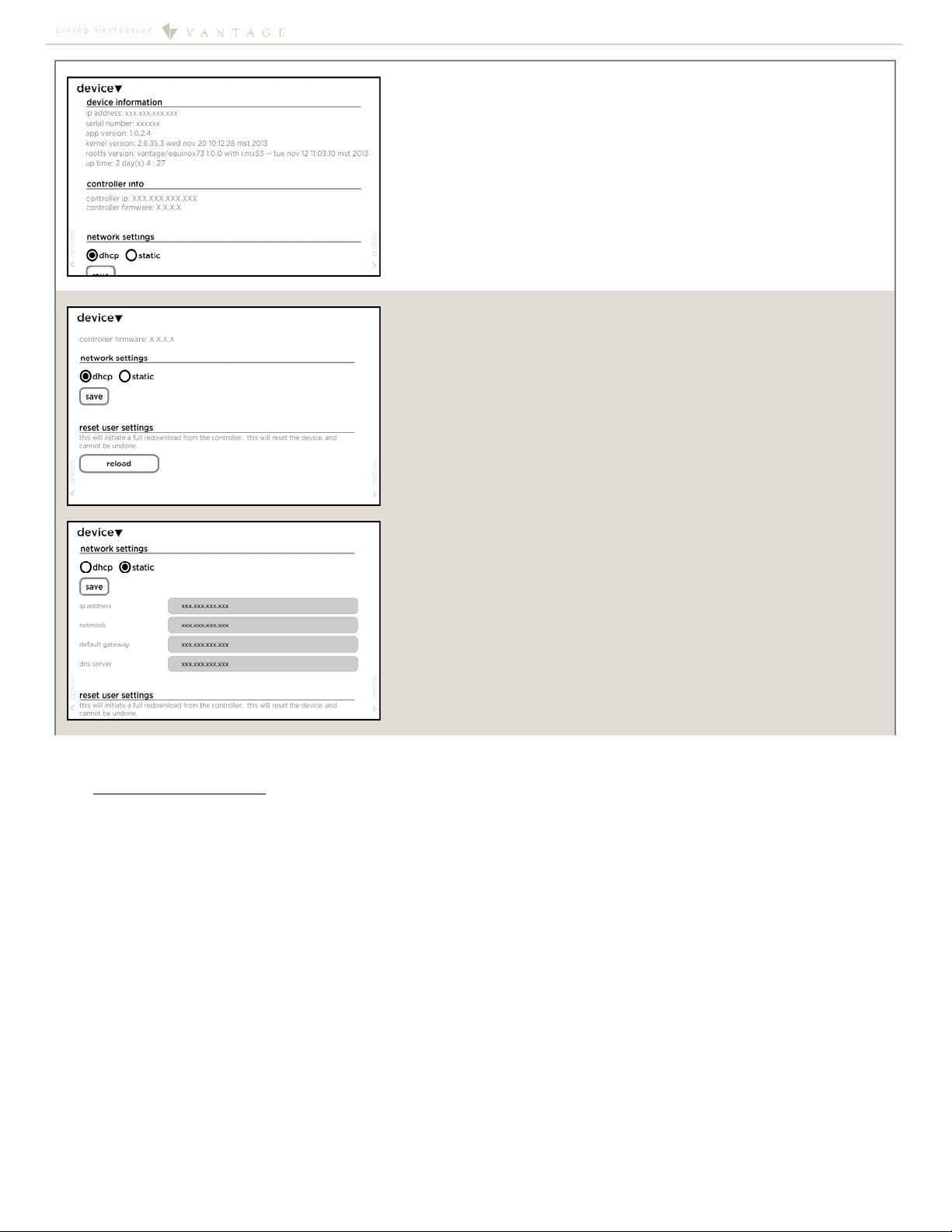

7. Scroll down to the next device screen for:
device information –
ip address: xxx.xxx.xxx.xxx
serial number: xxxxxxx
app version – xx.xx.xx (used in diagnostics)
kernel version – version and date (used in diagnostics)
rootfs version – xx.xx.xx (used in diagnostics)
up time: x day(s) x:xx
controller information –
controller ip – xxx.xxx.xxx.xxx
controller firmware: x.x.x.x
8. Scroll down to the bottom of device screen:
network settings – select dhcp or static*, see below if static is selected.
reset user settings – clears the current IP information when the device
is restarted through power cycle or reboot method. (use reconnect
after using the reset button)
reload: opens screen to select reload or cancel reload, If reload is
selected the station reboots and reeds information from the
controller. If cancel is selected the screen returns to the device
settings screen.
*static:
ip address – xxx.xxx.xxx.xxx
netmask – xxx.xxx.xxx.xxx
default gateway – xxx.xxx.xxx.xxx
dns server – xxx.xxx.xxx.xxx
Widgets Overview
For detailed information about all widgets and other profile and settings screens, click on file link below to load Widget Instructions:
LINK: Equinox Widgets_install.pdf

I N S T A L L A T I O N
©Vantage, 41739 / IS-0542-A / InFusion Equinox 73 LCD Touchscreen – MODEL: EQ73TB-TI page 4 of 4
Please reference local
and NEC codes for
appropriate electrical
and communication
install methodolo
gy
CAUTION!
Left and Right Speakers are exposed. Use
extreme caution handling, installing and
removing. Do not accidentally touch or
push in on the speaker cones to avoid
damage
to either speaker.
Cleaning
Dampen a soft cloth
in water and wring-
out to barely damp
Use a light buffing
motion to wipe clean
Do not take the
station apart
Never spray station
with any cleaners
RJ45 PoE Ethernet Port
Power via 48VDC, PoE source.
Order an opt. 4-port, PoE
Injector from Vantage,
Part numbe
r
DA2400
Opt. power via 12VDC,
power supply.
Part numbe
r
VF
A
-0005
USB
No End
User
Service
Equinox 73 Mounting Ring Adjustment Tool
Locate this tool-card shipped with the Equinox 73. Inside the wall box is a rectangular ring that
must be parallel with the wall surface and 1” behind the wall surface on the left and right sides.
Loosen the two inside screws and use this tool to set the mounting ring depth at 1”.
Multi-View Line Drawing
Back-View
