Vaxcel T0442 Instruction manual

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
.stnemeriuqergnidnuorgdnagniriwrofsedoclacirtcelelacoltlusnoc,gnillatsnierofeB.1:SETON
2. READ AND SAVE THESE INSTRUCTIONS.
T0442 T0443
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

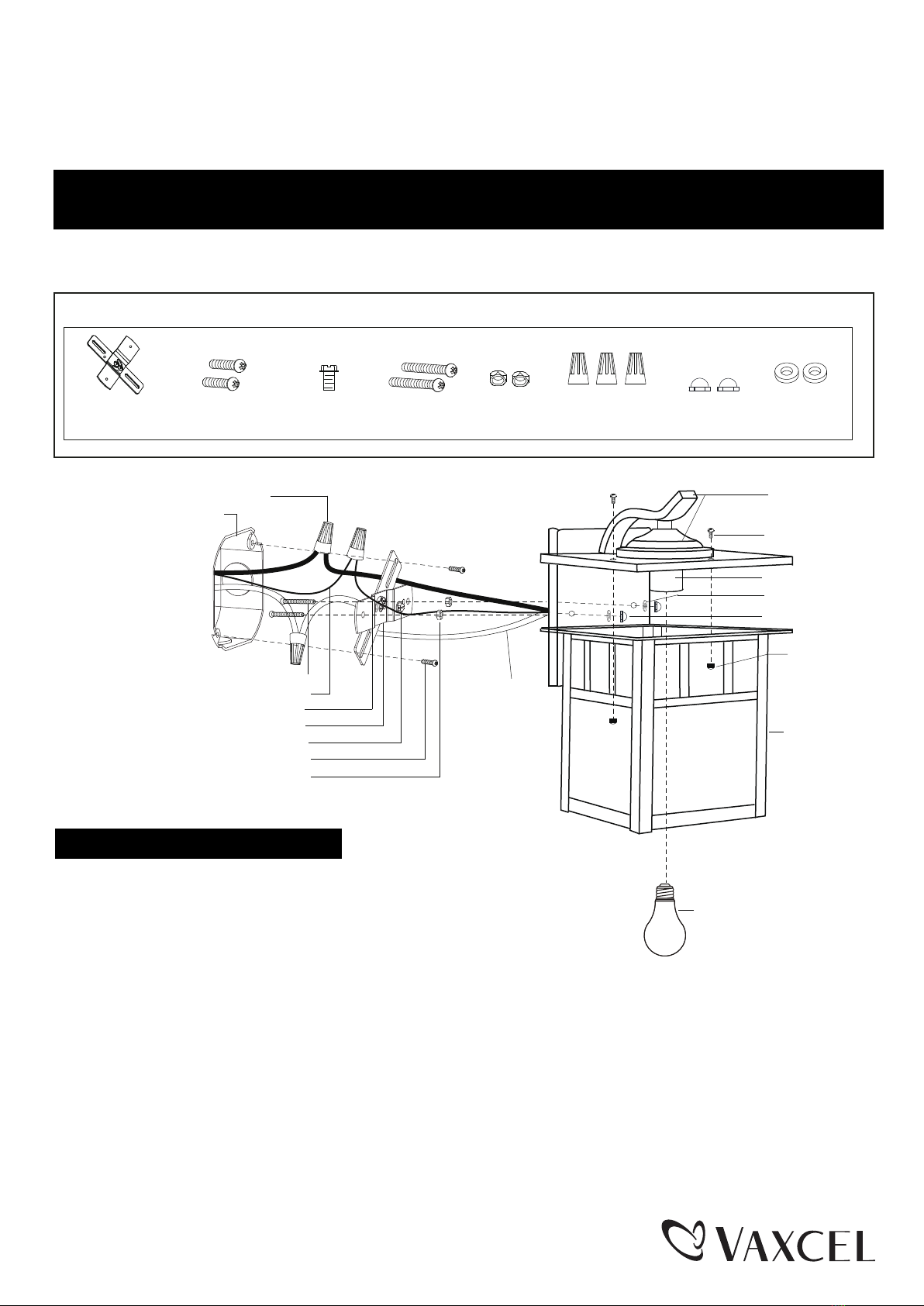

Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
181010
1. Unscrew the set screws and ball nuts to separate the frame from the fixture.
2. Thread two fixture mounting screws (D) through the cross bar (A), then
secure them with two lock nuts (E).
Adjust the length of the screws if necessary.
3. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
4. Pull out the outlet wires and house grounding wire from the outlet box.
Make wire connections using the wire connectors (F):
---The black wire from the light to the black wire from the power source.
---The white wire from the light to the white wire from the power source.
---Attach the fixture grounding wire to the cross bar (A) with the green grounding
screw (C). Then connect it to the house grounding wire with a wire connector (F).
Carefully tuck the wires back into the outlet box.
5. Attach the back plate to the cross bar (A) by inserting the fixture mounting screws (D),
then secure it with the two rubber pads (H) and ball nuts (G).
Lock Nut (E)
Mounting Screw (B) Wire Connector (F) Ball Nut (G) Rubber Pad (H)
Cross Bar (A) Green Grounding
Screw (C)
Fixture Mounting
Screw (D)
Set Screw
Socket
Ball Nut
Frame
Fixture
Rubber Pad (H)
Ball Nut (G)
Bulb Type A Max.60W
(not included)
Green Grounding Screw (C)
Outlet Box
Wire Connector (F)
House Grounding Wire
Fixture Mounting Screw (D)
Cross Bar (A)
Fixture Grounding Wire
Fixture Wire
Mounting Screw (B)
Lock Nut (E)

Assembly Kit
5971MM (1SET)
T0442
Glass (4 PCS)
10017CS
T0443
Glass (4 PCS)
10018CS
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Turn on the power at fuse or circuit box
181010
Lock Nut (E)
Mounting Screw (B)
Wire Connector (F) Ball Nut (G) Rubber Pad (H)
Cross Bar (A) Green Grounding
Screw (C)
Fixture Mounting
Screw (D)
6. Gently pull the clips upright to place the flat glasses into the frame, and then press them back to secure the flat
glasses (See Fig.1 & Fig.2).
Note: The flat glass should be fastened into position as shown in Fig.3.
7. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.
8. Restore the frame back to the fixture, and then secure it with two set screws and two ball nuts.
T0442
A:9"
B:12-1/2"
C:11"
T0443
A:7-1/4"
B:9-1/2"
C:9"
Clip
Flat Glass
Clip
Frame
Pull the clip upright
Frame Flat Glass
Clip
Clip
Fig.2 Fig.3
Fig.1
AC
B
