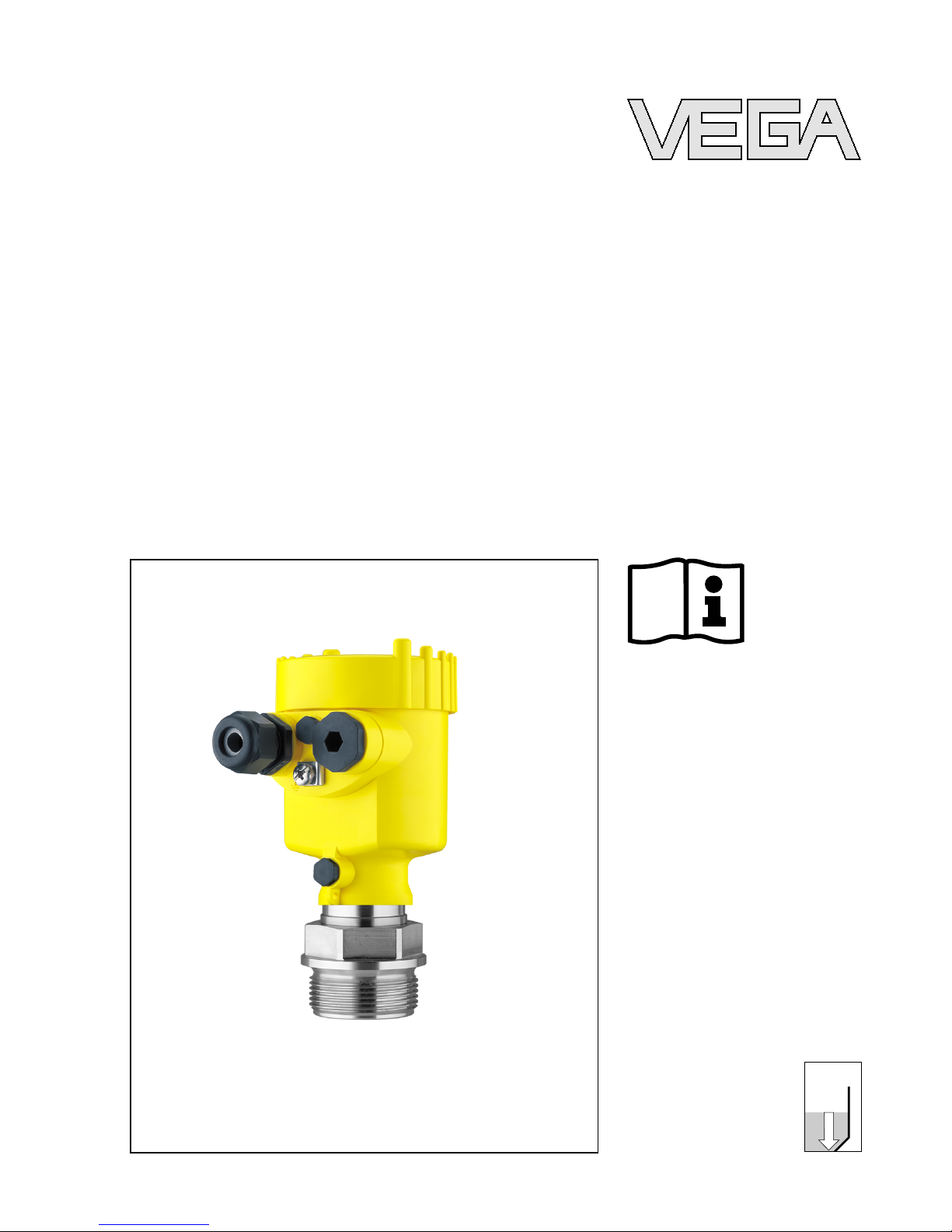

Vega VEGABAR 64 User manual

Operating Instructions
VEGABAR 64
Foundation Fieldbus
Document ID:
28259
Process pressure/
Hydrostatic
p

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions . . . . . . . . . . . . . . . . . . . . 5
2.5Safety approval markings and safety tips . . . . . . . . . . 6
2.6CE conformity ............................. 6
2.7Fulfillment of NAMUR recommendations . . . . . . . . . . 6
2.8Safety instructions for Ex areas . . . . . . . . . . . . . . . . . 6
2.9Environmental instructions..................... 6
3Product description
3.1Configuration .............................. 8
3.2Principle of operation ........................ 9
3.3Operation................................. 10
3.4Packaging,transport and storage ............... 10
4Mounting
4.1General instructions ......................... 12
4.2Mounting steps............................. 14
4.3Mounting steps external housing . . . . . . . . . . . . . . . . 14
5Connecting to power supply
5.1Preparing the connection ..................... 16
5.2Connection procedure........................ 17
5.3Wiring plan,single chamber housing . . . . . . . . . . . . . 20
5.4Wiring plan,double chamber housing . . . . . . . . . . . . 21
5.5Wiring plan double chamber housing Ex d . . . . . . . . . 24
5.6Wiring plan -version IP 66/IP 68,1bar . . . . . . . . . . . 25
5.7Wiring plan,external housing with version IP 68 . . . . . 26
5.8Switch on phase............................ 29
6Set up with the indicating and adjustment module PLICSCOM
6.1Short description ........................... 30
6.2Insert indicating and adjustment module. . . . . . . . . . . 30
6.3Adjustment system .......................... 32
6.4Setup procedure............................ 33
6.5Menu schematic ............................ 42
6.6Saving the parameter adjustment data . . . . . . . . . . . . 44
7Setup with PACTware and other adjustment programs
7.1Connecting the PC .......................... 45
2VEGABAR 64 •Foundation Fieldbus
Contents
28259-EN-081209

7.2Parameter adjustment with PACTware . . . . . . . . . . . . 46
7.3Parameter adjustment with AMS™. . . . . . . . . . . . . . 46
7.4Saving the parameter adjustment data . . . . . . . . . . . . 46
8Maintenance and fault rectification
8.1Maintain.................................. 47
8.2Remove interferences ........................ 47
8.3Calculation of total deviation (similar to DIN 16086) . . 49
8.4Exchanging the electronics module . . . . . . . . . . . . . . 50
8.5Software update ............................ 50
8.6Instrument repair ........................... 51
9Dismounting
9.1Dismounting steps .......................... 52
9.2Disposal ................................. 52
10 Supplement
10.1Technical data ............................. 53
10.2Information on Foundation Fieldbus . . . . . . . . . . . . . . 63
10.3Dimensions ............................... 67
10.4Industrial property rights ...................... 78
10.5Trademark ................................ 78
Supplementary documentation
Information:
Supplementary documents appropriate to the ordered version come
with the delivery.You can find them listed in chapter "Product
description".
Instructions manuals for accessories and replacement parts
Tip:
To ensure reliable setup and operation of your instrument,we offer
accessories and replacement parts.The corresponding instructions
manuals are:
l32036 -Welded socket and seals
l27720 -External indication VEGADIS 61
l34296 -Protective cover
l30175 -Electronics module VEGABAR series 50 and 60
VEGABAR 64 •Foundation Fieldbus 3
Contents
28259-EN-081209

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGABAR 64 •Foundation Fieldbus
1About this document
28259-EN-081209

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGABAR 64 is a pressure transmitter for measurement of gauge
pressure,absolute pressure and vacuum.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the required occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
VEGABAR 64 •Foundation Fieldbus 5
2For your safety
28259-EN-081209

2.5Safety approval markings and safety tips
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of www.vega.com.
2.7Fulfillment of NAMUR recommendations
With respect to compatibility,the NAMUR recommendation NE 53 is
fulfilled.This applies also to the corresponding indicating and
adjustment components.VEGA instruments are generally upward and
downward compatible.
lSensor software for DTM VEGABAR 64 HART,PA or FF
lDTM VEGABAR 64 for adjustment software PACTware
lIndicating and adjustment module for sensor software
The parameter adjustment of the basic sensor functions is independ-
ent of the software version.The range of available functions depends
on the respective software version of the individual components.
The software version of VEGABAR 64 can be determined as follows:
lvia PACTware
lon the type label of the electronics
lvia the indicating and adjustment module
You can view all software histories on our website www.vega.com.
Make use of this advantage and get registered for update information
via e-mail.
2.8Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.9Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
6VEGABAR 64 •Foundation Fieldbus
2For your safety
28259-EN-081209

lChapter "Packaging,transport and storage"
lChapter "Disposal"
VEGABAR 64 •Foundation Fieldbus 7
2For your safety
28259-EN-081209

3Product description
3.1Configuration
The scope of delivery encompasses:
lVEGABAR 64 pressure transmitter
lDocumentation
-this operating instructions manual
-Test certificate for pressure transmitters
-Ex specific safety instructions (with Ex versions), if necessary
further certificates
-Operating instructions manual 27835 "Indicating and adjust-
ment module PLICSCOM"(optional)
-Supplementary instructions manual 31708 "Heating for in-
dicating and adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
VEGABAR 64 consists of the following components:
lProcess fitting with measuring cell
lHousing with electronics,optionally available with plug connector
lHousing cover,optionally available with indicating and adjustment
module PLICSCOM
The components are available in different versions.
1
2
3

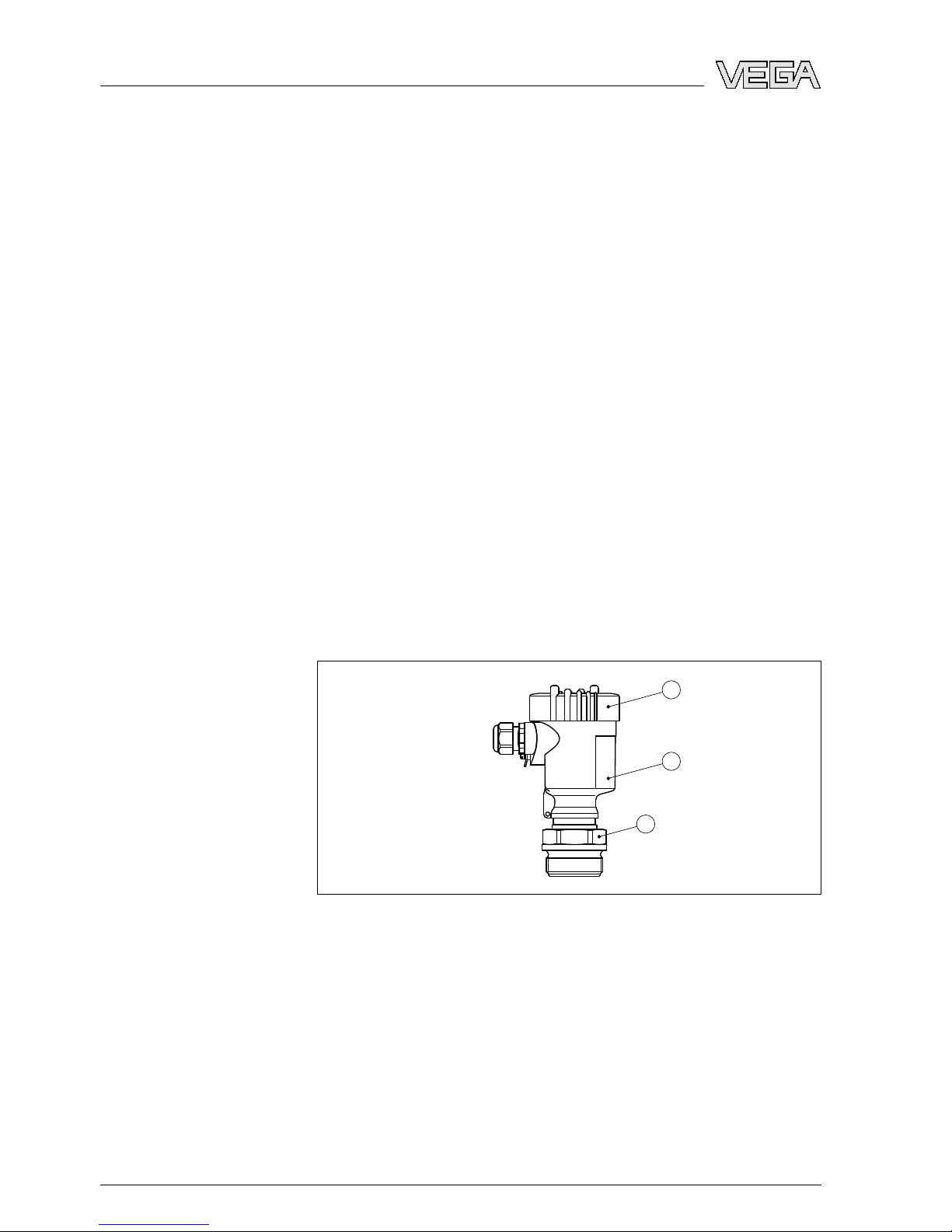

Fig.1:Example of a VEGABAR 64 with process fitting G1½Aand plastic
housing
1Housing cover with integrated PLICSCOM (optional)
2Housing with electronics
3Process fitting with measuring cell
The type label contains the most important data for identification and
use of the instrument:
lArticle number
lSerial number
lTechnical data
lArticle numbers documentation
Scope of delivery
Components
Type label
8VEGABAR 64 •Foundation Fieldbus
3Product description
28259-EN-081209

With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
3.2Principle of operation
VEGABAR 64 is a pressure transmitter for use in the paper,food
processing and pharmaceutical industries as well as in water/sewage
water plants.Depending on the version,it is used for level,gauge,
absolute pressure or vacuum measurement.Measured products are
gases,vapours and liquids,also those containing abrasive substan-
ces.
The sensor element is the CERTEC
®
measuring cell with flush,
abrasion resistant ceramic diaphragm.The hydrostatic pressure of the
medium or the process pressure causes a capacitance change in the
measuring cell via the diaphragm.This change is converted into an
appropriate output signal and outputted as measured value.
The CERTEC
®
measuring cell is also equipped with a temperature
sensor.The temperature value can be displayed via the indicating and
adjustment module or processed via the signal output.
Power is supplied via the H1Fieldbus.Atwo-wire cable according to
Fieldbus specification serves as carrier of both power and digital data
for multiple sensors.This cable can be operated in two versions:
lvia an H1interface card in the control system and additional power
supply
lvia a Linking device
with HSE (High speed
Ethernet)and addition-
al power supply ac-
cording to IEC 61158-2
The DD (Device Descriptions)and CFF (capability files)necessary for
planning and configuration of your FF (Foundation Fieldbus)commu-
nication network are available in the download area of the VEGA
homepage www.vega.com under "Services -Downloads -Software -
Application area
Functional principle
Power supply and bus
communication
DD/CFF
VEGABAR 64 •Foundation Fieldbus 9
3Product description
28259-EN-081209

Foundation Fieldbus".The appropriate certificates are also available
there.A CD with the appropriate files and certificates can be ordered
via e-mail under [e-mail] or by phone from one of the VEGA
agencies under the order number "DRIVER.S".
The backlight of the indicating and adjustment module is powered by
the sensor.Prerequisite is a certain level of operating voltage.
The data for power supply are specified in chapter "Technical data".
The optional heating requires its own power supply.You can find
further details in the supplementary instructions manual "Heating for
indicating and adjustment module".
This function is generally not available for approved instruments.
3.3Operation
VEGABAR 64 can be adjusted with different adjustment media:
lwith indicating and adjustment module
lwith the suitable VEGA DTM in conjunction with an adjustment
software according to the FDT/DTM standard,e.g.PACTware and
PC
la configuration tool
The entered parameters are generally saved in VEGABAR 64,
optionally also in the indicating and adjustment module or in
PACTware.
3.4Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Packaging
Transport
Transport inspection
Storage
10 VEGABAR 64 •Foundation Fieldbus
3Product description
28259-EN-081209

Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Storage and transport
temperature
VEGABAR 64 •Foundation Fieldbus 11
3Product description
28259-EN-081209

4Mounting
4.1General instructions
Make sure that all parts of the instrument in contact with the measured
product,especially the sensor element,process seal and process
fitting,are suitable for the existing process conditions such as process
pressure,process temperature as well as the chemical properties of
the medium.
You can find the specifications in chapter "Technical data"in the or on
the type label.
Select an installation position you can easily reach for mounting and
connecting as well as later retrofitting of an indicating and adjustment
module.The housing can be rotated by 330°without the use of any
tools.You can also install the indicating and adjustment module in four
different positions (each displaced by 90°).
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.

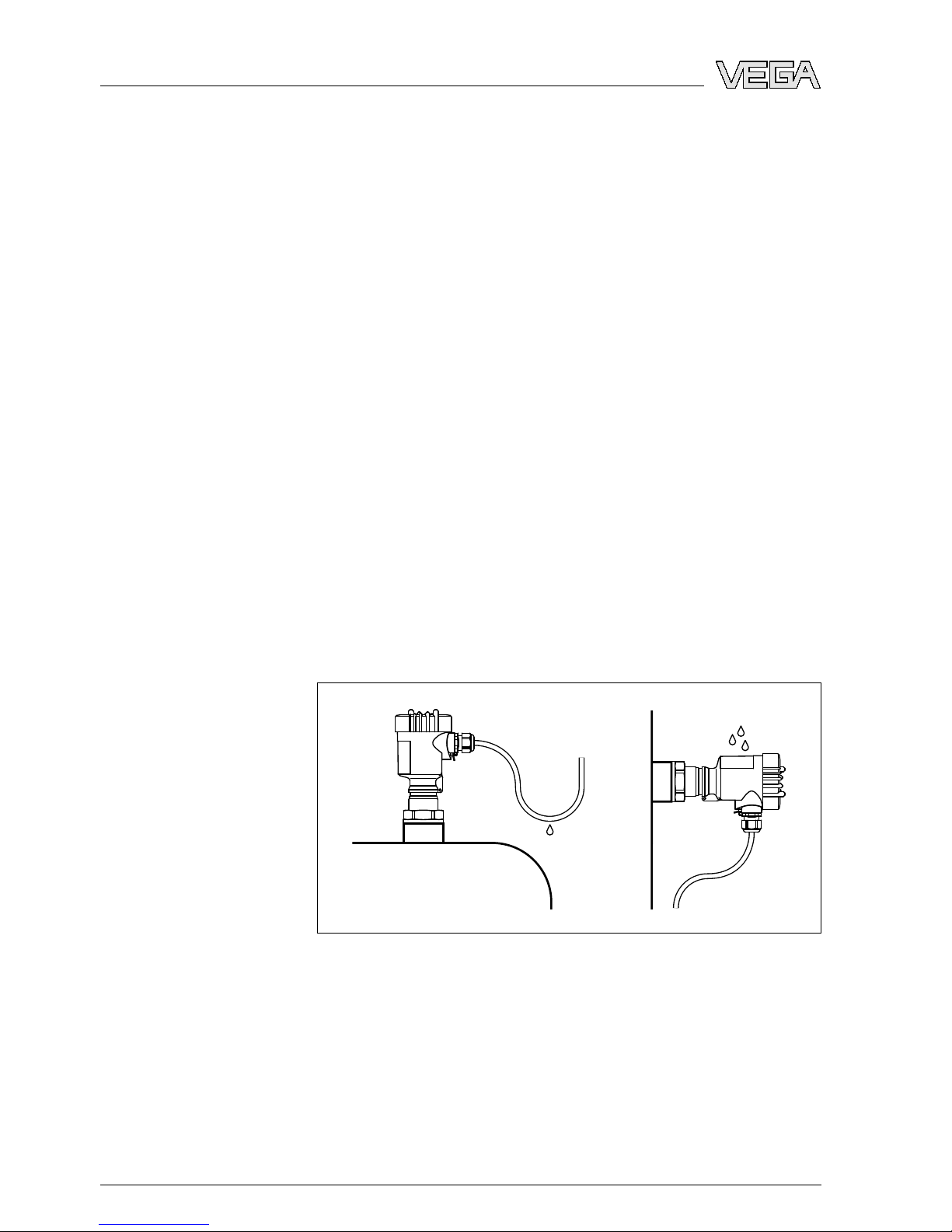

Fig.2:Measures against moisture penetration
Ventilation for the measuring cell is realised by means of a filter
element in the socket of the electronics housing.Ventilation for the
electronics housing is realised via an additional filter element in the
area of the cable glands.
Suitability for process
conditions
Mounting position
Moisture
Ventilation
12 VEGABAR 64 •Foundation Fieldbus
4Mounting
28259-EN-081209

2
1
22
2
1
11
Fig.3:Position of the filter elements
1Filter element for ventilation of the electronics housing
2Filter element for ventilation of the measuring cell
Information:
Make sure that the filter elements are always free of buildup during
operation.Apressure washer must not be used for cleaning.
With instrument versions in protection IP 66/IP 68,1bar,the ventilation
is realised via the capillaries in the fix connected cable.The filter
elements are replaced by blind stoppers.
Higher process temperatures often mean also higher ambient
temperatures.Make sure that the upper temperature limits stated in
chapter "Technical data"for the environment of the electronics housing
and connection cable are not exceeded.
Temperature limits
VEGABAR 64 •Foundation Fieldbus 13
4Mounting
28259-EN-081209

1
2
Fig.4:Temperature ranges
1Process temperature
2Ambient temperature
4.2Mounting steps
For mounting VEGABAR 64,a welded socket is required.You can find
these components in the supplementary instructions manual "Welded
socket and seals".
Seal the thread with teflon,hemp or a similar resistant seal material on
the process fitting thread 1½NPT.
àScrew VEGABAR 64 into the welded socket.Tighten the hexagon
on the process fitting with a suitable wrench.Wrench size,see
chapter "Dimensions".
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Seal the flange connections according to DIN/ANSI with a suitable,
resistant seal and mount VEGABAR 64 with suitable screws.
Use the seal suitable for the respective process fitting.You can find
the components in the supplementary instructions manual "Welded
socket and seals".
4.3Mounting steps external housing
1Mark the holes according to the following drilling template
2Depending on the mounting surface,fasten the wall mounting
plate with 4screws
Welding the socket
Sealing/Screwing in
threaded versions
Sealing/Screwing in
flange versions
Sealing/Screwing in hy-
gienic fittings
Wall mounting
14 VEGABAR 64 •Foundation Fieldbus
4Mounting
28259-EN-081209

90 mm (3.54")
R 3,5 mm
(0.14")
3mm
(0.12")
70 mm (2.76") 8 mm
(0.32")
93 mm (3.66")
110 mm (4.33")

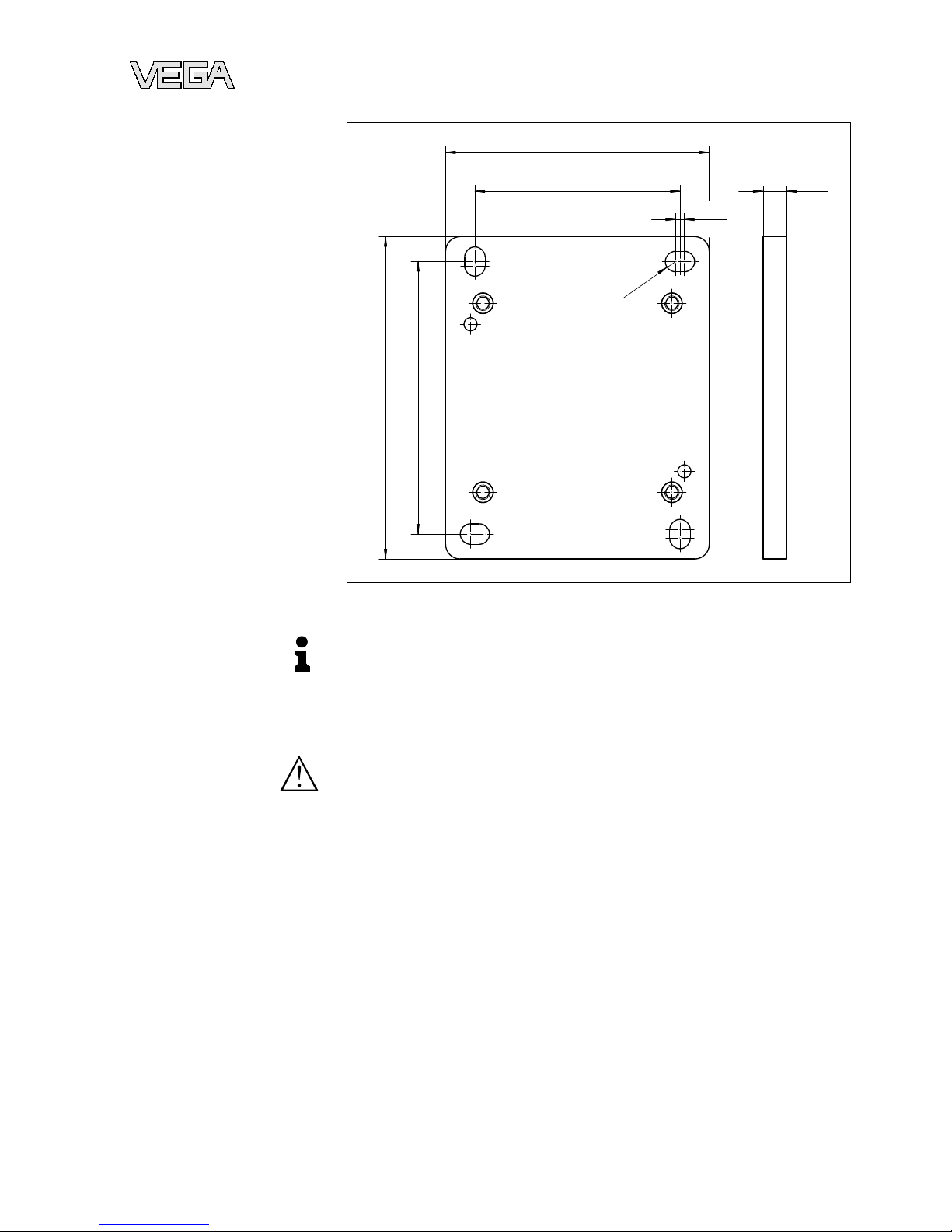

Fig.5:Drilling template -wall mounting plate
Tip:
Mount the wall mounting plate so that the cable entry of the socket
housing points downward.The socket housing can be displaced by
180°to the wall mounting plate.
Warning:
The four screws of the socket housing must only be hand-screwed.A
torque >5Nm(3.688 lbf ft)can damage the wall mounting plate.
VEGABAR 64 •Foundation Fieldbus 15
4Mounting
28259-EN-081209

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltage surges are expected,overvoltage arresters should
be installed according to Foundation Fieldbus specification
Tip:
We recommend VEGA overvoltage arrester B63-32.
In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the sensors
and power supply units.
The instrument requires a operating voltage of 9…32 V DC.
Operating voltage and the digital bus signal are carried on the same
two-wire connection cable.Power is supplied via the H1power supply.
Connection is carried out with screened cable according to Fieldbus
specification.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
Make sure that the entire installation is carried out according to the
Fieldbus specification.In particular,make sure that the termination of
the bus is done with appropriate terminating resistors.
On the instrument with cable entry ½NPT and plastic housing there is
a metallic ½" threaded insert moulded into the plastic housing.
Caution:
No grease should be used when screwing the NPT cable gland or
steel tube into the threaded insert.Standard grease can contain
additives that corrode the connection between threaded insert and
housing.This would influence the stability of the connection and the
tightness of the housing.
In systems with potential equalisation,connect the cable screen
directly to ground potential at the power supply unit,in the connection
box and at the sensor.The screen in the sensor must be connected
directly to the internal ground terminal.The ground terminal outside on
the housing must be connected to the potential equalisation (low
impedance).
Note safety instructions
Take note of
safety instruc-
tions for Ex ap-
plications
Select power supply
Selecting connection
cable
Cable gland ½NPT
Cable screening and
grounding
16 VEGABAR 64 •Foundation Fieldbus
5Connecting to power supply
28259-EN-081209

In systems without potential equalisation,connect the cable screen
directly to ground potential at the power supply unit and at the sensor.
In the connection box or T-distributor,the screen of the short stub to
the sensor must not be connected to ground potential or to another
cable screen.The cable screens to the power supply unit and to the
next distributor must be connected to each other and also connected
to ground potential via a ceramic capacitor (e.g.1nF,1500 V). The low
frequency potential equalisation currents are thus suppressed,but the
protective effect against high frequency interference signals remains.
The total capacitance of the cable and of all capacitors must not exceed
10 nFin Ex applications.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equalisation
currents flow over the cable screen.In case of grounding on both sides
this can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2Connection procedure
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove it by
turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm of the cable mantle,strip approx.1cm
insulation from the individual wires
5Insert the cable through the cable gland into the sensor
6Lift the opening levers of the terminals with a screwdriver (see
following illustration)
7Insert the wire ends into the open terminals according to the wiring
plan
8Press down the opening levers of the terminals,you will hear the
terminal spring closing
9Check the hold of the wires in the terminals by lightly pulling on
them
10 Connect the screen to the internal ground terminal,connect the
outer ground terminal with potential equalisation
11 Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
12 Screw the housing cover on
Select connec-
tion cable for Ex
applications
Single/Double chamber
housing
VEGABAR 64 •Foundation Fieldbus 17
5Connecting to power supply
28259-EN-081209

The electrical connection is finished.

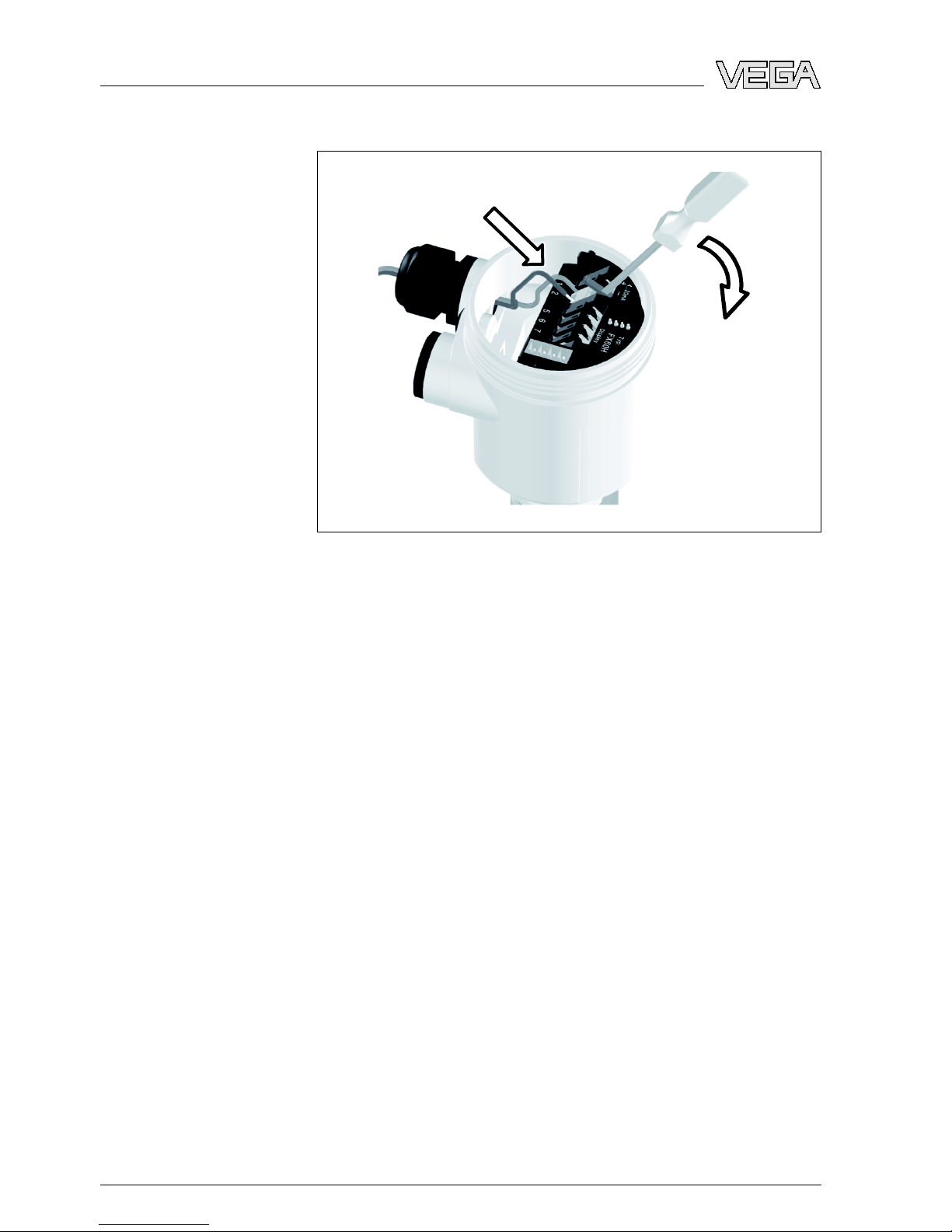

Fig.6:Connection steps 6and 7
Proceed as follows:
1Loosen the four screws on the housing socket with an Allen key
size 4
IP 68 version with exter-
nal housing
18 VEGABAR 64 •Foundation Fieldbus
5Connecting to power supply
28259-EN-081209

2Remove the housing socket from the mounting plate
3
2
1
Fig.7:Components of the external housing for plics
®
devices
1Screws
2Wall mounting plate
3Cable gland
3Loop the connection cable through the cable entry on the housing
base1)
Information:
The cable gland can be mounted in three positions each displaced by
90°.Simply exchange the cable gland against the blind plug in the
suitable thread opening.
4Connect the wire ends as described under "Single/Double
chamber housing"according to the numbering
5Connect the screen to the internal ground terminal,connect the
outer ground terminal above on the housing to potential equal-
isation
6Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
7Attach the mounting plate again and tighten the screws
The electrical connection of the sensor to the external housing is
hence ready.
1)The connection cable is already preconfectioned.If necessary,shorten it to
the requested length,cut the breather capillaries clean.Remove approx.
5cm of the cable mantle,strip approx.1cm insulation from the ends of the
individual wires.After shortening the cable,fasten the type plate with sup-
port back onto the cable.
VEGABAR 64 •Foundation Fieldbus 19
5Connecting to power supply
28259-EN-081209

5.3Wiring plan,single chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
1 2
4
3
Fig.8:Material versions,single chamber housing
1Plastic
2Aluminium
3Stainless steel
4Stainless steel casting
Housing overview
20 VEGABAR 64 •Foundation Fieldbus
5Connecting to power supply
28259-EN-081209
