Viavi T-BERD 5800
RFC-2544 Layer 3 IPv4
Testing Guide
Version 25.x
January 15, 2017
TableofContents
Scope................................................................................................................................................................ 2 
1.  Hardware Description............................................................................................................................... 3 
2.  T-BERD 5800 Remote Unit setup............................................................................................................ 4 
2.1  Information requirements.................................................................................................................. 4 
2.2  Test Setup.......................................................................................................................................... 4 
3.  T-BERD 5800 RFC-2544 Test Procedure................................................................................................ 8 
3.1  Information requirements.................................................................................................................. 8 
3.2  Test Setup.......................................................................................................................................... 8 
3.3  Configuring RFC-2544 Test Settings ............................................................................................. 10 
3.4  Running the Test............................................................................................................................. 12 
3.5  Saving Test Results......................................................................................................................... 14 

Page 2 of 14
Technical Support [email protected] 1-844-468-4284
Scope
This document describes how to measure Metro Ethernet performance with the T-BERD 5800v2 or T-
BERD 5800-100G in accordance with Viavi’s Enhanced RFC 2544 test methodology. RFC-2544 is a
recommended test suite for verifying key performance indicators (KPIs) including Throughput, Delay and
Frame Loss. Viavi’s Enhanced RFC 2544 Test Suite also measures Jitter and Committed Burst Size (CBS)
to verify conformance to a Service Level Agreement (SLA) or Service Level Objectives. This document is
not intended to be a user guide. This Method of Procedure (MOP) should be used in conjunction with the
T-BERD User’s Guides for detailed explanation of all testing options.
The following procedures are documented:
Setting up the T-BERD up as a Layer 3 IPv4 Loopback device (Section 2)
Running a Layer 3 IPv4 RFC-2544 tests from the T-BERD (Section 3)
The Loopback device may be another Viavi test set (SmartClass, HST-3000 or T-BERD), a Viavi Test
Head (QT-600), a Viavi-compatible NID, or a Viavi JMEP loopable SFP.
Figure 1: T-BERD to Viavi compatible loopback device
The following minimum software revision is recommended:
T-BERD 5800-100G BERT Software Release 25.0
T-BERD 5800v2 BERT Software Release 25.1
If your T-BERD is Strata Sync enabled, use StrataSync to update your software. Otherwise, go to
http://updatemyunit.net/ for software update instructions. StrataSync can also be used to create
configuration templates and download configuration files for this procedure.

Page 3 of 14
Technical Support [email protected] 1-844-468-4284
1. Hardware Description
The T-BERD 5800 is a portable test tool for Ethernet testing. The product can also be optioned to support
T1, DS3, SONET, OTN, Fiber Channel, CPRI, and OBSAI. Test connections are made from the top of the
mainframe. Menu selections are made from the T-BERD’s color touch screen. . The T-BERD 5800v2
uses RJ-45 ports, labeled 10/100/1000 for copper testing (10/100/1000BASE-T) and SFP+ ports for optical
testing:
Figure 2: T-BERD 5800v2 Top View (dual port configuration)
The T-BERD 5800-100G uses the SFP+ port for both copper and optical testing. The RJ-45 10/100/1000
port is only used for dual port testing and requires option C5DUALPORT:
Figure 3: T-BERD 5800-100G Top View

Page 4 of 14
Technical Support [email protected] 1-844-468-4284
2. T-BERD 5800 Remote Unit setup
Follow this procedure to set up a T-BERD as a layer 3 IPv4 loopback device.
2.1 Information requirements
The following information is required to set the T-BERD up as a loopback device. This information should
be included in the Work Order:
Physical Interface (10/100/1000BASE-T, 100BASE-FX, 1000BASE-SX, 1000BASE-LX,
10GBASE-LR, 40GBASE-SR4, 100GBASE-LR4, etc.)
Auto Negotiation settings of the port under test.
IP Address of the T-BERD running the RFC-2544 test
VLAN ID and Priority, if VLAN tagging is used.
Source IP Type (Static or DHCP)
If Source IP Type = Static:
oSource IP
oDefault Gateway
oSubnet Mask
2.2 Test Setup
Step Action Details
1. Power On Press and hold the ON/OFF button to turn on the T-BERD. For copper
testing with the T-BERD 5800v2, connect the Port 1 10/100/1000 RJ-45 jack
to the port under test using CAT 5E or better cable, and proceed to step 5.
For optical testing, or for copper testing on the T-BERD 5800-100G, proceed
to step 2.
2. Insert SFP Insert desired copper SFP, optical SFP, QSFP, or CFP4 into the
Port 1 slot on the top of the T-BERD.
3. Clean & Inspect Ensure the fiber and connectors are clean
using a Fiber Inspection probe.
4. Connect Connect the SFP, QSFP, or CFP4 to the port under test.
Use orange or aqua Multimode jumper cables
for 850 nm 1000BASE-SX or 10GBASE-SR.
Use yellow or dark blue Single Mode Fiber jumper
cables for 1310 nm 1000BASE-LX, 10GBASE-LR,
40GBASE-LR4, or 100GBASE-LR4.
Use CAT 5E or better cable for copper
10/100/1000BASE-TX connections.
Use 12-fiber MPO trunk cables for 40GBASE-SR4.
Use 24-fiber MPO trunk cables for 100GBASE-SR10.

Page 5 of 14
Technical Support [email protected] 1-844-468-4284
5. Load Test If a shortcut for this test is stored on the T-BERD, use the Test List to launch
the test and proceed to step 8.
6. All Test If the Select Test menu is hidden, tap to display the menu.
7. Select Test In the Select Test menu, ,at the top left corner of the screen,
choose one of the following:
For 10BASE-T, 100BASE-T, or 1000BASE-T Electrical Ethernet testing:
Ethernet
► 10/100/1000 ► Layer 3 Traffic ► IPv4 ► Terminate or
Ethernet
► 10/100/1000 ► Layer 3 Traffic ► IPv4 ► P1 Terminate.
For 100BASE-FX Optical Fast Ethernet testing:
Ethernet
► 100M Optical ► Layer 3 Traffic ► IPv4 ► Terminate or
Ethernet
► 100M Optical ► Layer 3 Traffic ► IPv4 ► P1 Terminate.
For 1000BASE-SR, 1000BASE-LR, or other GigE Optical Testing:
Ethernet
► 1GigE Optical ► Layer 3 Traffic ► IPv4 ► Terminate or
Ethernet
► 1GigE Optical ► Layer 3 Traffic ► IPv4 ► P1 Terminate.
For 10GBASE-SR, 10GBASE-LR, other 10GigE Optical Testing:
Ethernet
► 10GigE LAN ► Layer 3 Traffic ► IPv4 ► Terminate or
Ethernet
► 10GigE LAN ► Layer 3 Traffic ► IPv4 ► P1 Terminate.
For 40GBASE-SR4, 40GBASE-LR4, other 40GigE Optical Testing:
Ethernet
► 40GigE ► Layer 3 Traffic ► IPv4 ► Terminate or
Ethernet
► 40GigE ► Layer 3 Traffic ► IPv4 ► P1 Terminate.
For 1000GBASE-SR4, 40GBASE-LR4, other 40GigE Optical Testing:
Ethernet
► 100GigE ► Layer 3 Traffic ► IPv4 ► Terminate or
Ethernet
► 100GigE ► Layer 3 Traffic ► IPv4 ► P1 Terminate.

Page 6 of 14
Technical Support [email protected] 1-844-468-4284

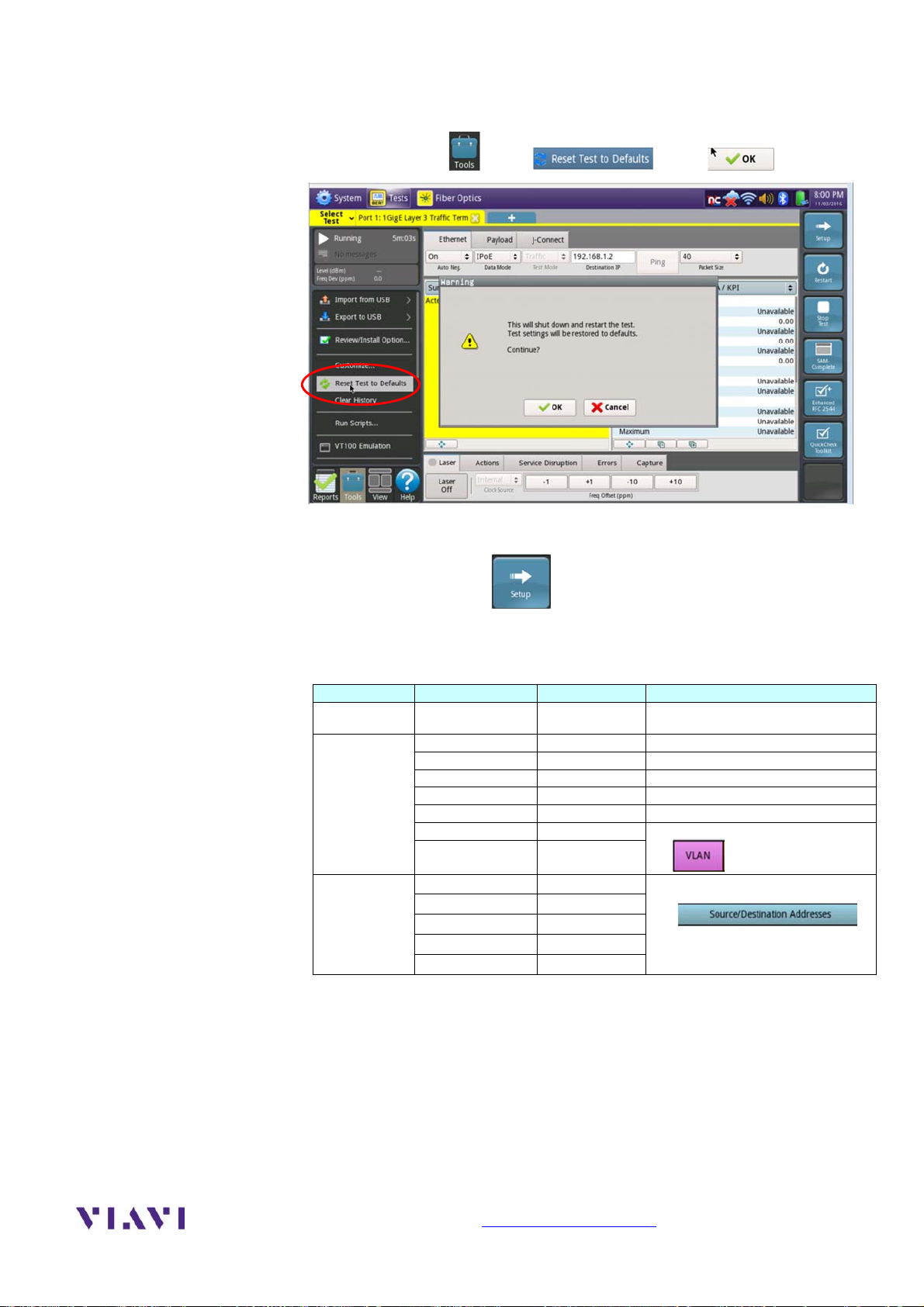

8. Reset Test to Defaults In the Tools Panel, , select . Press to continue.
9. Setup Press the Setup Soft Key ,on the top right side of screen. Select the
indicated folders and configure your test as follows. Leave all other values at
default, unless specified in the Work Order.
Folder Option Value(s) Comment
Inerface,
Physical Layer Autonegotiation See Work Order
Ethernet
Encapsulation None or VLAN See Work Order
Data Mode IPoE
ARP Mode Enabled
Frame Type DIX
Length Type Packet Length
VLAN ID See Work Order If Encapsulation = VLAN,
tap to display settings.
User Priority 0
IP
Source IP Type
Tap
to display settings
Source IP See Work Order
Default Gateway See Work Order
Subnet Mask See Work Order
Destination IP See Work Order

Page 7 of 14
Technical Support [email protected] 1-844-468-4284

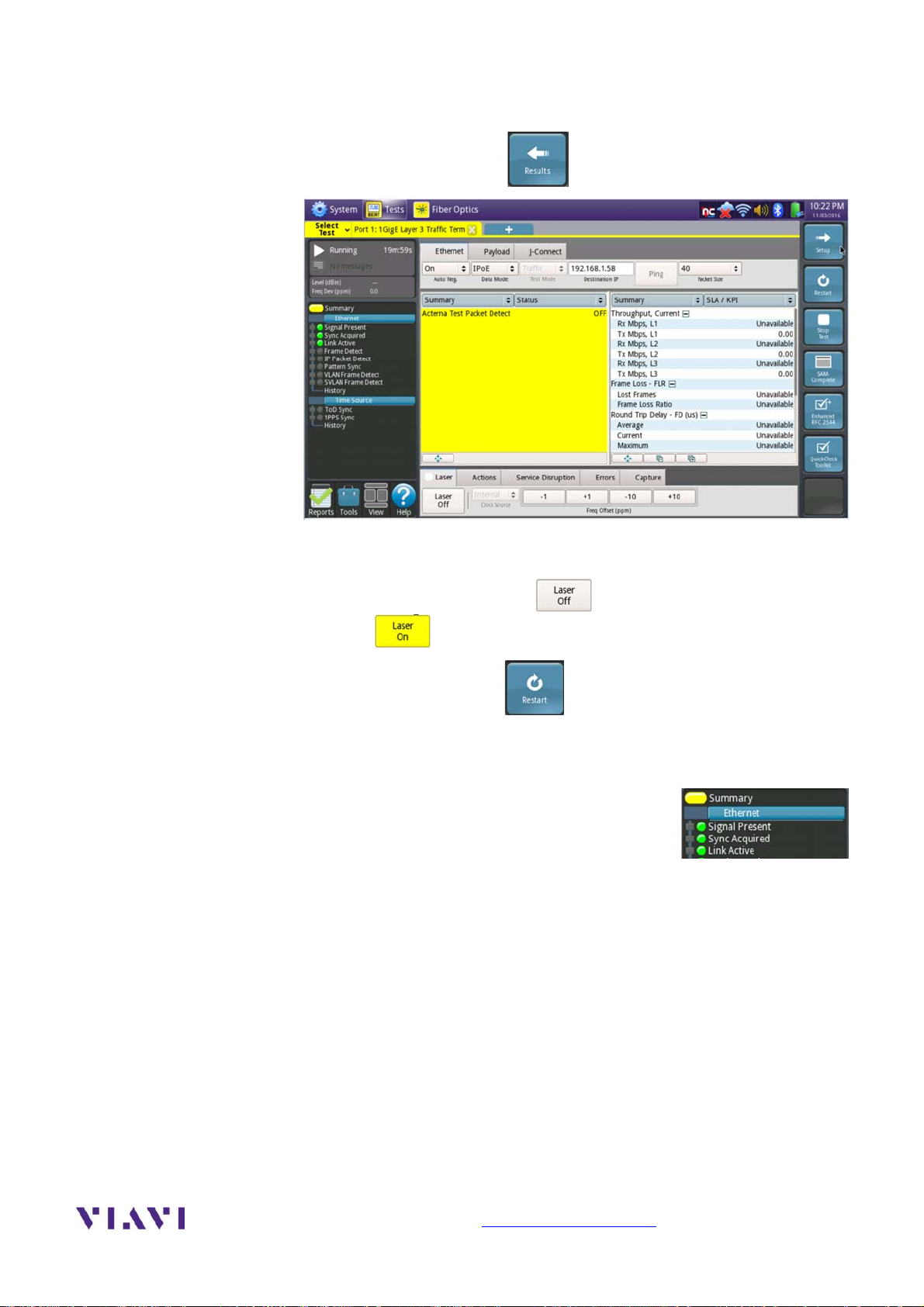

10. Results Press the Results Soft Key, .
11. Turn Laser On For 1GigE, 10GigE, 40GigE, or 100GigE Optical tests, select the Laser tab
in the Actions panel, and press . The button will turn yellow and be
relabeled .
12. Restart Press the Restart Soft Key , on the right side of the screen.
13. Check LEDs A green Signal Present LED
● indicates the
T-BERD is receiving an optical signal from the
Ethernet port under test. Green Sync Acquired
and Link Active LEDs indicate that the T-BERD
has successfully connected to the port under test
and the link is active.
The T-BERD is ready to be looped.

Page 8 of 14
Technical Support [email protected] 1-844-468-4284
3. T-BERD 5800 RFC-2544 Test Procedure
Follow this procedure to set up a T-BERD to run the Enhanced RFC 2544 Test.
3.1 Information requirements
The following information is required to set the T-BERD up to run the RFC 2544 Test. This information
should be included in the Work Order:
Physical Interface (10/100/1000BASE-T, 1000BASE-SX, 1000BASE-LX, 10GBASE-LR,
40GBASE-SR4, 100GBASE-LR4, etc.)
VLAN ID and Priority, if VLAN tagging is used.
Source IP Type (Static or DHCP)
If Source IP Type = Static:
oSource IP
oDefault Gateway
oSubnet Mask
Maximum Transmission Unit (MTU)
Committed Information Rate (CIR)
Pass/Fail Threshold for Throughput, Frame Loss, Latency and Jitter

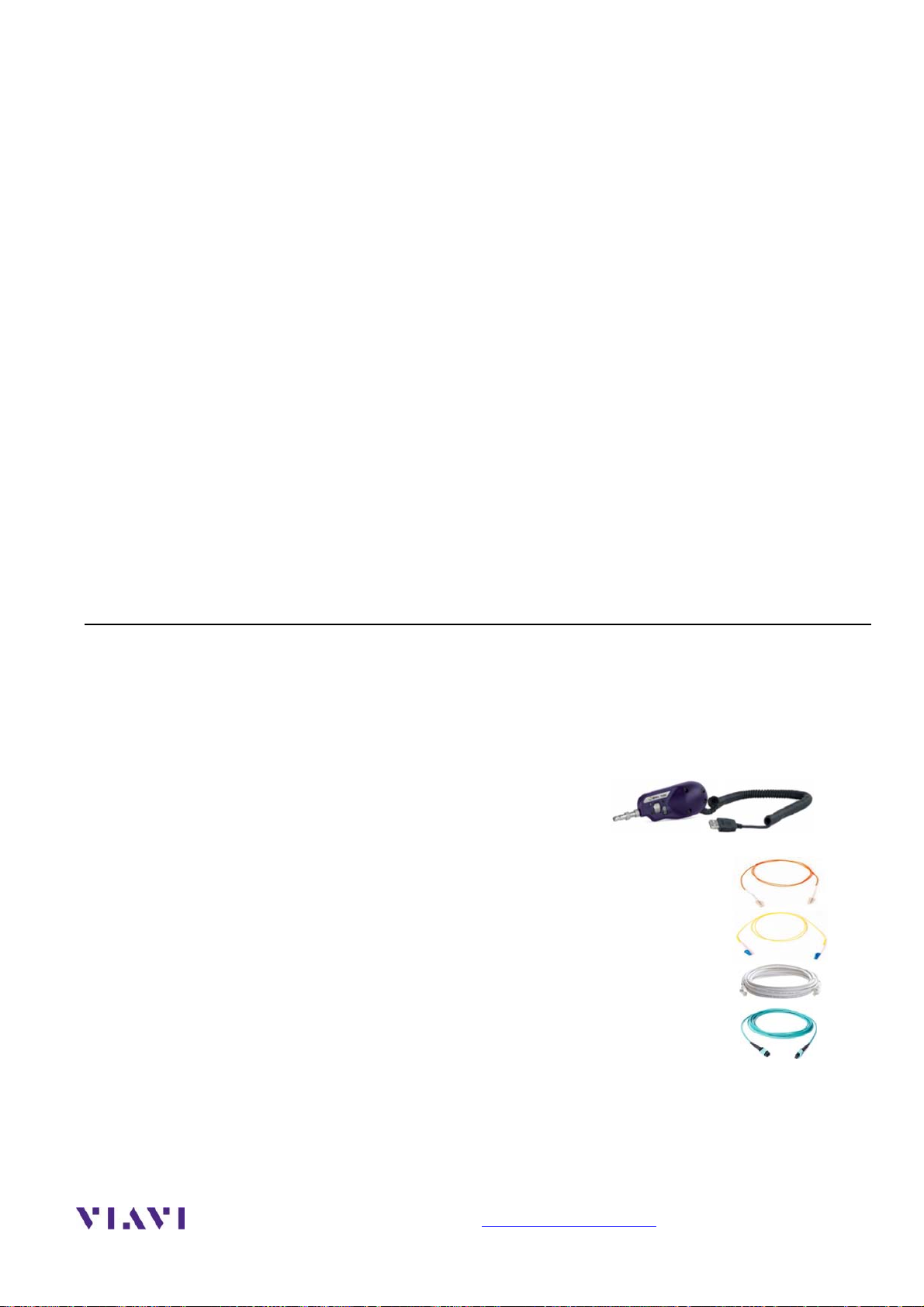

3.2 Test Setup
Step Action Details
1. Power On Press and hold the ON/OFF button to turn on the T-BERD. For copper
testing with the T-BERD 5800v2, connect the Port 1 10/100/1000 RJ-45 jack
to the port under test using CAT 5E or better cable, and proceed to step 5.
For optical testing, or for copper testing on the T-BERD 5800-100G, proceed
to step 2.
2. Insert SFP Insert desired copper SFP, optical SFP, QSFP, or CFP4 into the
Port 1 slot on the top of the T-BERD.
3. Clean & Inspect Ensure the fiber and connectors are clean
using a Fiber Inspection probe.
4. Connect Connect the SFP, QSFP, CFP4 to the port under test.
Use orange or aqua Multimode jumper cables
for 850 nm 1000BASE-SX or 10GBASE-SR.
Use yellow or dark blue Single Mode Fiber jumper
cables for 1310 nm 1000BASE-LX, 10GBASE-LR,
40GBASE-LR4, or 100GBASE-LR4.
Use CAT 5E or better cable for copper
10/100/1000BASE-TX connections.
Use 12-fiber MPO trunk cables for 40GBASE-SR4.
Use 24-fiber MPO trunk cables for 100GBASE-SR10.

Page 9 of 14
Technical Support [email protected] 1-844-468-4284

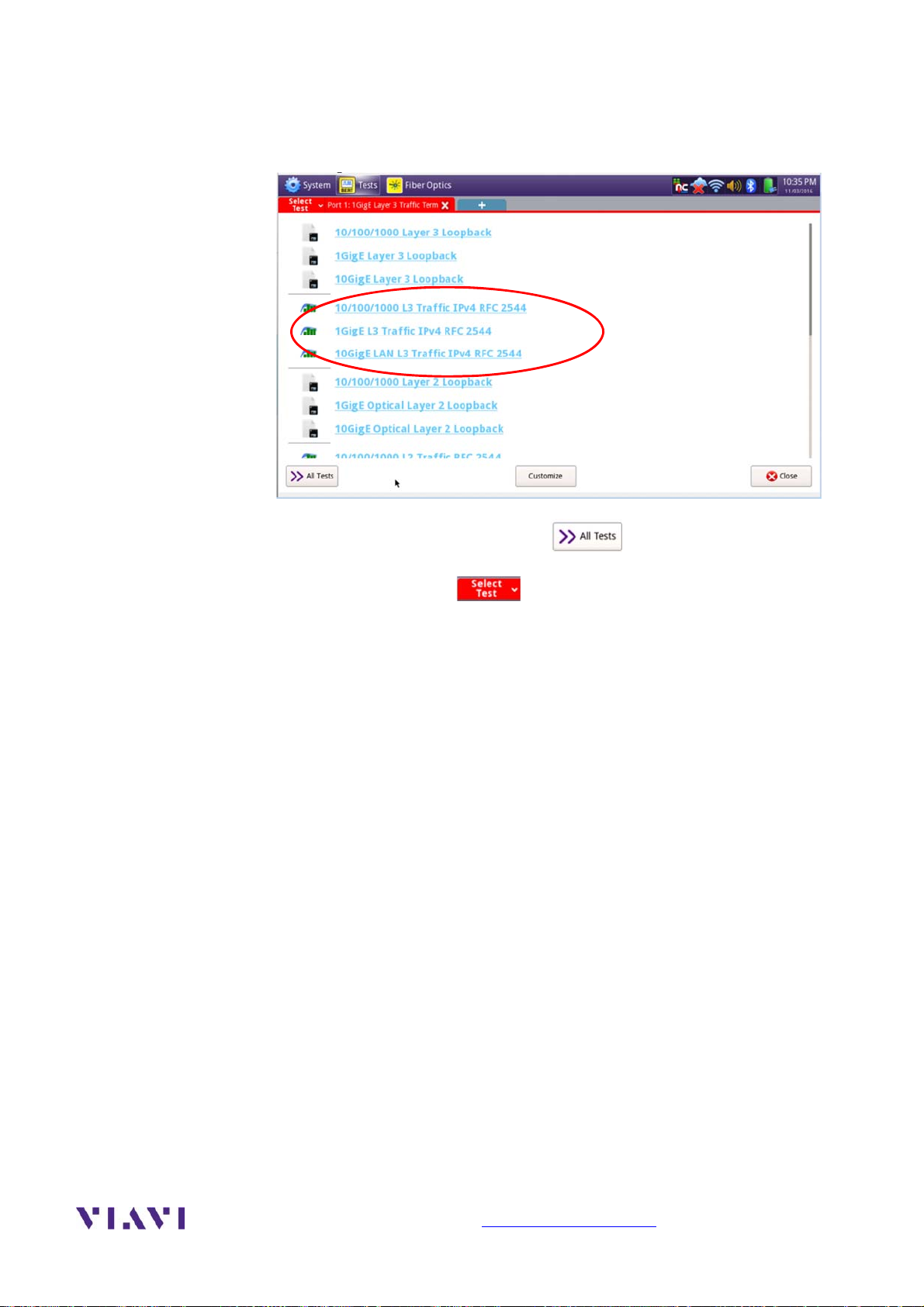

5. Load Test If a shortcut for this test is stored on the T-BERD, use the Test List to launch the
test and proceed to Section 3.3.
6. All Test If the Select Test menu is hidden, tap to display the menu.
7. Select Test In the Select Test menu, ,at the top left corner of the screen,
choose one of the following:
For 10BASE-T, 100BASE-T, or 1000BASE-T Electrical Ethernet testing:
Ethernet►10/100/1000►RFC 2544►L3 Traffic IPv4►Terminate or
Ethernet►10/100/1000►RFC 2544►L3 Traffic IPv4►P1 Terminate.
For 100BASE-FX Optical Fast Ethernet testing:
Ethernet►100M Optical►RFC 2544►L3 Traffic IPv4►Terminate or
Ethernet►100M Optical►RFC 2544►L3 Traffic IPv4►P1 Terminate.
For 1000BASE-SR, 1000BASE-LR, or other GigE Optical Testing:
Ethernet►1GigE Optical►RFC 2544►L3 Traffic IPv4►Terminate or
Ethernet►1GigE Optical►RFC 2544►L3 Traffic IPv4►P1 Terminate.
For 10GBASE-SR, 10GBASE-LR, other 10GigE Optical Testing:
Ethernet►10GigE LAN►RFC 2544►L3 Traffic IPv4►Terminate or
Ethernet►10GigE LAN►RFC 2544►L3 Traffic IPv4►P1 Terminate.
For 40GBASE-SR4, 40GBASE-LR4, or other 40GigE Optical Testing:
Ethernet►40GigE►RFC 2544 ►L3 Traffic IPv4►Terminate or
Ethernet►40GigE►RFC 2544 ►L3 Traffic IPv4►P1 Terminate.
For 100GBASE-SR10, 100GBASE-LR4, or other 100GigE Testing:
Ethernet►10GigE►RFC 2544 ►L3 Traffic IPv4►Terminate or
Ethernet►10GigE►RFC 2544 ►L3 Traffic IPv4►P1 Terminate.

Page 10 of 14
Technical Support [email protected] 1-844-468-4284
3.3 Configuring RFC-2544 Test Settings
The RFC-2544 workflow consists of a series of screen that allow the user to configure the test, run the test,
and generate a report.
Figure 5: RFC-2544 GUI
Step Action Details
1. Configure If this is the first time using the RFC2544 test and your unit does not have
pre-loaded configuration files, tap the button next to “Start a New
Configuration (reset to defaults)” and proceed to step 2.
Otherwise, tap the button next to “Load Configuration from a
Profile”
Select the desired configuration, and tap .
Tap to acknowledge successful load
Tap the button
Tap the button next to Edit Configuration.

Page 11 of 14
Technical Support [email protected] 1-844-468-4284
2. Setup Use the or button at the bottom of the screen to advance
through the wizard and configure the remaining settings as follows:
Screen Option Value(s) Comment
Connect:
Symmetry Throughput Symmetric
Measurements Loopback
L2 Network
Settings -
Local
Frame Type DIX
Encapsulation See Work Order None or VLAN
VLAN ID See Work Order Option only displayed if
Encapsulation = VLAN
User Priority 0 (lowest)
L3 Network
Settings -
Local
Source IP Type See Work Order Static or DHCP
Source IP See Work Order
Default Gateway See Work Order
Subnet Mask See Work Order
Destination IP See Work Order
What type of IP
prioritization is used? None
RFC 2544
Tests:
Configuration
Templates
Do you want to use
a configuration template? No
RFC 2544
Tests: Select
Tests
RCF 2544 Tests
Throughput,
Latency,
Frame Loss
Additional Tests Packet Jitter
RFC 2544
Tests:
Utilization
Bandwidth Unit L1 Mbps
Maximum Bandwidth See Work Order Enter Committed Information Rate (CIR)
RFC 2544
Teests: Frame
Lengths
Length Type Packet Length
Packet Length

Select 1
st
, 4
th
, and 8
th
Frame Lengths.

If the MTU is greater than 1518
(1522 with VLAN), also enter and
select the packet length of the MTU.

Deselect (uncheck) all other packet
lengths.
RFC 2544
Tests:
Throughput
Zero-in Process Viavi Enhanced
Measurement Accuracy To within 1 Mbps
RFC 2544
Tests: Frame
Loss Test
Test Procedure RFC 2544 Standard
Bandwidth Granularity
(L1Mbps)
Enter minimum value:
1 for 100Mbps Ethernet
10 for Gigabit Ethernet
100 for 10GigE
400 for 40GiE
1000 for 100GigE
Test Ctls:
Test Durations
Configure test durations
separately? No
Duration 120 seconds This will result in approximately 6
minutes of test time per frame length.
Number of Trials 1
Test Ctls:
Test
Thresholds
Show Pass/Fail Select all ()
Throughput Threshold See Work Order Enter CIR
Throughput Frame Loss
Tolerance (%) See Work Order Enter 0.0000 if not specified
Latency RTD (µs) See Work Order Enter threshold in µsecs
(1 msec = 1000 µsec). Uncheck the
Show Pass/Fail box if a
threshold is not specified.
Packet Jitter (µs) See Work Order
Acterna Payload Version Version 3

Page 12 of 14
Technical Support [email protected] 1-844-468-4284
3. Save Profile If you wish to save this configuration as a new profile, enter a File name, and
tap .
Tap , tap , and tap twice.
Otherwise, tap and tap .
3.4 Running the Test
Step Action Details
1. QuickCheck Ensure that the loopback device has been setup, and tap to run
J- QuickCheck to verify local connectivity, loop up the remote loopback
device, and check available bandwidth.

Page 13 of 14
Technical Support [email protected] 1-844-468-4284
2. Run Tests Tap , and tap . The T-BERD will loop up the
loopback device and run all configured tests.
At the conclusion of the test, the T-BERD will automatically loop down the
loopback device. Pass/Fail status for each test will be indicated by green
checkmark, , or red x, . Test for which no pass/fail threshold was
specified will have a blue checkmark, . The Frame Loss test will
always have a blue checkmark, because there is no pass/fail value. Detailed
results for each test can be viewed by tapping .

Page 14 of 14
Technical Support [email protected] 1-844-468-4284
3.5 Saving Test Results
Step Action Details
1. Create Report Tap twice and enter Customer name, Technician ID, Test
Location, Work Order Number and Comments/Notes.
Tap again and tap
2. View Report View the Report and tap .
3. Exit Tap and to shut down the RFC 2544 test.
4. Connect USB Connect the USB Flash Drive to the USB port on the side of the T-BERD.
5. Export Report In the Reports Panel, , select , select the desired file, and
tap Export. Tap Close when export is complete.
6. Shutdown Press and hold the ON/OFF button to turn off the T-BERD. Remove the
USB Flash Drive from the USB port.
