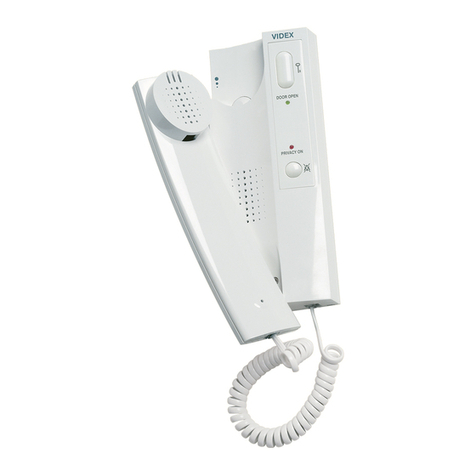

Videx 3000 Series User manual

TECHNICAL SUPPORT
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.videxuk.com
SERIES
3000
1
2
3
4
1
2
3
4
3117

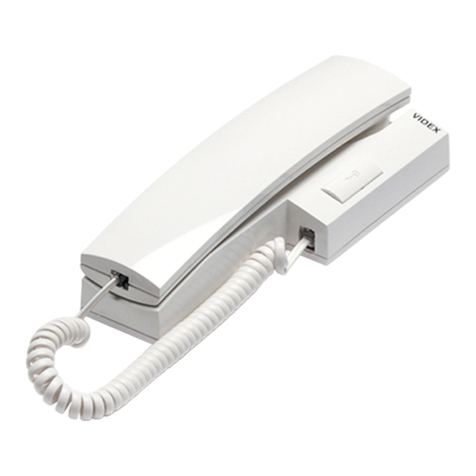

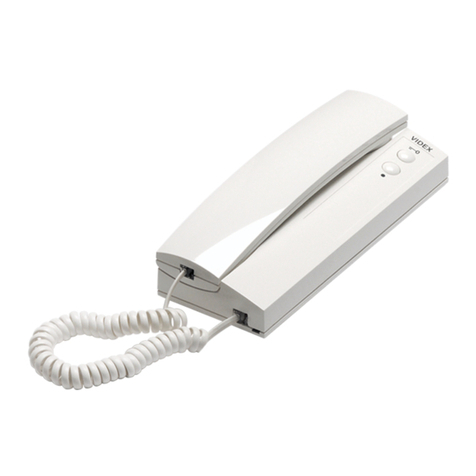

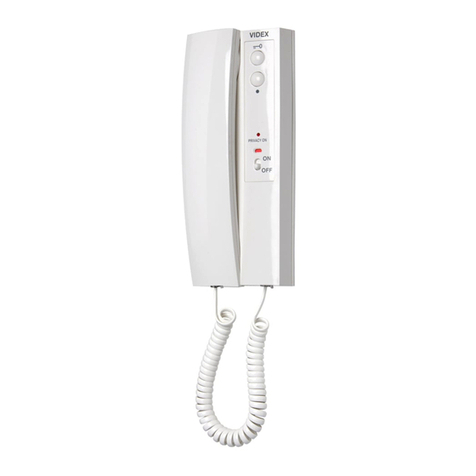

3000 Series Audiophone
QUICK GUIDE
ART. 3117

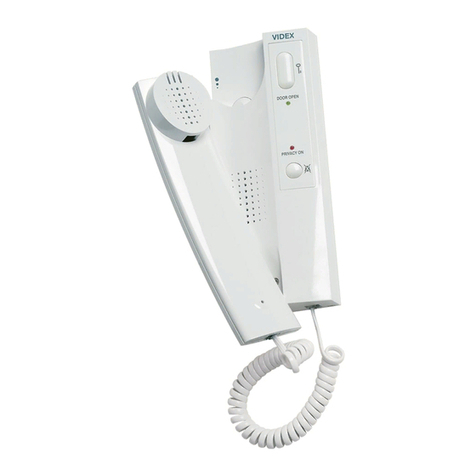

3000 Series full base "4+1" and intercommunication audiophone
incorporating an adjustable electronic call tone, "door open" push button
and 4 additional buttons for intercommunicating.
For use on intercommunicating systems or traditional "4+1" audio
systems that require an electronic call tone including the following audio
kits: traditional VR audio systems, 4K series, 8K series, VR4K series and
VR120DK series kits.
Call tone adjustment: 3 level (low, medium and high) call tone switch.
Additional buttons: 4 intercommunicating call buttons (numbered 1 - 4).
QG_3117_V.1.0_03/17

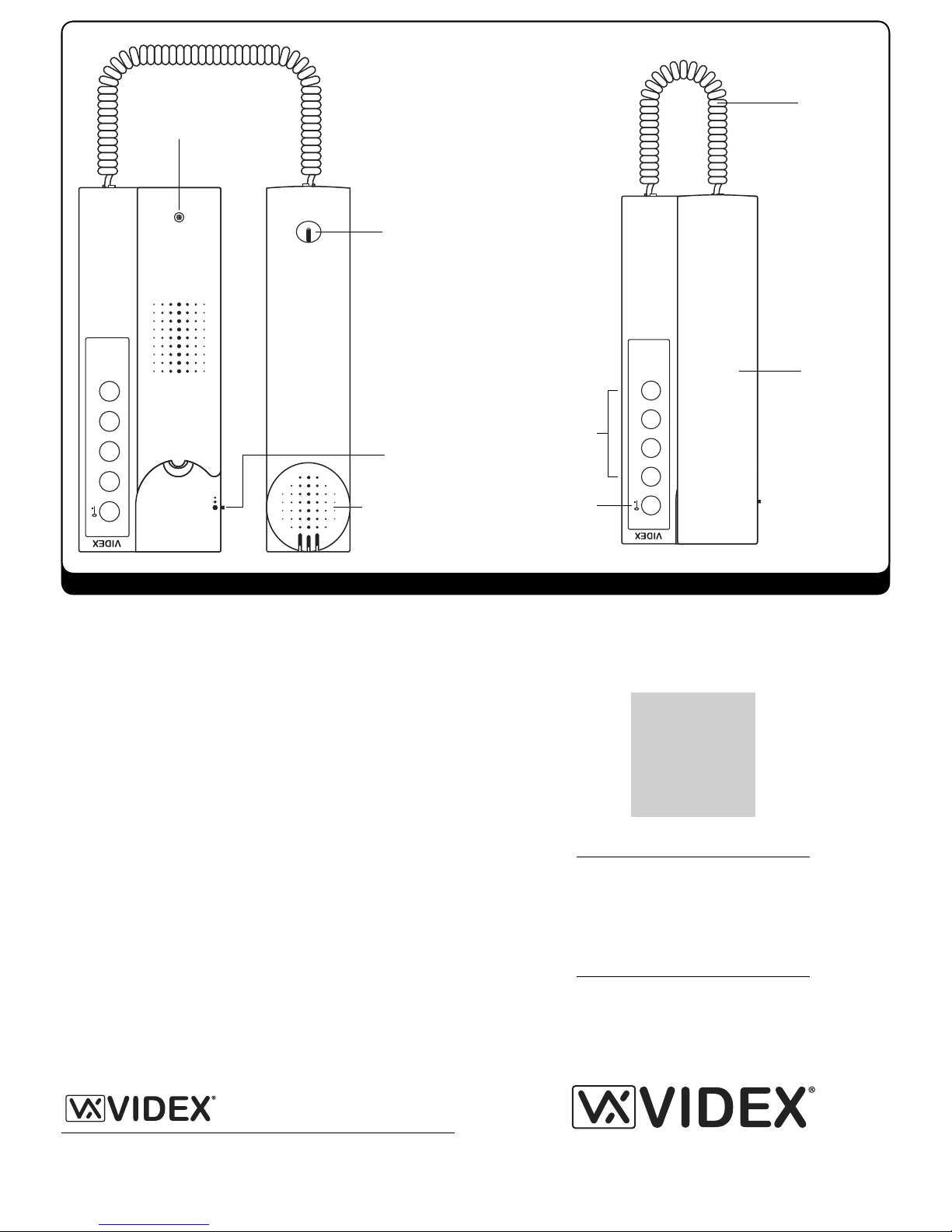

Door Open button Handset speaker
Handset
microphone
Audiophone
Handset
Handset cord
Front cover
retaining
screw
OVERVIEW
Intercommunicating call
buttons
3 level (low,
medium and high)
call tone volume
adjustment

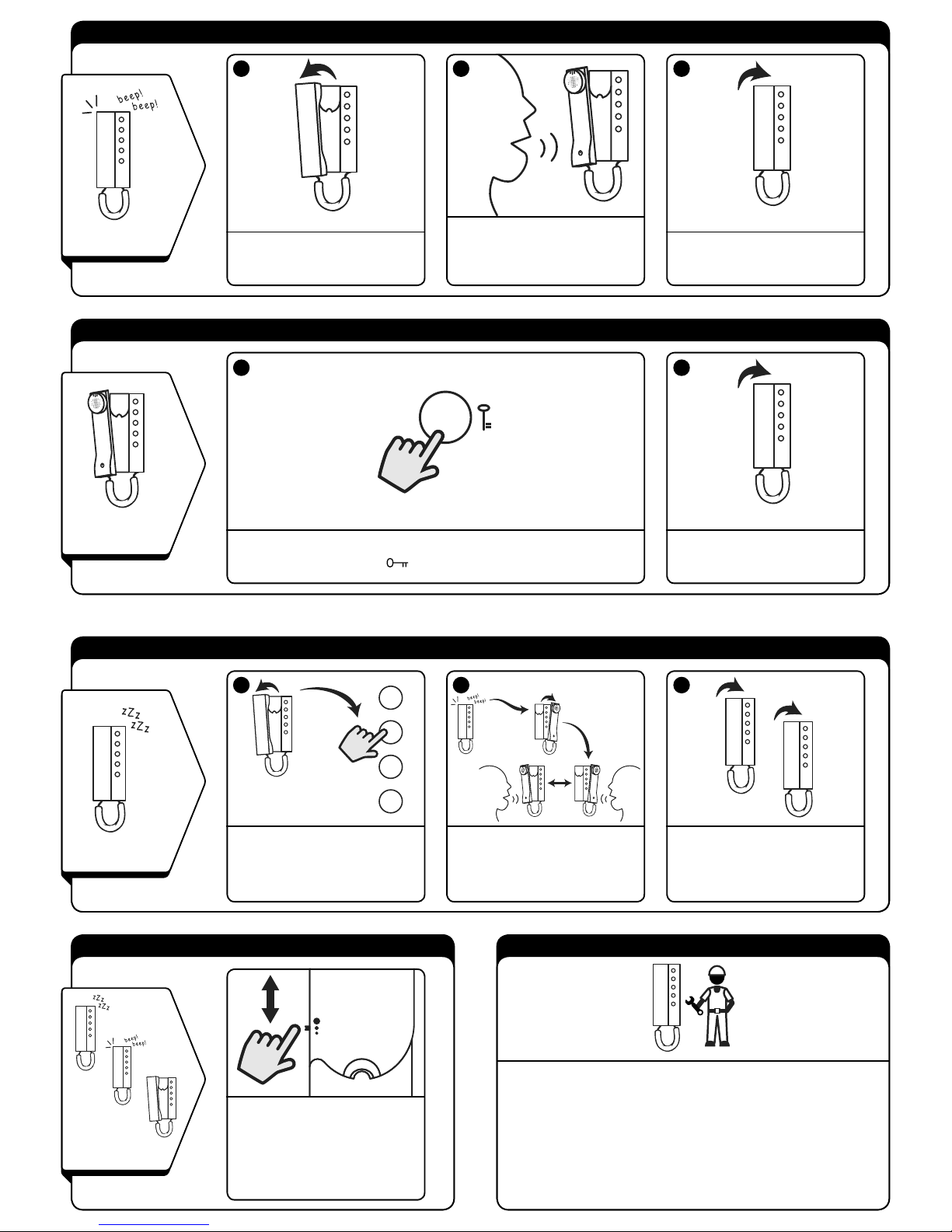

ANSWERING A CALL (FROM THE OUT DOOR STATION)
TO OPEN THE DOOR
To answer an incoming call
pick up the handset.
With the handset lifted a
conversation with the caller
can begin.
To end the call replace the
handset back on the cradle.
During a conversation, with the handset lifted, press the lock
button to operate the lock.
To end the call replace the
handset back on the cradle.
During a
conversation
CALL TONE VOLUME ADJUSTMENT
In every situation
Move the volume switch to the lower
position to set the call tone volume
to low, to the middle position to set
the call tone volume to medium and
to the upper position to set the call
tone volume to high.
12 3
12
TECHNICAL ADVICE
For further technical advice and assistance on the
installation of this product please contact Videx technical on
tel: [phone].
For any sales advice and assistance please contact Videx
sales on tel: [phone].
To download a copy of this quick guide visit the Videx
website: www.videxuk.com
During a call
MAKING AN INTERCOMMUNICATING CALL (BETWEEN AUDIOPHONES)
In standby
1
2
3
4
Pick up the handset. Press the call
button (1 - 4) for the required phone
to be called.
When the phone which is called
rings, it can be answered and a 2 way
conversation between the caller and
receiver can begin.
To end the call/conversation
between the phones replace the
handsets back on the cradle.
12 3
