Videx 3000 Series User manual

TECHNICAL SUPPORT
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.videxuk.com
SERIES
3000
PRIVACY ON
DOOR OPEN
ON
OFF
PRIVACY ON
DOOR OPEN
ON
OFF
3114
3000 Series Audiophone
QUICK GUIDE
ART. 3114
3000 Series full base "4+1" audiophone incorporating an adjustable
electronic call tone, "door open" push button including a " door open" LED,
spare service button and privacy switch with privacy ON illumination LED.
For use on traditional "4+1" audio systems that require an electronic call
tone including the following audio kits: 4K series, 8K series, VR4K series
and VR120DK series kits.
Call tone adjustment: 3 level (low, medium and high) call tone switch.
Privacy facility: 2 position privacy switch (ON/OFF).
Privacy indication: 1 privacy illumination LED (red).
Door open indication: 1 door open illumination LED (green).
QG_3114_V.1.0_03/17
Door Open button Handset speaker
Handset
microphone
Audiophone
Handset
Handset cord
Front cover
retaining
screw
3 level (low,
medium and high)
call tone volume
adjustment
OVERVIEW
Spare Service
button
Privacy ON/OFF
switch
Privacy ON LED
Door Open LED

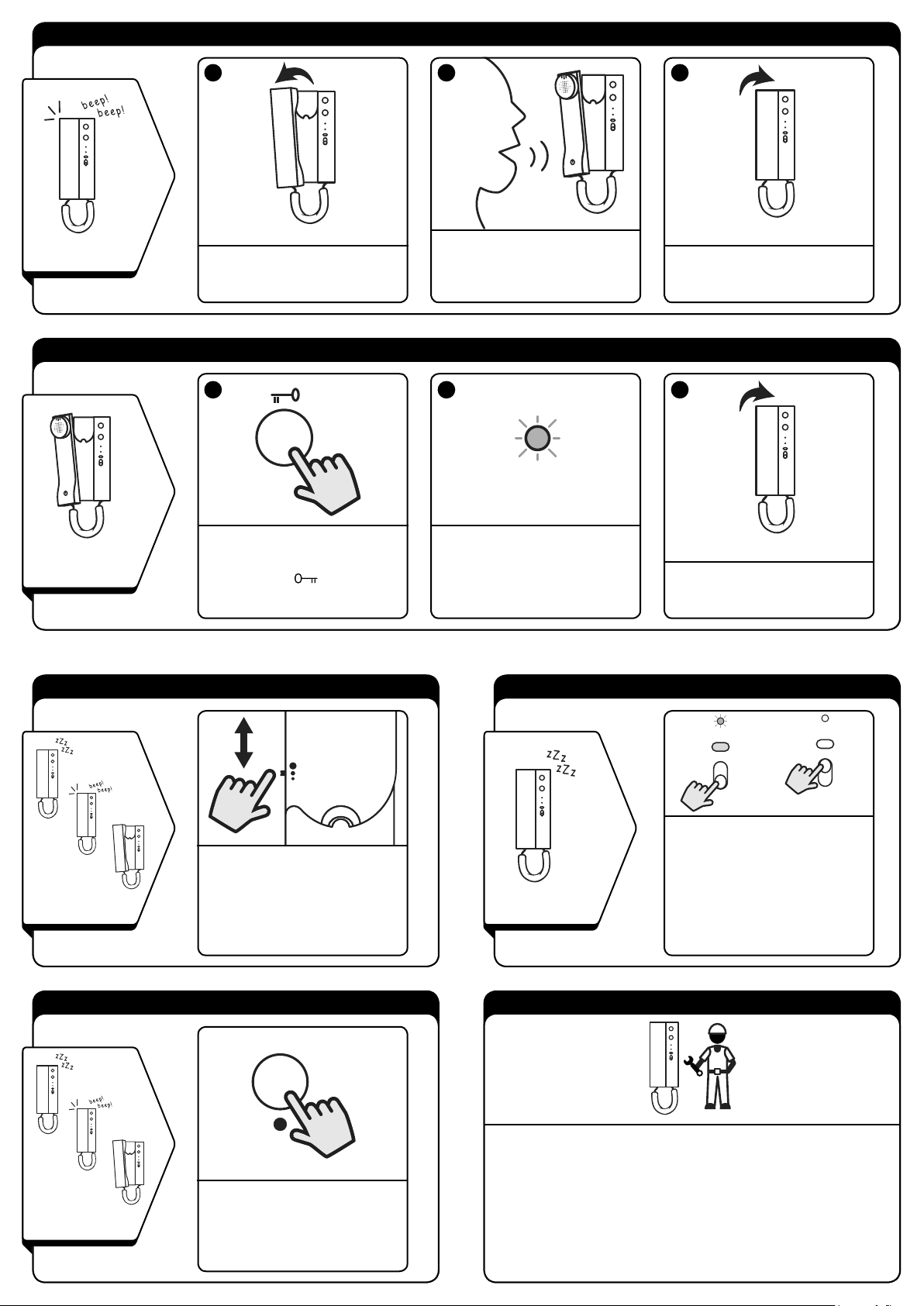

ANSWERING A CALL
TO OPEN THE DOOR
To answer an incoming call
pick up the handset.
With the handset lifted a
conversation with the caller
can begin.
To end the call replace the
handset back on the cradle.
During a call
During a conversation, with
the handset lifted, press the
lock button to operate
the lock.
To end the call replace the
handset back on the cradle.
During a
conversation
CALL TONE VOLUME ADJUSTMENT
PRIVACY ON
ON
OFF
In every situation
Move the volume switch to the lower
position to set the call tone volume
to low, to the middle position to set
the call tone volume to medium and
to the upper position to set the call
tone volume to high.
To activate privacy and switch the
phone OFF, move the privacy switch
to the OFF position (the privacy LED
will switch ON, if this was set up
during the installation). To switch the
phone back ON, move the privacy
switch to the ON position (the
privacy LED will switch OFF).
12 3
13
SPARE SERVICE BUTTON TECHNICAL ADVICE
In every situation
Press the spare service button
to activate a secondary
function (if this was set up
during the installation).
For further technical advice and assistance on the
installation of this product please contact Videx technical on
tel: [phone].
For any sales advice and assistance please contact Videx
sales on tel: [phone].
To download a copy of this quick guide visit the Videx
website: www.videxuk.com
OPERATING THE PRIVACY SWITCH
In standby
PRIVACY ON
ON
OFF
DOOR OPEN
The door open LED will
switch ON to indicate the
door is open (if this was set
up during the installation).
2
