Vision Fitness X6200HRT User manual

Owner’s
Guide
X6200HRT
FOLDING ELLIPTICAL TRAINER

ongratulations on choosing a VISION FITNESS Elliptical Trainer. You’ve
taken an important step in developing and sustaining an exercise
program! Your Elliptical Trainer is a tremendously effective tool for
achieving your personal fitness goals. Regular use of your Elliptical Trainer
can improve the quality of your life in so many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help In Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new Elliptical Trainer will help you eliminate the obstacles that prevent you
from getting in your exercise time. Snow and rain and darkness won't
interfere with your workout when you have your Elliptical Trainer in the
comfort of your home. This Owner’s Guide provides you with basic
information on starting an exercise program. A more complete knowledge
of your new Elliptical Trainer will assist you in realizing your goal of a
healthy lifestyle.
Some kinds of service to your Elliptical Trainer should only be performed
by your VISION FITNESS retailer. Please contact your authorized VISION
FITNESS retailer should service be required. If a question or problem
arises which cannot be handled by your VISION FITNESS retailer, please
contact us:
VISION FITNESS
P.O. Box 280
500 South CP Avenue
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

1
ALL MODELS X6200HRT GENERAL
SAFETY INSTRUCTIONS . . . . . . . . . . 4
ASSEMBLY, PLACEMENT, MOVING . . . 6
FOLDING YOUR ELLIPTICAL TRAINER . 8
CHILD SAFETY GUARDS . . . . . . . . . 11
TROUBLESHOOTING:
ELLIPTICAL TRAINERS . . . . . . . . . . 20
HEART RATE MONITOR . . . . . . . . . 21
COMMON QUESTIONS . . . . . . . . . 22
HOME WARRANTY . . . . . . . . . . . . 24
COMMERCIAL WARRANTY . . . . . . . 26
DEVELOPING FITNESS PROGRAM . . 28
FLEXIBILITY . . . . . . . . . . . . . . . . 29
EXERCISE GUIDELINES . . . . . . . . . 31
TARGET HEART RATE . . . . . . . . . . . 32
RATE OF PERCEIVED EXERTION . . . . 33
WEEKLY WORKOUT LOGS . . . . . . . 36
MONTHLY WORKOUT LOGS . . . . . . 38
ALL MODELS
GENERAL
Table of Contents
SETTING MPH/KPH . . . . . . . . . . . 12
QUICK-START . . . . . . . . . . . . . . . . 13
PROGRAM DETAILS . . . . . . . . . . . . 14
FEEDBACK DISPLAY . . . . . . . . . . . 15
PROGRAM, LEVEL, WEIGHT . . . . . . 16
TIME, STARTING . . . . . . . . . . . . . . 17
USING THE HRT PROGRAM . . . . . . 18
USING THE HEART RATE STRAP . . . . 19
CONSOLE
X6200HRT

2
X6200HRT

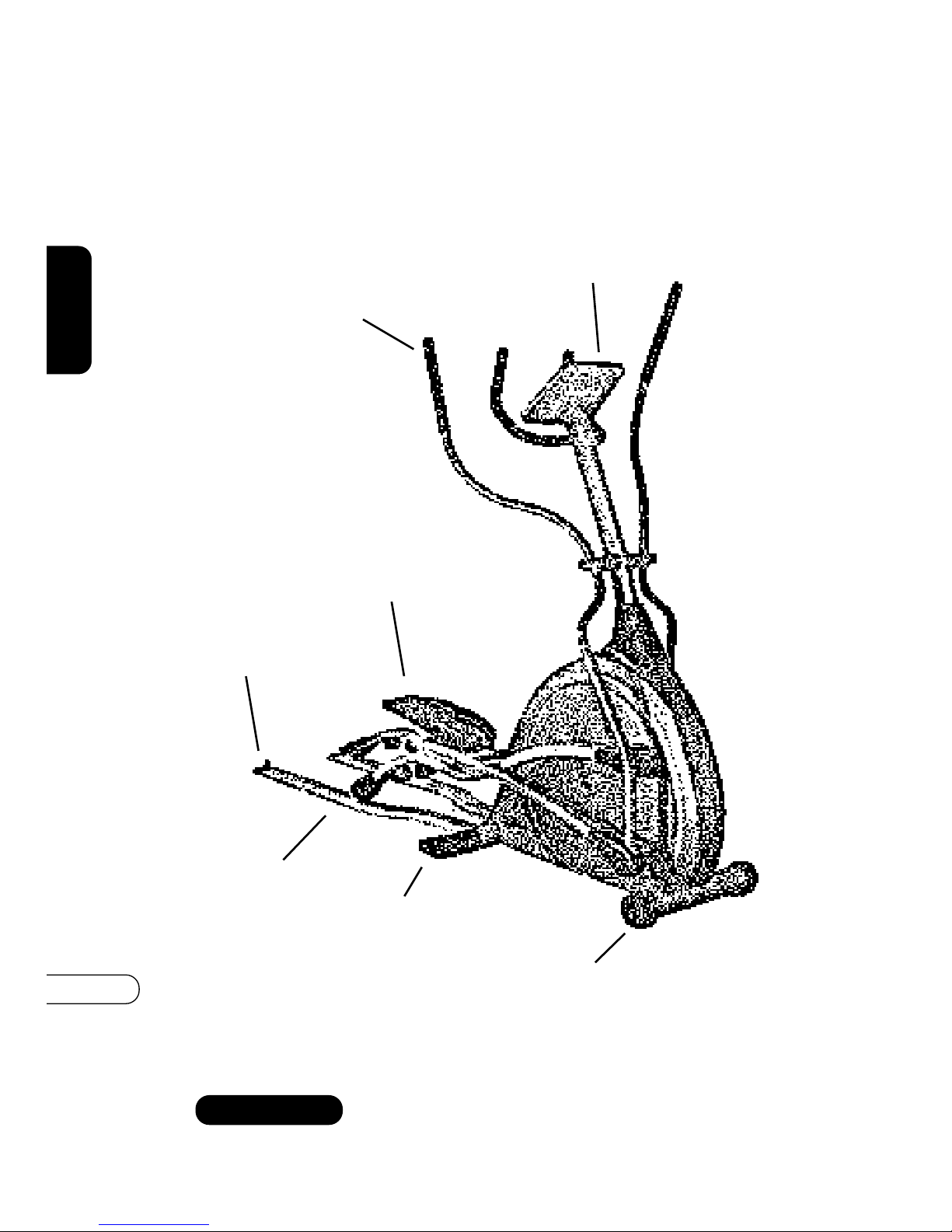

FRONT FOOT &
TRANSPORT WHEELS
CONSOLE
FOLDING ELLIPTICAL TRAINER
REAR FOOT
X6200HRT
PEDAL ARM
GUIDE RAILS
SIDE STABILIZER
FOOT PAD
DUAL-ACTION
HANDLEBAR

4
ALL MODELS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Do not use attachments not recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Elliptical Trainer sidecovers. Service should be
performed only by an authorized VISION FITNESS retailer.
• Never operate this Elliptical Trainer if it has a damaged cord or plug, if
it is not working properly, if it has been damaged, or immersed in water.
Return the Elliptical Trainer to a retailer for examination and repair.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS Elliptical
Trainer.
• Never place the power cord under carpeting or place any object on
top of the power cord, which may pinch and damage it.
• Unplug your Elliptical Trainer before moving it.
CHILDREN
• Keep children off your Elliptical Trainer at all times.
• When the Elliptical Trainer is in use, young children and pets should
be kept at least 10 feet away.
WARNING!

5
ALL MODELS
OTHER SAFETY TIPS FOR YOUR VISION FITNESS ELLIPTICAL TRAINER
CAUTION! If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the elliptical
trainer.
• Read this Owner’s Guide before operating this Elliptical Trainer.
• Drink plenty of fluids during your workout.
CLEANING
• Clean with soap and slightly damp cloth only; never use solvents.

6
ALL MODELS
ASSEMBLY
If you have elected to assemble this product yourself, for your safety please
read and follow each of the steps in the enclosed assembly instructions. It
is recommended, when possible, that assembly be performed by an
authorized VISION FITNESS retailer. If you have any questions regarding
any part or function of your Elliptical Trainer, contact your retailer.
MOVING
Your VISION FITNESS Elliptical Trainer has a pair of transport wheels built
into the front of the frame. To move, firmly grasp the console mast han-
dlebars and tilt and roll the Elliptical Trainer on the front wheels.
CAUTION: Our Elliptical Trainers are well-built and heavy, weighing up to
270 lbs.! Use care and additional help if necessary.

7
ALL MODELS
PLACEMENT IN YOUR HOME
It is important that you place your Elliptical Trainer in a comfortable and
inviting room. Your Elliptical Trainer is designed to use minimal floor space.
Many people will place their Elliptical Trainer facing the TV or a picture
window. If at all possible, avoid putting your Elliptical Trainer in an
unfinished basement. To make exercise a desirable daily activity for you,
the Elliptical Trainer should be in an attractive setting.
POWER SUPPLY
Your Elliptical Trainer uses a wall-mount external power supply. Use only
the power supplied with your Elliptical Trainer. If you misplace this power
supply, please contact your authorized VISION FITNESS retailer for an
original replacement. Use of the wrong power supply may cause damage
to your Elliptical Trainer.
LEVELING YOUR ELLIPTICAL TRAINER
If your Elliptical Trainer wobbles when
you have placed it where you intend to
use it, raise or lower the adjustable
levelers located in several places on
the underside of your Elliptical Trainer:
1) the rear ends of the pedal arm
guide rails,
2) the side stabilizers, and
3) the front foot near the front transport
wheels.
Once you have leveled the Elliptical
Trainer, lock the levelers in place by
tightening the winged lock nuts against
the underside of your Elliptical Trainer.

8
ALL MODELS
FOLDING YOUR ELLIPTICAL TRAINER
NOTE: It is important to always follow the correct order of steps when
folding your Elliptical Trainer.

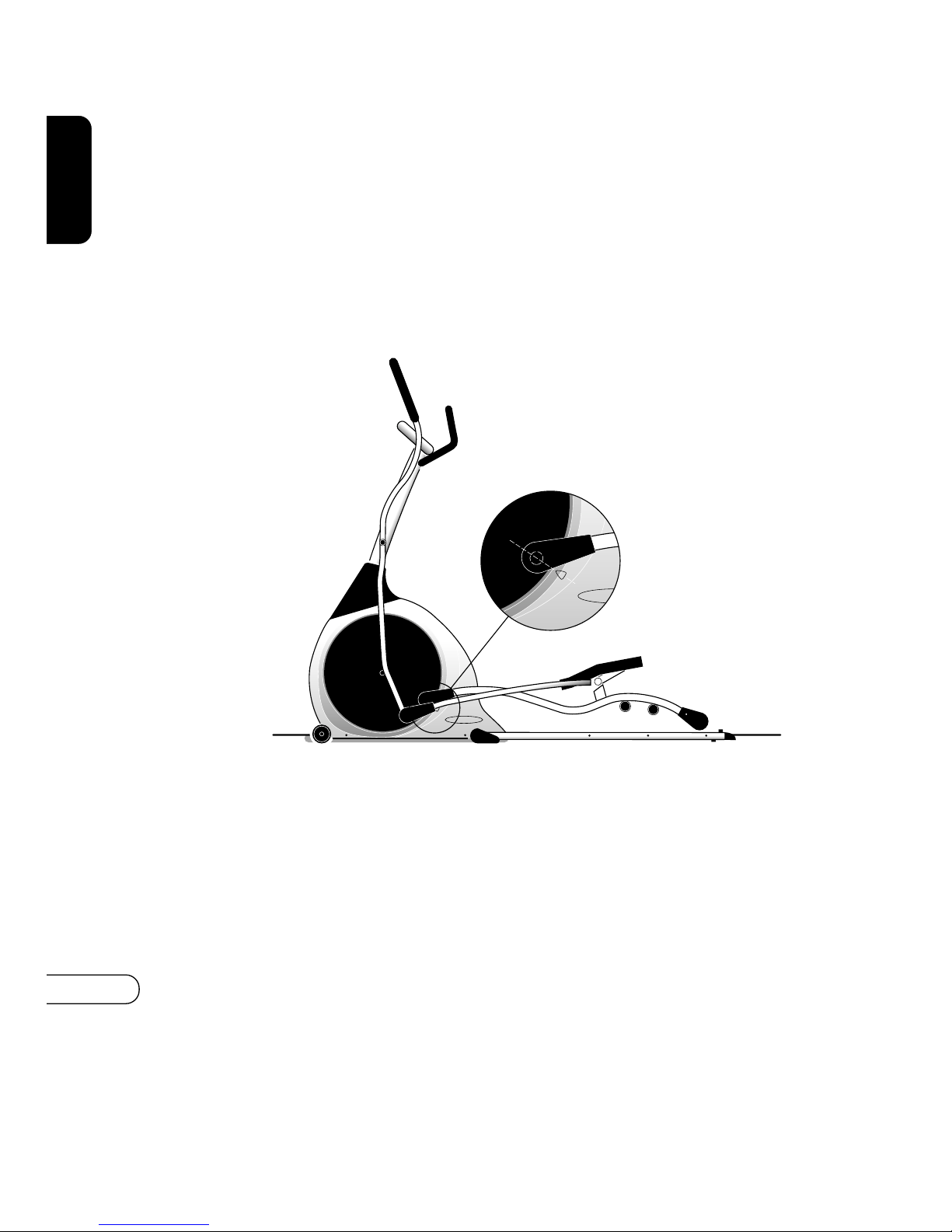

STEP 1: Locate the arrow on the side cover that points to the 4 o’ clock
position of the disk. Rotate the disk so that the arrow is pointing to the disk
axle (the point where the disk and pedal arm connect.)

9
ALL MODELS

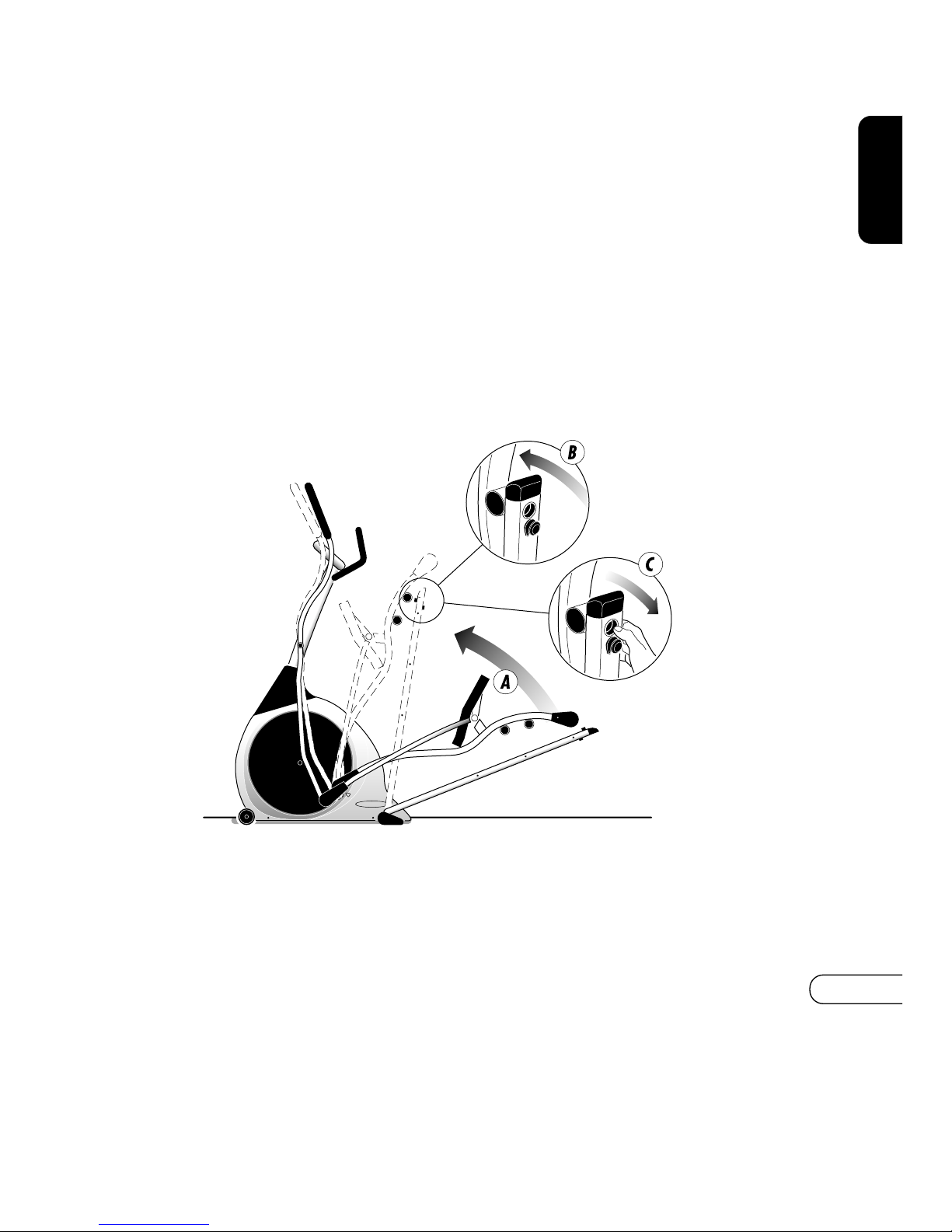

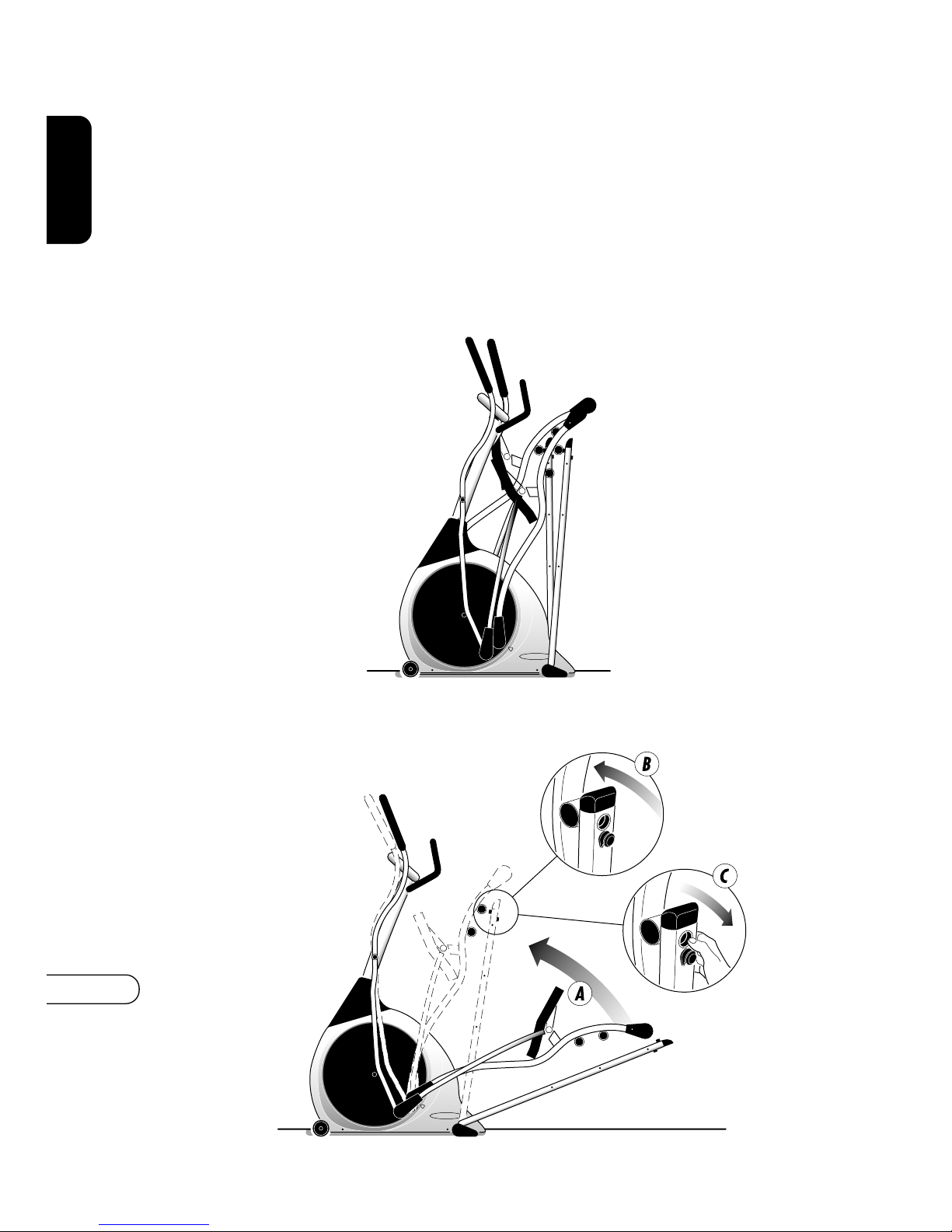

STEP 2: Simultaneously lift both the Pedal Arm and the Guide Rail upon
which it is resting to the vertical position (A). The locking device, which is
mounted on the Guide Rail, should now be aligned with the
lock-receiving bracket on the backside of the Pedal Arm. Firmly push the
Guide Rail until it clicks and locks into position (B). Check that it is secure
before proceeding.
Repeat these steps with the other Pedal Arm and Guide Rail to
completely fold your Elliptical Trainer for compact storage.

10
ALL MODELS
STEP 3: To unfold your Elliptical Trainer, push the recessed lock button found
on the underside of one Guide Rail (C). Carefully lower both the Pedal
Arm and Guide Rail to the floor simultaneously.
Repeat these steps with the other Pedal Arm and Guide Rail to
completely unfold your Elliptical Trainer for use.

11
ALL MODELS
OPTIONAL CHILD SAFETY GUARDS
Always attach the child safety guards to the pedal arm guide rails if there
are young children living in or ever visiting your house. Note that when
these child safety guards are attached, the pedal arms cannot fold.

12
X6200HRT
X6200HRT SETTING MPH & KPH
Your X6200HRT Console arrives preset to display Miles. If you wish to
display Kilometers, remove the Console from the Console Mast by
removing the four mounting screws. Inside the mounting recess you will
find a small switch; move this Kilometers/Miles Conversion Switch to the
left to display Kilometers. Remount the Console to the Console Mast.

13
X6200HRT

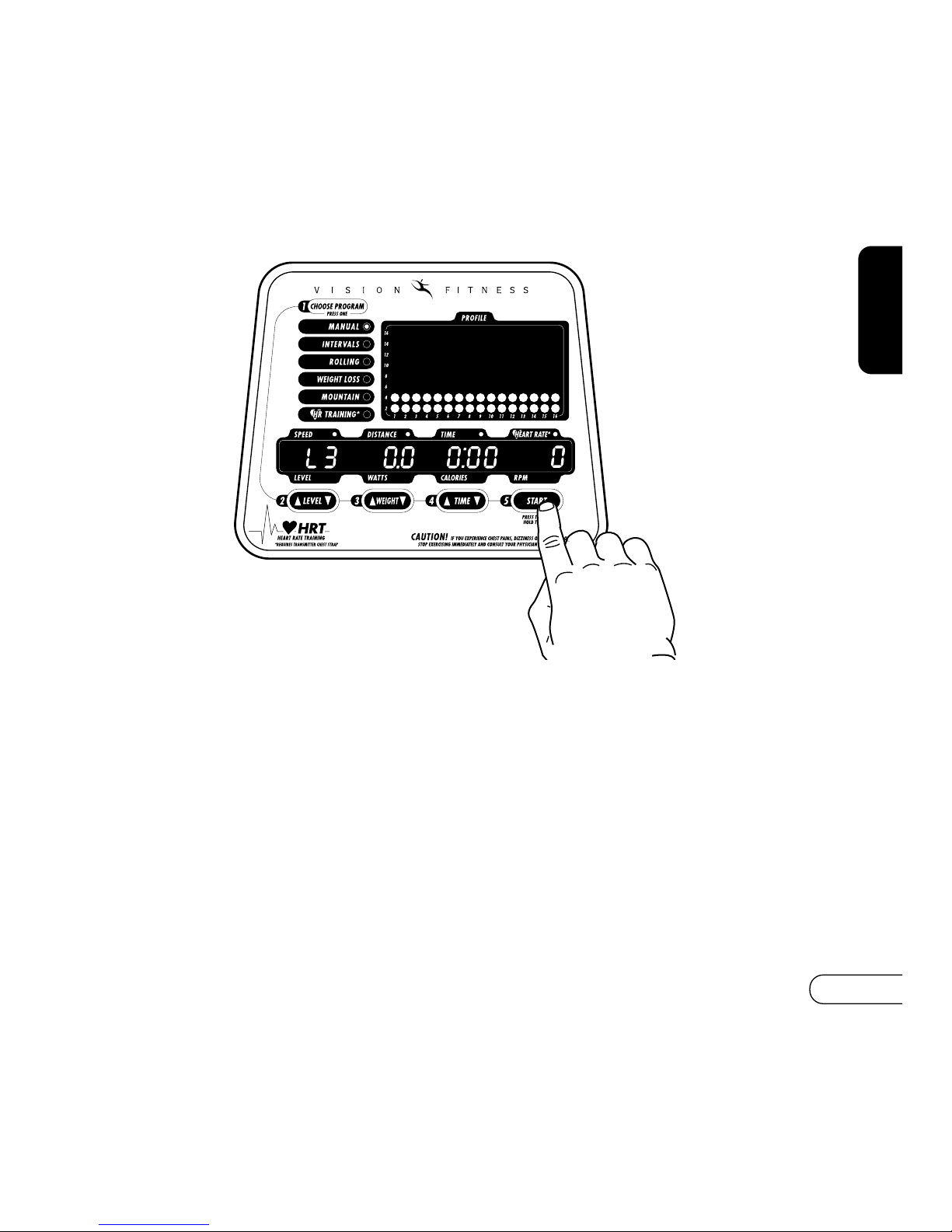

QUICK-START
Simply press the START button to begin exercising in the MANUAL
Program.

14
X6200HRT

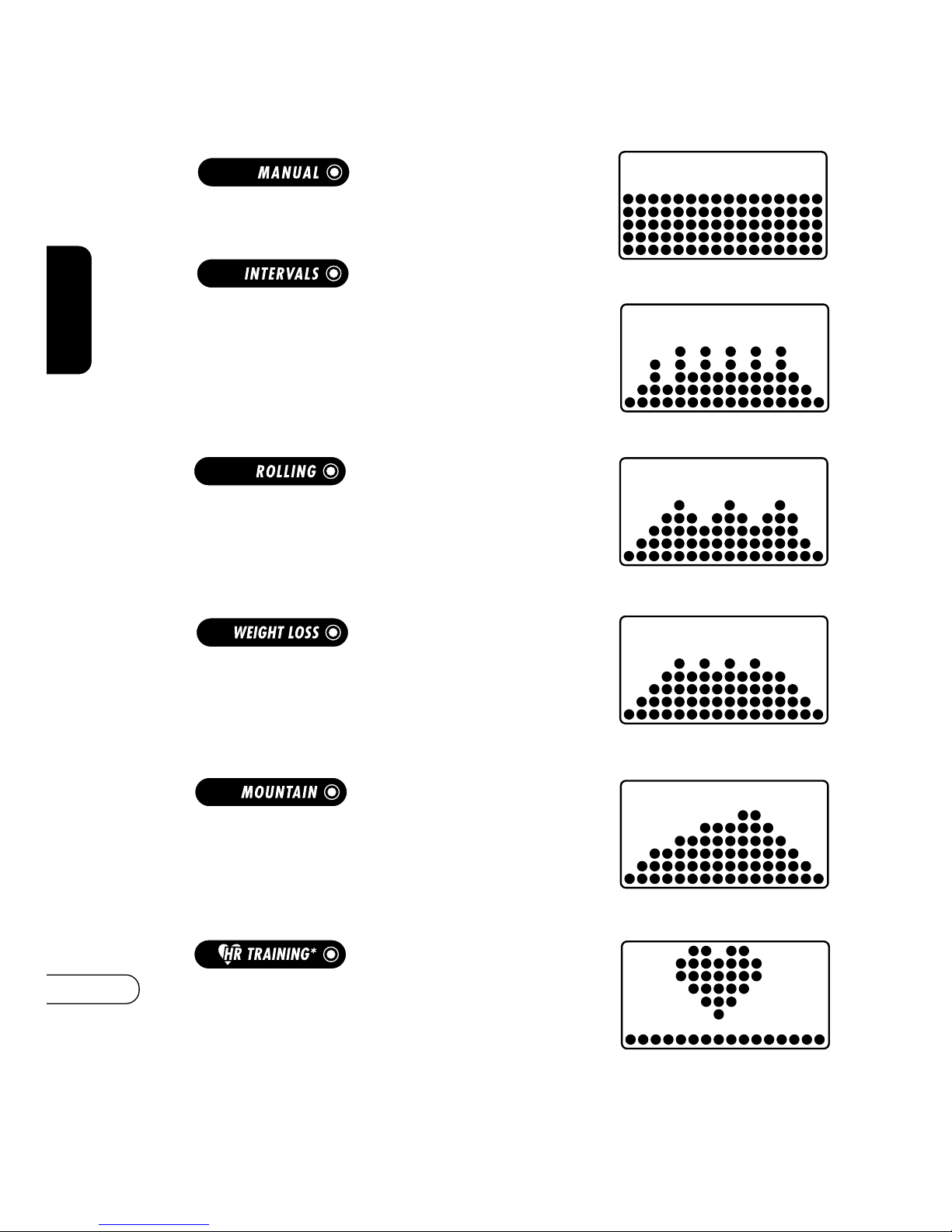

X6200HRT PROGRAM DETAILS
Press START for Quick-Start
or customize your workout. No default time.
The Intervals Program
alternates between periods of high effort and
recovery. This program will help you increase
your aerobic capacity so you can function at
higher level of intensity. Time defaults to 24
minutes.
The series of hills will lead
to improved endurance and aerobic
capacity. It is also a great calorie-burner. Time
defaults to 32 minutes.
Promotes weight loss by
keeping a consistent workload over an
extended period of time. The small increases
of intensity create additional calorie burn.
Time defaults to 48 minutes.
The Mountain Program
gradually increases resistance over time. This
program is designed to strengthen your heart
as well as the muscles you are working.
Program defaults to 48 minutes.
Set your exercise Target
Heart Rate and the computer will adjust the
resistance according to your Heart Rate. This
is a great program to optimize your exercise
intensity. Time defaults to 32 minutes.
All programs have 16 levels of resistance. Low-end resistance begins at
Level 1 and increases to the high-end resistance of 16.

15
X6200HRT
FINISHING
When your work-out is complete the Display windows will begin
flashing your workout information, allowing you to record it in your
personal logbook.
X6200HRT
FEEDBACK DISPLAY
PROGRAM LEVEL
View the chosen Program Level.
Indicates the difficulty of your
workout, with L1 being the lowest
workload and L16 the highest.
WATTS
A measurement of workload. May be
used to evaluate and quantify your
fitness progress over time.
CALORIES
Shown as estimated total Calories
burned during workout.
RPM
Shown as Revolutions-per-Minute.
SPEED
Shown as Miles-per-Hour or
Kilometers-per-Hour. View the current
Speed.
DISTANCE
Shown as Miles or Kilometers.
View Distance during workout.
TIME
Shown as Minutes:Seconds. View
the Time remaining or the Time
elapsed in your workout.
HEART RATE
Shown as Beats per Minute. You
can monitor your Heart Rate at
any time during a workout.
Use the SELECT button to change the readout of the feedback information.
The SPEED, DISTANCE, TIME and HEART RATE feedback will be
displayed. To view the LEVEL, WATTS, CALORIES, and RPMS feedback
press the SELECT button. To scan through all feedback, press and hold the
SELECT button for 3 seconds.

16
X6200HRT

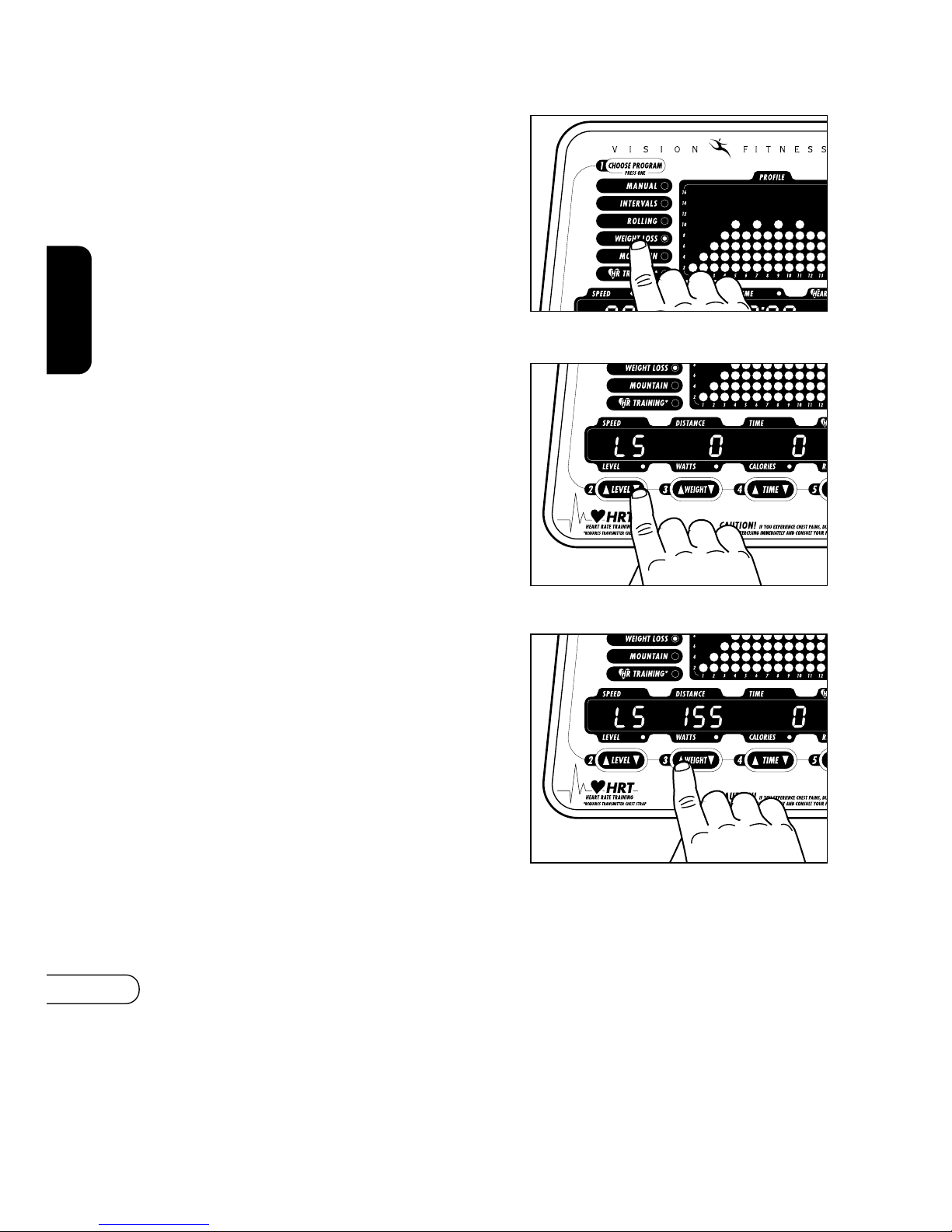

CHOOSING A PROGRAM
If you do not choose a Program,
the console will default to the
MANUAL Program. If you wish to
choose another Program, simply
press one of the other Program
buttons.
CHOOSING A LEVEL
After you have chosen a Program,
the Level will default to L6 and then
flash. You may use this default
Level or choose another by using
the LEVEL
▲ or ▼ button; L1
provides the least resistance, L16
the most.
CHOOSING WIEGHT
A weight of 150 pounds or 75
kilograms will be displayed in the
WATTS window. To adjust this
weight, press the WEIGHT
▲ or ▼
button until you reach your desired
weight.

17
X6200HRT
STARTING
When you are ready to begin
exercising press START.
CHOOSING A TIME
To set exercise time press the TIME
▲ or ▼ button until the desired time
is displayed.

18
X6200HRT

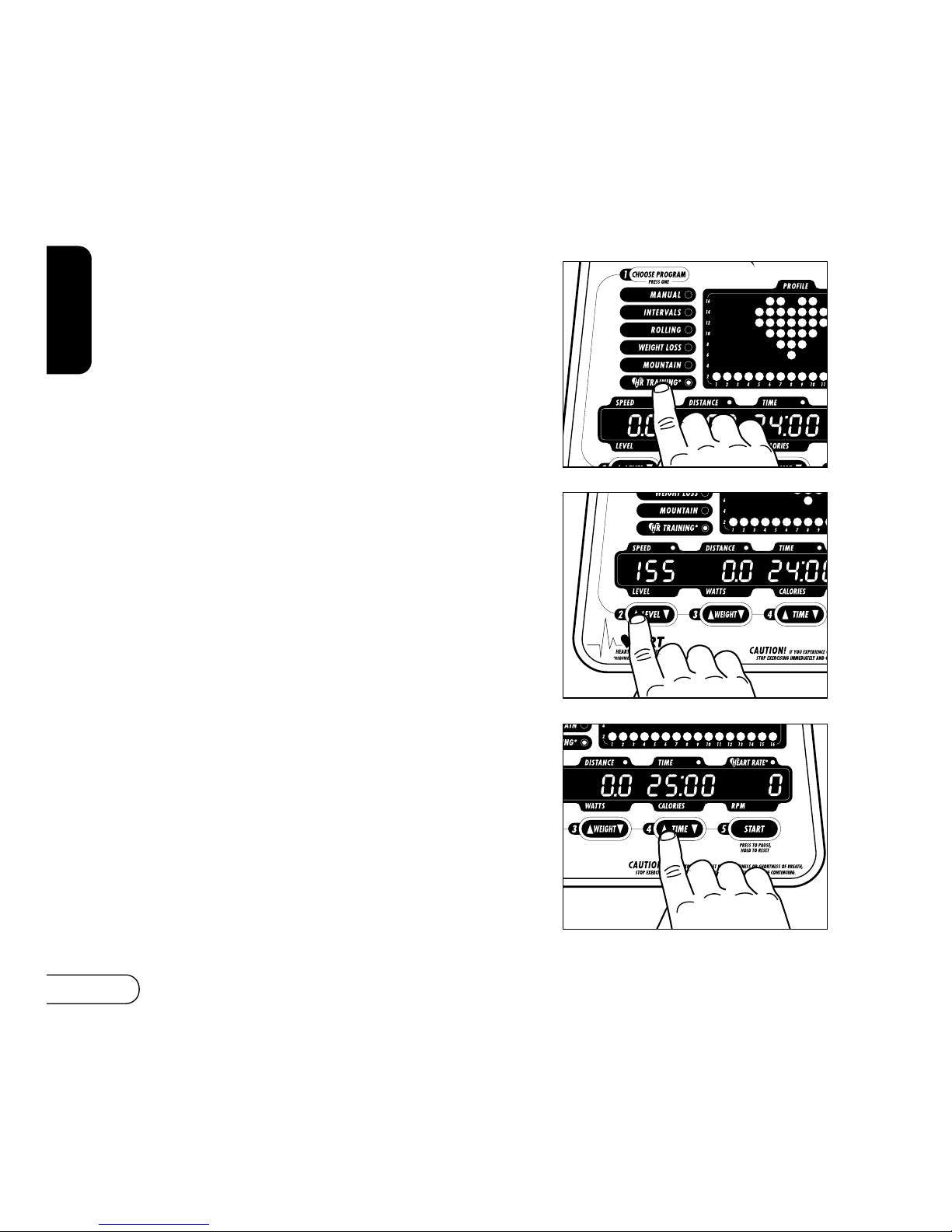

USING YOUR BIKE’S HRT PROGRAM
Use the chart on Page 19 to determine your Target Heart Rate, then
follow the instructions to place the wireless transmitter on your chest.
Choose the Heart Rate Program
by pressing the ♥HR TRAINING
button.
Using the LEVEL ▲ or ▼ button,
select your Target Heart Rate,
visible in the LEVEL window.
Using the TIME ▲ or ▼ button,
select your Time, or you may use
the default time of 24 Minutes.
When you are ready to begin
exercising press START.
The first three segments in the program will be a warm-up period that will
start at Level 1. You can adjust the warm-up to your desired intensity.
Beginning in the fourth segment the program will begin to adjust resistance
until you are within +/-5 beats-per-minute of your Target Heart Rate.
During the final two segments you will begin your cool-down at 50% of
your ending resistance level. You can adjust the resistance to your desired
cool-down level.

19
X6200HRT
WIRELESS CHEST TRANSMITTER
Prior to wearing the Strap on your
chest, moisten the two rubber
contact pads with several drops of
water and spread about with your
fingers.
TRANSMITTER STRAP PLACEMENT
Center the Transmitter Strap just
below the breast or pectoral
muscles, directly over your sternum
with the VISION FITNESS logo
facing out. Adjust the elastic strap
length to avoid bouncing or
sliding.
TARGET HEART RATE
Target Heart Rate is a percentage of your maximum heart rate. Target Rate
will very for each individual, depending on age, current level of
conditioning, and personal fitness goals. Exercise heart rate should range
from 50 - 90% of the predicted maximum heart rate for most healthy
adults. A guideline for Target Heart Rate follows:
50 - 60% Beginning Exercisers or Health Concerns
60 - 75% General Fitness or Weight Loss
75 - 90% Improve Aerobic Capacity or Athletic Performance
