IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury to
persons:
• Use this exercise product for its intended use as described in this Owner’s
Guide. Only use attachments recommended by the manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Suspension Elliptical™ Trainer sidecovers. Service should be
performed only by an authorized VISION FITNESS retailer.
• Never operate this Suspension Elliptical™ Trainer if it has a damaged cord
or plug, if it is not working properly, or if it has been damaged or immersed
in water. Please contact your authorized VISION FITNESS retailer for service.
• Keep the cord away from heated surfaces.
• Do not use the Suspension Elliptical™ Trainer in any location that is not
temperature controlled, such as, but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• To disconnect, turn the switch on the front of the unit to the OFF position, then
remove plug from outlet.
•
Only use the power cord provided with your VISION FITNESS
Suspension Elliptical™ Trainer.
• Never place the power cord under carpeting or place any object on
top of the power cord that may pinch and damage it.
• Unplug your Suspension Elliptical™ Trainer when not in use, before cleaning, and
before moving it.
• This Suspension Elliptical™ Trainer should not be used by persons weighing more
than 300 pounds. Failure to comply will void the warranty.
• Unplug Suspension Elliptical™ Trainer before moving or cleaning it. To clean,
wipe surfaces down with soap and slightly damp cloth only; never use solvents.
(See MAINTENANCE)
• Keep the topside of the foot support clean and dry.
• Do not turn pedals by hand.
• This Suspension Elliptical™ Trainer is intended for in-home use only. Do not use
this Suspension Elliptical™ Trainer in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
• Disconnect all power before servicing the equipment.
wARNINg!

5
S7100
iMpoRtant – The heart rate function on this product is not a medical device. While
heart rate grips can provide a relative estimation of your actual heart rate, they
should not be relied on when accurate readings are necessary. Some people,
including those in a cardiac rehab program, may benefit from using an alternate
heart rate monitoring system like a chest or wrist strap. Various factors, including
movement of the user, may affect the accuracy of your heart rate reading. The
heart rate reading is intended only as an exercise aid in determining heart rate
trends in general. Please consult your physician.
cHilDRen
• At NO time should children under the age of 13 or pets be within 10 feet of
the Suspension Elliptical™Trainer .
• At NO time should children under the age of 13 use the Suspension Elliptical™
Trainer .
• Children over the age of 13 should not use the Suspension Elliptical™Trainer
without adult supervision.
otHeR saFetY tips FoR YoUR vision Fitness sUspension elliptical tRaineR
caUtion! If you experience chest pains, nausea, dizziness or shortness of breath,
stop exercising immediately and consult your physician before continuing.
• Do not wear loose clothing that might catch on any part of the Suspension
Elliptical™ Trainer.
• Read this Owner’s Guide before operating this Suspension Elliptical™ Trainer.
poweR ReqUiReMents
This product is for use on a nominal 120-volt circuit, and has a grounding plug
that looks like the plug illustrated. An improper connection of the equipment
grounding conductor can result in a risk of an
electrical shock. Do not modify the plug that
was provided with this product. If this plug
does not fit into your outlet, have a qualified
electrician install the proper outlet. Adapters,
extension cords and surge protectors should
not be used with this product.

6
S7100
asseMblY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Suspension Elliptical™ Trainer. If you have elected
to assemble this product yourself, for your safety, please read and follow
each of the steps in the enclosed assembly instructions. If you have
any questions regarding any component or function of your Suspension
Elliptical™ Trainer, contact your retailer.
MovinG

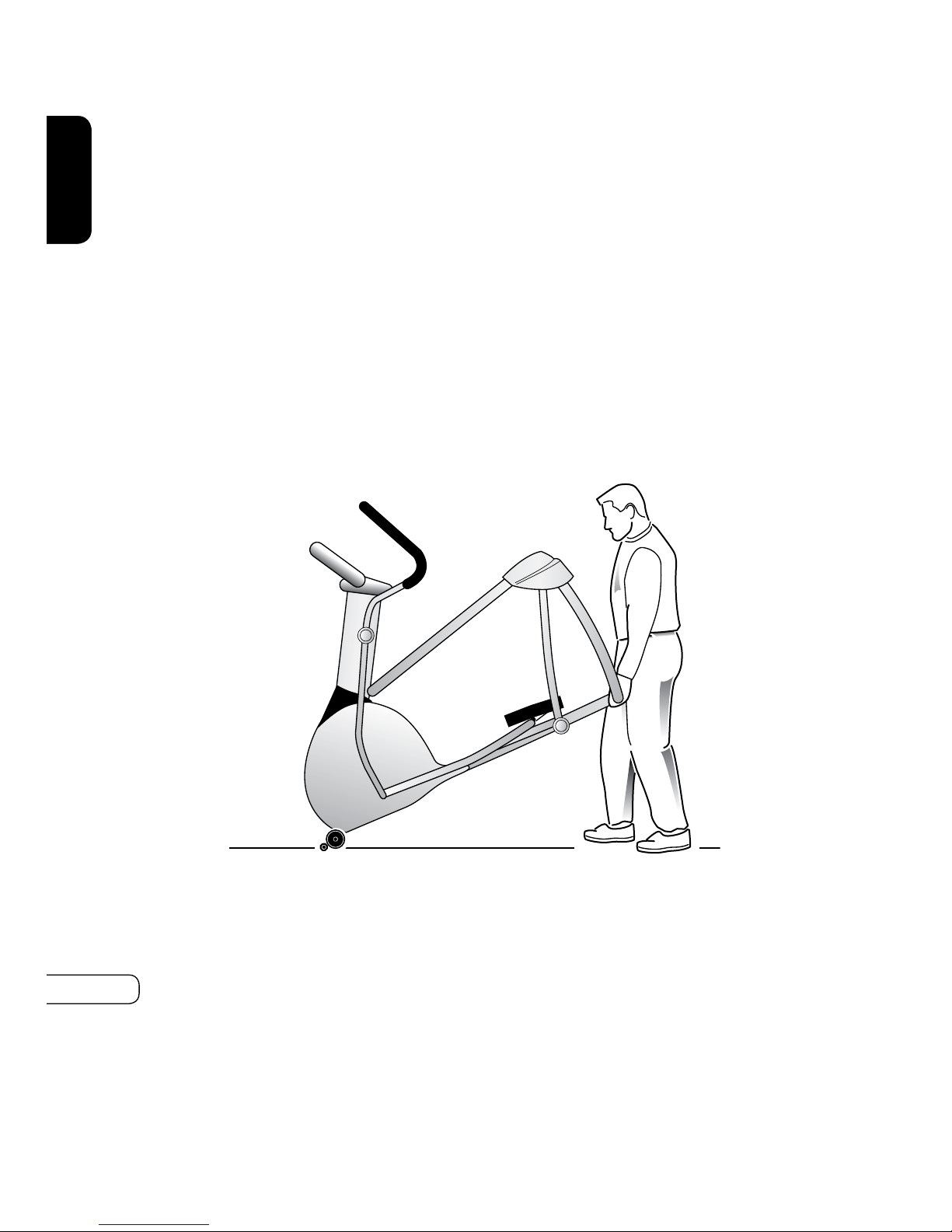

Your VISION FITNESS Suspension Elliptical™ Trainer has transport wheels
included for ease of mobility. To move, firmly grasp the rear of the frame
assembly. Carefully lift and roll on the transport wheels.
caUtion: Our Suspension Elliptical™ Trainers are well-built and heavy,
weighing up to 300 pounds! Use care and additional help if necessary.

LOOSEN
ROTATE
TIGHTEN
7
S7100
placeMent in YoUR HoMe
Please follow the safety instructions to place the Suspension Elliptical™ Trainer
in the location where it will best be used. It is important that you place your
Suspension Elliptical™ Trainer in a comfortable and inviting room. Avoid
putting your Suspension Elliptical™ Trainer in an unfinished basement or
undesirable setting. Exercise adherence will be easier to achieve only if you
exercise in an attractive setting.
stabiliZinG tHe sUspension
elliptical tRaineR
After positioning the Suspension
Elliptical™ Trainer in its intended
location, check the unit’s stability.
Rocking or wobbling indicates
that your Suspension Elliptical™
Trainer needs to be leveled.
Determine which leveler is not
resting completely on the floor.
Loosen the nut at the base of
the leveler to allow the leveler to
rotate. Now rotate the leveler to
the left or right until the Suspension
Elliptical™ Trainer is stable. Lock
the adjustment by tightening the nut
against the support tube.
tURninG tHe Unit on anD oFF
Use the power switch on the front
of the unit to turn the machine ON
and OFF. It is recommended to
turn the machine off when not in
use.
note:You can also turn the power
off at the console.

8
S7100
contact HeaRt Rate
HanD pUlse HeaRt Rate sensoRs

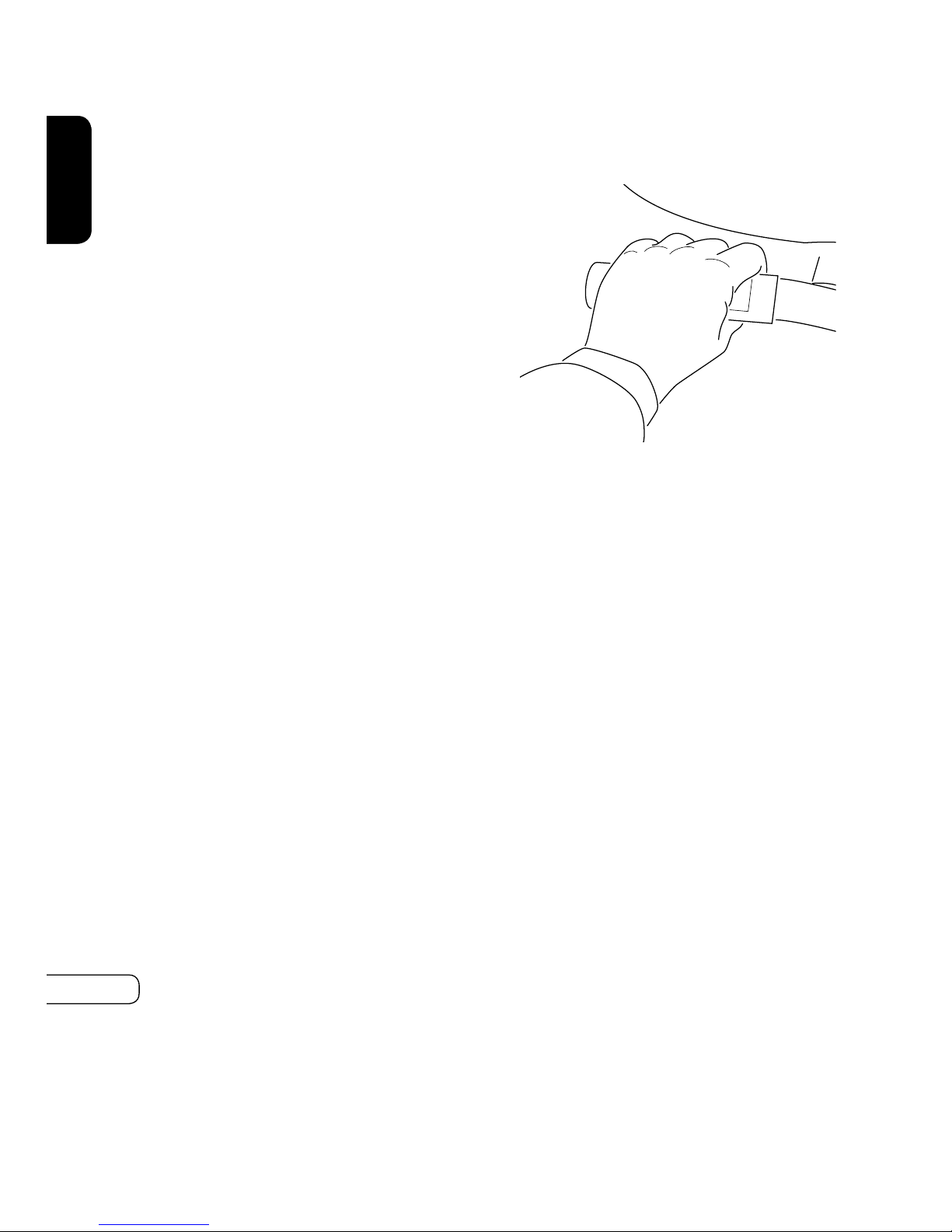

The Contact Hand Pulse Sensors
are included on each product
to monitor your heart rate. To
use, grasp both of the sensors
with a comfortable grip during
your workout. The console will
display your heart rate. It may
take the system a few seconds to
zero in on your actual heart rate.
Most people have a grip that
is conductive enough to transmit
a good signal. However, some
people have erratic heart rates
or improper body chemistry to
transmit a good signal through the
touch sensitive hand pulse grips.
waRninG
Heart rate monitoring systems may be inaccurate. Over exercise may result
in serous injury or death. If you feel faint stop exercising immediately.

9
S7100
Pause • Hold to Reset
ResistanceIncline
Enter
Start
vaRiable incline
Press the INCLINE UP or DOWN
arrows to adjust the incline from
level 1 to 20. This incline setting
represents a range of motion.
Incline changes are not immediate.
They will take time to get to the
target incline angle.

10
DELUXE
Pause • Hold to Reset
ResistanceIncline
Enter
Start
DelUxe console

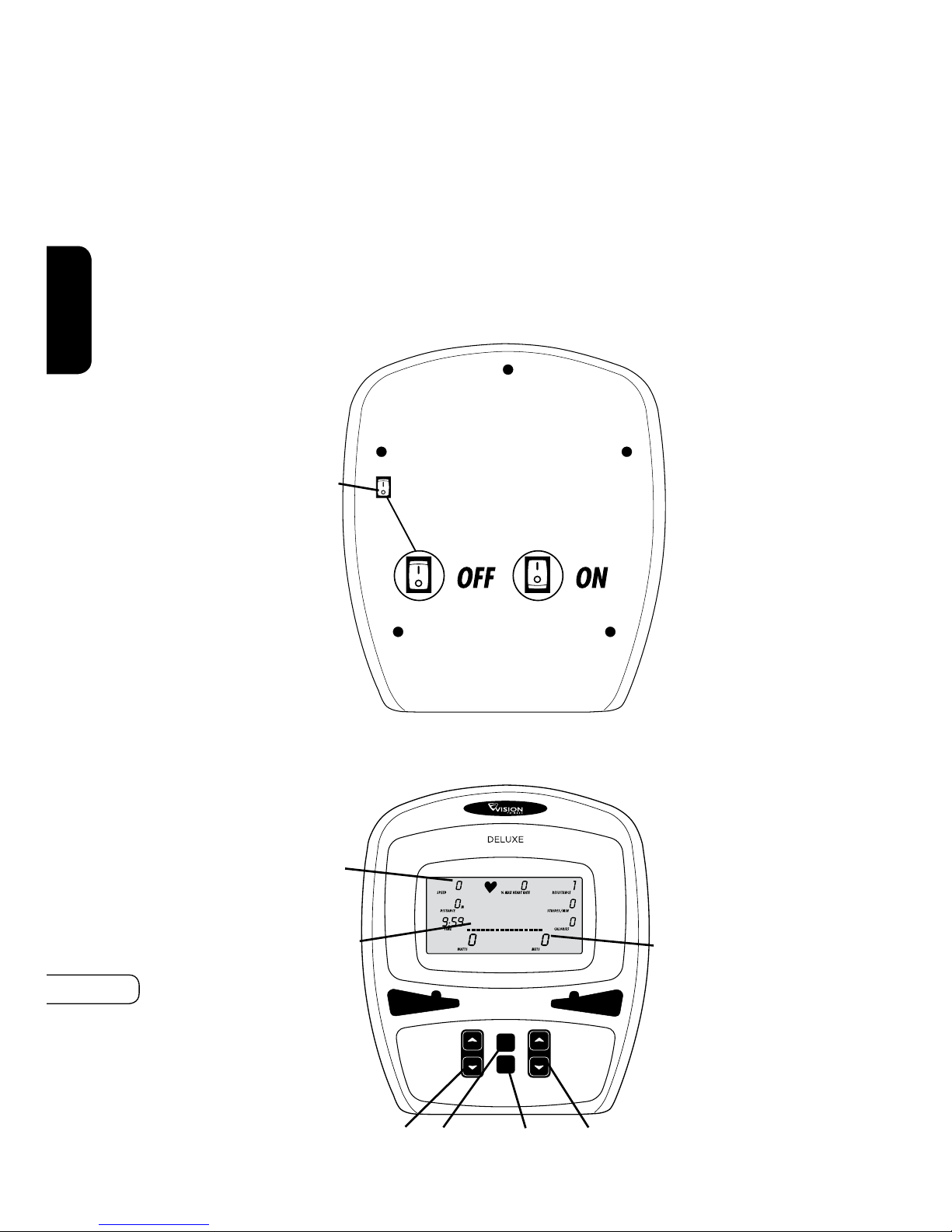

DisplaY console oveRview
The computerized display allows the user to select a workout that meets
their desired fitness goals. It also allows the user to monitor the progress
and feedback of each workout, so they can track improvements in overall
fitness over time.
A
D
H F
E
BC
G

11
DELUXE
DelUxe console DisplaY DescRiptions
a. poweR switcH
Turn off power to your console if it will not be used for an extended
period of time.
b. pRoFile DisplaY
The LCD display screen provides a profile of your workout, this
includes the workout segments you are about to complete as well as
the ones you have already completed, and the level of resistance for
each segment.
c. MessaGe baR
The LCD display has an alpha-numeric scrolling text bar which
provides step-by-step instructions in the setup mode, and instructions,
feedback or motivational messages during your workout and at the
end of your workout.
D. FeeDbacK DisplaY
During your workout, these display exercise feedback about your
workout, including:
tiMe: the time elapsed or the time remaining in your workout.
Distance: the total distance traveled in miles or kilometers since
the start of your workout.
stRiDes/Min: this window provides feedback on the stride rate,
per minute.
watts: measurement of workload; one watt is equal to six
kilogram-meters per minute.
caloRies:an estimate of calories burned since the start of the workout
Resistance: the current resistance level of your workout.
incline: the level of incline. There are 20 levels that represent a
19% grade change.
HeaRt Rate: displays your heart rate in beats per minute when
using the hand pulse grips.
% oF Max HeaRt Rate: displays the percent of your predicted
maximum heart rate.
Mets: a measurement of oxygen consumption; one MET equals
the approximate amount of oxygen consumed per minute by a
person at rest.

12
DELUXE
e. staRt/paUse/HolD to Reset KeY
Press the START key to begin a MANUAL workout immediately without
having to set individual information. When the program begins, you
have the ability to adjust incline and resistance levels with the ARROW
keys. Feedback information will be calculated using default settings.
paUse: If you need to PAUSE your program during a workout, pressing
the START key will PAUSE your program for five minutes. Pressing
START will return you to your workout.
Reset: If you need to RESET the console during your workout, you can
do so by holding down the START key for three seconds or until the
display resets.
F. Resistance aRRow KeYs
These keys are used to change values in setup mode prior to your workout.
During your workout, they are used to change resistance levels.
G. incline aRRow KeYs
These keys can be used to change values in setup mode prior to your
workout. During your workout, they are used to change incline levels.
H. enteR/HolD to cHanGe FeeDbacK DisplaY
This key is used after entering each piece of information in setup such
as Age, Weight, or Level.
scan: When exercising in a program, pressing the ENTER key will
allow you to change what is displayed in the Heart Rate Feedback
window. Press ENTER to switch between Heart Rate and % Max.
Heart Rate. If you hold down the ENTER key for three seconds
during your workout, the SCAN function will automatically alternate
feedback display views.
DelUxe console DisplaY DescRiptions (continued)

13
DELUXE
tHe DelUxe console pRoGRaMs
ManUal is a workout in which the resistance
and incline levels do not change unless you
change them.
inteRvals is an efficient workout that
strengthens your cardiovascular system by
alternating work intervals with recovery
intervals. Be sure to challenge yourself with
intense work intervals.
woRKoUt oveRview
qUicK staRt
Simply press START and you will skip the setup of specific workouts and
begin exercising at a constant level (manual) workout. The resistance
and incline levels do not change automatically, but you can adjust the
resistance or incline with the arrows as you choose.
note: Because you did not go through setup mode, the computer will use
default values to calculate your feedback information.
spRint 8™ is an anaerobically-based interval
program. It is effective in recruiting fast
twitch muscle fibers and improving athletic
performance.
Fat bURn is a program intended to target your
stored body fat. This program is generally
used at a slightly lower intensity, but runs for
longer durations than other programs (30 to
60 minutes is recommended).

14
DELUXE
watts is a program that lets the user exercise at
a set work level. As you increase your strides
per minute, your resistance will decrease; if
you decrease your strides per minute, your
resistance will increase.
RanDoMis a program for users who enjoy
variety in their daily workout routine. When
this program is selected the computer will
randomly select resistance and incline levels
for each segment of the workout based on the
resistance level that the user chose in set-up
mode.
GlUte bURn contains eight 45 second sets
of increased muscular effort. These sets
focus effort on the hamstring and gluteals by
utilizing muscle targeting incline angles and
increased resistance. This unique program
design results in a workout that is not only
great cardiovascular and calorie burning
exercise but also allows users to add strength
and muscle tone to their hamstring and gluteal
regions.
sUMMit HiKe is a variable incline program that
adds variety and targets your muscles from
different angles.

15
DELUXE
UsinG tHe pRoGRaMs
selectinG qUicK staRt
The easiest way to begin exercising
is to simply press the START key.
You will begin exercising at a
MANUAL program in which you
can change the resistance and
incline levels to meet your goals.
Current default settings will be used
to determine exercise feedback.
cHoosinG a pRoGRaM
Press the UP s or DOWN t
keys to scroll through the program
selections (Manual, SPRINT 8,
Intervals, Fat Burn, Random,
Watts, Glute Burn, Summit Hike).
When you arrive at your chosen
workout, press the ENTER key.
enteRinG aGe
When prompted by the message
center to enter your age, use the
UP s arrow or DOWN t arrow
to adjust displayed age to the
correct value. This information will
affect your “% Max. Heart Rate”
feedback.
enteRinG tiMe
When prompted by the message
center to enter a time, use the UP
s arrow and DOWN t arrow to
adjust the displayed exercise time
to a desired value.
Pause • Hold to Reset
ResistanceIncline
Enter
Start
Pause • Hold to Reset
ResistanceIncline
Enter
Start
Pause • Hold to Reset
ResistanceIncline
Enter
Start
Pause • Hold to Reset
ResistanceIncline
Enter
Start

16
DELUXE
enteRinG Resistance level
When prompted by the message
center to enter resistance level,
use the UP s arrow and DOWN
t arrow to adjust the displayed
resistance level. There are 20 levels
of resistance to choose from in
each program. The resistance level
varies by program.
The SUMMIT HIKE program will
first ask you to set the desired
INCLINE level. When this is set it
will then ask you to choose your
resistance level.
The WATTS program will ask you
to set the desired WATT level
instead of resistance levels. The
WATT level will range from 40 to
250 in increments of five.
enteRinG weiGHt
When prompted by the message
center to enter weight, use the UP
s arrow and DOWN t arrow
to adjust the displayed weight to
equal your current body weight.
This information is necessary to
give accurate exercise feedback
for calorie and MET calculations.
staRtinG
Press START to begin your workout.
Pause • Hold to Reset
ResistanceIncline
Enter
Start
Pause • Hold to Reset
ResistanceIncline
Enter
Start
Pause • Hold to Reset
ResistanceIncline
Enter
Start

17
DELUXE
UsinG tHe spRint 8 pRoGRaM
The SPRINT 8 program is an anaerobic interval program designed to
build muscle, improve speed, and naturally increase the release of Human
Growth Hormone (HGH) in your body. Producing HGH through exercise
and a proper diet has been shown as an effective way to burn fat and
build lean muscle mass according to Phil Campbell, author of Ready,
Set, Go! Synergy Fitness. Please go to Mr. Campbell’s website www.
readysetgofitness.com for more details about this radical new approach
to fitness.
The SPRINT 8 program features intense sprint intervals followed by
recovery intervals. The program includes the following phases:
1. waRM-Up should gradually increase your heart rate and increase
respiration and blood flow to working muscles. The warm-up is
controlled by the user to meet your specific needs.
2.
inteRval tRaininG starts immediately after the warm-up with a
30-second sprint interval. Seven recovery intervals of one minute
and 30 seconds will alternate with the eight 30-second sprint
intervals. The message display will prompt you to increase your
strides per minute (SPM) during the sprint interval and decrease
SPM during the recovery interval. A difference of 40 to 60 SPM
between sprint interval and recovery interval is recommended.
3.
cool-Down helps return your body’s systems to resting levels. Less
demand is placed on your heart during recovery if an appropriate
cool-down is used following the exercise.
Due to the fact that this is a specialized training program, total workout
time is not displayed during the program. The interval time is displayed in
the time window instead. It takes only 20 minutes to complete the SPRINT
8 workout.

18
DELUXE
taRGet HRt pRoGRaM
The TARGET HRT program is designed to maintain
your heart rate at 70% of your predicted maximum
heart rate. It is intended to improve efficiency
and endurance of your cardiovascular system by
working your heart, lungs and circulatory systems.
This is a great workout for anyone, but beginners
may want to start lower and build their way up to
70% of their predicted maximum heart rate.
During the workout, the user will grasp the hand pulse sensors or wear
the telemetric chest strap to send their heart rate signal to a receiver in the
console. The console will continuously monitor the heart rate, adjusting the
resistance level to keep your heart rate within several beats of your Target
Heart Rate. By using the SCAN key, the heart rate feedback window
conveniently displays your Heart Rate and % of Max. Heart Rate to keep
you informed about your current heart rate. Each program will begin with
a two-minute warm-up. When the workout time has been completed, the
console will begin a five-minute cool-down. The user will be responsible for
adjusting resistance to meet their needs during the warm-up and cool-down.
aDJUstinG taRGet HeaRt Rate
While exercising in one of the
HRT®programs, you may decide
the Target Heart Rate needs to be
adjusted. To adjust your Target
Heart Rate, use the UP s arrow
or DOWN t arrow. Press ENTER
to select.
Pause • Hold to Reset
ResistanceIncline
Enter
Start
