X6000, X6000DA, X6200HRT & X6200HRT/DA
ELLIPTICAL TRAINERS

ongratulations on choosing a VISION FITNESS Elliptical Trainer. You’ve
taken an important step in developing and sustaining an exercise program!
Your Elliptical Trainer is a tremendously effective tool for achieving your
personal fitness goals. Regular use of your Elliptical Trainer can improve
the quality of your life in so many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help In Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new Elliptical trainer will help you eliminate the obstacles that prevent you
from getting in your exercise time. Snow and rain and darkness won't
interfere with your workout when you have your Elliptical Trainer in the
comfort of your home. This Owner’s Guide provides you with basic
information on starting an exercise program. A more complete knowledge
of your new Elliptical Trainer will assist you in realizing your goal of a
healthy lifestyle.
Some kinds of service to your Elliptical Trainer should only be performed
by your VISION FITNESS retailer. Please contact your authorized VISION
FITNESS retailer should service be required. If a question or problem
arises which cannot be handled by your VISION FITNESS retailer, please
contact us:
VISION FITNESS
P.O. Box 280
621-D East Lake St.
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

Table of Contents
SAFETY INSTRUCTIONS . . . . . . . . . . 4
ASSEMBLY, MOVING, PLACEMENT . . . 6
LEVELING, POWER . . . . . . . . . . . . . 7
FOOT POSITIONS . . . . . . . . . . . . . . 8
FOLDING . . . . . . . . . . . . . . . . . . 10
CHILD SAFETY GUARDS . . . . . . . . . 13
TOTAL BODY WORKOUT
(DUAL-ACTION MODELS ONLY) . . . . 26
TROUBLESHOOTING:
ELLIPTICAL TRAINER . . . . . . . . . . . 27
HEART RATE MONITOR . . . . . . . . . 28
COMMON QUESTIONS . . . . . . . . . 30
HOME WARRANTY . . . . . . . . . . . . 32
LIGHT COMMERCIAL WARRANTY
(X6200 MODELS ONLY) . . . . . . . . 34
TARGET HEART RATE CHART . . . . . . 40
WEEKLY WORKOUT LOGS . . . . . . . 44
WEEKLY WORKOUT LOGS . . . . . . . 44
MONTHLY WORKOUT LOGS . . . . . . 46
ALL MODELS
X6000DA
BATTERIES, TURNING ON . . . . . . . . 14
COUNT-DOWN, -UP . . . . . . . . . . . . 15
RESISTANCE, RESET . . . . . . . . . . . 16
FEEDBACK DISPLAY . . . . . . . . . . . 17
CONSOLE
SETTING KILOMETERS/MILES . . . . 18
STARTING IN MANUAL MODE . . . . . 19
PROGRAM DETAILS . . . . . . . . . . . . 20
FEEDBACK DISPLAY . . . . . . . . . . . 21
SETTING WEIGHT DEFAULT . . . . . . . 22
CHOOSING PROGRAM, LEVEL, TIME . 23
USING HRT PROGRAM . . . . . . . . . 24
HEART RATE STRAP . . . . . . . . . . . . 25
CONSOLE
X6200HRT/DA
X6200HRT
GENERAL
X6000
ALL MODELS X6000 X6000DA X6200HRT/DA X6200HRT GENERAL

2
X6200HRT/DA X6000DA
X6000DA X6200HRT/DA

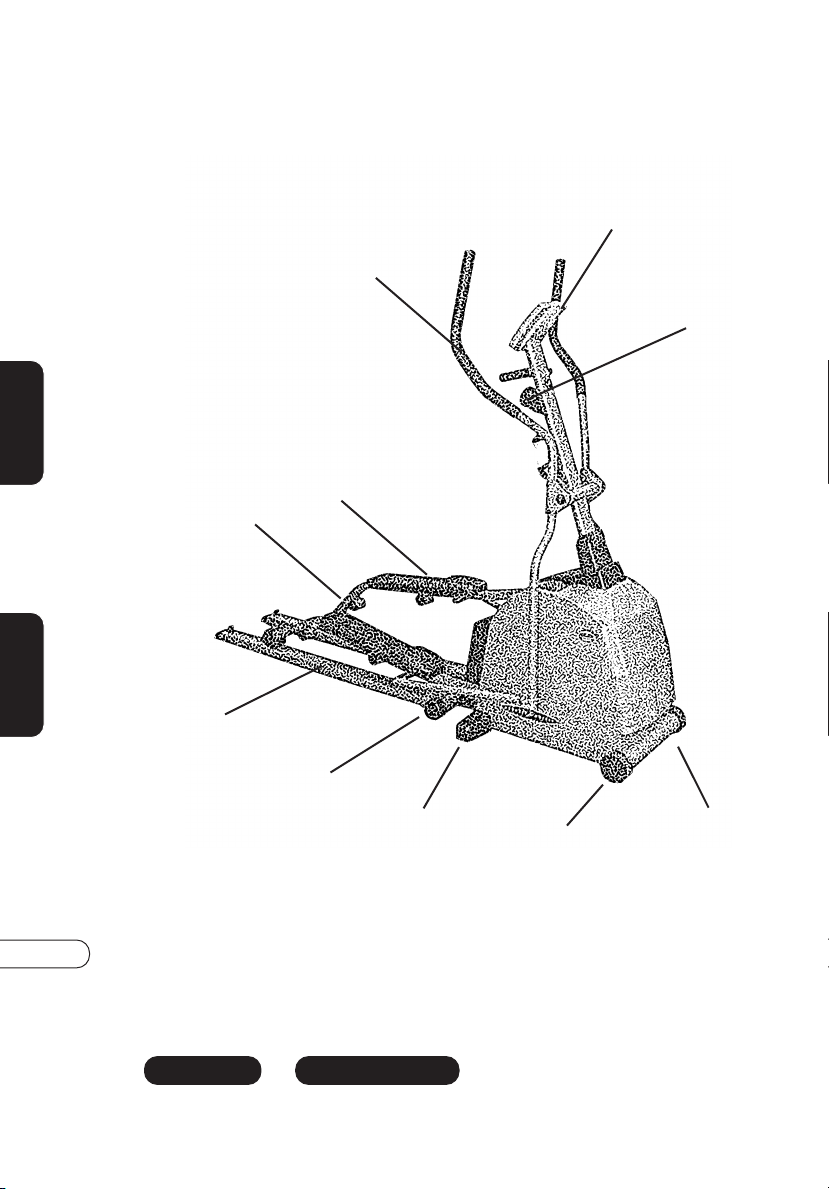

DUAL-ACTION ELLIPTICAL TRAINERS
FRONT FOOT &
TRANSPORT WHEELS
FRONT LEVELERS
SIDE STABILIZER
REAR
TRANSPORT WHEELS
PEDAL ARM
GUIDE RAILS
BIO-RADIUS™
PEDAL ARMS
FOOT PAD
DUAL-ACTION
HANDLEBARS
CONSOLE
TENSION
CONTROL KNOB
(X6000DA only)

3
X6000 X6200HRT
X6000 X6200HRT

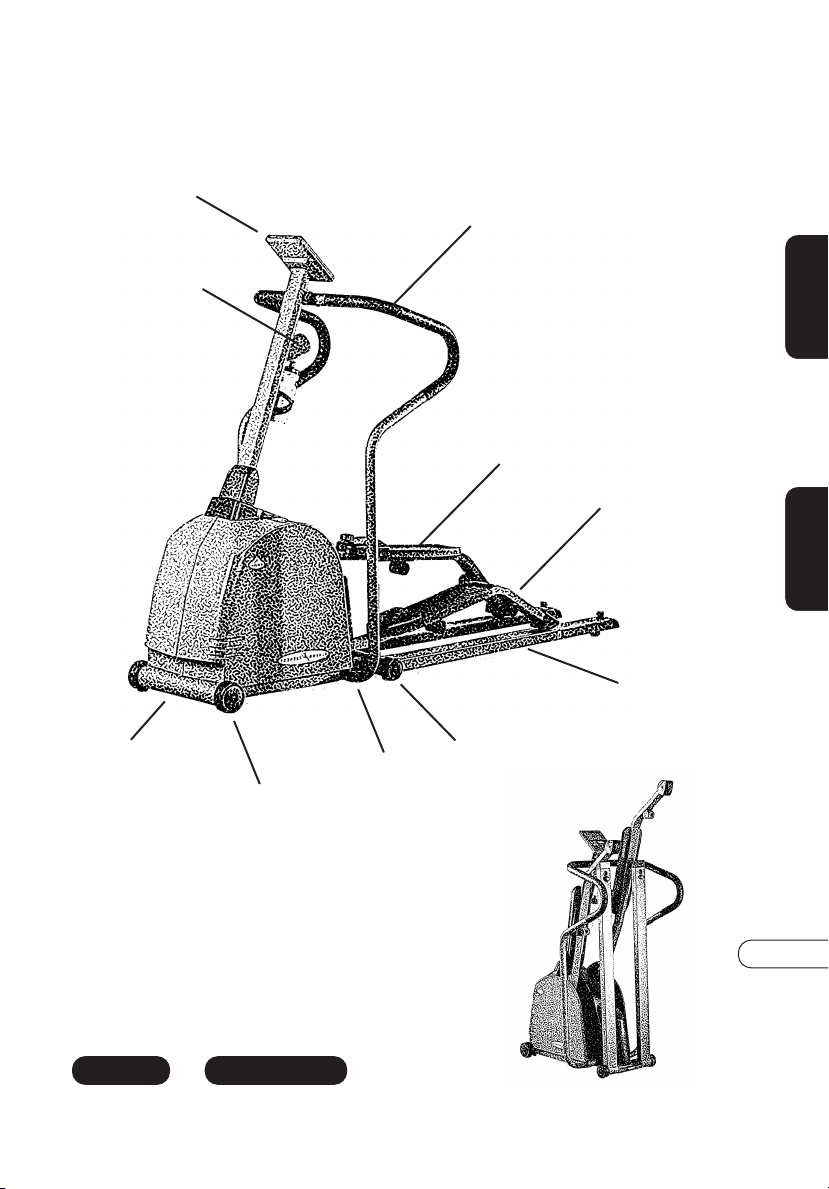

ELLIPTICAL TRAINERS
PEDAL ARM
GUIDE RAILS
REAR
TRANSPORT WHEELS
SIDE
STABILIZER
FRONT
LEVELERS
FRONT FOOT &
TRANSPORT WHEELS
CONSOLE
HANDLEBARS
BIO-RADIUS™
PEDAL ARMS
FOOT PAD
TENSION
CONTROL KNOB
(X6000 only)

4
ALL MODELS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Do not use attachments not recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Elliptical Trainer sidecovers. Service should be
performed only by an authorized VISION FITNESS retailer.
• Do not use outdoors.
ADDITIONAL WARNINGS FOR MODELS X6200HRT & X6200HRT/DA:
• Never operate this Elliptical Trainer if it has a damaged cord or plug, if
it is not working properly, if it has been damaged, or immersed in water.
Return the Elliptical Trainer to a retailer for examination and repair.
• Keep the cord away from heated surfaces.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS
Elliptical Trainer.
• Never place the power cord under carpeting or place any object on
top of the power cord, which may pinch and damage it.
• Unplug your Elliptical Trainer before moving it.
CHILDREN
• Keep children off your Elliptical Trainer at all times.
• When the Elliptical Trainer is in use, young children and pets should be
kept at least 10 feet away.
WARNING!

5
ALL MODELS
OTHER SAFETY TIPS FOR YOUR VISION FITNESS ELLIPTICAL TRAINER
CAUTION! If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the Elliptical
Trainer.
• Read this Owner’s Guide before operating this Elliptical Trainer.
CLEANING
• Clean with soap and slightly damp cloth only; never use solvents.

6
ALL MODELS
ASSEMBLY
If you have elected to assemble this product yourself, for your safety please
read and follow each of the steps in the enclosed assembly instructions. It
is recommended, when possible, that assembly be performed by an
authorized VISION FITNESS retailer. If you have any questions regarding
any part or function of your Elliptical Trainer, contact your retailer.
MOVING YOUR VISION FITNESS ELLIPTICAL TRAINER
Your Elliptical Trainer has a pair of transport wheels built into the front foot.
It is easy to move your Elliptical Trainer by rolling it on the front transport
wheels. Dual-Action Elliptical Trainers -- X6000DA & X6200HRT/DA -- are
more easily moved by rolling on their rear transport wheels.
PLACEMENT IN YOUR HOME
It is important that you place your Elliptical Trainer in a comfortable and
inviting room. Your Elliptical Trainer is designed to use minimal floor space.
Many people will place their Elliptical Trainers facing the TV or a picture
window. If at all possible, avoid putting your Elliptical Trainer in an
unfinished basement. To make exercise a desirable daily activity for you,
the Elliptical Trainer should be in an attractive setting.
Occasionally after long term use you will find a fine black dust below your
Elliptical Trainer. This is normal wear from the drive belt and DOES NOT
mean there is anything wrong with your Elliptical Trainer. This dust can be
easily removed with a vacuum cleaner. If you wish to prevent this dust from
getting on your floor or carpet, place a rubber or vinyl mat beneath your
Elliptical Trainer.

7
ALL MODELS
LEVELING YOUR ELLIPTICAL TRAINER
If your Elliptical Trainer wobbles when
you have placed it where you intend to
use it, raise or lower the adjustable
levelers located in several places on
the underside of your Elliptical Trainer:
1) the rear ends of the pedal arm
guide rails,
2) the side stabilizers, and
3) the front foot near the front transport
wheels.
Once you have leveled the Elliptical
Trainer, lock the levelers in place by
tightening the winged lock nuts against
the underside of your Elliptical Trainer.
POWER SUPPLY (MODELS X6200HRT & X6200HRT/DA)
Your Elliptical Trainer uses a wall-mount external power supply. Use only
the power supply supplied with your Elliptical Trainer. If you misplace this
power supply, please contact your authorized VISION FITNESS retailer for
an original replacement.
Use of the wrong power supply may cause damage to your Elliptical
Trainer.

8
X6000DA X6000
FOOT POSITION (MODELS X6000 & X6000DA ONLY)
Your VISION FITNESS Elliptical Trainer has a large foot pad, offering you
a variety of foot positions.
When using your Elliptical Trainer you may notice that your heel
raises off the foot pad. This is a normal ‘heel toe plant’ walking or
running motion and you should not try to prevent this.

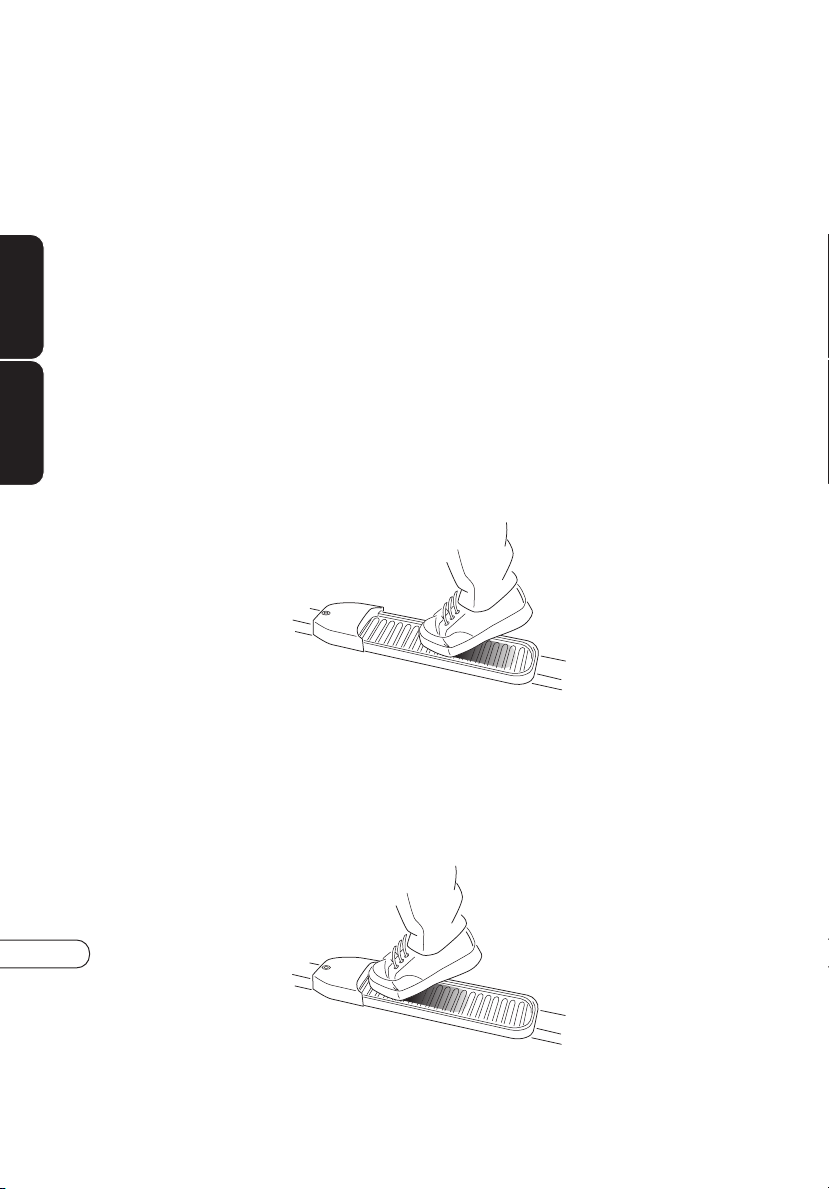

STEP POSITION
Moving your foot to the forward-most position of the foot pad
increases your step height; this will give you a more vertical stepping
motion. This position is particularly effective for developing your
quadricep muscles.
GLIDE POSITION
Placing your foot toward the back of the foot pad decreases your step
height and keeps the step pattern elliptical; your workout will feel more like
a ski glide, or smooth run or walk

9
X6200HRT X6200HRT/DA
FOOT POSITION
(MODELS X6200HRT & X6200HRT/DA)
You have a choice of two different foot
positions: STEP or GLIDE. To adjust, simply
pull up on the adjustment knob, turn
counter-clockwise, then move the toe piece
forward or back. To lock, turn knob back
clockwise.
STEP POSITION
Moving your foot to the forward-most position of the foot pad
increases your step height; this will give you a more vertical stepping
motion. This position is particularly effective for developing your
quadricep muscles.
GLIDE POSITION
Placing your foot toward the back of the foot pad decreases your step
height and keeps the step pattern elliptical; your workout will feel more like
a ski glide, or smooth run or walk.

10
ALL MODELS
FOLDING YOUR ELLIPTICAL TRAINER
NOTE: It is important to always follow the correct order of steps when
folding your Elliptical Trainer.
STEP 1: Lift up both flaps on the side cover casing.
STEP 2: On the side of each Guide Rail you will find a decal indicating the
correct position of the wheel center points. Move the Pedal Arms until both
wheels align with these indicator decals.

11
ALL MODELS
STEP 3: One Pedal Arm will now be lower than the other. Simultaneously
lift both the lowest Pedal Arm and the Guide Rail upon which it is resting
to the vertical position (A). The lock pin protruding from the Guide Rail
should now be aligned with the lock receiving mechanism on the
underside of the Pedal Arm. Firmly push the Guide Rail until it clicks and
locks into position (B). Check that it is secure before proceeding.
Repeat these steps with the other Pedal Arm and Guide Rail to completely
fold your Elliptical Trainer for compact storage.
NOTE: (See Illustration 4) On Dual-Action Elliptical trainers, the higher Pedal
Arm (C) will have the lower Dual-Action Handlebar behind the Pedal Arm,
and the Upper Dual-action Handlebar forward of the Console Mast (D).

12
ALL MODELS
STEP 4: To unfold your Elliptical Trainer, push the recessed lock button found
on the underside of one Guide Rail (A). Carefully lower both the Pedal
Arm and Guide Rail to the floor simultaneously (B). Repeat these steps with
the other Pedal Arm and Guide Rail to completely unfold your Elliptical
Trainer for use.

13
ALL MODELS

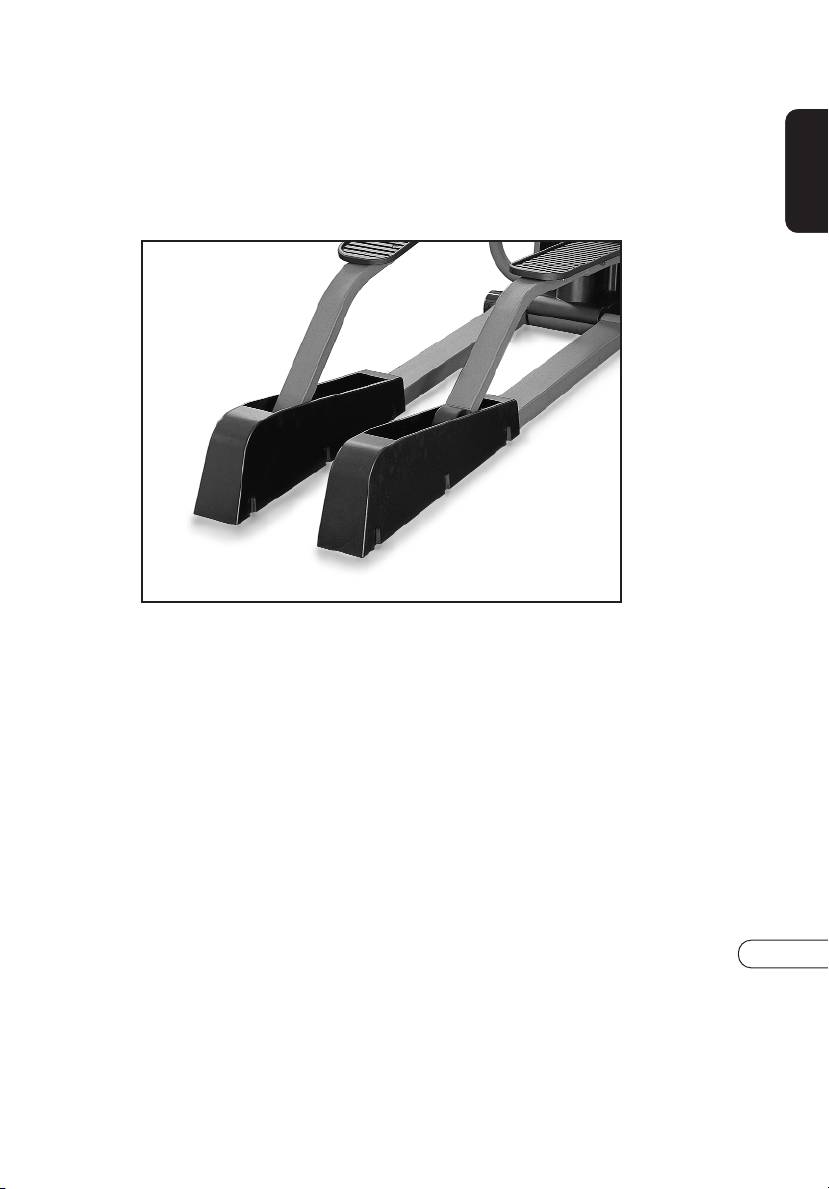

OPTIONAL CHILD SAFETY GUARDS
Always attach the child safety guards to the pedal arm guide rails if there
are young children living in or ever visiting your house. Note that when
these child safety guards are attached, the pedal arms cannot fold.

14
X6000DA X6000
X6000 & X6000DA
Your easy-to-use VISION FITNESS Manual computer console provides the
information you need to monitor your progress toward your personal fitness
goals.
INSTALLING BATTERIES
If your Elliptical Trainer batteries
have not already been installed by
your retailer, please install them
now. Your Manual console uses
two size AA batteries. These
batteries are located in a snap-
open battery compartment in the
back of the console.
TURNING SCREEN DISPLAY ON
To turn the screen display on, press
any console button or turn the
pedals one complete revolution.
When the display first comes
on, ‘0:00’ will be flashing in the
TIME window.

15
X6000 X6000DA
CHOOSING TIME AND STARTING
There are two ways to use the timer: Count-Down Mode or Count-Up
Mode.
COUNT-DOWN MODE
Press the SET TIME button to enter
your workout time. When the time
you choose is showing in the TIME
window, start pedaling. The timer
will begin counting down to zero.
When the workout time is
completed, the console will beep
for 5 seconds, then begin counting-
up if you continue pedaling. To
reset, press and hold the HOLD
TO RESET button.
COUNT-UP MODE
To use the timer in count up mode,
simply start pedaling when ‘0:00’
is flashing on the screen.
TURNING SCREEN DISPLAY OFF
The screen display will go off automatically after 5 minutes of non-use.

16
X6000DA X6000
CHANGING RESISTANCE
X6000 & X6000DA
There are two ways to increase
your workload. You can pedal
faster, or you can turn the tension
knob which is located below the
console. The tension knob will
adjust to one of 15 levels of
resistance.
PARTIAL RESET
To reset Time only, touch the HOLD
TO RESET button. Time will return
to ‘0:00’ and not delete the values
in the other windows.
FULL RESET
To reset all the console values,
press and hold the HOLD TO
RESET button. Time will return to
‘0:00’ then all the other values will
be deleted.
