Vision ZD2106IN-7 User manual

www.visionsecurity.com.tw
Installation & Operation Manual
Product Description and Specification:
Introduction
Thanks for choosing the Vision’s wireless door/window
sensor of the home security device. This sensor is a
Z-Wave™ PLUS V2 enabled device (interoperable,
two-way RF mesh networking technology) and is fully
compatible with any Z-Wave™ enabled network and it’s security
framework. Every mains powered Z-Wave PLUS V2 enabled device acts
as a signal repeater and multiple devices result in more possible
transmission routes which helps eliminate “RF dead-spots”
Z-Wave™ PLUS V2 enabled devices displaying the Z-Wave™ PLUS V2
logo can also be used with it regardless of the manufacturer, and ours can
also be used in other manufacturer’s Z-Wave™ PLUS V2 enabled
networks. Monitors door and window. Sends Z wave signal when door or
window opening or closing. Lower power consumption, longer operating
distance and battery life. Improving RF communication. When the device
is secure included into Z-Wave network, above communication will be
encrypted. ZD2106 supports SECURITY S0 / SECURITY S2
UNAUTHENTICATED / SECURITY S2 AUTHENTICATED.
Limited Warranty
Vision Guarantees that every wireless door/window sensor is free from
physical defects in material and workmanship under normal use for one
year from the date of purchase. If the product proves defective during this
one-year warranty period, Vision will replace it free of charge. Vision
does not issue any refunds. This warranty is extended to the original end
user purchase only and is not transferable. This warranty does not apply
to: (1) damage to units caused by accident, dropping or abuse in
handling, or any negligent use; (2) units which have been subject to
unauthorized repair, taken apart, or otherwise modified; (3) units not used
in accordance with instruction; (4) damages exceeding the cost of the
product; (5) transit damage, initial installation costs, removal cost, or
reinstallation cost. For information on additional devices, please visit us
at www.visionsecurity.com.tw
Federal Communications Commission Statement
This equipment has been followed to comply with Part 15 of the FCC
Rules. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try and correct the interference by
one of the following measures:
-Reorient or relocate the receiving antenna,
-Increase the separation between the equipment and receiver,
-Connect the equipment into and outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesirable operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
Specification: Package Content
Protocol: Z-Wave™ (ZGM130S)
Frequency Range:
Operating Range: Up to 100 feet line of sight
Operating Temp.: -15°C~ 60°C (5°F ~140°F)
Battery: CR2 * 1PC
1pc ZD 2106-7 Door Sensor
1pc Magnet
1pc CR2032 Lithium Battery
1pc Accessory Pack
1pc Installation & Operation manual
(ZD2106IN-7)
(ZD2106MY-7)
(ZD2106EU-7)
(ZD2106RU-7)
(ZD2106US-7)
(ZD2106IL-7)
(ZD2106KR-7)
(ZD2106HK-7)
(ZD2106JP-7)
(ZD2106BR-7)
865.22
868.10
868.42
869.00
908.42
916.00
919~923
919.80
922~926
921.42
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
Z-Wave Command Classes:
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_INDICATOR_V3
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V8
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V3
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_ZWAVEPLUS V2_INFO
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V4
Z-Wave S2 Support Command Classes :
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V8
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_VERSION_V3
COMMAND_CLASS_WAKE_UP_V2
0x07
Close:0x07
Open:0X16
Close:0x00
Open:0X03
0x06Reed Switch
Tamper
Switch
Reed Switch
Tamper
Switch
Notification V8 Type
Notification Type
Event
SWITCH TYPE STATUS
ZD 20106-7 V0 1081219
Door/ Window Sensor
ZD2106IN-7
ZD2106MY-7
ZD2106EU-7
ZD2106RU-7
ZD2106US-7
ZD2106IL-7
ZD2106KR-7
ZD2106HK-7
ZD2106JP-7
ZD2106BR-7
Basic Set:
Open
0xFF
Reed Switch
Close
0x00
FCC Freq./ Date rate spec. :
908.42MHz for 9.6 kbps
908.40MHz for 40 kbps
916.00MHz for 100 kbps

Installation
Notice: If you are installing the entire Z-Wave™ system for the first
time, please refer to the installation guide of Z-Wave™ Interface
Controller before installing ZD2106.
1For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface
Controller into “inclusion” mode, and following its instruction to add the
ZD2106 to your controller. To get in the “inclusion” mode, make sure
the rear cover has been closed firmly and trigger the reed switch
(close & open) 3 times within 5 seconds for sending the NIF. After
sending NIF, Z-Wave will send the auto inclusion; otherwise, ZD2106
will go to sleep after 30 seconds.
For “Exclusion” from (removing from) a network: Put the Z-Wave™
Interface Controller into “exclusion” mode, and following its instruction
to delete the ZD2106 from your controller. Make sure the rear cover
has been closed firmly and trigger the reed switch (close & open) 3
times within 5 seconds for sending the NIF to be excluded.
Note: All user and network settings will be cleared and the device
reset to factory defaults when the device is excluded.
2Wake Up Notification:
Remove the rear cover, ZD2106 will be “Wake Up Mode” for receiving
all the command class from controller and waiting for 10 seconds to
send Wake Up Notification. If ZD2106 received “Wake Up No More
Information” command then the ZD2106 will go to sleep mode or it
will wait 10 seconds then go sleep mode. It will proceed all the
commands after sending the “Wake Up Notification”
8Factory Default Reset:
Open the rear cover to trigger the rear cover switch for sending the
Alarm Report and trigger the reed switch (close & open) 10 times in 10
seconds, ZD2106 will send the “Device Reset Locally Notification”
command and reset to the factory default.
(Remark: This is to be used only in the case of primary controller
being inoperable or otherwise unavailable.)
9Support OTA Firmware update from controller. Please refer to your
controller manual. Once OTA function success, we recommend you
exclusive the device & inclusive again before use the device.
10 Support SECURITY S0, SECURITY S2 UNAUTHENTICATED &
SECURITY S2 AUTHENTICATED.
11 Support SmartStart, please scan the QR Code from ZD2106 for
SmartStart. QR code and PIN is located on the device, also there is a
Full DSK string on the enclosed DSK card. Please keep DSK card
carefully for future inclusion needed.
12 A Security Enabled Z-Wave Controller must be used to fully utilize the
products.
3Auto Wake Up:
Use “Wake Up” command to set up the awaking time and send the
wake up notification to controller. User can use command to change
the auto wake up from 10 minutes to 194 days, Interval increment is
200 seconds, the default Auto Wake Up interval is 24 hours.
4Battery Capacity Detection:
Use “Battery Get” command to have the battery capacity back in %.
It will detect the battery capacity automatically. Low Battery Auto
Report (low battery is set as 2.4+/-0.1 Voltage).
6Support Explorer Frame Function
7All the rest commands depend on Z-Wave standard
5Association:
Operation
Opening/Closing the door/window to separate the magnet from the
sensor or remove the rear will send signal to any association nodes
accordding to the Status/Signal table (Notification V8 Type) and the
LED will flash once; ZD2106 will send signal according the status /
signal table (Notification V8 Type) after closing the cover back.
Normal operation, the LED will not light.
If the cover of sensor is removed, the LED will flash once and send
“Wake Up Notification” after 10 seconds.
1
2
3

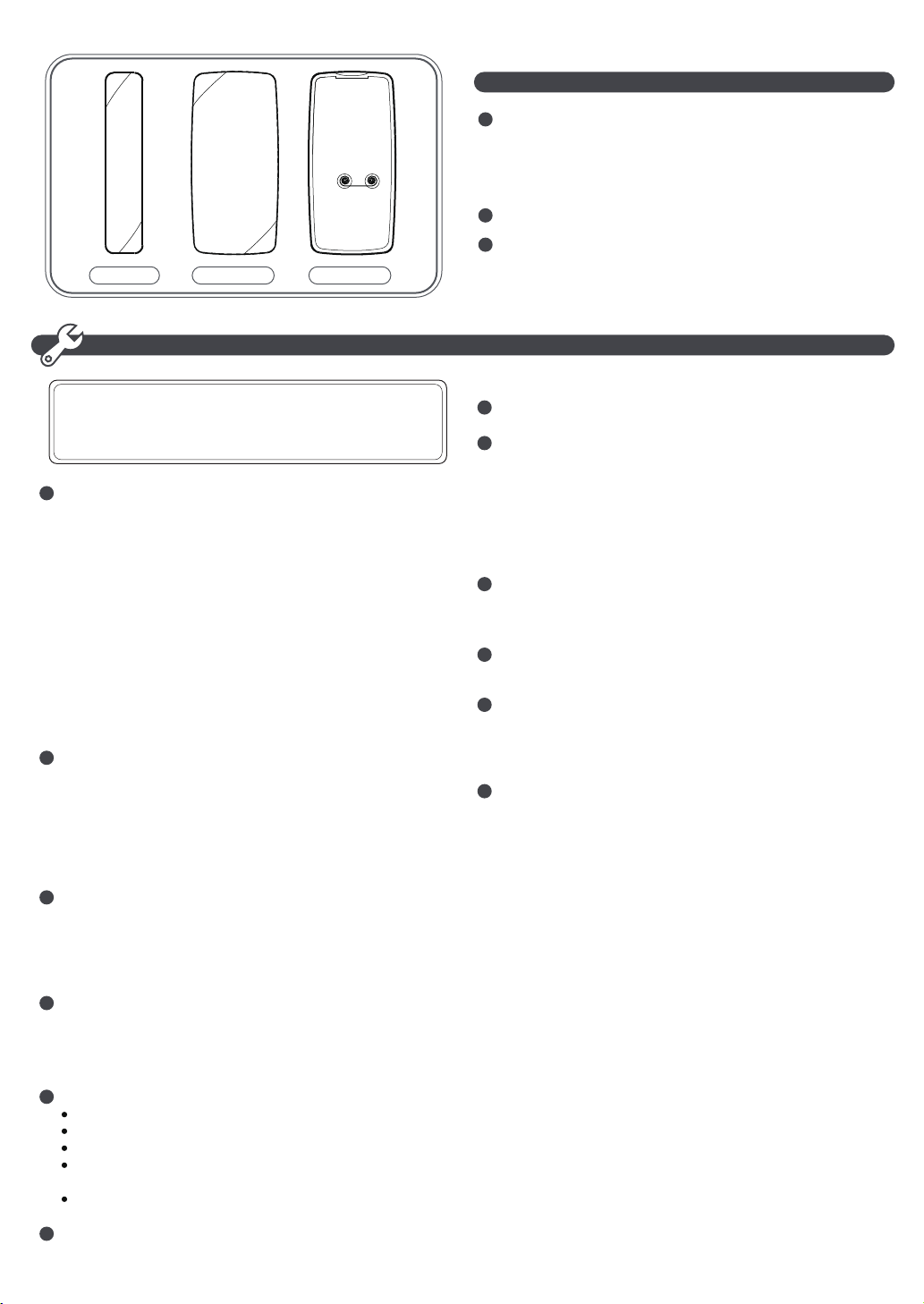

Magnet Front Cover Rear Cover
Support two groups with 5 nodes / each group
Group 1 = Lifeline
Group 2 = On/Off Control
All triggering reports & low voltage report will be sent to the
associated nodes
“Association” is used for other grouping devices chain reaction.
