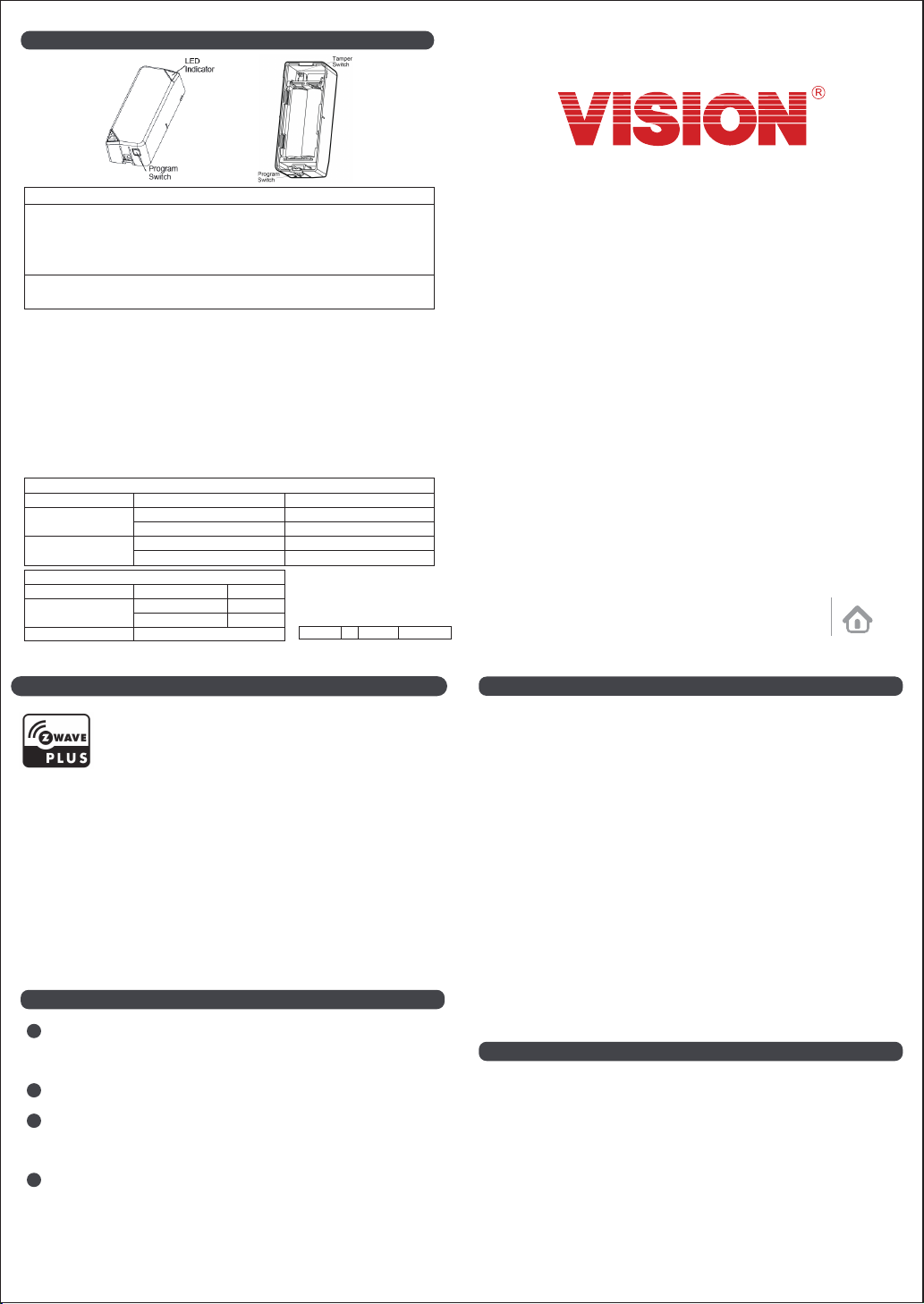

Installation & Operation Manual
Product Description and Specification:
Introduction
Thanks for choosing the Vision’s wireless door/window
sensor of the home security device. This sensor is a Z-Wave
™ enabled device (interoperable, two-way RF mesh
networking technology) and is fully compatible with any
Z-Wave™ enabled network and it’s security framework. Every mains
powered Z-Wave enabled device acts as a signal repeater and multiple
devices result in more possible transmission routes which helps eliminate
“RF dead-spots”
Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be
used with it regardless of the manufacturer, and ours can also be used in
other manufacturer’s Z-Wave™ enabled networks. One unique design
ZD2112 is sufficient for one sliding window/door no matter what the sliding
direction is right or left. This sensor monitors door/window and send
Z-Wave™ signal when door or window is opened and closed. When the
device is secure included into Z-Wave network, above communication will
be encrypted, ZD2112 supports SECURITY S0 / SECURITY S2
UNAUTHENTICATED / SECURITY S2 AUTHENTICATED.
Operation
Federal Communications Commission Statement
Limited Warranty
Vision Guarantees that every wireless door/window sensor is free from
physical defects in material and workmanship under normal use for one
year from the date of purchase. If the product proves defective during this
one-year warranty period, Vision will replace it free of charge. Vision does
not issue any refunds. This warranty is extended to the original end user
purchase only and is not transferable. This warranty does not apply to: (1)
damage to units caused by accident, dropping or abuse in handling, or any
negligent use; (2) units which have been subject to unauthorized repair,
taken apart, or otherwise modified; (3) units not used in accordance with
instruction; (4) damages exceeding the cost of the product; (5) transit
damage, initial installation costs, removal cost, or reinstallation cost. For
information on addional devices, plesae visit us at
www.visionsecurity.com.tw
Opening/Closing the door/window to separate the magnet from the
sensor will send signal to any association nodes accordding to the
Status/Signal table on page 2 and the LED will flash once.
Normal operation, the LED is off.
If the cover of sensor is removed, the tamper switch will send signal
according the Status/Signal table, and the LED will go solid. Then red
LED will go off after 10 seconds.
ZD2112 will send signal according the status / signal table after closing
the rear cover back 2 seconds..
This equipment has been followed to comply with Part 15 of the FCC
Rules. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction,
may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one of the
following measures:
-Reorient or relocate the receiving antenna,
-Increase the separation between the equipment and receiver,
-Connect the equipment into and outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesirable operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment.
*** For indoor use only***Specification:
Protocol: Z-Wave™ (ZM5202)
Frequency Range: 865.22MHz (ZD2112IN-5)
868.10MHz (ZD2112MY-5)
868.42MHz (ZD2112EU-5)
869.00MHz (ZD2112RU-5)
908.42MHz (ZD2112US-5)
916.00MHz (ZD2112IL-5)
920~923MHz (ZD2112KR-5)
919.80MHz (ZD2112HK-5)
922~926MHz (ZD2112JP-5)
921.42MHz (ZD2112BR-5)
Operating Range: Up to 100 feet line of sight
Operating Temp.: -15°C~ 60°C (5°F ~140°F)
Battery: AAA Battery * 2PC
Z-Wave Command Classes:
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V8
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Z-Wave S2 Support Command Classes :
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_BATTERY
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V8
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE_UP_V2
Notification V4 Type:
SWITCH TYPE
Reed Switch
Reed Switch
0x06
0x07
Close: 0x17, Open: 0x16
Close:0x00; Open:0x03
Tamper Switch
Tamper Switch
Notification Type
Event
STATUS
V1 Alarm:
Switch Type
Reed Switch
Alarm Type
Alarm Level
Tamper Switch
Status
0x06
0x07
Close: 0x00; Open 0xFF
ZD2112-5 V0 1061023
1
2
3
4

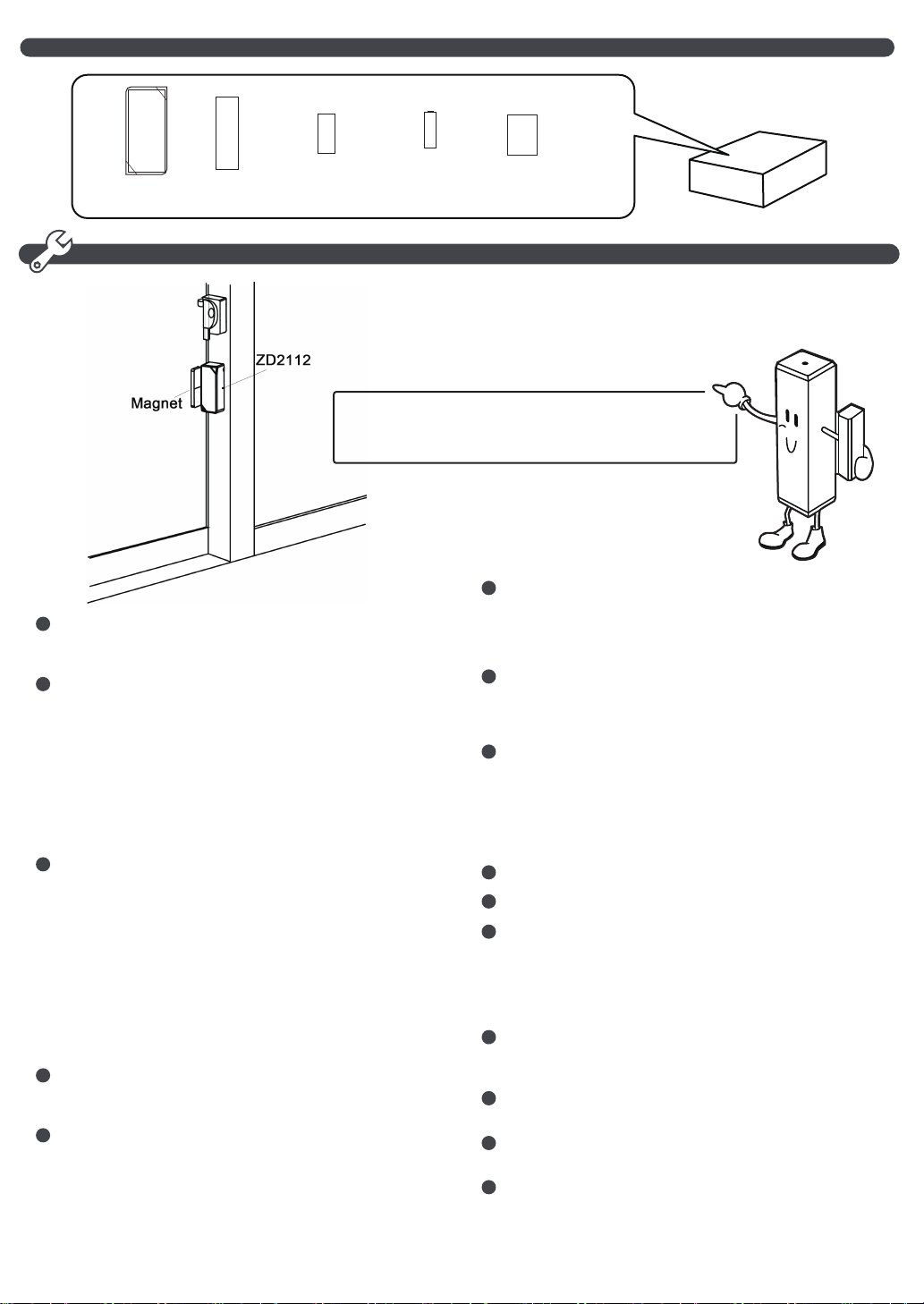

Using the adhesive tape to affix the rear cover on the frame along
the opening edge of door / window and fix the magnet on the proper
position near the ZD2112.
Remove the rear cover and Insert 2 AAA battery into the battery
compartment. If user press the program switch, LED will start to
flash slowly and start to send NIF. ZD2112 will go to sleep if user
didn’t press the program switch within 10 seconds.
LED Status for Z-Wave Network:
* After power on and then user press the program switch, the red
LED will flash if the ZD2112 has not been included yet.
* After power on, the red LED will go on if the ZD2112 has been
included. (The LED will turn on till the rear cover has been closed
with the front cover firmly, the LED should go off.
For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface
Controller into “inclusion” mode, and following its instruction to add
the ZD2112 to your controller. To get in the “inclusion” mode, press
the program switch of ZD2112 1 second at least for sending the NIF.
After sending NIF, Z-Wave will send the auto inclusion; otherwise,
ZD2112 will go to sleep after 25 seconds.
For “Exclusion” from (removing from) a network: Put the Z-Wave™
Interface Controller into “exclusion” mode, and following its
instruction to delete the ZD2112 from your controller. Press the
program switch of ZD2112 for 1 second at least to be excluded.
Note: All user and network settings will be cleared and the device
reset to factory defaults when the device is excluded.
Fix the Magnet by using the adhesive tape, locate the Magnet close
to the ZD2112 sensor the distance between these two devices
should be in 2.0cm.
Wake Up Notification:
Remove the rear cover, ZD2112 will be “Wake Up Mode” for
receiving all the command class from controller. Close the rear cover
back and wait for 3 seconds to send Wake Up Notification. If ZD2112
received “Wake Up No More Information” command then the ZD2112
will go to sleep mode or it will wait 10 seconds then go sleep mode. It
will proceed all the commands after sending the “Wake Up
Notification”
1
2
3
4
5
Installation
Product Package Content:
Magnet
X1
Adhesive tape for sensor
X1
AAA
Battery
X2
Installation &
Operation manual
X1
Auto Wake Up:
Use “Wake Up” command to set up the awaking time and send the
wake up notification to controller. User can use command to change
the auto wake up from 10 minutes to 1 week, Interval increment is 3
minutes.
Battery Capacity Detection:
* Use “Battery Get” command to have the battery capacity back in %
* Battery Auto Report will be sent in every waking up mode (low
battery is set as 2.6+/-0.1V).
Association:
* Support two groups with 5 nodes / each group
* Group 1 = Lifeline
* Group 2 = On/Off Control
* All triggering reports & low voltage report will be sent to the
associated nodes
* “Association” is used for other grouping devices chain reaction.
Support Explorer Frame Function
All the rest commands depend on Z-Wave standard
Factory Default Reset: Trigger the rear cover switch to send the Alarm
Report and trigger the reed switch (close & open) 5 times in 10
seconds, ZD2112 will send the “Device Reset Locally Notification”
command and reset to the factory default.
(Remark: This is to be used only in the case of primary controller being
inoperable or otherwise unavailable.)
Support OTA Firmware update from controller. Please refer to your
controller manual. Once OTA function success, we recommend you
exclusive the device & inclusive again before use the device.
Support SECURITY S0, SECURITY S2 UNAUTHENTICATED &
SECURITY S2 AUTHENTICATED.
Support Smart Start, please scan the QR Code from ZD2112 for Smart
Start.
A Security Enabled Z-Wave Controller must be used to fully utilize the
products.
6
7
8
9
10
11
12
13
14
15
ZD 2112-5 sensor
X1
Notice: If you are installing the entire Z-Wave™ system for the
first time, please refer to the installation guide of Z-Wave™
Interface Controller before installing ZD2112.
