Intended use
Always exercise the utmost care when using your Tyde
2 and only ever use it as intended, i.e. as a height-
adjustable table. Your Tyde 2 is designed as an item of
office furniture for commercial use.
Your Tyde 2 must not be used as a climbing aid or
lifting platform. Your Tyde 2 is not designed as outdoor
furniture. Using the table for purposes other than those
intended may lead to injury or damage to property.
These instructions for use will help you to use your
Tyde 2 safely and with full functionality. All persons
working with the Tyde 2 must read and observe these
instructions for use.
Basic safety instructions
Your table may be used by children aged 8 or over and
by persons with impaired physical, sensory or mental
capabilities or limited experience and knowledge, as
long as they are either supervised or have received
instructions regarding the safe use of your table and
understand the dangers that may arise as result.
Children must not play with the table.
Basic user information
CAUTION!!
The electrical fittings on your
table may only be opened or replaced by a
qualified electrician. Modifications and changes to
the control system and the handset are not allowed.
Cleaning and user maintenance must not be
performed by unsupervised children.
Electrical user information
Indicates a hazardous situation.
Failure to avoid such a situation may lead to injury.
Indicates a hazardous situation.
Failure to avoid such a situation may lead to property
damage.
Explanation of the warning symbols
CAUTION!!
ATTENTION!!
DANGER!!
Indicates a hazardous
situation. Failure to avoid such a situation may lead to
severe or even fatal injury.
CAUTION!!
Injuries may occur around
the columns during the reset. Make sure that this area
remains clear during the reset procedure.
The desk sensor is
your anti-collision protection. Do not unplug the desk
sensor. If the desk sensor is unplugged, your
anti-collision protection will not work.
Desk sensor user information
ATTENTION!!

EN
15
50 cm
50 cm
50 cm
50 cm
Safety instructions for the product
The following safety instructions and enclosed stickers must be
affixed to your table, close to the power supply.
Safety at the table
To avoid the risk of people or items being
crushed by the table:
ƒKeep your distance from the table when adjusting the height.
ƒDo not place any items under the table when adjusting the height.
CAUTION!!
Suitable setup environments

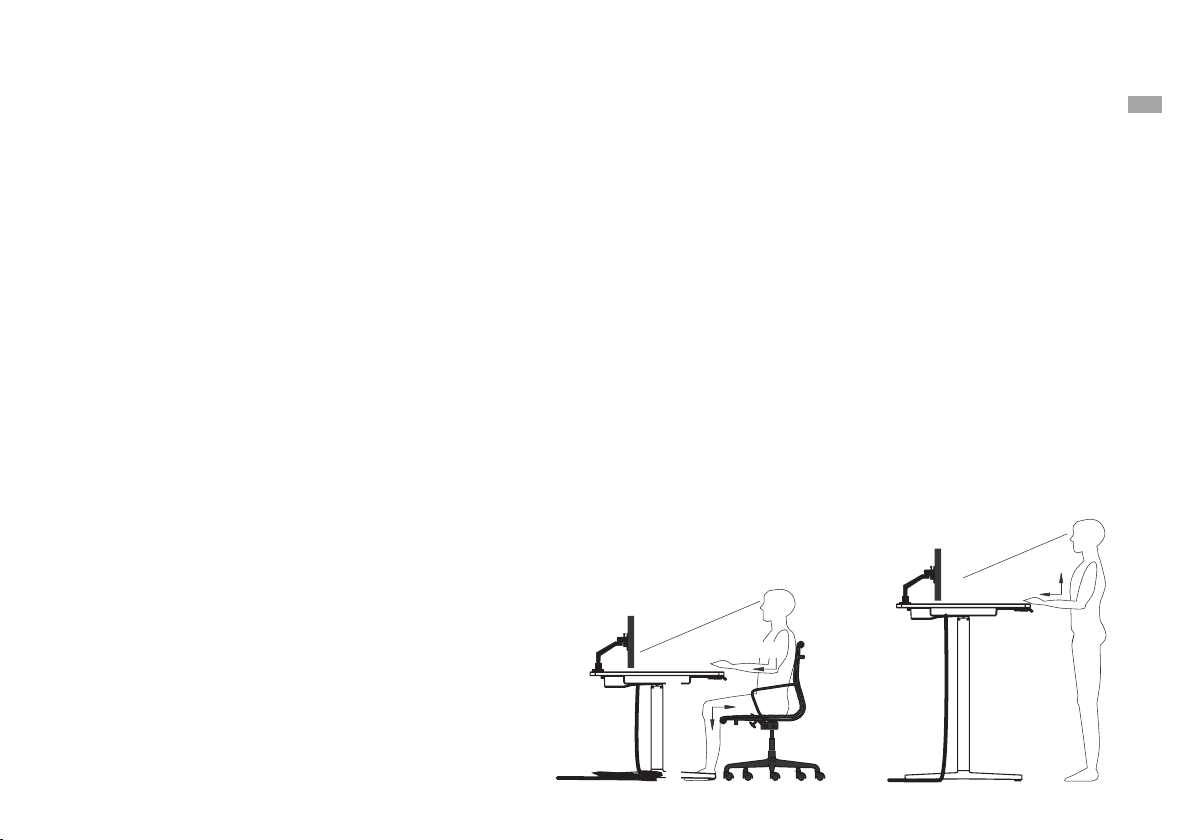

Ergonomic and comfortable working is
generally ensured with the following set-up
dimensions:
ƒ room temperature from 10 to 40°C
ƒ Do not set up in potentially explosive atmospheres.
ƒ Do not set up directly below windows.
CAUTION!!

EN
16
max.
25 kg
55 lbs
max.
25 kg
55 lbs
Overvoltage
To avoid the risk of injury caused by mains-related
overvoltage:
ƒ Keep the power supply switched offduring installation and
maintenance work.
ƒ Switch offthe power supply if the unit begins to emit smoke, odours or
unusual noises.
ƒ Switch offthe power supply in case of storms and before leaving the
unit unattended for extended periods.
ƒDo not pour any liquid/splash water into or onto the plug connections.
ƒDo not operate the unit if the power cable is damaged. Ensure
damaged power cables are replaced by Vitra Service or by a qualified
electrician.
ƒObserve Vitra general electrification notice. 710 254 24.
DANGER!!
Procedure in the event of malfunction
CAUTION!!
In case of malfunctions, e.g. emission of smoke or
odours, unusual noises, other faults or operational failures, switch offthe
power supply immediately and contact your Vitra retail partner.
To avoid the risk of injury caused by overheating:
ƒafter the table has been switched on for a maximum of 2 minutes, do not
activate it again for at least 18 minutes.
ƒImmediately give the table a break of at least 18 minutes when there is a
reduction in speed, as this indicates that the table is beginning to overheat.
Overheating
CAUTION!!
Overloading

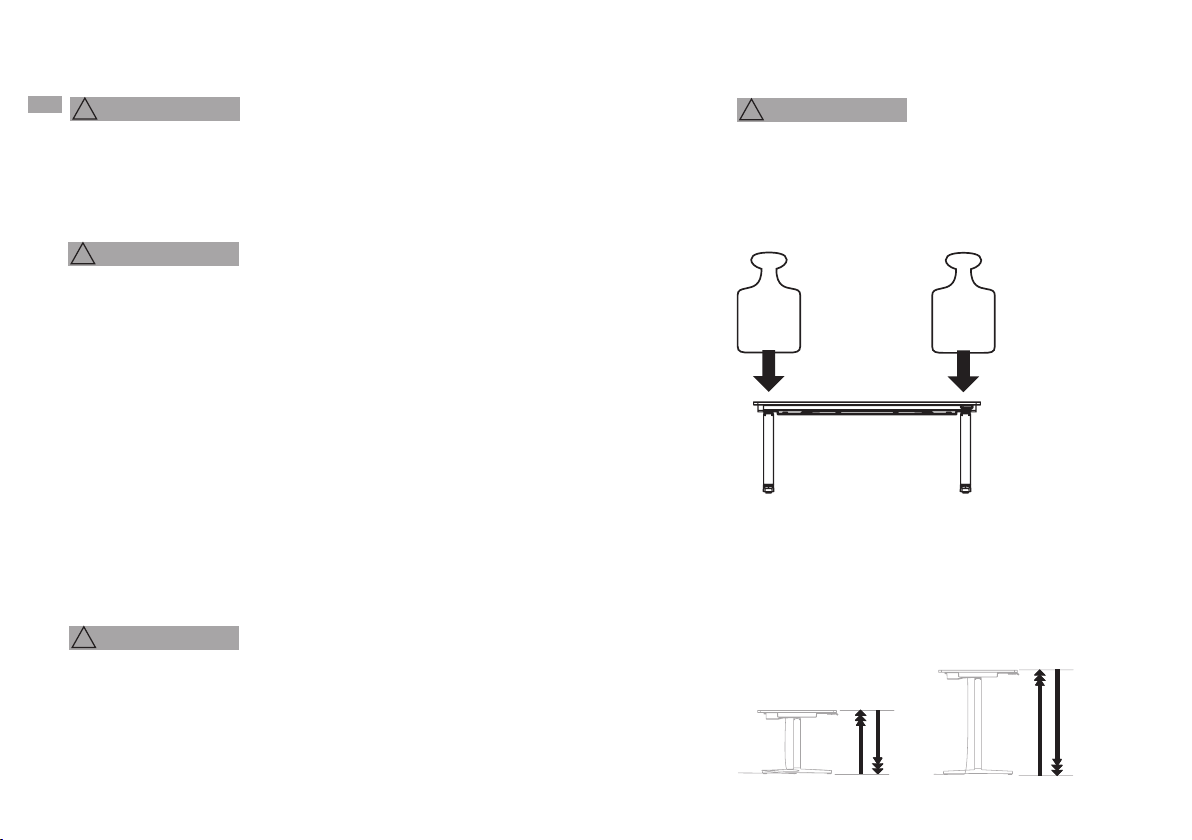

The table columns will
work best when the load on the table is
distributed evenly:
ƒ max. 2 x 25 kg at the edges
ƒ max. 50 kg total area evenly distributed on
the tabletop
ATTENTION!!
The noise emission during use is
max. 50 dB(A).
Noise emission
Movement range
65 - 125 cm

EN
17
Electrical power rating
To avoid the risk of injury and
property damage caused by mains-related
overvoltage: Observe Vitra general electrification
notice. 710 254 24.
CAUTION!!
EU table Power rating
160x80 cm, 180x80 cm
140x70 cm 3600 W (Drive: 175 W)
GB table Power rating
160x80 cm, 180x80 cm
140x70 cm 3000 W (Drive: 175 W)
CH table Power rating
160x80 cm, 180x80 cm
140x70 cm 2300W (Drive: 175 W)
USA table Power rating
160x80 cm, 180x80 cm
140x70 cm 1875 W (Drive: 175 W)

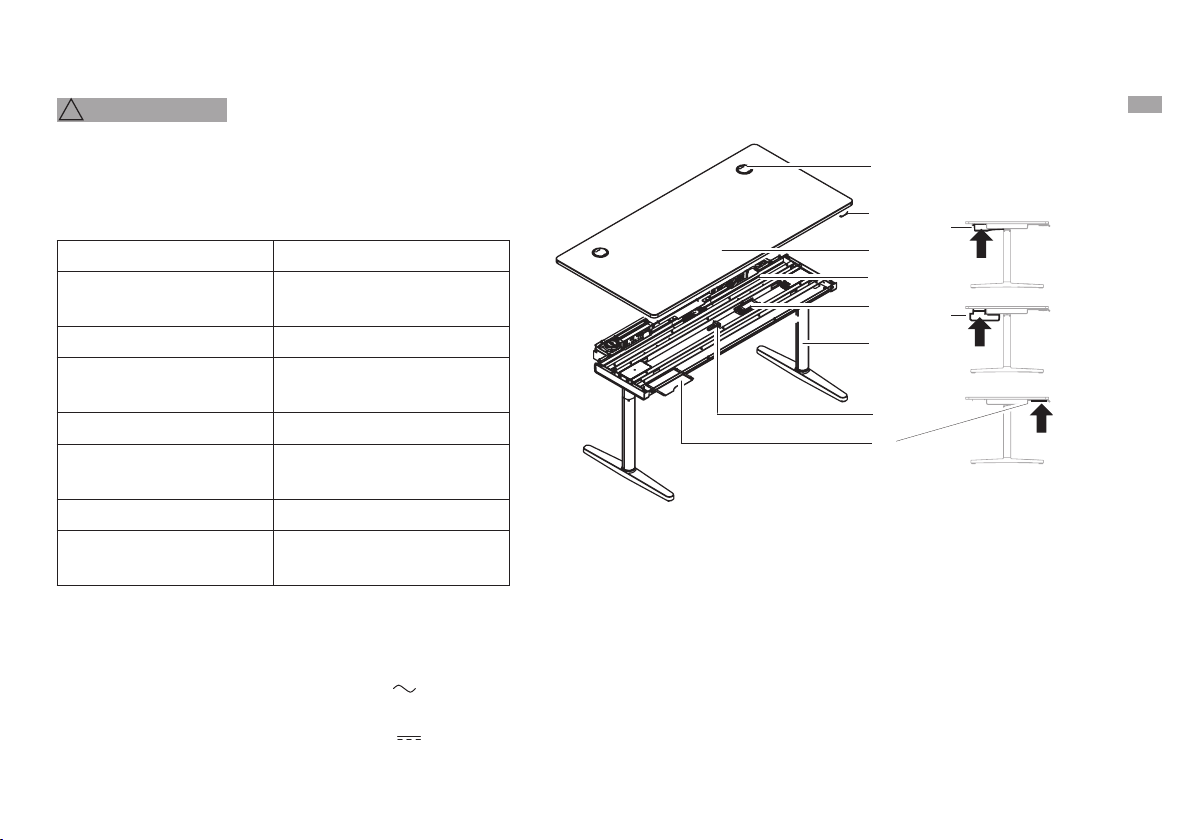

Product description
Technical data
Switching power supply
SMPS006
1 Cable passage (electrification optional)
2 Handset
3 Table top
4 Cable tray (optional)
5 Switching power supply SMPS006
6 Base incl. telescopic guide master/slave (motor)
7 Storage for service manual
8 Desk sensor
7
1
2
8
3
4
5
67
7
U In : 230 V , 50-60 Hz
P In : 175 W
U Out: 29 V

EN
18
Commissioning
To start up your table, plug the power cable in.
To move your table, press and hold the
handset in the direction you want your table
to move. Your table will stop
automatically when you remove your hand
from the handset.
Height adjustment Up/down
Symbol Description Function
Reminder Set reminders
Favourites Save favourite position
Bluetooth Connect the Desk Control app via Bluetooth wireless
technology *
Handset description
Control buttons
with symbol and function
• Up/down
• LED light bar
• Display
• Height display
• Up/down
Control buttons description (DPG1C02-000006)
DPG1C
02-000006
DPG1K
* The Desk Control app can be found at:
https://cdn.linak.com/-/media/files/user-manual-source/
de/deskline-dpg-desk-panels-und-desk-control-app-mon-
tageanleitung-dt.pdf

EN
19
Table height/limitation(DPG1C02-000006)
Setting the upper limit
Move your table to the maximum permissible height.
Press and the handset up for 8 seconds until the
light flashes.
Release and the handset.
Setting the lower limit
Move your table to the minimum permissible height.
Press and
simultaneously press the handset down for 8 seconds
until the light flashes.
Release and the handset. The table height limit
can only be deactivated using the
reset to factory settings.
Favourite position/delete (DPG1C02-000006)
All positions are deleted
Press for 8 seconds
After 5 seconds, the display shows a countdown and the light bar
flashes red when all favourite positions are deleted.
Favourite position/save (DPG1C02-000006)
You can assign four saved positions.
After 4 positions have been saved, these positions can be
overwritten.
The next time you save a position, the closest position will be
overwritten.
Move your table to the desired position.
Press for 2 seconds.
The light bar will flash white twice to indicate that the position is
being saved. The light bar lights up white to indicate that the
position is being saved.
The display shows the saved position with a
and a position number. The number next to it indicates the order in
which the positions are saved.
Favourite position/height adjustment (DPG1C02-000006)
To move your table to a saved favourite position, press the
handset in the direction you want your table to move. The table
will automatically stop at the next saved position. If you continue
to hold the handset down, your table will move to the next saved
position.
Table height/display adjustment (DPG1C02-000006)
If the height shown on the display is not correct, it
can be adjusted.
Press at the same time for 5 seconds -
display height flashes
Press the handset up to increase the height and
down to decrease the height.
Press any button to confirm the height or wait 10
seconds. Confirmation is automatic.

EN
20
A colour that lights up in your LED light bar indicates that a position
change is due.
The colour indicates the current usage status of the table. When the
colour changes, the user is reminded that it is time to change the
position. The reminder function thus helps to improve the posture of
the user by reminding them to vary their position during the working
day.
Reminder for position change/description (DPG1C02-000006)
Reminder for position change/restart (DPG1C02-000006)
The reminder is automatically restarted when your table is moved to
seat height.
-display shows green light strips
Reminder for position change/timeout (DPG1C02-000006)
After 4 hours without action, the light bar automatically goes out.
When you press the handset, you automatically activate the timer -
display shows green light strips
The preset default interval issues a reminder after 55
minutes (light block white).
Default interval/description (DPG1C02-000006)
Press
Switch through the intervals by pressing repeatedly.
Default interval/change (DPG1C02-000006)
Reminder for position change/reset (DPG1C02-000006)
Press and hold for 8 seconds
After 5 seconds, the display shows a countdown and the light bar
flashes red when the reminder is reset.
Default interval/light bar colour display
(DPG1C02-000006)
Colour dis-
play
Light block Description
white 1x reminder after sitting
for 55 minutes
white 2x reminder after sitting
for 50 minutes
white 3x reminder after sitting
for 45 minutes
white offreminder for the default interval is
deactivated

EN
21
Reset/perform
Risk of injury around the columns during
reset
ƒKeep your distance from the table when adjusting the
height.
ƒDo not place any items under the table when adjusting the
height.
CAUTION!!
Move your table downwards. Your table will stop automati-
cally just before the end position. (Table height 65 mm)Move
your table down again.
Once it has reached the end position (table height 64 mm),
the table will automatically shift back up slightly. The reset is
performed automatically.
If you remove your hand from the handset before the reset
has been carried out, the reset is interrupted and you must
repeat the procedure.
You will not be able to move your table up if the reset proce-
dure has been interrupted.
Reset/to factory settings (DPG1C02-000006)
Press at the same time for 8 seconds
After 5 seconds, the display will light up and show an arrow
with a countdown.
The light bar will flash red three times when the reset is com-
plete.
When you reset to factory settings, your DPG is returned to
its configurable state. This means that not all configurations
made in the DPG configurator will be reset, but only the set-
tings that were changed directly on the DPG (or in the app).
Troubleshooting
Errors Cause Solution
Motor,
control sys-
tem,
telescopic
guides
or
handset
does
not work.
Bad plug contact
Motor faulty
Control system
faulty
Handset faulty
Feed cable faulty
Contact your Vitra
retail partner.
Your
table
cannot
move
up/down.
Power failure 1. Unplug the power cable for 1-2 seconds.
2. Reset the unit.
Unit of measurement cm/inch change (DPG1C02-000006)
If the height shown on the display is not correct, it can be
adjusted.
Press at the same time for 5 seconds
-display height flashes and
displays cm or inch
Press the handset once to change the unit.
Press any button to confirm the height or wait 10 seconds.
Confirmation is automatic.

EN
22
Error code Cause Solution
E01 Initialisation Reset the unit.
E02, E028 Overload when
moving up 1. Move your table down more than 10 mm. 2. Your table will now be able to move up and down normally again.
E02, E029
E41-E52 Overload when moving up 1. Remove all loads from the table. 2. Do not activate the table for 18 minutes.
E03
E41-E52 Overload when moving down
1. Remove any objects that might be blocking the table and preventing it
from moving down.
2. Do not activate the table for 18 minutes.
E16 button pressed
accidentally. 1. The E16 error code only appears for as long as the button is held down. 2. Your table will now be able to move up and down normally again.
An E and another error
code appear on the
display. Internal error Contact your Vitra retail partner.
E40 Overloading while the table is being
raised or lowered
1. The E40 error code only appears for as long as the button is held down.
2. Your table will now be able to move up and down normally again.
E53-E64 Collision 1. Remove any objects that might be blocking the table.
2. Do not activate the table for 18 minutes.
If an error code is dis-
played for a long time or
an error occurs regularly. Internal error 1. Unplug the power cable.
2. Contact your Vitra retail partner.
Error codes may be displayed. Error codes appear on the display only when a key is pressed. The display flashes.
Troubleshooting/display (DPG1C02-000006)

EN
23
Maintenance
In order to prevent damage and cracks, and to ensure
that your table remains fully functional, you should:
ƒClean dust and dirt offthe surfaces of your table
once per month.
ƒClean your table with a damp cloth and mild clean-
ing agent. The cleaning agent must have a pH value
of between 6 and 8. Do not use alkaline or acidic
cleaning agents.
Further care instructions can be found on the internet
at: http: //www.vitra.com or contact your Vitra retail
partner.
For further information on the functional and aesthetic
sustainability of our products, please visit http: //
www.vitra.com/sustainablility.
Care
Decommissioning
To shut down your table, simply unplug the power
cable.
Disposal
Spare parts
Contact your Vitra retail partner.
Accessories
Are you interested in accessories?
Contact your Vitra retail partner.
Dispose of electronic components according to the
statutory waste regulations in your country.
Dispose of all other components according to your
country's waste regulations.
Your table does not require any special maintenance.

EN
47
Cabling option
SMPS006
Desk Sensor
IN
Slave Master
View from below, cable tray and base hidden - wiring diagram
Connecting cable
Connecting cable, handset
Connecting cable, motor

DE
EN



 


       
       


 
 
 
 







































































50
EC Declaration of ConformityKonformitätserklärung


