Volvo 30758088 User manual

Instruction No
Version
Part. No.
31330676
1.4
30758088, 9487266, 30786087, 31359215
Parking assistance, rear
Instruction No
Version
Part. No.
31330676
1.4
30758088, 9487266, 30786087, 31359215
Parking assistance, rear
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 1 / 23

Equipment
IMG- 242205
A0000162
IMG- 239981
IMG- 273465
IMG- 330289
IMG- 333288
IMG- 333293
IMG- 332314
IMG- 346081
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 2 / 23

INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
During installation, the car and components must maintain a
temperature of at least +20° C (68° F).
1
IMG- 346082

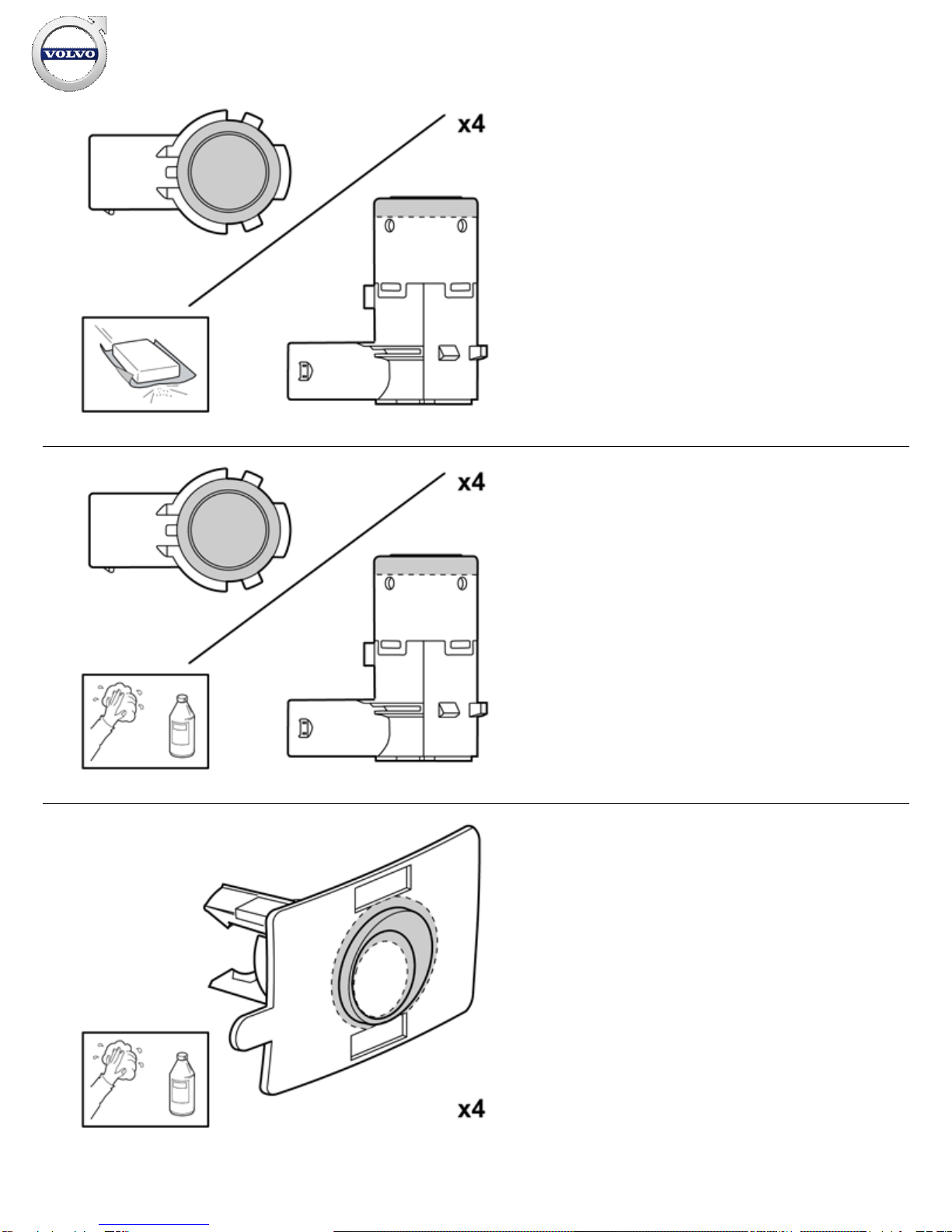

Clean the sensors. Use: Isopropanol.
Allow to dry.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 3 / 23

2
IMG- 352601
Carefully mat down the surface. Use Glasspaper, grade P1000.
3
IMG- 346082
Clean the sensors again. Use: Isopropanol.
Allow to dry.
Avoid contact with the cleaned surfaces.
4
IMG- 352603
Clean the cradles. Use: Isopropanol.
Allow to dry.
Avoid contact with the cleaned surfaces.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 4 / 23

5
IMG- 352606

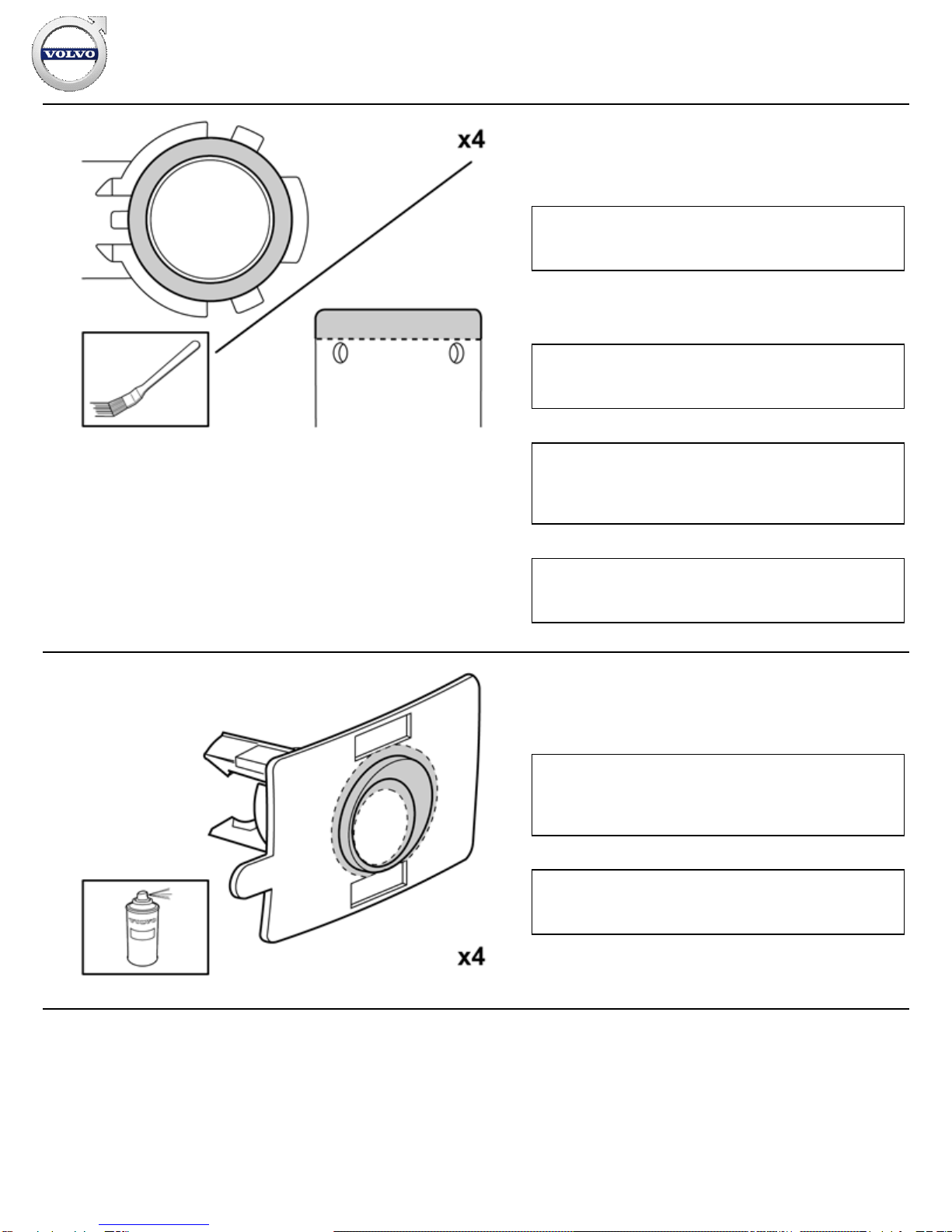

Apply a thin and even layer of primer to the cleaned plastic
surface.
Use: Bonding primer for plastic. P/N: 31335448.
Caution!
Not on the centre of the sensor.
Hint
Spray primer into the cap of the can and apply with a brush.
Caution!
Allow to dry at a temperature of at least +20°C for 10 min,
before painting.
Note!
Also read the instructions on the spray can.
6
IMG- 346087
Apply primer to the cleaned surface. Use: Bonding primer for
plastic. P/N: 31335448.
Caution!
Allow to dry at a temperature of at least +20°C for 10 min,
before painting.
Note!
Also read the instructions on the spray can.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 5 / 23

7
IMG- 346086
Paint the sensors in the same colour code as the vehicle.
Use Volvo Touch-up paint (Only use base coat.)
Use: Volvo 2- K Varnish. P/N: 31335447
Caution!
Protect the connections' contact surfaces against paint.
Note!
Also read the instructions on the spray can.
8
IMG- 346087
Paint the holders in the same colour code as the vehicle.
Use Volvo Touch-up paint (Only use base coat.)
Use: Volvo 2- K Varnish. P/N: 31335447
Note!
Also read the instructions on the spray can.
9
IMG- 332193
Set the ignition key to position 0.
Note!
Wait at least one minute before unplugging the connectors or
removing other electrical equipment.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 6 / 23

10
IMG- 273472
Remove the cargo compartment carpet.
11
IMG- 273474
Prize off the four external clips at the front edge/bottom edge of
the sill trim panel on the tailgate.
Pry up one of the corners of the sill trim panel so that the two
clips at that end release. Use a weatherstrip tool.
Pull up the sill trim panel so the remaining six clips release.
Remove the panel.
12
J8504578
Fold the seat cushion and backrest on the right-hand side of the
rear seat forward.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 7 / 23

13
J8504708

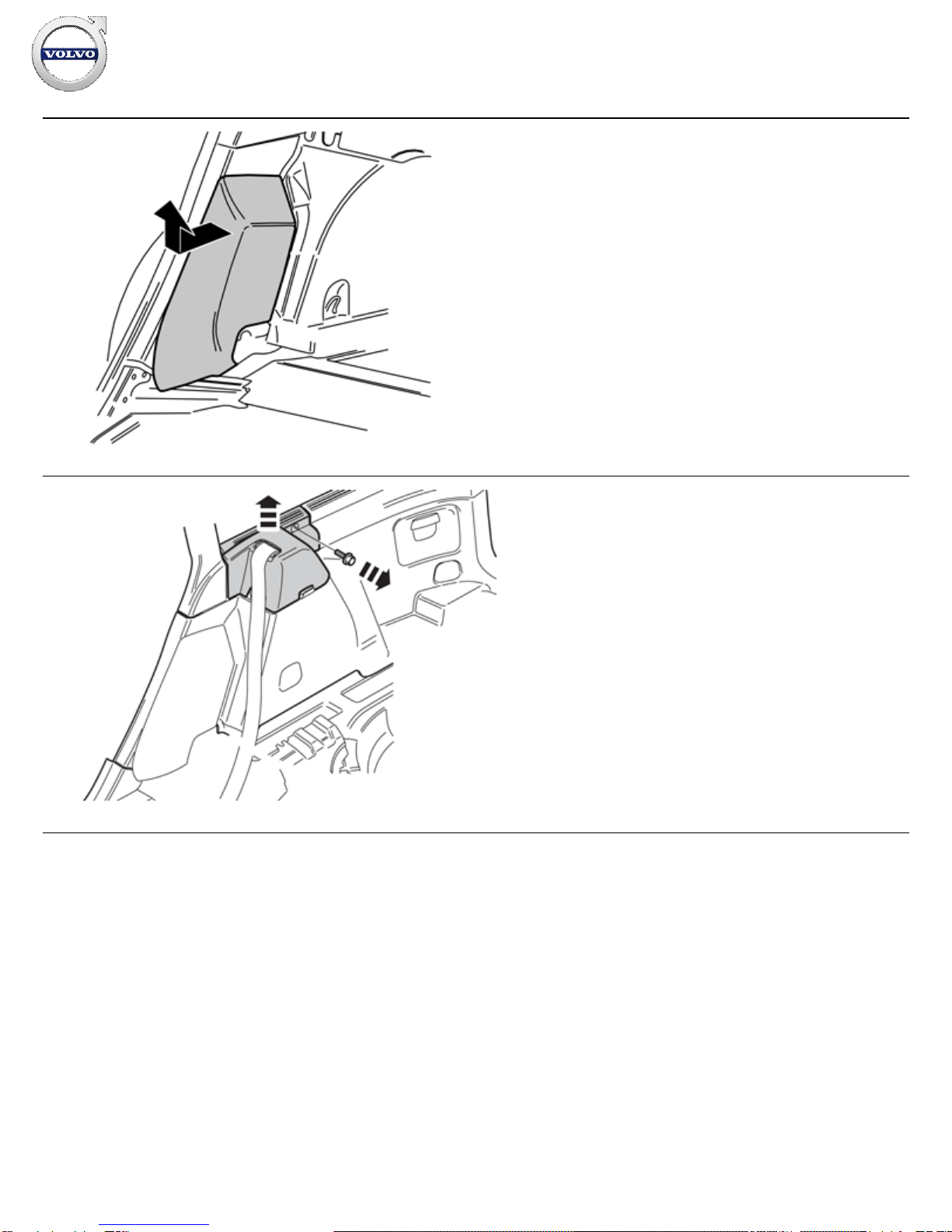

Grasp the upper edge of the right- hand side cushion. Pull the
side cushion forward so that the clip on the reverse releases.
Slide the side cushion up. Remove the side cushion.
14
IMG- 240927
Remove the screw.
Pull the panel upwards so that the four clips on the inside
release. Remove the panel.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 8 / 23

15
IMG- 347037

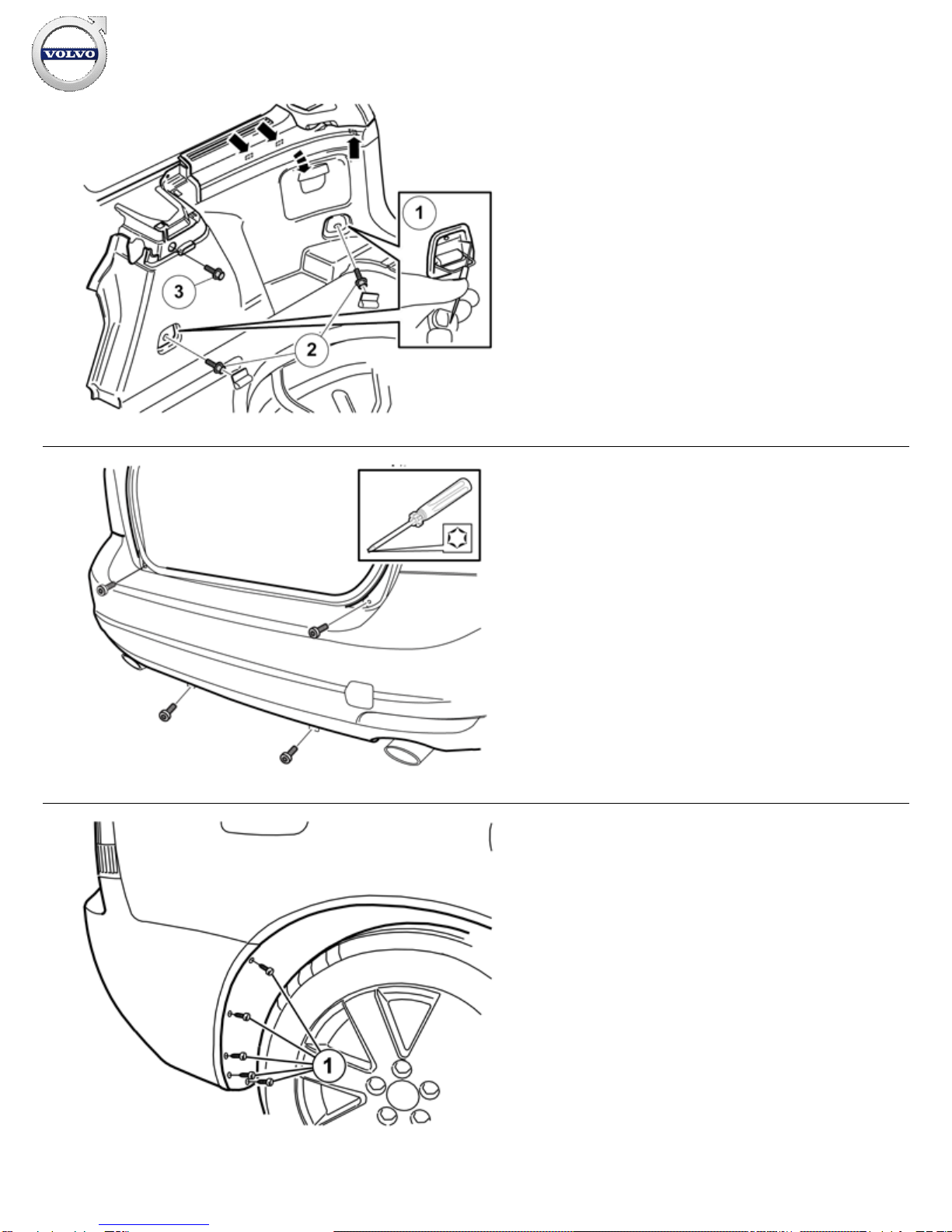

Fold out the anchorage eyelets. Insert a scriber with an angled
tip into the holes in the top of the covers (1). Turn the scriber so
that the tip engages the reverse of the cover. Pull the covers off.
Remove the screws from the anchorage eyelets (2).
Remove the screw (3).
Pull off the side panel at the top so that the two clips at the
rear/bottom of the side window and the clip at the bottom of the
D - pillar release.
Disconnect the connector for the 12V socket, if present.
Lift out the side panel.
16
IMG- 273475
Remove the four bumper screws.
17
J8601058
Remove the five screws (1) holding the bumper cover at the rear
edge of the wing liner in the rear wheel arch. Repeat on the
other side.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 9 / 23

18
J8504526

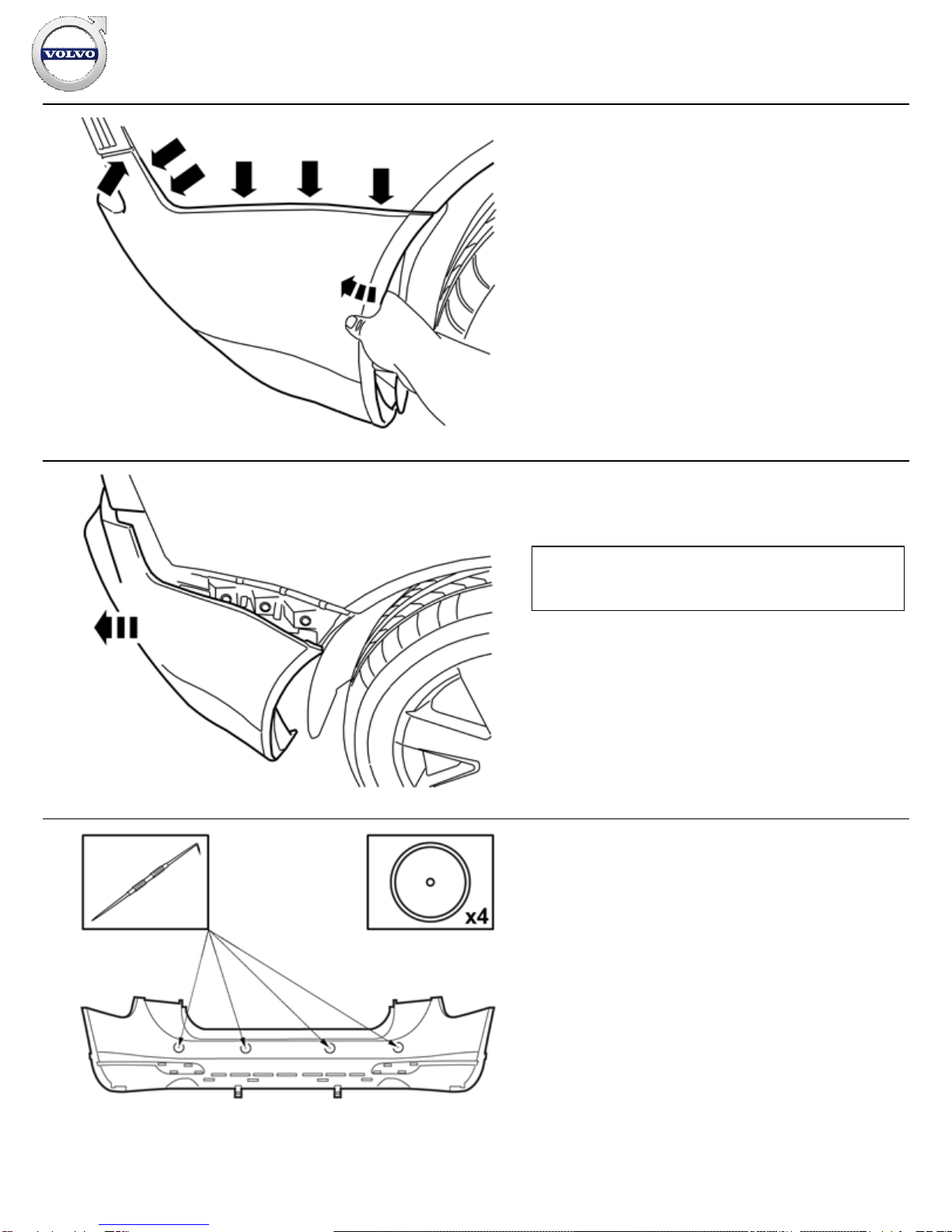

Remove the end of the bumper cover. Grasp the bumper cover
inside the wing liner. Pull carefully until the six catches at the top
edge release. Repeat on the other side.
19
J8504527
Remove the bumper cover by pulling it straight backwards.
Place the bumper cover on an underlay which will not damage
the paint.
Note!
It is recommended that two people lift down the bumper cover.
20
IMG- 346088
Make a mark in the centre of the markings on the inside of the
bumper cover using a scriber.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 10 / 23

21
IMG- 346089
Drill out the centre of the markings.
1. Ø 3 mm (7/64 ")
2. Ø 10 mm (25/64 ")
22
IMG- 346090
Use hole tool part no. 9997345 to make holes in the bumper
cover. Check that the markings (1) are opposite each other
when using the tool.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 11 / 23

23
IMG- 346091

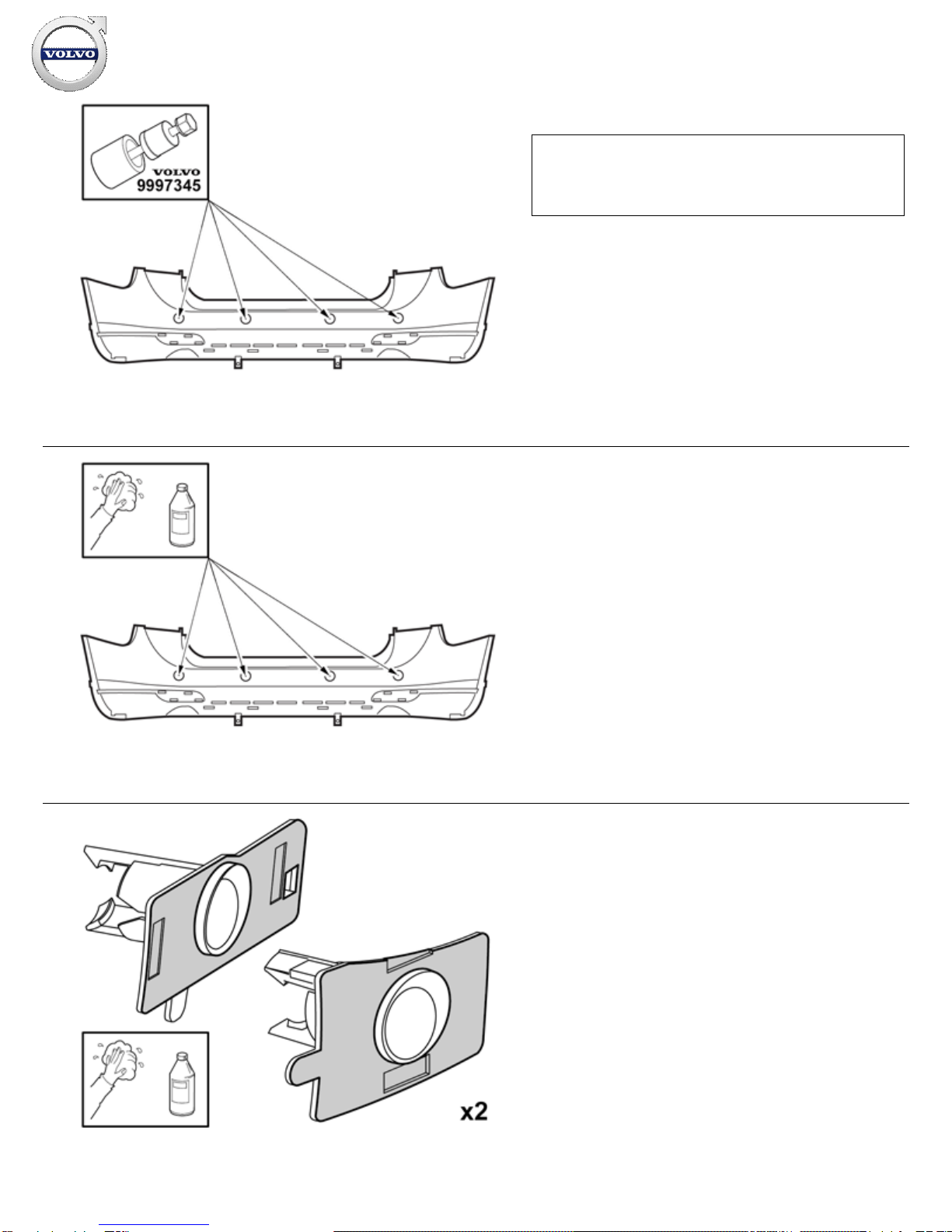

Make the holes in the bumper cover using the hole tool.
Screw the hole tool together until it has cut the hole in the
bumper cover.
Remove the plastic pieces from the hole tool and make the
remaining holes in the same way.
Caution!
Place the hole tool's support sleeve on the inside, and the
cutting part on the outside of the bumper casing.
24
IMG- 346092

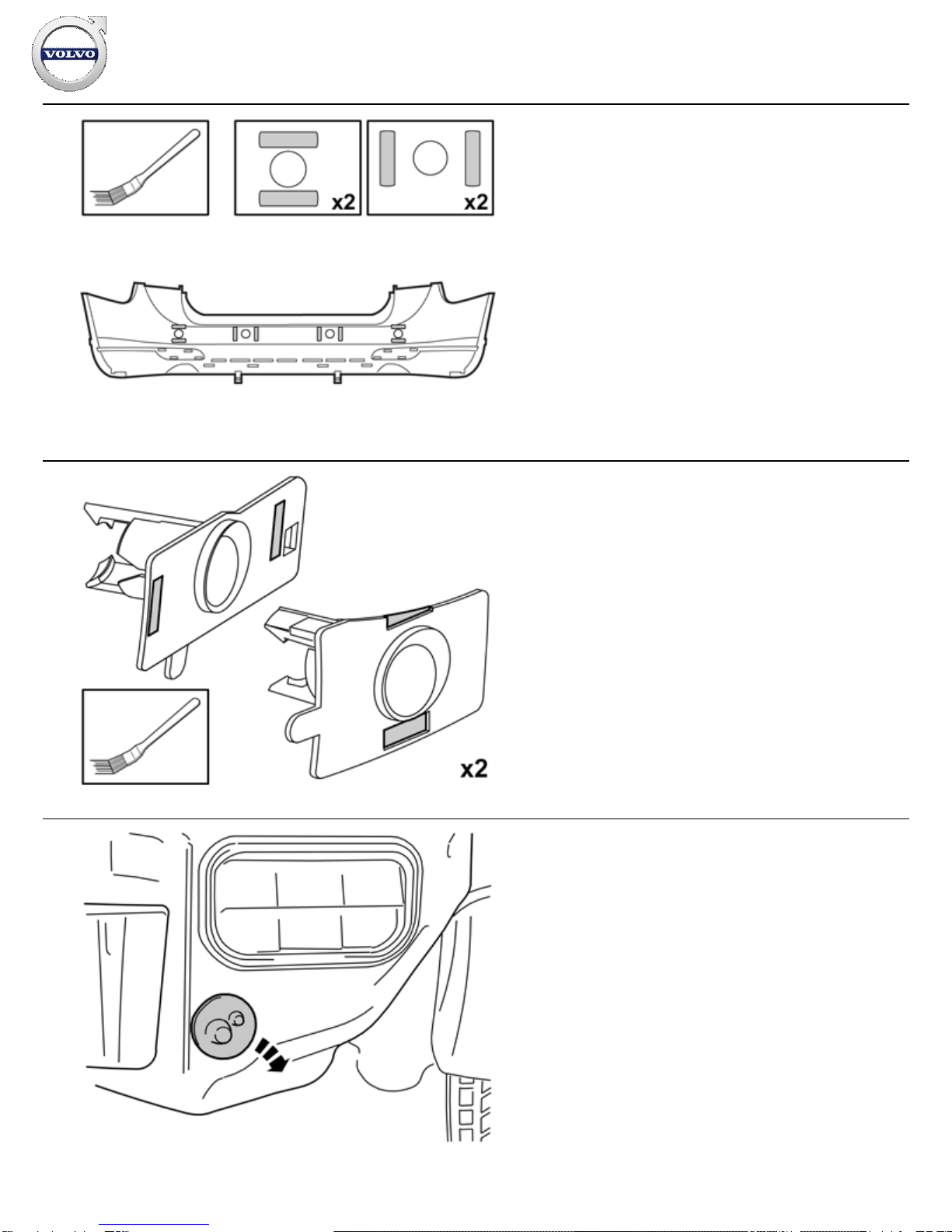

Clean the inside of the bumper cover using a mild soap solution.
Clean an area around the holes that is slightly larger than the
sensor cradle. Use: Isopropanol.
Allow to dry.
25
IMG- 346093
Clean the cradles on the surfaces as illustrated. Use:
Isopropanol.
Allow to dry.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 12 / 23

26
IMG- 346094
Apply a thin and even layer of activator to the cleaned surfaces
where the tape is to be attached. Use: 8637076.
Allow to dry.
27
IMG- 346095
Apply a thin and even layer of activator to the cleaned surfaces
where the tape is to be attached. Use: 8637076.
Allow to dry for at least 10 minutes.
28
J8601193
Remove the rubber grommet from the hole in the car, it shall not
be re-used.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 13 / 23

29
J8601273
Applies to cars with the Keyless system

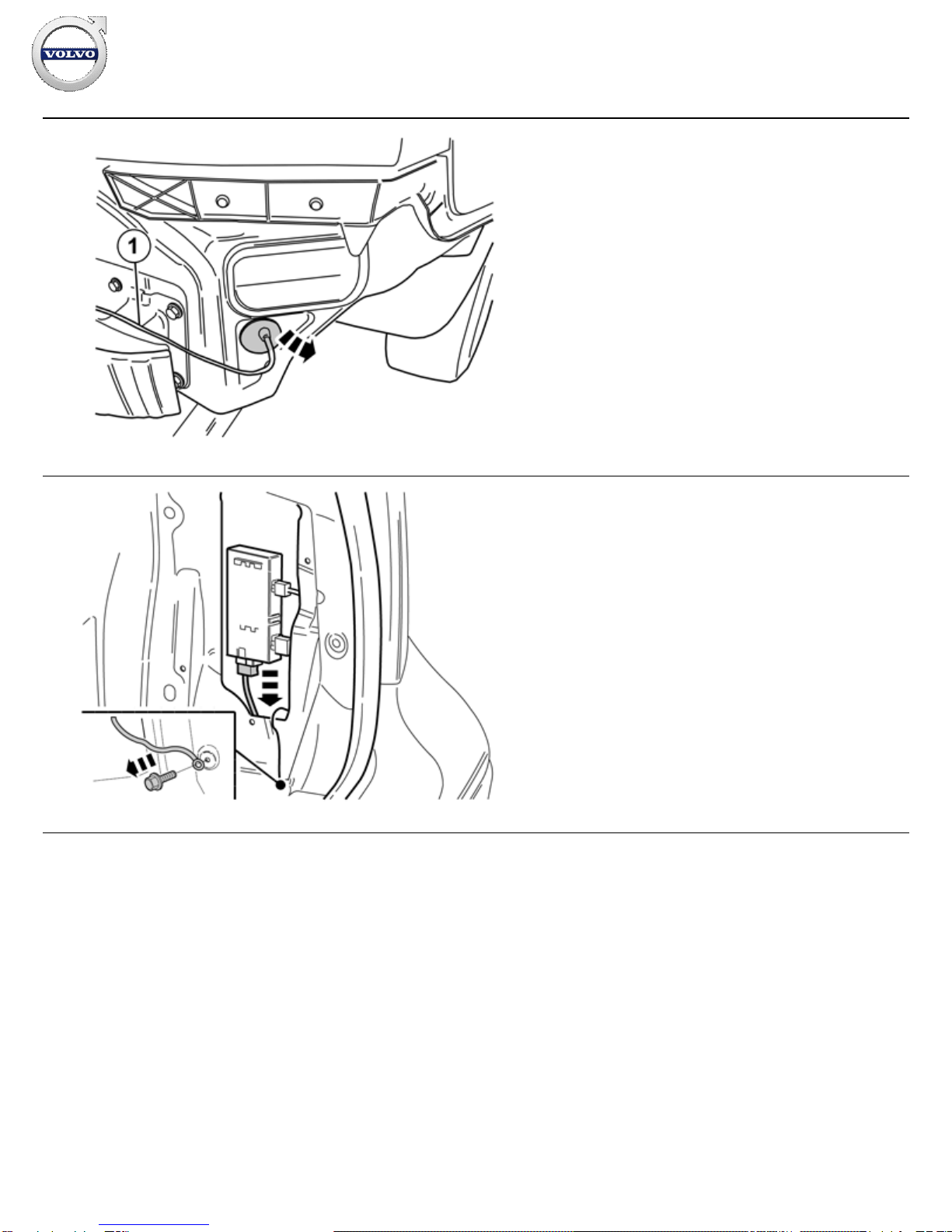

Disconnect the cable (1) at both ends and remove it. It will no
longer be used. The cable is internally connected to a gray
connector below the right tail lamp.
30
IMG- 347023
Applies to cars with a tow hitch
Detach the towbar wiring connector from the Trailer Module
(TRM).
Disconnect the ground lead.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 14 / 23

31
IMG- 222068
Release the secondary locking by pressing the catch down and
pulling the locking straight out.
32
IMG- 254283
Disconnect all cable lugs from the connector. Use special tool
9512810 or 9512632.
Insert the tool in the connector and release the locking.
Pull out the cable with cable lug.
Pull the cable harness out through the rubber grommet. The
rubber grommet is not to be reused.
Caution!
Note the location of the cables in the connector.
33
J3703374
Cut off the top of the large rubber nipple on the new grommet
and route the cable harness for the tow hitch through.
Connect the cable lugs to the connector.
Secure the locking and connect to the trailer module (TRM).
Hint
Lubricate the cable harness with something that will not
damage the rubber grommet and route the cable harness
through the hole.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 15 / 23

34
J8601274
Applies to all models
Take the cable harness with the rubber grommet from the kit.
Pull in the end with four connectors through the hole in the car
and fit the rubber grommet.
Hook the connector (1) at the intended location under the tail
lamp.
35
IMG- 273518
Fit the cable with the clips (2).
Applies to cars with the Keyless system
Plug the connector into the antenna (1).
Applies to others
Secure the connector using a cable tie so that it does not rattle.
36
IMG- 346098
Applies to all models
Install the parking assistance module on the right -hand side of
the cargo compartment.
Install it on the existing studs with nuts.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 16 / 23

37
IMG- 346588

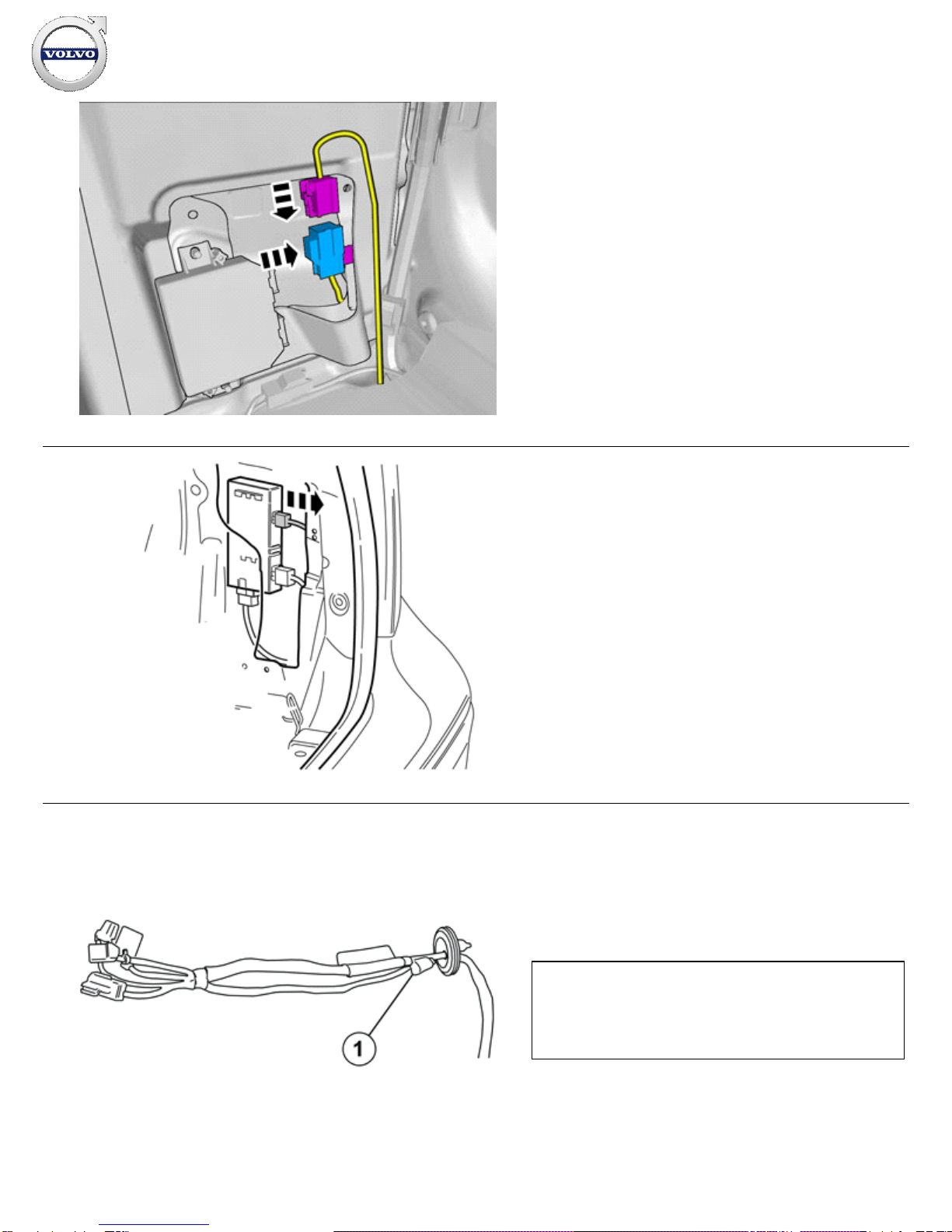

Connect:
black connector to the control module's upper port.
brown connector to the control module's lower port.
38
IMG- 346589
Disconnect the existing 6-pin connector from the car's normal
cable harness.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 17 / 23

39
IMG- 346590
Connect the connector to the cable harness for parking
assistance.
Secure the connectors to the panel edge.
Applies to cars with the Keyless system
Plug the gray connector into the corresponding gray connector.
40
IMG- 346097
Applies to cars with TRM or TRM combined with AEM
The car's usual green connector is connected to the TRM.
Disconnect this connector.
41
J3703662
Connect the removed connector to the taped connector (1) on
the cable harness for PAM.
Connect the other connector from the cable harness for PAM to
the TRM.
Note!
It is important that the Parking Assistance Module (PAM) is
connected as the first module and that the cable harnesses are
connected correctly, and not in a loop.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 18 / 23

42
IMG- 346591
Applies to cars with an accessory electronic module
(AEM)
The car's usual green connector is connected to the cable
harness for the AEM. Disconnect this connector.
43
J3703662
Connect the removed connector to the taped connector (1) on
the cable harness for PAM.
Connect the other connector from the cable harness for PAM to
the cable harness for AEM.
Note!
It is important that the Parking Assistance Module (PAM) is
connected as the first module and that the cable harnesses are
connected correctly, and not in a loop.
44
IMG- 346099
Applies to all models
Install the sensors in their holders.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 19 / 23

45
IMG- 346100
Check which holders are to be placed where before installing.
Each holder is marked and has its own specific place. The
holders must be positioned as illustrated.
A: Right outer
B: Right inner
C: Left inner
D Left outer
46
IMG- 346101
Secure the tape on the holder.
Remove the protective film from the tape.
Note!
Prepare and install one cradle at a time.
Note!
The tape adheres immediately.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Parking assistance, rear - 31330676 - V1.4
Page 20 / 23
