INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
Some steps in these installation instructions are presented
with illustration only.
Preparations
1
IMG-363036
Preparations
Note!
This colour chart displays (in colour print and electronic
version) the importance of the different colours used in the
images of the method steps.
1. Used for focused part, the part that you are to do
something with.
2. Used as extra colors when you need to show or
differentiate additional parts.
3. Used for attachments that are to be removed/installed.
May be screws, clips, connectors, etc.
4. Used when the component is not fully removed from
the vehicle but only hung to the side.
5. Used for standard tools and special tools.
6. Used as background color for vehicle components.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 3 / 56

2
IMG-335491
Turn the ignition key to position 0.
Disconnect the battery negative lead.
Note!
Wait at least three minutes before unplugging the connectors
or removing other electrical equipment.
3
IMG-268003
Remove the gas strut's lower mounting.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 4 / 56

4
IMG-268004
5
IMG-268005
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 5 / 56

6
IMG-268006
Preparations, trunk lid
7
IMG-268007
Preparations, trunk lid
Remove the two screws from the opening handle.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 6 / 56

8
IMG-268009
Remove the screw at the lower edge of the trunk lid's upper
panel, on both sides.
Unhook the lower edge of the panel from the lower panel, on
both sides.
9
IMG-268011
Remove the trunk lid panel by first pulling it loose at the edges
and then the upper edge. It is attached by clips on the inside.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 7 / 56

10
IMG-268010
Remove the lower panel by prying it off around the edge using a
weatherstrip tool. Then carefully pull it off so that all the clips on
the inside release.
If the car is equipped with an electric door closer, remove its
connector.
Cargo compartment preparations
11
IMG-268012
Cargo compartment preparations

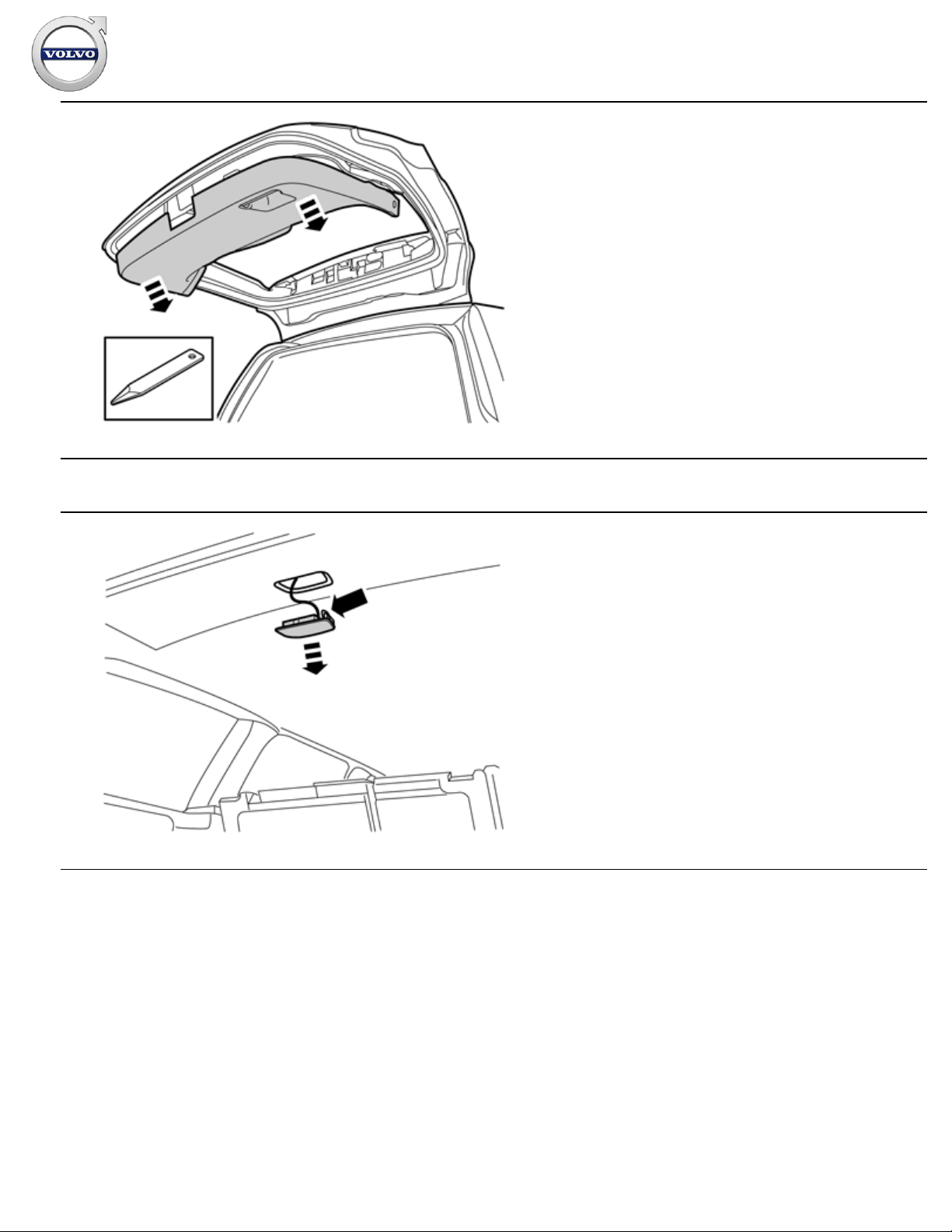

Carefully pry off the rear ceiling lighting and detach the
connector.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 8 / 56

12
IMG-268013
Remove the screw holding the ceiling panel and carefully pry it
loose. It is attached by thirteen clips.
13
IMG-268014
Pull off the rubber molding on the left-hand side in the cargo
compartment opening.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 9 / 56

14
IMG-268015

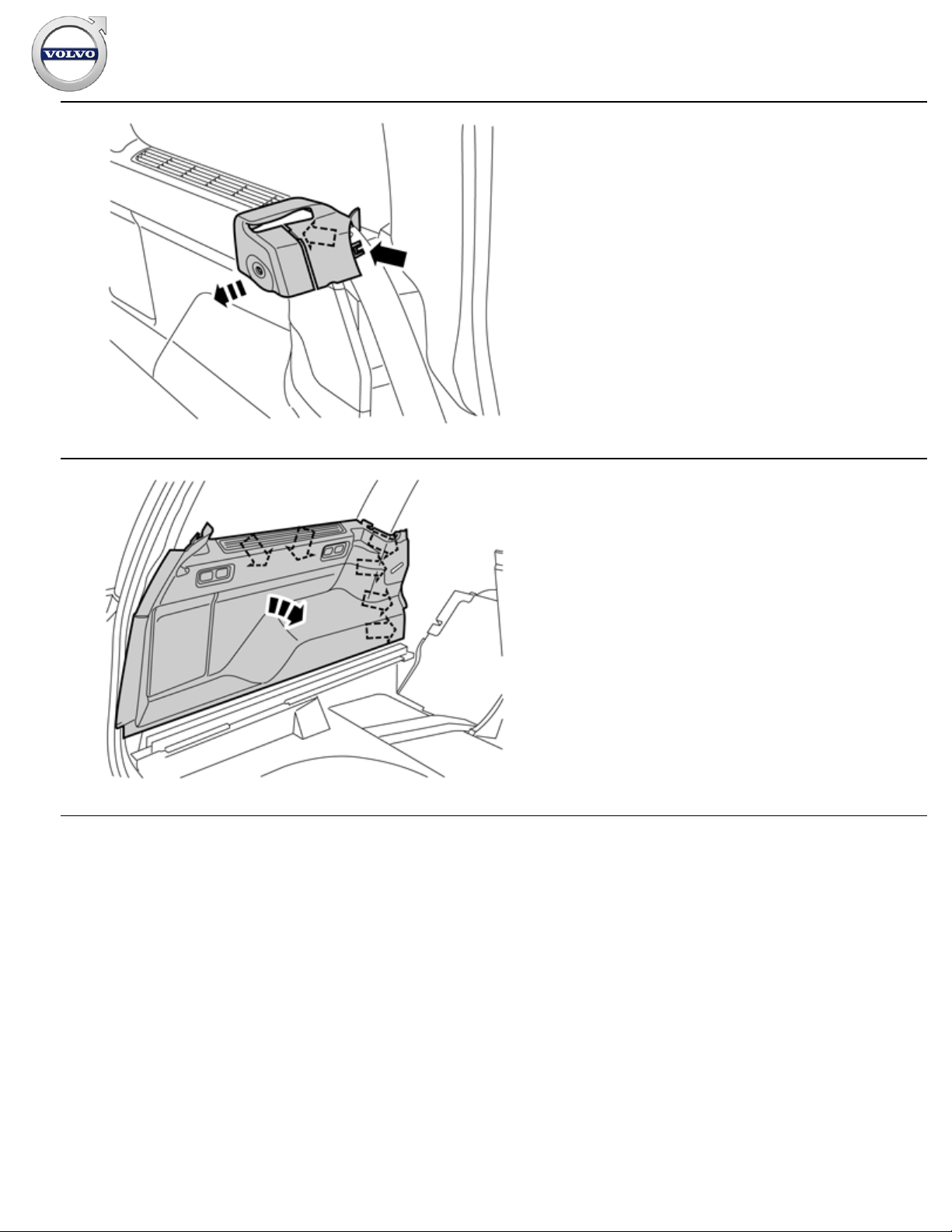

Carefully pry off the D-pillar panel at the top edge and pull off/ up
from the side panel. It is secured by four clips.
15
IMG-259759
Remove the screws holding the trunk lid's sill at the rear
crossmember.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 10 / 56

16
IMG-268016
Carefully pull off the trunk lid's sill panel, it is secured by six
clips.
17
IMG-268017

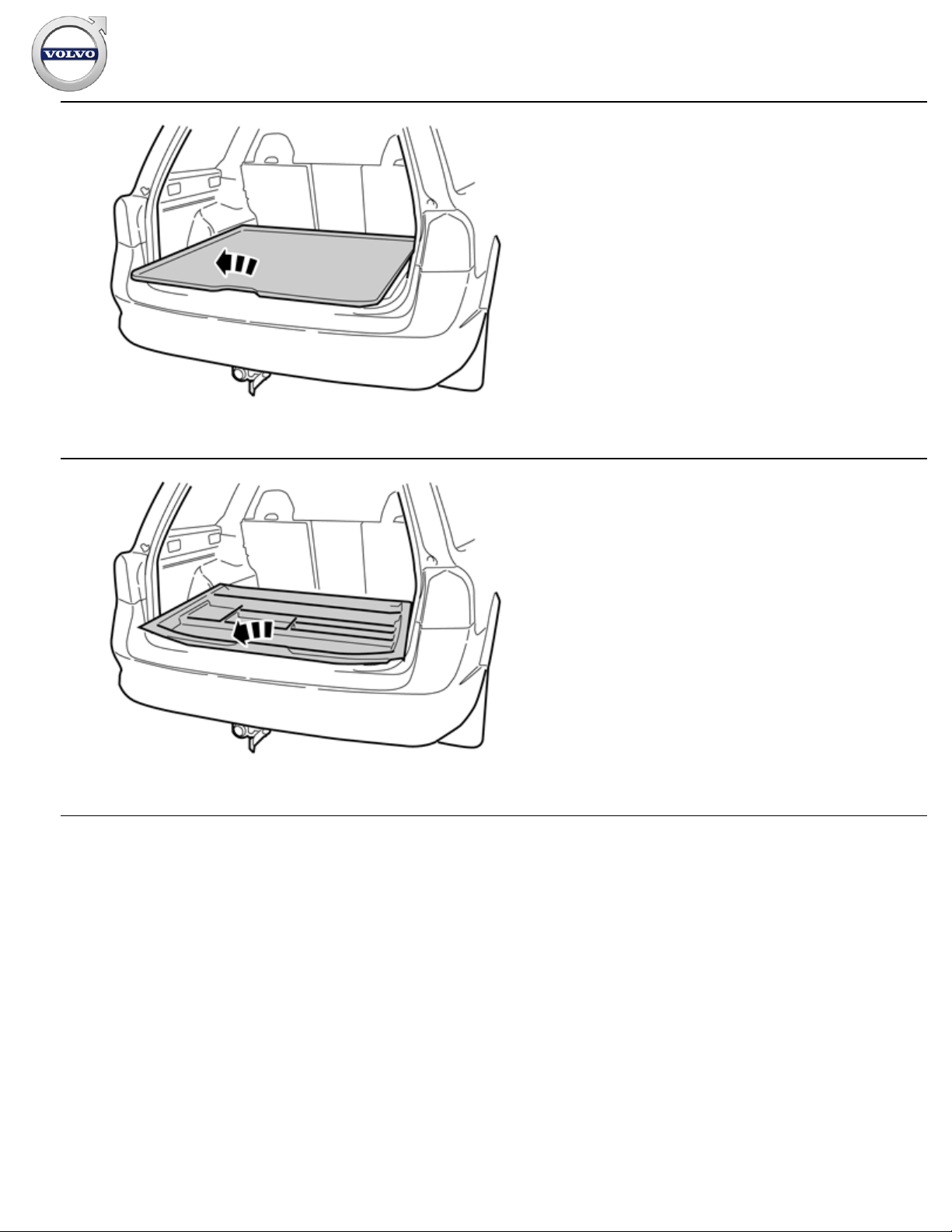

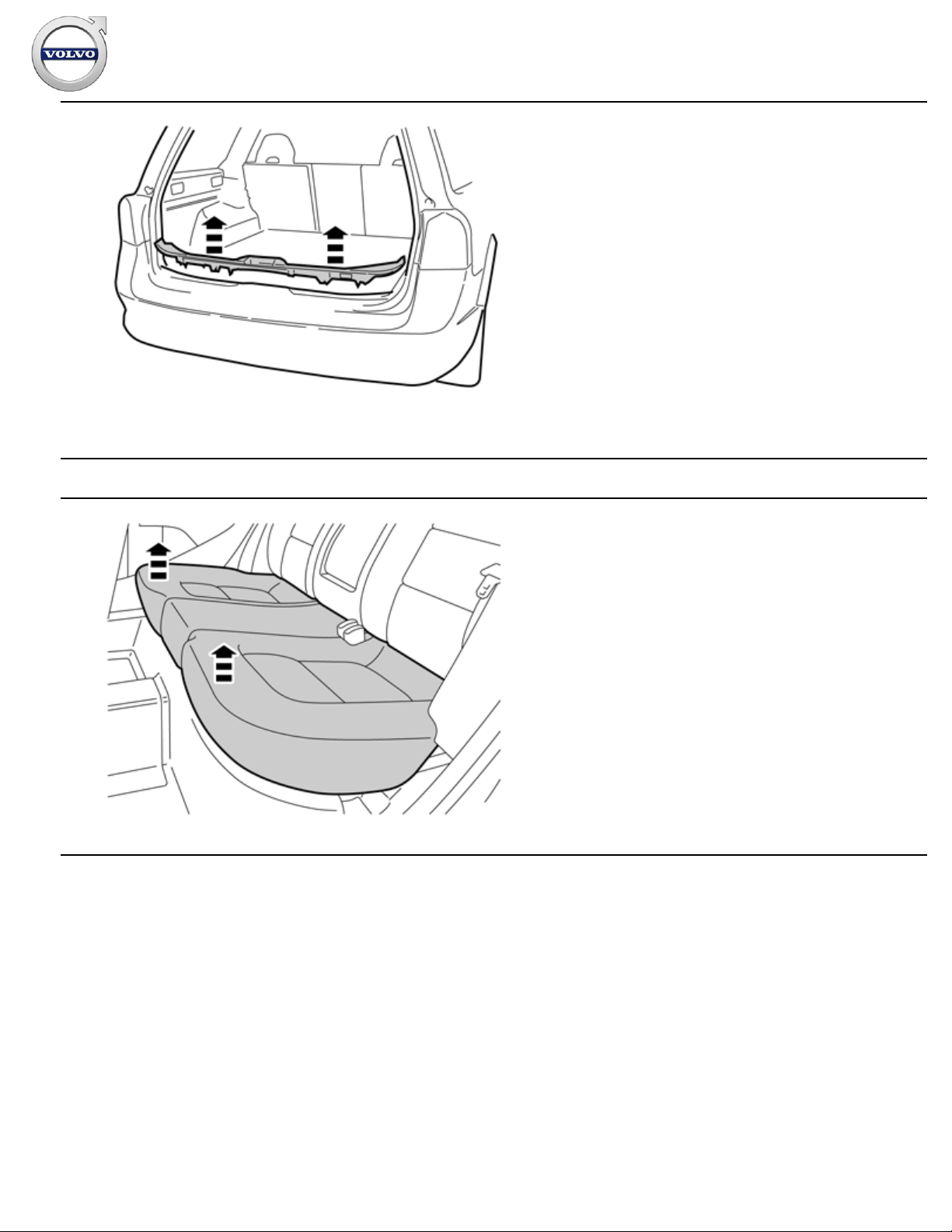

Remove the seat cushion by pulling it up at the front edge on
both sides. It is secured by two holders on the lower side.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 11 / 56

18
IMG-268018
Fold the left-hand backrest forward.

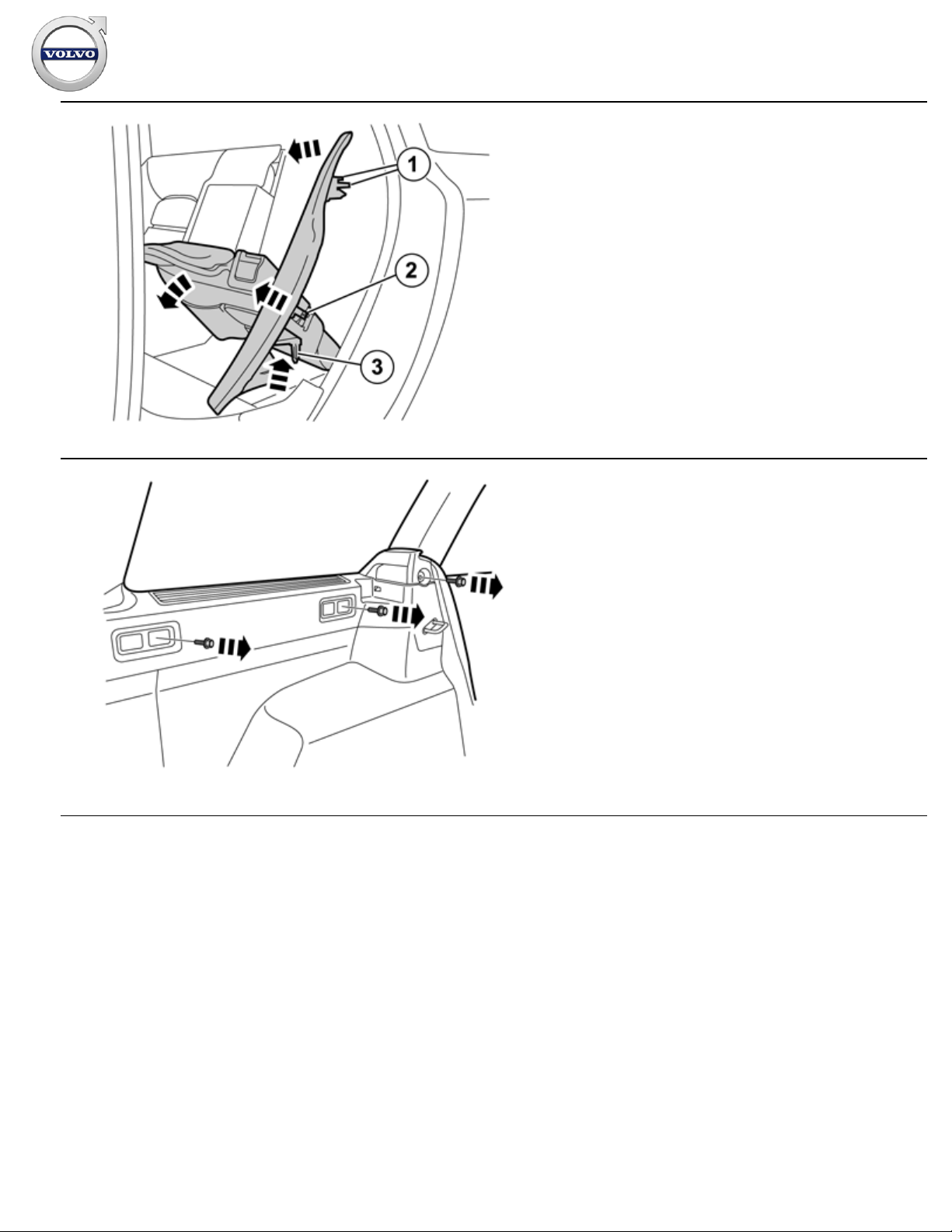

Remove the side cushion on the left by first pulling it backwards
at the upper edge until the hooks (1) release. Then pull it
inwards slightly until the hook (2) releases, and upwards until the
locating pin (3) disengages from the mounting at the rear edge.
19
IMG-268024
Remove the three screws at the upper edge of the side panel
and top panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 12 / 56

20
IMG-268025
Carefully pull off the top panel from the side panel, it is secured
by a clip at the front edge and a locating pin at the rear edge.
Unhook the seat belt and place the panel to one side.
21
IMG-268026
Remove the left-hand side panel by grasping it at the upper
edge and carefully pulling it from the car body and lifting up. It is
secured by six clips.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 13 / 56

22
IMG-268027
Installing the camera
23
IMG-353617
Installing the camera
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 14 / 56

24
IMG-353618
Remove the license plate and holder.
Take the template from the kit. Place it to the right of the plate
lighting panel, so that it is against it and against the trunk lid's
vertical section. The template must be turned so that the small
arrow marks in the template are visible, and position as
illustrated.
Caution!
It is important that the template is positioned correctly and is
turned as illustrated so that the camera is correctly positioned
in the trunk lid.
Take a scriber and make marks for sawing and drilling holes for
screws and the camera.
25
IMG-268029
Tape the trunk lid to protect the paintwork when sawing and
drilling.
Drill two Ø3mm (1/8") holes for attaching the camera.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 15 / 56

26
IMG-268030
First drill a hole for the saw blade.
Carefully saw out the hole following the inside of the marking.
The marking should remain visible.
Adjust the size of the hole using a file if necessary.
Remove any swarf.
27
IMG-268031
Make a Ø25 mm (1") hole for the cable to the camera at the
right lower section of the boot lid, approximately where
illustrated.
Note!
Hold the belt for the wiper motor to one side to prevent
damaging it whilst drilling.
Even off the edges using a fine file.
Remove any swarf.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 16 / 56

28
IMG-268032
Take the cable harness marked A in the kit image.
Insert the cable end with the yellow marking through the drilled
hole in the trunk lid.
Place the template over the hole inside the trunk lid. The
template must be turned with the arrow markings towards the
trunk lid.
Insert the cable into the hole.
29
IMG-268033
Route the cable through the template and hole.
Connect the cable's connector to the camera.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 17 / 56

30
IMG-268034
Screw the right-hand screw fully in the camera.
Align the template so that the right-hand hole in the template is
directly above the right-hand hole in the lid.
Hold the template in position (inside the hole in the trunk lid)
and, at the same time, tighten the camera's right-hand screw so
it holds.
Align the left-hand holes with each other, fit the screw and
tighten the camera.
Cable routing
31
IMG-268035
Cable routing
Remove the clamp in the rubber grommet and carefully pull the
rubber grommet from the mounting in the car body and trunk lid.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 18 / 56

32
IMG-268036
Remove the holders for the rubber grommet in the car body and
trunk lid. They are secured by four surrounding catches.
33
IMG-268037
Tape around the hole edges in the car body and on the trunk lid
to avoid damaging the cable harness when working with it. Apply
several layers of tape.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
Page 19 / 56

34A
IMG-287103
34B
IMG-287104
Illustrations A and B

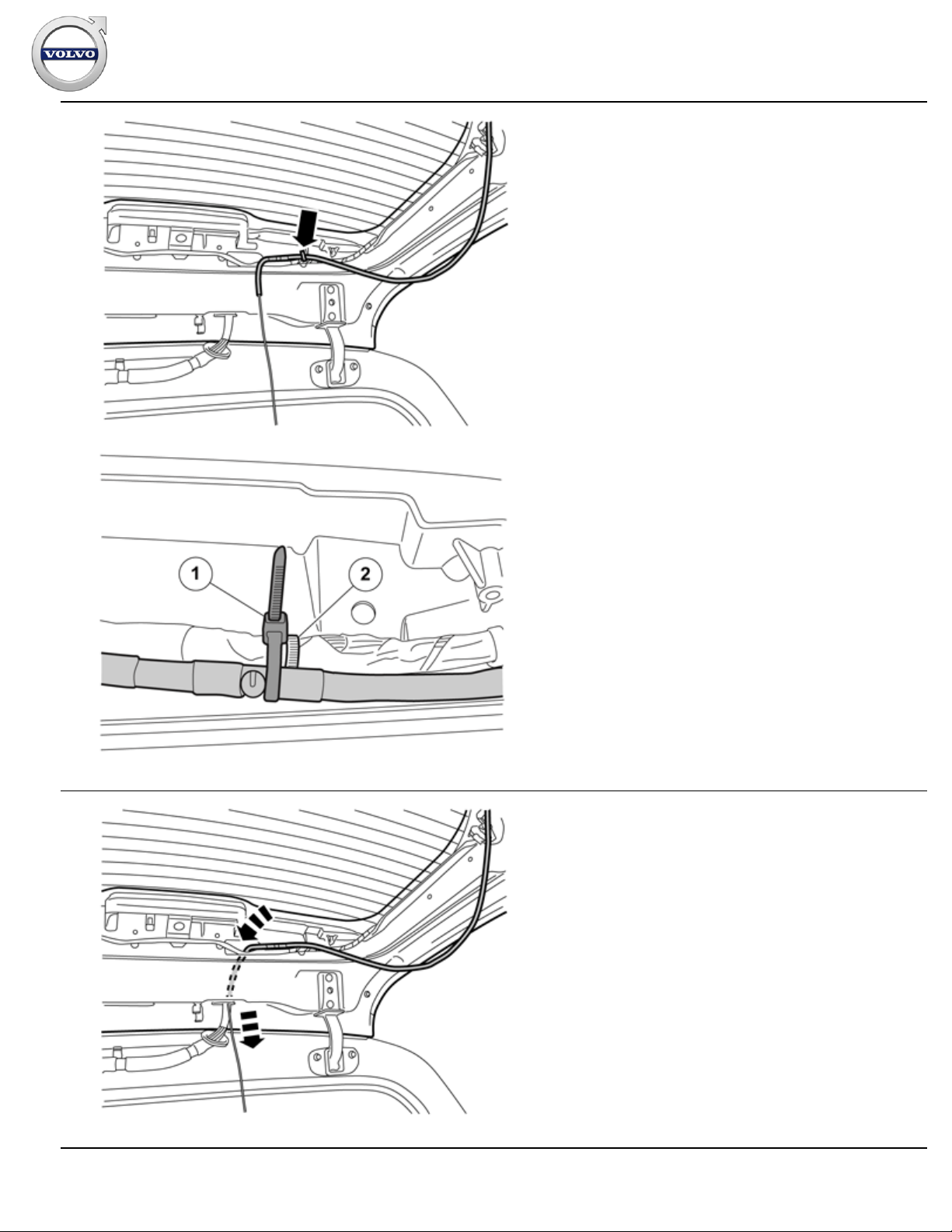

Secure the cable harness from the camera using a cable tie (1)
in the usual cable tie for the cable harness (2).
35
IMG-268040
Insert the cable into the hole in the trunk lid and the rubber
grommet's holder.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear. For Sensus Connect- 31428626 - V1.1
