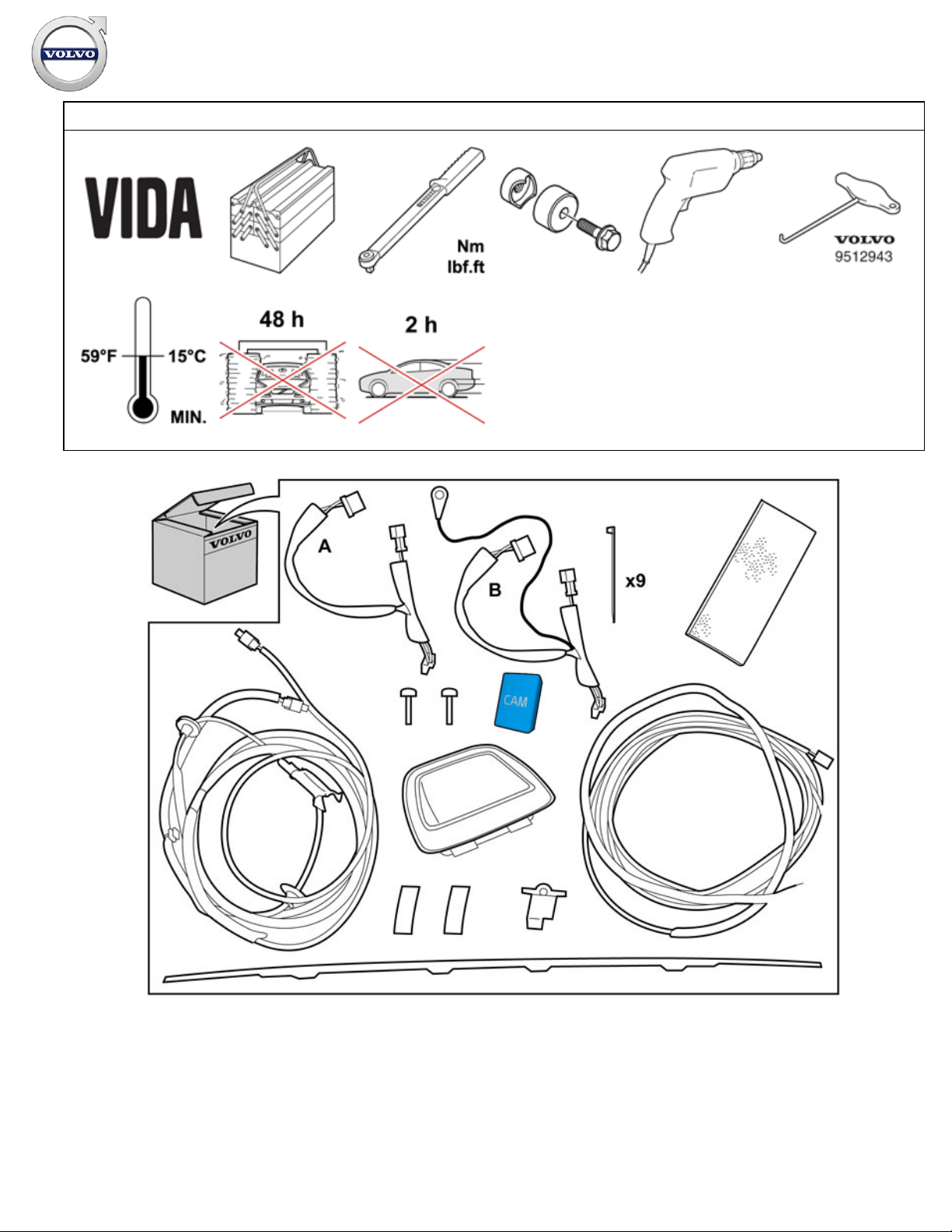

Equipment
IMG-242205 IMG-345497 IMG-239664 A0000192 IMG-239660 IMG-239446
IMG-332313 IMG-333293 IMG-333288
IMG-353696
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 2 / 57

IMG-346651
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 3 / 57

INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
Some steps in these installation instructions are presented
with illustration only.
Preparations
1
IMG-335491
Preparations

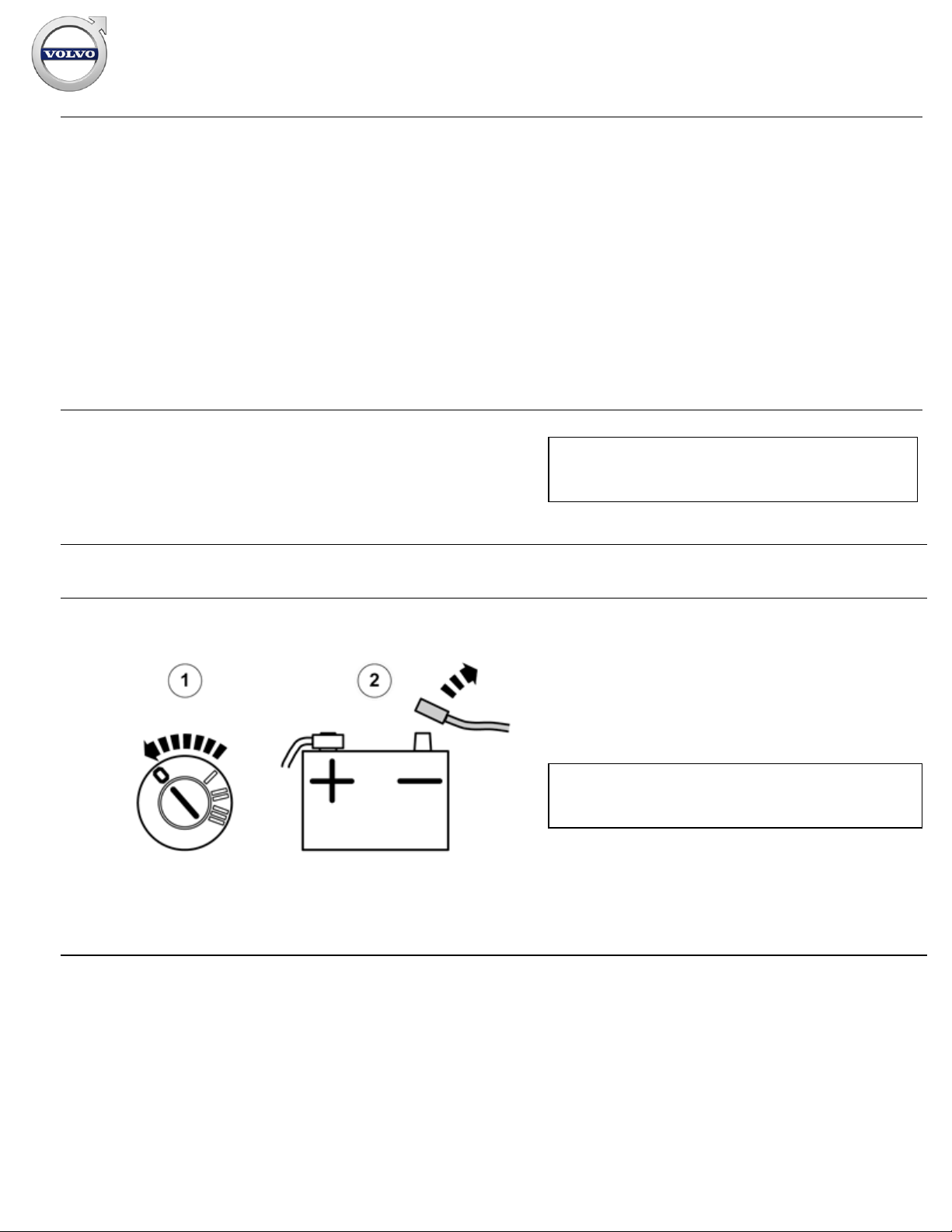

Place the left front seat in its rearmost position.
Set the ignition key to position 0.
Disconnect the battery negative lead.
Note!
Wait at least one minute before unplugging the connectors or
removing other electrical equipment.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 4 / 57

2
IMG-254043
Remove the warning triangle from the trunk lid panel.
Remove the trunk lid's inner handle by first sliding it upwards
and then bending it out at the lower edge using a weatherstrip
tool.
Note!
The inner handle will no longer be used, there is a new handle
in the kit.
3
IMG-254044
Pull out the central pin from the clips for the warning triangle's
holder and remove them.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 5 / 57

4
IMG-254045
Remove the clips from the trunk lid's panel and remove the
panel.
5
IMG-249177
Fold together the cargo compartment carpet (1, 2) and remove
it.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 6 / 57

6
IMG-226721
Detach the rubber weatherstrips from the trunk lid opening.
7
IMG-226722
Remove the trunk lid's sill trim panel. It is secured by two clips at
the front edge (1) and two at the upper edge (2).
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 7 / 57

8
IMG-254103
Remove the seat cushion (1) by pulling up its front edge, pulling
it forwards and then lifting it out.
Detach the two connectors for seat heating underneath the seat
cushion.
9
IMG-257670
Fold the backrest forward.
Remove the seatbelt from the guide (1) on the side bolster.
Insert a hand from the side of the upper section of the side
bolster. Press in the catches properly and jerk the upper edge of
the bolster so that the two catches on the other side release. Lift
the bolster from the mounting at the lower edge.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 8 / 57

10
IMG-254105
Remove the three clips at the upper edge of the side panel and
the four plastic nuts at the lower edge.
Remove the cargo compartment lighting connector.
Lift out the side panel.
Repeat for the other side.
11
IMG-254106
Measure a distance of 30 mm (1 3/16 ") from the rear edge of
the rear fender and mark out a short line parallel to the rear
edge. Use a piece of tape to make the markings on.
Measure 30 mm (1 3/16 ") from the rear edge of the gas
cylinder's bracket to the previously drawn line. Mark out the
middle of the hole that is to be drilled where the lines cross each
other.
Pre-drill the hole using a Ø3 mm (1/8") bit.
Note!
Use a 5 mm (3/16 ") drill stop.
Drill out the hole to Ø8 mm (5/16 ") and then to Ø12 mm (15/32
") to be able to insert the pull screw through for the hole making
tool.
Note!
Do not damage surrounding painted surfaces.
Remove any swarf.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 9 / 57

12
IMG-254107
Use holesaw bit, part.no 9997241 (Ø28.6 mm (1 1/8")), and
enlarge the hole.
File down the edges of the holes.
Remove any swarf.
Apply primer part no. 9437350 around the hole edges and allow
to dry.
13
IMG-254108

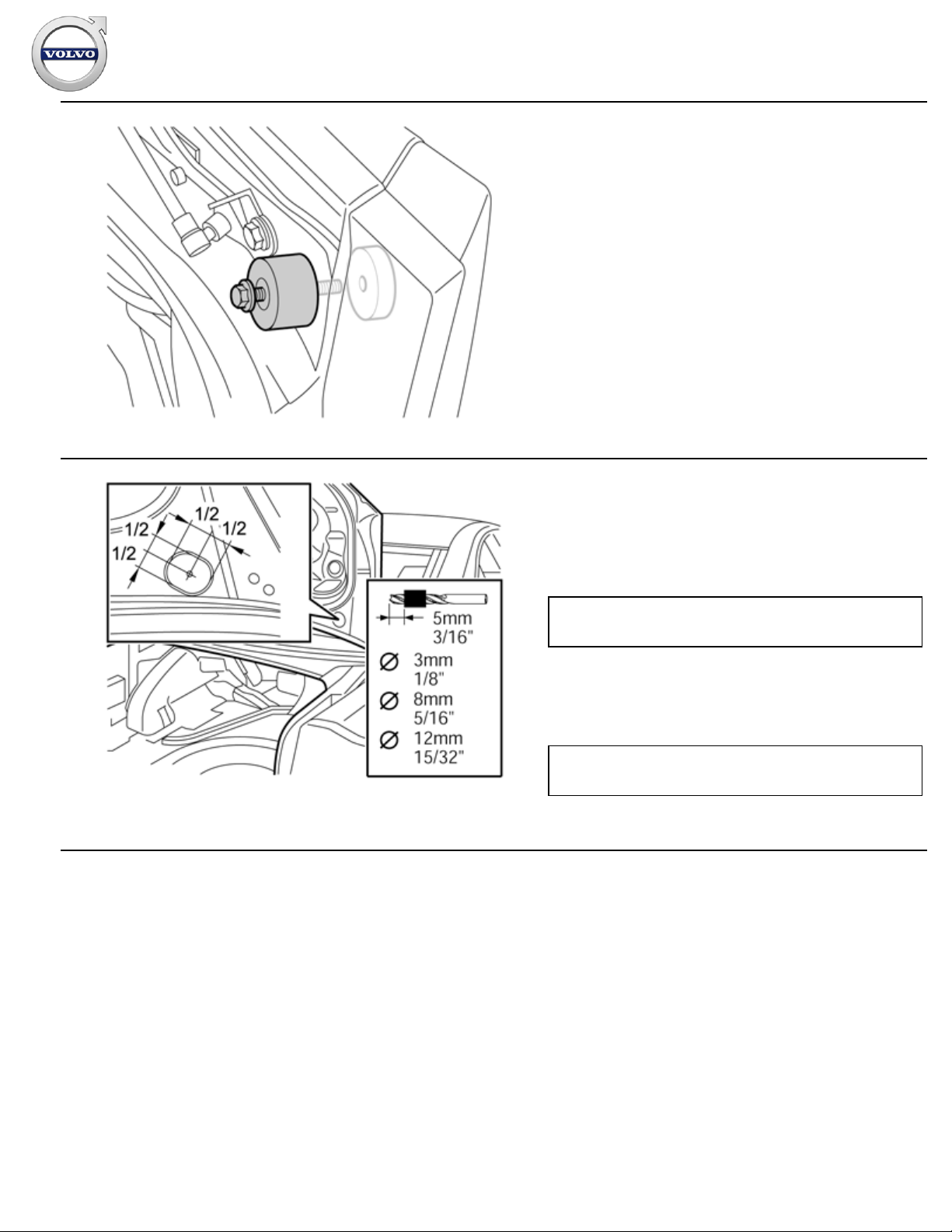

Measure for making holes for the rubber grommets in the trunk
lid's front right-hand corner according to the diagram and mark
out the middle.
Pre-drill the hole using a Ø3 mm (1/8") bit.
Note!
Use a 5 mm (3/16 ") drill stop.
Drill out the hole to Ø8 mm (5/16 ") and then to Ø12 mm (15/32
") to be able to insert the pull screw through for the hole making
tool.
Note!
Do not damage surrounding painted surfaces.
Remove any swarf.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 10 / 57

14
IMG-254109
Use holesaw bit part no. 9997241 (Ø28.6 mm (1 1/8")) and
enlarge the hole.
File down the edges of the holes.
Remove any swarf.
Apply primer part no. 9437350 around the hole edges and allow
to dry.
15
IMG-254110
Disconnect the connector for number plate lighting.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 11 / 57

16
IMG-254111

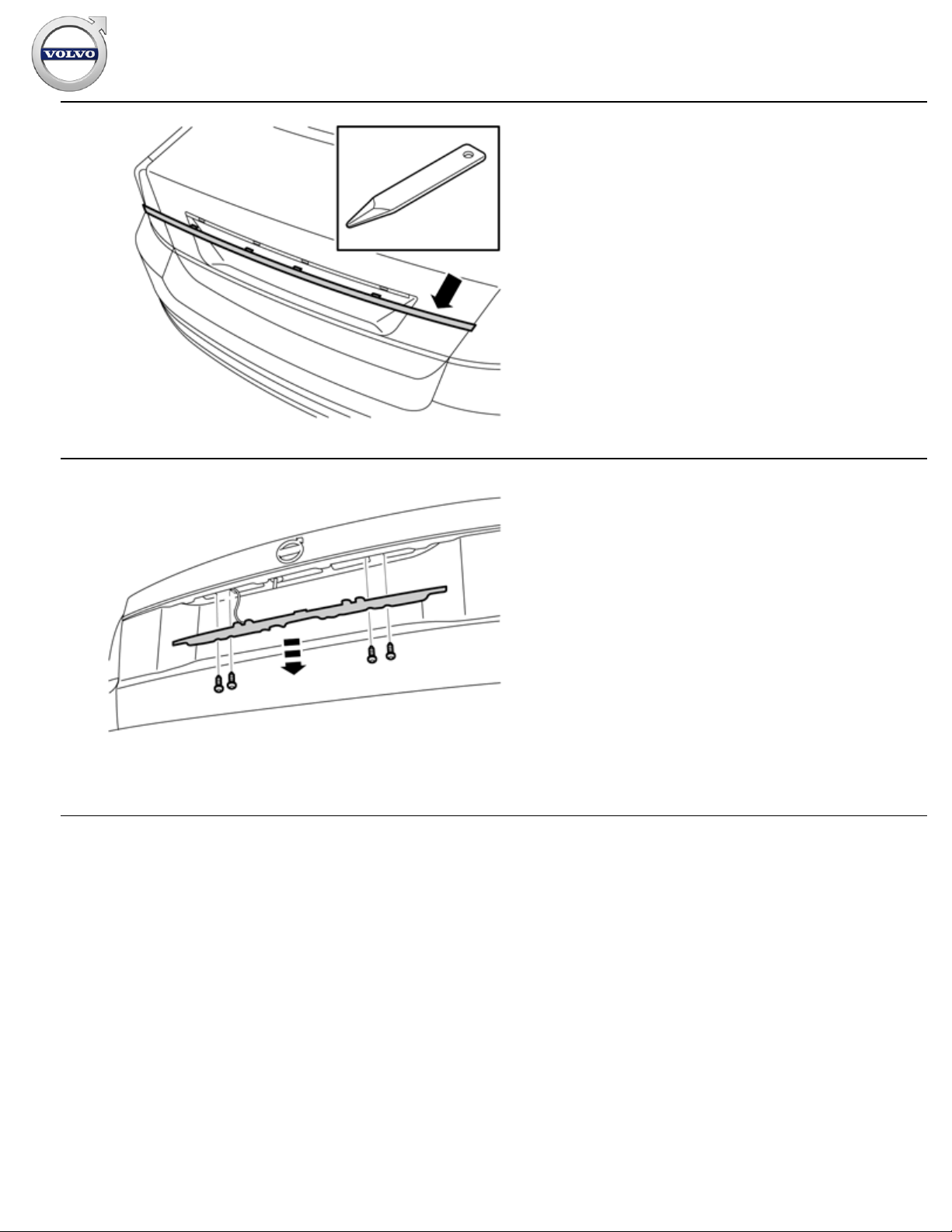

Remove the trunk lid's trim strip by carefully prying it off from the
trunk lid and number plate lighting's panel. It is securely
fastened and will eventually break. New strip included in the kit.
Remove any tape residue from the trunk lid by heating the steel
with a hot air gun. Do not heat above 80° C.
17
IMG-254112
Remove the four screws from the number plate lighting panel
and remove it.
Remove the parts of the trim strip if it has broken.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 12 / 57

18
IMG-346689
Remove the rubber strip.
19
IMG-338119
Remove the panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 13 / 57

20
IMG-346676
21
IMG-346681
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 14 / 57

22
IMG-346677
23
IMG-346682
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 15 / 57

24
M8502823

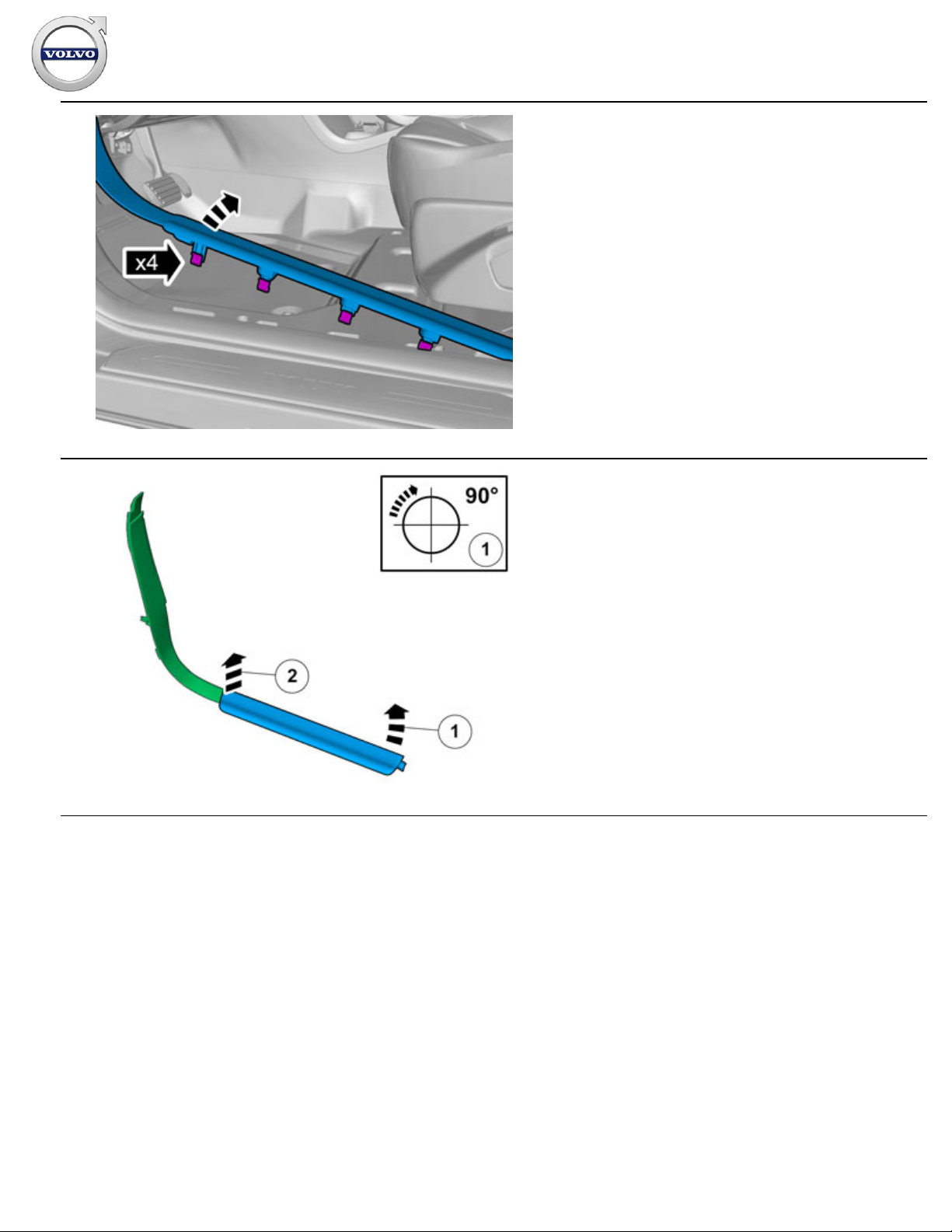

Remove the sill panel in the door opening for the left-hand rear
door by carefully pulling it upwards until the four clips release.
25
IMG-344717
Release the catch.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 16 / 57

26
IMG-344721
27
IMG-344722
Remove the panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 17 / 57

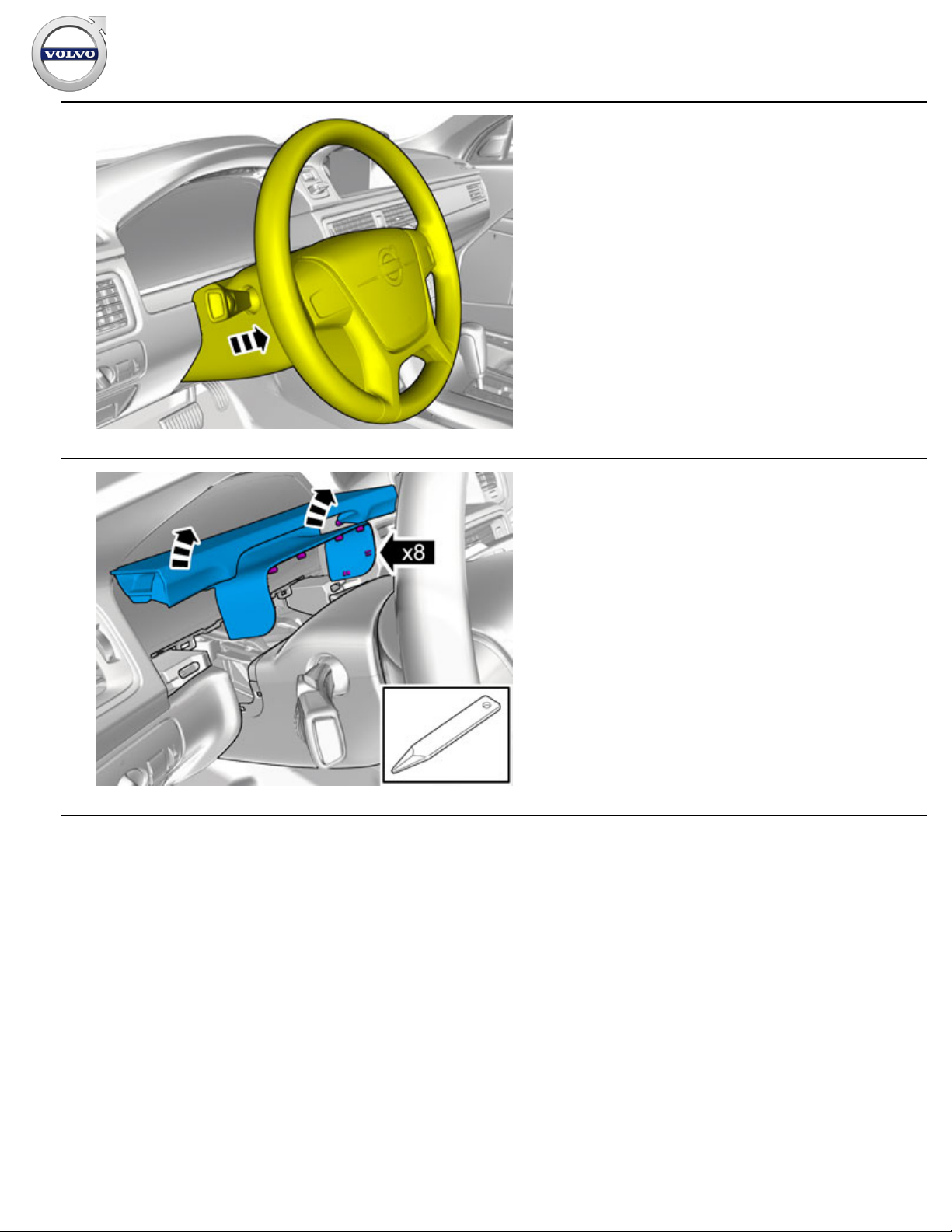

28
IMG-341879
Remove the screws.
29
IMG-341941
Unplug the connector.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 18 / 57

30
IMG-349876
Remove the panel.
31
IMG-349877
Remove the screws.
Remove the panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 19 / 57

32

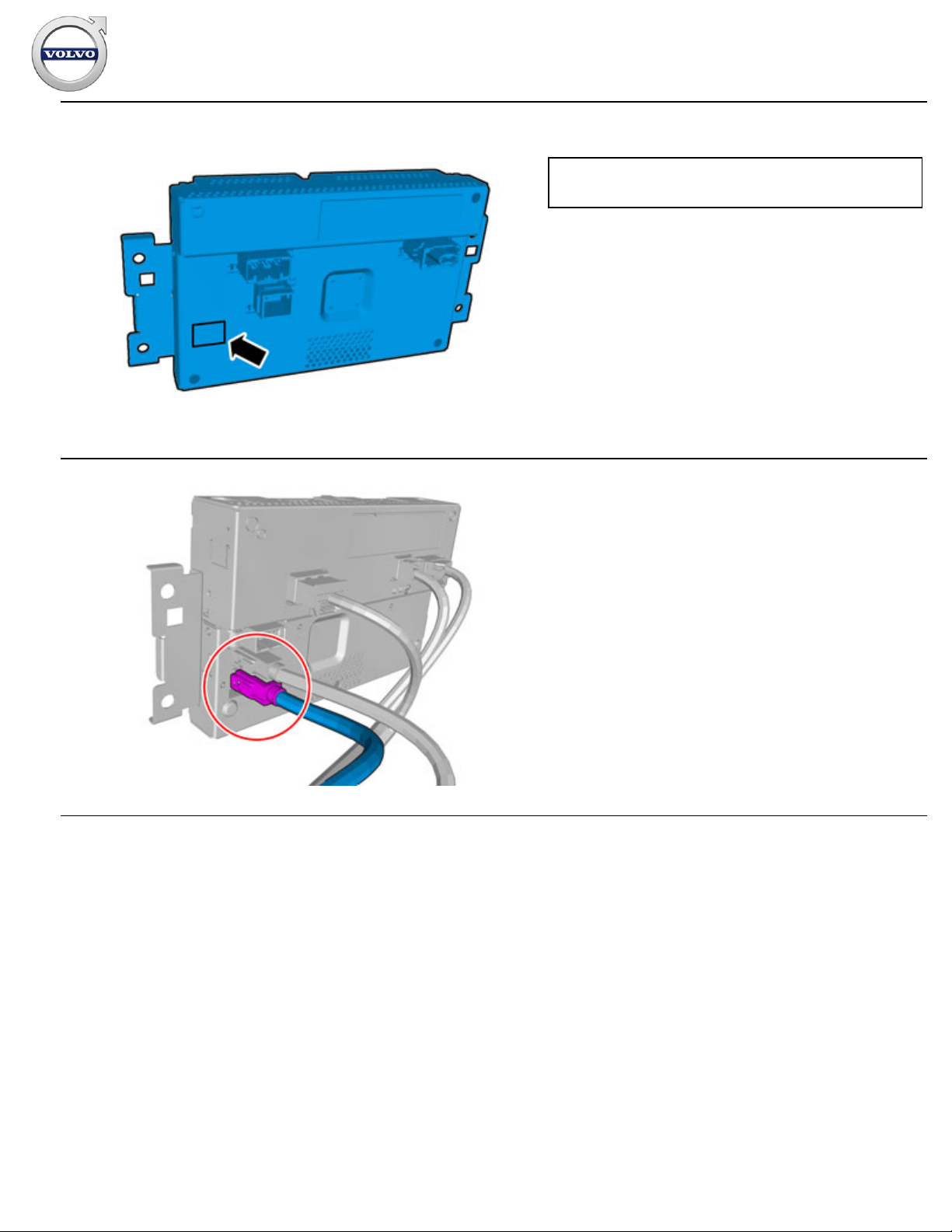

IMG-348526
Vehicles with 5 inch ICM display
Note!
If there is no connection, replace the display.
33
IMG-352166
Vehicles with 7 inch display
Disconnect the connector, if applicable.
Use electrical tape to secure the connector in the existing cable.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Parking assistance, camera, rear- 31428063 - V1.0
Page 20 / 57
