Volvo Display User manual

Operating Instructions
Display, graphic
Numeric language

Contents
Numeric language, general .................................................................. 1
Numeric language, general .................................................................. 1
Display control stalk ............................................................................ 1
Text strings .......................................................................................... 1
Stop message ....................................................................................... 2
Change language .................................................................................. 3
Change language ................................................................................. 3
Menus .................................................................................................... 5
General ................................................................................................ 5
Password protected menus .................................................................. 5
Menus available when driving ............................................................. 6
Menus when vehicle stationary ......................................................... 10
Numerical conversion table ............................................................... 18
General .............................................................................................. 18
Index .................................................................................................... 29

Numeric language, general 1
Numeric language, general
The instruction describes how the numeric
language is made up and functions. Only
the most important menus and messages are
described. For more in depth information
about the display see “Operating instructions
Display, graphic”.
Display control stalk
Manual communication with the display
is achieved using the control stalk on the
right-hand side of the steering wheel. The
following commands are available:
1 “Esc” is used to return to the previous
menu and to cancel a setting /operation.
2 “SELECT” confirms the selected choice
of menu or symbol.
3“
” moves the cursor up and is used to
set numbers/characters.
4“∇” moves the cursor up and is used to
set numbers / characters. T3008810
Text strings
Numbers between the symbols “<<” and
“>>” symbolise a text string. For information
about what the numerical text means, see
“Menus” page 5 – 17 or “Numerical
conversion table” page 18 – 27.
<<1003>>
-2

C
11:45
98

CAM
CC 7658.8 km

2 Numeric language, general

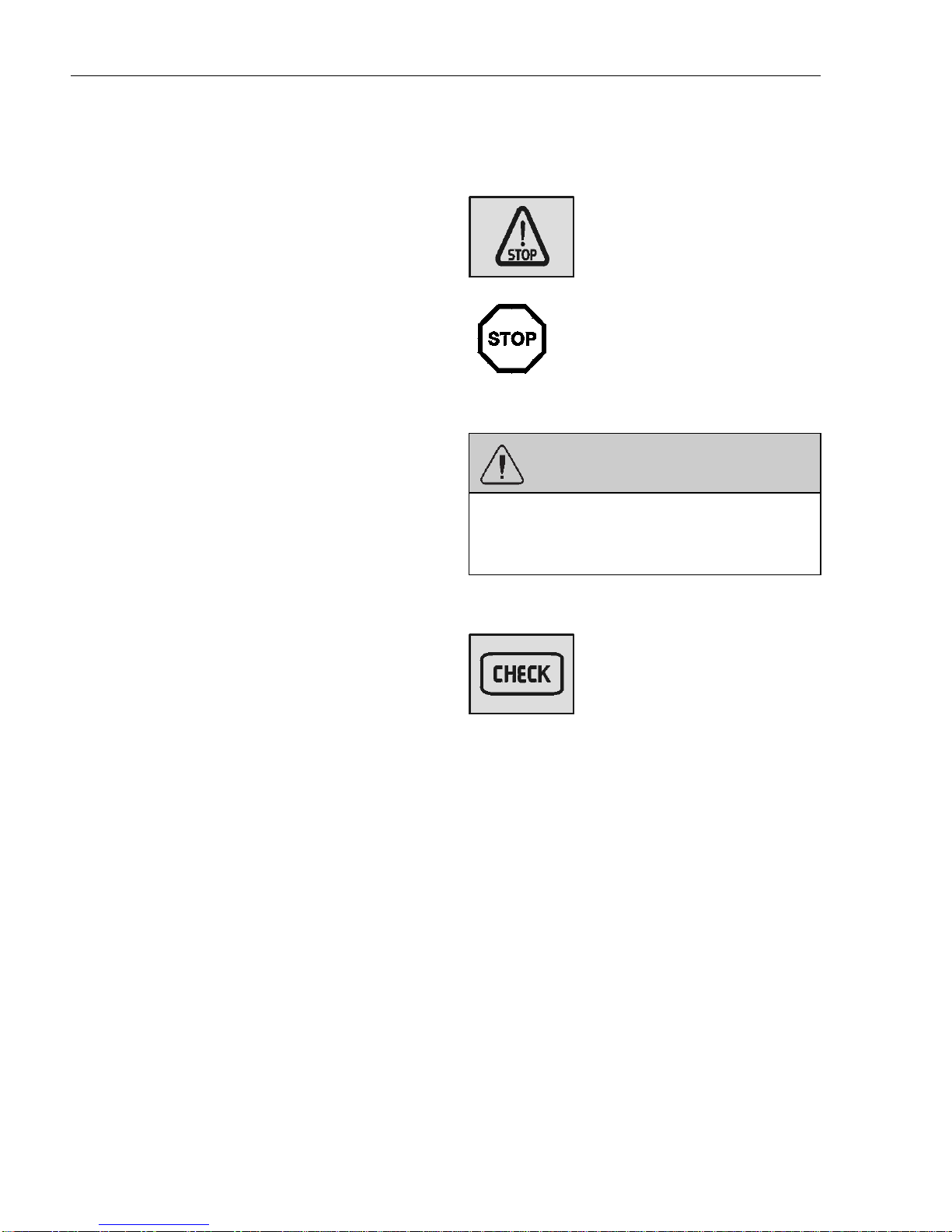

Stop message
Red stop lamp + stop symbol
If the red stop lamp and the stop symbol
are displayed the vehicle should be stopped
immediately and the engine switched off.
The associated numerical text should be read
in order to establish where the fault lies.
For information about what the numerical
text means, see “Menus” page 5 – 17 or
“Numerical conversion table” page 18 – 27.
T3014364
T3013624
If the engine is running a warning signal also
sounds. It can be acknowledged by pressing
Esc, but starts again after 10 seconds.
For more in depth information about the
messages see “Operating instructions
Display, graphic”.
WARNING
The vehicle must be stopped immediately
and the engine must be turned off when
this lamp lights up.
Information lamp CHECK + text
When the information lamp CHECK lights
up, the fault should be checked at the next
stop. The associated numerical text is shown
in the display. A result of measurement
is also shown for some symbols. For
information about what the numerical
text means, see “Menus” page 5 – 17 or
“Numerical conversion table” page 18 – 27.
T3014365

Change language 3
Change language
The numerical language is a choice and can
be shown as one of three languages in the
display. The language can be changed in
menu “Display settings”.
P-heater timer 2/7
Display settings
Vehicle Settings
Diagnostics
Service
Data log
Password
CC 7658.8 km

4 Change language
Language
MENU: Display setting, Language
The language settings apply even after the
ignition has been switched off.
1 Select “Language” with /∇and press
on SET.
Display settings
Language
Units
Time/date
Display lighting
Change password
CC 7658.8 km
2 Up to three languages can be displayed.
Mark “Numerical”, which indicates the
numeric language, using /∇and press
SELECT. Press Esc to exit settings and
return to the Main menu.
Display settings
Language 1/3
Numerical
Swedish
English
CC 7658.8 km

Menus 5
General
The numerical language has a hierarchical
structure and follows the same structure as
in “Driver instruction Display, graphic”. In
those menus which have text, the text is
marked with numbers. The menu explanation
gives all menu headings and associated text
strings.
Password protected menus
The key symbol to the right in the menu list
means that the menu is password protected.
For more in depth information about the
passwords see “Operating instructions
Display, graphic”.
T3014604

6 Menus
Menus available when driving
Menu 1
<<100>> = Gauge
External temperature
Temperature, engine oil
Temperature, gearbox
Volt meter/ Ammeter
Gear selection
Pressure, primary tank
Menu 2
<<101>> = Fuel data
Fuel consumption
Resetting, fuel data
<<400>> = Reset ALL fuel data? Press SELECT for 1 second.
Leg fuel
Resetting, fuel data
<<400>> = Reset ALL fuel data? Press SELECT for 1 second.
Remaining fuel

Menus 7
Menu 3
<<102>> = Time/distance
Trip meter
Reset the tripmeter
<<403>> = Reset? Press SELECT for 1 second.
Average speed
Reset average speed
<<403>> = Reset? Press SELECT for 1 second.
Estimated time of arrival
Give distance to destination
<<405>> = Give distance:
Time and date
Setting, time and date
Alarm clock
Setting, alarm clock
<<301>> = ON
<<302>> = OFF
<<303>> = NEW TIME
Menu 4
<<103>> = Display
<<304>> = Black panel
<<306>> = Background lighting
Setting, background lighting
<<307>> = Favourite Display, setting
<<308>> = Night/day
Menu 5
<<104>> = Vehicle messages
<<309>> = No messages

8 Menus
MID 128 = Engine system
MID 136 = Brake system
MID 130 = Gearbox system
MID 223 = Gear selector system
MID 222 = Retarder system
MID 144 = Vehicle system
MID 140 = Info display system
MID 150 = Air suspension system
MID 249 = Bodybuilder system
MID 146 = Climate system
MID 232 = Airbag system
MID 219 = Adaptive cruise control
MID 216 = Light control system
MID 231 = Telephone
MID 163 = Immobilizer
MID 179 = FMS Gateway
MID 203 = Transp info system
MID 250 = Steering Wheel Module
MID 166 = Tyre pressure
<<1000>> = No data
<<1001>> = HIGH
<<1002>> = TOO HIGH
<<1003>> = Icy conditions
<<1004>> = Discharge
<<1005>> = Refuel now.
<<1007>> = LOW
<<1008>> = TOO LOW
<<1009>> = Check
<<1010>> = Check at next stop

Menus 9
<<1011>> = Stop, fault
<<1012>> = Check data link
<<1013>> = Check data link open circuit
<<1014>> = Low pressure
Menu 6
<<1040>> = Tyre pressure
<<1041>> = Truck
<<1042>> = Trailer 1
<<1043>> = Trailer 2
<<1044>> = Trailer 3
<<1045>> = Trailer 4
<<1046>> = Trailer 5
Menu 7
<<105>> = Reset
<<406>> = Reset ALL data? Press SELECT for 1 second.

10 Menus
Menus when vehicle stationary
Menu 8
<<107>> = P-heater timer
<<212>> = Program
<<356>> = Set start date
<<418>> = Set start time
<<502>> = Set duration
<<213>> = Reset
<<214>> = No time programmed
Menu 9
<<108>> = Display setting
<<200>> = Language
Numerical = Numeric language
Swedish
English
<<201>> = Units
<<310>> = Distance
km
miles
<<311>> = Fuel consumption
km/L
L/100km
mpg (IMP gallons)
mpg (US gallons)
<<312>> = Temperature
C
F
<<359>> = Pressure

Menus 11
psi
bar
<<202>> = Time/Date
<<313>> = Clock Format
<<409>> = 24 h
<<410>> = AM/PM
<<314>> = Date format
<<411>> = yymmdd
<<412>> = ddmmyy
<<413>> = mmddyy
<<203>> = Display lighting
<<315>> = Contrast
<<316>> = Background lighting
<<317>> = Night display
<<1023>> = Inactive
<<1024>> = Active
<<204>> = Enter new password
<<227>> = To see more menus, enter password
<<319>> = Workshop password 2
<<318>> = Transport company password
<<320>> = Workshop password 1
<<414>> = Enter new password:
Menu 10
<<109>> = Vehicle Settings
<<205>> = Traction control
<<301>> = On
<<302>> = Off
<<206>> = Fleet target

12 Menus
<<321>> = Engine speed (max)
<<415>> = Present value:
<<416>> = Enter new value:
rpm
<<1015>> = The transfer is complete.
<<1016>> = Action unsuccessful.
<<322>> = Road speed (max)
<<415>> = Present value:
<<416>> = Enter new value:
km/h, mph
<<1015>> = The transfer is complete.
<<1016>> = Action unsuccessful.
<<323>> = Fuel (target)
<<415>> = Present value:
<<416>> = Enter new value:
l/100 km, mpg
<<1015>> = The transfer is complete.
<<1016>> = Action unsuccessful.
<<207>> = Ammeter calibration
<<417>> = Switch off all power consumers, then switch off the ignition.
<<500>> = Calibration in progress, please wait
<<501>> = Sensor component modified. Switch the ignition on.
<<208>> = Fleet ID
<<324>> = Fleet id:
<<325>> = Enter new fleet id:
<<1015>> = The transfer is complete.
<<1016>> = Action unsuccessful.
<<211>> = Daytime running lights
<<301>> = On

Menus 13
<<302>> = Off
<<284>> = Draining/priming
<<1048>> = Set wheel ID
<<1047>> = Set reference pressure
Menu 11
<<110>> = Diagnostics
<<215>> = Fault Diagnostics
MID 128 = Engine system
MID 136 = Brake system
MID 130 = Gearbox system
MID 223 = Gear selector system
MID 222 = Retarder system
MID 144 = Vehicle system
MID 140 = Info display system
MID 150 = Air suspension system
MID 249 = Bodybuilder system
MID 184 = Rear axle steering
MID 214 = Burglar alarm system
MID 146 = Climate system
MID 232 = Airbag system
MID 219 = Adaptive cruise control
MID 216 = Light control system
MID 231 = Telephone
MID 219 = FMS Gateway
MID 163 = Immobilizer
MID 203 = Transp info system
MID 220 = Tachograph
MID 166 = Tyre pressure system

14 Menus
<<1017>> = Data transfer in progress, please wait.
<<419>> = No errors
<<1016>> = Action unsuccessful
<<420>> = Inactive
<<421>> = Active
<<423>> = More info? Press SELECT
<<422>> = Number of events:
<<503>> = First
<<504>> = Last
AM
PM
<<505>> = Reset? Hold SELECT for 1 second
<<424>> = Reset all faults for this MID? Press SELECT for 1 second
<<216>> = Instrument test
<<326>> = Indicator lamp test
<<327>> = Gauge test
<<328>> = Display test
<<329>> = Loudspeaker test
<<217>> = Part number
MID 128 = Engine system
MID 136 = Brake system
MID 130 = Gearbox system
MID 223 = Gear selector system
MID 222 = Retarder system
MID 144 = Vehicle system
MID 140 = Info display system
MID 150 = Air suspension system
MID 249 = Bodybuilder system
MID 184 = Rear axle steering

Menus 15
MID 214 = Burglar alarm system
MID 146 = Climate system
MID 232 = Airbag system
MID 219 = Adaptive cruise control
MID 216 = Light control system
MID 231 = Telephone
MID 179 = FMS Gateway
MID 163 = Immobilizer
MID 203 = Transp info system
MID 220 = Digital tachograph
MID 166 = Tyre pressure system
<<1017>> = Data transfer in progress, please wait.
<<430>> = Hardware number:
<<431>> = Software number:
<<1018>> = No data
Menu 12
<<111>> = Vehicle data
<<221>> = Oil level
<<331>> = min<
<<332>> = >max
<<330>> = Not available. X min remaining.
<<222>> = Load indicator
<<228>> = Brake lining, status

16 Menus
Menu 13
<<112>> = Data log
<<223>> = Vehicle number
<<1017>> = Data transfer in progress, please wait
<<333>> = Fleet id:
<<334>> = Chassis number:
<<1018>> = No data
<<224>> = Totals
<<335>> = Total distance:
<<336>> = Total fuel consumption:
<<337>> = Total number of hours engine has been run:
<<338>> = Total idling time:
<<339>> = Total power take off time:
<<340>> = Total number of engine revolutions:
<<225>> = Trip data
<<341>> = Trip distance:
<<342>> = Trip average fuel consumption:
<<343>> = Trip total fuel consumption:
<<344>> = Trip overrevs:
<<345>> = Trip uneconomic revs:
<<346>> = Trip consumption during uneconomic revs:
<<347>> = Trip average fuel consumption:
<<348>> = Trip overspeed:
<<349>> = Trip engine hours:
<<350>> = Trip idling time:
<<351>> = Trip idle fuel consumption:
<<352>> = Trip power take-off time:
<<353>> = Trip power take-off fuel
<<354>> = Trip cruise time
