Description and use
VORT HRW MONO EVO WiFi (hereinafter 'the device') is a decentralised heat recovery ventilation system with
an integrated WiFi module for synchronisation with several units. The device can be wall-mounted in perimeter
walls between 260 mm (283 mm for VORT HRW 40 MONO EVO WiFi) and 700 mm thick.
The device is available in four versions:
- Installation inside holes with a nominal diameter of 100 mm and a maximum air flow rate (in boost mode) of
38 m3/h:
• VORT HRW 30 MONO EVO WiFi with on-board machine controls.
• VORT HRW 30 MONO EVO HCS WiFi with remote control and relative humidity, temperature and
ambient light sensors.
- Installation inside holes with a nominal diameter of 160 mm and a maximum air flow rate (in boost mode) of
40 m3/h:
• VORT HRW 40 MONO EVO WiFi with on-board machine controls.
• VORT HRW 40 MONO EVO HCS WiFi with remote control and relative humidity, temperature and
ambient light sensors.
Humidity, temperature and ambient light sensors. integrated in HCS versions, allow the automatic operation of
the device (“Auto HR%”, “Auto Comfort”, “Auto night” functions).
- Maximum absorbed power VORT HRW 30 MONO EVO WiFi: 5W.
- Maximum absorbed power VORT HRW 40 MONO EVO WiFi: 6W.
Common features for all models:
- WiFi module for Mesh network.
- Buttons with LED indicators.
- 5 speeds corresponding to 5 airflows.
- 1 input suitable for remote connection with cable compatible with external modules "VORTICE C TEMP"
(temperature sensor) and "VORTICE C HCS" (humidity sensor) or equivalent. Cable length≤30m.
- 1 direct output for fan control.
- Long-term timer (3/6/12 months) with daily increase for filter clogging control.
- Insulation class: II.
- Power supply: 220-240V ~ 50-60Hz.
Compliance
•This appliance can be used by children no less than 8 years of age
and by individuals with limited physical, sensory or mental capacities,
or by inexperienced or untrained individuals, provided that they are
supervised or have been instructed in safe use of the appliance and
understand the associated risks. Children must not play with the
appliance. Cleaning and maintenance procedures that can be
undertaken by the user must not be entrusted to children, unless
under supervision.
•These appliances are designed for use in residential and commercial
properties.
•The appliance must be installed by a professionally qualified
electrician.
•The electrical system to which the product is connected must be in
compliance with applicable regulations.
•An omnipolar switch with a contact opening distance of 3 mm or
higher should be provided for installation, enabling complete
disconnection under overvoltage category III conditions.
•Products equipped with single-phase wiring (M) engines ALWAYS
require connection to 220-240V (or only 230V where required) single-
ENGLISH
28

phase lines. Any kind of modification shall be considered as product
tampering and shall nullify the relative warranty.
•Precautions must be taken to prevent gas coming from the gas flue
pipe or from other fuel combustion units from entering into the room.
•Fans have been designed to be mounted on external walls.
Safety
• Follow the safety instructions to prevent any harm to the user.
• Do not use this appliance for purposes other than those described in this manual.
• Having removed the appliance from its packaging, make certain that it is intact and undamaged. If in doubt,
consult a professional or contact an authorized VORTICE Service Centre.
• Do not leave packaging within reach of children or individuals with disabilities.
• Certain basic rules must always be observed when using any electrical appliance: never touch the appliance
with wet or damp hands; never touch the appliance when barefoot.
• Do not operate the appliance in the presence of flammable substances or vapours, such as alcohol, insecticides,
petrol, etc.
• If the appliance is to be disconnected from the power supply and no longer used, store it out of reach of children
and individuals with disabilities.
• Do not make modifications of any kind to this appliance.
• The maintenance instructions must be followed to ensure the appliance does not suffer damage and/or excessive
wear.
• Do not expose this appliance to the elements (rain, sun, etc.).
• Do not stand objects on the appliance.
• The inside of the appliance must be cleaned only by a skilled professional.
• Inspect the appliance periodically for visible defects. If the appliance is defective in any way, do not use it; contact
a VORTICE authorized Technical Support Centre without delay.
• If the appliance does not function correctly or develops a fault, contact a VORTICE authorized Technical Support
Centre without delay. Ensure that only genuine original VORTICE spares are used for any repairs.
• Should the appliance be dropped or suffer heavy impact, have it checked without delay by a VORTICE authorized
Technical Support Centre.
• The appliance must be installed in such a way as to ensure that under normal operating conditions, no one can
come into contact with any moving parts or live electrical components.
• In the event of: dismantling the appliance with the appropriate tools, removing the heat exchanger for cleaning
recommended: every six months)or removing the motor module, the appliance must first be switched off and
disconnected from the electrical power supply.
• Connect the appliance to the electrical power supply/socket only if the rated power of the supply is compatible
with the maximum rated power of the appliance. If not, contact a professional electrician without delay.
• Turn off the appliance at the main switch: if the appliance does not function correctly, before cleaning the outside
of the appliance, or if the appliance is not going to be used for any length of time.
• The flow of extracted air must be clean (i.e. free of grease, soot, chemical and corrosive agents and explosive or
flammable mixtures).
• Keep the air intake and outlet ports of the appliance free of obstructions, to ensure optimum air flow.
• Operating temperature range: -20 ÷ 50°C.
• Specifications for the power supply must correspond to the electrical data on the
plate (A).
ENGLISH
Warning:
this symbol indicates that care must be taken to avoid injury to the user.
!
A
Caution:
this symbol indicates that care must
be taken to avoid damaging the appliance
!
29

Structure and equipment
Components common to all models
The main components of the device are:
• main body (1) already assembled which includes:
- Body with pre-assembled plug-in terminal block, frontal grille and aesthetic panel in polycarbonate (PC) tested
according to standard UNI EN ISO 11925-2:2010 and resulted in class E for reaction to fire (according to the
EN 13501-1 standard).
- Motor holder and push-button panel in ABS material.
- 5-speed reversible EC fan.
- Integrated electronic board.
- Closing device (disk) sealing the front panel to prevent temperature changes in the winter months and the entry
of pollutants and odors from the outside.
- Washable internal filter with frame.
• Flange (2) wall mountable with pre-assembled terminal block.
• Terminal block cover with screw and cable gland (3).
• PVC pipe for installation inside walls with thickness from 260 mm (283 mm VORT HRW 40 MONO EVO WiFi)
to 700 mm (optional).
VORT HRW 30 MONO EVO WiFi
• Storage type heat exchanger, made of ceramic material with external filter already assembled (4A)
• External ventilation grille (d.100 T10 RB) in plastic material, externally mountable. Grid equipped with anti-insect
net (5A).
VORT HRW 40 MONO EVO WiFi
• Storage type heat exchanger, made of ceramic material supplied with two expanded polyproylene (EPP)
housings and it is complete with a central gasket to prevent air infiltration (4B).
• Outer rubber grille (5B), which can be mounted externally with plugs or inserted internally through the hole in
the wall with no need for external scaffolding.
• Washable external filter with holder grids (x2) (6)
• Insect grid (7)
VORT HRW 30 MONO EVO HCS WiFi / VORT HRW 40 MONO EVO HCS WiFi
• Remote control (8).
ENGLISH

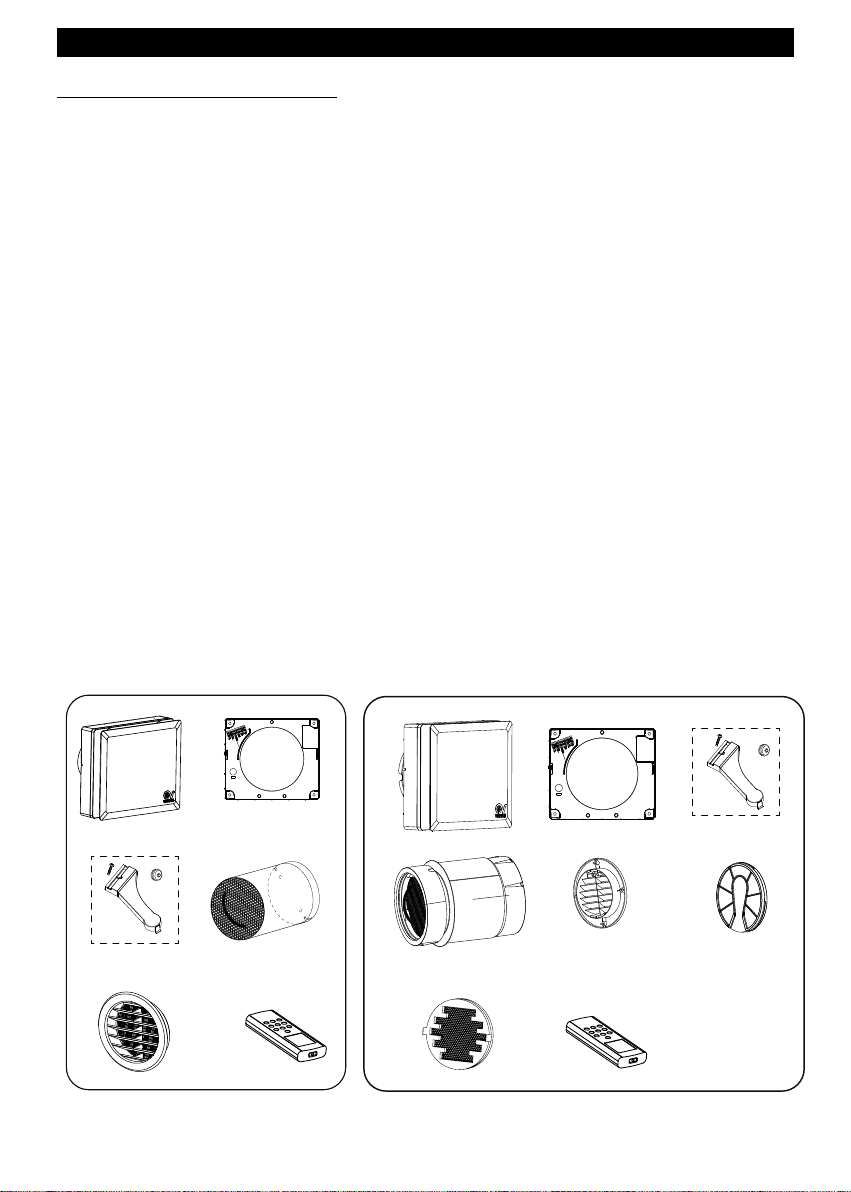

VORT HRW 30 MONO EVO WiFi VORT HRW 40 MONO EVO WiFi
(HCS models)
(1)
(3) (4A)
(5A)
(6)
(5B)
(4B)
(8)
(HCS models)
(8)
(3)
(2)
(2)
(7)
(1)
30

ENGLISH

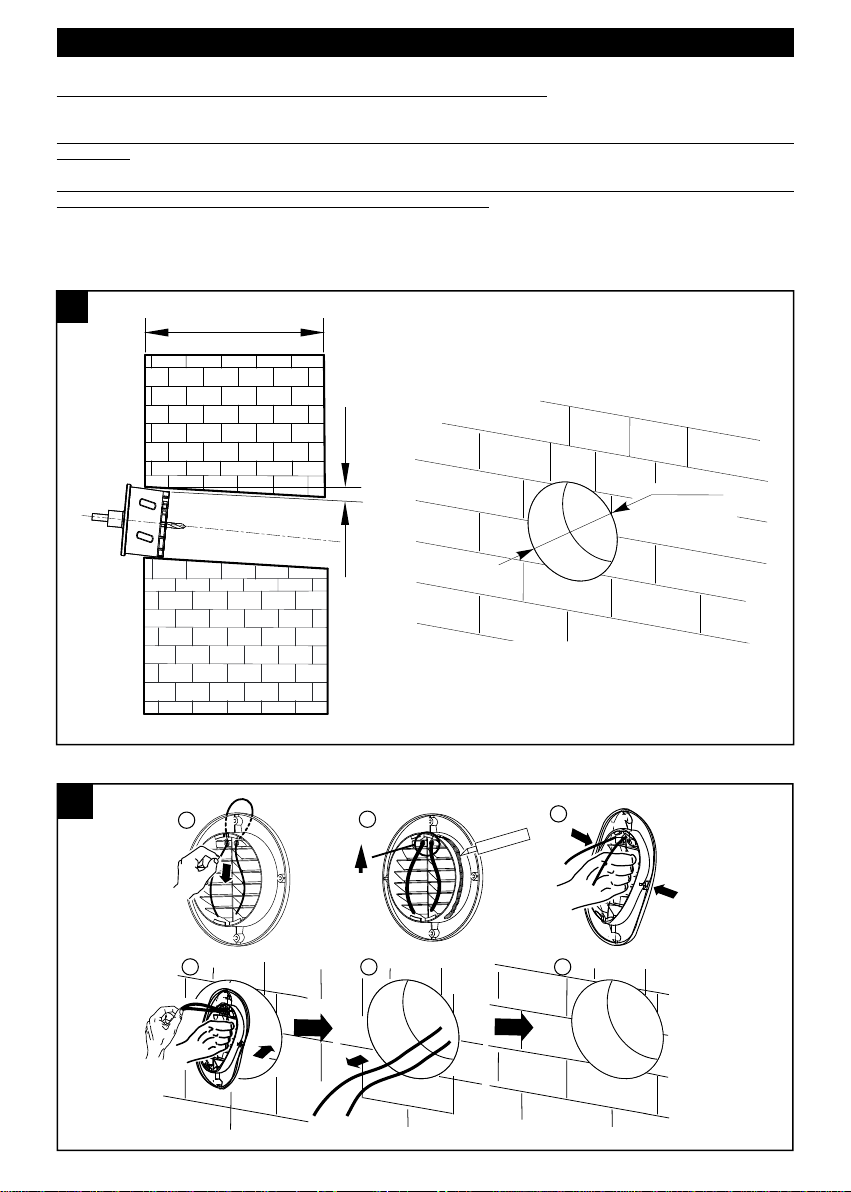

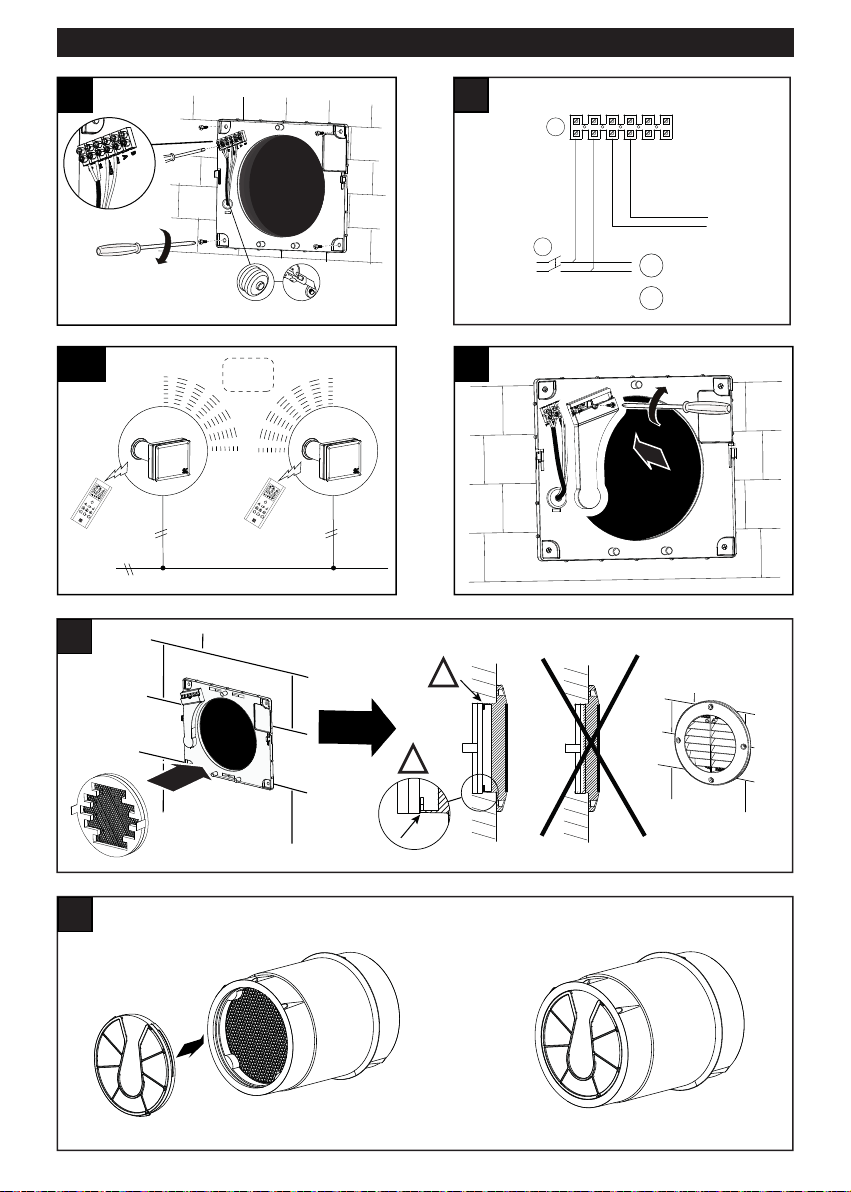

VORT HRW 30 MONO EVO WiFi installation
Fig 1 ÷ 11
NOTE: before proceeding with the installation, remove the internal protective packaging in the appliance.
NOTE: before carrying out installation, remove the spacers inside the PVC installation pipe (provided as
accessory) and cut the pipe according to the wall thickness.
It is mandatory to install VORT HRW 30 MONO EVO WiFi within a perimeter wall with a thickness of at least 260
mm.
1
1
IN OUT
mm 102
ø
≥260 mm
2°÷3°
2
31

ENGLISH
3
4
Drill the two holes for the power cables
and PCB signal cables inside the dotted
area.
4
5
6
TERMINAL BLOCK
MAIN BIPOLAR SWITCH
1
2
LN
GND
IN
L
N
1
2
MAINS
220-240V~50-60Hz
LOW VOLTAGE
Remote Unit Sync Bus
L, N
UNIT #1
L, N
UNIT #2
220-240V~50-60Hz 220-240V~50-60Hz
7
IR
REMOTE
CONTROL
IR
REMOTE
CONTROL
WiFi
Mesh
Network
32

ENGLISH

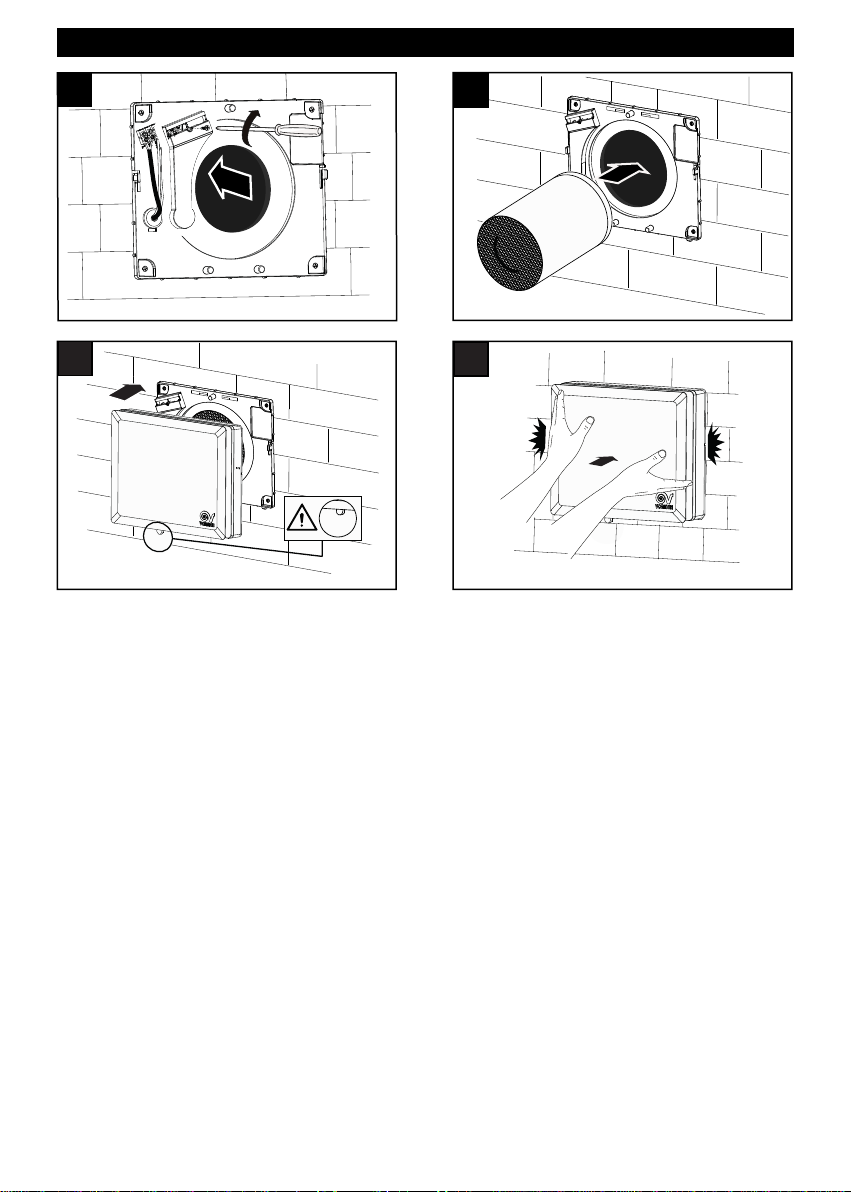

8
9
10
10
11
11
CLACK!
CLACK!
33

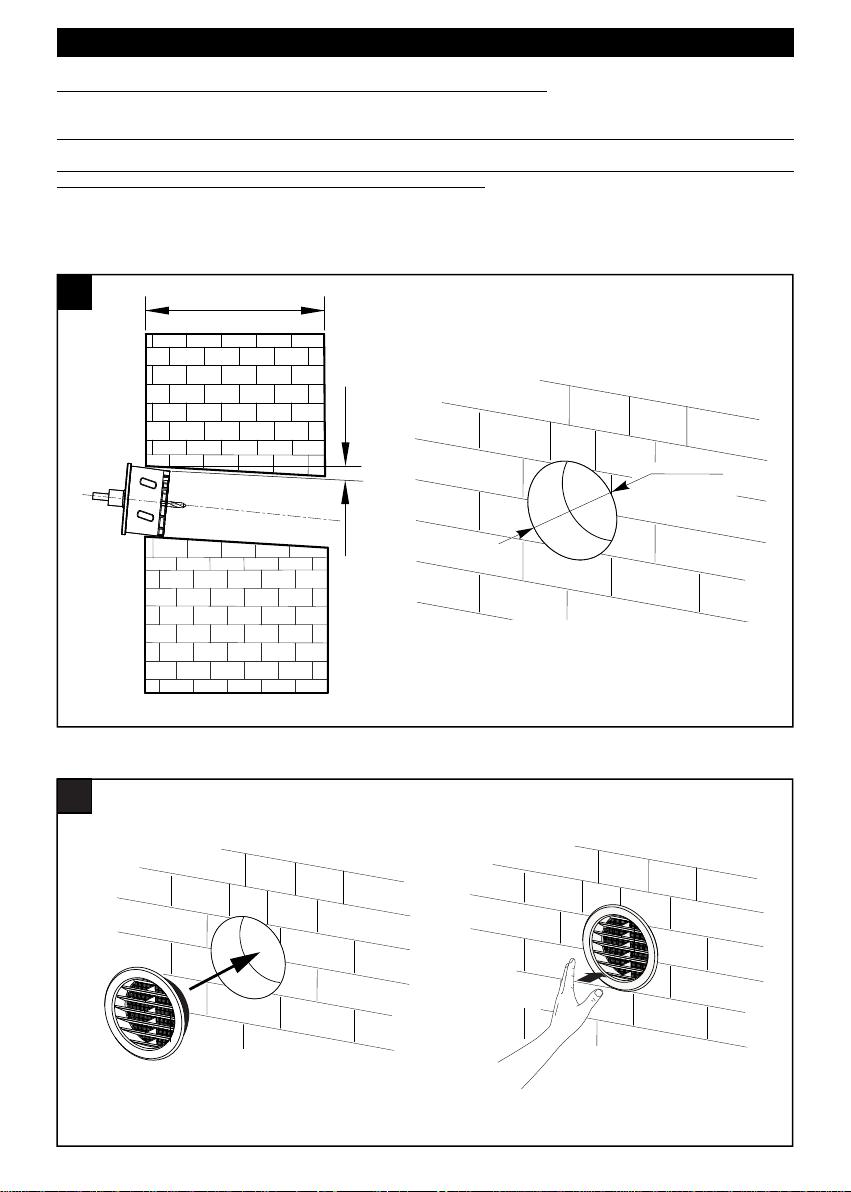

VORT HRW 40 MONO EVO WiFi installation
Fig 12 ÷ 24
NOTE: before proceeding with the installation, remove the internal protective packaging in the
appliance.
NOTE: before carrying out installation, remove the spacers inside the PVC installation pipe (provided as
accessory) and cut the pipe according to the wall thickness.
It is mandatory to install VORT HRW 40 MONO EVO WiFi within a perimeter wall with a thickness of at least
283 mm.
ENGLISH
IN OUT
mm 162
ø
12
12
≥283 mm
2°÷3°
13
13
GLUE
UP
123
4 5 6

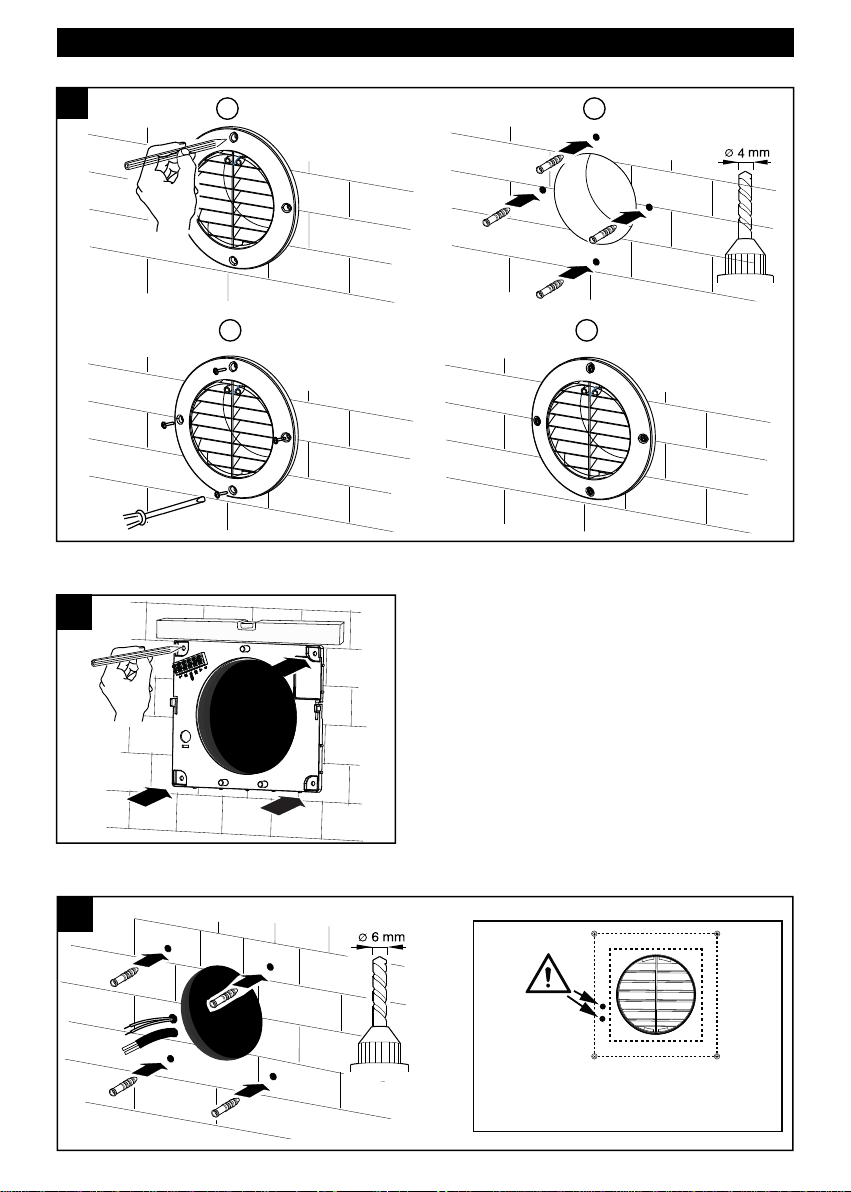

VORT HRW 40 MONO EVO WiFi - GRILLE MOUNTING - FROM INSIDE
34

ENGLISH
VORT HRW 40 MONO EVO WiFi - GRILLE MOUNTING - FROM OUTSIDE
14
14
1 2
3 4
15
15
16
16
Drill the two holes for the power cables
and PCB signal cables inside
the dotted area.
35

17
17
ENGLISH
TERMINAL BLOCK /
MAIN BIPOLAR SWITCH /
1
2
L N
GND
IN
L
N
1
2
MAINS
220-240V~50-60Hz
LOW VOLTAGE
Remote dry contact
18
18
18A18A
L, N
L, N
UNIT #1 UNIT #2
REMOTE CONTROL
IR
REMOTE CONTROL
IR
220-240V~50-60Hz
WiFi
Mesh
19
19
20
20
INSERTING METALLIC MESH FILTER
!
!
2121 VORT HRW 40 MONO EVO WiFi - INSERTING THE EXTERNAL FILTER
36

ENGLISH
22
22
23
23
2424
CLACK!
CLACK!
Use (fig. 25)
To use the appliance, make sure the lever of the closing disk is in the open position, by rotating the lever to position
2.
1
2
25
25
37

ENGLISH

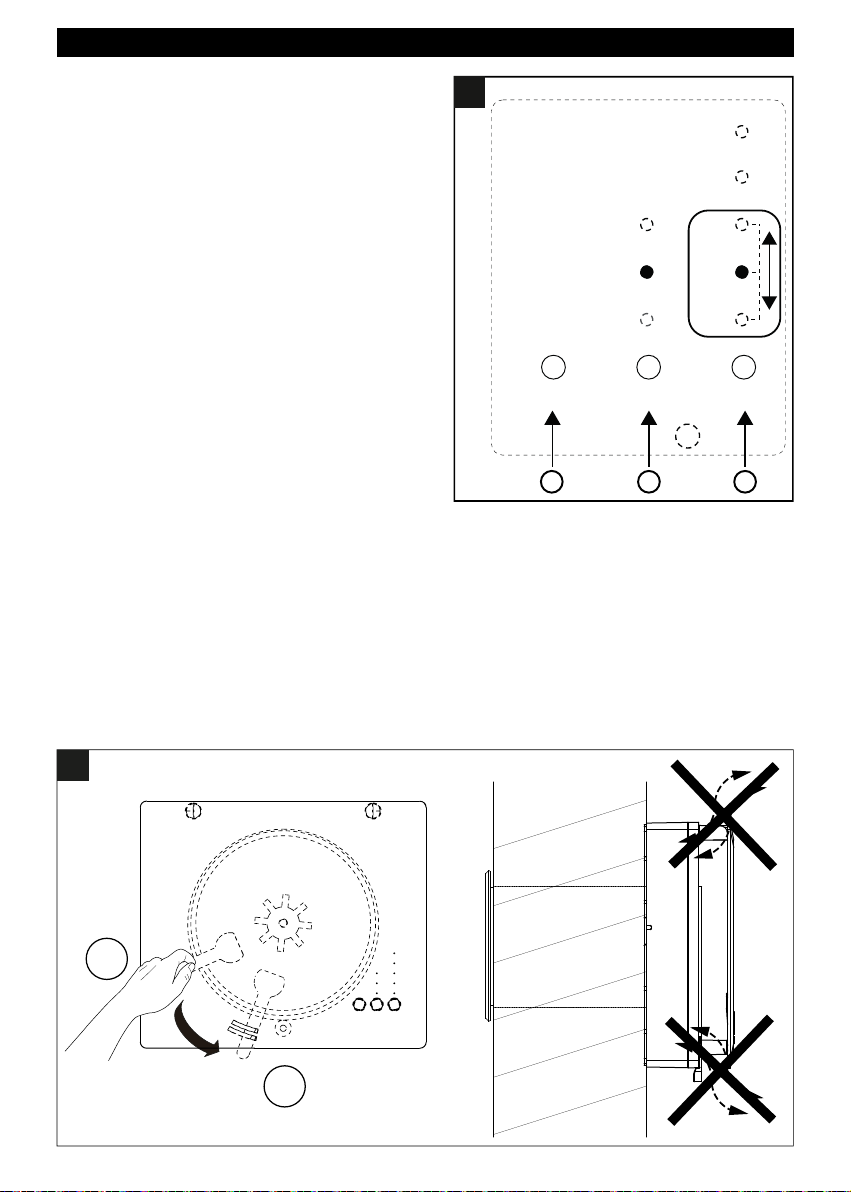

DESCRIPTION OF THE UNIT COMMANDS
Warning (fig. 26A):
The control panel is accessible by inserting the hand in the space between the cover and the
front grille (1) or by lifting up the cover (2).
!
26A
26A
12
The device is controlled by means of on-board buttons (Fig. 26B).
PULSANTE
VELOCITÀ
PULSANTE
MODALITÀ
PULSANTE
FUNZIONE
LED 1
LED 2
LED 3
LED 4
LED
RECUPERO/AUTO NIGHT
LED
IMMISSIONE/AUTO HR%
LED
ESTRAZIONE/AUTO COMFORT
LED 5
A
D
D
C
B
/ Night
/ Quiet
/ Boost
/ Performance
/ High
Performance
26B
26B
A: SPEED KEY: 5 position selector (Night / Quiet / Performance / High performance / Boost).
LED 1- LED 5: speed / air flow from min to max. Press the button cyclically to select the desired value. The
white LEDs from 1 to 5 will light up to indicate the speed from 1 to 5.
B: MODE KEY: three position selector. Press repeatedly to cycle through the different modes: recovery, intake,
extraction, natural ventilation (intake and extraction LEDs switch on simultaneously).
The respective LEDs will light up steadily:
•RECOVERY heat recovery (the system works like an heat recovery unit, with cyclic inversion of the direction
of rotation).
•INTAKE the system operates as a fan, with room air intake.
•EXTRACTION the system works as a fan, with air extraction from the room.
•NATURAL VENTILATION If the device is connected to one or more units via a WiFi network, the NATURAL
VENTILATION mode can be set: if set as an even unit the device will operate in extraction mode, if set as an
odd unit the device will operate in intake mode, creating an air current in the environment.
Note 1: In the HCS versions, natural ventilation can be selected automatically via the external IR remote
38

control (see fig. 30).
Note 2:The WiFi module allows to balance the air flow rates of intake and extracted air, provided that the
total number of installed units is equal to an even number. For example, 4 units can be connected
to the WiFi network, setting two units as “even” and two units as “odd”. Air flow balancing will
not occur if an odd number of units is installed.
Note 3: To see how to set the device as an even or an odd unit, refer to the section "parameter
programming sequences".
Note 4: The backlighting of the keys on the device remains active for one minute from the last press of
any key.
Note 5:The backlighting of the keys on the remote control of HCS versions remains active for 15 seconds
from the last press of any key.
C: FUNCTION KEY to activate or deactivate the 3 different AUTO functions available and activate or deactivate
the stand-by mode.
To activate or deactivate the stand-by mode:
If the device is switched on and the FUNCTION key is pressed (stand-by / on-off function), the fan stops and the
LEDs of the SPEED column turn off. If the appliance is off and you press the FUNCTION button, the appliance
starts at the speed and mode previously set.
The available functions are:
• Auto night (only for HCS models)
The ambient light sensor detects the presence or absence of ambient light and, depending on whether the
measurement is higher or lower than the threshold value set via SW (fixed value that cannot be changed
by the user) it allows or prevents both the switch to a speed higher than the minimum both the transition
to boost speed via remote input or HR% sensor.
Therefore, at night when the presence of daylight is not detected, the appliance switches to minimum
speed preventing the switch to a speed higher than the minimum one.
When the presence of daylight is detected again, the appliance returns to operate at the previously set
speed, and it is allowed the switch to higher speeds or boost via remote input or HR% sensor.
• Auto HR%
In case of presence of humidity beyond the alarm threshold (60%, 75% or 90% - the default value is
75%), it is automatically selected the extraction mode at maximum speed.
•Auto comfort
In heat recovery mode, the period that determines the inversion of rotation of the fans is fixed based on
the temperature of the air introduced into the room: if too cold, the cycle time is reduced.
ENGLISH
To enable a function (fig. 27):
1) press the FUNCTION button for more than 2 seconds.
2) press the SPEED button to select one of the three LEDs
(LED 1, LED 2, LED 3) corresponding to the
AUTONIGHT / AUTO HR% / AUTO COMFORT
functions.
3) press the MODE button to enable the function -> the
chosen LED in the mode column blinks.
4) to SAVE the settings, press the FUNCTION button for
more than 2 seconds.
All SPEED LEDs blink 4 TIMES to indicate correct
storage.
5) to CANCEL and exit the setting procedure, press the
FUNCTION key once. All SPEED LEDs blink ONLY
ONCE WITHOUT SAVING any changes made.
6) to CHECK which function is assigned to the appliance,
press the FUNCTION button for more than 2 seconds:
the LED corresponding to the set function blinks for
about 20 seconds, then all the speed LEDs flash and
the device returns to standard display.
Note: The user can enable all the three functions
simultaneously.
SPEED
BUTTON
LED 1
LED 2
LED 3
LED 4
LED
RECOVERY
FUNCTION
BUTTON
/AUTO NIGHT
LED
INTAKE /AUTO HR%
LED
EXTRACTION/AUTO COMFORT
LED 5
1 23
27
27
MODE
BUTTON
39

ENGLISH
To disable a function (fig. 28):
1) press the FUNCTION button for more than 2 seconds.
2) press the SPEED button to select one of the three LEDs
(LED 1, LED 2, LED 3) corresponding to the
AUTONIGHT / AUTO HR% / AUTO COMFORT function
to be disabled.
3) press the MODE button to disable the function.
4) to SAVE the settings, press the FUNCTION button for
more than 2 seconds. All SPEED LEDs blink 4 TIMES to
indicate correct storage.
5) to CANCEL and exit the setting procedure, press the
FUNCTION key once. All SPEED LEDs blink ONLY
ONCE WITHOUT SAVING any changes made.
6) to CHECK which function is assigned to the appliance,
press the FUNCTION button for more than 2 seconds: :
the LED corresponding to the set function blinks for about
20 seconds, then all the speed LEDs flash and the device
returns to standard display.
2828
LED 1
LED 2
LED 3
LED 4
LED 5
1 23
LED
EXTRACTION/AUTO COMFORT
LED
INTAKE /AUTO HR%
LED
RECOVERY/AUTO NIGHT
FUNCTION
BUTTON
MODE
BUTTON
SPEED
BUTTON
D: FILTER LED
One led (D - fig. 26B) shows the status of the filters:
• LED OFF: filters are clean
• LED ON: filters to be cleaned or replaced (for each day of operation, a counter in the memory is increased
and when the maximum preset time is reached (90/180/365 days), the signalling LED lights up).
Refer to section “maintenance and cleaning”.
CLOSING OF THE DEVICE
To avoid air to come inside the room, set the device in stand-by mode by pressing the FUNCTION key (LEDs in
the SPEED column switch off) and turn the lever to close position (fig. 29).
2
1
29
29
40

ENGLISH
Parameters programming sequences
By means of appropriate actions on the keyboard buttons, it is possible to reset the clogged filter counter, or
program the unit's operating parameters, as specified below:
To entry in programming mode:
• Press simoultaneously all the three buttons (SPEED - MODE - FUNCTION).
• LED 5 turns on white.
• Press the buttons in the following sequence: SPEED - SPEED - MODE - FUNCTION - FUNCTION – MODE.
To set the relative humidity threshold:
• Press the SPEED button.
• The currently set threshold is displayed by lighting one of the white LEDs 1, 2 or 3 depending on whether the
value is 60%, 75% or 90% (the default value is 75%).
• Press SPEED button to modify the threshold value.
• Press the FUNCTION button to confirm.
• All the speed LEDs from 1 to 5 will blink briefly to indicate that the value has been stored and the device will
return to normal operation.
• If you do not press the FUNCTION button within 20 sec, the device will return to normal operation without
storing.
To select cycle time:
• Press MODE button.
• The currently set time is displayed by lighting one of the white LEDs in position 1, 2 or 3 depending on whether
the time is 50, 60 or 90s. (Default value = 60s).
• Press the SPEED button to change the value.
• Press the FUNCTION button to confirm.
• All the speed LEDs from 1 to 5 will flash briefly to indicate successful storage and the device will return to
normal operation.
• If the FUNCTION button is not pressed within 20 sec, the device will return to normal operation without
memorizing.
NOTE: Cycle time programming can only be carried out on the unit set as master.
To select the clogged filter alarm interval:
• Press the FUNCTION button.
• The time currently set is displayed by lighting one of the white LEDs in position 1, 2 or 3 depending on whether
the interval is equal to 90, 180 or 365 days.
• Press the SPEED button to modify the value.
• Press the FUNCTION button to confirm.
• All the speed LEDs from 1 to 5 will blink briefly to indicate that the storage has taken place and the equipment
will return to normal operation.
• If the FUNCTION key is not pressed within 20 sec, the device will return to normal operation without
memorizing.
To reset the clogged filter counter:
• Press the SPEED - MODE - FUNCTION buttons simultaneously.
• Press the buttons in the following sequence: MODE - MODE - SPEED - SPEED - MODE - MODE.
• Press the Function key within 20 sec.
• All the speed LEDs from 1 to 5 will blink briefly to indicate that the reset has taken place and the device will
return to normal operation.
• If the FUNCTION button is not pressed within 20 sec, the device will return to normal operation without having
reset the filter timer.
Note: for regular operation between multiple devices, it is necessary to set the type of unit
(Master / Slave and Even / Odd)
!
To set the device as "WiFi Mesh" Master:
• Press simultaneously the SPEED - MODE - FUNCTION buttons.
• Press in sequence the following buttons: MODE - MODE - SPEED - SPEED - FUNCTION - FUNCTION.
• Press the Mode button within 20 sec.
• All speed LEDs from 1 to 5 will blink briefly to indicate that the device has been set as master unit.
• If you do not press the MODE button within 20 sec, the device will return to normal operation without making
any changes to the settings.
41

To set the device as “WiFi Mesh" Slave:
• Press simultaneously the SPEED - MODE - FUNCTION buttons.
• Press in sequence the following buttons: MODE - MODE - SPEED - SPEED - FUNCTION - FUNCTION.
• Press the SPEED button within 20 sec.
• All speed LEDs from 1 to 5 will blink briefly to indicate that the device has been set as Slave.
• If the SPEED button is not pressed within 20 sec, the device will return to normal operation without making any
changes to the settings.
To set the device as "Even Unit":
• Press simultaneously the buttons: SPEED - MODE - FUNCTION
• Press in sequence the buttons: SPEED - SPEED - FUNCTION - FUNCTION - MODE - MODE.
• Press the SPEED button within 20 sec.
• All speed LEDs from 1 to 5 will blink briefly to indicate that the device has been set as an even numbered unit.
• If the SPEED button is not pressed within 20 sec, the device will return to normal operation without making any
changes to the settings.
To set the device as an "Odd Unit":
• Press simultaneously the SPEED - MODE - FUNCTION buttons.
• Press in sequence the buttons SPEED - SPEED - FUNCTION - FUNCTION - MODE - MODE.
• Press the FUNCTION key within 20 sec.
• All speed LEDs from 1 to 5 will blink briefly to indicate that the device has been set as an odd-numbered unit.
• If the Function button is not pressed within 20 sec, the device will return to normal operation without making
any changes to the settings.
ENGLISH
Note: only one unit must be set as MASTER in a specific network .The other units must be set as
SLAVE
!
WiFi Mesh Network
The WiFi module creates a mesh wifi network to synchronize the units. The mesh network is identified by a particular
SSID (Service Set Identifier), which will be generic by default during installation and will become unique for each
particular network once installation is completed.
To set the SSID (Service Set Identifier) of the WiFi mesh network
• Press the SPEED - MODE - FUNCTION buttons on the MASTER unit at the same time.
• Press the MODE - MODE - SPEED - SPEED - MODE - MODE buttons in sequence.
• Press the SPEED button within 20 seconds
• All speed LEDs from 1 through 5 will briefly blink to indicate that SSID = VOR_XXXXXXXX has been set on
EACH SINGLE UNIT IN THE NETWORK
• If the SPEED button is not pressed within 20 seconds, all SPEED LEDs from 1 to 5 will light up for 1 second
without blinking to indicate that the appliance will return to normal operation without resetting the network
SSID.
!The machines are set as SLAVE by factory default.You must therefore set a unit as MASTER by
pressing the MODE - MODE - SPEED- SPEED - FUNCTION – FUNCTION buttons in sequence and
then the MODE button.
!Note: The change from the default network SSID "VORTICE_HRW" to a unique network SSID is
mandatory in order to prevent interference between different devices belonging to different
networks (for example, in the case of two independent flats separated by a wall, etc.).
!Note: you must have a smartphone or network detection device handy to view the names of the
assigned networks.
42

ENGLISH
To set the SSID in the case of two installed networks (for example two networks on two different
floors) follow these steps:
1) Switch off the units that are not part of the network on which you want to operate (for
example those on the upper floor if you want to set the network on the lower floor) to prevent
them not to be assigned the same SSID.
2) Then, from the MASTER unit, assign the unique network identifier (SSID) by pressing the
MODE - MODE - SPEED - SPEED - MODE – MODE buttons in sequence and then the SPEED
button.
3) To set up another network (the upper floor in the example), you do not need to turn off the
units of the other set up network as they already have a unique SSID.
!
To reset the mesh WiFi network (global / all network units) SSID:
• Press the SPEED - MODE - FUNCTION buttons at the same time.
• Press the MODE - SPEED - FUNCTION - MODE - SPEED- FUNCTION buttons in sequence.
• Press the MODE button within 20 second
• All the speed LEDs from 1 to 5 will flash briefly to indicate execution of the command:
- Reset the SSID = VORTICE_HRW (default) FOR ALL UNITS ON THE NETWORK.
• If the MODE button is not pressed within 20 seconds, all speed LEDs 1 to 5 will light up for 1 second without
flashing, indicating that the machine will return to normal operation without resetting the network SSID.
To reset the WiFi mesh network (local / single unit on the network) SSID:
• Press the SPEED - MODE - FUNCTION buttons set as SLAVE at the same time.
• Press the MODE - MODE - SPEED - SPEED - MODE - MODE buttons in sequence..
• Press the SPEED button within 20 seconds
• All the SPEED LEDs from 1 to 5 will blink briefly to indicate that SSID = VORTICE_HRW (default) has been
reset FOR THE SINGLE UNIT ONLY.
• If the SPEED button is not pressed within 20 seconds, all SPEED LEDs from 1 to 5 will light up for 1 second
without blinking to indicate that the appliance will return to normal operation without resetting the network
SSID.
MAC Address and SSID
The MAC Address is assigned by the manufacturer of the WiFi module itself and it is unique.
The last 4 hexadecimal digits of the MAC Address (UAA = Unique Address Assignment) of the master unit are
used to generate the unique SSID of the network:
VOR_XXXXXXXX (e.g. VOR_34F5E4E7)
Each digit consists of two hex characters ranging from 0 to 255 (0x00-0xFF).
The default SSID is instead VORTICE_HRW with default password = "12345678" which cannot be changed.
Adding one or more new units to an existing mesh network
1. Go into programming mode by pressing simultaneously the SPEED - MODE - FUNCTION buttons.
2. From any unit of this network, reset all the network identifiers (SSID) of each unit in the existing network by
pressing the MODE - SPEED - FUNCTION - MODE - SPEED - FUNCTION buttons in sequence and then the
MODE button.
3. Or, if there are units with unknown SSIDs or which are different from the network SSID, set each unit to SLAVE
mode by pressing the MODE - MODE - SPEED - SPEED - FUNCTION - FUNCTION buttons in sequence and
then the SPEED button. Afterwards set the default identification (SSID) on each unit by pressing in sequence
the buttons MODE - MODE - SPEED - SPEED - MODE - MODE and then the SPEED button.
4. If a MASTER unit has not yet been defined, a network unit must be set as MASTER by pressing the MODE -
MODE - SPEED - SPEED - FUNCTION - FUNCTION buttons in sequence and then the MODE key..
5. Finally assign the unique network identification (SSID) from the MASTER unit by pressing the MODE - MODE
- SPEED - SPEED - MODE - MODE buttons in sequence and then the SPEED button.
43

Remote I/O
The connected device can be remotely controlled via clean contacts on remote input 1. If the remote input is active,
the keyboard on the machine is disabled.
• Remote input # 1:
- With input contact 1 closed, all the connected fans work in extraction at maximum speed.
- If 20 seconds since the last key press have not elapsed:
• The white EXTRACTION LED lights up.
• The white 1,2,3,4,5 LEDs light up.
EVEN
ODD
EVEN
ODD
SPEED
BUTTON
MODE
BUTTON
FUNCTION
BUTTON
LED 1
LED 2
LED 3
LED 4
LED
RECOVERY/AUTO NIGHT
LED
INTAKE /AUTO HR%
LED
EXTRAXTION /AUTO COMFORT
LED 5
/ Night
/ Quiet
/ Boost
/ Performance
/ High
Performance

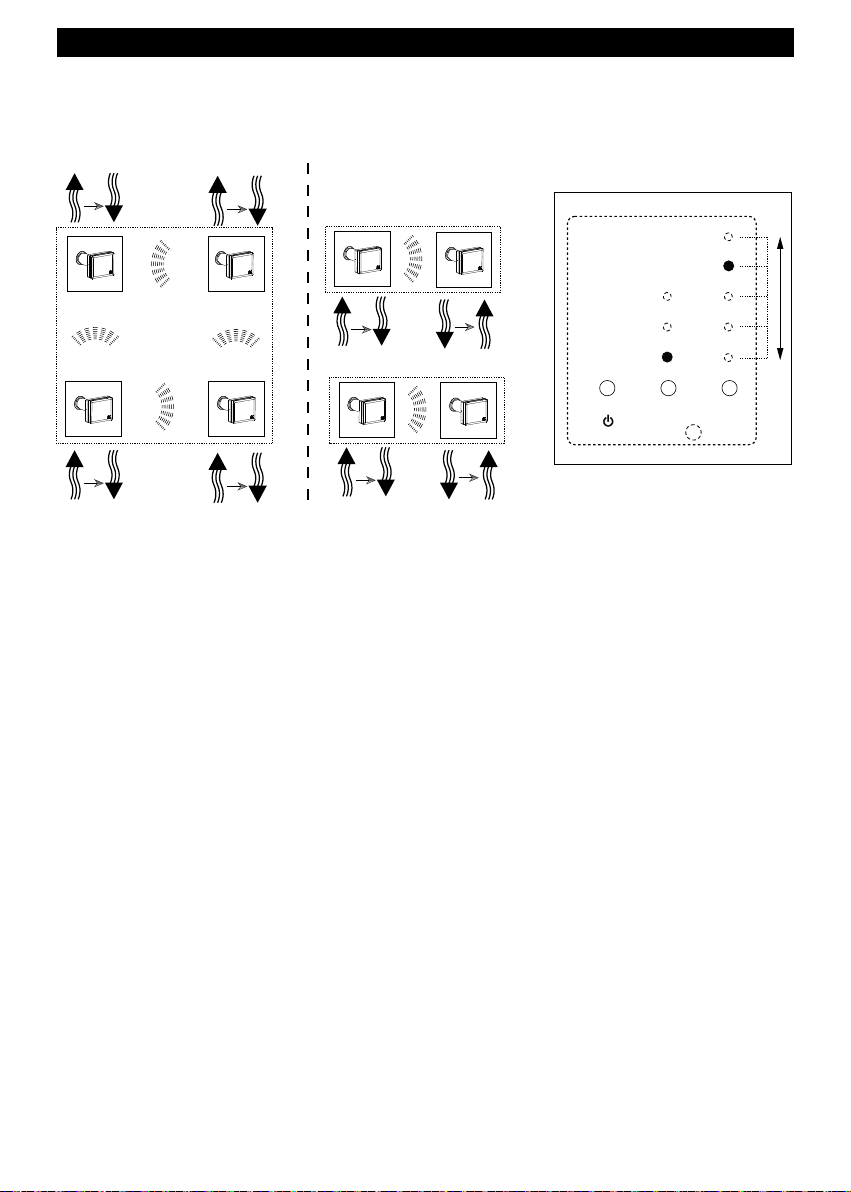

1’÷2’
1’÷2’
EVEN ODD
SSID = VOR_2
FLOOR 2
1’÷2’
1’÷2’
1’÷2’
1’÷2’
AB ABAB
1’÷2’
EVEN ODD
SSID = VOR_1
SSID = VOR_1
FLOOR 1 RECOVERY MODE
1’÷2’
ABAB
AB
ABB
A
EXAMPLE 1 EXAMPLE 2
ENGLISH
44
