WAGNER PEM-T3 User manual

03/2008 0351709
http://www.wagner-group.com
Operating Manual
Tribo Manual Spray Gun
DANGER
High Voltage!
Turn power off
before servicing!
CAUTION
Read rules for safe
operation and
instructions
carefully! pemt3_0000
0351967 PEM-T3
C
E
R
T
I
F
I
E
D
D
I
N
I
S
O
9
0
0
1

Introduction
20351709 - PEM-T3 03/2008
Tribo manual spray gun Article No. 0351019
00_Pemt3_Aufbau.doc
AB
D
H
C
EG
F
pemt3_0001
A Deflector cone
B Nozzle body
C Outer nut
D Spray gun body
E Trigger
F Tribo air connection
G Powder hose connection
H Power supply
The Tribo manual spray gun PEM-T3 is used for powders suitable for friction loading.
The PEM-T3 powder spray gun is used for industrial powder coating.
This spray gun can be operated with the following control units:
•EPG 2008 with powder injector PI-P1
•EPG-D1 with powder injector PI-F1
•Control unit Bravo with powder injector PI-FM1
The powder feed and the Tribo air supply to the spray gun are activated by pressing the
trigger.
Caution
The user must ensure, that the spray gun is only connected to Wagner equipment!
High ambient temperatures must be avoided; in particular, the hoses must not be
routed through factory areas exposed to direct sunlight!
To provide a safeguard against unintentional use of the spray gun, the control unit must
be turned off!

Introduction
03/2008 0351709 - PEM-T3 3
Table of contents Page
1. Safety regulations.......................................................................................................5
1.1 Safety hints....................................................................................................................5
1.2 EC Declaration of conformity.........................................................................................6
2. Preparing the spray gun.............................................................................................7
2.1 Select the suitable nozzle system.................................................................................7
2.2 Connecting the spray gun .............................................................................................7
2.3 Grounding......................................................................................................................8
3. Working with the spray guns.....................................................................................9
3.1 Start up the spray gun...................................................................................................9
3.2 Switching off the spray gun...........................................................................................9
3.3 Carrying out a change of color....................................................................................10
4. Maintenance and cleaning........................................................................................11
4.1 Replacing the spray gun..............................................................................................11
4.2 Cleaning the spray gun and replace the wear parts....................................................12
4.3 Mounting the gun extension........................................................................................13
4.4 Disposal.......................................................................................................................15
5. Rectification of malfunctions...................................................................................16
6. Technical data ...........................................................................................................17
7. Warranty.....................................................................................................................18
8. Scope of delivery and spare parts lists...................................................................19
8.1 How to order................................................................................................................19
8.2 Scope of delivery and spare parts list of PEM-T3.......................................................19
8.3 Charging body (complete)...........................................................................................20
8.4 Wide fan spray nozzle.................................................................................................20
8.5 Gun extension.............................................................................................................21
8.6 Charging body of PEM-T3 300....................................................................................22
8.7 Outer tube ...................................................................................................................23

Introduction
40351709 - PEM-T3 03/2008
00_..doc
This manual contains information and hints for the service, repair and maintenance of the
equipment. The user must obey all the rules of operation found in this manual; failure to do so
will render the warranty invalid.
Wagner powder systems are designed to meet the most stringent safety requirements. They
can be operated in compliance with generally applicable safety codes and applicable national
safety regulations.
Please pay particular attention to the parts marked by the following symbols. Follow the
instructions exactly, in the interests of both your own safety and the correct functioning of the
unit.
Warning
This symbol draws attention to the fact that if the operating instructions, working
instructions, prescribed working sequences etc. are not followed exactly, this can
lead to injury or even fatal accidents.
Caution
This symbol indicates that failure to follow the operating instructions, working instruc-
tions, prescribed working sequences etc. exactly can lead to material damage.
Hint
This symbol draws your attention to useful additional information and tips. Failure to
observe these instructions can cause malfunctions.

Safety regulations
03/2008 0351709 - PEM-T3 5
1. Safety regulations
1.1 Safety hints
010101_ .doc
Warning
This equipment can be dangerous if it is not operated in accordance with this
operating manual!
There might be additional regulations to be observed, put into effect by
governmental, state or other official agencies or local security (fire)
departments!
Warning
Under no circumstance may persons with a cardiac pacemaker come close
to the area between the tip of the spray gun and the work piece to be
coated!
The following rules must be observed in order to ensure a safe and efficient use of the
equipment:
• The user has to observe particularly the safety
guidelines of the VdS, the local professional and
security institutions.
• Trained and qualified personnel may only oper-
ate the electrostatic coating equipment.
• The spray gun may only be operated in powder
coating booths or on powder coating stands that
are equipped with a ventilation system.
• The user has to make sure, that the average
powder/air concentration does not exceed 50%
of the LEL (maximum allowed concentration of
powder in air). If a reliable LEL value is not
available, the average powder/air concentration
may not exceed 10 g/m³.
• Over sprayed powder must be reliably collected.
• Adhere to the instructions given by the manufac-
turers and to the prevalent local laws on the
environment when disposing of waste coating
powder.
• The main power connection for operation of the
Wagner powder equipment must be electrically
interlocked with the exhaust system of the
powder coating booth.
• In the event of faults or defects, repair work is to
be performed at the user's discretion.
• The user must conduct periodic checks of the
powder spray equipment (at least every year)
with regard to explosion-protection.
• Repairs may only be carried out by trained tech-
nicians and may never be carried out in an
explosion hazardous area. Protective measures
against explosions must still be installed.
• The work area must have an electrostatically
conductive floor (measured in accordance with
EN 1081).
• All conductive parts in the work area must be
electrostatically grounded (work area = 1 m
around every spray location or opening in the
booth).
• All persons inside the work area must wear
electrostatically conductive footwear.
• Spray guns should be operated with bare hands!
If gloves are used they must be made of
conductive material.
• Guideline 94/9/EC: The device is suited for the
applications it was designed for, even in
explosion-hazard areas.

Safety regulations
60351709 - PEM-T3 03/2008
010102_ .doc
• Wear suitable work clothing
• Use breathing protection or a vizard for work
which produces powder and when
developing solvent steams:
Avoid health dangers by inhalation and skin
contacts of solvent steams and lacquer
aerosols; Cornea injuries by splashes in the eye.
• Check the equipment for damage
Before operating the system, check if slightly
damaged parts still function correctly. Check
whether the moving parts operate properly,
whether they jam and whether parts are
damaged.
Damaged parts should be repaired or
replaced by a Wagner customer service.
Warning
For your own safety, use only accessories and equipment listed in the
operating manual. The use of individual parts other than those
recommended in the operating manual may create a hazard to personal safety.
Use only original Wagner replacement parts!
Alteration or repair of Wagner original spare parts may cause fatal
accidents or explosions in the coating system!
1.2 EC Declaration of conformity
0103_Konformitaet.doc
Wagner hereby declares that the unit described in these operating instructions has been
designed and manufactured according to the provisions of EU Directives 98/37/EC,
94/9/EC, 73/23 EEC and 89/336 EEC.
The following European standards were applied:
EN 12100-1/-2 EN 50281-1-1/-1-2 EN 61000-6-1
EN 61000-6-2 EN 61000-6-3 EN 60204-1
EN 50053-2 EN 50050 EN 50177
The following German standards and/or Guidelines were applied:
BGI 764
The product includes an EC declaration of conformity. This can be ordered again if
necessary from your WAGNER dealer by giving details of the product and serial number
involved.
The number of the EC Declaration of Conformity is 0351967.

Preparing the spray gun
03/2008 0351709 - PEM-T3 7
2. Preparing the spray gun
2.1 Select the suitable nozzle system
0201_Duesenauswahl_tribo.doc

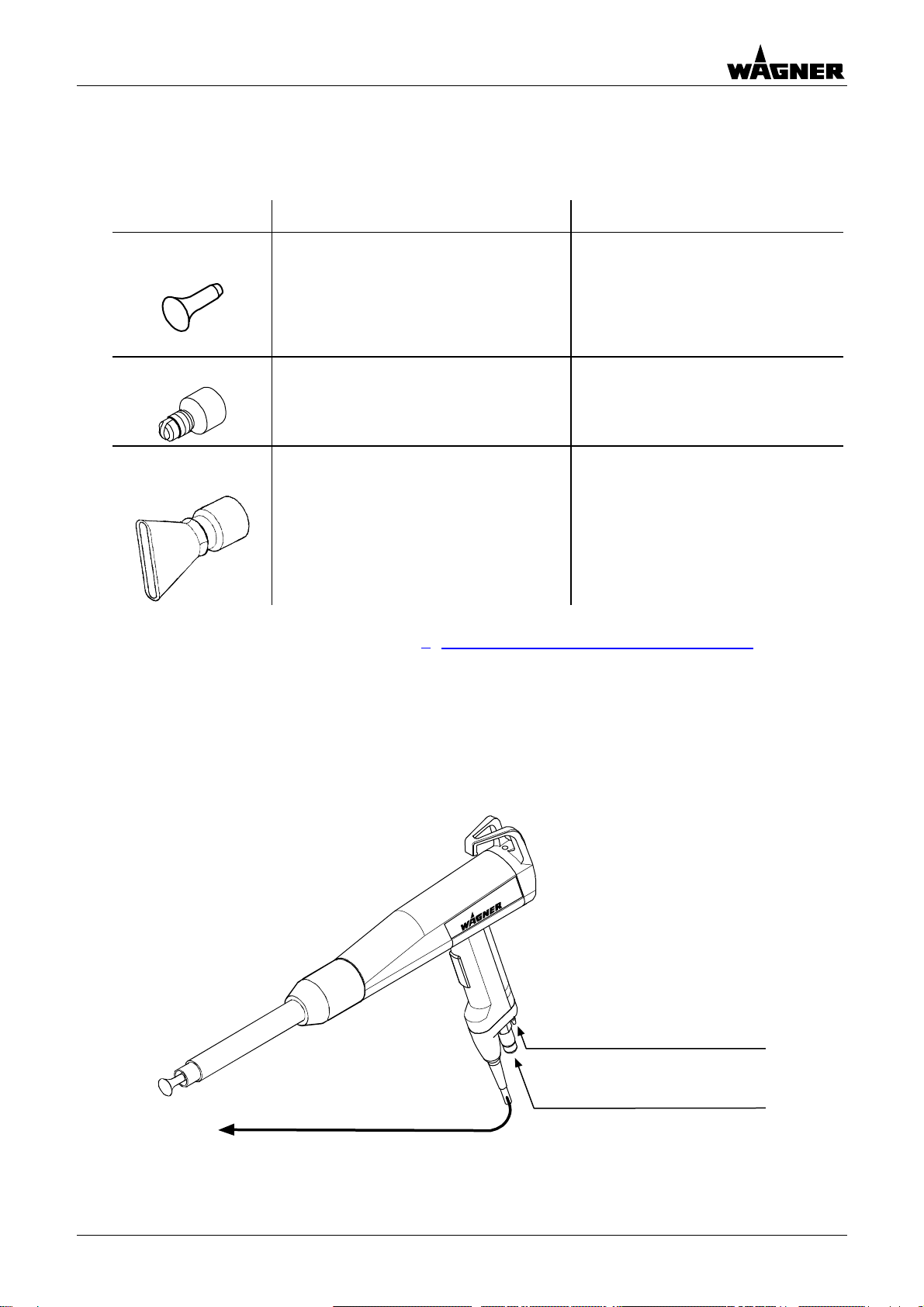

Nozzle Overview Application Spray pattern
Deflector cone
• Wire goods
• Grid designs
Oval powder cloud:
Size is dependent on the deflector
cone diameter.
For powder quantities from:
50 ... 300 g/min
Fan spray nozzle
Difficult workpieces:
• Undercuts
• Profiles
Widely spread flat powder cloud.
For powder quantities:
from 50 ... 150 g/min
Wide fan spray
nozzle
Difficult workpieces:
• Undercuts
• Profiles
Widely spread flat powder cloud.
For powder quantities:
from 100 ... 250 g/min
The part numbers are listed in chapter 8"Scope of delivery and spare parts lists".
2.2 Connecting the spray gun

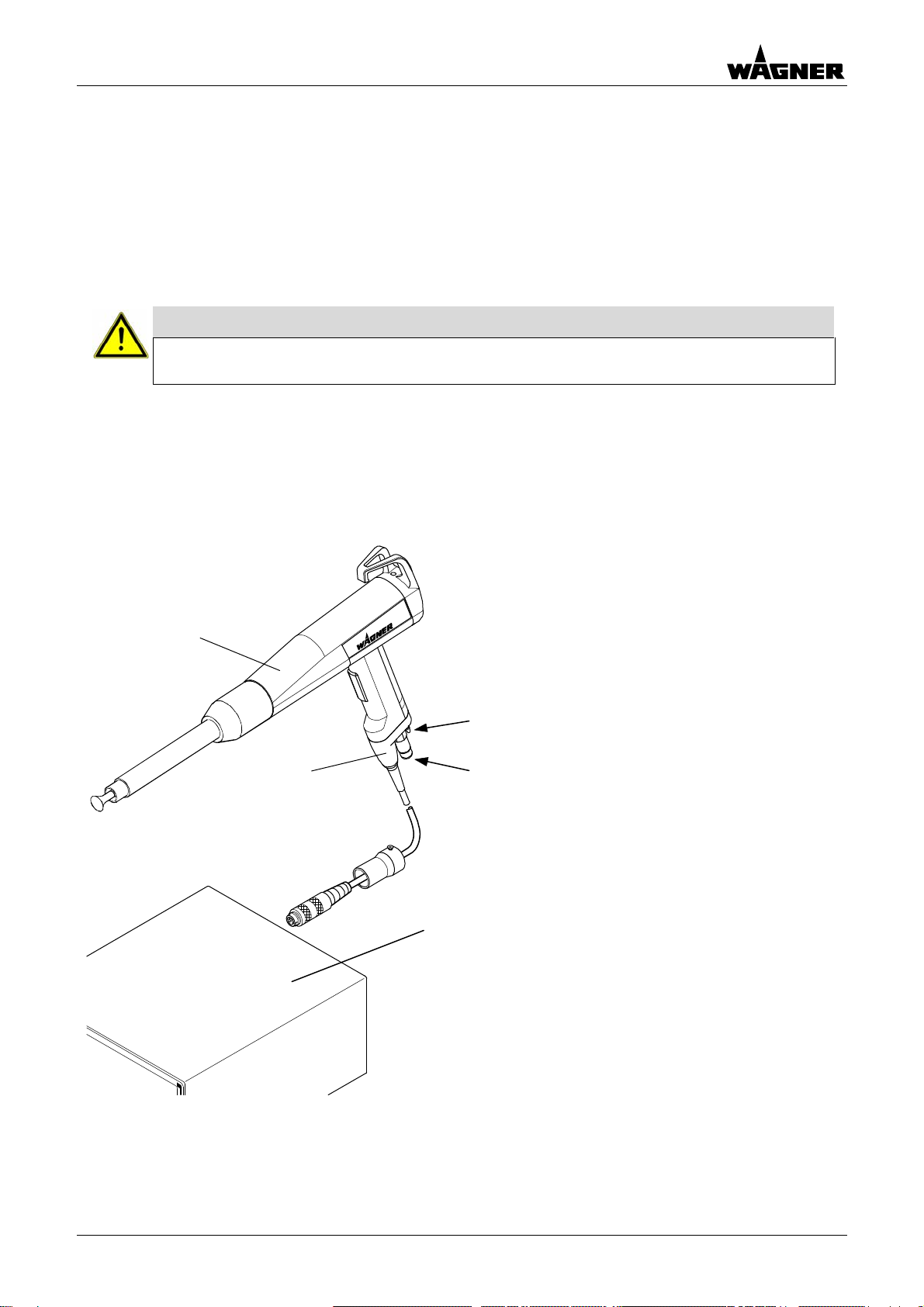

Before you start making connections, switch off the powder feeding. Refer to the
operating instructions of the corresponding control unit for this.
to the electrical connection Powder feed
Tribo air
from the powder injector
at the control unit
from the control unit
pemt3_0003

Preparing the spray gun
80351709 - PEM-T3 03/2008
• Connect the spray gun to the Tribo current measuring or display module with the electrical
cable.
• Connect the powder hose to the spray gun and to the powder injector.
• Connect the hose for Tribo air to the spray gun and to the control unit.
2.3 Grounding
For safety reasons, the spray gun must be properly grounded. This occurs through the
electrical cable.
0203_ .doc
Good grounding of the workpiece is also necessary for optimum powder coating.
A poorly grounded workpiece causes:
• dangerous electric charging of the workpiece
• back-spray onto spray gun and user
• uneven coating
• very bad wrap around
Warning
Sparks between workpiece and conveyor hooks (hangers) can occur if hooks or
other hanger parts are not completely cleaned!
These sparks can cause heavy radio frequency interference.

Working with the spray guns
03/2008 0351709 - PEM-T3 9
3. Working with the spray guns
3.1 Start up the spray gun
• Switch on the control unit.
• Select the type of gun Manual and charging Tribo on the control unit.
• Refer to the operating instructions of the control unit for this.
Caution
To reduce wear, the total of feed air and dosage air must range between
3.5 - 6 Nm3/h!
The total of feed air, dosage air and Tribo air should not exceed a maximum of
7.5 Nm3/h!
• Hold the manual gun in the spray booth, press the trigger and set the powder volume and
the powder speed to a test piece by adjusting the volume of feed air and dosage air.
• Only open the Tribo air until a Tribo current reading of 3 µA is attained.
Caution
The Tribo air must be reduced or shut off if the Tribo current (charging current) exceeds
3.5 μA!
The charging current depends on the type of powder used and should ideally lie between
2.5 and 3.5 μA.
3.2 Switching off the spray gun
The spray gun is switched off in different ways, depending on the type of powder injector.
Hint
The spray gun should be blown through (flushed) and cleaned from powder deposits
with every interruption of work. In this way powder deposits and surges on switching
on again are to a great extent avoided.
0302_.doc
The flushing procedure can be set on the control unit if the spray gun is connected to an
EPG-D1 or a Control unit Bravo in conjunction with the PI-F1 powder injector. In this case the
spray gun is blown free of powder as soon as the trigger is released.
If the spray gun is operated with an EPG 2008 control unit and a PI-P1 powder injector,
proceed as follows:
• Release the trigger on the spray gun so that the powder feed and high voltage generator
are switched off.
• Set the knob for the overall air quantity on the control unit EPG 2008 to maximum. No more
powder will be delivered when switching on again.
• Press the trigger on the spray gun so that the spray gun is blown free of powder.
• Switch off the control unit and secure against inadvertent switch on.

Working with the spray guns
10 0351709 - PEM-T3 03/2008
3.3 Carrying out a change of color
All parts carrying powder in the entire coating system must be thoroughly cleaned of powder
deposits on a change of color. In the following, only the procedure for the spray gun is
described. Instructions on cleaning the other components can be found in the appropriate
operating instructions.
• Switch off the control unit and secure it against being switched on again.
1
2
4
5
3
Pemt3_0005
• If you do not use automatic flushing:
Release the trigger on the spray gun so
that the powder supply and high voltage
generation are switched off.
Pull the powder injector out of the
powder container’s injector connection
so that no powder can be delivered
during flushing.
Press the trigger on the spray gun so
that the spray gun is blown free of
powder.
Switch the control unit off and secure it
against being switched on
unintentionally.
• Pull off the deflector cone 1from the charging body 5.
• Unscrew the outer nut 2from the gun housing 3.
• Carefully draw the nozzle body 4out of the gun housing 3.
• Carefully extract the charging body 5.
Caution
Ensure in particular that none of the charging body’s components are damaged when
removing and replacing the wear parts!
• Clean the parts, which have been dismantled, and the spray gun from powder deposits.
• Carefully re-fit the charging body 5and the nozzle body 4in the gun housing 3and tighten
it up with the outer nut 2.
• Slide the deflector cone 1onto the charging body 5again.
The spray gun is again ready for operation.

Maintenance and cleaning
03/2008 0351709 - PEM-T3 11
4. Maintenance and cleaning
4.1 Replacing the spray gun
0401_ .doc
Before you commence the replacement of the spray gun any powder residue must be
removed thoroughly.
Caution
Repair or replacement of the spray gun or parts of the spray gun are only allowed to be
performed outside the hazard area and in a suitable place by specialist personnel!
The wearing parts in the spray gun, marked in the spare parts list with *, must be regularly
checked and, if necessary replaced.
0401_Pemt3_Ausbauen.doc
D
H
F
J
G
Pemt3_0004
• Switch off the control unit and/or high
voltage generator.
• Disconnect the electrical cable Hfrom
the control unit J.
• Disconnect the powder feed hose G
and Tribo air hose Ffrom the spray
gun D.
• Exchange the spray gun for a new one and assemble it in reverse order.

Maintenance and cleaning
12 0351709 - PEM-T3 03/2008
4.2 Cleaning the spray gun and replace the wear parts
Caution
Never place the spray gun or parts of it into any wet cleaning agent!
0402_Pemt3_Verschlaustausch.doc
Caution
While pulling out and replacing the wearing parts make sure that the parts of the
charging body are not damaged.
1
2
4
5
3
Pemt3_0005

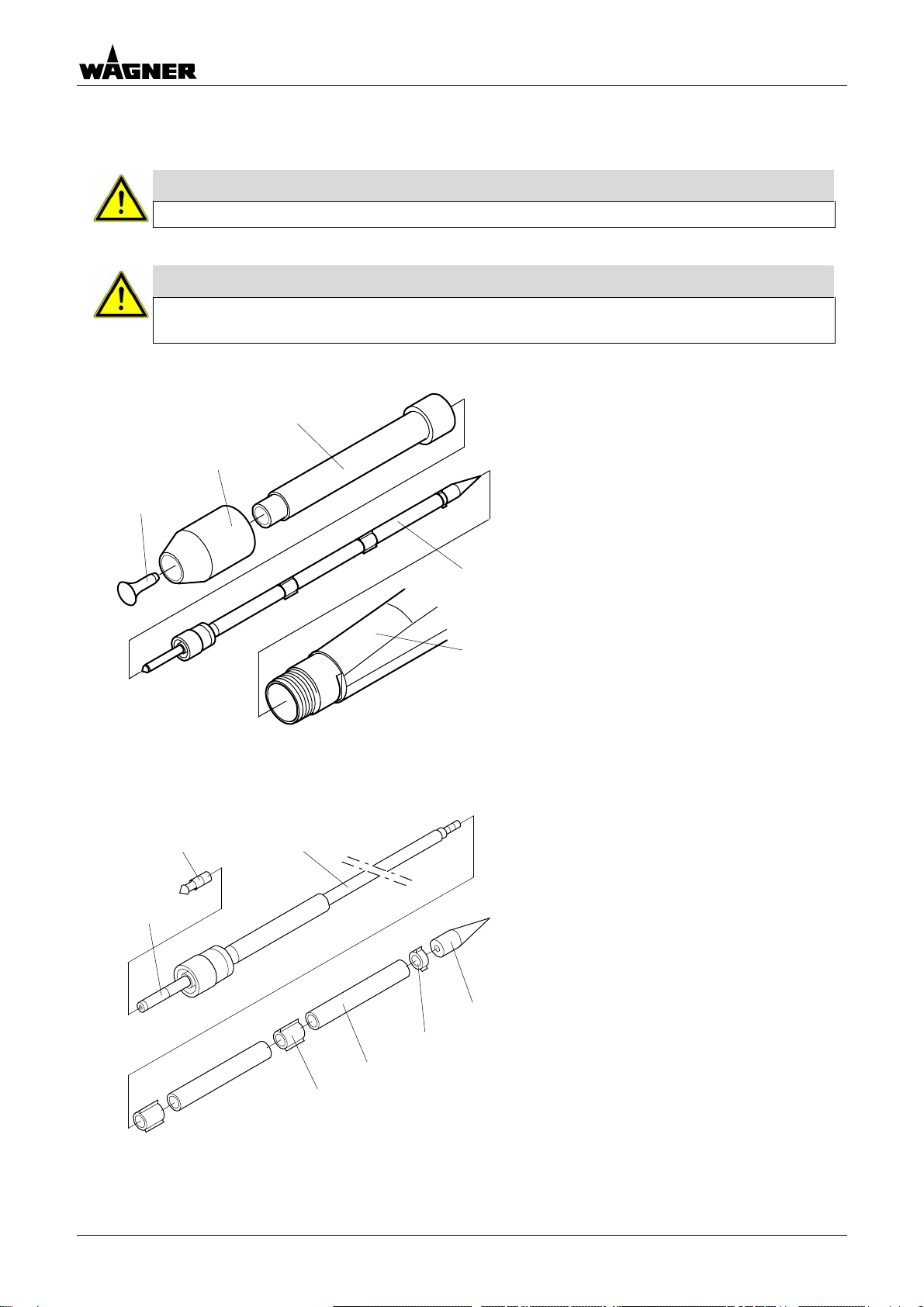

• Pull the deflector cone 1from the
charging body 5.
• Unscrew the outer nut 2from the gun
housing 3.
• Carefully pull out the nozzle body 4
from the gun housing 3.
• Carefully pull out the charging body 5.
• Check the removed parts for wear.
The entire charging body can be
replaced with a new one during this
procedure.
It is also possible to dismantle the charging body and merely replace the parts affected by
wear.
14
13
7
6
8
9
10 Pemt3_0006
• Carefully unscrew the tip 6from the
threaded bar 7and dismantle the
charging body.
• Unscrew the air nozzle 14 from the
deflector cone rod 13 if worn and
replace it with a new one.
• Complete clean residual powder from
all parts.
• Replace worn parts with new ones.
• Reassembly of the charging body.
• Carefully push the charging body back
into gun and reassemble the gun.

Maintenance and cleaning
03/2008 0351709 - PEM-T3 13

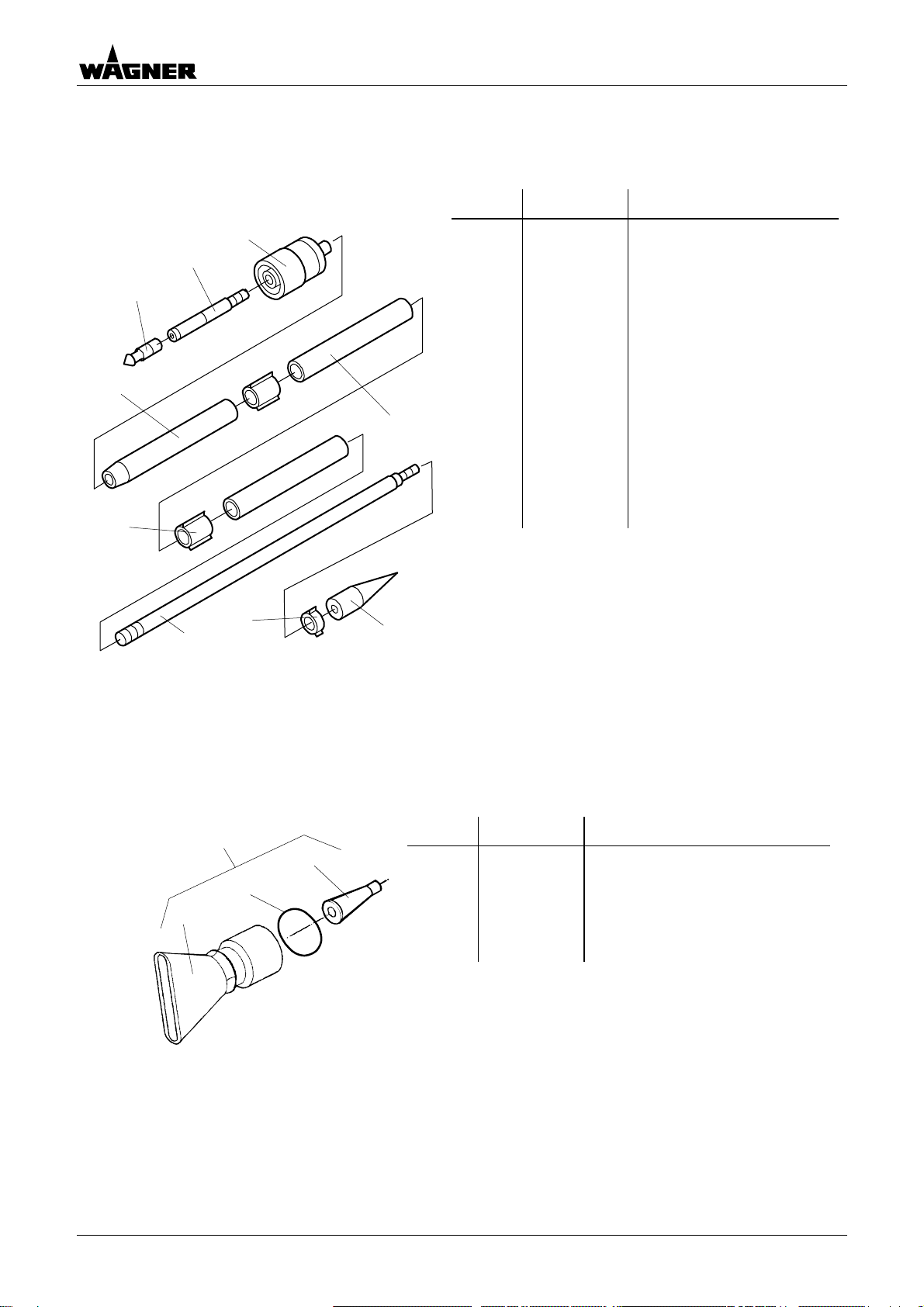

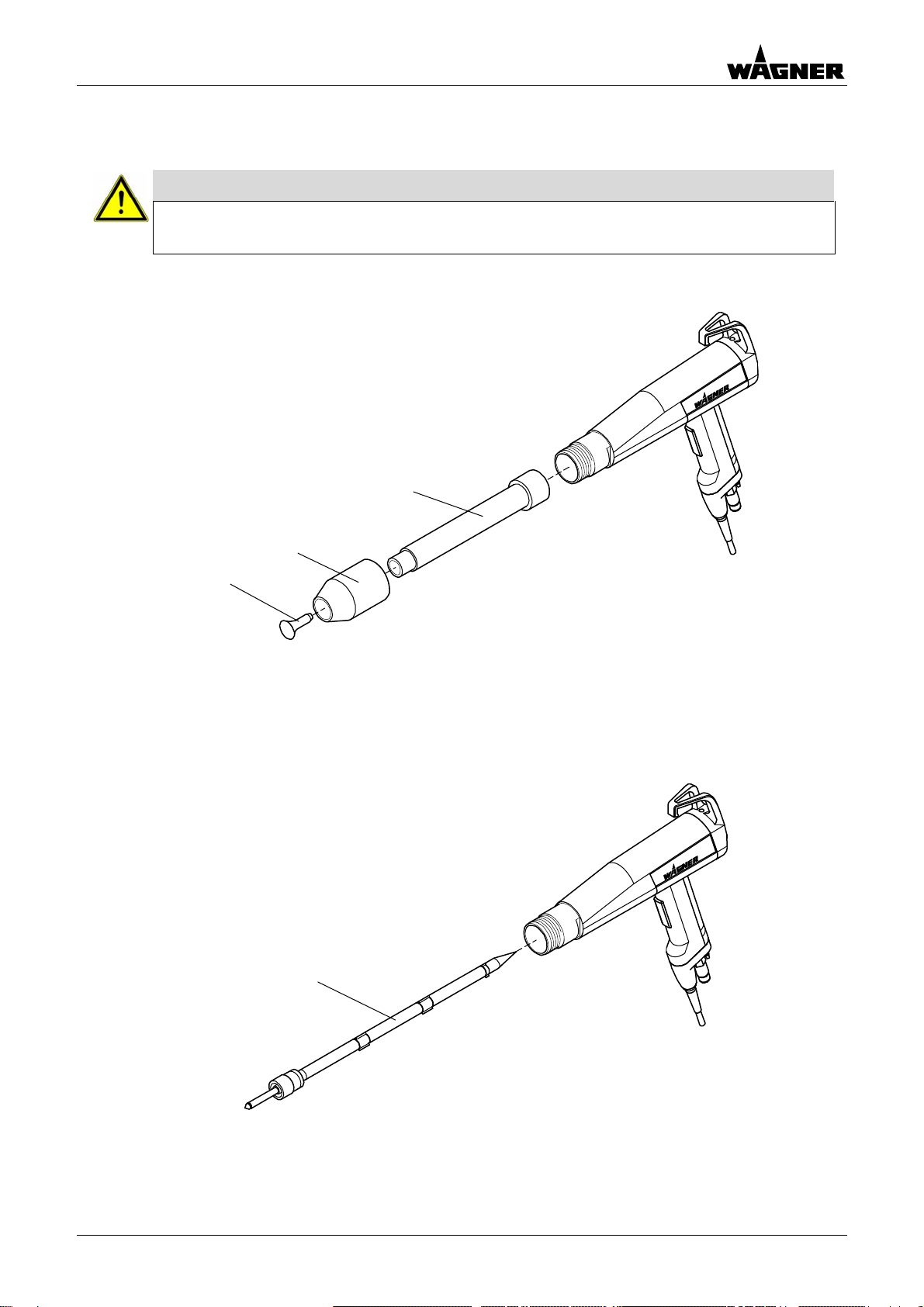

4.3 Mounting the gun extension
Caution
In order to install a gun extension, the spray gun must always be thoroughly clean!
It is even better to use a new spray gun.
1
2
3
P_00715
• Pull the deflector cone/fan spray nozzle 1 from the nozzle body 3.
• Unscrew the outer nut 2 from the gun housing.
• Pull the nozzle body 3 from the gun housing.
4
P_00716
• Pull out the charging body 4 from the gun housing.

Maintenance and cleaning
14 0351709 - PEM-T3 03/2008
5
2
P_00717
• Insert outer tube 5 into the gun housing and secure it with outer nut 2.
6
7
1
P_00718
• Insert charging body 6 into the outer tube 5 and push it in as far as it will go.
• Push adapter 7 onto outer tube 5 as far as it will go.
• Locate deflector cone / column nozzle 1 onto adapter 7.

Maintenance and cleaning
03/2008 0351709 - PEM-T3 15
4.4 Disposal
04_Entsorgung.doc
Only for EU countries
Do not dispose of electric tools together with household waste
material!
In observance of the European Directive 2002/96/EC on waste electrical
and electronic equipment and implementation in accordance with
national law, this product is not to be disposed of together with household
waste material but must be recycled in an environmentally friendly way!
Wagner or one of our dealers will take back your used Wagner waste electrical or electronic
equipment and will dispose of it for you in an environmentally friendly way. Please ask your
local Wagner service center or dealer for details or contact us direct.

Rectification of malfunctions
16 0351709 - PEM-T3 03/2008
5. Rectification of malfunctions
Malfunction Cause Rectification
No Tribo current
(e.g. no wraparound
or no powder adhe-
sion)
- Inadequate or no powder
charging
- Electrical cable from spray gun
to control unit faulty
- Tribo current measuring or
display module defective
- Powder-conveying parts in
spray gun worn
- Contact Wagner Service
-Replace worn parts
Poor wrap-around
Back-spray - Inadequate or no ground - See chapter
"Grounding"
Powder outlet
uneven or
inadequate
- Soiling
- Powder sintering or powder-
conveying parts in spray gun
worn
- Blow through parts carrying
powder
- Feed air / dosage air ratio
incorrect
- Wear on powder injector
nozzle
- Blow through parts carrying
powder
- Clean parts carrying powder
and replace if necessary
- See operating instructions for
the related devices connected
- Adjust at control unit
- Replace worn parts in the pow-
der injector 1.)
Spray pattern is
uneven - Parts of nozzle system worn - Replace worn parts
1.) You will find the wearing parts and spare parts in the operating instructions for the powder
injector.

Technical data
03/2008 0351709 - PEM-T3 17
6. Technical data
Adjusting
Weight: 500 g
06_Tribopistolendaten.doc
Electrical:
Design: as per EN 50177 and EN 50050
Protection class: IP 54
Pneumatic:
Input air pressure (Tribo air): max. 43.5 psi (3 bar)
Powder output quantity: max. 300 g/min
06_ .doc
Required compressed air quality:
Quality class Compressed air quality according to ISO 8573.1
5 Max. residual water:
(pressure dew point in °F at 100 psi
/ °C at 700 kPa) +44.6 °F / +7 °C
2 Max. oil contents: 0.1 mg oil/m3/ 0.1 oz/ft3
3 Max. concentration: 5 mg/m3/ 5 oz/ft3
3 Max. particle size: 5 μm / 5 microns
Ambient conditions:
If low temperature powders are used, the ambient temperature may have to be lower than
86 °F (30 °C).
Volume measures:
For volumes, specified in Nm3(standard cubic meters). One cubic meter of a gas at
32 °F (0 °C) and 1.013 bar is called norm cubic meter.
1 Nm3/h = 35.3 ft3/h; 1 bar = 14.504 psi

Warranty
18 0351709 - PEM-T3 03/2008
7. Warranty
08_ .doc
What is covered by this warranty?
Faulty or defective parts are replaced according to our general delivery conditions.
Within the applicable warrant period, Wagner will repair or replace, at our option, defective
parts without charge if such parts are returned with transportation charges prepaid to the
nearest authorized service center. If Wagner is unable to repair this product so as to conform
to this Limited Warranty after a reasonable number of attempts, Wagner will provide, at our
option, either a replacement for this product or a full refund of the purchase price of this
product.
These remedies are the sole and exclusive remedies available for breach of express and
implied warranties.
What is not covered by this warranty?
This warranty does not cover any of the following damages or defects:
1. Damages or defects caused by use or installation of repair or replacement parts or
accessories not manufactured by Wagner,
2. Damages or defects caused by repair performed by anyone other than a Wagner
authorized service center, or
3. Damages or defects caused by or related to abrasion, corrosion, abuse, misuse,
negligence, accident, normal wear, faulty installation or tampering in a manner which
impairs normal operation.
Limitation of remedies:
IN NO CASE SHALL WAGNER BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OR LOSS, INCLUDING TRANSPORTATION COSTS,
WHETHER SUCH DAMAGES ARE BASED UPON A BREACH OF EXPRESS OR IMPLIED
WARRANTIES, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER
LEGAL THEORY.
Disclaimer of implied warranties:
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No ability to transfer:
This warranty is extended to the original purchaser only and is not transferable.
Your rights under state law:
Some states do not allow limitations on how long an implied warranty lasts or the exclusion of
incidental or consequential damages, so the above limitation and exclusion may not apply to
you. This warranty gives you specific legal rights; you may also be entitled to other rights,
which vary from state to state.

Scope of delivery and spare parts lists
03/2008 0351709 - PEM-T3 19
8. Scope of delivery and spare parts lists
8.1 How to order
0901_ .doc
Faulty and unserviceable parts are replaced in accordance with our General Terms and
Conditions of Delivery.
In order to be able to guarantee safe and smooth spare parts delivery, the following informa-
tion is necessary:
- Invoicing address
- Delivery address
- Name of contact persons for check back
- Type of delivery
- Quantity ordered, article number and designation
8.2 Scope of delivery and spare parts list of PEM-T3

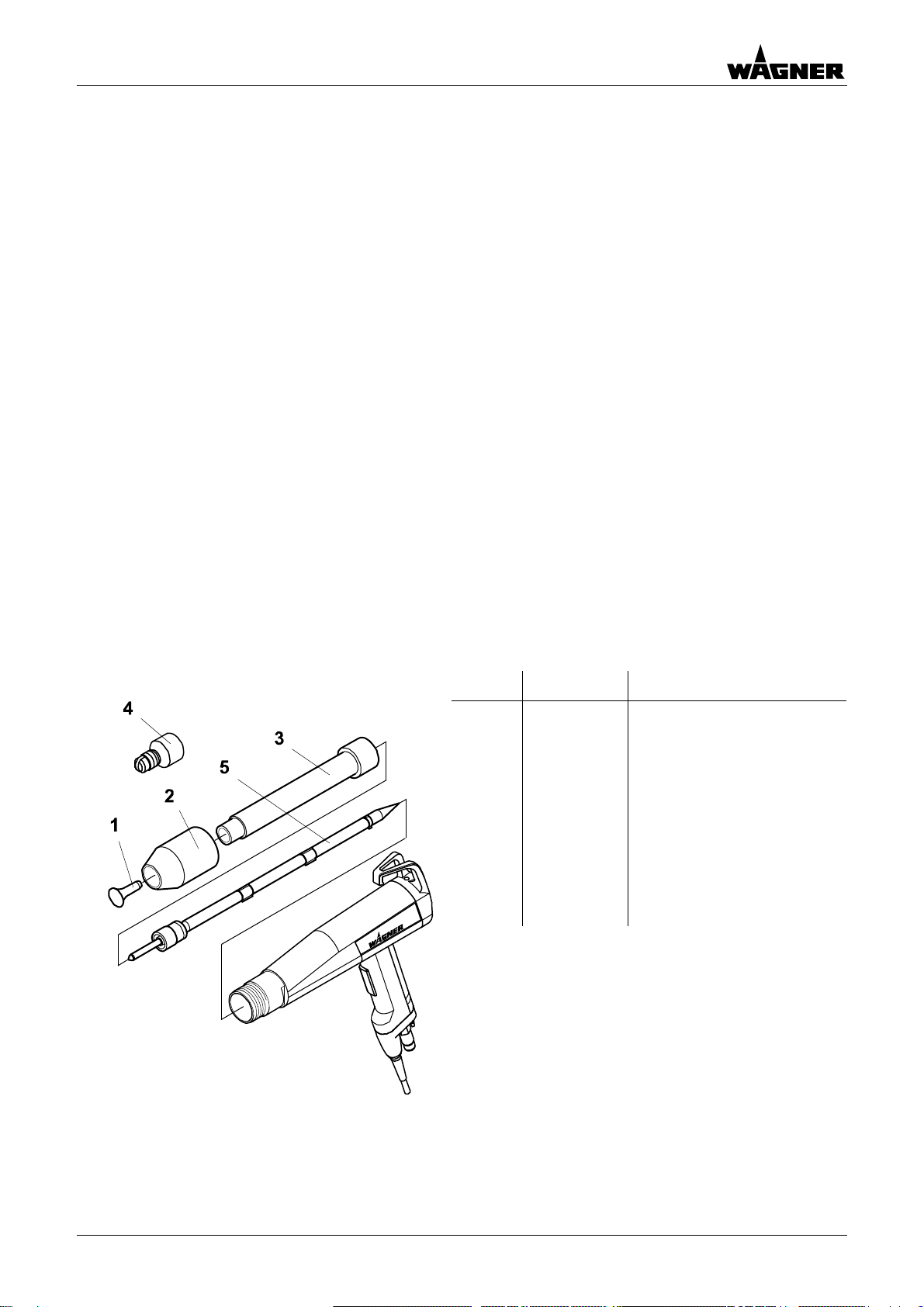

Item Art. No. Designation
- - 0351019 Tribo manual gun
PEM-T3
1 0259474 * Deflector cone (∅22)
1 0259475 * Deflector cone (∅28) ***
2 0351654 Outer nut Tribo ET
3 0351581 Nozzle body
4 0260928 * Fan spray nozzle **
5 0260629 * Charging body (complete)
0351019
0351019_et
* Wearing part
** Only available as a set
*** Special accessory

Scope of delivery and spare parts lists
20 0351709 - PEM-T3 03/2008
8.3 Charging body (complete)
Item Art. No. Designation
- - 0260629 Charging body
(complete)
6 0260472 * Tip
7 0260473 Threaded bar
8 0260474 * Ring
9 0260471 * Charging tube
10 0260476 * Support ring
11 0260470 * Rod
12 0260463 * Central air supply
13 0260469 * Deflector cone rod
14 0260632 * Air nozzle (complete)
0260629
14
13 12
11
8
7
9
10
6
0260629_et
* Wearing part
8.4 Wide fan spray nozzle
Item Art. No. Designation
1 0260926 * Wide fan spray nozzle **
2 0260280 * Wide fan spray nozzle
3 9971037 * O-ring 22x1,5
4 0260627 * Deflector cone ∅13
34
2
1
0260926_et
* Wearing part
** Only available as a set
