Renuvo
Quick-Start Guide
Put together the connection
tube
Set the ow rate of the material
Ax the application pad for
either outdoor use (including
brush for grooves) or indoor use
Press the trigger, to convey the
material
Fill container (max. 1.9 l)
Move Renuvo evenly back and
forward
1
4 5
3
6
2
Contents
1. Description/ Scope of delivery .................................................11
2. Technical Data .................................................................11
3. Field of application ............................................................11
4. Pretreatment of the surface ....................................................12
5. Preparing the material .........................................................12
6. Assembly......................................................................12
7. Start-up .......................................................................13
8. Adjusting the Material Volume .................................................13
9. Working with Renuvo ..........................................................14
10. Cleaning .....................................................................15
11. Correction of Malfunctions....................................................17
12. Spare Parts ...................................................................18

GB
11
Renuvo
MANY THANKS FOR PLACING YOUR TRUST IN US
We would like to congratulate you on purchasing this brand product from Wagner;
we are sure that you will enjoy working with it greatly.
Please read the Operating Manual carefully and observe the safety information
before starting the device. Store the Operating Manual in a safe place close to the
product in case it needs to be used by someone else.
We would be happy to be of assistance if you have any questions, suggestions or requests.
Please contact us via the phone number included on the back page or via our homepage,
www.wagner-group.com/service.
1. Description/ Scope of delivery
Brush
for grooves (yellow)
Outdoor application
pad
Application
pad holder
Application pad
quick release fastener
Connection tube
(upper part)
Detachable container
Container quick
release fastener
Connection tube
(lower part)
Indoor
application pa
d
M
ini corner pad
(black)
2. Technical Data
Technical Data
Filling quantity of container 1.9 l
Height approx. 130 cm
Application pad dimensions approx. 18 x 14 cm
Performance with tank lling up to 19 m²
3. Field of application
The system is for processing water-based and solvent-based wood preservatives, paints, oils
and materials suitable for oor maintenance. Flammable materials marked by a ame
icon ( ) may not be used. Applications other than those described in the operating
manual are not permitted.

GB
12
Renuvo
4. Pretreatment of the surface
•
Clean the surface thoroughly (if outdoors, with a high-pressure cleaner, for example)
and allow it to dry before you begin.
•
Remove any cracked and blistered old coats of paint that no longer oer a sound base.
•
Sand down sound surfaces as well (e.g. scouring pad).
i
If you are working on a raised terrace, the material might drip down to the
ground (e.g. through gaps between the boards). Cover any surfaces or objects
that are underneath.
5. Preparing the material
•
Observe all information provided by the manufacturer of the material.
•
Note down the most important information about the material you are using (e.g. brand
and colour tone) so that you can use the same material for future work.
6. Assembly
i
Regardless of how your Renuvo
was packaged, some of the
assembly steps described
below can be necessary.
•
Hold the lower connection tube (g. 1, c)
vertically and remove the adhesive strips
that seal the tube.
i
You will nd a rod inside the
lower connection tube (d). If it
falls out, put it back inside the
tube with the wide side at the
bottom.
i
The holes on the side of the
lower connection tube vary in
size.Turn the upper connection
tube so that the pins match the
respective holes.
•
Press down the pins (g. 1, a) and push
the upper connection tube (b) into the
lower connection tube (c).
•
Make sure that the pins click audibly into
place.
c
a
b
a
d

GB
13
Renuvo
•
Keep the red quick release fastener (g. 2, a)
depressed and insert the application pad into the
holder. Release the quick release fastener and pull
lightly on the application pad to check that it is
engaged in place.
7. Start-up
iIf necessary cover oors and furniture
in the immediate vicinity to where
you are working to protect against
splashing.
•
If you are coating a smooth surface without grooves
outside, pull the groove brush out of the outdoor
application pad, turn it round and attach it. (Fig. 3)
•
Place the device on to a piece of masking material
with the container opening upwards. (Fig. 4)
Unscrew the lid on the container. Fill the container
to a maximum of 1.9 l. Screw the lid back on tight.
8. Adjusting the Material Volume
Material ow limiter (g. 5):
•
Push the limiter up to reduce the material ow
(recommended for thin materials).
•
Push the limiter down to increase the material ow
(recommended for thick materials).
Trigger:
•
Press the trigger to have the material ow into
the application pad. (Fig. 6, a)
•
Release the trigger to interrupt the material ow.
(Fig. 6, b)



a

b
a


GB
14
Renuvo
9. Working with Renuvo
General
•
Press the trigger to have the material ow into the application pad.
•
Place the application pad at on the ground and move it backwards and forwards by
applying only slight pressure so that the material is spread evenly.
•
Always end a stroke with a forwards movement to avoid stripes.
•
Press the trigger if you need more material. But make sure that the application pad does
not become soaked in the material.
•
For best results, the application pad should be evenly supplied with the material, so that
the pad is not too wet, but also not too dry.
iYou might have to apply a second layer to attain the required surface quality.
•
Always complete a stroke before taking a break.This will avoid any noticeable dierences
in structure.
•
If taking a longer break, put the application pad in a plastic bag in order to prevent it
from drying out.
i
The application pad functions similarly to a sponge. Benet from this just before
nishing your work by using up the material in the application pad.
Outdoors
•
Adjust the marking (g. 7, b) on the top of the
application pad to the groove (a) in the wood oor.
This ensures that the inside of the groove will also
be coated by the groove brush.
•
Always begin on the left side of the surface when
you are using the application pad with the groove
brush.
Indoors
•
Apply a test coat to a concealed area (e.g. corner
of the room).
•
Wipe away any excess oil after about 15 minutes
with a cotton cloth.
•
Use the detachable mini corner pad (g. 8, c) to
distribute the material evenly on corners and edges.
a
b

c

GB
15
Renuvo
10. Cleaning
Use a cleaning agent suitable for the material (observe
any information provided by the manufacturer of
the material). If using solvent-based materials,
use turpentine substitute or a similar material
for cleaning. Flammable materials marked by a
ame icon ( ) may not be used. Do not immerse
the application pad or components in cleaning
agents, but rinse them instead.
i
When using water-based materials, we
recommend cleaning with warm water and
detergent.
•

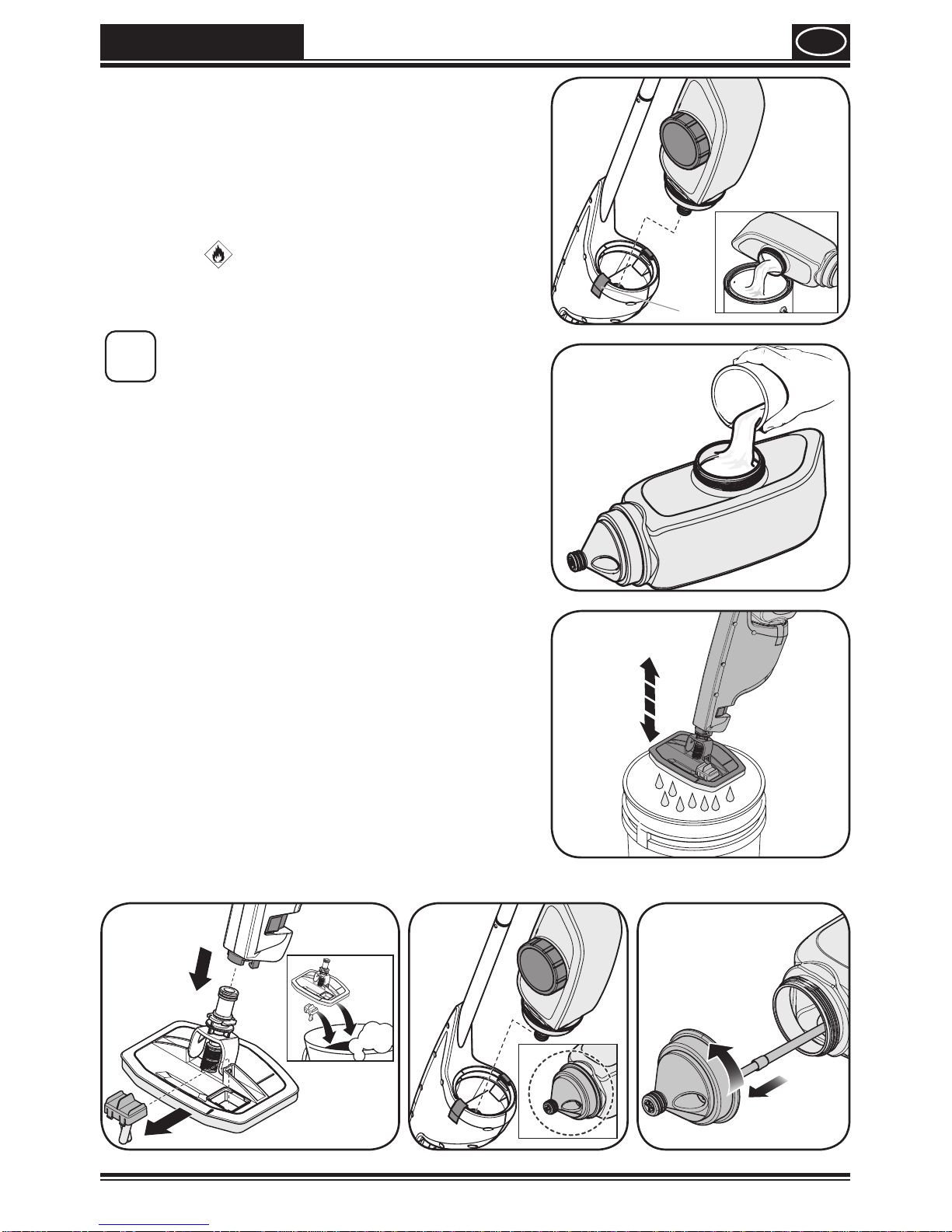

Press the red quick release fastener (g. 9, a) to
detach the container. Unscrew the lid and pour any
leftover material into the original container.
•
Fill the container with a suitable cleaning agent.
(Fig. 10)
•
Re-insert the container.
Make sure that it engages audibly.
•
Hold Renuvo over an empty bucket.
•
Keep the trigger depressed and move the device
gently to and fro until the container is empty. (Fig.
11)
Slight movements cause any leftover material to
be easily removed from the Renuvo.
•
Remove the application pad and groove brush
and clean all parts thoroughly. (Fig. 12)
•
Remove the container and rinse it thoroughly.
(Fig. 13) Pay special attention to the area around
the valve when cleaning. (Fig. 13, a)
•
Unscrew the cap on the container. (Fig. 14)
a



 
a


GB
16
Renuvo
•
Pull out the tube (g. 15, a) and rinse it well (you
do not have to take the tube apart to do this).
•
Using a soft brush and detergent, wipe away and
remains of the material from the valve (g. 16, b).
Important: Do not remove the valve for cleaning.
If the valve is incorrectly re-attached, the material
cannot ow out of the container.
•
Allow the cleaning agent to ow through the
valve, pressing the cross-shaped valve button (g.
17, c).
•
Put the black tube back on the valve (g. 18).
•
Wipe the inside of the container cap with a cloth.
•
Screw the container cap back on the container,
tightening it by hand. (Fig. 19).
•
Lubricate the O rings with a thin layer of
lubricant. (Fig. 20)
iAllow the container to dry completely
before storing it away.
•
Re-insert the container.
a

b

c



GB
17
Renuvo
11. Correction of Malfunctions
Problem Cause Remedy
A. Not enough
material is
coming out
•
The material limiter is set to the
upper position
•
Container empty
•
Trigger is not pressed very often.
•
Container not inserted properly
•
Remains of material around the
container valve
•
Container valve blocked
•
Material too thick
➞Push the limiter down
➞Rell container
➞Press the trigger more
frequently/for longer periods
➞Insert properly
➞Clean (see g. 13, a)
➞Clean (see g. 16 and 17)
➞Dilute according to
manufacturer's instructions
B. Too much
material is
coming out
•
Material limiter is set to the lower
position
•
Trigger is pressed too frequently.
➞Push the limiter up
➞Press trigger less frequently/
for shorter periods
C. No material
comes out
at all
•
Tube loose in container or
blocked
•
Not enough material in the
container
➞Secure tube or clean (see g.
15)
➞Rell container
D. Application
of material
does not
cover surface
(stripy)
•
Not enough material on the
application pad
•
Application pad and/or groove
brush damaged
➞See solutions suggested in
section A
➞Replace
E. Renuvo leaks • Container not inserted properly
•
Application pad not mounted
correctly
•
Remains of material around the
container valve
➞Insert properly
➞Mount application pad
securely
➞Clean (see g. 13, a)

GB
18
Renuvo
12. Spare Parts

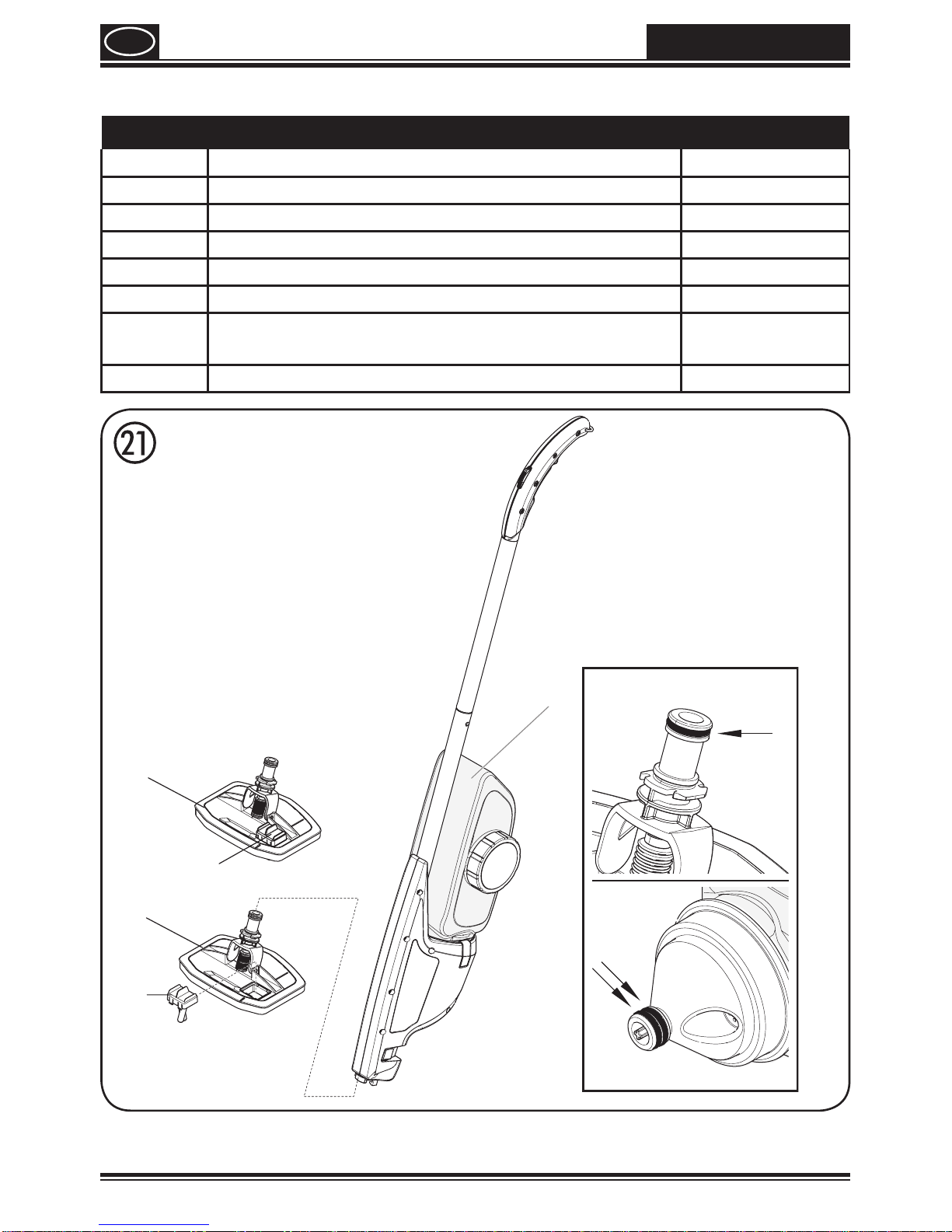

Spare Parts List (g. 21)
Pos. Designation Order No.
1 Container 2348 333
2 Outdoor application pad (incl pos. 3) 2348 334
3 Brush for grooves 2348 580
4 Indoor application pad (incl pos. 5) 2348 335
5 Mini corner pad 2350 229
6 O ring set (one O ring for the application pad and two
O rings for the container)
2348 329
Lubricating grease (no g.) 2315 539
16
2
3
4
5

GB
19
Renuvo
Important Note regarding Product Liability!
Using other accessories and spare parts can lead to partial or total loss of liability and
guarantee claims. With original WAGNER accessories and spare parts, you have the
guarantee that all safety regulations are fullled.
2 years guarantee
The guarantee runs for two years, counting from the date of sale (sales slip). It covers
and is restricted to free-of-charge rectication of faults which are demonstrably
attributable to the use of faulty materials in manufacture, or assembly errors; or free-
of-charge replacement of the defective parts. The guarantee does not cover incorrect
use or commissioning or tting or repair work which is not stated in our operating
instructions. Wearing parts are also excluded from the guarantee. The guarantee
excludes commercial use. We expressly reserve the right to full the guarantee. The
guarantee expires if the tool is opened up by persons other than WAGNER service
personnel. Transport damage, maintenance work and loss and damage due to faulty
maintenance work are not covered by the guarantee. Under any guarantee claim,
there must be proof of purchase of the tool through submission of the original receipt.
Wherever legally possible, we exclude all liability for injury, damage or consequential
loss, especially if the tool has been used for a purpose other than that stated in the
operating instructions, commissioned or repaired other than in accordance with our
operating instructions or if repairs are performed by someone who is unqualied.
We reserve the right to perform any repairs in excess of those stated in our operating
instructions. In case of guarantee or repair, please refer to your point of sale.
