WAGO 767-4803/000-800 User manual

Pos:2/Dokumentationallgemein/Einband/EinbandHandbuch- F ro nts ei t e 2015 - mit DocV ari abl e n (Sta nd ar d)@ 9\mod_1285229289866_0.docx@ 64941 @ @ 1
WAGO-SPEEDWAY 767
Manual
767-4803/000-800
8DO 24V DC 2.0A IF (8xM8)
Digital Output Module 24 V DC / 2.0 A
Version 1.1.0
Pos: 3 / All e S eri e n ( All ge mei n e M od ul e) /Hi nw eis e z ur Dok um ent ati o n/I mpr es su m für St a ndar dh an d büc her - allg . Anga ben, Ansc hrifte n, Telef onnu mmern un d E-Mail-A dr es se n @ 3\mod_1219151118203_21.docx@ 21060 @ @ 1

2 WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
© 2016 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]om
Web: http://www.wago.com
Technical Support
Phone: [phone] – 5 55
Fax: [phone] – 85 55
E-Mail: [email protected]om
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
E-Mail: [e-mail]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
=== Ende d er Lis t e f ür Te xt mar ke Ei nb and _ vor n e = = =

WAGO-SPEEDWAY 767 Table of Contents 3
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 5 /D o ku ment ati on allg e mei n /Ver zei c hni ss e/I nh alt s verz ei ch nis - Ü b er schr if t oG und Ver zei ch nis @ 3\mod_1219151230875_21.docx@21063 @ @ 1
Table of Contents
1Notes about this Documentation................................................................. 6
1.1 Validity of these Operating Instructions ................................................... 6
1.2 Copyright................................................................................................... 6
1.3 Symbols..................................................................................................... 7
1.4 Number Notation....................................................................................... 9
1.5 Font Conventions ...................................................................................... 9
2Important Notes ......................................................................................... 10
2.1 Legal Bases ............................................................................................. 10
2.1.1 Subject to Changes ............................................................................. 10
2.1.2 Personnel Qualification ...................................................................... 10
2.1.3 Use in Compliance with Underlying Provisions ................................ 11
2.1.4 Technical Condition of Specified Devices ......................................... 11
2.2 Safety Advice (Precautions).................................................................... 12
2.3 Safety Equipment .................................................................................... 13
2.4 Notes on Operation ................................................................................. 14
3Device Description ..................................................................................... 15

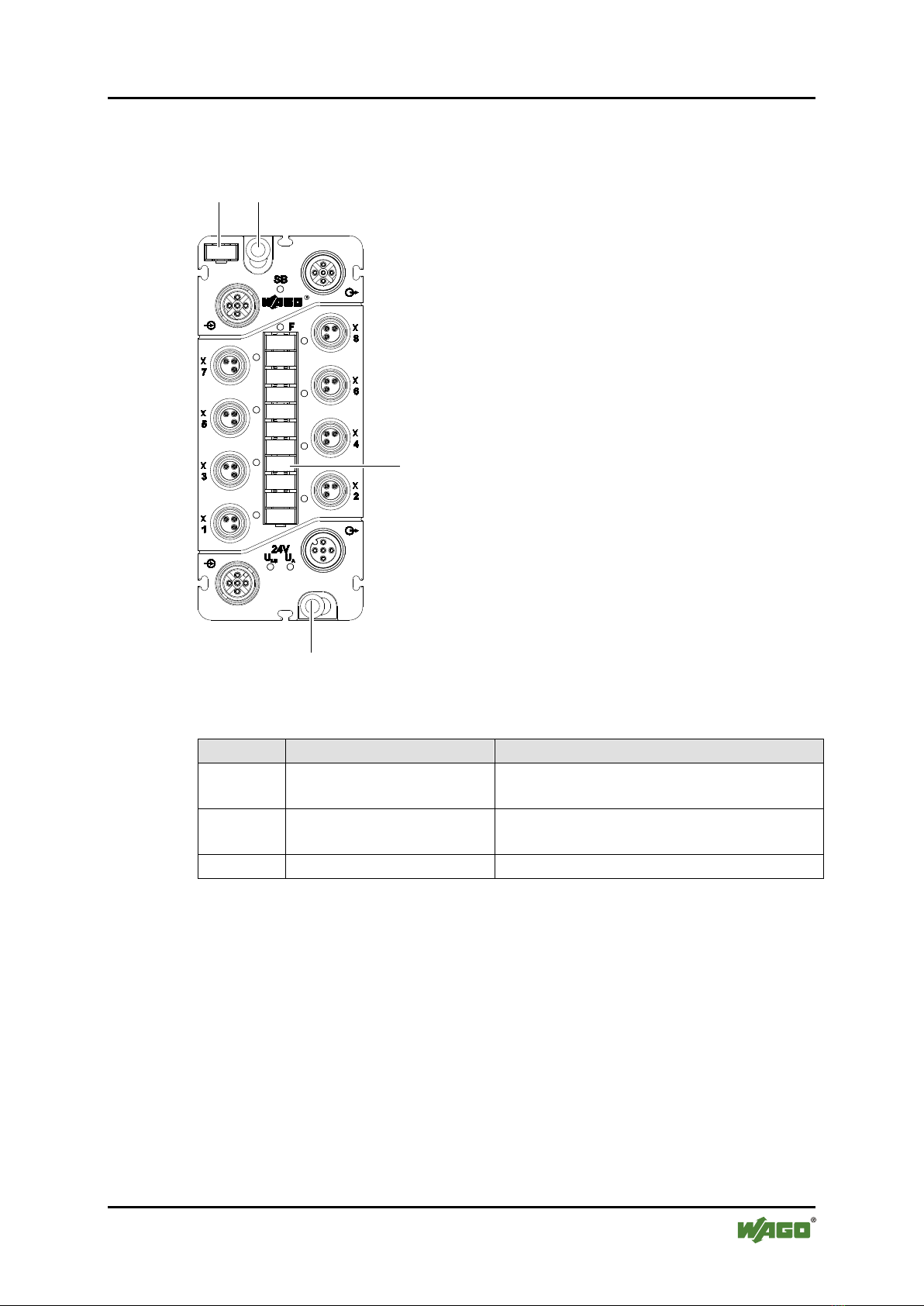

3.1 Connectors............................................................................................... 16
3.2 Marking Possibilities and Fastening ....................................................... 17

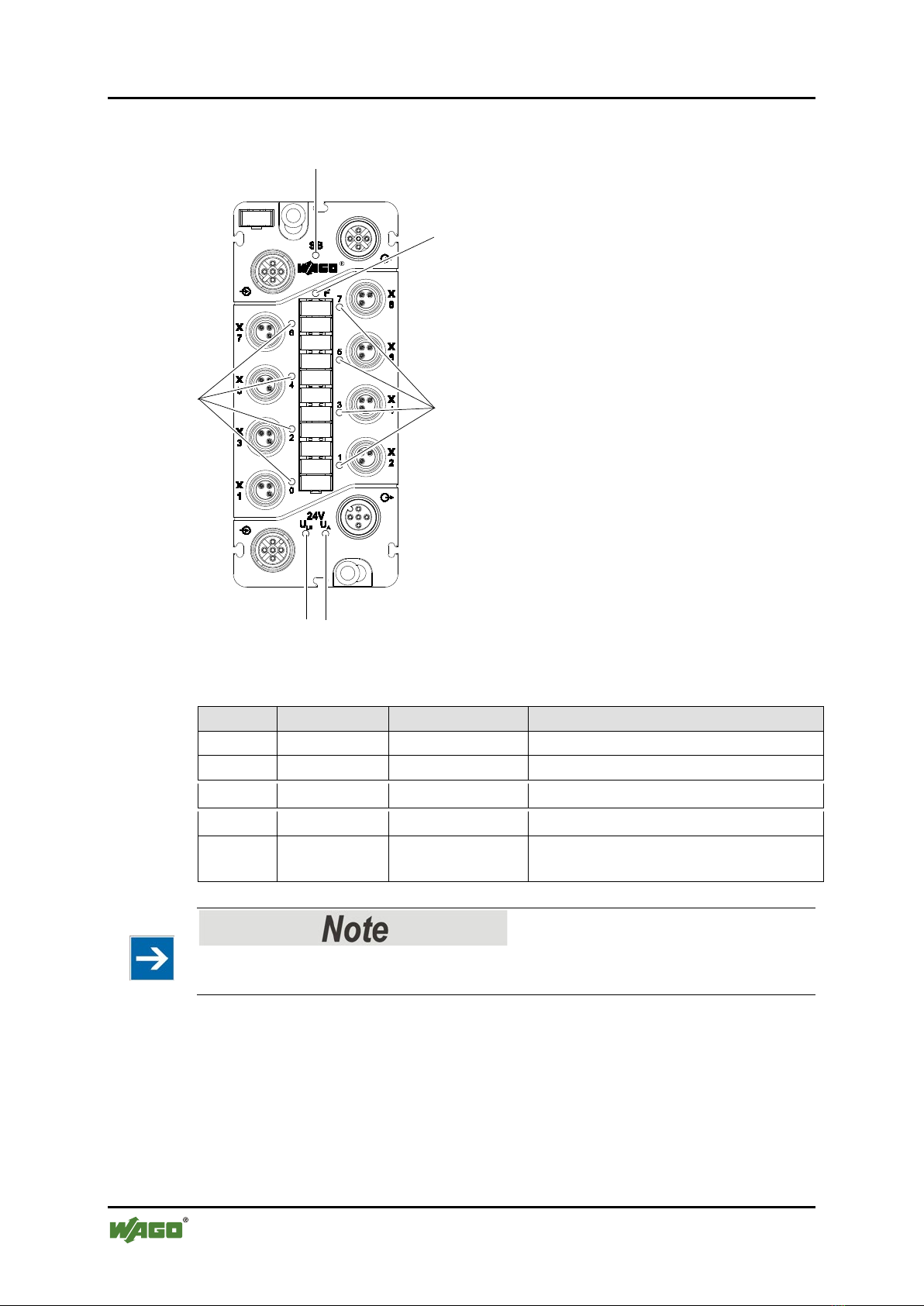

3.3 Display Elements .................................................................................... 18

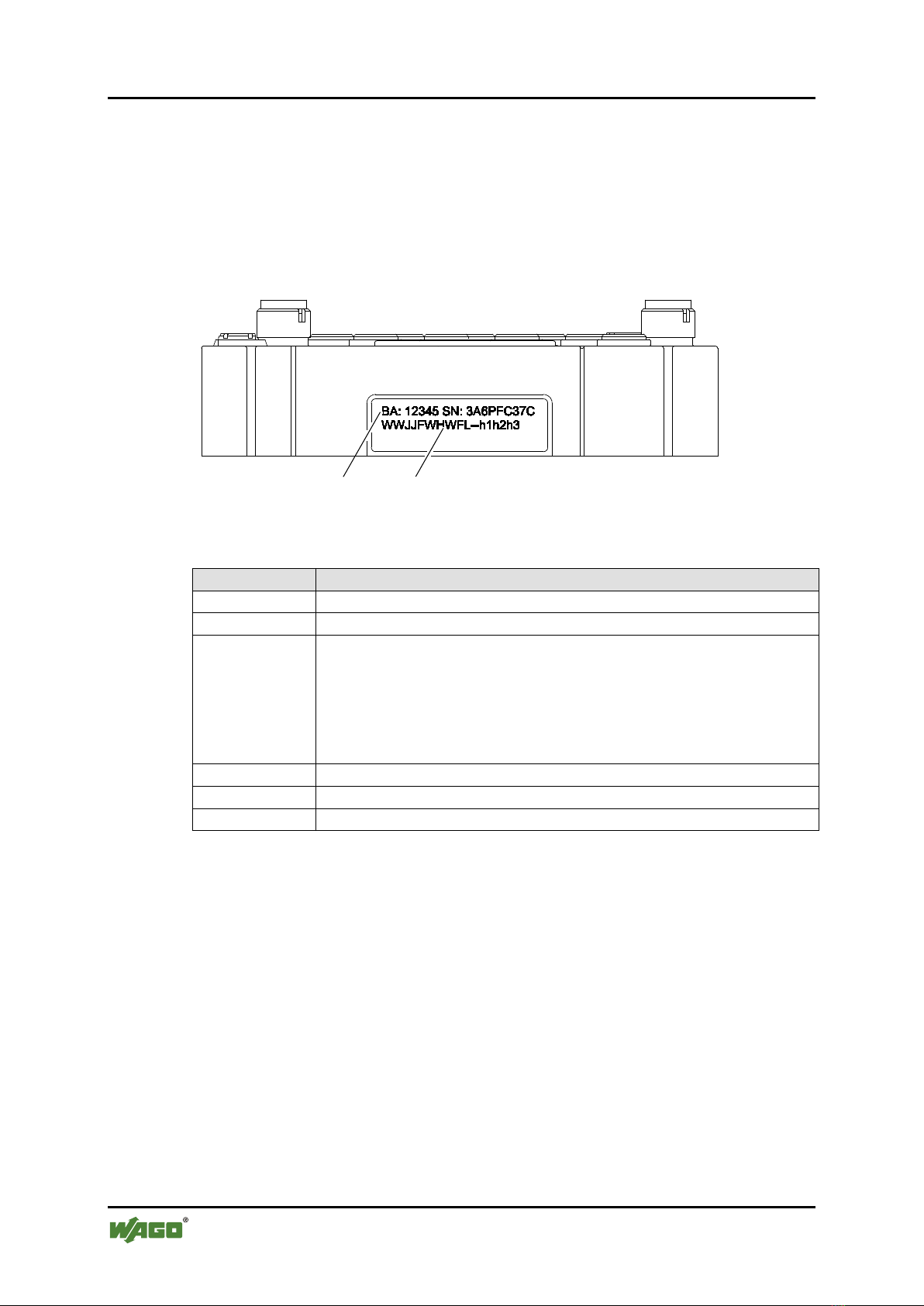

3.4 Labeling................................................................................................... 19
3.5 Schematic Diagram ................................................................................. 21
3.6 Dimensions.............................................................................................. 22
3.7 Technical Data ........................................................................................ 23
3.7.1 General Information ........................................................................... 23
3.7.2 Supply................................................................................................. 23
3.7.3 Communication .................................................................................. 23
3.7.4 Outputs ............................................................................................... 24
3.7.5 Information on Selecting the Actuator ............................................... 25
3.7.6 Influence of Operating States on Output ............................................ 25
3.7.7 Configurable Functions ...................................................................... 26
3.7.8 Diagnostics ......................................................................................... 26
3.7.9 Process Image..................................................................................... 26
3.7.10 Display Elements................................................................................ 26
3.7.11 Isolation .............................................................................................. 26
3.8 Approvals ................................................................................................ 27
3.9 Standards and Guidelines ........................................................................ 28
4Mounting..................................................................................................... 29
4.1 Information on Mounting........................................................................ 29
4.2 Tools and Accessories Required for Mounting....................................... 31
4.3 Direct Mounting on Your System ........................................................... 32
4.4 Mounting on a Carrier Rail (only with WAGO Accessories)................. 33
4.4.1 Fastening the Carrier Rail Adapter to the Module ............................. 33
4.4.2 Fastening the Module with Carrier Rail Adapter to a Carrier Rail .... 34
4.5 Mounting on a Profile Rail (only with WAGO Accessories) ................. 35
4.5.1 Fastening the Profile Adapter to the Module ..................................... 35

4 Table of Contents WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
4.5.2 Fastening the Module with Profile Adapter to a Profile Rail............. 36
4.6 Marking and Replacing the Marking Spaces .......................................... 37
4.7 Mounting the Spacer in the Case of Compact Arrangement................... 38
5Connecting Data and Supply Cables........................................................ 40
5.1 Notes ....................................................................................................... 40
5.2 Required Accessories .............................................................................. 41
5.3 Connecting the S-BUS Cables ................................................................ 42
5.4 Connecting the Supply Cable.................................................................. 44
5.5 Connecting the Actuator Cable ............................................................... 46
6Commissioning ........................................................................................... 48
7Parameterizing ........................................................................................... 49
7.1 Electronic Type Label ............................................................................. 51
7.2 Diagnostic Overview............................................................................... 52
7.3 Parameters of Outputs ............................................................................. 54
7.4 Global Settings ........................................................................................ 56
7.5 Automatic Storage of System Parameters............................................... 57
7.6 Updating the Firmware ........................................................................... 57
8Process Image ............................................................................................. 58
8.1 Output Data ............................................................................................. 59
8.2 Input Data................................................................................................ 61
9Diagnostics.................................................................................................. 63
9.1 LED Signaling......................................................................................... 63
10 Service ......................................................................................................... 66
10.1 Updating the Firmware ........................................................................... 66
10.2 Replacing the Module ............................................................................. 66
10.2.1 Disconnecting the Cables ................................................................... 66
10.2.2 Removing the Module from Your System ......................................... 67
10.2.3 Removing the Module from the Carrier Rail ..................................... 67
10.2.4 Removing the Module from the Profile Adapter................................ 68
10.2.5 Connecting the Module ...................................................................... 68
10.3 Disposal................................................................................................... 68
11 Use of the Interference-Free Module in Safety Applications................. 69
11.1 Important Notes....................................................................................... 69
11.2 General Measures and Conditions for the Power Supply
Solution of the Module............................................................................ 70
11.3 Measures and Conditions for Shielded Power Supply
of the Module .......................................................................................... 72
11.4 Measures and Conditions for Unshielded Power Supply
of the Module .......................................................................................... 73
11.5 Connection of the Module to Safety Switching Devices ........................ 74
11.5.1 General Structure of a Potential Group .............................................. 74
11.5.2 Examples of Connection.................................................................... 75
12 Appendix..................................................................................................... 76
12.1 Diagnostic Information ........................................................................... 76
List of Figures ...................................................................................................... 77

WAGO-SPEEDWAY 767 Table of Contents 5
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
List of Tables........................................................................................................ 78
=== En de der Lis te für T extmar ke Verz eich nis_vor ne == =

6 Notes about this Documentation WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 7 /A lle Ser ie n (Al lg em ein e M od ul e)/Ü ber sc hri ft en f ür all e S erie n/H i nweis e zur D o ku ment ati on /Hi nw eise zu dies er D o kum ent atio n - Ü b ers chr if t 1 @ 4\mod_1237987661750_21.docx@ 29029 @ 1@ 1
1 Notes about this Documentation
Pos: 8 /Ser i e 76 7 (WA GO-SPEEDWAY)/Hinweise zurDokumentation/Hinw eis e z ur D oku me nt atio n I/O-M odul e 7 67-xxxx @ 5\mod_1248172015859_21.docx@ 38666@ @ 1
The module shall only be installed and operated in conjunction with these
operating instructions and the system description.
Pos: 9 /Ser i e 76 7 ( WA GO-SP EED W AY) /Wic hti ge Erl äu ter ung en/ Sic her hei ts hi nweis e/ War n ung /War nu ng : R ele as e N ot es beac hten @ 8\mod_1278912368761_21.docx@ 59530@ @ 1
Observe release notes!
Please note that, within the SPEEDWAY system, a function is provided without
restriction only if all system's components have the same system-wide firmware
release. Therefore, always observe the appropriate release notes on products used.
Pos: 10 /S er ie 76 7 ( WA GO -S PE ED W AY) / Wic hti g e E rl ä ut eru ng e n/ Sic her h eit s hin w eis e/ A ch tu ng / Ach tu ng : V ers or g u ngs a usl eg ung @ 8\mod_1278912433448_21.docx@ 59533@ @ 1
Supply layout!
In addition to these operating instructions, you will need the “WAGO
SPEEDWAY 767, System Description and Information” manual, which can be
downloaded at www.wago.com. There you will find information regarding supply
layout, etc.
Pos: 11 /A ll e Ser i en ( All ge mei ne M od ule) /Hi n weis e z ur D okumentation/Hinweise/Hinweis:Dokumentation aufbewahren@ 4\mod_1237987339812_21.docx@ 29026@ @ 1
Always retain this documentation!
This documentation is part of the product. Therefore, retain the documentation
during the entire service life of the product. Pass on the documentation to any
subsequent user. In addition, ensure that any supplement to this documentation is
included, if necessary.
Pos: 12 /S er ie 76 7 ( WA GO -SPEEDWAY)/Hinweisez urDokumentation/Gültigkeit DokumentationI/O-Modul 767-xxxx@ 5\mod_1248172494859_21.docx@ 38679 @ 2 @ 1
1.1 Validity of these Operating Instructions
These operating instructions are only applicable to the WAGO SPEEDWAY 767
Series module 8DO 24V DC 2.0A IF (8xM8), 767-4803/000-800.
Pos: 13.1 /All e Seri en ( Al lg emei ne M o dul e)/H i nweis e zur D o ku ment ati on /Ur heb ers c hutz aus führ li ch @ 4\mod_1235565145234_21.docx@ 27691@ 2 @ 1
1.2 Copyright
This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.
Pos:13.2/Dokumentationallgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx@ 21810@ @ 1

WAGO-SPEEDWAY 767 Notes about this Documentation 7
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 13.3 /All e Seri en ( Al lg emei ne M o dul e)/Ü ber sc hri fte n f ür all e S eri en/ Hin wei s e z ur D ok um enta ti on/ S ymbol e - Ü ber sc hr ift 2 @ 13\mod_1351068042408_21.docx@ 105270@ 2@ 1
1.3 Symbols
Pos: 13.4 .1 /All e Serie n ( Al l ge mei ne Mo d ule) / Wic ht ig e Erlä ut er ung e n/ Si ch er hei ts- und sonstigeHinweise/Gefahr/Gefahr:_WarnungvorPersonenschädenallgemein_ - Erl äu ter ung @ 13 \mod_1343309450020_21.docx@ 101029@ @ 1
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Pos: 13 .4.2 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so ns ti ge H in wei s e/ Gef ahr /G ef ahr : _War nu ng vor P er so nen sc hä de n dur c h el ek tri sc he n Strom_- Erläuterung @ 13\mod_1343309694914_21.docx@ 101030@ @ 1
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Pos: 13.4 .3 / All e Serie n ( Al lg emei ne M o d ule) / Wic htig e Erl äut er u ng en/ S ich er h eits - u nd so ns ti ge H in wei s e/ War n ung/ W arn ung : _ W arn u ng vor P ers one nsc h äd en al lg e mei n_ - Erläuterung@ 13\mod_1343309877041_21.docx@ 101035@ @ 1
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Pos: 13 .4.4 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so ns ti ge H in wei s e/ Vors ic ht /V ors ich t: _War nu ng vor Pers on e nsc hä den allg e mei n _ - Erläuterung@ 13\mod_1343310028762_21.docx@ 101038@ @ 1
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Pos: 13 .4.5 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- undsonstigeHinweise/Achtung/Achtung:_Warnung vorSachschäden allgemein_- Erläuterung@ 13\mod_1343310134623_21.docx@ 101041@ @ 1
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Pos: 13 .4.6 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- undsonstigeHinweise/Achtung/Achtung:_Warnung vorSachschäden durchelektrostatische Aufladung_- Erläuterung @ 13\mod_1343310227702_21.docx@ 101044@ @ 1
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Pos: 13 .4.7 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- undsonstige Hin weise/Hinweis/Hinweis:_Wichtiger Hi nweis allgemein_ - Erläuterung@ 13\mod_1343310326906_21.docx@ 101047@ @ 1
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.
Pos: 13.4 .8 /All e Serie n( Allg emeine M odul e)/Wic htig e Erläut erung en/S icherh eits- u nd s o ns tig e H in w eis e/I nf or ma ti on/ I nf or ma tio n: _W eit er e I nf or ma ti on allg e mei n_ - Erl äu ter ung @ 13 \mod_1343310439814_21.docx@ 101051@ @ 1

8 Notes about this Documentation WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).
Pos:13.5/Dokumentationallgemein/Gliederungselemente/---Seite nwe chs el--- @ 3\mod_1221108045078_0.docx @ 21810@ @ 1

WAGO-SPEEDWAY 767 Notes about this Documentation 9
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 13.6 /All e Seri en ( Al lg emei ne M o dul e)/H i nweis e zur D o ku ment ati on /Dar s tell u ng der Z a hle ns yste m e - Ü b er sc hri f t 2 un d I n hal t @ 3\mod_1221059454015_21.docx @ 21711@ 2 @ 1
1.4 Number Notation
Table 1: Number Notation
Number Code
Example
Note
Decimal
100
Normal notation
Hexadecimal
0x64
C notation
Binary
'100'
'0110.0100'
In quotation marks, nibble separated with
dots (.)
Pos: 13.7 /All e Seri en ( Al lg emei ne M o dul e)/H i nweis e zur D o ku ment ati on /Sc hri ft kon venti o ne n - Ü bersc hrift 2 un dI nhalt @ 3\mod_1221059521437_21.docx@ 21714@ 2 @ 1
1.5 Font Conventions
Table 2: Font Conventions
Font Type
Indicates
italic
Names of paths and data files are marked in italic-type.
e.g.: C:\Program Files\WAGO Software
Menu
Menu items are marked in bold letters.
e.g.: Save
>
A greater-than sign between two names means the selection of a
menu item from a menu.
e.g.: File > New
Input
Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range
“Value”
Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under Start of measurement range.
[Button]
Pushbuttons in dialog boxes are marked with bold letters in square
brackets.
e.g.: [Input]
[Key]
Keys are marked with bold letters in square brackets.
e.g.: [F5]
Pos: 14 /D o ku me nt ati o n al lg e mei n/ Gl ie der ung s ele m e nte /---Seit e n we chs el --- @ 3\mod_1221108045078_0.docx@ 21810 @ @ 1

10 Important Notes WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 15 /Al l e Seri en (All g emei n e M o d ule) /Ü b er schr i f te n f ür all e Seri e n/ Wic ht ig e Erlä ut er ung en / WichtigeErläuterungen - Über sc hr ift 1 @ 4\mod_1241428899156_21.docx@ 32170@ 1 @ 1
2 Important Notes
Pos: 16 .1 /All e Seri en( Allg emeine D okum ente) ( Allg emeine M odule) /Wic htige Er läut erung en/Wi chtig e Erlä uteru ngen - Einl ei t ung @ 3\mod_1221059818031_21.docx@ 21717 @ @ 1
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
Pos: 16 .2 /All e Seri en( Allg emeine M odul e)/Ü berschr ifte nf ür alle S erie n/Wich tige Er läuter ung enRec htlic he Grun dlag en -Ü ber sc hr ift 2 @ 3\mod_1221060626343_21.docx@ 21726@ 2 @ 1
2.1 Legal Bases
Pos: 16.3 /All e Seri en ( Al lg emei ne Dokumente)(Allgemeine Module)/WichtigeErläuterungen/Änderungsvorbehalt- Ü bers chrift 3 un dI nhalt @ 3\mod_1221060036484_21.docx @ 21720@ 3@ 1
2.1.1 Subject to Changes
WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications that serve to increase the efficiency of technical
progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from
the granting of patents or from the legal protection of utility patents. Third-party
products are always mentioned without any reference to patent rights. Thus, the
existence of such rights cannot be excluded.
Pos:16.4/Serie767(WAGO-SPE ED WA Y) / Wi c hti g e Er l ä ut er ung e n/I /O-M od ul / Per s on alq u ali fi ka tio n 767-xxxx @ 5\mod_1248175871265_21.docx@ 38705 @3 @ 1
2.1.2 Personnel Qualification
All sequences implemented on the module may only be carried out by electrical
specialists with sufficient knowledge in automation. The specialists must be
familiar with the current standards and guidelines for the module and automation
environment.
Pos:16.5/Dokumentationallgemein/Gliederungselemente/---Seite nwe chs el--- @ 3\mod_1221108045078_0.docx @ 21810@ @ 1

WAGO-SPEEDWAY 767 Important Notes 11
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos:16.6/Serie767(WAGO-SPE ED WA Y) / Wi c hti g e Er l ä ut er ung e n/I /O-M od ul / Bes ti mm u ng sg e mäß e Ver we nd ung 7 67-48xx @ 5 \mod_1248176459437_21.docx@ 38717@ 3 @ 1
2.1.3 Use in Compliance with Underlying Provisions
The module 767-4803/000-800 emits digital signals that are specified by a higher-
level controller, e.g., a programmable fieldbus coupler.
Pos:16.7/Serie767(WAGO-SPE ED WA Y) / Wi c hti g e Er l ä ut er ung e n/I /O-M odul / Bes tim m u ng sg e mäß e Verw e nd ung 767-I O s allg e mei n 1 @ 7\mod_1266322273828_21.docx@50731 @ @ 1
The module may not be used to control safety-related functions, i.e. it cannot be a
functional part of a safety function.
Pos:16.8/Serie767(WAGO-SPE ED WA Y) / Wi c hti g e Er l ä ut er ung e n/I /O-M odul / Bes tim m u ng sg e mäß e Verw e nd ung 767-D O s 1_ 1 H i nweis _R üc kwi r kungs fr ei @ 11\mod_1317278760144_21.docx@ 79992 @ @ 1
The digital outputs of the module are interference-free to eliminate any impact by
the internal potential groups.
In a safety circuit, the module shall only be used together with a safety switching
device (with diagnostic function).
If additional modules are required, these modules must also be interference-free.
The module itself is no safety-oriented module. Note the "Use of the Interference-
Free Module in Safety Applications" chapter.
Pos:16.9/Serie767(WAGO-SPE ED WA Y) / Wi c hti g e Er l ä ut er ung e n/I /O-M od ul / Bes ti m mu ng sg e mäß e Ver w end ung 7 67-I Os all ge m ein 2 @ 5\mod_1248176511796_21.docx@ 38751 @ @ 1
The module may only be operated in combination with components of the WAGO
SPEEDWAY 767 Series.
The module was developed for applications requiring IP 67 (NEMA type 6, 6P)
protection.
Pos: 16.1 0 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/ O-M odul / Best i mm ungsg e mäß e V er wen dung 76 7-xxxx allgemein 3 @ 8\mod_1278997190572_21.docx @ 59680 @ @ 1
Applications other than those described in this manual are not permitted.
Pos: 16.1 1 / All e Seri e n ( Al lg e m ein e D o ku me nt e) ( Al lg e mei n e M o dul e) / Wic ht ig e Erlä ut er ung en /T ech nis c her Zus ta n d der Ger ät e - Ü bersc hrift 3 un dI nhalt @ 3\mod_1221060446109_21.docx@ 21723@ 3 @ 1
2.1.4 Technical Condition of Specified Devices
The devices to be supplied ex works are equipped with hardware and software
configurations, which meet the individual application requirements. WAGO
Kontakttechnik GmbH & Co. KG will be exempted from any liability in case of
changes in hardware or software as well as to non-compliant usage of devices.
Please send your request for modified and new hardware or software
configurations directly to WAGO Kontakttechnik GmbH & Co. KG.
Pos: 16.1 2 /D o ku ment ati o n all ge mei n/G li ed eru ngsel e me nte/---S ei ten w ec hs el--- @ 3 \mod_1221108045078_0.d ocx @ 21810 @ @ 1

12 Important Notes WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 16.1 3 / All e Seri e n ( Al lg e m ein e M o dul e) /Ü b ers c hri ft en für all e Ser i en/ Wi c hti g e Er l äut er ung e nS ich er h eits hin w eis e - Ü ber s chri ft 2 @ 6\mod_1260180299987_21.docx@ 46724@ 2 @ 1
2.2 Safety Advice (Precautions)
Pos: 16.1 4 /S eri e 7 67 ( WAG O-S PE ED WA Y)/ Wi ch ti g e Er l äut er ung en /Si c h erh ei ts hin w eis e /G ef ahr/ G ef ahr : El ektr is c he S pa n nu ng @ 8\mod_1278307980373_21.docx@ 58901 @ @ 1
Electric voltage!
Operate the 767 Series components exclusively with 24 VDC PELV (Protective
Extra Low Voltage) or SELV (Safety Extra Low Voltage) voltage sources. Failure
to comply may result in electric shock.
Pos: 16.1 5 / S eri e 767 ( W AG O-S PE ED WA Y)/ Wi ch tig e Erläu ter ung en /Sic h er hei ts hin w eise /V ors ic ht/ Vor si c ht: H eiß e Ans c hluss b uch se n @ 8\mod_1278308217203_21.docx@ 58913@ @ 1
Hot connection sockets!
Even when taking into account derating, high surface temperatures on the metallic
connection sockets and on the enclosure can arise during operation. If the 767
Series component has been in operation, allow it to cool off before moving it.
Pos: 16.1 6 / S eri e 767 ( W AG O-S PE ED WA Y)/ Wic ht ig e Er läu ter ung en /Si c her h eits hi nw eis e/A c htu ng /Ac ht ung : H öc hs te S tr o mbel as tbar kei t der V ers or g ungs k ont ak te @ 8\mod_1278308653219_21.docx@ 58916 @ @ 1
The highest current carrying capacity of the supply contacts is 4 A!
Always observe the maximum current carrying capacity per supply line (ULS, UA)
for each 767 Series component and the overall power consumption for all
767 components. Neither of these values shall exceed 4 A since an increase in
current causes the contacts to overheat and damages the 767 Series components.
Information regarding the power demand of each 767 Series component can be
found in the corresponding data sheet, which is available from www.wago.com.
Pos: 16.1 7 / S eri e 767 ( W AG O-S PE ED WA Y)/ Wi ch tig e Erläu ter ung en /Si c her h eits hi nw eis e/A c htu ng /Ac ht ung : O ff en e Ans c hl üss e @ 8\mod_1278308159953_21.docx@ 58910 @ @ 1
Exposed connections!
If connections have not been closed with protective caps, liquid or dirt can
penetrate the components of the 767 Series module and ruin it. Therefore, close
all unnecessary connections with protective caps, which must be ordered
separately, in order to maintain the IP67 degree of protection. (See section
“Accessories” of the fieldbus coupler/controller manual.)
Pos: 16.1 8 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/ O-M odul / Sic her hei tshi n wei se 7 67-xxxx_2 @ 7\mod_1267623532771_21.docx@ 51669@ @ 1
•Disconnect the power supply from the system on which you wish to mount
the 767 Series device.
•Observe the appropriate accident prevention regulations for your system
during assembly, start-up, maintenance, and repairs. For example, BGV A3,
“Electrical systems and equipment”.
•The operating instructions for the 767 Series module and the system
description must be laid out ready on site.
•Observe the exact positioning (coding) between plug and socket.
•The 767 Series device shall not come into contact with substances having
seeping and insulating properties. Otherwise, additional measures shall be

WAGO-SPEEDWAY 767 Important Notes 13
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
taken for the device, such as installation of an enclosure that is resistant to
the above-mentioned substance properties.
•Electronic components fulfilling the ESD requirements according to the IEC
61000-6-2 are integrated in the 767 device. As higher voltages may occur,
under unfavorable circumstances, due to electrical charge in the field,
discharge must be ensured before performing work on the 767 system.
•Ensure that the potential equalization is correctly laid out.
Pos: 16.1 9 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/ O-M odul / Sic her hei tshi n wei se 7 67-xxxx_3 @ 7\mod_1267624103126_21.docx@ 51676@ @ 1
•Keep all cables a sufficient distance away from electromagnetic sources of
interference in order to maintain a high level of interference resistance of
the 767 system against electromagnetic emissions. Use only shielded cables
at the necessary locations, and always observe the appropriate standards for
EMC-suitable installations.
•For the power supply and for the S-BUS, use only pre-assembled WAGO
system cables, so the specified characteristics of the technical data can be
achieved.
Pos: 16.2 0 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/O-M o dul /Sic her hei tshi n wei se 767-xxxx_4 @ 7\mod_1267623157545_21.docx @ 51662@ @ 1
•Replace defective or damaged modules (e.g., deformed connections), else
function disruptions can occur in the respective fieldbus stations or nodes.
•When laying any cables, make sure that you do not lay them within the
shear range of movable machine parts.
•For each activity, observe the corresponding personnel qualification in the
corresponding section.
•Observe the marking on the front and rear side of the module.
Pos: 16.2 1 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/ O-M odul / Sic her hei tsei nr ich tu nge n 76 7-xxxx @ 7 \mod_1268142379773_21.docx@ 52055 @2 @ 1
2.3 Safety Equipment
All 767 Series products are designed to meet the requirements of IP67. This
includes complete protection against accidental contact with electrical voltage and
currents – even when wet.
Pos: 16.2 2 /D o ku ment ati o n all ge mei n/G li ed eru ngsel e me nte/---S ei ten w ec hs el--- @ 3 \mod_1221108045078_0.docx@ 21810@ @ 1

14 Important Notes WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 16.2 3 / S eri e 767 ( W AG O-SPEEDWAY )/ Wi ch ti ge Erl äut er ung en /I/ O-M odul / Hin wei se z um Betr i eb 7 67-xxxx, Teil 1 @ 7\mod_1266921815843_21.docx@ 51219@ 2 @ 1
2.4 Notes on Operation
When integrating the 767 module in your machine or system, all the currently
applicable norms, regulations and guidelines shall be observed during all
activities: for example, BGV A3, “Electrical systems and equipment”,
DIN EN 418, EN 60204. The emergency stop equipment shall remain effective in
all operating modes of the system and machine.
For protection from electromagnetic interferences
•Connect your system to protective earth (PE), and
Pos: 16.2 4 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/ O-M odul / Hin wei se z um Betr i eb 7 67-I /O, T eil 2 @ 5\mod_1248180225875_21.docx@ 38755@ @ 1
•Ensure that the cable routing and the installation of the fieldbus cable, S-
BUS cable, supply cable, and sensor or actuator cable are correct.
Pos: 16.2 5 / S eri e 767 ( W AG O-S PE ED WAY )/ Wi ch ti g e Erläu ter ung en /I/ O-M odul / Hin wei se z um Betr i eb 7 67-xxxx, Teil 3 @ 7\mod_1266921848140_21.docx @ 5122 2 @ @ 1
The following elements for 24 V supply shall be present:
•Outer lightning protection on buildings
•Inner lightning protection of supply lines and signal lines
•Safe electrical separation of low voltage 24 VDC through PELV (Protective
Extra Low Voltage) or SELV (Safety Extra Low Voltage) voltage sources
Pos: 17 /D o ku me nt ati o n al lg e mei n/ Gl ie der ung s ele m e nte /---Seit e n we chs el --- @ 3\mod_1221108045078_0.docx@ 21810 @ @ 1

WAGO-SPEEDWAY 767 Device Description 15
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 18.1 /All e Seri en ( Al lg emei ne M o dul e)/Ü ber sc hri fte n f ür alle Ser ie n/G er ä te b esc hr eib u ng /G er ät e bes chr eib u ng - Über sc hr ift 1 @ 3\mod_1233756084656_21.docx@ 27096@ 1 @ 1
3 Device Description
Pos:18.2/Serie767(WAGO-SPE ED WA Y) / Ger ät eb esc hrei bu ng /I /O-M o d ule/ G er ät e bes chr eib ung 7 67-48 xx S ta n dar d @ 5\ mod_1248412361437_21.docx@ 38974@ @ 1
The digital output module 767-4803/000-800 is used to control solenoid valves,
gates, transmitters, relays or other electrical loads. The module has many
parameterization options that can be carried out via a fieldbus coupler. In addition,
diagnostic messages for individual channels and for the entire module can be
parameterized.
Use a fieldbus or FDT-DTM as, for example, with the WAGOframe to make
module settings. Detailed information about assignment of module parameters
using a fieldbus can be found in the corresponding manual.
Detailed information regarding the properties of the module is available in
Section "Technical Data".
Pos: 18.3 /Do ku me nta tio n allg emei n/ Gl ie der ung s ele m ente/---Seiten wec hs el--- @ 3\mod_1221108045078_0.docx @ 21810@ @ 1

16 Device Description WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 18.4 /All e Seri en ( Al lg emei ne Mo d ule) /Ü bers c hri ft en f ür all e S eri e n/G erä te bes c hrei bu ng /A nsc hlüs s e - Ü ber sc hr ift 2 @ 4\mod_1240984262656_21.docx@ 31961@ 2 @ 1
3.1 Connectors
Pos: 18.5 /Serie767(WAGO-SPEE D WA Y) / Ger ät eb esc hr ei bu ng/ A nsc hl üss e/I /O-M o dul e/ Ans c hlüss e 767-xxxx 8 xM8-Versorg ung sei ng ang - Bild@ 16\mod_1374817418012_21.docx@ 127050@ @ 1
Figure 1: Connectors (exemplary)
Pos:18.6/Serie767(WAGO-SPE ED WA Y) / Ger ät eb esc hrei bu ng /A nsc hl üs s e/I /O -Mo d ule/ L eg e nd e An s chl us s 767-xxxx S-BU S @ 5\mod_1248847875187_21.docx@ 39167@ @ 1
Table 3: Legend for figure "Connectors"
Position
Description
Function
1
S-BUS input
M12 plug, B-coded
For transmitting data from previous 767
Series components.
2
S-BUS output
M12 socket, B-coded
For transmitting S-BUS data to the next
767 Series components or to the S-BUS
terminator.
Pos: 18.7/Serie767(WAGO-SPEE D WA Y) / Ger ät eb esc hr ei bu ng/ A nsc hl üss e/I /O-M o d ule/ L eg e nde Ans chl us s 767-4xxx DO 8xM8 @ 5\mod_1248847874578_21.docx @ 39163 @ @ 1
3
Digital outputs X1 – X8
M8 socket
For connecting digital actuators (e.g.,
solenoid valves or gates).
Pos:18.8/Serie767(WAGO-SPE ED WA Y) / Ger ät eb esc hrei bu ng /A nsc hl üs s e/I /O -Mo d ule/ L eg e nd e An s chl us s 767-xx xx Vers orgu ng, nur 48 03 und 4 804 @ 5\mod_1249021985000_21.docx@ 39616@ @ 1
4
Supply input
M12 plug, A-coded
For feeding in both ULS (logic and sensor
supply) and UA(actuator supply).
5
Supply input
M12 plug, A-coded
Pos:18.9/Dokumentationallgemein/Gliederungselemente/---Seite nwe chs el--- @ 3\mod_1221108045078_0.docx @ 21810@ @ 1
1
2
4
3
3
5

WAGO-SPEEDWAY 767 Device Description 17
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 18.1 0 /S eri e 7 67 ( WAG O-SPEEDWAY)/Gerätebeschreibung/Befestigung/I/O-Module/Beschriftungund Befestigung767-xxxx_8xM8 - Bild @ 5\mod_1248845069421_21.docx@ 39114@ 2 @ 1
Beschr i ft u ngs mög l ic h keit en
3.2 Marking Possibilities and Fastening
Figure 2: Marking possibilities and fastening (exemplary)
Pos: 18.1 1 / S eri e 767 ( W AG O-SPEEDWAY)/Gerätebeschreibung/Befestigung/I/O-Mod ule/L egend ez u Beschr iftu ng und Be festi gung 7 67-xxxx @ 5\mod_1249475777546_21.docx@ 40514@ @ 1
Table 4: Legend for figure "Marking possibilities and fastening"
Position
Description
Function
10
Module marker card
For identifying the module within a
fieldbus node.
11
Mounting holes
With integrated function earth (FE) socket
for fastening and grounding the module.
12
Marker strips
For identifying inputs.
Pos: 18.1 2 /D o ku ment ati o n all ge mei n/G li ed eru ngsel e me nte/---S ei ten w ec hs el--- @ 3 \mod_1221108045078_0.docx@ 21810@ @ 1
10
11
12
11

18 Device Description WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 18.1 3 / All e Seri e n ( Al lg e m ein e M o dul e) /Ü b ers c hri ft en für all e Ser i en/ G er ät e bes chr ei bung / An z eig e el em e nt e - Ü ber sc hr ift 2 @ 4\mod_1240984390875_21.docx@ 31964@ 2 @ 1
3.3 Display Elements
Pos: 18.1 4 / S eri e 767 ( W AG O-S PE ED WAY )/G erä te be s chr eib u ng /A nz ei g eel e me nt e/ I/ O-M od ul e/A nz ei g e ele m en te 767- xxxx_IO _8 xM8 - Bi l d @ 5 \mod_1248848990156_21.docx@ 39175 @ @ 1
Figure 3: Display elements (exemplary)
Pos: 18.1 5 /S eri e 7 67 ( WAG O-S PE E D WA Y) /G er ä te be schr ei b u ng/ A nz ei geel e me nt e/ I/O-M odul e/Leg ende zu A nzei geele mente 7 67-xxxx, P os. 15+1 6: Stat us SB und F @ 5\mod_1248854485718_21.docx@ 39190@ @ 1
Table 5: Legend for figure "Display elements"
Position
LED
Color
Meaning
15
SB
Green/red/orange
S-BUS status
16
F
Red
Diagnostic information
Pos: 18.1 6 / S eri e 767 ( W AG O-S PE ED WAY )/G erä te be s chr eib u ng /A nz ei g eel e me nt e/ I/ O-M odul e/Lege nde zu A nzeig eele mente 7 67-48xx, P os. 17: Stat us DO @ 5\mod_1248855317609_21.docx@ 39200 @ @ 1
17
0 … 7
Yellow/red
Information on outputs
Pos: 18.1 7 / S eri e 767 ( W AG O-S PE ED WAY )/G erä te be s chr eib u ng /A nz ei g eel e me nt e/ I/ O-M odul e/Lege nde zu A nzeig eele mente 7 67-xxxx, P os. 18+1 9: Status U A und ULS @ 7\mod_1268053208570_21.docx@ 51957 @ @ 1
18
UA
Green
Actuator supply is present.
19
U
LS
Green
Logic supply and sensor supply are
present.
Detailed information
Detailed information can be found in section "Diagnostics" > "LED Signaling".
Pos: 18.1 8 /D o ku ment ati o n all ge mei n/G li ed eru ngsel e me nte/---S ei ten w ec hs el--- @ 3 \mod_1221108045078_0.docx@ 21810@ @ 1
15
17
16
17
19
18

WAGO-SPEEDWAY 767 Device Description 19
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 18.1 9. 1 / All e Seri e n ( Al lg e m ein e M o dul e) /Ü b ers c hri ft en für all e Ser i en/ G er ät e besc hr ei bung B e dr uc ku ng - Über sc hr ift 2 @ 4\mod_1241082409515_21.docx@ 32035@ 2 @ 1
3.4 Labeling
Pos: 18.1 9. 2 / S eri e 767 ( W AG O-SP E ED WA Y )/G erä te be s chr eib u ng /B edr uc kung / I /O-M od ul e/B e dr uc k ung 76 7-4 803 - Bild @ 5\mod_1248860318125_21.docx@ 39337@ @ 1
Figure 4: Labeling (exemplary)
Pos: 18.1 9. 3 / S eri e 767 ( W AG O-SP E ED WA Y )/G erä te be s chr eib u ng /B edr uc kung / I /O-M od ul e/Leg e nde zur B edr uc kung 7 67-480 3/-48 04 @ 5\mod_1249023593234_21.docx@ 39620@ @ 1
Table 6: Legend for figure "Labeling"
Position
Description
30
Manufacturer's mailing address
31
Connection assignment of S-BUS
32
Connection assignment of outputs
33
Connection example
34
Connection assignment of supply input
35
Information on approvals and CE marks
36
Unambiguous identification of module
37
Item number
Pos: 18.1 9. 4 /D o kume nt ati on al lg em ein /Gli ed eru ng sel eme nt e/---Sei t enw ec hs el--- @ 3 \mod_1221108045078_0.docx@ 21810@ @ 1
36
33
31
30
37
34
35
32

20 Device Description WAGO-SPEEDWAY 767
767-4803/000-800 8DO 24V DC 2.0A IF (8xM8)
Manual
Version 1.1.0
Pos: 18.1 9. 5 / S eri e 767 ( WAG O -SP E EDW A Y) /G er ä te be sc hr ei b u ng /B edr uc kung / I/ O-M od ul e/Be dr uck ung sei tli ch @ 7\mod_1267620827007_21.docx@ 51647@ @ 1
On the side of the module is a label, with information that would prove useful in
the case of a complaint:
•BA: Work order number (40)
•SN: Serial number (40)
•Manufacturing number (41)
Pos: 18.1 9. 6 / S eri e 767 ( W AG O-SP E ED WA Y )/G erä te be s chr eib u ng /B edr uc kung / I /O-M od ul e/B edr uc kung sei tli ch - Bild @ 5\mod_1248864035578_21.docx@ 39357@ @1
Figure 5: Label on the module
Pos: 18.2 0 / S eri e 767 ( W AG O-S PE ED WAY )/G erä te be s chr eib u ng /B edr uc kung / I /O-M od ul e/B edr uc kung sei tli ch - Legende@ 9\mod_1286969974465_21.docx@ 65601@ @ 1
Table 7: Description of manufacturing number
Abbreviation
Description
WW
Week of production
JJ
Year of production
FW
Firmware release index
When updating the firmware, please note that, the firmware
release index may not be conformed to the printed firmware
release index on the side of the fieldbus coupler. The “Electronic
Type Label” (see section “Electronic Type Label”) shows the
actual firmware release index.
HW
Hardware release index
FL
Firmware loader release index
h1h2h3
Internal manufacturer information
Pos: 18.2 1 /D o ku ment ati o n all ge mei n/G li ed eru ngsel e me nte/---S ei ten w ec hs el--- @ 3 \mod_1221108045078_0.docx@ 21810@ @ 1
41
40
