Wallbe Pro User manual

Driving eMobility
wallbe® Charging station
Pro
Wallbox & charging column
INSTALLATION MANUAL
100232-f 05/2020

Driving eMobility 2/18
Installation manual
TABLE OF CONTENTS
1 General information................................................................................................................................................................................3
1.1 Introduction....................................................................................................................................................................................................3
1.2 Intended use..............................................................................................................................................................................................3
1.3 Target group...............................................................................................................................................................................................3
2 Safety...................................................................................................................................................................................................3
2.1 Signal words..............................................................................................................................................................................................3
2.2 Safety instructions..................................................................................................................................................................................3
3 Assembly.....................................................................................................................................................................................................4
3.1 Choice of location....................................................................................................................................................................................4
3.2 Mounting of the wall charging station..............................................................................................................................................4
3.3 Mounting of the charging column......................................................................................................................................................5
3.3.1 Use of the prefabricated foundation...................................................................................................................................................5
3.3.2 Casting of an own foundation with foundation plate................................................................................................................5
3.3.3 Casting of an own foundation without foundation plate.........................................................................................................6
4 Electrical connection.............................................................................................................................................................................7
4.1 Conditions for the electrical connection...........................................................................................................................................7
4.2 Electrical connection of the wall charging station..........................................................................................................................8
4.3 Electrical connection of the charging column..................................................................................................................................8
5 Safety tests................................................................................................................................................................................................8
6 Technical Data of wallbe Pro online M2M.......................................................................................................................................9
7 Technical Data of wallbe Pro offline...............................................................................................................................................11

Driving eMobility 3/18
Installation manual
1 GENERAL INFORMATION
1.1 Introduction
Before starting the assembly and installation of the
charging station, read this instruction manual carefully
and follow the instructions.
If you have received the installation manual in digital
form, print out the document. Keep the manual stored
at a safe place to have it at hand for any further refe-
rence.
1.2 Intended use
The charging station is designed for charging electric
and plug-in hybrid vehicles according to charging mode
3. The charging station is mounted on a wall or on a
charging column. Any other usage is considered to be
improper and is not permitted.
The charging station wallbe® Pro is suitable for all
electric vehicles with a type 2 connection. The charging
station wallbe® Pro without a firmly attached charging
cable can also be used for electric vehicles with a type 1
connection, if a corresponding adapter cable according
to IEC 62196-2 is used.
Persons who, due to their physical, sensory or mental
abilities or their inexperience or ignorance, are unable
to operate the charging station safely shall not use the
charging station without the supervision or instruction
of a responsible person.
1.3 Target group
This document is intended for qualified electricians and
qualified construction workers (Chapter 3.3).
Assembly and electrical installation of the wallbe® Pro
may only be performed by qualified electricians.
The construction of a foundation for the charging sta-
tion may only be carried out by qualified construction
workers.
2 SAFETY
2.1 Signal words
!WARNING: Indicates a hazard with a medium level
of risk which, if not avoided, could result in serious in-
jury or death.
!CAUTION: Indicates a hazard with a low level of
risk which, if not avoided, could result in minor or mo-
derate injury.
Note: Indicates additional information, which are not
hazard related.
2.2 Safety instructions
• Observe all local legal regulations for the installa-
tion of charging stations and low voltage systems,
as well as for fire and accident prevention. Pay par-
ticular attention to DIN VDE 0100-722 and DIN VDE
0105-100.
• Ensure that there is no voltage present before start-
ing work.
• Observe the 5 safety rules according to DIN VDE
0105-100.
• Make sure that neither children nor pets come near
the connected charging cable. Never let children play
with the charging station.
• Any changes to the charging station are not permit-
ted. There is a risk of electric shock and damage to
the charging station. Any changes to the charging
station will void the warranty with immediate effect.
• Before commissioning and before each charging
procedure, check the charging station and in parti-
cular the charging cable and contacts for possible
damage.
• Do not use a damaged charging cable. There is a risk
of an electric shock!
• Never repair defective charging cables yourself.
• If the charging station is damaged during assembly
or installation, the charging station must not be put
into operation. Replacement is necessary.
• Check before each charging procedure, whether the
vehicle inlet is damaged. Do not connect a charging
cable to a damaged vehicle inlet.
• Ensure that the contacts of the charging plugs do not

Driving eMobility 4/18
Installation manual
come into contact with heat sources, dirt or water.
• Never put your fingers in the socket of the charging
station.
• Do not step on the charging cable or bend it.
• Do not pull the plug out of the socket by the cable.
Pulling on the charging cable may damage the char-
ging cable or the locking mechanism.
• Never remove the charging cable by force. Dange-
rous arcs can cause serious injury or death.
• Unroll the charging cable completely to avoid over-
heating.
• Use only standard-compliant charging cables (accor-
ding to EN 62196-1, EN 62196-2 and EN 50620).
• Do not use the charging cable with an extension cord
or adapter.
• Ensure that the charging cable, when connected to
the charging station and the vehicle, does not block
any paths.
• Pay attention to the charging cable lying on the
ground when the charging cable is connected to the
vehicle and charging station. There is a risk of trip-
ping.
• Always make sure to remove the charging cable
from the vehicle before driving off.
• Never immerse the charging cable in in water or any
other liquid.
• The charging station may only be installed and ope-
rated with the supplied cover, mounting plate and
cable holder.
• No liability will be accepted for damage during trans-
port if the product is transported in anything other
than the original packaging.
• At all times, observe the local safety regulations for
the country in which you operate the device.
3 ASSEMBLY
3.1 Choice of location
• Do not install the charging station near flammable or
explosive materials.
• If possible, mount the charging station protected
from direct sunlight.
• The charging station must not be installed in places
where it blocks escape routes or passages for peo-
ple.
• The charging station must not be installed in pla-
ces where it is exposed to direct water jets (e.g.
high-pressure cleaners or car washes).
• Do not install the charging station in areas that are
at risk of flooding.
• Observe the permissible ambient conditions (see
chapter 6).
3.2 Mounting of the wall charging station
The following accessories are required:
• 3 countersunk head screws, 6 mm, for holes (A) and
(B), not included in the scope of delivery
• 4 screws, 8 mm, for holes (C), included in the scope
of delivery
• 4 dowels, 8 mm, for holes (C), included in the scope
of delivery
• 4 screws M4, included in the scope of delivery
• 4 self-sealing washers (with the rubber side facing
the wall), included in delivery

Driving eMobility 5/18
Installation manual

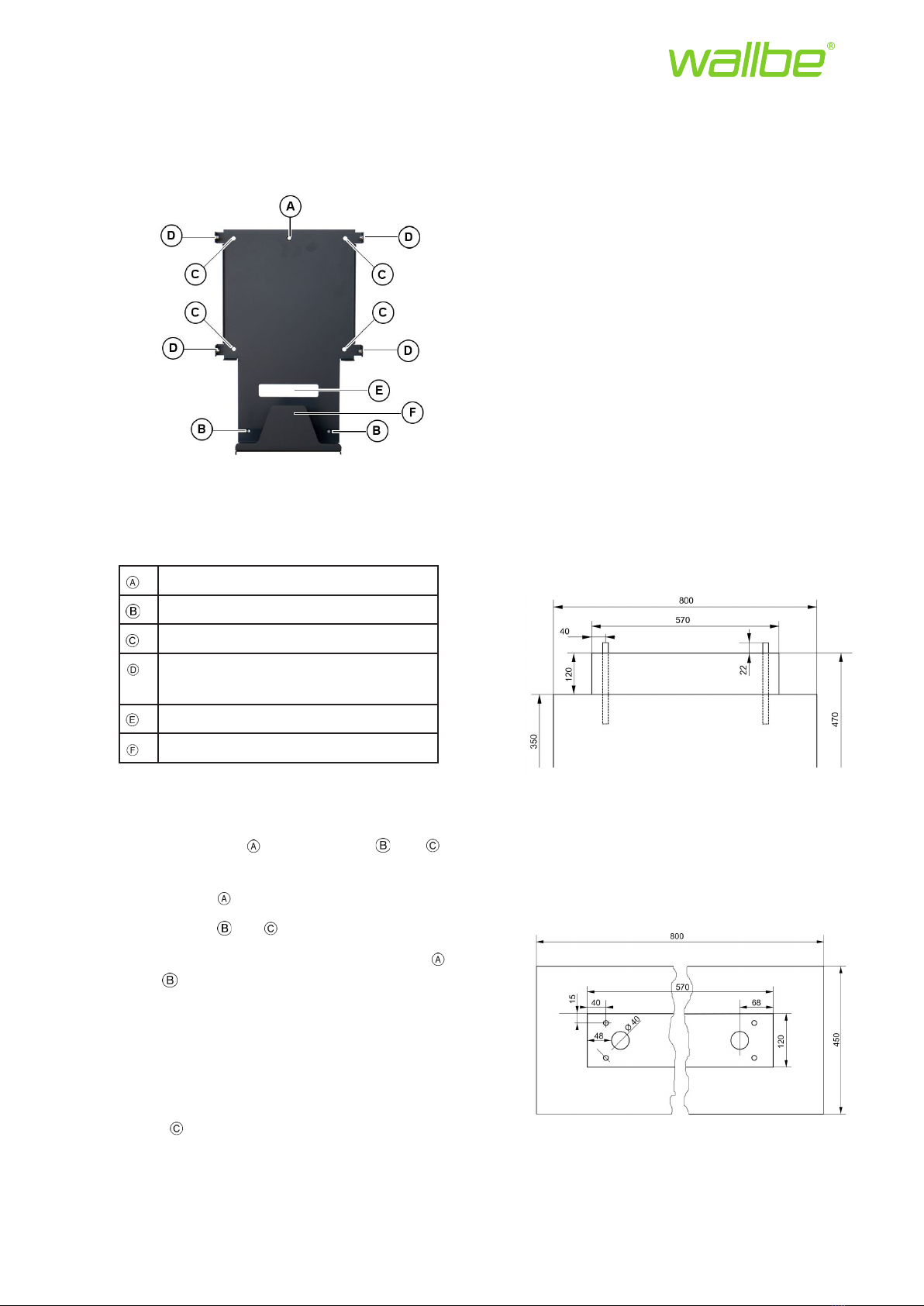

Figure 1: Wall mounting plate with integrated cable
holder
6 mm hole for countersunk head screws
6 mm hole for countersunk head screws
8 mm hole
Threaded sleeve for fixing the plastic
cover
Cable bushing
Cable holder for charging cable
For mounting the wall charging station proceed as
follows:
1. Mark the drill hole and the drill holes and
on the mounting surface.
2. Drill the hole and insert the dowel.
3. Drill the hole and and insert the dowels.
4. Fasten the wall mounting plate to the drill holes
and with countersunk head screws and align the
plate with the spirit level.
5. Place the housing on the mounting brackets of the
wall mounting plate.
6. Open the full metal housing of the wallbe Pro.
On the bottom of the housing you will find 8 mm
holes in the four corners for fastening the full
metal housing.
7. Fasten the full metal housing with all four screws
and washers.
3.3 Mounting of the charging column
In order to mount the charging column, a foundation
must first be laid. This preparatory work must be car-
ried out by a contracted construction company.
3.3.1 Use of the prefabricated foundation
In the simplest case, use our prefabricated foundation.
The mounting of the charging station therefore is sig-
nificantly simplified. In this prefabricated foundation an
empty pipe and the foundation plate with four threa-
ded rods are already cast. The shape of the prefabri-
cated foundation may differ from the shape in Figure 2
and Figure 3. The shape and dimensions of the founda-
tion plate, which can be seen in Figure 4, are relevant.
Figure 2: Prefabricated foundation - side view
Figure 3: Prefabricated foundation - top view

Driving eMobility 6/18
Installation manual
For the use of the prefabricated foundation proceed as
follows:
1. For the prefabricated foundation, dig a excavation pit
with a minimum area of 100 x 80 cm and a minimum
depth of 60 cm.
2. Make a compacted gravel bed.
3. Pull only one supply cable at a time through the
empty conduits in the prefabricated foundation.
4. Bring the prefabricated foundation into position so
that the upper edge of the foundation plate coinci-
des with the top edge of the finished floor.
5. Underlay the prefabricated foundation and level the
foundation with a spirit level.
3.3.2 Casting of an own foundation with foundation plate
If you want to pour your own foundation, use our
foundation plate. It already has the right size, the
hole for the empty pipe is already there and the
threaded rods are fixed in the right place.
Figure 4: Foundation plate - side view
Figure 5: Foundation plate - top view
To cast your own foundation with foundation plate,
proceed as follows:
1. For the foundation, dig a excavation pit with a mini-
mum area of 100 x 80 cm and a minimum depth of
60 cm.
2. Make a firm gravel bed.
3. Fix the foundation plate in the desired position.
The short ends of the threaded rod stand vertically
upwards. The upper edge of the foundation plate
corresponds to the top edge of the finished floor.
4. Pull only one supply cable at a time through the
empty conduits.
5. Insert the empty conduits about 5 cm through the
holes in the foundation plate and fix the empty
conduits.
6. Lay the empty pipes as required.
7. Align the foundation plate with the spirit level.
8. Pour out the excavation pit so that the concrete is
in complete contact with the underside of the foun-
dation plate. The upper side of the foundation plate
must not be covered with concrete.
3.3.3 Casting of an own foundation without foundation
plate
To cast your own foundation without foundation plate,
proceed as follows:
1. For the foundation, dig a excavation pit with a mini-
mum area of 100 x 80 cm and a minimum depth of
60 cm.
2. Make a compacted gravel bed.
3. Pull only one supply cable at a time through the
empty conduits.

Driving eMobility 7/18
Installation manual
4. Position and fix the empty conduit in the correct pla-
ce. The distances between the empty conduits are
shown in Figure 5: Foundation plate - top view.
5. Pour out the excavation pit so that you obtain an
even mounting surface.
4 ELECTRICAL CONNECTION
4.1 Conditions for the electrical connection
Specifications for the sub-distribution:
• Each charging point must have its own supply line
with appropriate fuse protection.
• All versions of the wallbe Pro require a suitable cir-
cuit breaker and residual current circuit breaker.
• All variants of the wallbe Pro require a suitable re-
sidual current circuit breaker. Since the wallbe Pro
already has a DC fault detection > 6 mA, you do not
need a cost-intensive RCD type A (EV) or type B.
• If possible, use an overvoltage protection in the
sub-distribution.
Usable cable cross-sections:
• Use the cable cross-sections given in the table. If you
require larger cable cross-sections, please specify
them when ordering or contact us.
• When using a rigid cable, a maximum cross-section
of 10 mm² is possible with the wallbe Pro, 22 kW,
while only 6 mm² is possible with a flexible cable.
Terminal assignment X1 for supply cable, cable cross sections and fuse
protection
Performance class 3,7 kW,
16 A
4,6 kW,
20 A
7,4 kW,
16 A
Conductor Number Color
L 1 brown or
black
brown or
black
brown or
black
N 2 blue blue blue
PE 3 green/yel-
low
green/yel-
low
green/yel-
low
Supply cable NYM-J
3x 2,5 mm²
NYM-J
3x 2,5 mm²
NYM-J
3x 6 mm²
Circuit breaker C 16 A,
1-pole
C 20 A,
1-pole
C 32 A,
1-pole
RCD in sub-distribution Type A
0,03 A/ 25 A
Type A
0,03 A/ 25 A
Type A
0,03 A/ 40 A
Terminal assignment X2 for firmly attached charging cable
Performance class 3,7 kW,
16 A
4,6 kW,
20 A
7,4 kW,
16 A
Conduc-
tor
Number Color
L 1 brown or
black
brown or
black
brown
or black
N 2 blue blue blue
PE 3 green/
yellow
green/
yellow
green/
yellow
CP 4 black/
white
black/
white
black/
white
Terminal assignment X1 for supply cable, cable cross sections and fuse
protection
Performance class 11 kW, 3x 16 A 22 kW, 3x 32 A
Conductor Number Color
L1 1 brown brown
L2 2 black black
L3 3 grey grey
N 4 blue blue
PE 5 green/yellow green/yellow
Supply cable NYM-J
5x 2,5 mm²
NYM-J
5x 6 mm²
Circuit breaker C 16 A, 3-pole C 32 A, 3-pole
RCD in sub-dis-
tribution
Type A
0,03 A/ 25 A
Type A
0,03 A/ 40 A
Terminal assignment X2 for firmly attached charging cable
Performance class 11 kW, 3x 16 A 22 kW, 3x 32 A
Conductor Number Color
L1 1 brown brown
L2 2 black black
L3 3 grey grey
N 4 blue blue
PE 5 green/yellow green/yellow
CP 6 black/white black/white

Driving eMobility 8/18
Installation manual
4.2 Electrical connection of the wall charging station
Proceed as follows for the electrical connection of the
wall charging station:
1. Connect the supply cable to the charging station.
Follow the instructions in chapter 4.1.
2. Place the plastic cover on the full metal housing.
3. Fasten the plastic cover on the sides using the four
metric screws.
4.3 Electrical connection of the charging column
When electrically connecting the charging column, it must
be observed whether or not a foundation plate is integra-
ted in the foundation. If a foundation plate is integrated in
the foundation, proceed as follows:
1. Pull the supply cables through the legs of the char-
ging column.
2. Place the charging column in the right position on
the foundation plate.
3. Fasten the charging station base with the four
supplied M12 nuts.
4. Connect the supply cable according to the power
class (see chapter 4.1).
If no foundation plate is integrated in the foundation, pro-
ceed as follows:
1. Pull the supply cables through the legs of the char-
ging column.
2. Place the charging station on the foundation and
align the charging station.
3. Use the charging station base as a drilling template
and fasten the charging station with four suitable
dowels, washers and screws.
4. Connect the supply cable according to the power
class (see chapter 4.1).
5 SAFETY TESTS
After the electrical connection of the charging station,
carry out the necessary safety tests.
• Before commissioning the charging station, check
the effectiveness of the protective measures of the
complete system according to the applicable natio-
nal and local regulations.
• The measuring instruments used must comply with
national regulations.
• Among other things, the Gossen Metrawatt PRO-
FiTEST MTECH+ protective measures tester with
manufacturer no. M520R is required for testing the
charging station. Alternatively, use the Metrel MI
3152 EurotestXC ST. If none of the test devices is
available to you, the missing tests must be perfor-
med by a wallbe specialist partner.
• Enter the result of the test in a test report. A test
report can be obtained from wallbe GmbH upon re-
quest.
• Give the test report to the customer, who will send
it to the manufacturer together with the completed
warranty card.

Driving eMobility 9/18
Installation manual
6 TECHNICAL DATA OF WALLBE PRO ONLINE
M2M
POWER CLASS 11 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 16 A, 230 V, 3-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 5 bis 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Lastschütz 4-pole 25 A
Control fuse 1-pole, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 25 A
Circuit breaker Not integrated
Authorization RFID,
app
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Driving eMobility 10/18
Installation manual
POWER CLASS 22 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 32 A, 230 V, 3-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 5 to 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Lastschütz 4-pole, 40 A
Control fuse 1-pole, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 40 A
Circuit breaker Not integrated
Authorization RFID,
app
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Driving eMobility 11/18
Installation manual
7 TECHNICAL DATA OF WALLBE PRO OFFLINE
POWER CLASS 3,7 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 16 A, 230 V, 1-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 30 to 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Power contactor 2-pole, 25 A
Control fuse 1-pole, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 25 A
Circuit breaker Not integrated
Authorization Key switch,
RFID
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Driving eMobility 12/18
Installation manual
POWER CLASS 4,6 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 20 A, 230 V, 1-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 30 bis 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Power contactor 2-polig, 25 A
Control fuse 1-polig, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 25 A
Circuit breaker Not integrated
Authorization Key switch,
RFID
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Driving eMobility 13/18
Installation manual
POWER CLASS 7,4 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 32 A, 230 V, 1-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 30 bis 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Power contactor 2-pole, 40 A
Control fuse 1-pole, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 40 A
Circuit breaker Not integrated
Authorization Key switch,
RFID
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Driving eMobility 14/18
Installation manual
POWER CLASS 11 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 16 A, 230 V, 3-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 30 to 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Power contactor 4-pole, 25 A
Control fuse 1-pole, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 25 A
Circuit breaker Not integrated
Authorization Key switch,
RFID
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Driving eMobility 15/18
Installation manual
POWER CLASS 22 kW
Construction type Wallbox or charging column
Number of charging
points
1
Charging capacity 32 A, 230 V, 3-phase
Dimensions
wallbox (H x W x D)
34 x 34 x 17 cm
Weight
wallbox
approx. 7,5 kg
Dimensions
charging column
(H x W x D)
126 x 57 x 18 cm
Weight
charging column
approx. 17 kg
Storage temperature -30 to +70°C
Operating temperature
(compliant with german
calibration law)
-25 to +40°C
Operating temperature
(not compliant with ger-
man calibration law)
-25 to +55°C
Relative humidity 30 to 95% (non-condensing)
Protection degree IP54
Charging socket / char-
ging cable Charging socket type 2
Additionally available:
Cable type 1 or type 2
Firmly attached charging
cable Type 1 or type 2
Power contactor 4-pole, 40 A
Control fuse 1-pole, B6
Integrated
safety devices
RCM-module –
DC fault current detection 6 mA
contactor monitoring
Lock release module
RCD
(must be installed in the
sub-distribution)
Type A
0,03 A / 40 A
Circuit breaker Not integrated
Authorization Key switch,
RFID
Housing lockable Optional
Energy meter Yes
Protocols Modbus TCP/RTU
Interfaces Ethernet RJ45, RS485
Protection class 1
State according to EN
61851-1
State D with ventilation is not sup-
ported.
Rated voltage Un230 V / 400 V AC
Rated operational voltage
Ue
220/380 - 240/415 V 3N
Rated insulation voltage
Ui
500 V
Rated impulse withstand
voltage Uimp
4 kV
Overvoltage category Category III
Rated current of a circuit
Inc
32 A fused on the load side,
fused 6 A on the control side
Rated peak withstand
current Ipk
<6 kA
Rated short-time with-
stand current Icw
6 A
Rated conditional
short-circuit current Icc
6 A
Rated frequency fn50/60 Hz
Pollution degree 3
System according to type
of earth connection
TN or TT
Installation site Indoor and outdoor installation
EMC classification Class B
Mechanical impact
protection
IK 8
Mechanical ambient
conditions according to
MessEV
M1
Electromagnetic ambient
conditions according to
MessEV
E1

Paderborner Straße 76
33189 Schlangen
Tel.: [phone]
[email protected]
www.wallbe.de
Driving eMobility
100232 is the original installation manual.
©2020 wallbe®. All rights reserved.
This document may not be copied in whole or in part or reproduced in any form
or form without the written permission of wallbe GmbH. All illustrations in this
manual are only examples and may differ from the delivered product. All infor-
mation in this manual may be changed without prior notice and does not repre-
sent any obligation on the part of the manufacturer.
