WB Manufacturing iXchange SSW0801-AL User manual

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
1
iXchange® Wall
Assembly Instructions
SSW0801-AL
Step 1:
• Slide base cabinets (iXB1155-1) together and level in pace. With cabinets aligned together, place the
⁄”-20x30mm joint connector bolt w/ Loctite through pre-drilled hole on the inside of one of the cabinets
making sure bolt is pushed as far as it can go. While holding the joint connector bolt flush to the cabinet, take a
⁄”-20x17mm joint connector nut and attach it to the end of the bolt (through the other base cabinet) turing it
clockwise until it’s completely on. Use a 4mm Allen wrench or 4mm hex bit and a screw gun to tighten as needed.
• Repeat this for the (3) remaining attachment points.
iXB1155-1 iXB1155-1
Joint
connector
bolt
Joint
connector
nut
Before you begin, please make sure all parts and
proper quantities are included. (See Part Identifier Key)
Any parts damaged during shipment must be reported
within 24 hours of receipt. To report information
regarding damages or if you have any questions,
please call 800.242.2303.
Tools Required
• Screw gun
• 4mm & 5mm Allen
wrench OR
• 4mm & 5mm hex bit
• #2 Phillips screwdriver
NOTE: The cabinets with the same model numbers are interchangeable and can be used in any location where
that model number is needed.

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
2
iXchange® Wall
Assembly Instructions
SSW0801-AL
Step 2:
• Place and center the base top (iXBTop_94)on the base cabinets. Align the threaded inserts in the bottom of
the base top with the pre-drilled holes in the sub-tops of the base cabinets. Use ¼”-20x30mm joint connector
bolts w/ Loctite to fasten the base top to the base cabinets as shown below.
iXBTop_94 (base top)
iXB1155-1 iXB1155-1

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
3
iXchange® Wall
Assembly Instructions
SSW0801-AL

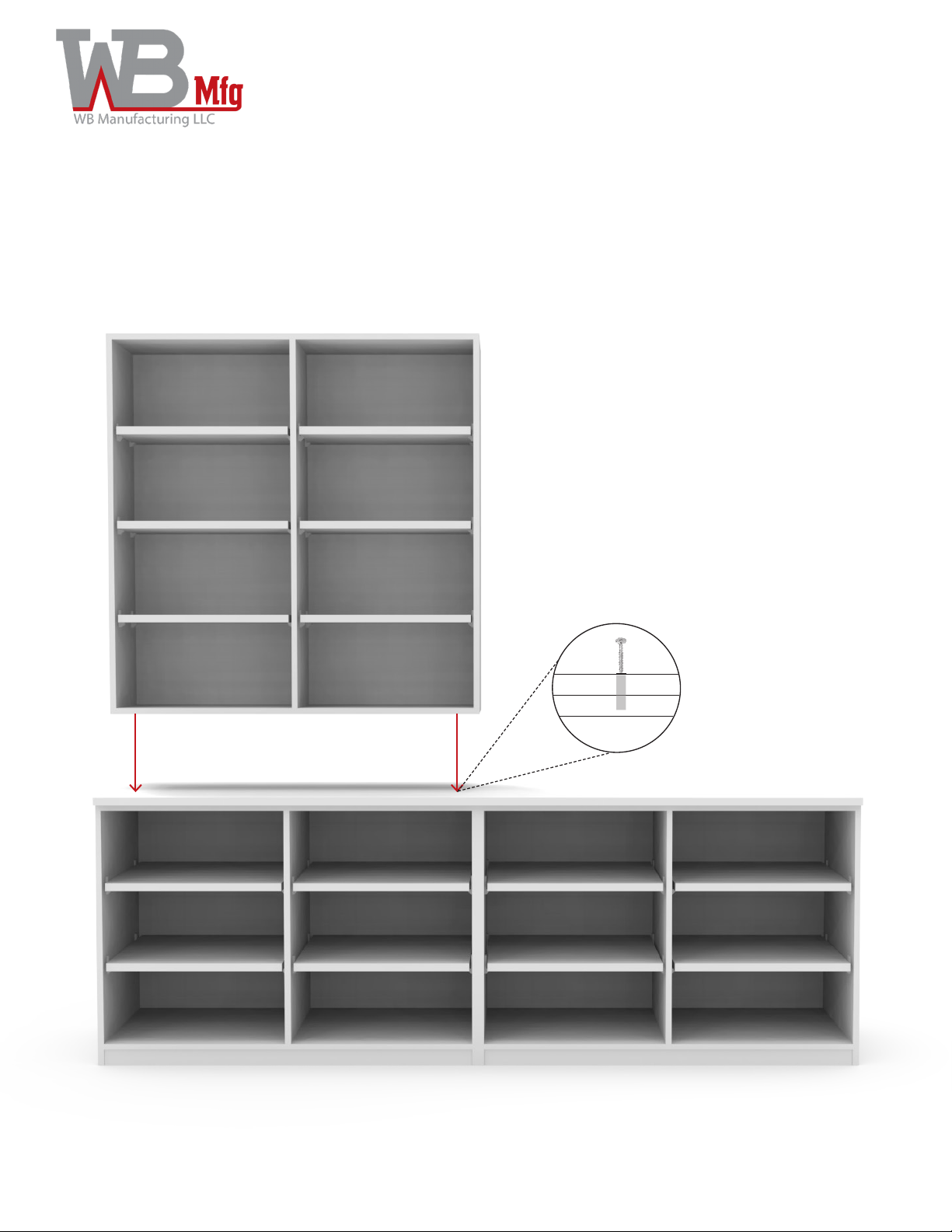

Step 3:
• Locate wall cabinet (iXW1155-1). Place it on the left side of the base top aligning the pre-drilled holes in
the bottom of the wall cabinet with threaded inserts in the base top (iXBTop_94). Bolt into place using
¼”-20x30mm joint connector bolts.
iXW1155-1
iXBTop_94 (base top)
iXB1155-1

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
4
iXchange® Wall
Assembly Instructions
SSW0801-AL

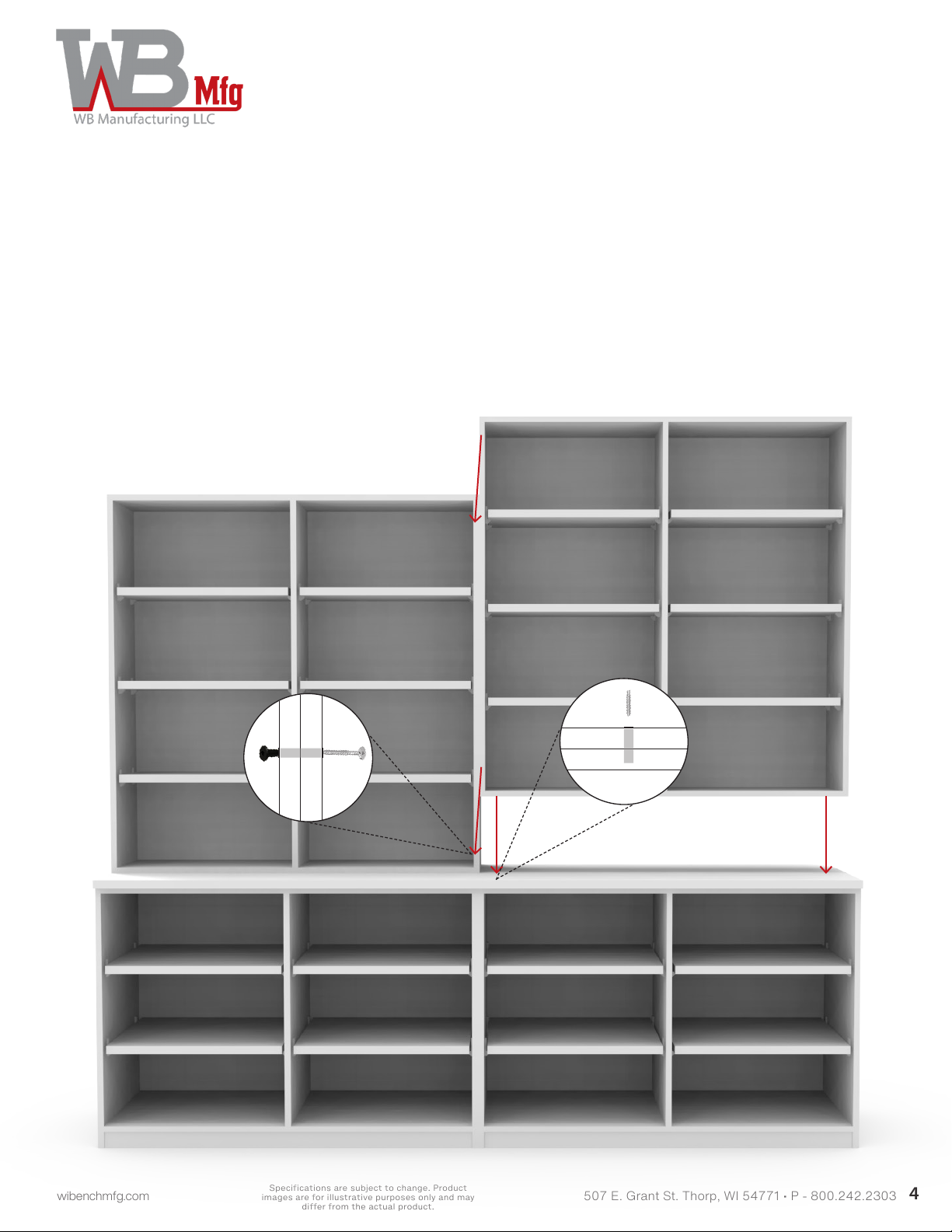

Step 4:
• Locate the second wall cabinet (iXW1155-1). Place it on the right side of the base top. Align the holes of the
wall cabinet with the holes of the first wall cabinet that has already been secured while also aligning the pre-
drilled holes in the bottom of the wall cabinet with threaded inserts in the base top (iXBTop_94).
• Bolt wall cabinet (iXW11555-1) to the base top (iXBTop_94) using ¼”-20x30mm joint connector bolts.
Step 5:
• With pre-drilled holes in wall cabinets aligned together, place the ⁄”-20x30mm joint connector bolt w/ Loctite
through pre-drilled hole on the inside of one of the cabinets making sure bolt is pushed as far as it can go. While
holding the joint connector bolt flush to the cabinet, take a ⁄”-20x17mm joint connector nut and attach it to
the end of the bolt (through the other base cabinet) turing it clockwise until it’s completely on. Use a 4mm Allen
wrench or 4mm hex bit and a screw gun to tighten as needed.
• Repeat this for the (3) remaining attachment points. iXW1155-1
iXBTop_94 (base top)
JCBJCN
iXW1155-1
JCB
iXB1155-1

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
5
iXchange® Wall
Assembly Instructions
SSW0801-AL

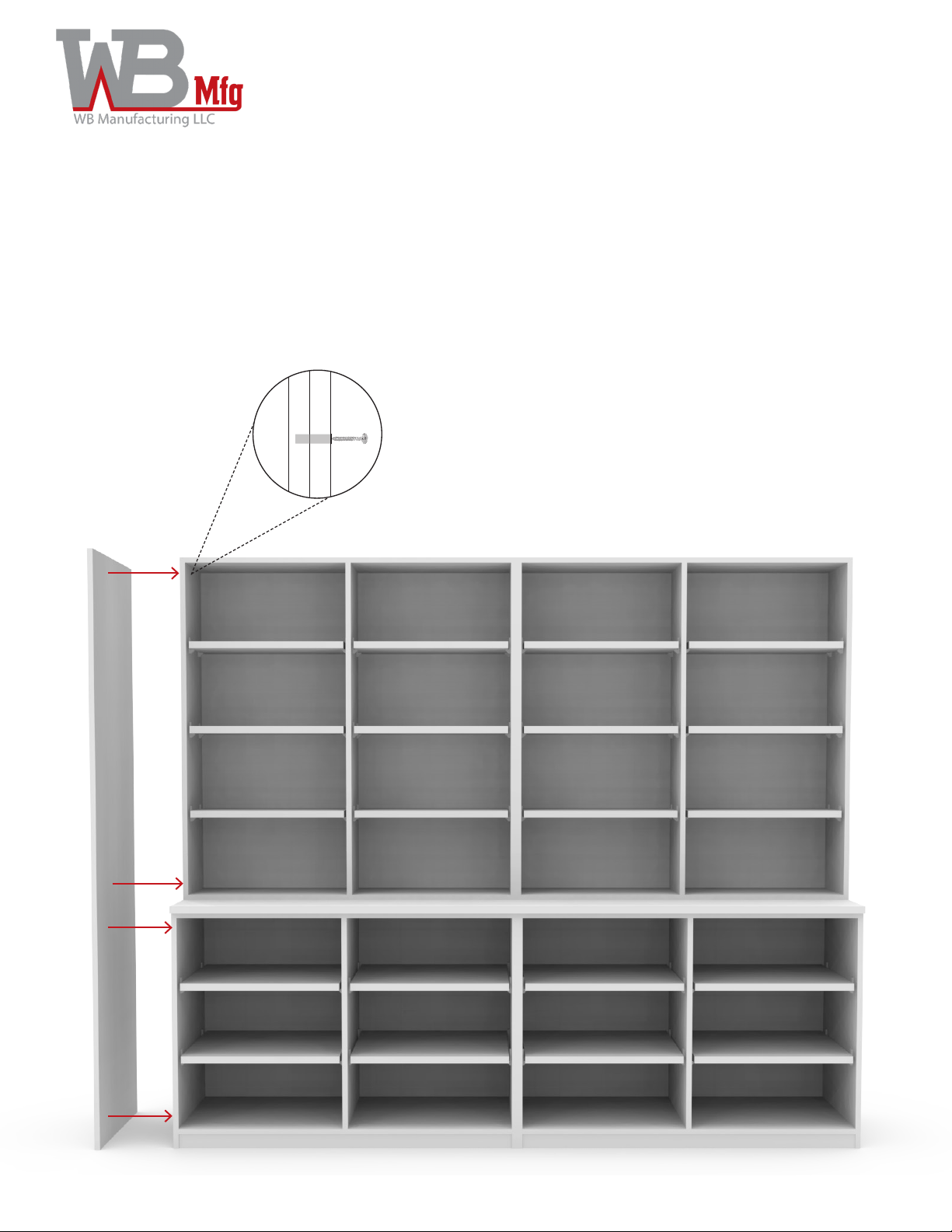

Step 6:
• Located finished wall panel (iXFEL). Align the threaded inserts in the panel to the pre drilled holes in cabinets
(iXW1155-1) and (iXB1155-1) on the LEFT side of the iXchange® Wall. Bolt wall panel to cabinets using
¼”-20x30mm joint connector bolts.
iXW1155-1
iXFEL
iXB1155-1
JCB

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
6
iXchange® Wall
Assembly Instructions
SSW0801-AL
Step 7:
• Locate wall top panel (iXWTop_96) and place on top of the upper wall cabinets (iXW1155-1) with the threaded
inserts facing down. Align the threaded inserts with the pre-drilled holes in the sub-tops of both wall cabinets
and bolt into place using ¼”-20x30mm joint connector bolts.
iXW1155-1 iXW1155-1
iXWTop_96

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
7
iXchange® Wall
Assembly Instructions
SSW0801-AL
iXW1155-1 iXW1155-1
iXWTop_96

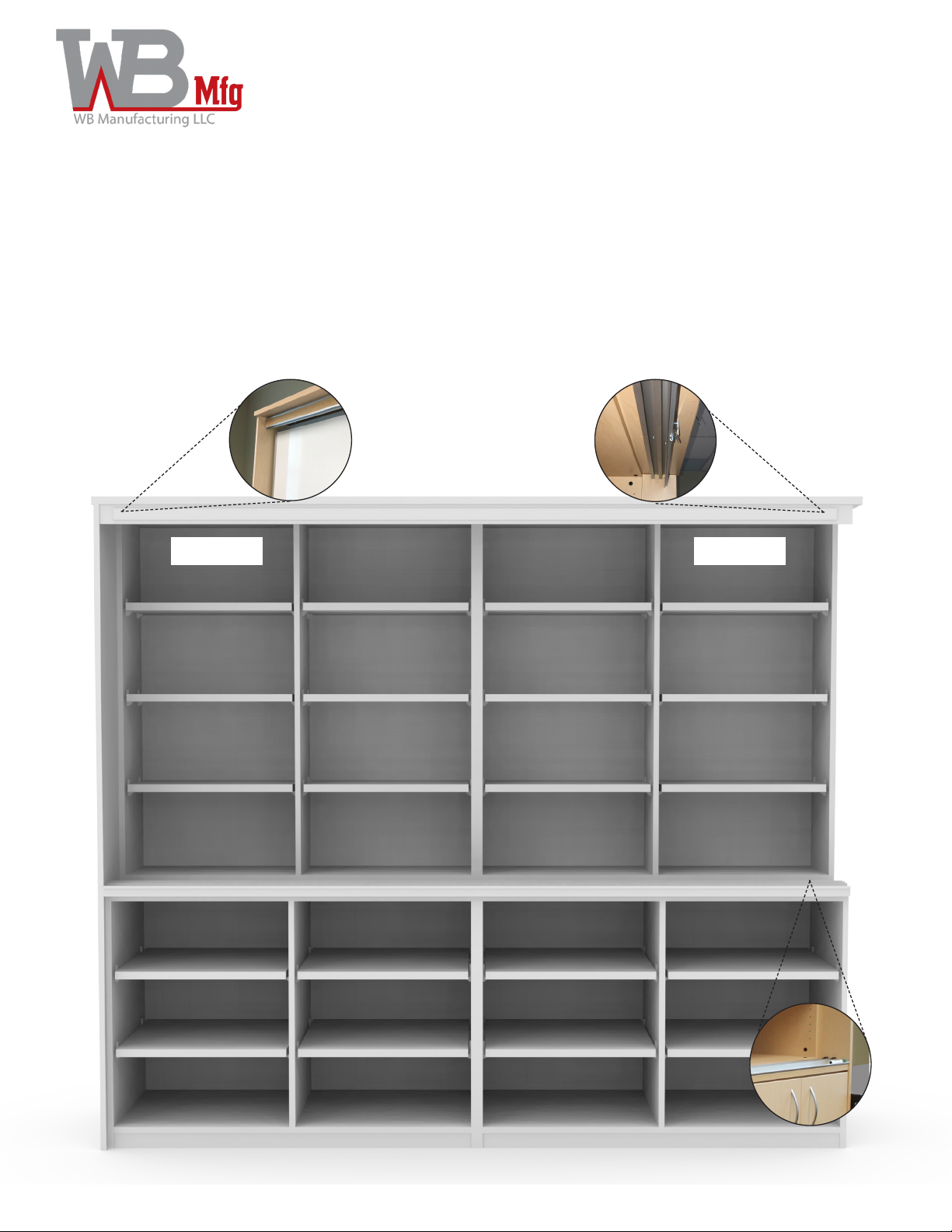

Step 8:
• Locate the cork strip and double top track. Slide the cork strip into the channel on the front of the upper track.
Cut to fit.
Step 9:
• There will be a double top track with 2” Forbo insert and a double bottom track with blade tray. (Both tracks will
be pre-drilled. The cabinets will not have any pre-drilling.)
• Align the front edge of the double bottom track to the front edge of the base cabinet top (iXBTop_94). Mount
using ⁄” #8 truss head screws. Attach double track with blade tray to the top of the base cabinets using ⁄”
#8 flat head screws.

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
8
iXchange® Wall
Assembly Instructions
SSW0801-AL

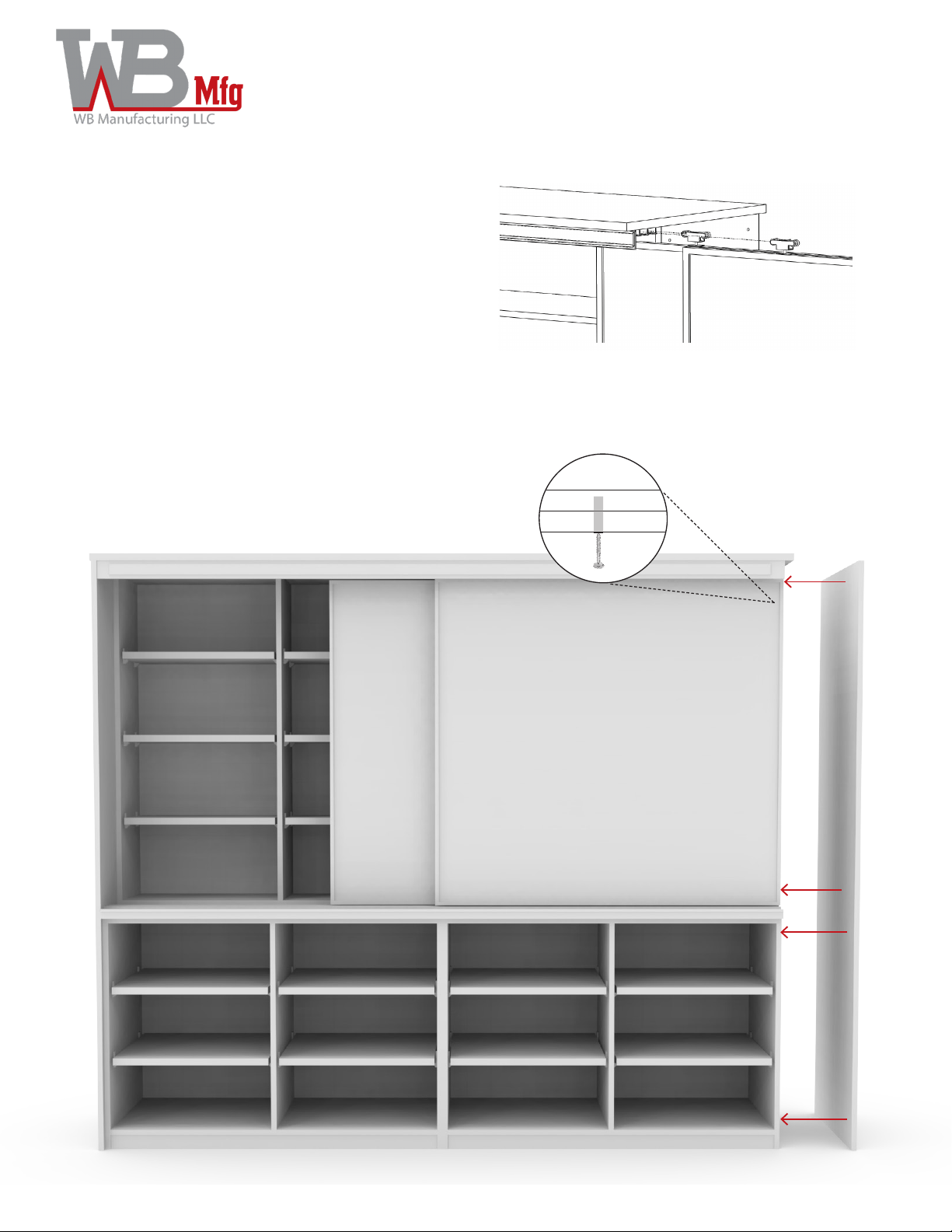

Step 10:
• Attach carriers to whiteboard panels and tighten
jamb nut against carrier. Slide whiteboard panels
onto the track from the open end. Use the front
two channels if only using 2 boards. There will
only be one panel per track.
Step 11:
• Slide map hooks/clips and roller brackets on from
open end.
Step 12:
• Attach right side panel (SP303933-iXFER) using ¼”-20x30mm joint connector bolts. Pre-drilled holes in the
wall cabinet and base cabinet will line up with threaded inserts in the right side panel.
iXB1155-1
iXW1155-1
iXFER

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
9
iXchange® Wall
Assembly Instructions
SSW0801-AL

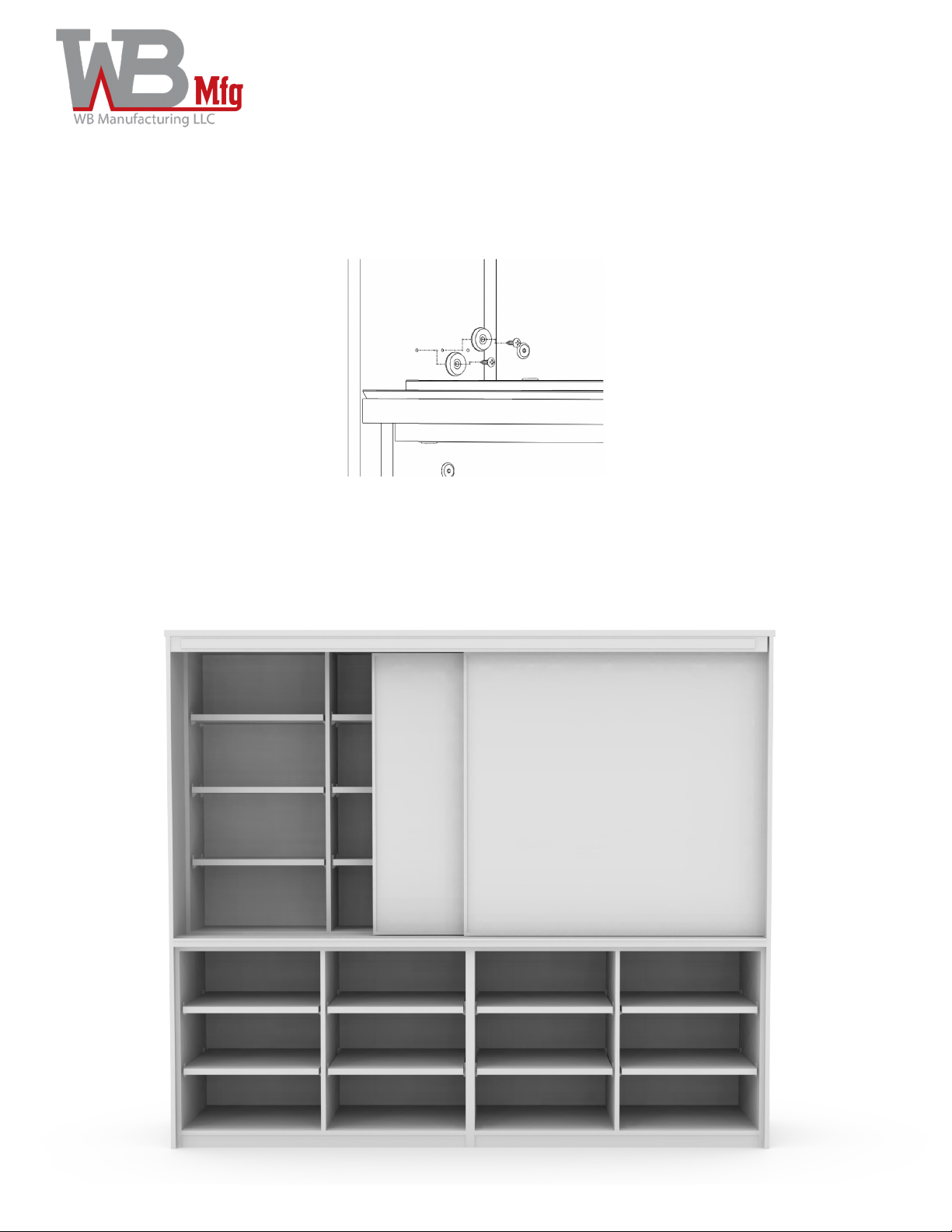

Finished assembly of iXchange® Wall SSW0801-AL
Step 13:
• Attach bumpers to the end panels near lower track using ⁄” #8 truss head screws. Holes in bumpers will line
up with pre-drilled holes in the end panels.

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
10
iXchange® Wall
Assembly Instructions
SSW0801-AL
Part Identifier Key
Part # Description
0400236 ¼”-20x30mm joint connector bolt
04009023 ¼”-20x15mm joint connector bolt
0404229 ¼”-20x17mm joint connector nut
Part # Description Qty.
iXB1155-1
0400236
0404229
Open base cabinet with 4 adj. shelves
Joint connector bolt (¼”-20x30mm)
Joint connector nut (¼”-20x17mm)
2
4 each
4 each
iXW1155-1
0400236
0404229
Open wall cabinet with 1 vertical divider and 6 adj. shelves
Joint connector bolt (¼”-20x30mm)
Joint connector nut (¼”-20x17mm)
3
4 each
4 each
iXFEL
0400236
iXchange wall left side panel
Joint connector bolt (¼”-20x30mm)
1
8
iXFER
0400236
iXchange wall right side panel
Joint connector bolt (¼”-20x30mm)
1
8
iXBTop_94
0400236
iX Base Top - 94”
Joint connector bolt black (¼”-20x30mm) w/Loctite
1
16
iXWTop_96
0400236
iX Wall Top - 96”
Joint connector bolt black (¼”-20x30mm) w/Loctite
1
16
NOTE: Some components may come with extra hardware (bolts/nuts). Discard extra hardware.
Part # Description Qty.
0400675 94” 3 Track Upper w/Fascia & 2” Map Rail 1
0400676 94” 3 Track Lower w/Marker Tray 1
0400695
Hardware pack for
iXchange Wall
Carriers 4
Bumpers and screws N/A
End stops and screws 2
Map hooks 7
Roller brackets 2
Flat Head screws 18
Truss Head screws 25
0400695 4’x4’ White Board 2

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
11
iXchange® Wall
Assembly Instructions
SSW0801-AL
Care & Maintenance
Storage Cabinet Surfaces
Daily Care and Cleaning for Laminate Surfaces
The laminate surface may be cleaned with warm water and
mild soaps, such as those used for hands or dishes. Heavy
solvents can affect edging adhesion.
Note, that while there are different grades and chemical
resistance properties to various types and manufacturers of
plastic laminate, the cleaning recommendations are universal.
To clean the surface, use a damp cloth or sponge and a mild
soap or detergent. Difficult stains such as coffee or tea can
be removed using a mild household cleaner and baking soda;
mixing to achieve a paste consistency. Use a stiff nylon bristle
brush, scrubbing (approx. 15-20 strokes) the affected area. Do
not scrub so as to damage or scratch the surface finish. Doing
so will void the warranty.
Stubborn stains that resist any of the above cleaning methods
may require the use of undiluted household bleach or nail
polish remover. Use a cotton ball saturated with bleach or nail
polish remover (acetone); gently rub the stain for up to two
minutes. Rinse thoroughly with warm water and wipe dry using
a soft cloth. This step may be repeated if the stain appears to
be going away and the color of the laminate has not
been affected.
WARNING: Prolonged exposure of the laminate surface to
bleach will cause discoloration. Always rinse laminate surfaces
after cleaning! Failure to rinse after cleaning can cause
damage; even if a small amount of cleaning solution remains
on the surface. A dry residue may be invisible; however,
moisture from cups or drinks can reactivate it, and result in
permanently etched scars or stains over time.
Recommended Household Cleaners:
• Clorox® (Prolonged exposure can mar the surface)
• Formula 409®
• Dawn®
• Glass Plus®
• Dow Bathroom Cleaner with Scrubbing Bubbles™
• Fantastik®
• Favor®
• Windex
• Lestoil®
• Pledge®
• Grease Relief®
• Mr. Clean®
• Lysol® Brand Disinfectant Basin/Tub/Tile Cleaner
• TOP JOB®
A Few Notes of Caution:
Acidic or abrasive cleaners can damage laminate surfaces; do
not use them. Drain cleaners containing lye will permanently
damage the laminate surface. If you spill a drain cleaner, wipe
it up immediately and rinse several times with water.
Hair, textile and food dyes can cause permanent stains.
If dye should happen to spill, wipe it up immediately with
dishwashing detergent or an all-purpose cleaner.
• Wipe spills away promptly and rinse several times with water.
• Rust removers contain harsh chemicals, which will quickly
cause permanent damage. If a spill occurs, wipe off residue
immediately and wash thoroughly with soapy water and rinse
several times.
• Steel wool and other abrasive pads will damage the laminate
face. Do not use them for cleaning and don’t store steel wool
pads on your countertop; the metal can rust and leave stains.
• Toilet bowl cleaners contain harsh chemicals that can cause
permanent damage.
• If spills occur, wipe up immediately, wash surface with soapy
water and rinse several times.
• Sharp objects can damage the surface; marring its beauty
and lowering wear and stain resistance. Although high
pressure laminates are somewhat resistant to scratch and
marring, the surface can be damaged, even under normal use.
• Laminate surfaces may need occasional dusting depending
on where it’s used.
• To keep the surface beautiful, use a non-oily furniture
spray. Furniture polish can also help hide fine scratches in the
surface.
• Excessive contact with moisture, high humidity and other
harsh environmental conditions may not affect the laminate
surface itself, but may cause the laminate surface to pull away
from the core material it is adhered to, causing failure.
• Although not a material failure, this is considered a product
failure and may void the product warranty.
The cleaners listed below can cause damage to the surface of
laminate:
Chemical Ingredient Synonymous Names
Hydrochloric Acid Muriatic Acid, Hydrogen Chloride
Sulfuric Acid Oleic Acid, Oil of Vitriol, Oleum
Hydrofluoric Acid Rust Remover
Phosphoric Acid Rust Remover
Sodium Hydroxide Caustic Soda, Caustic Lye, Soda Lye

wibenchmfg.com 507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
Specifications are subject to change. Product
images are for illustrative purposes only and may
differ from the actual product.
12
iXchange® Wall
Assembly Instructions
SSW0801-AL
Care & Maintenance
Whiteboard Surfaces
General Guidelines
The manufacturing of the whiteboard recommends solvent-
based dry-erase markers, instead of water-based or “low
odor” dry eraser markets. Low-odor markers take longer to
dry and ink pigments cling more aggressively leaving behind
a residue or the appearance of ghosting. The manufacturer
recommends SPRAYWAY foaming glass cleaner (aerosol or
whips), yellow
micro fiber cloths and white lint free polishing cloths.
Avoid using foam erasers to avoid pigment transformation.
Daily Care and Cleaning
1. Wipe surface with a clean Yellow micro fiber cloth.
2.If writing has remained on surface for more than 48 hours,
a yellow micro fiber cloth moistened with warm water can be
used.
3. Wipe dry with a white lint free polishing cloth.
Weekly or as Needed Cleaning
1. Remove all papers and magnetic attachments from board.
2. Wipe complete surface with yellow micro fiber cloth.
3. Apply SPRAYWAY foaming cleaner and work foam into
surface with fingers on ghosting areas.
4.Rinse with yellow micro fiber cloth moistened with warm
water.
5.Dry with white lint free polishing cloth.
Special Cleaning
To remove crayon, transparent tape residue and other
miscellaneous stains dampen a clean cloth with water and
sprinkle a small amount of powder cleanser on the cloth.
Begin cleaning a small area with a back and forth horizontal
motion using normal pressure as if cleaning a window.
Wipe off the residues with a dry cloth then rinse with clear
water. Wipe dry with a clean, dry cloth. Repeat if necessary.
Permanent Marker Cleaning
It is recommended not to use permanent marker on the
whiteboard. If permanent marker is accidentally applied to
whiteboard surface, moisten a clean, dry cloth with isopropyl
alcohol. Begin cleaning in a circular motion to loosen marker
residue. Dry with a clean, dry cloth. (If isopropyl alcohol is not
available try writing over the permanent ink marker with a dry
erase marker then wipe with a clean, dry cloth.) Repeat as
often as necessary to remove all residues.
Cabinet Hardware
Door and Drawer Pulls/Handles:
Pulls/Handles can easily be cleaned with a damp cloth or
sponge and a mild soap or detergent, or all purpose cleaners.
Acidic or abrasive cleaners can damage the finish; do not use
them. Drain cleaners containing lye may permanently damage
the finish.
If you spill a drain cleaner, wipe it up immediately and rinse
several times with water.
Periodically check the screw fasteners and tighten if
necessary. Do not over-tighten as it may damage the door or
drawer,
or crack the pull/handle itself.
Hinges:
Hinges can easily be cleaned with a damp cloth or sponge and
a mild soap or detergent, or all purpose cleaners.
For heavily soiled hinges, mild abrasive cleansers, like Comet
or Ajax, can be useful for cleaning heavily soiled hinges, but
take precaution to not scratch the finish. A better alternative
is to remove the hinges from the door and soak them in a mild
soap or detergent solution, using a toothbrush to get hard to
reach areas if necessary. When reattaching the hinges to the
door, a drop of glue in the screw hole is recommended.
After time, hinges may start to squeak. These noises do not
affect the performance of the hinges but they can become
a nuisance. Periodically spray WD-40 at each joint along the
pin so it soaks into the center, being careful not to spray the
laminate door finish as it may stain.
If the doors have a European (concealed) hinge, periodic
adjustment may be required to keep the doors aligned and
working properly. A separate document is available that
explains this process. If you need this document, or require
assistance, contact Wisconsin Bench Manufacturing at
[phone].
Drawer Slides:
Periodically clean with a soft damp cloth. Ball-bearing slides
are lubricated with grease to ensure smooth quiet operation
and long life. Avoid removal of this grease during cleaning.
