weewell WMV870 Sphera Dual Watch User manual

WMV870 USER MANUAL I 1
WMV870 USER MANUAL I 1
WMV870 Sphera Dual Watch
User Manual EN
TRKullanım Kılavuzu
Digital Baby Monitor
Dijital Bebek İzleme Cihazı
Ev İçi Dinlenme ve İzleme Cihazları
WMV920
Weewell Uni-Viewer Pro Silver
• PC, tablet, akıllı telefon (3G/4G/4,5G) üzerinden
izleyebilme
• Kamera hareket kontrolü (Dikey 355°, Yatay 120°)
• Zoom (8x) ve ful HD/720p görüntü kalitesi
• Otomatik gece görüşü
• Birden çok kullanıcı erişimi
• Oda içi sıcaklık ve nem algılama & alarmı
• Hareket ve ses algılama & alarmı
• Anlık görüntü alma bilme
• Görüntü kayıt edebilme
• Karşılıklı konuşma
• İnternet Explorer, Firefox, Safari, Google Chrome destekli
• iOS ve Android işletim destekli
• Bireysel kurulum kolaylığı
• Microsoft Windows 2000/XP/Vista/7/8/10
55
55
YENİ
ÜRÜN
6
C
M
Y
CM
MY
CY
CMY
K
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WEEWELL KATALOG 2018.pdf 8 26.12.2017 17:10:22
WMV870
Weewell Sphera Dual Watch
• Hem ebeveyn ünitesinden hem de tablet/akıllı
telefon ile izleme
• Geniş 4,3’’ TFT LCD, kolay & dokunmatik ekran
• Dijital zoom & HD görüntü kalitesi
• Karşılıklı Konuşma
• Otomatik gece görüşü
• Oda sıcaklığı sensörü & alarmı
• Kamera hareket kontrolü (Dikey:270 derece,
Yatay: 120 derece)
• Enerji tasarrufu modu – VOX (ses ile aktive olma)
• Sinyal güç göstergesi
• Güç seviyesi/şarj göstergesi
• Adaptör ile çalışan kamera ve şarj edilebilir anne ünitesi
• Anlık görüntü alma bilme ve görüntü kayıt edebilme
(akıllı telefon ile kullanımda)
YENİ
ÜRÜN
7
Night Vision
Gece Görüşü
Two -Way
Communication
Karşılıklı Konuşma
Temperature
Sensor&Alert
Sıcaklık
Sensörü&Alarmı
Remote Movement Control
Pan: 355° / Tilt: 120°
Kamera Hareket Kontrolü
Dikey: 355°/Yatay: 120°
Movement/Sound
Sensor&Alert
Hareket/Ses
Sensörü&Alarmı
4,3’’
Multi Monitoring:
Parent Unit&PC/Tablet/
Smartphone
Çoklu Görüntüleme:
Ebeveyn Ünitesi&PC/
Tablet/Akıllı Telefon
4,3’’ TFT LCD Touch Screen
4,3’’ TFT LCD Dokunmatik Ekran
VOX VOX Technology
Enerji Tasarrufu Modu
C
M
Y
CM
MY
CY
CMY
K
Remote Movement Control
Pan: 270° / Tilt: 120°
Kamera Hareket Kontrolü
Dikey: 270°/Yatay: 120°
Sound Sensor&Alert
SesSensörü&Alarmı

2IWMV870 USER MANUAL
CONTENTS
Congratulations!
Warning
1. Package Contents
2. Product Layout
3. Setup
3.1. Camera Setup
3.2. Monitor Setup
3.3. Hot Key Options
3.4. Menu Options
3.5. Status Information
3.6. Internet Viewing
4. Troubleshootİng
5. Technİcal Specİfİcatİons

WMV870 USER MANUAL I 3
CONGRATULATIONS!
Congratulations on your new WMV870 Sphera Dual Watch!
WARNING
• Keep all parts and accessories out of children’s reach.
• Fingerprints or dirt on the lens surface can adversely affect camera performances.
Avoid touching the lens surface with your ngers.
• Should the lens become dirty, use a blower to blow off dirt and dust, or a soft, dry
cloth to wipe off the lens.
• Keep the camera dry. Precipitation, humidity, and other liquids contain minerals will
corrode electronic circuits.
• Do not use or store in dusty, dirty areas.
• Do not store in hot areas. High temperatures can shorten the life of electronic
devices and warp or melt certain plastics.
• Do not store in very cold areas. When the system warms up (to its normal
temperature), moisture can form inside the case, which may damage electronic
circuit boards.
• Do not attempt to open the case. Non-expert handling of the device may damage the
system.
• Avoid dropping or strong shocks.
• Operate this product using only with the power supply included or provided as an
accessory.
• Do not overload electrical outlets or extension cords this can result in re or electric
shocks.
• To prevent deaths and injuries associated with baby monitor cords:
Make sure the baby unit and AC adapter cords are always out of reach of the baby
at least 3 feet (1 meter) away.
Note: It’s important even if your baby is not yet standing or mobile.
Use a wireless baby monitor to avoid risk of strangulation.
Never use extension cords with AC adapters. Only use the AC adapters provided.
1. PACKAGE CONTENTS
WMV870 Sphera Dual Watch Baby Camera (Baby Unit)
WMA870 Sphera Dual Watch Monitor (Mother Unit)
Two power adapters
One screw an done Wall anchor
One user manual

4IWMV870 USER MANUAL
2. PRODUCT LAYOUT
Camera (Baby Unit)
1Light sensor
2Microphone
3Lens
4Infrared LEDs
5Speaker
6Power adapter plug
7 Pairing button (connect camera to router)
8Antenna
9 Temperature sensor
10 Power indicator LED
1
2
4
3
5
6
7
89
10

WMV870 USER MANUAL I 5
Monitor (Mother Unit)
1 LCD Screen
2 Volume indicator LEDs
3VOX indicator LED
4Power indicator LED
5 Volume up button
6 Volume down button
7Microphone
8PowerON/OFF switch
9Antenna
10 Menu button
11 Talk back button
12 Speaker
13 Power adapter plug
1
2
3
5
6
7
8 9 10 11
12
13
4

6IWMV870 USER MANUAL
3. SETUP
3.1. Camera Setup
Power Supply – Using AC Power
Plug one end of the provided power adapter into a wall outlet and the other end into the
back of the camera. Camera automatically turns on when plugged in.
Note: Use the adapter labeled OUTPUT: 5V DC with the camera.
Fine Tuning
Place the camera in a convenient location, point the lens toward the observation area.
Night Vision
The camera has eight high-intensity LEDs for picking up clear images in the dark.
When the light sensor detects low ambient light levels, the LEDs will be automatically
activated.
Room Temperature Measurement
Temperature sensor can measure room temperature on camera side and the room
temperature indicator will be displayed on the screen of the monitor unit.
1
2

WMV870 USER MANUAL I 7
3.2. Monitor Setup
Power Supply – Using AC Power
The monitor has built in 3.7V 2600mAh (Li-ion) battery and uses household AC power
current.
1. Plug one end of the provided power adapter into a wall outlet and the other end into
the monitor.
Note: Use the adapter labeled OUTPUT: 5V DC with the monitor.
2. Slide the Power switch to “ON”.
Note1: When power on the monitor, “Power” LED will light up (green light).
When battery is low, the red LED light will start blinking.
When the battery is charging, the red LED will light up.
If charging is nished (fully charged), the “Power” LED will turn off (when power off ).
Note2: “Out of Range” will be displayed on the LCD screen if the monitör exceeds the
range (unlink)
12
3
Fig. 4

8IWMV870 USER MANUAL
Talk Back Function
Volume Setting
3.3. Hot Key Options
Press the talkback button to speak through the camera unit, and the icon will
then be displayed on the screen.
Press volume up or volume down buttons to adjust volume level.
1. Tap the screen and the Hot Key will
display on the right side of the screen.
2. Hot Key settings need to be completed
within 5 sec. If over 5 sec, the system will
return to the live view automatically.

WMV870 USER MANUAL I 9
Audio Only Mode
Zoom in Function
Tap icon to enable audio mode. This will turn off video in 10 seconds and audio is
still playing. You can touch screen to wake it up for 10 seconds.
Tap the Zoom in icon on monitor once for a 2X zoom of image and tap again to
change back to normal view.

10 IWMV870 USER MANUAL
Music Function
Monitor Remote Control Function
You can play the music with the camera (three pieces of music).
Tap the music icon , the camera will play music.
The monitor can control the movement of the camera. The camera head has the ability
to rotate up , down , right and left . Tap the up or down icons on screen to
move the camera up or down. Tap the left or right icons on screen to move the camera
left or to the right.
Note: The audio will be muted when the motor rotates.
Tilt
Pan

WMV870 USER MANUAL I 11
3.4. Menu Options
Temperature Setting (Temp. Setting)
Brightness Setting (Brightness)
1. Press the menu button on the
monitor unit to display the main menu on
the screen.
2. The main menu contains 7 submenus.
1. In this submenu you can choose the
temperature unit between degrees
Celsius or degrees Fahrenheit
2. You can set the temperature range of
the temperature alert. If you select “Alert
On” to enable the temperature alert
and the temperature is outside the
range, a warning sound will be emitted
from the monitor unit.
In this submenu you can adjust brightness
of the screen.

12 IWMV870 USER MANUAL
VOX Sensitivity (VOX Sensitivity)
3.5. Status Information
This submenu lets you choose the VOX
(voice activation) sensitivity level.
When the level set to high, the screen will
turn on by lower sounds.
The status bar will be displayed on the top of the screen.
1Signal strength indicator
2 Temperature alert on/off indicator
3 Room temperature indicator
4 Zoom in indicator
5 Audio only mode indicator
6Music indicator
7Mute indicator
8Talkback indicator
9 Battery status/Charging indicator
1 2 3 4 5 6 7 8 9

WMV870 USER MANUAL I 13
3.6. Internet Viewing
Watch the things that matter to you anytime and anywhere
Download and Run the APP
Android: Go to Google Play Store to search “Sphera Duo” and install.
iOS: Go to App Store to search“Sphera Duo” and install.

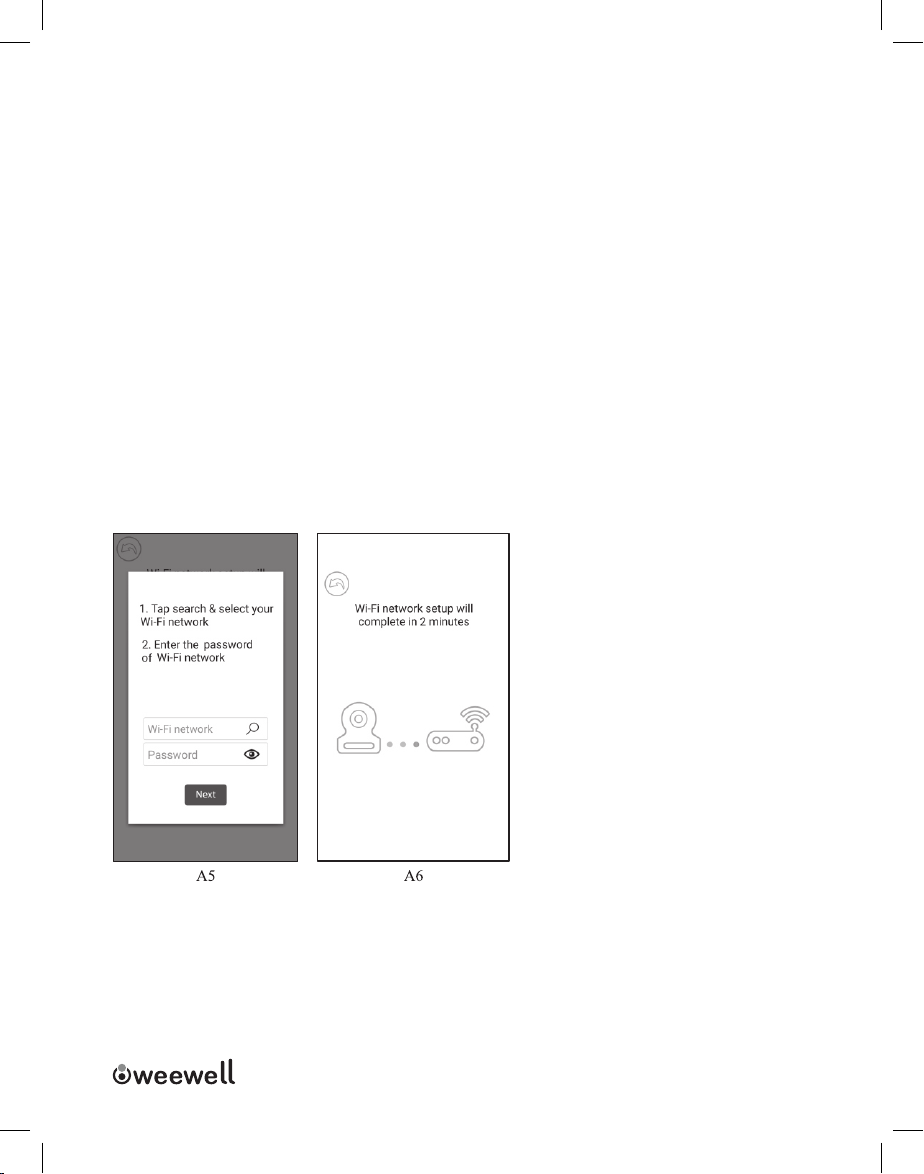

Add and connect camera wirelessly with your router
1. Tap icon to add camera. Tap connecting camera to the internet icon. (See A1)
2. Plug one end of the provided power adapter into a wall outlet and the other end into
the camera.
3. The camera will be ready in 30 seconds.
4. Tap to next step. (See A2)
Press and hold PAIR button over 5 seconds until the LED indicator starts
green blinking on the camera.
5. Tap to next step. (See A3)
Before you start you need
Weewell Sphera
Dual Watch
Baby Camera
Weewell Sphera
Dual Watch
Baby Camera
iPhone, iPad,
Android smartphone
or Android tablet Wi-Fi Router

Note 1: If your monitor is on, the monitor will disconnect and reconnect in 5
seconds.
Note 2: If camera was paired previously, pair the camera again will overwrite
the preriously registration.
6. Android: The APP will automatically search for camera
iOS: a. Press “Home” key go to “Setting”
b. Turn on
c. Tap the name of camera “Weewell Sphera Dual Watch-XXX” and join > back to APP.
(See A4)
14 IWMV870 USER MANUAL

WMV870 USER MANUAL I 15
7. The camera will scan for available WiFi networks in range. Select your WiFi network,
and enter the password of your WiFi router if necessary. (See A5)
a. If you select “Yes”, the camera will scan for available Wi-Fi networks in range.
Tap the name of your Wi-Fi network, and enter the password of your Wi-Fi router if
necessary. Then the rst-time setup is done.
Note: Please make sure you enter the correct password of WiFi network otherwise
connection error may occur.
b. It will take a few minutes for the camera to connect to your WiFi network. Tap
camera on the list to watch live video. (See A6~A7)
Note: If your monitor is on, the monitor will disconnect and back in 10 seconds.
Android: The APP will automatically search for camera. Wi-Fi network otherwise
connection error may occur.
b. It will take a few minutes for the camera to connect to your WiFi network.
Tap camera on the list to watch live video. (See A6~A7)
Note: If your monitor is on, the monitor will disconnect and back in 10 seconds.

16 IWMV870 USER MANUAL
1. Camera’s name
2. Connecting status
3. Setting
4. Refresh
5. Quit
6. Add camera
7. APP information
Function of the APP (See A8)
1. Back: Tap icon and go back to last page.
2. Temperature measure: It will display below the
liveview.
3. Photo: Tap icon to save a photo on your
Smartphone or tablet.
4. Video: Tap icon to start and release to stop
recording. (3 minutes limitation)
Note: Photo and Video will be stored on the
internal memory of your Smartphone or tablet.
5. Camera Album: Tap icon to view and
managephotos/videos. Tap and hold to delete.
6. Volume: Tap icon to adjustment volume.
7. Pan and tilt: Tap up and down icon to
tilt, the left and right icon to pan.
8. Two-way talk: Tap icon to talk,tap again to stop
talking.
Camera setting
Tap icon on the page. (See A9)
Camera List (See A7)

WMV870 USER MANUAL I 17
1. Name: Camera’s name, tap icon to change camera’s name.
2. Password: Enter correct password then you can watch live video of camera. (See
A10.)
3. UID: Each camera has a unique ID (UID) and you can share live video with your
friend by UID.
4. Temperature: Tap icon to change oC/oF.
5. Notication: Tap icon to activate Sound and Temperature. You will receive push
notication once the sound reaches the level that you have set on Monitor.
6. Delete camera: Tap icon to delete camera.
7. Change password: You could change password local area network (LAN).
The password is used to grant access your camera. The default password is
“12345678”, we strongly recommend that you change your password. (See A11.)
LED indicator (Camera)
Indication Status
GREEN blinking Camera is waiting for pairing
Stable GREEN Camera is connected to the Internet
Stable ORANGE Losing connection to the Internet
Stable RED Losing connection to the WiFi router (refer to troubleshooting 7.5)

18 IWMV870 USER MANUAL
4.TROUBLESHOOTING
No Video (Monitor)
• Make sure the camera’s power plug is pushed all the way in.
• Make sure the monitor has enough battery power and is turned on.
• Restart your camera, please unplug power adapter and replug. The camera will
nish reboot in 25 seconds.
• If the power LED is on but only voice signal input is detected, the monitor can be in
audio only mode or VOX mode. Press the Menu button to turn on the screen.
Noise interference on your monitor
• There is at least 5 feet (1.5m) between camera and 2.4GHz products, such as WiFi
router, Bluetooth or microwave ovens.
• Make sure the camera and the monitor are within range of each other.
Camera connecting status continues (APP)
• Timeout: Make sure your smart phone or tablet is connected to WiFi router or 4G
LTE network.
• Ofine: Make sure your camera is connected to the Internet.
Video issues (APP)
• No video play: Please check the status of the camera on camera list.
• Video streaming is not smooth: The video performance is related to your internet
bandwidth or interference.
Camera’s LED indicator is in stable RED
The Camera has failed to connect to the WiFi router or the connection is lost.
• Please make sure your WiFi router is working well and then restart your camera,
please unplug power adapter and replug.
• Make sure the camera is paired with your WiFi router with correct password of the
WiFi router. If you are not sure, please delete the camera from list and proceed 6.4
again.
• Please make sure the camera is within WiFi range. Please move the camera closer
o the WiFi router and try again.
Forgot your password
• Please delete camera from list and proceed -Add and connect camera wirelessly
with your router- again.

WMV870 USER MANUAL I 19
5. TECHNICAL SPECIFICATIONS
Camera
Monitor
Frequency 2.4 GHz
Image Sensor CMOS image sensor
Lens f 2.8mm, F 2.0
IR LED 8 pcs
Dimensions 85(W) x 110(H) x 100(D) mm
Weight 223g
Power Adapter Input: 100-240V AC, 50/60Hz, 0.5A Output: 5.0V DC, 2.0A
Operating
temperature
Frequency 2.4 GHz
Display 4.3” TFT LCD touch screen
Display colors Full-color
Brightness
Control 8 levels
VOX Voice activation, Audio mode
Dimensions 128(W) x 90(H) x 25.5(D) mm
Weight 209g
Power Adapter Input: 100-240V~0.2A, 50/60Hz 12-16VA Output: 5.0V DC, 1.0A
Battery
Capability 1.0A
Operating
temperature
0oC~ 40 oC (32oF ~ 104oF)
0oC~ 40 oC (32oF ~ 104oF)

1IWMV870 USER MANUAL
İÇİNDEKİLER
Tebrikler!
Güvenlik Uyarıları
(Kullanım Hatalarına İlişkin Bilgiler & Bakım ve Onarım)
1. Kutu İçeriği
2. Ürüne Bakış
3. Kurulum
3.1. Kamera Kurulumu
3.2. Anne Ünitesi Kurulumu
3.3. Kısa Yol Seçenekleri
3.4. Menü Seçenekleri
3.5. Durum Bilgisi
3.6. İnternet Üzerinden İzleme
4. Sorun Giderme
5. Teknik Özellikler
Bakım ve Nakliye
Enerji
Tüketicinin Seçimlik Hakları
