weewell WMV911 Sphera User manual

www.weewell.com
[email protected]
User Manual EN
Kullanım Kılavuzu
WMV911 Sphera Wi-Fi Camera
Digital Baby Monitor
Dijital Bebek İzleme Cihazı
Ev İçi Dinleme ve İzleme Cihazları TR

CONTENTS
2 │WMV911 USER MANUAL
Congratulations!
Warning
1. Package Contents
2. Product Layout
3. Setup
3.1. Camera Setup
3.2. Internet Viewing
4. Troubleshooting
5. Technical Specifications

WMV911 USER MANUAL │3

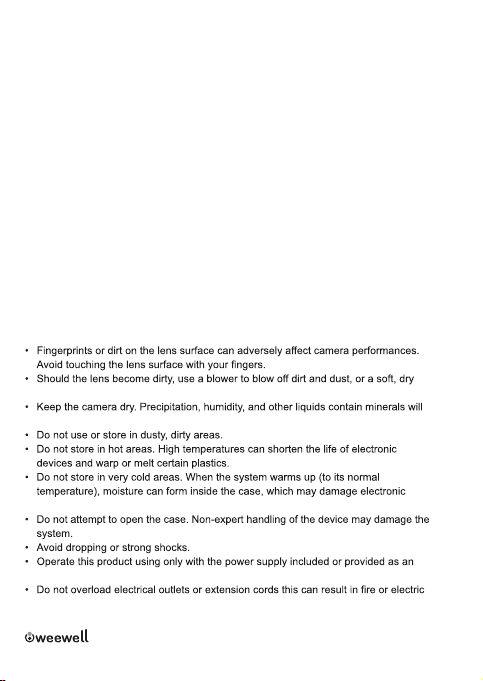

WARNING
• Keep all parts and accessories out of children’s reach.
cloth to wipe off the lens.
corrode electronic circuits.
circuit boards.
accessory.
shocks.
CONGRATULATIONS
Dear Stakeholder,
We congratulate you on hav�ng one of the Weewell products wh�ch are safely preferred all over the World
and becom�ng a part of the Weewell fam�ly. We are pleased to serve you w�th our carefully des�gned
products that appeal to bab�es such as v�deo mon�tor, aud�o mon�tor, thermometer, nurs�ng and feed�ng
group products.
Please read the user manual carefully before us�ng the product. Th�s gu�de has been met�culously
prepared to get the most out of your purchased product. You can call our call center to get all k�nds of
�nformat�on about the dev�ce and to contr�bute to our fam�ly w�th your suggest�ons and op�n�ons. If you
face w�th any problems or malfunct�ons, you can contact Weewell author�zed serv�ce. For safety of
yourself and other persons, read the SAFETY INSTRUCTIONS before us�ng the dev�ce.
Best Regards,
Weewell Turkey Team.

4 │WMV911 USER MANUAL
2. PRODUCT LAYOUT
Camera (Baby Unit)
Note:
1. PACKAGE CONTENTS
WMV911 Sphera Wi-Fi Camera
Power adapters
Screw an done wall anchor
User manual
1 Light sensor
2Microphone
3Lens
4Infrared LEDs
5Speaker
6Power adapter plug
7Pairing button (connect camera to router)
8Antenna
9Temperature sensor
10 Power indicator LED
11 Monitor pairing button (connect camera to monitor)

WMV911 USER MANUAL │5
3. SETUP

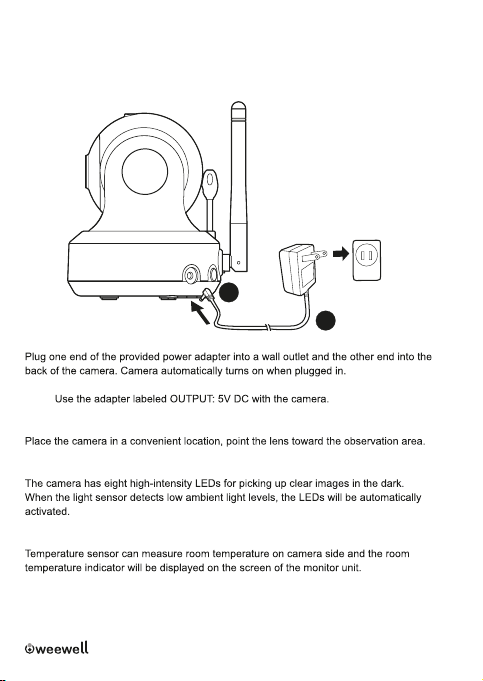

3.1. Camera Setup
Power Supply – Using AC Power
Note:
Fine Tuning
Night Vision
Room Temperature Measurement
1
2

6 │WMV911 USER MANUAL

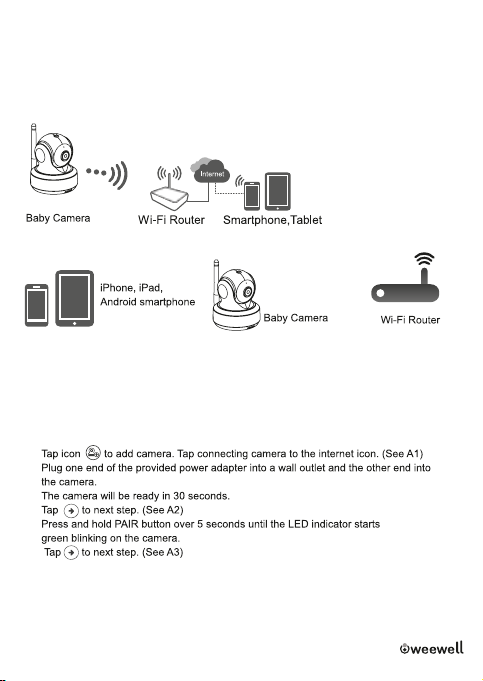

3.2. Internet Viewing
Watch the things that matter to you anytime and anywhere
Download and run the APP
Android: Go to Google Play Store to search “Sphera Duo” and install.
iOS: Go to App Store to search“Sphera Duo” and install.
Add and connect camera wirelessly with your router
1.
2.
3.
4.
5.
Before you start you need
Sphera Wi-Fi Camera
Sphera Wi-Fi Camera
or Android tablet

WMV911 USER MANUAL │7

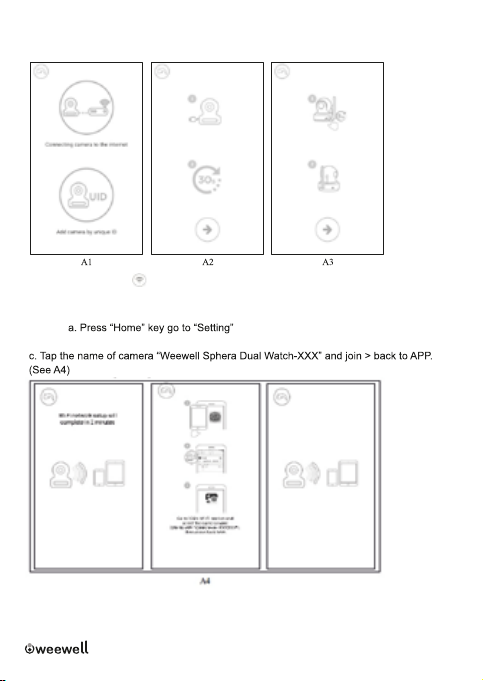

iOS:
b. Turn on
6. Android: a. Press “ ” go to “Setting”
b. Turn on Wi-Fi
c. Tap the name of camera “Weewell Sphera Dual Watch-XXX” and join > back to App.

8 │WMV911 USER MANUAL
7. The camera will scan for available WiFi networks in
range. Select your WiFi network, and enter the
password of your WiFi router if necessary. (See A5)
a. If you select “Yes”, the camera will scan for available
Wi-Fi networks in range. Tap the name of your Wi-Fi
network, and enter the password of your Wi-Fi router if
necessary. Then the first-time setup is done.
Note: Please make sure you enter the correct
password of WiFi network otherwise connection error
may occur.
b. It will take a few minutes for the camera to connect
to your WiFi network. Tap camera on the list to watch
live video. (See A6-A7)
Note: If your monitor is on, the monitor will disconnect
and back in 10 seconds.
Android: The APP will automatically search for
camera. Wi-Fi network otherwise connection error may
occur.
b. It will take a few minutes for the camera to connect
to your WiFi network.
Tap camera on the list to watch live video. (See A6-A7)
Note: If your monitor is on, the monitor will disconnect
and back in 10 seconds.
UID
Once the camera is connected to the Wi-Fi router with Internet
access. The other smartphone/tablet can add the camera by UID and
password. Refer to the steps as below.
a. Tap “Add camera by unique ID” icon
b. Input the camera name UID (14 characters) and password you
assigned, then Save it. ( See U1)
U1
Camera List
1. Camera’s name
2. Connecting status
3. Setting
4. Refresh
5. Quit
6. Add camera
7. APP information

WMV911 USER MANUAL │9
1. Back: Tap icon and go back to last page.
2. Temperature measure: It will display below the
liveview.
3. Photo: Tap icon to save a photo on your
Smartphone or tablet.
4. Video: Tap icon to start / stop recording.
(3 minutes limitation per each recording)
Note: Photo and Video will be stored on the
internal memory of your Smartphone or tablet.
5. Camera Album: Tap icon to view and manage
photos / videos. Tap and hold to delete for Android,
press “Edit” for iOS.
6. Volume: Tap icon to adjustment volume.
7. Pan and tilt: Tap up and down icon to
tilt, the left and right icon to pan.
8. Two-way talk: Tap icon to talk, tap again to stop
talking.
Function of the APP (See A8)
Camera setting
Tap icon on the page. (See A9)
A8
A9

10│WMV911 USER MANUAL
LED indicator (Camera)
Indication Status
Blinking Green Camera is ready for pairing
Solid Green Camera is linked to the internet
Solid Orange Losing connection to the Internet
Solid Red

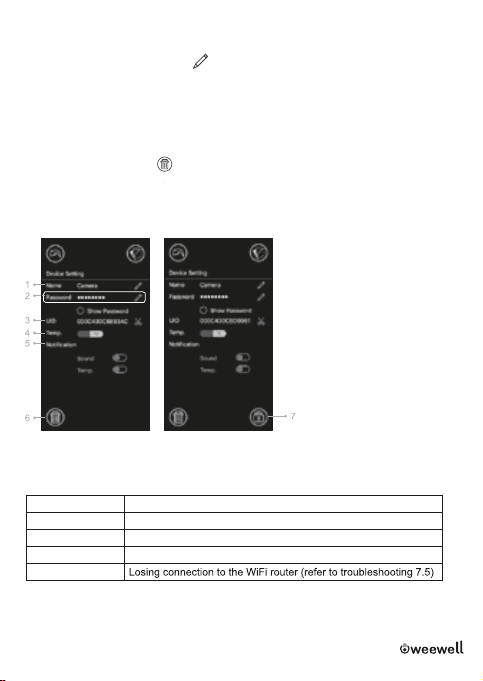

1. Name: Camera’s name, tap icon to change camera’s name.
2. Password: Enter the correct password to access the camera. (See A10)
3. UID: Each camera has a unique ID (UID) and you can share live video with your
friend by UID.
4. Temperature: Tap icon to change °C/°F.
5. Notification: Tap icon to activate Sound and Temperature. You will receive push
notification once the sound reaches the level that you have set on Monitor.
6. Delete camera: Tap icon to delete camera.
7. Change password: User can change the camera password in local area network (LAN).
The camera default password is “12345678”, it is strongly recommend to change the default
password after the setting. (See A11)
A10 A11

WMV911 USER MANUAL │11

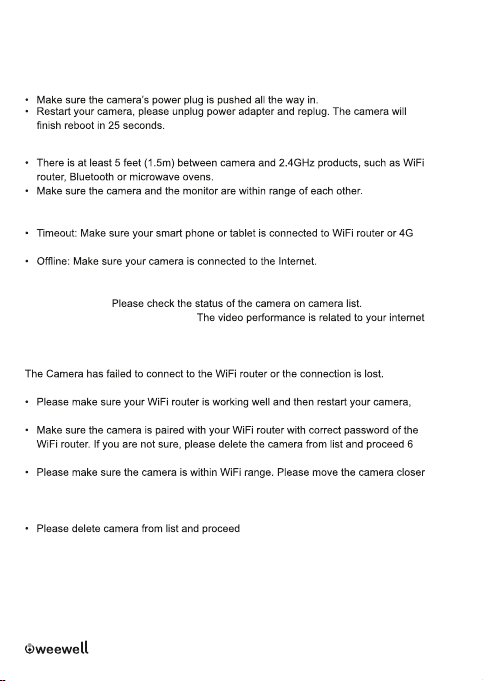

4.TROUBLESHOOTING
No Video
Noise interference on your monitor
Camera connecting status continues (APP)
LTE network.
Video issues (APP)
• No video play:
• Video streaming is not smooth:
bandwidth or interference.
Camera’s LED indicator is in solid red
please unplug power adapter and replug.
again.
o the WiFi router and try again.
Forgot your password
6

12│WMV911 USER MANUAL
5. TECHNICAL SPECIFICATIONS
Lens
IR LED 8 pcs
Weight 223g
Power Adapter
Operating 0o o o o

WMV911 KULLANIM KILAVUZU │1
Enerji

2│WMV911 KULLANIM KILAVUZU
TEBRİKLER
Değerl� paydaşımız,
Weewell a�les�n�n b�r parçası olduğunuz ve dünyanın her yer�nde güvenle terc�h ed�len Weewell
ürünler�nden b�r�ne sah�p olduğunuz �ç�n s�z� kutlarız. Bebek �zleme c�hazı, bebek tels�z�, ateş ölçer,
emz�rme ve beslenme grubu ürünler� g�b� bebeklere h�tap eden özenle tasarlanmış ürünler�m�zle s�zlere
h�zmet vermekten mutluluk duyuyoruz.
Ürünü kullanmadan önce lütfen kullanma kılavuzunu d�kkatl�ce okuyunuz. Bu kılavuz, satın almış
olduğunuz üründen en �y� ver�m� almanız �ç�n t�t�zl�kle hazırlanmıştır. C�haz �le �lg�l� her türlü b�lg� almak, öner�
ve görüşler�n�z �le a�lem�ze katkı sağlamak �ç�n Weewell çağrı merkez�m�z� arayab�l�r; herhang� b�r problem
ya da arızayla karşılaşmanız durumunda Weewell �nternet s�tes�nden de kayıt açab�l�rs�n�z. Kend�n�z�n ve
d�ğer k�ş�ler�n güvenl�ğ� �ç�n c�hazı kullanmadan önce GÜVENLİK UYARILARI bölümünü okuyunuz.
Saygılarımızla,
Weewell Türk�ye Ek�b�

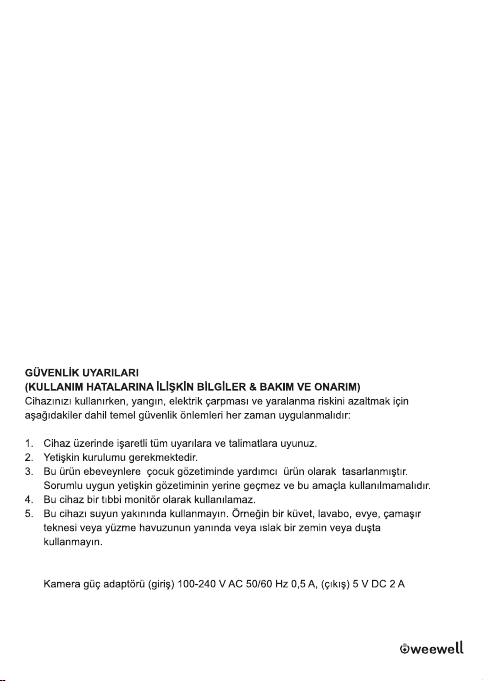

Lütfen ürünü kullanmadan önce kullanma kılavuzunu okuyunuz ve referans olarak saklayınız.
DİKKAT: SATIN ALMIŞ OLDUĞUNUZ CİHAZ EV İÇİ KULLANIM İÇİN DİZAYN EDİLMİŞTİR. TİCARİ
AMAÇLA VEYA EV TİPİ KULLANIM DIŞI ALANLARDA KULLANIMA UYGUN DEĞİLDİR.

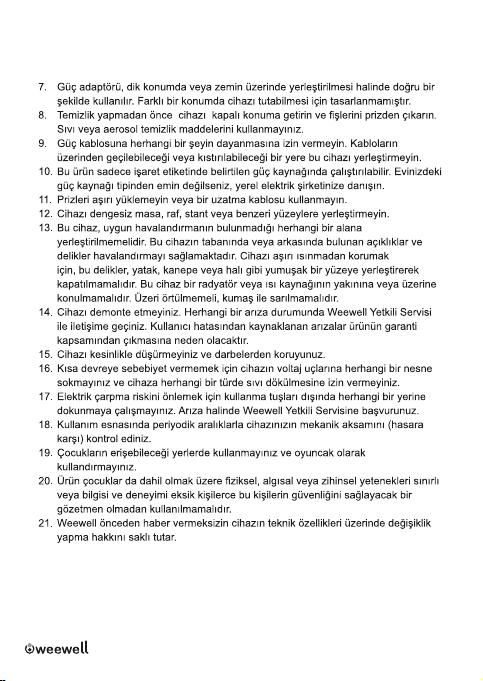

6. Sadece bu cihazla birlikte verilen adaptörü kullanın. Yanlış kutuplu adaptör veya voltaj
kameranıza hasar verebilir.

WMV911 KULLANIM KILAVUZU │3

4 │WMV911 KULLANIM KILAVUZU
BU KILAVUZU SAKLAYINIZ.

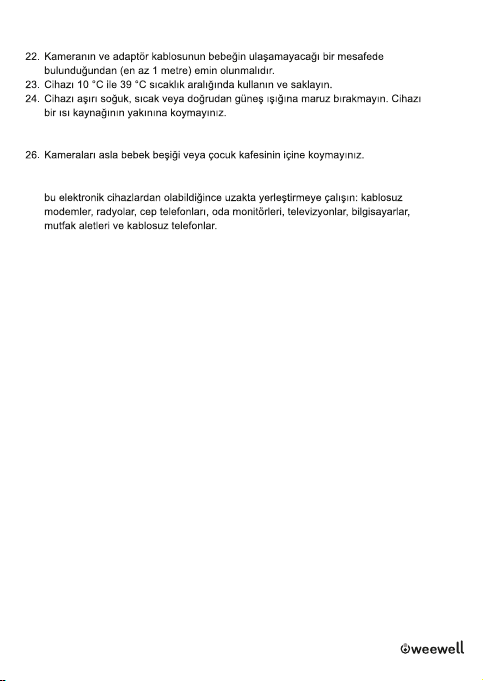

25. Olası bir boğulma tehlikesinin önüne geçmek için kameranın adaptör kablosunu
her zaman bebeğin ulaşamayacağı bir yerde tutunuz.
27. Kamerayı havlu veya battaniye gibi herhangi bir şeyle asla örtmeyiniz.
28. Diğer elektronik cihazlar kameranızda negatif etkiye neden olabilir. Kameranızı

WMV911 KULLANIM KILAVUZU │5

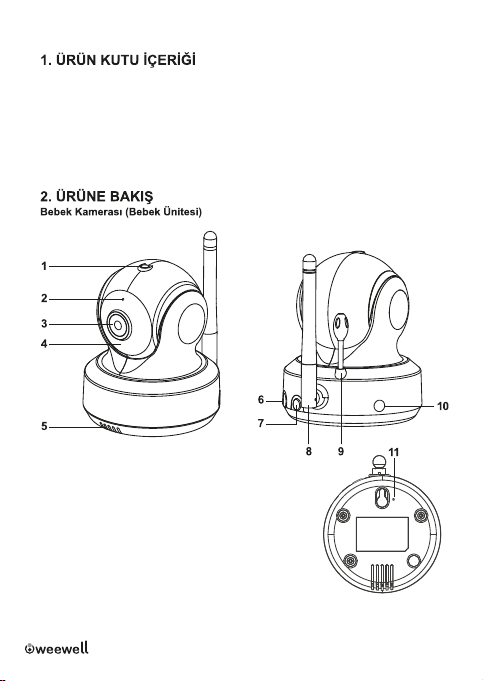

WMV911 Sphera Wi-Fi Camera
Güç adaptörü
Duvar montaj aparatı
Kullanım kılavuzu
1 Işık algılama sensörü
2Mikrofon
3Lens
4Kızılötesi IR Led
5 Hoparlör
6 Adaptör giriş soketi
7Eşleştirme butonu (Pair)
8Anten
9 Sıcaklık sensörü
10 LED güç göstergesi
11 Ünite eşleştirme butonu

6 │WMV911 KULLANIM KILAVUZU
3. KURULUM
3.1. Kamera Kurulumu
Not:
1
2
hazır olacak ve kameranın yan tarafındaki gösterge ledi sabit kırmızı yanmaya başlacaktır.

WMV911 KULLANIM KILAVUZU │7
1.
2.
Android:
iOS:
Sphera Wi-Fi Camera
Sphera Wi-Fi Camera
3.
4.
5.
3.2. İnternet Üzerinden İzleme

8 │WMV911 KULLANIM KILAVUZU

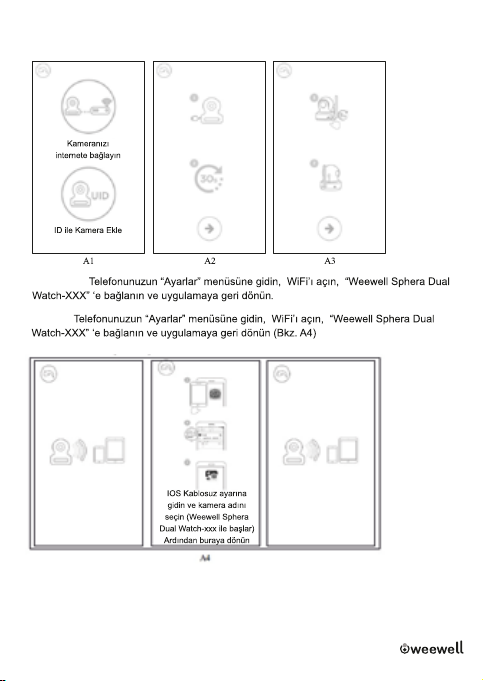

6. Android:
iOS:
