WIKA TC84 User manual

Operating instructions
Betriebsanleitung
Mode d'emploi
Manual de instrucciones
EN
DE
FR
ES

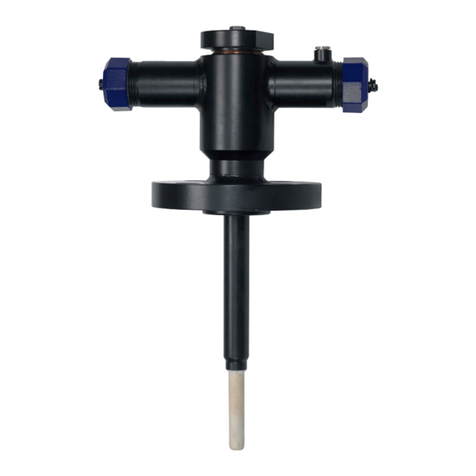

Sapphire-design thermocouple for high-temperature measurements
Model TC84
Saphir-Design-Thermoelement für Hochtemperaturmessungen
Typ TC84
Thermocouple version Saphir pour la mesure de hautes
températures, type TC84
Termopar diseñado en zafiro para mediciones de alta temperatura
Modelo TC84
Model TC84

EN
DE
FR
ES
2
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC84
Operating instructions model TC84 Page
3 - 20
Betriebsanleitung Typ TC84 Seite
21 - 38
Mode d‘emploi type TC84 Page
39 - 56
Manual de instrucciones modelo TC84 Página
57 - 73
© 07/2018 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d‘emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!

EN
Contents
Contents
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC84 3
1. General information 4
2. Design and function 5
3. Safety 7
4. Transport, packaging and storage 10
5. Commissioning, operation 11
6. Faults 14
7. Maintenance and cleaning 16
8. Dismounting, return and disposal 17
9. Specifications 19

EN
1. General information
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC844
1. General information
■
The instrument described in the operating instructions has been manufactured
using state-of-the-art technology. All components are subject to stringent quality and
environmental criteria during production. Our management systems are certified to
ISO 9001 and ISO 14001.
■
These operating instructions contain important information on handling the instrument.
Working safely requires that all safety instructions and work instructions are observed.
■
The operating instructions are part of the product and must be kept in the immediate
vicinity of the instrument and readily accessible to skilled personnel at any time. Pass
the operating instructions on to the next operator or owner of the instrument.
■
Observe the relevant local accident-prevention regulations and general safety
regulations for the instrument's range of use.
■
Skilled personnel must have carefully read and understood the operating instructions
prior to beginning any work.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modifications.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Application consultant: Tel.: [phone]
Fax: [phone]
[e-mail]

EN
2. Design and function
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC84 5
2. Design and function
2.1 Overview
Solid-machined connection housing
Process flange
Metal support tube
Ceramic outer protection tube
2.2 Description
This thermocouple is used for temperature measurement in industrial applications.This
high-temperature thermocouple with a gas-tight sapphire protection tube has been
specifically developed for use in gas reactors.Through the monocrystalline structure, the
sapphire protects the precious metal of the thermocouple from poisonous toxic media in
the aggressive atmosphere of the gasification reactor.
For the connection side, the thermometer is fitted with a case.The case design contains
the connection terminals.
This document describes standard versions of instruments. For applications in hazardous
areas special instrument designs are required.
For further information for operation in hazardous areas, see the additional information for the
corresponding ignition protection type (separate document).





EN
2. Design and function
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC846
Measuring point ungrounded
The model TC84 sapphire-design thermocouple consists of a precious metal
thermocouple, a sapphire or ceramic inner tube and a ceramic external protection tube.
This external protection tube is fixed into the metal support tube.
2.3 Dimensions in mm
2.4 Scope of delivery
Cross-check scope of delivery with delivery note.
Thermocouple measuring point
Ceramic outer protection tube
Measuring insert with sapphire
protection tube
Legend:
U Insertion length
SL Support tube length
Sealing cap
Cable outlet



EN
3. Safety
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC84 7
3. Safety
3.1 Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious injury
or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries or
damage to property or the environment, if not avoided.
WARNING!
... indicates a potentially dangerous situation that can result in burns, caused
by hot surfaces or liquids, if not avoided.
Information
... points out useful tips, recommendations and information for efficient and
trouble-free operation.
3.2 Intended use
The model TC84 sapphire-design thermocouple, with gas-tight sapphire protection tube,
described here is suitable for temperature measurement in critical industrial applications
such as gasification or GtL reactors and is suitable for direct installation into the process.
Due to its monocrystalline structure, the sapphire protection tube extends the life of the
thermocouple's precious metal by 3 times, in comparison to purely ceramic protection
tube materials. As a result of the pressure-tight, hermetically sealed junctions between the
sapphire and metal protection tube, and also a multifold sealing system in the connection
housing, toxic gases are prevented from being able to escape from the reactor.
Neither repairs nor structural modifications are permitted, and any would void the
guarantee and the respective certification. The manufacturer shall not be responsible for
constructional modifications after delivery of the instruments.
The instrument has been designed and built solely for the intended use described here,
and may only be used accordingly.
The technical specifications contained in these operating instructions must be observed.
The manufacturer shall not be liable for claims of any type based on operation contrary to
the intended use.

EN
3. Safety
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC848
3.3 Responsibility of the operator
The system operator is responsible for selecting the thermometer or protection tube, and
for the selection of their materials, so as to guarantee their safe operation within the plant
or machine.When preparing a quote, WIKA can only give recommendations which are
based on our experience in similar applications.
The safety instructions within these operating instructions, as well as the safety, accident
prevention and environmental protection regulations for the application area must be
maintained.
The operator is obliged to maintain the product label in a legible condition.
3.4 Personnel qualification
WARNING!
Risk of injury should qualification be insufficient
Improper handling can result in considerable injury and damage to
equipment.
▶
The activities described in these operating instructions may only be
carried out by skilled electrical personnel who have the qualifications
described below.
Skilled electrical personnel
Skilled electrical personnel are understood to be personnel who, based on their technical
training, know-how and experience as well as their knowledge of country-specific
regulations, current standards and directives, are capable of carrying out work on
electrical systems and independently recognising and avoiding potential hazards.The
skilled electrical personnel have been specifically trained for the work environment they
are working in and know the relevant standards and regulations.The skilled electrical
personnel must comply with current legal accident prevention regulations.
Operating personnel
The personnel trained by the operator are understood to be personnel who, based on their
education, knowledge and experience, are capable of carrying out the work described and
independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g. of aggressive
media.

EN
3. Safety
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC84 9
3.5 Personal protective equipment
The personal protective equipment is designed to protect the skilled personnel from
hazards that could impair their safety or health during work. When carrying out the various
tasks on and with the instrument, the skilled personnel must wear personal protective
equipment (e.g. gas detector, harness, etc.).
Follow the instructions displayed in the work area regarding personal protective
equipment!
The requisite personal protective equipment must be provided by the operating company.
3.6 Labelling, safety marks
Product label (example)
Model
Serial number
Information on version (measuring element, measuring range...)
Year of manufacture
Before mounting and commissioning the instrument, ensure you
read the operating instructions!
TC84
1 x Type K / 1 / . 0 ... 1260 °C
IEC 60584
Made in Germany 2015
11012345
D-63911 Klingenberg
 



EN
4. Transport, packaging and storage
14274725.02 08/2018 EN/DE/FR/ES
WIKA operating instructions model TC8410
4. Transport, packaging and storage
4.1 Transport
Check the instrument for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
CAUTION!
Damage through improper transport
With improper transport, a high level of damage to property can occur.
▶
When unloading packed goods upon delivery as well as during internal
transport, proceed carefully and observe the symbols on the packaging.
▶
With internal transport, observe the instructions in chapter 4.2 “Packaging
and storage”.
If the instrument is transported from a cold into a warm environment, the formation of
condensation may result in instrument malfunction. Before putting it back into operation,
wait for the instrument temperature and the room temperature to equalise.
4.2 Packaging and storage
Do not remove packaging until just before mounting.
Store the Styrofoam packaging as well as the protective transport tube of the probe for any
return transport (repair option).
To unpack the TC84 thermocouple, follow chapter 5.1 “Unpacking the thermocouple and
dismounting the protective transport tube”.
Permissible conditions at the place of storage:
Storage temperature: -40 ... +80 °C [-40 ... +176 °F]
Avoid exposure to the following factors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
■
Hazardous environments, flammable atmospheres
Store the instrument in its original packaging in a location that fulfils the conditions listed
above. If the original packaging is not available, pack and store the instrument as described
below:
1. Place the instrument, along with shock-absorbent material, in the packaging.
2. If stored for a prolonged period of time (more than 30 days), place a bag containing a
desiccant inside the packaging.
