Miniature resistance thermometer, model TR33
Miniature resistance thermometer, model TR33
Miniatur-Widerstandsthermometer, Typ TR33
Sonde à résistance miniature, type TR33
Termorresistencia miniatura, modelo TR33
70018194

2
14073818.10 05/2021 EN/DE/FR/ES
WIKA operating instructions model TR33
DE
EN
FR
ES
Operating instructions model TR33 Page 3 - 34
Betriebsanleitung Typ TR33 Seite 35 - 66
Mode d'emploi type TR33 Page 67 - 98
Manual de instrucciones modelo TR33 Página 99 - 129
© 01/2014 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d‘emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
3
Contents
Contents
Declarations of conformity can be found online at www.wika.com.
1. General information 4
2. Design and function 4
3. Safety 8
4. Transport, packaging and storage 11
5. Commissioning, operation 12
6. Conguration 18
7. CongurationsoftwareWIKAsoft-TT 19
8. Connecting the PU-548 programming unit 21
9. Faults 21
10. Maintenance, cleaning and calibration 23
11. Dismounting, return and disposal 25
12. Specications 27
Annex:CSAcontroldrawing 33

EN
14073818.10 05/2021 EN/DE/FR/ES
4WIKA operating instructions model TR33
1. General information
■
The resistance thermometer described in the operating instructions
has been designed and manufactured using state-of-the-art
technology. All components are subject to stringent quality and
environmental criteria during production. Our management systems
are certied to ISO 9001 and ISO 14001.
■
These operating instructions contain important information on handling
the instrument. Working safely requires that all safety instructions and
work instructions are observed.
■
Observe the relevant local accident prevention regulations and
general safety regulations for the instrument's range of use.
■
Skilled personnel must have carefully read and understood the
operating instructions prior to beginning any work.
■
Subject to technical modications.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: TE 60.33
- Application consultant: Tel.: [phone]
Fax: [phone]
[email protected]
2. Design and function
2.1 Description
The model TR33 resistance thermometer consists of a protection tube
with a xed process connection and is screwed directly into the process.
If the resistance thermometer is to be operated in an additional
protection tube, a spring-loaded compression tting must be used.
1. General information / 2. Design and function

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
5
140069565.04
without neck tube without process
connection
with compression
tting
with neck tube
It is designed to be impact and vibration resistant and all electrical
components are protected against humidity (IP67 or IP69K). The
vibration resistance conforms to IEC 60751 (20 g, dependent on the
instrument version). The impact resistance of all versions meets the
requirements of IEC 60751. Ensure that mechanical loads on the
connector are minimised, especially in case of increased ambient
temperatures or strong vibration loads.
The electrical connection is made via an M12 x 1 circular connector.
An adapter for electrical connection with angular connector per
DIN EN 175301-803 is optionally available.
2.2 Dimensions in mm
■
Process connection with parallel thread (or without process connection)
2. Design and function
At a process temperature of > 150 °C [302 °F], a neck length N (MH) of 70 mm
[2.76 in] is necessary, otherwise N (MH) selectable (55 mm [2.17 in], 65 mm
[2.56 in] or 70 mm [2.76 in]).
Legend:
A (U1)Insertion length
N (MH)Neck length
Ød Protection tube diameter

EN
14073818.10 05/2021 EN/DE/FR/ES
6WIKA operating instructions model TR33
49 mm
[1.929 inch]
Ø19mm
[Ø 0.748 inch]
A (U1)
A (U1)
Ohne Halsrohr Mit Klemmverschraubung Mit Halsrohr
Prozessanschluss mit zylindrischem Gewinde (7/16-20 UNF-2A)
14069565.04
11 mm
[0.433 inch]
A(U1)
M12x1
N=55 mm
=[2.165 inch]
N(MH)=70 mm
=[2.755 inch]
Ød
O-Ring 9,25x1,78
Material: FKM 75
L1
49 mm
[1.929 inch]
Ø19mm
[Ø 0.748 inch]
A (U1)
A (U1)
Ohne Halsrohr Mit Klemmverschraubung Mit Halsrohr
Prozessanschluss mit zylindrischem Gewinde (7/16-20 UNF-2A)
14069565.04
11 mm
[0.433 inch]
A(U
1
)
M12x1
N=55 mm
=[2.165 inch]
N(MH)=70 mm
=[2.755 inch]
Ød
O-Ring 9,25x1,78
Material: FKM 75
L1
49 mm
[1.929 inch]
Ø19mm
[Ø 0.748 inch]
A (U1)
A (U1)
Ohne Halsrohr Mit Klemmverschraubung Mit Halsrohr
Prozessanschluss mit zylindrischem Gewinde (7/16-20 UNF-2A)
14069565.04
11 mm
[0.433 inch]
A(U1)
M12x1
N=55 mm
=[2.165 inch]
N(MH)=70 mm
=[2.755 inch]
Ød
O-Ring 9,25x1,78
Material: FKM 75
L1
■
Process connection with parallel thread (7/16-20 UNF-2A) and O-ring
2. Design and function
The FKM O-ring must be protected from temperatures lower than -20 °C [-4 °F] and
higher than 125 °C [257 °F].
Legend:
A (U1)Insertion length
N (MH)Neck length
Ød Protection tube diameter
At a process temperature of > 150 °C [302 °F], a neck length N (MH) of 70 mm
[2.76 in] is necessary, otherwise N (MH) selectable (55 [2.17 in], 65 [2.56 in] or
70 mm [2.76 in]).
without neck tube with compression
tting
with neck tube
140069565.04

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
7
■
Process connection with tapered thread
2. Design and function
Legend:
A (U2)Insertion length
N (MH)Neck length
X Height process connection
Ød Protection tube diameter
X Height process connection
1/4 NPT = 15 mm [0.59 in]
1/2 NPT = 19 mm [0.75 in]
At a process temperature of > 150 °C [302 °F], a neck length N (MH) of 70 mm
[2.76 in] is necessary, otherwise N (MH) selectable (55 [2.17 in], 65 [2.56 in] or
70 mm [2.76 in]).
2.3 Scope of delivery
Cross-check scope of delivery with delivery note.
without neck tube with compression
tting
with neck tube
140069565.04

EN
14073818.10 05/2021 EN/DE/FR/ES
8WIKA operating instructions model TR33
3. Safety
3.1 Explanationofsymbols
WARNING!
... indicates a potentially dangerous situation that can result in
serious injury or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in
light injuries or damage to property or the environment, if not
avoided.
DANGER!
... identies hazards caused by electric power. Should the
safety instructions not be observed, there is a risk of serious
or fatal injury.
WARNING!
... indicates a potentially dangerous situation that can result in
burns, caused by hot surfaces or liquids, if not avoided.
Information
... points out useful tips, recommendations and information for
ecient and trouble-free operation.
3.2 Intendeduse
The model TR33 resistance thermometer is used as a general-purpose
thermometer for the measurement of temperatures from -50 ... +150 °C
[-58 ... +302 °F] (without neck tube) and -50 … +250 °C [-58 ... +482 °F]
(with neck tube) in liquid and gaseous media. They can be used for
pressures up to 140 bar [2,030 psi] with 3 mm [0.12 in] protection tube
diameters and up to 270 bar [3,916 psi] with 6 mm [0.24 in] protection
tube diameters, depending on the instrument version.
3. Safety

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
9
The instrument has been designed and built solely for the intended use
described here, and may only be used accordingly.
The technical specications contained in these operating instructions
must be observed. Improper handling or operation of the instrument
outside of its technical specications requires the instrument to be taken
out of service immediately and inspected by an authorised WIKA service
engineer.
The manufacturer shall not be liable for claims of any type based on
operation contrary to the intended use.
3.3 Responsibility of the operator
The system operator is responsible for selecting the thermometer
or protection tube, and for the selection of their materials, so as to
guarantee their safe operation within the plant or machine. When
preparing a quote, WIKA can only give recommendations which are
based on our experience in similar applications.
The safety instructions within these operating instructions, as well as the
safety, accident prevention and environmental protection regulations for
the application area must be maintained.
The operator is obliged to maintain the product label in a legible
condition.
3.4 Personnelqualication
WARNING!
Riskofinjuryshouldqualicationbeinsucient!
Improper handling can result in considerable injury and
damage to property.
▶
The activities described in these operating instructions
may only be carried out by skilled personnel who have the
qualifications described below.
▶
Keep unqualified personnel away from hazardous areas.
3. Safety

EN
14073818.10 05/2021 EN/DE/FR/ES
10 WIKA operating instructions model TR33
Skilled electrical personnel
Skilled electrical personnel are understood to be personnel who,
based on their technical training, know-how and experience as well
as their knowledge of country-specic regulations, current standards
and directives, are capable of carrying out work on electrical systems
and independently recognising and avoiding potential hazards.The
skilled electrical personnel have been specically trained for the work
environment they are working in and know the relevant standards and
regulations.The skilled electrical personnel must comply with current
legal accident prevention regulations.
Special operating conditions require further appropriate knowledge, e.g.
of aggressive media.
3.5 Labelling, safety marks
Productlabels(example)
Model
Date of manufacture (year-month)
Approval logos
Information on version (measuring element, output signal, measuring range...)
■
With transmitter and 4 … 20 mA output signal
■
With direct sensor output with Pt100 and Pt1000
Serial number, tag number
Before mounting and commissioning the instrument,
ensure you read the operating instructions!





3. Safety

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
11
4. Transport, packaging and storage
4.1 Transport
Check the instrument for any damage that may have been caused by
transport.
Obvious damage must be reported immediately and damaged
instruments must not be used.
CAUTION!
Damage through improper transport
With improper transport, a high level of damage to property
can occur.
▶
When unloading packed goods upon delivery as well as
during internal transport, proceed carefully and observe
the symbols on the packaging.
▶
With internal transport, observe the instructions in chapter
4.2 “Packaging and storage”.
If the instrument is transported from a cold into a warm environment, the
formation of condensation may result in instrument malfunction. Before
putting it back into operation, wait for the instrument temperature and the
room temperature to equalise.
4.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport
(e.g. change in installation site, sending for repair).
4.3 Storage
Permissibleconditionsattheplaceofstorage:
■
Storage temperature: -40 ... +85 °C [-40 ... +185 °F]
■
Humidity: 5 ... 95 % r. h.
Avoidexposuretothefollowingfactors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
■
Hazardous environments, ammable atmospheres
4. Transport, packaging and storage

EN
14073818.10 05/2021 EN/DE/FR/ES
12 WIKA operating instructions model TR33
Store the instrument in its original packaging in a location that fulls the
conditions listed above. If the original packaging is not available, pack
and store the instrument as described below:
1. Wrap the instrument in an antistatic plastic lm.
2. Place the instrument, along with shock-absorbent material, in the
packaging.
3. If stored for a prolonged period of time (more than 30 days), place a
bag containing a desiccant inside the packaging.
5. Commissioning, operation
WARNING!
Avoid putting any mechanical loading on the electrical
connections and on the cases. Connections must only be
opened once the instrument has been depressurised and has
cooled down.
Maximumpermissibletemperatures:
■
At the case with transmitter: 85 °C [185 °F]
■
Class A:
Without neck tube -30 ... +150 °C [-22 ... +302 °F]
With neck tube -30 ... +250 °C [-22 ... +482 °F]
■
Class B:
Without neck tube -50 ... +150 °C [-58 ... +302 °F]
With neck tube -50 ... +250 °C [-58 ... +482 °F]
5.1 Mounting
These resistance thermometers are designed for screw-tting directly
into the process. The insertion length, along with the ow rate and
viscosity of the process media, may reduce the max. loading on the
protection tube.
If the resistance thermometer is to be operated in an additional
protection tube, a spring-loaded compression tting must be used.
The case must be grounded against electromagnetic elds and
electrostatic charge. It is not necessary to connect the case separately to
4. Transport ... / 5. Commissioning, operation

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
13
the equipotential bonding system, provided that it has a xed and secure
contact to the metallic vessel, its components or pipes, and that these
are connected to the equipotential bonding system.
When there is a non-metal contact with the vessel, or with its
structural components or piping, the instrument must be provided with
equipotential bonding.
WARNING!
Neither repairs nor structural modications are permitted, and
any would void the guarantee.
Installationexamples
For information on tapped holes, refer to DIN 3852 or for NPT threads to
ANSI B 1.20.

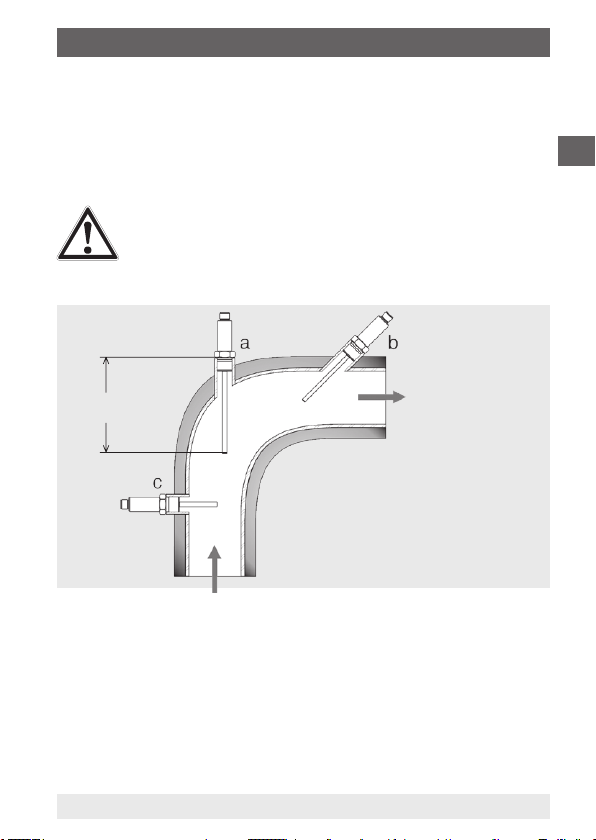

Installation on pipes
a on elbows
b in smaller pipe, inclined
c perpendicular to ow direction
Insertion length A
5. Commissioning, operation

EN
14073818.10 05/2021 EN/DE/FR/ES
14 WIKA operating instructions model TR33
5.1.1 Tighteningtorquesforcompressionttings
Sealing Turns Max.pressureinbar
Stainless steel ferrule 1 ¼ ... 1 ½ 100
Stainless steel bite-type
ferrule
1 ¼ ... 1 ½ 100
PTFE ferrule 1 ¼ ... 1 ½ 8
5.1.2 Tightening torque for the M12 mating connector or the M12
adapter
Select a tightening torque of 0.6 Nm.
5.2 Electrical connection
Depending on the type of application, the electrical connection must be
protected from mechanical damage.
The electrical connection is made via an M12 x 1 circular connector (4-pin).
■
Pt100 and Pt1000 output signal (standard)
Alternative pin assignments
possible. For further information see
order documentation.
mA
4 ... 20 mA
M12x1connector Angularconnector
Accessories:M12x1PtadaptertoDINEN175301-803angularconnector
5. Commissioning, operation

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
15
■
Output signal 4 ... 20 mA (standard)
Alternative pin assignments possible. For further information see order
documentation.
M12x1connector Angularconnector
mA
4 ... 20 mA
Accessories:TransmitteradapterM12x1toDINEN175301-803
angular connector
Pin assignment angular connector
Pin Signal Description
1L+ 10 ... 30 V
2L- 0 V
3VQ not connected
4C not connected
Pin Signal Description
1L+ 10 ... 30 V
2VQ not connected
3L- 0 V
4C not connected
5. Commissioning, operation

EN
14073818.10 05/2021 EN/DE/FR/ES
16 WIKA operating instructions model TR33
5. Commissioning, operation
DANGER!
Danger to life caused by electric current
Upon contact with live parts, there is a direct danger to life.
▶
The instrument may only be installed and mounted by
skilled personnel.
▶
Operation using a defective power supply unit (e.g. short-
circuit from the mains voltage to the output voltage) can
result in life-threatening voltages at the instrument!
▶
Carry out installation in de-energised state only.
This is protection class 3 equipment for connection at low voltages,
which are separated from the mains voltage or voltages of greater than
AC 50 V or DC 120 V. Preferably, a connection to an SELV or PELV circuit
is recommended; alternatively protective measures from HD 60346-4-41
(DIN VDE 0100-410).
AlternativelyforNorthAmerica
The connection can be made in line with “Class 2 Circuits” or “Class 2
Power Units” in accordance with CEC (Canadian Electrical Code) or
NEC (National Electrical Code).
Load diagram
The permissible load depends on the loop supply voltage. For
communication with the instrument with programming unit PU-548, a
max. load of 350 Ω is admissible.
0 10 24 30 36
1083
833
583
Load RA in Ω
2363156.02
Voltage UBin V

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
17
Donotexceedthefollowingvalues:
■
Versionwith4...20mAoutputsignal
Power supply and current loop circuit (connections)
Voltage UiDC 30 V
Current Ii120 mA
Eective internal capacitance Ci6.2 nF
Eective internal inductance Li110 µH
Sensor circuit
Power Po37.5 mW
Ambient temperature -40 ... +85 °C [-40 ... +185 °F]
The maximum self-heating at the probe tip is 4 K
■
VersionwithPt100andPt1000outputsignal
Sensor circuit
Voltage UiDC 30 V
Current Ii550 mA
Eective internal capacitance negligibly small
Eective internal inductance negligibly small
Ambient temperature -40 ... +85 °C [-40 ... +185 °F]
5.3 Behaviourofthe4...20mAelectricaloutputsignal
■
Sensor break and short-circuit
Sensor break or short-circuit are signalled after positive detection
(after approx. 1 second). If this fault condition has been caused by a
malfunction, then a relevant measuring signal must exist for approx.
1 second in order to return to measuring mode. From the time of the
error detection up to the error signalling, the last relevant measured
value will be delivered on the current loop.
Therefore, in the event of a “true” sensor break or short-circuit, this
is also signalled permanently. In the event of a “false” sensor break
or short-circuit, the transmitter has the possibility of reverting to
measuring mode.
5. Commissioning, operation

EN
14073818.10 05/2021 EN/DE/FR/ES
18 WIKA operating instructions model TR33
■
Medium temperature outside of the span
If the medium temperature exceeds that congured within the
transmitter an error will be signalled.
6. Conguration
Conguration is carried out using a USB interface with a PC via
the model PU-548 programming unit (accessories, order number:
14231581). The connection with the thermometer is made via the
appropriate adapter cable (accessories: M12 x 1 circular connector,
order number: 14003193).
Measuring range, dampening, error signalling, Tag no. and other
parameters can be adjusted (see conguration software).
The measuring range is congurable between -50 ... +250 °C
[-58 ... +482 °F]. The conguration software checks the required
measuring range and will only accept permissible values. Intermediate
values are congurable - the smallest increment is 0.1 °C or 0.1 °F. The
thermometers are delivered congured to customer specications within
the congurable limits.
Pleasenote:
The measuring range of the thermometer is limited by the application
range of the measuring element, not by the setting range of the
transmitter.
■
Easy to use
■
LED status display
■
Compact design
■
No further voltage supply is needed for either
the programming unit or for the transmitter
(replaces programming unit model PU-448)
5.Commissioning,operation/6.Conguration

EN
WIKA operating instructions model TR33
14073818.10 05/2021 EN/DE/FR/ES
19
Maximumpermissibletemperatures:
■
At the case with transmitter: 85 °C [185 °F]
■
Class A: Without neck tube -30 ... +150 °C [-22 ... +302 °F]
With neck tube -30 ... +250 °C [-22 ... +482 °F]
■
Class B: Without neck tube -50 ... +150 °C [-58 ... +302 °F]
With neck tube -50 ... +250 °C [-58 ... +482 °F]
7. CongurationsoftwareWIKAsoft-TT
For installation please follow the instructions of the installation routine.
7.1 Startingthesoftware
Start the conguration software by double-clicking on the WIKAsoft-TT
icon.
After starting the software, the
language can be changed by selecting
the ag of the country in question. The
selection of the COM port is made
automatically.
After the connection of a transmitter (using the PU-548), on pressing the
“Start” button, the conguration interface is loaded.
The conguration
interface can only
be loaded when an
instrument is connected.
6.Conguration/7.Congurationsoftware...

EN
14073818.10 05/2021 EN/DE/FR/ES
20 WIKA operating instructions model TR33
7.2 Congurationprocedure
Steps 1 and 2 are carried out automatically when starting the software
1. “Loading instrument data”
2. “Loading conguration”
3. [optional] Cancel write protection (“key” symbol at the bottom right)
4. Change the required parameters
→ Sensor/Measuring range/Error signalling etc.
5. “Save to the instrument”
6. [optional] Activate write protection
7. [optional] Print conguration history
8. [optional] Test: “Loading conguration” → Check conguration
7.3 Fault diagnosis
Here, in the event of an “error detected by the transmitter”, the error
message is displayed.
Examples: Sensor break, permitted highest temperature exceeded, etc.In
normal operation, “No fault - No maintenance requirement” is displayed here.
7.4 Measured values
Line recorder - Here the measured value progression is represented in
the format of a chart recorder with a constant sampling rate in a dened
time interval (180 seconds) and a variable temperature axis.
The display purely serves as a functional check and for information.
An export of the data is not possible.
7.5 Conguringseveralinstrumentsidentically
■
First instrument
1. “Loading conguration”
2. [optional] Cancel write protection (“key” symbol at the bottom right)
3. Change the required parameters
4. “Save to the instrument”
5. [optional] Activate write protection
■
All following instruments
1. “Loading instrument data”
2. [optional] Cancel write protection
3. [optional] Change the required parameters, e.g.Tag number
4. “Save to the instrument”
5. [optional] Activate write protection
7.CongurationsoftwareWIKAsoft-TT
