WIKA TIF11 User manual

DE
EN
Operating instructions
Betriebsanleitung
Mode d’emploi
Manual de instrucciones
ES
FR
Field case, rectangular
Field case for temperature transmitter, model TIF11
Feldgehäuse für Temperaturtransmitter, Typ TIF11
Boîtier de terrain pour transmetteur de température,
type TIF11
Caja de campo para transmisores de temperatura,
modelo TIF11
Field case, round, with screw-on lid

2
14016840.01 07/2020 EN/DE/FR/ES
WIKA operating instructions model TIF11
DE
EN
FR
ES
© 07/2020 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d'emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!
Operating instructions model TIF11 Page 3 - 16
Betriebsanleitung Typ TIF11 Seite 17 - 30
Mode d'emploi type TIF11 Page 31 - 44
Manual de instrucciones modelo TIF11 Página 45 - 58

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
3
Contents
Contents
1. General information 4
2. Design and function 5
3. Safety 6
4. Transport, packaging and storage 10
5. Commissioning, operation 11
6. Maintenance and cleaning 13
7. Dismounting, return and disposal 14
8. Specications 15

EN
14016840.01 07/2020 EN/DE/FR/ES
4WIKA operating instructions model TIF11
1. General information
■
The eld case described in the operating instructions has been
designed and manufactured using state-of-the-art technology. All
components are subject to stringent quality and environmental
criteria during production. Our management systems are certied to
ISO 9001 and ISO 14001.
■
These operating instructions contain important information on
handling the instrument.Working safely requires that all safety
instructions and work instructions are observed.
■
Observe the relevant local accident prevention regulations and
general safety regulations for the instrument’s range of use.
■
The operating instructions are part of the product and must be kept
in the immediate vicinity of the instrument and readily accessible to
skilled personnel at any time.
■
Skilled personnel must have carefully read and understood the
operating instructions prior to beginning any work.
■
The general terms and conditions contained in the sales
documentation shall apply.
■
Subject to technical modications.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: TE 62.02
- Application consultant: Tel.: [phone]
Fax: [phone]
[email protected]
2. Design and function
2.1 Description
The eld transmitter model TIF11-S consists of a case without explosion
protection.Within the case can be installed suitable temperature
transmitters with Umax = DC 60 V (e.g. SELV supply voltage).
1. General information / 2. Design and function

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
5
With the help of this instrument in connection with resistance
thermometers or thermocouples, temperatures in processes are
measured.This instrument is suitable, depending on its version, for low,
medium and high process demands.
The eld temperature transmitter is used for converting a resistance
value or a voltage value into a proportional current signal (4 ... 20 mA).
Thus the sensors are permanently monitored for their fault-free
operation.
Operation in safety-related applications
The model TIF11 eld temperature transmitter with built-in
model T32 transmitter is suitable for use in safety-related
applications.
2.2 Dimensions in mm (aluminium and stainless steel)
14246583.01
2. Design and function

EN
14016840.01 07/2020 EN/DE/FR/ES
6WIKA operating instructions model TIF11
2.3 Scope of delivery
Cross-check scope of delivery with delivery note.
3. Safety
3.1 Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result
in serious injury or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result
in light injuries or damage to property or the environment, if
not avoided.
WARNING!
... indicates a potentially dangerous situation that can result
in burns, caused by hot surfaces or liquids, if not avoided.
2. Design and function / 3. Safety

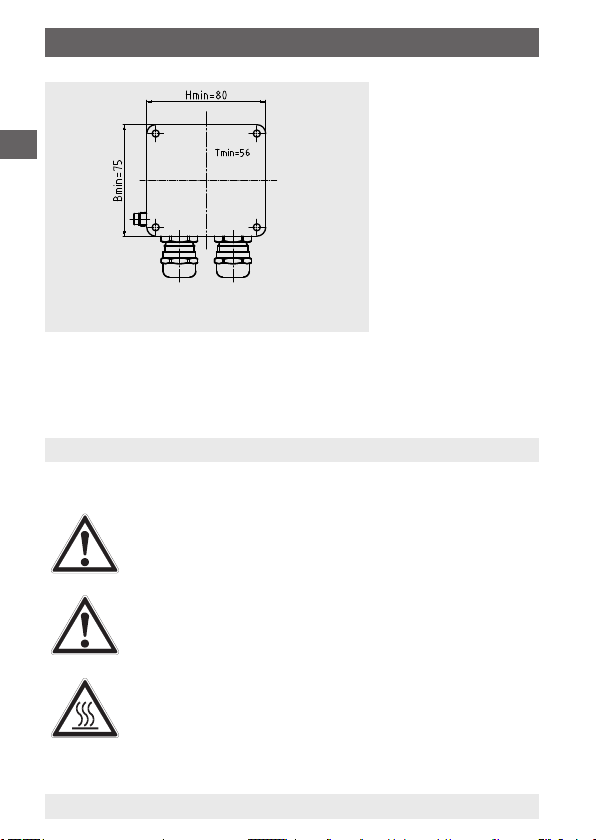

Figure shows the minimum dimensions.
Other case dimensions on request
14246598.01

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
7
Information
... points out useful tips, recommendations and information
for ecient and trouble-free operation.
3.2 Intended use
The field case is used for the installation of temperature transmitters for
resistance thermometers or thermocouples.
The responsibility for the selection of the temperature transmitter, the
resistance thermometer or the thermocouple, and also for the material
selection for the field case, in order to ensure a safe function in the plant
or machinery lies with the operator.
The instrument has been designed and built solely for the intended use
described here, and may only be used accordingly.
The technical specications contained in these operating instructions
must be observed. During normal operation, it is assumed that a WIKA
transmitter has been installed in the eld case.
The manufacturer shall not be liable for claims of any type based on
operation contrary to the intended use.
3. Safety

EN
14016840.01 07/2020 EN/DE/FR/ES
8WIKA operating instructions model TIF11
3.3 Improper use
WARNING!
Injuries through improper use
Improper use of the instrument can lead to hazardous
situations and injuries.
▶
Refrain from unauthorised modications to the
instrument.
▶
Do not use the instrument with abrasive or viscous media.
Any use beyond or dierent to the intended use is considered as
improper use.
Do not use this instrument in safety or emergency stop devices.
3.4 Responsibility of the operator
The instrument is used in the industrial sector.The operator is therefore
responsible for legal obligations regarding safety at work.
The safety instructions within these operating instructions, as well as the
safety, accident prevention and environmental protection regulations for
the application area must be maintained.
The operator is obliged to maintain the product label in a legible
condition.
3.5 Personnelqualication
WARNING!
Riskofinjuryshouldqualicationbeinsucient!
Improper handling can result in considerable injury and
damage to property.
▶
The activities described in these operating instructions
may only be carried out by skilled personnel who have
the qualications described below.
▶
Keep unqualied personnel away from hazardous areas.
3. Safety

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
9
3. Safety
Skilled personnel
Skilled personnel are understood to be personnel who, based on their
technical training, knowledge of measurement and control technology
and on their experience and knowledge of country-specic regulations,
current standards and directives, are capable of carrying out the work
described and independently recognising potential hazards.
Special operating conditions require further appropriate knowledge, e.g.
of aggressive media.
3.6 Labelling / Safety marks
Product label
Model
Serial number
Information on transmitter (model, output signal, measuring range...)
Year of manufacture
Before mounting and commissioning the instrument,
ensure you read the operating instructions!
 
 

EN
14016840.01 07/2020 EN/DE/FR/ES
10 WIKA operating instructions model TIF11
4. Transport, packaging and storage
4. Transport, packaging and storage
4.1 Transport
Check the instrument for any damage that may have been caused by
transport.
Obvious damage must be reported immediately.
If the instrument is transported from a cold into a warm environment, the
formation of condensation may result in instrument malfunction. Before
putting it back into operation, wait for the instrument temperature and the
room temperature to equalise.
4.2 Packaging and storage
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport
(e.g. change in installation site, sending for repair).
Permissible conditions at the place of storage:
■
Storage temperature: see operating instructions of the corresponding
transmitter
■
Humidity: 35 ... 85 % relative humidity (without condensation)
Avoid exposure to the following factors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
Store the instrument in its original packaging in a location that fulls the
conditions listed above. If the original packaging is not available, pack
and store the instrument as described below:
1. Place the instrument, along with the shock-absorbent material, in the
packaging.
2. If stored for a prolonged period of time (more than 30 days), place a
bag containing a desiccant inside the packaging.

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
11
5. Commissioning, operation
5. Commissioning, operation
CAUTION!
Electrostatic discharge
When working during running process operations, avoid any
electrostatic discharge as this can lead to a temporary error
in the measured value.
▶
Take measures to prevent electrostatic discharge on the
connection terminals.
When the instrument is installed, the temperature must not drop below
the allowed operating temperature (environment, medium) or exceed it,
even when taking convection and heat radiation into account!
5.1 Installation
The holes for xing are dependent on the version.
There is a mounting set for 1 ... 2" pipes for the “round” version of the
eld case (can be ordered as an option).
5.2 Cable glands
With this instrument, the cable gland must be optimally sealed to ensure
that the required ingress protection is reached.
Requirements for meeting ingress protection
■
Only use cable glands within their indicated clamping area (cable
diameter suitable for the cable gland).
■
Do not use the lower clamping area with very soft cable types.
■
Only use round cables (if necessary, slightly oval in cross-section).
■
Do not twist the cable.
■
Repeated opening/closing is possible; however only if necessary, as it
might have a detrimental eect on the ingress protection
■
For cable with a pronounced cold-ow behaviour the gland must be
fully tightened.

EN
14016840.01 07/2020 EN/DE/FR/ES
12 WIKA operating instructions model TIF11
Tighten the threads by hand when carrying out the nal assembly on
the plant.This will correspond to the delivery status of the premounted
components. The nal tightening torque should be applied using a
spanner (half rotation).
5.3 Electrical connection
The installation conditions and electrical connection values can be taken
from the corresponding transmitter's operating instructions and must be
observed.
■
Damage to cables, wires and connection points must be avoided.
■
Fine-stranded leads with bare ends must be nished with end splices
(cable preparation).
■
For the head-mounted transmitters installed, the data sheets must
also be considered.
5. Commissioning, operation

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
13
6. Maintenance and cleaning
For contact details see chapter 1 “General information” or
the back page of the operating instructions.
6.1 Maintenance
The eld case is maintenance-free.
Repairs must only be carried out by the manufacturer.
6.2 Cleaning
Carry out the cleaning process as described below:
1. Prior to cleaning the instrument, properly disconnect from the process
and switch o.
2. Clean the instrument with a moist cloth.
This applies in particular to thermometers with a case made of plastic
and cable probes with plastic-insulated connection lead, to ensure that
any risk of electrostatic charge is avoided.
Electrical connections must not come into contact with moisture!
CAUTION!
Damage to the instrument
Improper cleaning may lead to damage to the instrument!
▶
Do not use any aggressive cleaning agents.
▶
Do not use any hard or pointed objects for cleaning.
3. Wash or clean the dismounted instrument, in order to protect persons
and the environment from exposure to residual media.
6. Maintenance and cleaning

EN
14016840.01 07/2020 EN/DE/FR/ES
14 WIKA operating instructions model TIF11
7. Dismounting, return and disposal
WARNING!
Physical injuries and damage to property and the
environment through residual media
Residual media in the dismounted instrument can result in a
risk to persons, the environment and equipment.
▶
Wash or clean the dismounted instrument, in order to
protect persons and the environment from exposure to
residual media.
7.1 Dismounting
Connections must only be opened once the instrument has been
depressurised and has cooled down.
7.2 Return
Strictly observe the following when shipping the instrument:
All instruments delivered to WIKA must be free from any kind of
hazardous substances (acids, bases, solutions, etc.) and must therefore
be cleaned before being returned.
When returning the instrument, use the original packaging or a suitable
transport packaging.
To avoid damage:
1. Wrap the instrument in an antistatic plastic lm.
2. Place the instrument, along with the shock-absorbent material, in the
packaging.
Place shock-absorbent material evenly on all sides of the transport
packaging.
3. If possible, place a bag containing a desiccant inside the packaging.
4. Label the shipment as carriage of a highly sensitive measuring
instrument.
Information on returns can be found under the heading
“Service” on our local website.
7. Dismounting, return and disposal

EN
WIKA operating instructions model TIF11
14016840.01 07/2020 EN/DE/FR/ES
15
7.3 Disposal
Incorrect disposal can put the environment at risk.
Dispose of instrument components and packaging materials in an
environmentally compatible way and in accordance with the country-
specic waste disposal regulations.
Do not dispose of with household waste. Ensure a proper
disposal in accordance with national regulations.
8. Specications
The specications of the used temperature transmitter apply. These can
be taken from the corresponding data sheet/operating instructions.
Specications for EMC directive apply only to built-in WIKA transmitters.
When using transmitters of other manufacturers, other standards may
apply.The instructions and EU declarations of conformity supplied with
these transmitters must then be observed.
When using other transmitters, their EU declarations of conformity are
valid (EMC and RoHS). For delivery in CIS states, due to the metrology
certicates, a WIKA transmitter must be built in!
The group and class of the noise emission and immunity, electrical
specications and ambient temperature range can be found in the
respective data sheets and instruction manuals.
7.Dismounting.../8.Specications

EN
14016840.01 07/2020 EN/DE/FR/ES
16 WIKA operating instructions model TIF11
“Round”eldcase
Material
■
Aluminium
■
Stainless steel
Colour
Aluminium case Night blue, RAL 5022
Stainless steel case Silver
Cable bushings
■
3 x M20 x 1.5
■
3 x ½ NPT
Permissible ambient/
storage temperature
Depending on the built-in transmitter model.
For temperature values please see
corresponding transmitter documentation.
Vibration resistance 3 g per EN 60068-2-6
Shock resistance 30 g per EN 60068-2-27
Ingress protection IP66
Weight
Aluminium case Approx. 1.5 kg
Stainless steel case Approx. 3.7 kg
Dimensions See drawing below 2.2 “Dimensions in mm
(aluminium and stainless steel)”
1) Special version on request (only available without explosion protection or with specic
approvals)
The specications of the “rectangular” eld case depend on the selected
version.
For further specications see WIKA data sheet TE 62.02 and the order
documentation.
8.Specications

DE
WIKA Betriebsanleitung Typ TIF11
14016840.01 07/2020 EN/DE/FR/ES
17
Inhalt
Inhalt
1. Allgemeines 18
2. Aufbau und Funktion 19
3. Sicherheit 20
4. Transport, Verpackung und Lagerung 24
5. Inbetriebnahme, Betrieb 25
6. Wartung und Reinigung 27
7. Demontage, Rücksendung und Entsorgung 28
8. Technische Daten 29

DE
14016840.01 07/2020 EN/DE/FR/ES
18 WIKA Betriebsanleitung Typ TIF11
1. Allgemeines
■
Das in der Betriebsanleitung beschriebenen Feldgehäuse für
Temperaturtransmitter wird nach dem aktuellen Stand der Technik
konstruiert und gefertigt. Alle Komponenten unterliegen während der
Fertigung strengen Qualitäts- und Umweltkriterien. Unsere Manage-
mentsysteme sind nach ISO 9001 und ISO 14001 zertiziert.
■
Diese Betriebsanleitung gibt wichtige Hinweise zum Umgang mit dem
Gerät.Voraussetzung für sicheres Arbeiten ist die Einhaltung aller
angegebenen Sicherheitshinweise und Handlungsanweisungen.
■
Die für den Einsatzbereich des Gerätes geltenden örtlichen Unfall-
verhütungsvorschriften und allgemeinen Sicherheitsbestimmungen
einhalten.
■
Die Betriebsanleitung ist Produktbestandteil und muss in unmittel-
barer Nähe des Gerätes für das Fachpersonal jederzeit zugänglich
aufbewahrt werden.
■
Das Fachpersonal muss die Betriebsanleitung vor Beginn aller Arbei-
ten sorgfältig durchgelesen und verstanden haben.
■
Es gelten die allgemeinen Geschäftsbedingungen in den Verkaufsun-
terlagen.
■
Technische Änderungen vorbehalten.
■
Weitere Informationen:
- Internet-Adresse: www.wika.de / www.wika.com
- zugehöriges Datenblatt: TE 62.02
- Anwendungsberater: Tel.: [phone]
Fax: [phone]
[email protected]
2. Aufbau und Funktion
2.1 Beschreibung
Der Feldtransmitter Typ TIF11-S besteht aus einem Gehäuse ohne
Explosionsschutz. Innerhalb des Gehäuses können geeignete Tempera-
turtransmitter mit Umax = DC 60 V installiert sein (z. B. SELV-Hilfsenergie).
1. Allgemeines / 2. Aufbau und Funktion

DE
WIKA Betriebsanleitung Typ TIF11
14016840.01 07/2020 EN/DE/FR/ES
19
Mit Hilfe dieses Gerätes in Verbindung mit Widerstandsthermometern
oder Thermoelementen werden Temperaturen in Prozessen erfasst.
Dieses Gerät eignet sich je nach Ausführung für niedrige, mittlere und
hohe Prozessanforderungen.
Der Feld-Temperaturtransmitter dient zur Umwandlung eines Wider-
standswertes oder eines Spannungswertes in ein proportionales
Stromsignal (4 ... 20 mA). Dabei werden die Sensoren permanent auf
ihre einwandfreie Funktion überwacht.
Einsatz in sicherheitsgerichteten Anwendungen
Feld-Temperaturtransmitter Typ TIF11 mit eingebautem
Transmitter Typ T32 ist für den Einsatz in sicherheitsgerich-
teten Anwendungen geeignet.
2.2 Abmessungen in mm (Aluminium und CrNi-Stahl)
14246583.01
2. Aufbau und Funktion

DE
14016840.01 07/2020 EN/DE/FR/ES
20 WIKA Betriebsanleitung Typ TIF11
2.3 Lieferumfang
Lieferumfang mit dem Lieferschein abgleichen.
3. Sicherheit
3.1 Symbolerklärung
WARNUNG!
... weist auf eine möglicherweise gefährliche Situation hin,
die zum Tod oder zu schweren Verletzungen führen kann,
wenn sie nicht gemieden wird.
VORSICHT!
... weist auf eine möglicherweise gefährliche Situation hin, die
zu geringfügigen oder leichten Verletzungen bzw. Sach- und
Umweltschäden führen kann, wenn sie nicht gemieden wird.
WARNUNG!
... weist auf eine möglicherweise gefährliche Situation hin,
die durch heiße Oberächen oder Flüssigkeiten zu Verbren-
nungen führen kann, wenn sie nicht gemieden wird.
2. Aufbau und Funktion / 3. Sicherheit
Abbildung stellt die Minimal-Dimensionen dar.
Andere Gehäuseabmessungen auf Anfrage
14246598.01
