Dear customer,
Thank you very much for supporting WiMiUS!
Please read this manual thoroughly before using the projector. If you have any
We will provide a fast solution within 24 hours.
Actually, many problems can be easily solved by setting, such as no signal, no
sound, bluetooth connection failed, WiFi connection failed, dark spots, choppy
animation etc. We promise all the projectors have been 100% carefully checked
and packaged before shipping.
If you have any questions, could you please contact us so that the problem can
been solved. And give us an opportunity to improve. We guarantee we will
provide you a satisfactory solution.
Thanks for your understanding!
WiMiUS Service Team
Do not place projector in too warm or too cold room, because the high
temperature or low temperature will shorten lifespan of the device. The
working environment would be 5℃~35℃better.
If there are black spots on the projection screen, please don't worry, please
how to remove the dust.
The ventilation is equipped for the projector to work stably. Don't cover the
vent with cloth, blanket or other things. Don't insert anything into the slit of
the projector, or it may produce a short circuit or an electric shock to your
device and cause damage.
The projector shall be strictly protected from strong impact, extrusion and
vibration. Do not try to move and on strong impact, extrusion and vibration.
Do not try to move and the internal circuit faults.
Lens, as the core component of the projector, is directly related to the picture
definition and effect. The excessive dust thereon will affect image quality.
The dirty lens shall be wiped with soft cotton cloth for the glass lens surface.
Hard cloth or abrasives shall not be used.
1.
2.
3.
4.
5.
TIPS:
EN 01
WiMiUS K8 Projector*1 HDMI Cable*1
Cleaning Cloth*1 Remote Control*1 3-in-1 AV Cable
User Manual*1 Power cable*1 Projector case*1
PACKAGE LIST
PROJECTOR SPECIFICATIONS
Display Technology
Native
Resolution
Installation Type
Projection Distance
Product Size
Input Interface
Video File
Audio File
LCD
1920x1080P
Front/Rear on Desk,
Front/ Rear on Ceiling
1.6-5.5m
260x245x100mm
HDMI*2/USB*2/AV/
3.5mm audio
Light Source
Focus
Aspect Ratio
Power Voltage
Product Weight
Picture File
LED
Manual
16:9/4:3/Auto
AC100-240V
2kg
JPG/GIF/BMP/PNG
MP4/MKV/MOV/3GP
MP3/MP2/AAC/PCM/FLAC/WMA
Model No.: K8
EN
HDMI1
HDMI2
AV
❶
❷
❸
❹
❺
❻
❼
❽
❾
❿
⓫
⓬
⓭
❶. Power ❷. Arrow Keys ❸. Confirm
❹. Menu Button ❺. Back ❻. Focus Ring
❼. Keystone Correction ❽/❾. USB Ports ❿/⓫. HDMI Ports
⓬. AV Port ⓭. 3.5mm Headphone jack
Note:
please refer to the product appearance, this figure is
for reference only.
MS
Power
Menu
All-round menu key
SET
VOL-
Play Pause key
HOME
Arrow button
Mute
Source
VOL+
BACK
EN
INSTALLATION
Install 2 pieces of AAA batteries(not included) into the remote before using
it, do not combine new batteries with old ones in remote control, which can
cause operation failure due to insufficient power supply.
When using the remote control, please make sure that the signal transmit-
ter of the remote control aims at infrared signal of the projector.
When you are not using the remote control for a long period. Please take
out the batteries to prevent it from leakage.
1.
2.
3.
Note:
1. Installation Method
The projector can be hanged on the ceiling with special hanger frame, and
placed on the stable desk to project the image according to the operating
environment and requirements. In addition, the projector can be installed with
following methods:
1.Front projection Ceiling mount
3.Front projection Table mount
2.Rear projection Ceiling mount
4.Rear projection Table mount
Keep the projector at a height where its lens is axial symmetry to the screen. If
this is not possible, use the keystone correction function to adjust the projection
image.
EN
Aspect Ratio: 16:9t
Distance
1.6m
2m
2.5m
3m
3.5m
4m
4.5m
5m
6m
Screen Size
49”
60”
75”
93”
109’’
125’’
141’’
157’’
300’’
* The image size depends on the distance between projector and screen.
there may be 3% measure difference among above listed data.
* The recommended projection distance is 2.5-3m.
* Ambient darkness will improve the clarity of the projected images.
2. Install on the Ceiling
Keep the projector vertical and towards the mid of projector screen, keep the
projection image flat on the screen.
1.To adjust the tilt base, unscrew the support rod at the bottom of the projector,
see below picture.
2.For Ceiling mount, there are 4 holes at the bottom of the projector (M4*10mm).
Please slowly unscrew the 4 black rubbers, then you can find the holes for ceiling
mount, see below picture.
NOTE: The hanging bracket or ceiling mount stand is not packaged.
Screwholes
EN
STARTING PROJECTOR
IMAGE ADJUSTMENT
1)Press the power key on the remote or projector, the indicator light will turn
green;
2)Adjust the focus ring on the right side of the projector to get the best image
performance; (If it is still blurry, please try to adjust the projection distance.
3)Use the 4D keystone function of the projector to get a rectangle projection
screen;
4)Connect the external device (Smart phone, iPad, Amazon Fire TV, TV box,
DVD player, Computer, etc.in the corresponding interfaces of the projector,
please be sure to select the corresponding source. If you do not select the
correct source, the projector will not be able to detect the signal;.
5)Select the " " menu,enter the [ Language],then you can set your
preferred language.
When using the projector for the first time, it normally displays an unclear
image. This is due to the lens being out of focus or the incorrect trapezoid
setting.
Please follow the below steps to correct:
Focusing
Keystone Correction
1.Focus Adjustment
EN
SETTING UP THE PROJECTOR
Rotate the focus ring or lens slowly. At the same time, check the focus point
carefully. The best focus point for the lens would be where the image most
clear.
Note: If it is still blurry, please try to adjust the projection distance.
2.Digital 4D Keystone Correction.
Use the digital 4d keystone correction of the projector to change the image to
be rectangle(vertical and horizontal). Detail please refer the page（未定））of
this manual.
The projector's home page is as follow.
1. Select The Input Signal Source
Select the desired input signal source (HDMI1/HDMI2/AV) on the home-page
EN
2.USB Disk Input Mode
2.1.Play Movie/Music/Photo/Office Suite in the USB Disk Input Mode
1).Input the USB Disk;
2).Select the option [Video/Music/Picture/Office ]
3).Select the desired file (or folder to enter the sub folder) in the USB disk, then
press the [ OK ] button to play it.
USB
3.WiFi Setting
Wireless Connection
Warming Tips:
①The fluency of screen mirroring with wireless connection will be affected by
the network environment. A bandwidth of 100Mbit or more is recommended
when using screen mirroring.
②Make sure your mobile device is close to the projector when using wireless
connection. A distance within 1 meter is recommended.
③Some mobile devices may not support screen mirroring due to the compati-
bility.
④Any questions, please feel free to email WiMiUS via [email protected].
3.1.iOS Cast (for iOS Devices)
1.Go to home page -- Select the [ ] menu -- Select the [ WiFi ] menu
-- Open the WiFi function -- Select your home WiFi from the list -- Connect the
K3 projector to your home WiFi.
EN
On/Off
Add new network
Always scanning
Nearby WIFI
Connected
SYA C
Shar
ONE-let
iPhone
Wifi
2.Back to home page -- Select [ iOS Cast ] menu -- Press the OK button to
enter the [ iOS Cast ] menu.
EN
3.2.Miracast (for Android Devices)
3.Select the [ Settings ] menu on your iOS device -- Turn on the [ Wi-Fi ] function
-- Connect your iOS device to the same home network as the projector.
4.Open the [ Control Center ] on your iOS device -- Select the [ Screen Mirroring
] function -- Select and connect the iOS Cast receiver named [BJ_39127 ] --
your iOS device screen will be displayed on the projection screen after 3
seconds.
1.Go to home page -- Select the [ Miracast ] menu -- Press the OK button to
enter the [ Miracast Setting ] Menu.
EN
2. Select the [ Settings ] menu on your Android device -- Select the [ Screen
mirroring ] function -- Select your Miracast receiver named [BJ_39127 ] -- your
Android device screen will be displayed on the projection screen after 3
seconds.
3. On your Android device, tap [ Settings ] -[ WLAN Display ] -Turn [ Wi-Fi ]
ON, Connect your home WiFi.
Note:
1.Different brands of Android phones have different operations for select
Screen Mirroring Display, please refer to your phone’s manual. [
Multiscreen/Wireless display/WLAN display/Screen mirroring/Wireless
projection/Smart view etc. ]
2. Not all Android phones support this function. Please make sure it is support-
ed before use.
EN
4.Bluetooth Setting

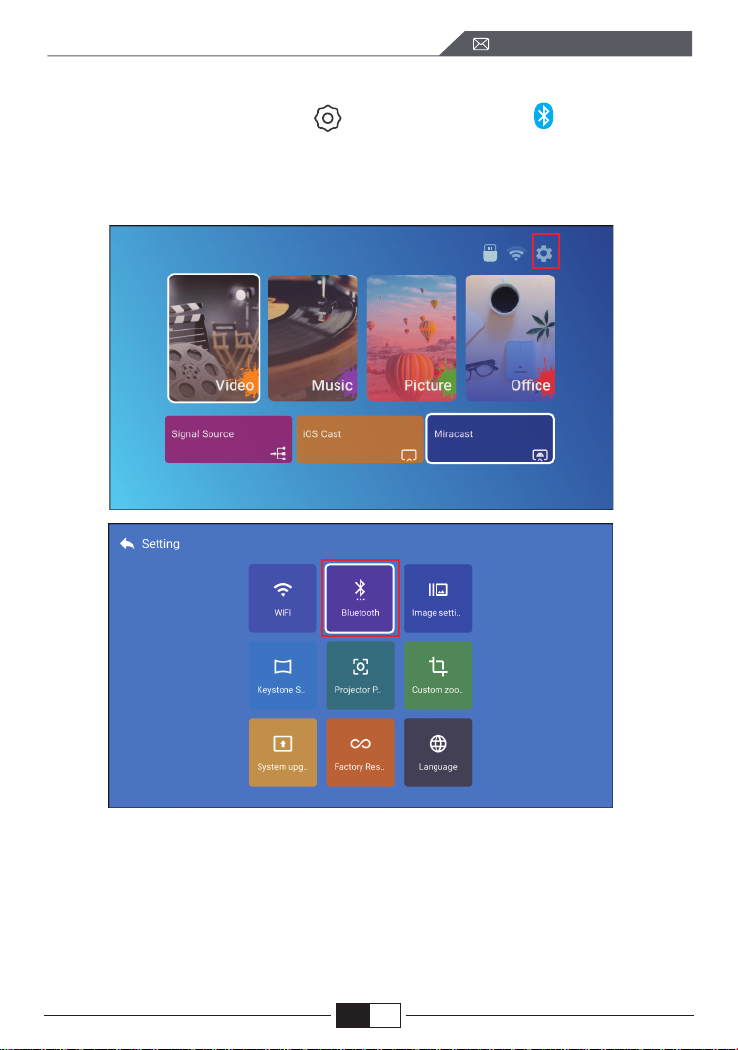

Go to home page -- Select the [ ] menu -- Select the [ Bluetooth ]
Option -- Open the Bluetooth function and your Bluetooth device -- Scan the
Bluetooth devices nearby automatically -- Choose the Bluetooth device desired
-- it will be paired and connected automatically.
Note:
1.The K8 projector is compatible with the Bluetooth headsets, Bluetooth
speakers and Airpods, but not the Bluetooth keyboards or Bluetooth phones.
2.If you have any question, please feel free to email WiMiUS via:
EN
5.1.Projection Mode
5.2.Keystone Advanced & 4-Point Keystone
5.Projector Image Setting
Select the [ ] menu -- Select the [ Projection Position ] Option Press arrow
key to select and press “OK” to confirm projection position.
1. Keystone correction
Select the [ ] menu -- Select the [ Keystone Setting ] Option
The projector has both 4-sided trapezoidal and 4-corner trapezoidal correction
functions. You can not only adjust the image horizontally or vertically, but also
adjust the four points to make the projected image a rectangle.
EN
5.3.Digital Zoom
(1)4-side keystone correction: use the arrow keys to adjust the screen angle
horizontally or vertically until the guide rail is adjusted to a rectangle.
(2)4-corner keystone: adjust the screen with the arrow keys until the guides are
adjusted to a rectangle.
Select the [ ] menu -- Select the [Custom zoom] Option
EN
Turn on [Custom zoom] button, and turn on [ Scaling] button, the projection
screen can be zoomed 50%~100%
Only turn on [Custom zoom] button and turn off [ Scaling]button. The length
and width of the projection screen can be scaled separately by 50%~100%
EN
Picture Mode
Brightness
Contrast
Saturation
Sharpness
Color Temperature
NR
Over Scan
Standard/Vivid/Soft/User
0-100
0-100
0-100
0-100
Standard/Warm/Cool
off/Low /Medium/High
On/Off
Model No.: K8
Menu
6. Image Setting
7.Other Setting
Function
System Update
Factory Reset
Language Setting
Online Update: Download Update Files online.
Local Update: Use USB connection to provide
Update Files.
Restore user operation application configura-
tion and system setting
Set up the language
EN
OTHER SETTINGS
WiMiUS K8 projector has 6 interfaces, HDMI ports*2/USB ports*2/3.5mm head-
phone output/AV output. Please select the correct connecting port to
connect your device (PC, Phone, DVD Player, Sound bar, USB, PS4 etc.)
1.Connect USB Disk
1) Insert the U disk into either of the two USB input ports;
2) You can directly enter the start-up screen on the home page, select the option
[ Video/Music/Picture/Office]
3) Select the desired file (or folder to enter the sub folder) in the USB disk, then
press the [ OK ] button to play it.
2.Connect the Devices via the HDMI ports
1) Connect your TV stick or laptop to any HDMI port of the projector;
2) Enter the home page to select the corresponding HDMI1 or HDMI2 as the
signal source.
3) On your laptop, hold down the key “Win+P” board keys to change your
display mode.
EN
Computer only: is the default option – only displays on the main monitor.
Duplicate: makes all of the monitors display the same thing duplicating the
desktop on each monitor.
Extend: makes all of your monitors act like one big monitor extending the
desktop across all of them.
Projector only: Displays only on the secondary monitor like a projector.
You can change the screen resolution on the Projector Only Mode
Step: Start > Control Panel > Appearance and Personalization > Adjust Screen
Resolution
Manufacture
Acer
Dell
Epson
Fujitsu
IBM
Hewlett-packard
Lenovo
Keys
Fn+F5
Fn+F8
Fn+F8
Fn+F10
Fn+F7
Fn+F4
Fn+F10
Manufacture
NEC
Panasonic
Sharp
Sony
Tpshiba
Zotac
Keys
Fn+F3
Fn+F3
Fn+F5
Fn+F7
Fn+F5
Fn+F3/F5
3.Connect to the DVD Player
Use the 3-in -1 AV cable in the package
1) Turn on your DVD player and the projector;
2) Connect the colorful female connectors to your DVD player's RCA cable with
the 3-in-1 AV cable in the package;
3) Connect the black connector to the AV port of the projector, enter the home
page to select [ AV ] as the signal source.
EN
Table of contents
Other Wimius Projector manuals
