Wimius S26 User manual

WIMIUS,
CES
USER MANUAL

LANGUAGE
English
—==---=======----
01-25
Deutsch
—————————————————
26-50
Frangais
-
———----=----=----
5175
Espafol
——-———————memmee
76-100
——- 101-125
[
-
126-147

Content
Foreword
Warnings
Precautions
Structural Diagram --
Package Lists -
Projector Specifications
Multimedia Supported Files -
Product Overview
Remote Control
Installation -
Installing the Projector
How to clean the * Black Spot™?
Projector Setting -~
Projection Distance&Size -
Starting the Projector
Power On/Power Off -
Language Setting --
Keystone Correction & Focus & Digital Zoom -
Signal Source & Multimedia Connection
Wireless Connection -
Screen Mirroring ( For i0S System) -
Screen Mirroring ( For Android System)
Bluetooth Connection -
Main Menu Function -
Factory Reset -
System upgrade
Scheduled Shutdown -
Power On Option

[email protected]
»Foreword
Dear Customer,
Luckily, your projector is already in your hands! Let's start enjoying the unique
movie night with your family.
Please read this manual thoroughly before sing the projector.
Do you have any questions on how it works? Are you satisfied with your projec-
tor? If you have any issues, send email to [email protected], attaching
your order number and the description of you issue. We will fix your issues as
soon as possible
Customers sometimes can meet some confusion when using the projector.
Rather than trying to communicate directly with us, many buyers instead just
leave a comment on the product page. However, most negative comments are
caused by non-standardized use rather than a defect in the product itself.
Actually, many problems can be easily solved by setting, such as no signal, no
sound, etc. We promise all the projectors have been carefully checked and
packaged before shipping. Therefore, if you have any questions, please
contact us and give us an opportunity to improve it. We guarantee that we will
provide you with the most satisfactory solution
Thanks for your understanding!
Best regards,
WIMiUS Brand Team
»Warnings A
1. High brightness lamp! Please don't look directly into the lamp.
2. Adjusting the contrast, brightness and focal length according to different
input signals is the key to make the picture clear; otherwise, the picture will be
blurred;
3. There is high voltage inside the projector. Please don't open the cover and
touch the internal parts of the machine.
EN

[email protected]
»Precautions
1. Clean
When cleaning this projector, please pull out the power cable. Use a wet cloth
to clean, don't use any detergent that may damage the unit.
2. Accessory
Please use our recommended accessory. Or it will damage the projector.
3. Correct environment
Do not place the projector in a wet environment, like a damp basement or near
the swimming pool, etc.
4. Ventilation
The ventilation is equipped for the projector to work stably. Do not put anything
around the vents. Or it will cause the projector to heat up.
5. Power
Please make sure the power is within the required power range.
6. Thunder
For thunder day, please unplug the power cable from the projector.
7. Repair
Due to high voltage inside, please do not open or try to repair the projector by
yourself. Don't disassemble the projector without our suggestion, otherwise,
any warranty will be invalid. Seek help from an authorized agent or qualified
professionals when needed.
8. Keep away from heat device
Please make sure the projector is far away from any heat devices which will
damage the projector.

[email protected]
» Structural Diagram
* Package Lists
Projector x 1 Remote Control x 1 Power Cable x 1
g
AV Signal Cable x1 HDMI Cable x1
D=
E@np&g
Portable Bag x1
User Manual x1
o
Cleaning Swab x2
=
Screwdriver x1
9
* Projector Specifications
Model No.S26
Display Technology | LCD
Resolution Native 1920x1080P
Installation Type FrontRear/Ceiling/Desktop
Product Size 234x%192x94mm
Input Interface HDMI/USB/AV/3.5mm audio

I [email protected]
Light Source LED
Focus Manual
Aspect Ratio 16:9/4:3
Product Weight 1.6kg
Output Interface Audio out
* Multimedia Supported Files
Files Support Doesn't Support
Audio Format
MP3, AAC, WAV, WMA, | Dolby AC3, DTS, DivX, VC1,
M4A, OGG, FLAC RM, RMVB, FLV, etc
Image Format
JPG, PNG, BMP, JPEG
Video Format
MP4, MKV, WMV, 3GP, |[MSVC/CRAM , MP42, GMC,
MPG, TP, TS, F4V, V32, RLE, cvid, RV20, DivX,
DAT, FLV, TRP RM, RMVB, VC1, FLV
File Format TXT, XLSX, DOCX
If play the above files, the projector still can't work properly, please don't
hesitate to contact us via [email protected].
* Product Overview

[email protected]
1. Arrow Keys /Confirm 5. Earphone/3.5mm Audio Out
2. power 6. Audio, Video Input
3. back 7. USB Input
4. source 8. HDMI Input
* Remote Control
|
1. Power
2. Signal Source
3. Arrow keys
4. Menu
5. Home page
6. Volume+
7. Volume-
8. Mute
9. Flip
10. Confirm
11. Back
12. Previous
13. Next

[email protected]
Note:
(1). Install 2 pieces of AAA batteries(not included) into the remote before using
it. Do not combine new batteries with old ones in remote controller, which can
cause operation failure due to insufficient power supply.
(2). When using the remote control, please make sure that the signal transmit-
ter of the remote controller aims at infrared signal of the projector.
(3). When you are not using the remote controller for a long period. Please take
out the batteries to prevent it from leakage.
»Installation
* Installing the Projector
Keep the projector vertical and towards the mid of projector screen, keep the
projection image flat on the screen.
1. To adjust the tlt base, unscrew the support rod at the bottom of the projector,
see below picture.
2. For Ceiling mount, there are 4 holes at the bottom of the projector
(M5*6mm). Please slowly unscrew the 4 black rubbers, then you can find the
holes for ceiling mount, see below picture.
NOTE: The hanging bracket or ceiling mount stand is not packaged.
[¢) °
1. Support base thread | Adjust the height of the projector
2. Rubber Pads/Holes Fix with M5*6MM Screws
3. Dusting Mouth Cover | Dismantle it to clean the screen inside

I [email protected]
*How to clean the “ Black Spot”?
Please Kindly Note: Any electrical appliances will automatically inhale dust
during operation, so man dust falls into the projector lens, it will have "Black
dots" in the screen, it will make bad enjoyment to your use!
The 526 has special clean door to help you clean the inner lens, it will greatly
extend your use lifespan and enhance the movie enjoyment!
bo ) g0 °
Tear off the bottom label, dismantle the Dusting Mouth Cover with a screw-
driver(Included).
Method 1: Use the cold wind to blow the dusting mouth.
Method 2:(The most effective method): Use the cleaning swab (Included) to
reach inside to clean the inner screen.(We offer cleaning video!)
NOTE: Please contact our e-mail [email protected] for a video if
you need detailed steps!

[email protected]
* Projector Setting
Select Projection Mode to obtain a front and upward image: Menu>Set-
tings>Projection Image Setting>Projection Mode.
Press arrow key to select and press “OK" to confirm
1. Front-Desktop 2. Rear
3.Front-Ceiling 4. Rear-Ceiling
- A A
Front / ceiling Rear / ceiling
Table mounted
i .|
Front

I [email protected]
The projector can be hanged on the ceiling with special hanger fame,and
placed on the stable desk to project the image according to the operating
environment and requirements.
Note: Keep the projector at a height where its lens is axial symmetry to the
screen. If it is not possible, use the keystone correction ring to adjust the
image.
* Projection Distance&Size
200"
a0
1.55m 2.17m 3.10m 3.72m 5.50m
Recommended projection distance: 2.4-3M.
1. The image size depends on the distance between projector and screen. there
may be 3% measure difference among above listed data
2. The recommended projection distance varies with different projection contents.
Please adjust the distance between the wall/ screen and the projector properly as
needed.
3. Ambient darkness will improve the clarity of the projected images.
» Starting the Projector
* Power On/Power Off
1. First connect the power cord to the projector, plug it tightly.
2. Once the projector is plugged in, it will be in Standby mode.
3. If not use for a long time or encounter thunder and lightning, please unplug the
power cord.

[email protected]
Power on: Press the bution® (1) "on the projector or on the remote control to tum
on the projector.
Power off: Press the power button on the remote control again to tum the projector
off.

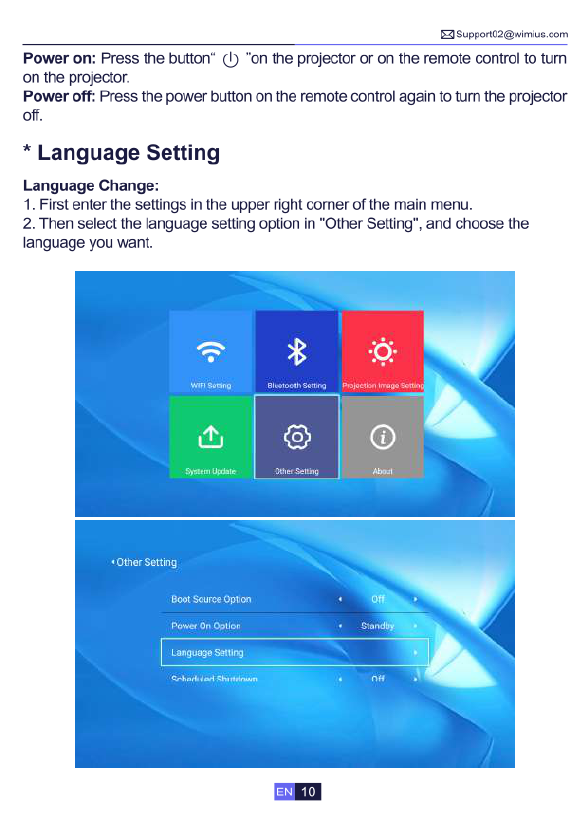

* Language Setting
Language Change:
1. First enter the settings in the upper right comer of the main menu.
2. Then select the language setting option in "Other Setting", and choose the
language you want.

[email protected]
* Keystone Correction & Focus & Digital Zoom
To get the clearest pictures: Firstly use the remote control to adjust the keystone
correction to make image rectangle and flat on the screen, then slowly rotate the
focus lens to make the picture clear.
Note: Keep the projector vertical with projector screen and keep it on the same
level.
1. Keystone Correction 2. Focusing
1. Keystone Correction
Menu>Settings>Projection Image Setting>Keystone Advanced.
(1) The projector has both vertical keystone and 4-point keystone, you can not
only adjust the image vertically, but also adjust four points to make the image
rectangle.
(2) Vertical keystone50°: adjust the the screen angels with the arrow keys
vertically, until the guides are adjusted to a rectangle.

[email protected]
(3) 4-Point keystone: adjust the screen with the arrow keys until the guides are
adjusted to a rectangle.
r P —————
oxSelect i Adst 5Bk = Rese
L _I
Note: The projected image may be bury or difficult to see, this is due to lack of
focus adjustment with the lens, please follow the processes below to adjust the
focus.
2.Focus
Rotate the focus ring slowly. At the same time, check the resolution point
carefully. The best focus point for the lens would be where the image most
clear.

[email protected]
Note: Ifitis still blurry, please contact the seller support e-mail for help!
The E-mail: [email protected]
3. Digital Zoom
Menu>Settings>Projection Image Setting>Digital Zoom.
You can reduce the display size from 100% to 1% propotionally.
Note: Before adjusting the display size, the “Keystone Advanced” shall be
selected to "Front" mode.
Manual Keystone
Digtal Zoom

[email protected]
* Signal Source & Multimedia Connection
Signal source selection
Press the remote control signal source key "S", enter the signal source menu
interface. Use the direction key and the confirmation key to select the signal
source.
1. HDMI equipment connecting
1. HDMI interface can be connected with the computer and other with VGA
HDMI output interface device.
(2). Choose the media signal channel :"HDMI".
2. AV Connection
Use AV cable for connecting as follows, choose the "AV" source input.
3. USB Connection
(D.Insert the USB flash driver into the USB port and choose the corresponding
files( video o pictures), then press “Play/ Pause” button(OK )to display or
stop.
4. Audio Out Connection
User can connect the projector to an extemnal speaker or headphones via
3.5mm earphone jack.

[email protected]
»Wireless Connection
Important Tips for Wireless Connection:
(1) The fluency of screen mirroring with wireless connection will be affected by the
network environment. A bandwidth of 100Mbit or more is recommended when
using screen mirroring
(2) Make sure your mobile device is close to the projector when using wireless
connection. A distance within 1 meter is recommended
(3) Some mobile devices may not support screen mirroring due to the compatibilty.
(4) If the projected image freezes when you switch the screen miroring interfaces,
please long press “OK” button for 5 seconds on the projector/ remote to do reset,
and the reset process will complete in 2 minutes, please wait patiently.
(5) Any questions, please feel free to contact WIMIUS [email protected]
* Screen Mirroring ( For iOS System)
Note: Both mobile phone and projector are connected to the same
WiFilhotspot
On the projector:
1. Select "Settings” in the upper right corner on the main menu, click into it and
select "WiFi Setting.

[email protected]
over ey
2. Turn on the WiFi function and scan, search for home WiFi/Hotspot. When
the WiFi name appears in the search list, select it to connect.
3. Return to the main menu, click "iOS Cast"
