WIN Enterprises PL-10490 User manual

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
1
Custom Embedded Solutions
PL-10490
Networking Appliance
Desktop Intel® Cedarview D2550/N2600 Network System, 6
Copper GbE, CF, SATA, PCI-E, Bypass
User’s Manual
Version 1.0a, Sept. 2013

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
2
© Copyright 2013. All Rights Reserved
Manual Edition 1.0a, July, 2013
This document contains proprietary information protected by copyright. All rights are reserved; no
part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original manufacturer assumes
no responsibility for any inaccuracies that may be contained in this manual. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without prior notice.
Trademarks
IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International business Machine
Corporation
Award is a trademark of Award Software International, Inc
Intel is a trademark of Intel
RTL is a trademark of Realtek
VIA is a trademark of VIA Technologies, Inc
Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered trademarks of
Microsoft Corporation
All other product names mentioned herein are used for identification purpose only and may be
trademarks and/or registered trademarks of their respective companies
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this document, the manufacturer
and distributor assume no liability resulting from errors or omissions in this document, or from the use
of the information contained herein.
For more information on PL-10490 or other WIN ENTERPRISES products, please visit our website
http://www.win-ent.com.
For technical support send inquiries to: sale[email protected]om.

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
3
Table of Contents
Chapter 1. General Information....................................................................... 4
1.1 Introduction ................................................................................................... 4
1.3 Ordering Information..................................................................................... 6
1.4 Packaging ...................................................................................................... 6
1.5 Precautions .................................................................................................... 7
1.6 System Layout............................................................................................... 8
1.7 Board Dimensions ......................................................................................... 9
Chapter 2. Connector/Jumper Configuration ............................................... 10
2.1 Connector/Jumper Location and Definition.................................................. 10
2.2 Connector and Jumper Setting ..................................................................... 12
2.3 CompactFlash
TM
Card Socket Pin Definitions ............................................... 22
Chapter 3. Utility & Driver Installation ........................................................... 23
3.1 Operations System Support.......................................................................... 23
3.2 System Driver Installation............................................................................ 24
3 .3 LAN Driver Installation ............................................................................... 24
Appendix C: System Resources ......................................................................... 25
Appendix D: Cable Development Kit ................................................................ 28

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
4
Chapter 1. General Information
1.1 Introducing
The PL-10490 is a desktop hardware platform designed for network service
applications. Built with Intel® Embedded IA components with warranty of long
product life, the PL-10490 supports Intel® Atom™ D2550, N2600 low-voltage
processor with Intel® ICH10R I/O controller.
The platform supports high bandwidth DDR3 SODIMM slot with memory up to
4GB. In order to provide the best network performance and best utilization, the
powerful storage interfaces include one 2.5” SATA HDD and
CompactFlash™. PL-10490 supports six copper GbE with bypass function on
front-panel. The front panel also has two USB 2.0 ports, one RJ-45 console
port and LED indicators to monitor power and storage device activities for local
system management, maintenance and diagnostics. In addition, the PL-10490
supports one mini-card socket. The device is RoHS, FCC and CE compliant.

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
5
1.2 Specifications
CPU Intel® Cedarview-D D2550, N2600 Processors
Chipset Intel® ICH10R
Processor System
BIOS AMIBIOS
Technology Un-buffered and Non-ECC DDR3 800/1066MHz
memory
Memory
Capacity Up to 4GB with one SO-DIMM socket
Expansion Expansion Slots One mini-card slot (Support USB bus only via
mini-PCIe slot) (Option)
GbE Ethernet Six RJ45 GbE ports, Intel® 82583V, PCI-E x1 (one
pair bypass between LAN1 and LAN2)
Ethernet
LAN bypass One ports bypass (Optional)
SATA HDD One internal 2.5” SATA HDD bayStorage
Compact Flash
Socket
One CompactFlash
TM
Type II
USB Two external USB2.0I/O
Serial One RJ45 Console port (COM1)
One internal 5x2 pin header (COM2)
Power Supply Watt 60W power supply, AC to DC 12V
Form Factor Desktop
LED 1 x Power LED (Green)
1 x HDD LED (Red)
1 x Bypass LED (Yellow)
6 pairs LEDs for 6 Ethernet ports Active/Link
status (Green)
Dimensions （ W x
D x H ）
232mm (W) x 153mm (D) x 44mm (H)
(9.1W x 6” D x 1.7” H)
Operating
Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage
Temperature
-20 ~ 75°C (-4 ~ 167°F)
Mechanical and
Environment
Humidity 10 ~ 85% relative humidity, non-operating,
non-condensing
Weight 1pc/Box, 4kgs, 14cm(W) x 38cm(D) x 23.2cm(H)
5Boxes/CTN, 20kgs, 40cm(W) x 72.4cm(D) x 26.4cm(H)
Certifications RoHS, CE, FCC

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
6
1.3 Order Information
We offer some accessories for PL-10490 appliance for customer need.
PL
PLPL
PL-
--
-1049
10491049
1049A
AA
A Desktop Intel® ATOM D2550 Network System DDR3 6 RJ45 GbE
SATA CF and Bypass
PL
PLPL
PL-
--
-1049
10491049
1049B
BB
B Desktop Intel® ATOM D2550 Network System DDR3 4 RJ45 GbE
SATA CF and PCI-E
DK001 Cable development kit
CB-CO5204-00 Cross over cable
CB-EC5200-00 Ethernet cable
CB-RJDB91-00 RJ45 Console cable
CB-DB9200-01 Null modem cable
CB-IVGA01-00 VGA cable
CB-IPS200-00 KB/MS cable
CB-IUSB01-00 USB cable
1.4 Packaging
Check to make sure that the following items have been included in the
package before installation.
1. PL-10490 Appliance
2. Quick Installation Guide (Optional)
3. Cables (Optional)
4. CD-ROM that contains the following folders:
(1) Manual
(2) System Driver
(3) Ethernet Driver
(4) Utility Tools
If any of the above items is missing or damaged contact your dealer or retailer
from whom you purchased the PL-10490. Consider keeping the box and
carton for storage or shipping. After you unpack the goods, inspect and make
sure the packaging and contents are intact. Do not plug in the power adapter to
if unit appears damaged.
Note: Keep the PL-10490 in the original packaging until you start installation.

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
7
1.5 Precautions
Please make sure you properly ground yourself before handling the PL-10490
appliance or other system components. Electrostatic discharge can be easily
damage the PL-10490 appliance.
Do not remove the anti-static packing until you are ready to install the
PL-10490 appliance.
Ground yourself before removing any system component from its protective
anti-static packaging. To ground yourself, grasp the expansion slot covers or
other unpainted parts of the computer chassis.
Handle the PL-10490 appliance carefully and avoid touching the internal
components.

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
8
1.6 System Layout
PL-10490 Front Side
PL-10490 Rear Side
DDR3
SO-DIMM
CF card
2.5” SATA HDD Bay
CPU

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
9
1.7 Board Dimensions

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
10
Chapter 2. Connector/Jumper Configuration
2.1 Connector/Jumper Locations and Definitions

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
11
PL-10490 Connectors and Jumpers:
Connector Description Connector Description
CN1 KB/MS Connector CN25 Power JACK +12V Connector
CN2 SATA Connector CN26 Watchdog/Bypass selection
CN3 System FAN Connector PCIE1 PCI-E x1 Slot
CN4 COM2 Connector PW1 SATA Power Connector
CN5 SPI Connector JP1 PCI-E slot +5V voltage selection
CN6 USB 2X5 Header (2.54mm) JP2 PCI-E x1/x2 selection
CN7 Port 80 Connector JP3 Clear CMOS
CN8 VGA Connector JP6 GPI/Reset selection
CN9 Mini-PCIE Slot LED1 Power LED
CN10 CPU FAN Connector LED2 By Pass LED
CN11 WLAN LED Connector LED3 HDD LED
CN12 PCI-E x4 Slot LED4 LAN1 Active LED
CN13 Key Pad Connector LED5 LAN1 Link LED
CN14 LCM Connector LED6 LAN2 Active LED
CN15 LED Connector LED7 LAN2 Link LED
CN16 USB Connector LED8 LAN3 Active LED
CN17 2-Pin Power Connector LED9 LAN3 Link LED
CN18 LAN3 Connector LED10 LAN4 Active LED
CN19 LAN5 Connector LED11 LAN4 Link LED
CN20 LAN6 Connector LED12 LAN5 Active LED
CN21 LAN1 Connector LED13 LAN5 Link LED
CN22 LAN2 Connector LED14 LAN6 Active LED
CN23 LAN4 Connector LED15 LAN6 Link LED
CN24 Console Port (RJ45) LED16 Rear Side LED

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
12
2.2 Connector and Jumper Setting
CN1: PS/2 KB/MS Pin Header
Pin Define Pin Define
1 KCLK 2 MCLK
3 KDAT 4 MDAT
5 N/A 6 N/A
7 PS2_GND 8 PS2_GND
9 PS2_VCC 10 PS2_VCC
CN2: SATA Connector
Pin Signal
1 Ground
2 TXP
3 TXN
4 Ground
5 RXN
6 RXP
7 Ground
CN3: System FAN
Pin Define
1 Ground
2 +12V
3 Speed Detect

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
13

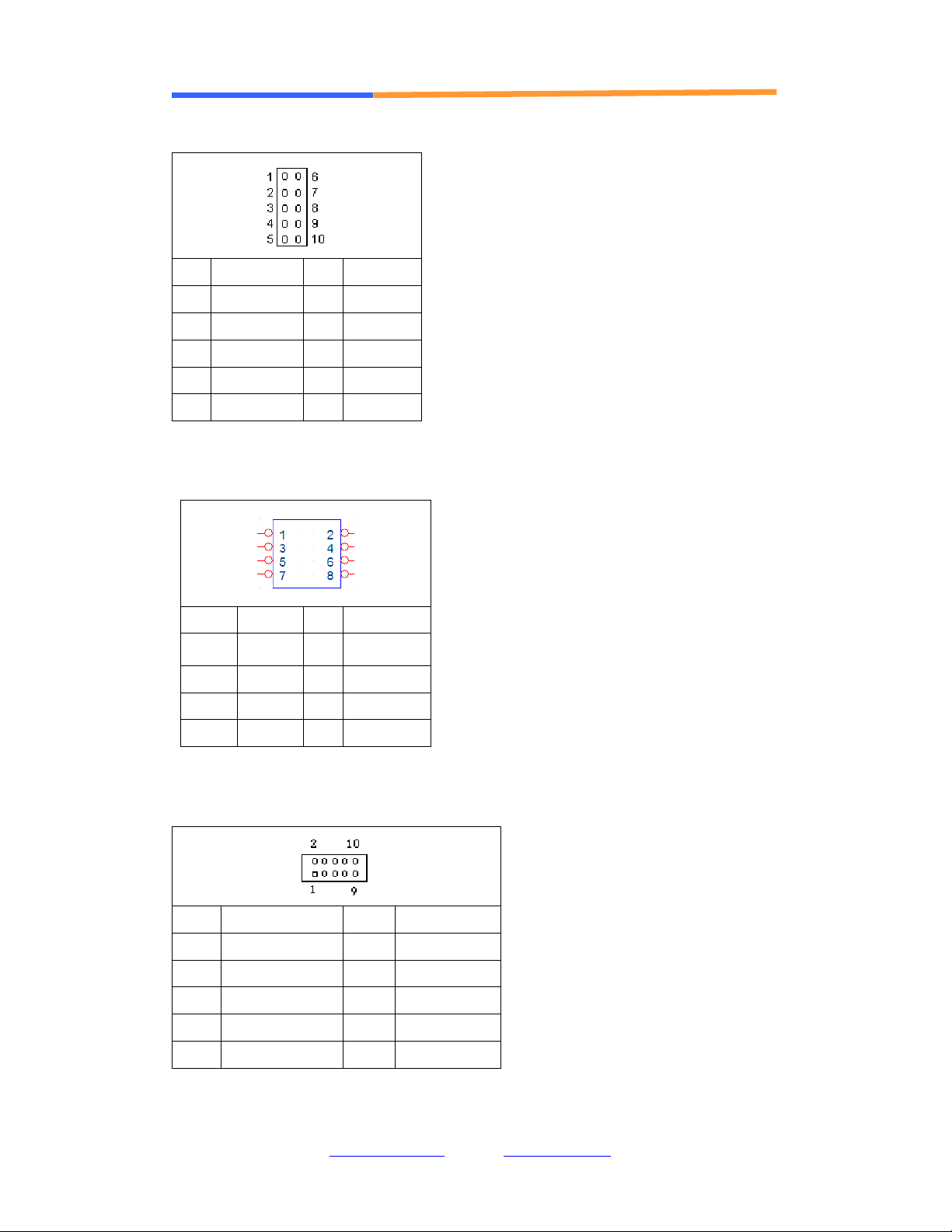

CN4: COM2 pin header
Pin Define Pin Define
1 DCD# 6 DSR#
2 RXD# 7 RTS#
3 TXD# 8 CTS#
4 DTR# 9 RI#2
5 Ground 10 NC
CN5: SPI Pin Header
Pin Define
Pin
Define
1 +3.3V 2 Ground
3 CS# 4 SCLK
5 MISO 6 MOSI
7 NONE 8 IO
CN6: USB Pin Header
Pin Define Pin Define
1 +5V 2 +5V
3 USB1N 4 USB2N-
5 USB1P 6 USB2P
7 Ground 8 Ground
9 N/A 10 Ground

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
14
CN7: Port 80 Connector
Pin Define
Pin
Define
1 +3.3V 2 LAD0
3 LAD1 4 LAD2
5 LAD3 6 LFRAME_N
7 PLTRST_N 8 +5V
9 PORT80_PCLK
10
N/A
11 GND 12 GND
CN8: VGA pin header
Pin Define Pin Define
1 RED 2 GREEN
3 BLUE 4 Reserved
5 GND 6 RED RTN
7 GREEN RTN 8 BLUE RTN
9 +5V 10 GND
11 Reserved 12 SDA
13 HSYNC 14 VSYNC
15 SCL 16 Reserved

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
15
CN10: CPU FAN
CN11: WLAN LED Connector
1
2
Pin Define Pin Define
1 LED1_WLAN# 2 +3.3V
CN12: PCIE x4 Slot (Option, only support PCI-E x1/x2)
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
PRSNT1#
+12V
+12V
GND
TCK
TDI
TDO
TMS
+3.3V
+3.3V
RST#
GND
CLK+
CLK-
GND
RP0
RN0
GND
RSVD
GND
RP1
RN1
GND
GND
RP2
RN2
GND
GND
RP3
RN3
GND
RSVD
+12V
+12V
+12V
GND
SMCLK
SMDAT
GND
+3.3V
TRST#
3.3Vaux
WAKE#
RSVD
GND
TP0
TN0
GND
PRSNT2-1#
GND
TP1
TN1
GND
GND
TP2
TN2
GND
GND
TP3
TN3
GND
RSVD
PRSNT2-2#
GND
Pin Define Pin Define
B1 +12V A1 GND
B2 +12V A2 +12V
B3 +12V A3 +12V

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
16
B4 GND A4 GND
B5 SMBCLK A5 +3.3V
B6 SMBDAT A6 +3.3V
B7 GND A7 TEST
B8 +3.3V A8 +3.3V
B9 NC A9 +3.3V
B10 +3.3V A10 +3.3V
B11 NC A11 PLTRST
B12 PWROK A12 GND
B13 GND A13 PCIECLKP
B14 TXP5 A14 PCIECLKN
B15 TXN5 A15 GND
B16 GND A16 RXP5
B17 SLOT_+5V A17 RXN5
B18 GND A18 GND
B19 TXP6 A19 SLOT_+5V
B20 TXN6 A20 GND
B21 GND A21 RXP6
B22 GND A22 RXN6
B23 NC A23 GND
B24 NC A24 GND
B25 GND A25 NC
B26 GND A26 NC
B27 NC A27 GND
B28 NC A28 GND
B29 GND A29 NC
B30 NC A30 NC
B31 PCIESEL A31 GND
B32 GND A32 NC

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
17
CN13: LCM KEYPAD Pin Header
1
2
3
4
5
Pin Define
1 ACK#
2 BUSY
3 PE
4 SLCT
5 Ground
CN14: LCM pin header
2
3
6
8
10
12
14
16
1
5
7
9
11
13
15
Pin Define Pin Define
1
+5V
2
GND
3
P_AFD#
4
NC
5
P_INIT#
6
P_SLIN#
7
LCM_PD1
8
LCM_PD0
9
LCM_PD3
10
LCM_PD2
11
LCM_PD5
12
LCM_PD4
13
LCM_PD7
14
LCM_PD6
15
LCM_BK_CTRL
16
BK_CTRLP
CN16: USB Connector

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
18
Pin Define Pin Define
1 +5V 2 DATA0-
3 DATA0+ 4 GND
5 +5V 6 DATA1-
7 DATA1+ 8 GND
CN17: DC +12V Power Jack (2Pin) (Option, Only for SCB-7902)
11
22
Pin Define Pin Define
1 +12V 2 GND
CN18/CN19/CN20/CN21/CN22/CN23: LAN RJ-45 Connector
Pin Define
1 TX+
2 TX-
3 RX+
4 Chassis Ground
5 Chassis Ground
6 RX-
7 Chassis Ground
8 Chassis Ground
D1: Speed indicated LED
1 Gbps GREEN
100 Mbps YELLOW
D2 :Link/Activity LED
Link GREEN
Activity BLINKING

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
19
CN25: DC +12V Power Jack (2Pin)
11
22
Pin Define Pin Define
1 +12V 2 GND
CN26: Watchdog/Bypass selection
Pin Status Pin Status
1-3 Watchdog mode(default) 2-4 By Pass Enable
3-5 By pass mode 4-6 By Pass Disable(default)
PCIE1: PCIEx1 SLOT
KEY
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18B18
B17
B16
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1 PRSNT1*(B)
12V(P)
12V(P)
GND(P)
JTAG2(B)
JTAG3(B)
JTAG4(B)
JTAG5(B)
3.3V(P)
3.3V(P)
PWRGD(I)
GND(P)
REFCLK+(I)
REFCLK-(I)
GND(P)
HSIP0(O)
HSIN0(O)
GND(P)GND(P)
PRSNT2*(B)
GND(P)
HSON0(I)
HSOP0(I)
GND(P)
RSVD(B)
WAKE*(B)
3.3VAUX(I)
JTAG1(B)
3.3V(P)
GND(P)
SMDAT(B)
SMCLK(B)
GND(P)
12V(P)
12V(P)
12V(P)
Pin Define Pin Define
B1 +12V A1 GND
B2 +12V A2 +12V
B3 +12V A3 +12V

User’s Manual
WIN Enterprises, Inc. [e-mail] www.win-ent.com [phone]
20
B4 GND A4 GND
B5 SMBCLK A5 TCK
B6 SMBDAT A6 TDI
B7 GND A7 NC
B8 +3.3V A8 TMS
B9 TRST# A9 +3.3V
B10 +3.3V A10 +3.3V
B11 NC A11 PLTRST
B12 PWROK A12 GND
B13 GND A13 SLOTCLKP
B14 SLOTTXP A14 SLOTCLKN
B15 SLOTTXN A15 GND
B16 GND A16 SLOTRXP
B17 NC A17 SLOTRXN
B18 GND A18 GND
PW1: HDD POWER
1
2
3
4
Pin Define
1 +12V
2 GND
3 GND
4 +5V
