WIN Enterprises PL-80160 User manual

User’s Manual
WIN Enterprises, Inc. Sept., 2010
1
User’s Manual
Version 1.0

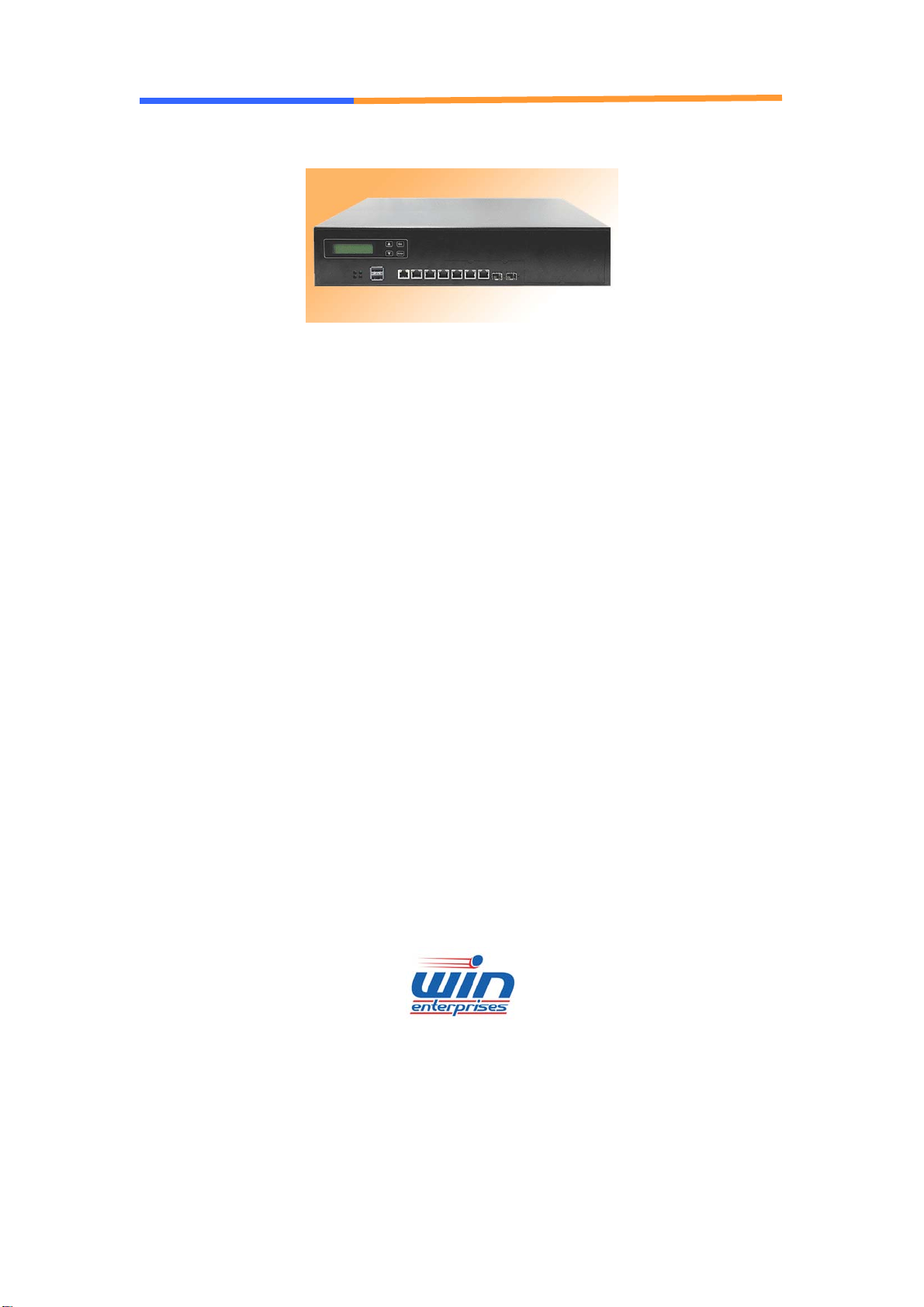

PL-80160 Networking Appliance
2U Rack-Mount Intel® 3450 LGA1156 Network System, 32 x
GbE, SATA, CF, LCM, PCI, PCI-Ex8, Redundant PS
[email protected]

User’s Manual
WIN Enterprises, Inc. Sept., 2010
2
© Copyright 2008. All Rights Reserved
Manual Edition 1.0, September, 2010
This document contains proprietary information protected by copyright.All rights are reserved; no part
of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original manufacturer assumes
no responsibility for any inaccuracies that may be contained in this manual. The original manufacturer
reserves the right to make improvements to the products described in this manual at any time without
prior notice.
Trademarks
IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International business Machine
Corporation
Award is a trademark ofAward Software International, Inc
Intel is a trademark of Intel
RTL is a trademark of Realtek
VIA is a trademark of VIATechnologies, Inc
Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered trademarks of
Microsoft Corporation
All other product names mentioned herein are used for identification purpose only and may be
trademarks and/or registered trademarks of their respective companies
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this document, the manufacturer
and distributor assume no liability resulting from errors or omissions in this document, or from the use
of the information contained herein.
For more information on PL-80160 or other WIN products, please visit our website
http://www.win-ent.com.
For technical supports or free catalog, please send your inquiry to
[email protected].

User’s Manual
WIN Enterprises, Inc. Sept., 2010
3
Table of Contents
Chapter 1. General Information...............................................................................4
1.1 Introduction........................................................................................................4
1.2 Specifications.....................................................................................................4
1.3 Order Information..............................................................................................5
1.4 Packaging...........................................................................................................7
1.5 Precautions.........................................................................................................7
1.6 System Layout ...................................................................................................8
1.7 Board Dimensions..............................................................................................8
Chapter 2. Connector/Jumper Configuration...........................................................9
2.1 Connector/Jumper Location and Definition.......................................................9
2.2 Connector and Jumper Setting.........................................................................12
2.3 CompactFlashTM Card Socket Pin Define........................................................21
Chapter 3. BIOS Setup...........................................................................................19
3.1 Quick Setup......................................................................................................19
3.2 Entering the BIOS Setup Utility......................................................................35
3.3 Menu Options.................................................................................................361
3.4 Advanced Menu.............................................................................................372
3.5 Boot Menu .......................................................................................................32
3.6 Security Menu................................................................................................526
3.7 Chipset Menu.................................................................................................548
3.8 Exit Menu .......................................................................................................42
Chapter 4. Utility & Driver Installation.................................................................60
4.1 Operation System Supporting..........................................................................60
4.2 System Driver Installation ............................................................................60/4
4.3 LAN Driver Installation................................................................................61/5
Appendix A: Watchdog Timer Programming Guide..............................................62
Appendix B: LAN Bypass Programming Guide ...................................................51
Appendix C: System Resources.............................................................................57
Appendix D: Cable Development Kit....................................................................61

User’s Manual
WIN Enterprises, Inc. Sept., 2010
4
Chapter 1. General Information
1.1 Introduction
The PL-80160 is a 1U rack-mounted hardware platform designed with a
redundant power supply for network service applications. Built with Intel®
Embedded IA components with warranty of longevity, the PL-80160 supports
Intel® quad-core processors with Intel® Hyper-Threading Technology.
The platform supports four un-buffered ECC or non-ECC DDR3
1066/1333MHz DIMM sockets with memory up to 16GB. In order to provide
the best network performance and best utilization, the powerful storage
interfaces include one 3.5" SATA HDD and CompactFlash™. The optional
onboard Cavium Nitrox PX cn16xx security co-processor supports
multi-security protocol commands which can offload the CPU thus increasing
overall system throughput performance.
This platform affords 8 GbE and max to 32 GbE Ethernet ports via PCI-E by8
on the front-panel. To prevent network problems when the platform shuts down,
PL-80160 supports two segments of LAN bypass function through WDT and
GPIO pin definitions. The front panel also has dual USB 2.0 ports, one RJ-45
console port and LED indicators that monitor power and storage device
activities for local system management, maintenance and diagnostics. In
addition, the PL-80160 supports one PCI-E by8 slot, one PCI-E by8 Golden
Finger, one PCI slot, and is RoHS, FCC and CE compliant.
1.2 SpecificationsCPU Intel® Xeon®, Core™ i7, Core™ i5,
Core™ i3 & Pentium® Dual Core™
processors, LGA1156 Socket
Chipset Intel® 3450
Processor System
BIOS AMI®SPI BIOS
Technology Dual-channel Un-buffered ECC /
Non-ECC DDR3 800/1066/1333MHz
memory
Memory
Capacity Up to 16GB with four DIMM sockets
Expansion Expansion Slots One PCI-E x8 slot for expansion module
One PCI-E x8 golden finger for

User’s Manual
WIN Enterprises, Inc. Sept., 2010
5
expansion module (optional Riser card)
one PCI slot
GbE Ethernet Six RJ45 GbE ports, Intel® 82574L
PCI-E x1
Two SFP ports, Intel 82576EB PCI-E x4
2~8 GbE ports (optional expansion
module)
Ethernet
Lan Bypass Two pairs bypass
HDD One internal 3.5” SATA HDD bayStorage
Compact Flash Socket One CompactFlashTM Type I/II
USB One external USB2.0 Dual Port
One internal 5x2 pin header (2x USB
2.0)
I/O
Serial One RJ45 Console port (COM1)
One internal 5x2 header for second
console (COM2)
Power Supply Watt 2U ATX 350W Redundant Power Supply
Form Factor 2U rack-mount
LCD Module One 16x2 LCM
Keypad Four buttons keypad
LED One Power LED (Green)
One HDD LED(Yellow)
Two Bypass LED (Green)
Dimension（W x D x H）435mm (W) x 450mm (D) x 88mm (H)
(17.1”W x 17.7”D x 3.5”H)
Operating Temperature Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature -20 ~ 75°C (-4 ~ 167°F)
Mechanical and
Environment
Humidity 10 ~ 85% relative humidity,
non-operating, non-condensing
Weight 1pc/box, 16kgs,
74.5cm(W) x 64.5cm(D) x 33.5cm(H)
Certifications CE/FCC
1.3 Ordering Information
We offer some accessories for PL-80160 appliance for customer need.

User’s Manual
WIN Enterprises, Inc. Sept., 2010
6
PL-80160A 2U Rackmount Intel® 3450, LGA1156 Network System, 10 RJ45 GbE, 2
SFP, LCM, PCI, PCI-E x8, Redundant PS, Bypass (PL-8016ASBCA+
R122A)
PL-80160B 2U Rackmount Intel® 3450, LGA1156 Network System, 6 RJ45 GbE, 6
SFP, LCM, PCI, PCI-E x8, Redundant PS, Bypass (PL-8016ASBC+
IP-9061A)
PL-80160C 2U Rackmount Intel® 3450, LGA1156 Network System, 6 RJ45 GbE, 2
SFP, LCM, PCI, PCI-E x8, Redundant PS, bypass
DK001 Cable development kit

User’s Manual
WIN Enterprises, Inc. Sept., 2010
7
1.4 Packaging
Please make sure that the following items have been included in the package
before installation.
1. PL-80160 Appliance
2. Quick Installation Guide (Optional)
3. Cables (Optional)
4. CD-ROM that contains the following folders:
(1) Manual
(2) Quick Installation Guide
(3) System Driver
(4) Ethernet Driver
(5) Utility Tools
If any item of above is missing or damaged, please contact your dealer or
retailer from whom you purchased the PL-80160. Keep the box and carton
when you probably ship or store PL-80160 in near future. After you unpack the
goods, inspect and make sure the packaging is intact. Do not plug the power
cord to the PL-80160 appliance if you already find it appears damaged.
Note: Keep the PL-80160 in the original packaging until you start installation.
1.5 Precautions
Please make sure you properly ground yourself before handling the PL-80160
appliance or other system components. Electrostatic discharge can easily
damage the PL-80160 appliance.
Do not remove the anti-static packing until you are ready to install the
PL-80160 appliance.
Ground yourself before removing any system component from protective
anti-static packaging. To ground yourself, grasp the expansion slot covers or
other unpainted parts of the computer chassis.
Handle the PL-80160 appliance by its edges and avoid touching the
components on it.

User’s Manual
WIN Enterprises, Inc. Sept., 2010
8
1.6 System Layout
PL-80160 Front Side
PL-80160 Rear Side
HDD Bay
(optional)
CPU
DDR3 DIMM
Socket
CF
Socket
PCIe slot for
Ethernet module
PCI slot
Power Supply

User’s Manual
WIN Enterprises, Inc. Sept., 2010
9
1.7 Board Dimensions

User’s Manual
WIN Enterprises, Inc. Sept., 2010
10
Chapter 2. Connector/Jumper Configuration
2.1 Connector/Jumper Location and Definition

User’s Manual
WIN Enterprises, Inc. Sept., 2010
11
Connector Define Connector Define
CN1 System FAN Connector CN23 USB/LED Box Header
CN2 System FAN Connector CN24 COM2 Box Header
CN3 +12V Power Connector CN25 GPO Pin Header
CN4 DDR2 Slot CN26 Gigabit Ethernet RJ-45 Connector
CN5 DDR2 Slot CN27 Gigabit Ethernet RJ-45 Connector
CN6 DDR2 Slot CN28 Gigabit Ethernet RJ-45 Connector
CN7 DDR2 Slot CN29 Gigabit Ethernet RJ-45 Connector
CN8 CPU FAN Connector CN30 COM1 RJ-45Connector
CN9 ATX Power Connector CN31 Gigabit Ethernet RJ-45 Connector
CN10 4 Pin Power Connector CN32 Gigabit Ethernet RJ-45 Connector
CN12 LPC Pin Header CN33 PCI-E x8 Golden Finger
CN13 GPI Pin Header CF1 CF Socket
CN14 LCM Box Header VGA1 VGA Box Header
CN15 PS2 KB/ MS Pin Header LCM_BKL1 LCM Backlight Connector
CN16 SATA Connector SW1 Reset Switch
CN17 SATA Connector JP2 Auto Power On Select Pin Header
CN18 SATA Connector JP4 Watchdog Function Selection
CN19 SATA Connector JP5 Clear CMOS Pin Header

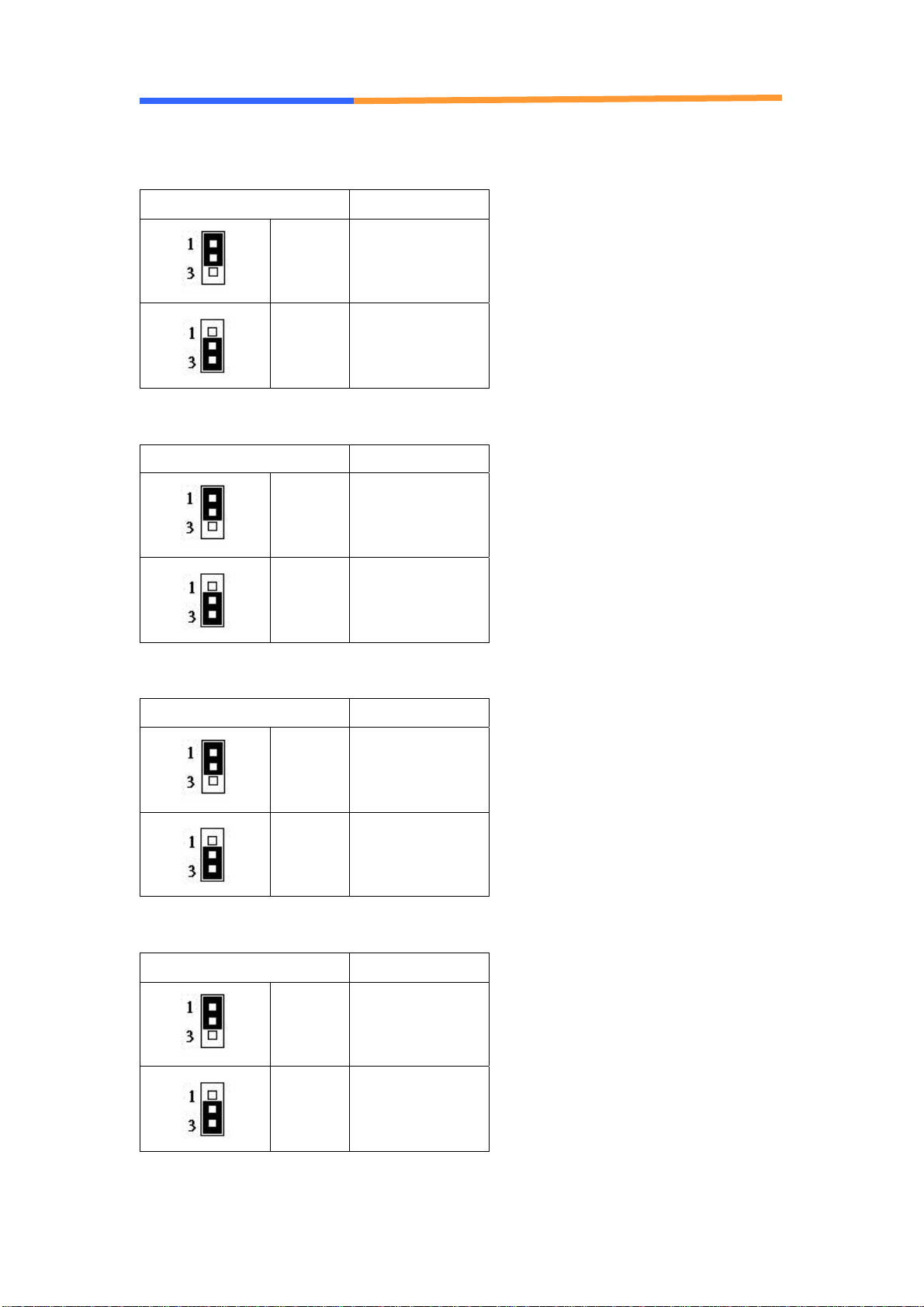

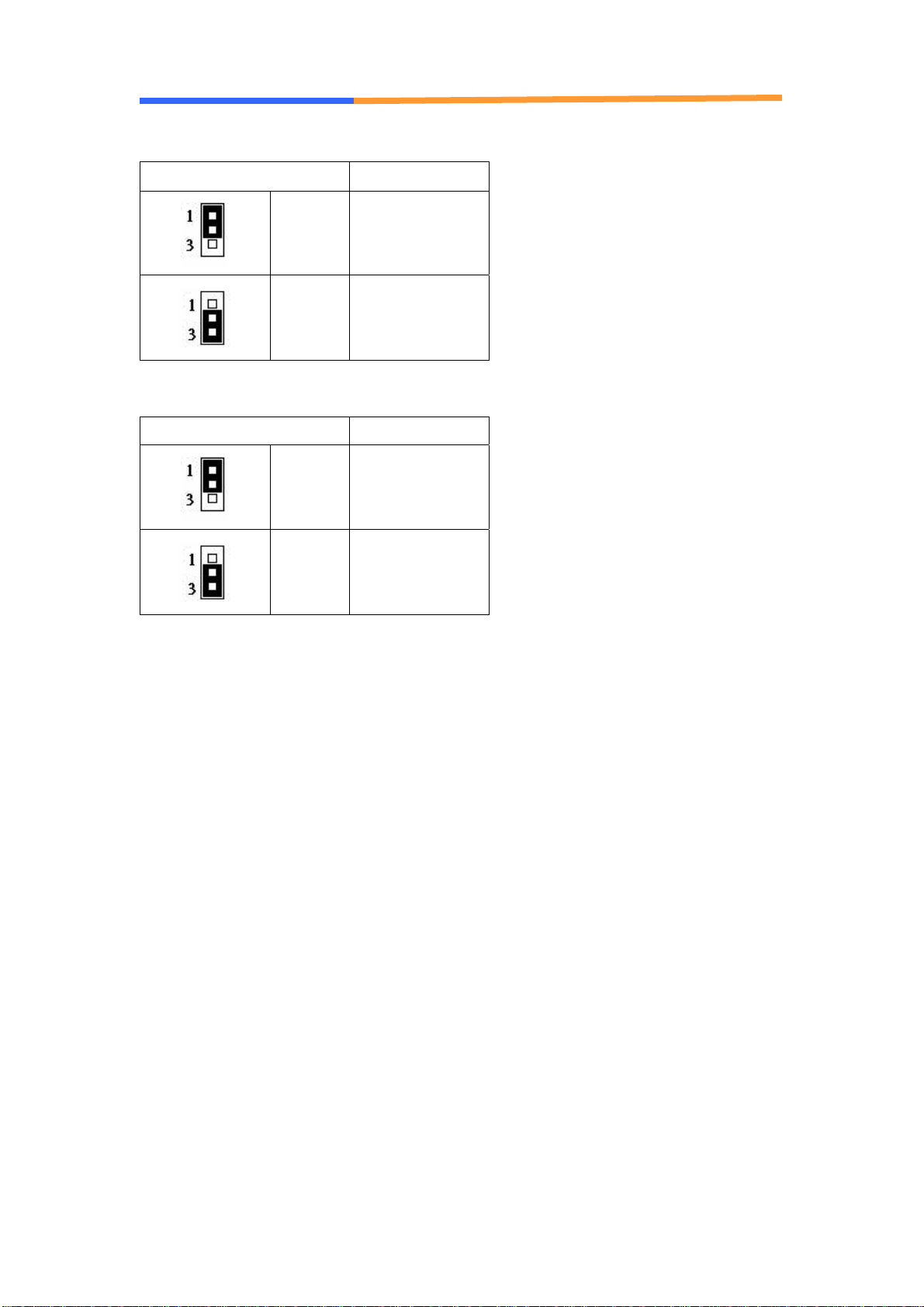

CN20 IDE 44 Pin BOX Header JP7 LAN 5/6 Bypass Selection
CN21 Proprietary PCI-E x8 Connector JP8 LAN 3/4 Bypass Selection
CN22 Power ON/System Reset Pin
Header

User’s Manual
WIN Enterprises, Inc. Sept., 2010
12
2.2 Connector and Jumper Setting
CN1/ CN2: System FAN Connector
CN8: CPU FAN Connector
Pin Define
1 Ground
2 +12V
3 Speed Detect
CN3：+12V Power Connector
Pin Define Pin Define
1 GND 5 +12V
2 GND 6 +12V
3 GND 7 +12V
4 GND 8 +12V
CN9：ATX Power Connector
Pin Define Pin Define
11 +3.3V 1 +3.3V
12 -12V 2 +3.3V
13 Ground 3 Ground
14 PS_ON* 4 +5V
15 Ground 5 Ground

User’s Manual
WIN Enterprises, Inc. Sept., 2010
13
16 Ground 6 +5V
17 Ground 7 Ground
18 RSVD 8 POWER GOOD
19 +5V 9 5VSB
20 +5V 10 +12V

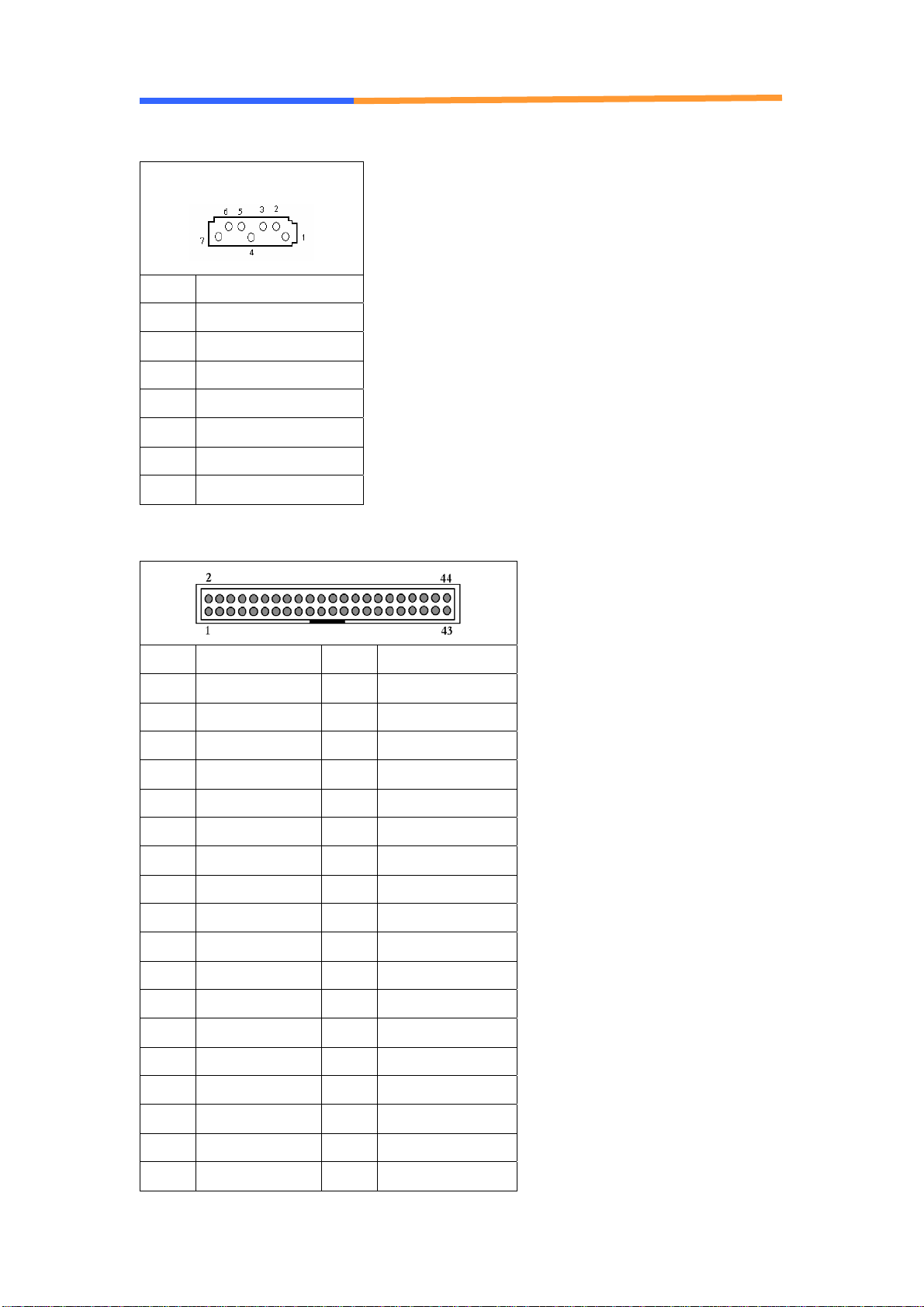

CN10: Power Connector
Pin Define
1 +12V
2 GND
3 GND
4 VCC5

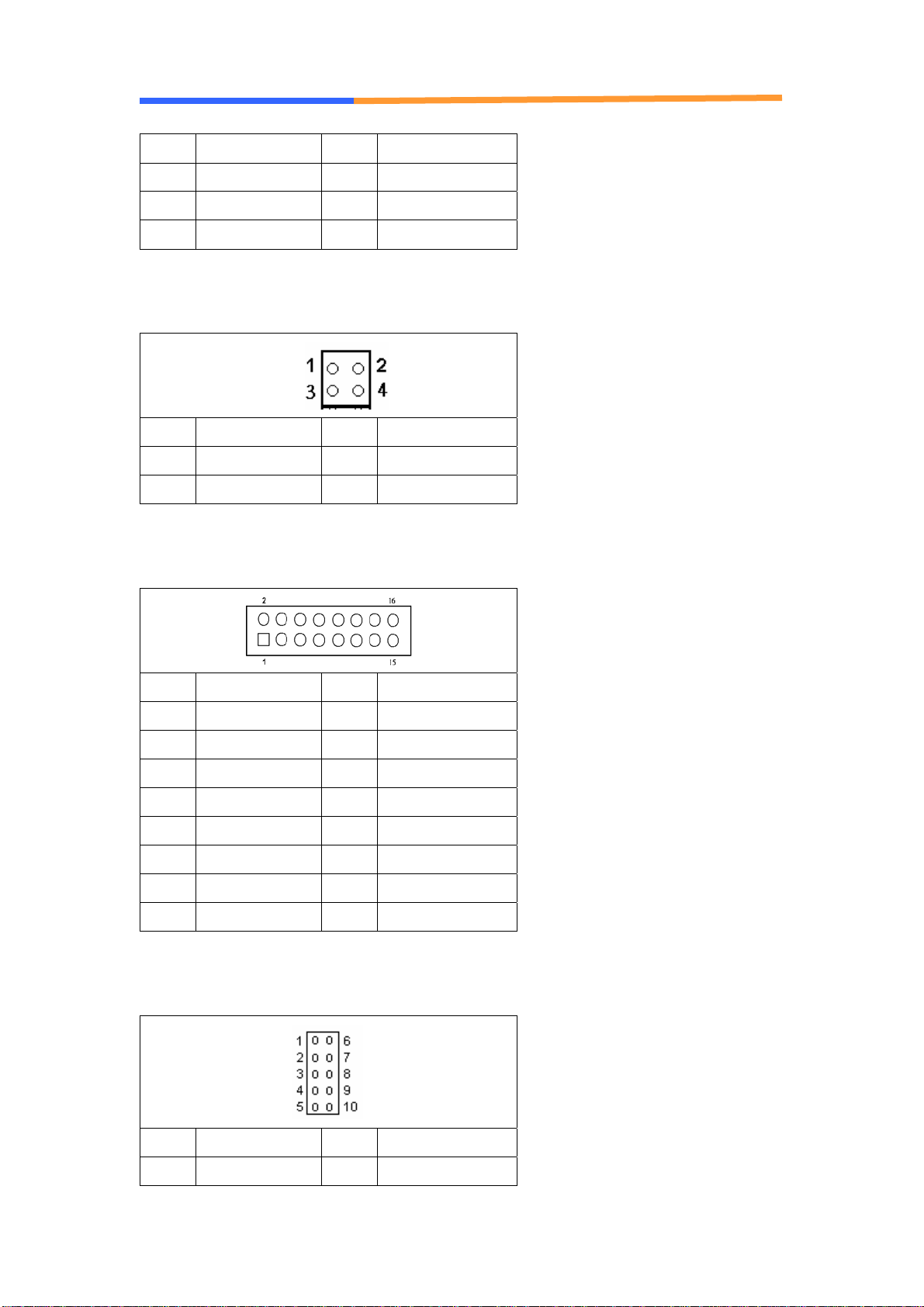

CN12：LPC Pin Header
Pin Define Pin Define
1 +3.3V 2 LAD0
3 LAD1 4 LAD2
5 LAD3 6 LFRAME#
7 RESET# 8 +5V
9 +5V 10 +5V
11 GND
13 SERIRQ 14 DRQ0#
CN13: GPI Pin Header
1
5
1
5

User’s Manual
WIN Enterprises, Inc. Sept., 2010
14
Pin Define
1 GPI0
2 GPI1
3 GPI2
4 GPI3
5 Ground
CN14：LCM Box Header
Pin Define Pin Define
1 STROBE 14 AUTOFD
2 PD0 15 ERR
3 PD1 16 INT
4 PD2 17 SLCTIN
5 PD3 18 Ground
6 PD4 19 Ground
7 PD5 20 Ground
8 PD6 21 Ground
9 PD7 22 Ground
CN15: PS/2 KB/MS Pin Header
Pin Define Pin Define
1 KCLK 2 MCLK
3 KDAT 4 MDAT
5 N/A 6 N/A
7 PS2_GND 8 PS2_GND
9 PS2_VCC 10 PS2_VCC

User’s Manual
WIN Enterprises, Inc. Sept., 2010
15
CN16/17/18/19:SATA Port Connector
Pin Define
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
CN20: IDE 44 Pins Box Header (2.0mm pitch)
Pin Define Pin Define
1 RSTPIDE# 2 Ground
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 Ground 20 NC
21 PDDREQ 22 Ground
23 PDIOW# 24 Ground
25 PDIOR# 26 Ground
27 PDIORDY 28 Ground
29 PDDACK# 30 Ground
31 IRQ14 32 V5P0
33 PDA1 34 PD66#
35 PDA0 36 PDA2

User’s Manual
WIN Enterprises, Inc. Sept., 2010
16
37 PDCS#1 38 PDCS#3
39 PIDELED 40 Ground
41 V5P0 42 V5P0
43 Ground 44 N/C
CN22：Power ON/System Reset Pin Header
Pin Define Pin Define
1 POWER ON + 2 POWER ON -
3 GND 4 RESET
CN23：USB/LED Box Header
Pin Define Pin Define
1 +5V 2 +5V
3 USB_P1+ 4 USB_P0+
5 USB_P1- 6 USB_P0-
7 GND 8 GND
9 N.C. 10 HDD LED-
11 +3.3V 12 BYPASS LED1-
13 N.C. 14 BYPASS LED2-
15 +3.3V 16 RESERVED
CN24：COM2 Box Header
Pin Define Pin Define
1 DCD# 6 DSR#

User’s Manual
WIN Enterprises, Inc. Sept., 2010
17
2 RXD# 7 RTS#
3 TXD# 8 CTS#
4 DTR# 9 RI#2
CN25：GPO Pin Header
Pin Define Pin Define
1 GPO4 2 Ground
3 GPO5 4 Ground
5 GPO6 6 Ground
7 GPO7 8 Ground
9 Ground 10 +5V
CN26/CN27/CN28/CN29/CN31/CN32: Gigabit Ethernet RJ-45 Connector
Pin Define
1 TX+
2 TX-
3 RX+
4 Chassis Ground
5 Chassis Ground
6 RX-
7 Chassis Ground
8 Chassis Ground
D2: Speed indicated LED
1 Gbps GREEN
100 Mbps YELLOW
D1 :Link/Activity LED

User’s Manual
WIN Enterprises, Inc. Sept., 2010
18
Link GREEN
Activity BLINKING
CN30: COM1 RJ-45 Connector
Pin Define(STD)
1 CTS#
2 DTR#
3 TXD#
4 GND
5 Ground
6 RXD#
7 DSR#
8 RTS#
CF1: CF Socket
Please refer to the Ch.2.3 CompactFlashTM Card Socket Pin Define.
VGA1: VGABox Header
Pin Define Pin Define
1 RED 2 GREEN
3 BLUE 4 +5V
5 Ground 6 Ground
7 Ground 8 Ground
9 +5V 10 Ground
11 +5V 12 SDA
13 HSYNC 14 VSYNC
15 SCL 16 NC

User’s Manual
WIN Enterprises, Inc. Sept., 2010
19
JP2：Auto Power On Select Pin Header
Pin Setting
1-2 ATX Mode
(Default)
2-3 Auto Power On
Mode
JP4: Watchdog Function Selection
Pin Setting
1-2 Lan Bypass
2-3 H/W Reset
JP5: Clear CMOS Pin Header
Pin Setting
1-2 Normal
(Default)
2-3 Clear CMOS
JP7: LAN 5/6 Bypass Selection
Pin Setting
1-2 Normal
(Default)
2-3 Bypass Always
Disable

User’s Manual
WIN Enterprises, Inc. Sept., 2010
20
JP8: LAN 3/4 Bypass Selection
Pin Setting
1-2 Normal
(Default)
2-3 Bypass Always
Disable
JP5: GPI or H/W Reset Selection for SW1 Button
Pin Setting
1-2 GPI
2-3 RESET
