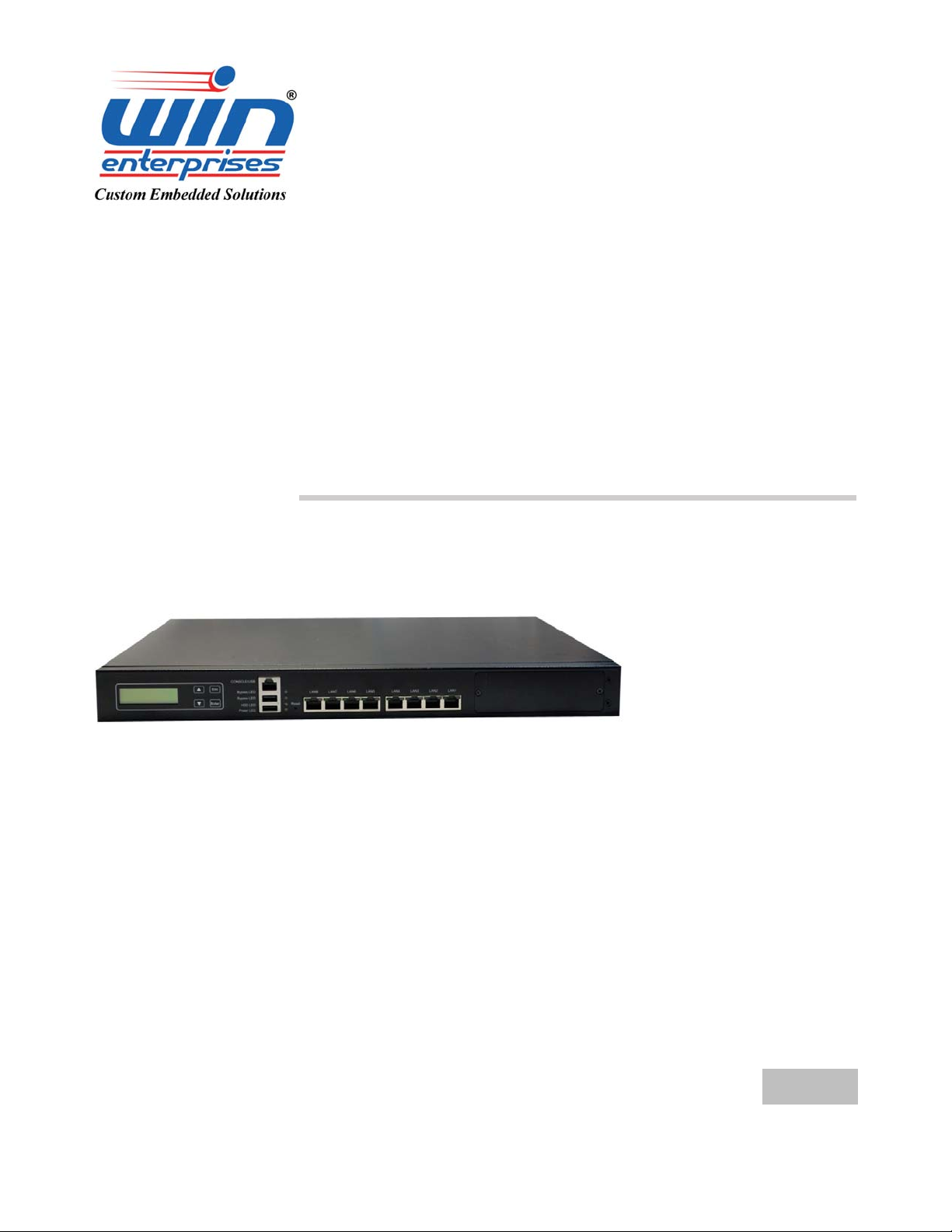

Win enterprises Pl-80610 User manual

Network Appliance

PL

PLPL

PL-

--

-80610

8061080610

80610

User’s Manual

www.win-ent.com

Version 1.0

Aug., 2014

WIN Enterprises User’s Manual

Manual Edition 1.0, Aug., 2014

This document contains proprietary information protected by copyright. All rights are

reserved; no part of this manual may be reproduced, copied, translated or transmitted in

any form or by any means without prior written permission of the manufacturer.

The content of this document is intended to be accurate and reliable; the original

manufacturer assumes no responsibility for any inaccuracies that may be contained in

this manual. The original manufacturer reserves the right to make improvements to the

products described in this manual at any time without prior notice.

Trademarks

IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International

Business Machine Corporation

Award is a trademark of Award Software International, Inc

Intel is a trademark of Intel

RTL is a trademark of Realtek

VIA is a trademark of VIA Technologies, Inc

Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered

trademarks of Microsoft Corporation

All other product names mentioned herein are used for identification purpose only and

may be trademarks and/or registered trademarks of their respective companies

Limitation of Liability

While reasonable efforts have been made to ensure the accuracy of this document, the

manufacturer and distributor assume no liability resulting from errors or omissions in this

document, or from the use of the information contained herein.

For more information on PL-80610 or other WIN Enterprises products, please visit our

website: www.win-ent.com.

For technical supports or free catalog, please send your inquiry to: sales@win-ent.com.

2

©

©©

©

Aug., 2014

WIN Enterprises User’s Manual

Contents

Chapter 1. General Information ....................................................................... 2

1.1 Introducing................................................................................................. 2

1.2 Specifications............................................................................................. 4

1.3 Order Information ...................................................................................... 5

1.4 Packaging.................................................................................................. 5

1.5 Precautions................................................................................................ 6

1.6 System Layout........................................................................................... 7

1.7 Board Dimensions ..................................................................................... 8

Chapter 2. Connector/Jumper Configuration ................................................... 9

2.1 Connector/Jumper Location and Definition................................................ 9

2.2 Connector and Jumper Setting ................................................................ 11

2.3 CompactFlash

TM

Card Socket Pin Define ................................................ 22

Chapter 3. BIOS Setup.................................................................................. 23

3.1 Quick Setup ............................................................................................. 23

3.2 Entering the CMOS Setup Program......................................................... 23

3.3 Menu Options .......................................................................................... 26

3.4 Advanced Menu....................................................................................... 26

3.5 Boot Menu ............................................................................................... 31

3.6 Security Menu.......................................................................................... 32

3.7 Chipset Menu........................................................................................... 33

3.8 Exit Menu................................................................................................. 34

Chapter 4. Utility & Driver Installation ............................................................ 35

4.1 Operation System Supporting.................................................................. 35

4.2 Sample Code and lm-sensor ................................................................... 35

Appendix A: Cable Development Kit.............................................................. 36

Chapter 1. General Information

1.1 Description

The PL-80610 is a 1U rackmounted hardware platform designed for network service applications.

4

3

Aug., 2014

WIN Enterprises User’s Manual

Supporting the next generation Intel® Atom™ Processor C2000 product family (formerly

codenamed Rangeley) with 8/4/2 Cores; the new platform comes fully packed with Intel® AES New

Instructions (Intel® AES-NI), Intel® Quick Assist Technology and Intel® Streaming SIMD Extension

(Intel® SSE) for hardware accelerated data encryption and decryption.

The platform supports one DDR3/L 1333/1600MHz unbuffered ECC or non-ECC DIMM sockets up

to 8GB of memory and offers powerful storage interface supporting 2.5”/3.5" SATA 3.0 6Gbps hard

drives and CompactFlash™, thus granting the best network performance and maximum utilization.

In order to enhance network security performance, the PL-80610 offers optional Intel Quick Assist

technology that provides hardware level cryptographic acceleration, hence reallocating abundant

CPU computing power for higher layer packet processing.

This platform offers 8 GbE to 14 GbE Ethernet ports via PCI-E on the front-panel. To prevent

network problems during unexpected shut down, PL-80610 supports two segments of LAN bypass

function through WDT and GPIO pin definitions. For local system management, maintenance and

diagnostics; the front panel is equipped with dual USB 2.0 ports, one RJ-45 console port and LED

indicators that monitor power and storage device activities. Additionally the PL-80610 supports one

PCI-E x8 slot for add-on Ethernet module.

5

Aug., 2014

WIN Enterprises User’s Manual

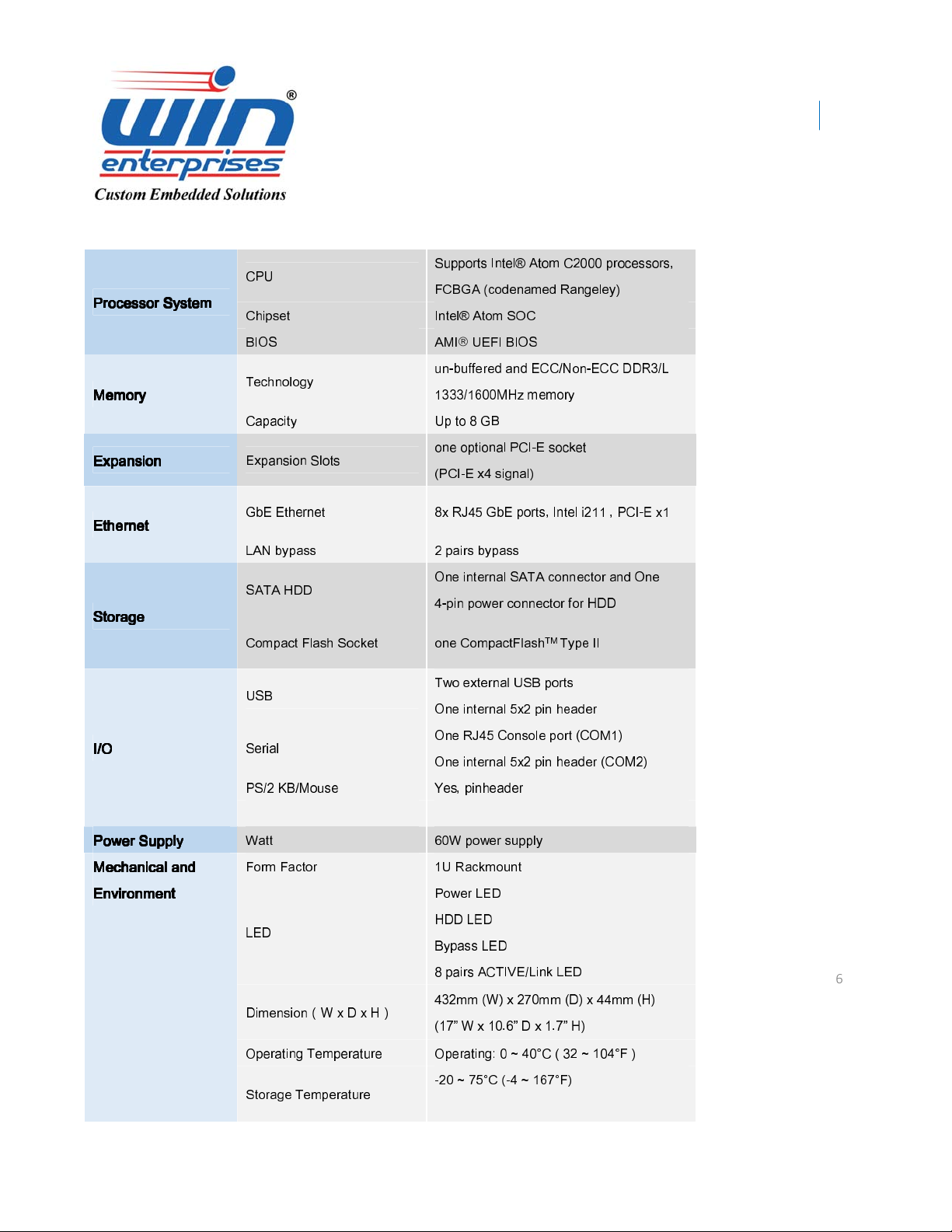

1.2 Specifications

CPU Supports Intel® Atom C2000 processors,

FCBGA (codenamed Rangeley

Chipset Intel® Atom SOC

Processor System

Processor SystemProcessor System

Processor System

BIOS AMI



UEFI BIOS

Technology un-buffered and ECC/Non-ECC DDR3/L

1333/1600MHz memory

Memory

MemoryMemory

Memory

Capacity Up to 8 GB

Expansion

ExpansionExpansion

Expansion

Expansion Slots one optional PCI-E socket

(PCI-E x4 signal

GbE Ethernet 8x RJ45 GbE ports, Intel i211 , PCI-E x1

Ethernet

EthernetEthernet

Ethernet

LAN bypass 2 pairs bypass

SATA HDD One internal SATA connector and One

4-pin power connector for HDD

Storage

StorageStorage

Storage

Compact Flash Socket one CompactFlash

TM

Type II

USB Two external USB ports

One internal 5x2 pin header

Serial One RJ45 Console port (COM1

One internal 5x2 pin header (COM2

PS/2 KB/Mouse Yes, pinheader

I/O

I/OI/O

I/O

Power Supply

Power SupplyPower Supply

Power Supply

Watt 60W power supply

Form Factor 1U Rackmount

LED

Power LED

HDD LED

Bypass LED

8 pairs ACTIVE/Link LED

Dimension（W x D x H） 432mm (W x 270mm (D x 44mm (H

(17” W x 10.6” D x 1.7” H

Operating Temperature Operating: 0 ~ 40°C ( 32 ~ 104°F

Mechanical and

Mechanical and Mechanical and

Mechanical and

Environment

EnvironmentEnvironment

Environment

Storage Temperature -20 ~ 75°C (-4 ~ 167°F

6

Aug., 2014

WIN Enterprises User’s Manual

Humidity 10 ~ 85% relative humidity, non-operating,

non-condensing

Certifications CE/FCC

1.3 Order Information

We offer some accessories for PL-80610 appliance for customer need.

1.4 Packaging

Please make sure that the following items have been included in the package before installation.

1. PL-80610 Appliance

2. Quick Installation Guide (Optional)

3. Cables (Optional)

If any item of above is missing or damaged, please contact your dealer or retailer from whom you

purchased the PL-80610. Keep the box and carton for possible shipment or storage of the

PL-80610 in near future. After you unpack the goods, inspect and make sure the packaging is intact.

Do not plug the power adapter to the appliance of PL-80610 if it is perceived to be damaged.

Note: Keep the PL-80610 in the original packaging until you start installation.

PL

PLPL

PL-

--

-8061

80618061

8061A

AA

A

Desktop Intel® Atom C2558 Network ystem, DDR3, 8

RJ45 GbE, LAN bypass, ATA, CF

PL

PLPL

PL-

--

-8061

80618061

8061B

BB

B

Desktop Intel® Atom C2518 Network ystem, DDR3, 6

RJ45 GbE, LAN bypass, ATA, CF, PCI-E socket

PL

PLPL

PL-

--

-8061

80618061

8061C

CC

C

Desktop Intel® Atom C2358 Network ystem, DDR3, 8

RJ45 GbE, LAN bypass, ATA, CF

DK002

DK002DK002

DK002

Cable development kit:

CB -CO5204-00 Cross over 2M

CB -DB9200-01 Null modem cable 2M

CB -EC5200-00 Ethernet cat.5 cable 2M

CB -IP 200-00 KBM cable, 15CM

CB -IU B2B-00 U B cable, 25CM

CB -IVGA01-00 VGA cable, 20CM

CB -RJDB91-00 RJ-45 to DB-9 cable 2M

7

Aug., 2014

WIN Enterprises User’s Manual

1.5 Precautions

Please make sure you properly ground yourself before handling the PL-80610 appliance or

other system components. Electrostatic discharge can be easily damage the PL-80610

appliance.

Do not remove the anti-static packing until you are ready to install the PL-80610 appliance.

Ground yourself before removing any system component from it protective anti-static

packaging. To ground yourself, grasp the expansion slot covers or other unpainted parts of the

computer chassis.

Handle the PL-80610 appliance by its edges and avoid touching the components on it.

8

Aug., 2014

WIN Enterprises User’s Manual

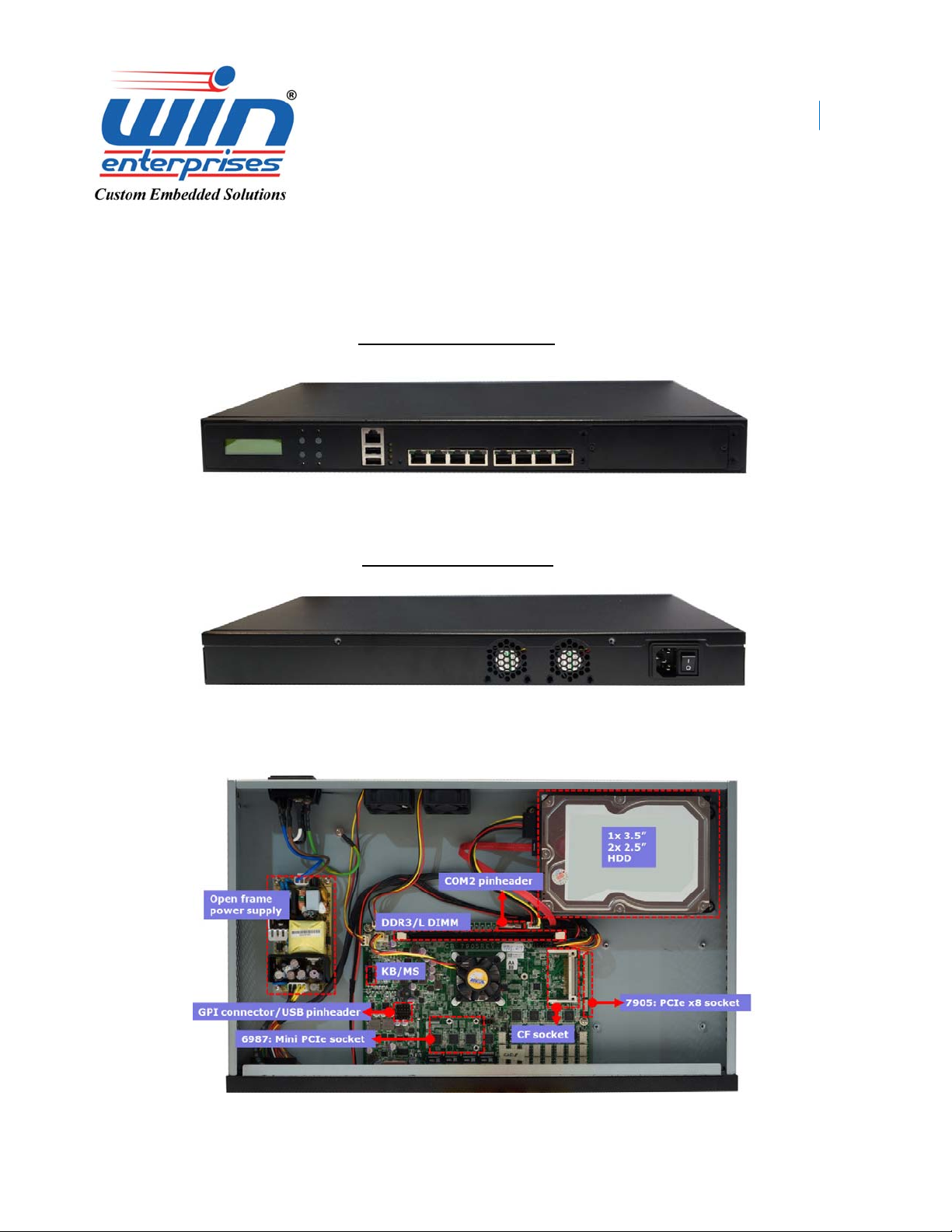

1.6 System Layout

PL-80610 Front Side Layout

PL-80610 Rear Side Layout

Aug., 2014

WIN Enterprises User’s Manual

1.7 Board Dimensions

9

Aug., 2014

WIN Enterprises User’s Manual

Chapter 2. Connector/Jumper Configuration

2.1 Connector/Jumper Location and Definition

10

Aug., 2014

WIN Enterprises User’s Manual

MB-80610

Connector and Jumper:

Connector List

Connector Description Connector Description

CN1 COM2 Connector Clear CMO

CN2 ATA Power connector DDR 1.5V 1.35V select

CN3 ATA Connector

JP1

JP2

JP3 External 5V for PCIE

slot

CN4 Keypad connector JP4 LAN3 & LAN4 bypass

select

CN6 LCM connector JP5 LAN1 & LAN2 bypass

select

CN7 Power on/off GPIO Connector JP6 GPI or reset select

CN8 KB/M Connector JP7 WDT & LAN bypass

select

CN9 PI Connector

CN10 PCI-E x8 lot (OPTIONAL)

CN11 U B Connector (Header)

CN12 LPC Connector

CN13 GPI connector

CN15 Mini-PCIE Connector

(For CB-6987)

CN19 Reset Connector

CN21/CN22

LAN1, LAN2 Connector

CN23/CN22

LAN3, LAN4 Connector

CN24 LAN5~LAN8 Connector

CN25 2-pin Power Connector

CN26 DC Jack

11

Aug., 2014

WIN Enterprises User’s Manual

2.2 Connector and Jumper Settings

CN1: COM2 connector

CN2: SATA Power

Pin Signal

1 DCD#

2 RXD#

3 TXD#

4 DTR#

5 Ground

6 DSR#

7 RTS#

8 CTS#

9 RI#2

10 N/A

Pin Signal

1 +12V

2 GND

3 GND

4 +5V

12

Aug., 2014

WIN Enterprises User’s Manual

CN7: SATA Connector

CN7: GPIO Connector

Pin Define Pin

Define

1 3.3V 2 GND

3 GPIO30 4 GPIO31

5 GPIO32 6 GPIO33

7 GPIO34 8 GPIO35

9 GPIO36 10

GPIO37

Pin Signal

1 Ground

2 TXP

3 TXN

4 Ground

5 RXN

6 RXP

7 Ground

13

Aug., 2014

WIN Enterprises User’s Manual

CN6: KB/MS Pin Headers

Pin Define Pin

Defined

1 KCLK 2 MCLK

3 KDAT 4 MDAT

5 N/A 6 N/A

7 PS2_GND 8 PS2_GND

9 PS2_VCC 10

PS2_VCC

CN11: USB Connector

Pin Define Pin

Defined

1 +3.3V 2 AD0

3 AD1+ 4 AD2

5 AD3 6 Frame#

7 PCIRST# 8 +5V

9 CLOCK 10 N/A

11 GND 12 GND

14

Aug., 2014

WIN Enterprises User’s Manual

CN12: LPC Connector

Pin Define Pin

Defined

1 +3.3V 2 AD0

3 AD1+ 4 AD2

5 AD3 6 Frame#

7 PCIRST# 8 +5V

9 CLOCK 10 N/A

11 GND 12 GND

CN13: GPI Connector

Pin Define Pin

Defined

1 GPI0 2 GPI1

3 GPI2 4 GPI3

5 GND

15

Aug., 2014

WIN Enterprises User’s Manual

CN15: Mini-PCIE Connector

Define Pin

Defined

1 WAKE# 2 3.3V

3 Reserved 4 GND

5 Reserved 6

1.5V

7

CLKREQ#

8

Reserved

9

GND

10

Reserved

11

REFCLK-

12

Reserved

13

REFCLK+

14

Reserved

15

GND

16

Reserved

17

Reserved

18

GND

19

Reserved

20

Reserved

21

GND

22

PERST#

23

PERN0

24

+3.3VAUX

25

PERP0

26

GND

27

GND

28

+1.5V

29

GND

30

SMB_CLK

31

PETN0

32

SMB_DATA

33

PETP0

34

GND

35

GND

36

USB_D-

37

Reserved

38

USB_D+

39

Reserved

40

GND

41

Reserved

42

LED_WWAN#

43

Reserved

44

LED_WLAN#

45

Reserved

46

LED_WPAN#

47

Reserved

48

+1.5V

49

Reserved

50

GND

51

Reserved

52

+3.3V

16

17

Aug., 2014

WIN Enterprises User’s Manual

CN17: USB + RJ45 Connector

Pin Define Pin

Defined

1 +5V 2 DATA0-

3 DATA0+ 4 GND

5 +5V 6 DATA1-

7 DATA1+ 8 GND

RJ45 (Conso e COM1)

Pin Defined

1 CT #

2 DTR#

3 TXD#

4 GND

5 GND

6 RXD#

7 D R#

8 RT #

Aug., 2014

WIN Enterprises User’s Manual

CN19: Reset Connector

CN21~CN24: LAN1 ~ LAN8 Connector

Pin Defined

1 Ground

2 Reset#

Pin Defined

1 MDI0+

2 MDI0-

3 MDI1+

4 MDI2-

5 MDI2-

6 MDI1-

7 MDI3+

8 MDI3-

D2: Link/Activity LED

Link Green

Activity

Blinking

D1: Bi-Color Speed LED

10Mbps

Off

100Mbps

Green

18

Aug., 2014

WIN Enterprises User’s Manual

CN25: 2-Pin Power Connector

CN26: DC Jack

1000Mbps

Yellow

Pin Define Pin

Defined

1 +12V 2 GND

Pin Define Pin

Defined

1 +12V 2 GND

Jumper Setting

JP1: Clear CMOS

Pin Setting

19

Aug., 2014

WIN Enterprises User’s Manual

1-2

Normal Operation

(Default)

2-3

Clear CMOS

Jumper Setting

JP2: DDR power select

(1.5V/1.35V)

Pin Setting

1-2

DDR Power 1.5V

(Default)

2-3

DDR Power 1.35V

Jumper Setting

JP4: LAN3 & LAN4 Bypass

Pin Setting

20

WIN Enterprises PL-80610 User manual

Popular Network Hardware manuals by other brands
