PL-10590
Networking Appliance
User’s Manual
Version 1.0
2U Rackmounted Dual Intel® Haswell-EP Xeon E5-2600V3 Series Processor
and C612 PCH Network System, 3 PCIe x16 slot for expansion LAN module,
IPMI, 1 USB, 4 SATA HDD, 2 GbE, CF, 2 PCIe x8 slot, Redundant PSU

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Re ision History
Date Version Modification Editor
20 5/0 /07 .0 First Release Denny Huang

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
© Copyright 2015. All Rights Reser ed.
This document contains proprietary information protected by copyright. All rights
are reserved; no part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without prior written permission of the
manufacturer.
The content of this document is intended to be accurate and reliable; the original
manufacturer assumes no responsibility for any inaccuracies that may be contained
in this manual. The original manufacturer reserves the right to make
improvements to the products described in this manual at any time without prior
notice.
Trademarks
IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International
business Machine Corporation
Award is a trademark of Award Software International, Inc
Intel is a trademark of Intel
RTL is a trademark of Realtek
VIA is a trademark of VIA Technologies, Inc
Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered
trademarks of Microsoft Corporation
All other product names mentioned herein are used for identification purpose only
and may be trademarks and/or registered trademarks of their respective companies
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this document,
the manufacturer and distributor assume no liability resulting from errors or
omissions in this document, or from the use of the information contained herein.
For more information on PL- 0590 or other WIN Enterprises products, please visit
our website
www.win-ent.com.
For technical supports or free catalog, please send your inquiry to
[e-mail] .

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Contents
Chapter 1. General Information
. Introduction
.2 Specifications
.3 Ordering Information
.4 Packaging
.5 Precautions
.6 System Layout
.7 Dimensions
.8 PCIe configuration for LAN module by CPU0/CPU
Chapter 2. Connector/Jumper Configuration
2. MB- 0590 (SBC) Connector/Jumper Location and Definition
Chapter 3. Optional LAN Module and Add on card
3. R323 ： Ethernet module with four GbE copper and four GbE fiber
3.2 R324 ： Ethernet module with eight GbE fiber
3.3 R325 ： Ethernet module with eight GbE copper
3.4 R3 9 ： Front I/O module
3.5 R3 6 ： Expansion module with 2 SFP+ 0GbE ports with Bypass
3.6 R258 ： Expansion module with 4 RJ45 0G ports, Intel X540-BT2
3.7 R333A ： Expansion module with 2QSFP+ ports. Intel® XL7 0
3.8 R303C : IPMI card with VGA support for PL- 0590
Chapter 4. BIOS Setup
4. Quick Setup
4.2 Entering the CMOS Setup Program
4.3 Menu Options
4.4 Advanced Menu
4.5 IntelRCSetup
4.6 Server Mgmt
4.7 Security
4.8 Boot
4.9 Save & Exit

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Chapter 5. Utility & Driver Installation
5. Operation System Supporting
5.2 System Driver Installation
5.3 LAN Driver Installation
Appendix
Appendix A: Linux / DOS Sample code
Appendix B: Cable Development Kit

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Chapter 1. General Information
1.1 Introduction
The PL-10590 is powered by an Intel® Haswell-EP Xeon processor (code name: Grantley). The platform
was developed for maximum performance, scalability and functionality in 2U network service appliance.
PL-10590 is designed with two Intel® Xeon E5-2600V3 series processors and supports Intel® QuickPath
Interconnects running up to 9.6 GT/s speeds. Intel® QPI (Quick Path Interconnect) links are a high speed,
point-to-point interconnect bus between the processor and chipset that reduces memory socket latency
and increases performance. The E5-2600V3 series processor is up to 18 cores, 45MB cache and total
with 80 PCIe lanes. Each E5-2600V3 processor support four DDR4 memory (up to 2133 MHz) and
maximum memory capacity is up to 128 GB.
In addition, PL-10590 supports four 3.5” SATA hard disks or solid state drives and provides a choice of
different types of expansion modules; such as 10 Gigabit SFP+, Gigabit copper with BYPASS function
and Gigabit fiber ports. The maximum of Ethernet port for PL-10590 is 24 GbE ports.
1.2 Specifications
CPU Supports Dual Intel® Haswell-EP E5-2600V3 Series,
LGA 2011-3
Chipset IntelWellsburg C612 PCH
QPI QPI up to 9.6 GT/s
Processor
System
BIOS AMI128Mb SPI BIOS
Technology Total 8 DIMMs (Four channels per CPU, one DIMM per
channel, four DIMMs per CPU)
1.ECC/Registered DDR4 2133 MHz memory, up to
16GB per DIMM
2. LRDIMM ： DDR4 2133 MHz, up to 16GB per DIMM.
Memory
Capacity ECC UDIMM/RDIMM
： up to 128GB
LRDIMM ： up to 128GB
Expansion Expansion 1. One SO-DIMM slot for IPMI card with VGA support

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Slots 2.Two Gen.3 PCIe x8 slot
R323A
Expansion module with 4 x SFP ports
and 4 x RJ45 GbE ports, Intel82580EB
R323B
Expansion module with 4 x SFP ports
and 4 x RJ45 GbE ports, Intel82580EB
with two pairs bypass function
R324A
Expansion module with 8 SFP ports,
Intel 82580EB
R325A
Expansion module with 8 RJ45 GbE
ports, Intel 82580EB
R325B
Expansion module with 8 RJ45 GbE
ports, Intel 82580EB with four pairs
bypass function
R266A
Expansion module with 2 SFP+ 0GbE
ports, Intel82599ES w/o re-driver
R333A
Expansion module with 2 QSFP+
ports, Intel® XL7 0
R3 6A
Expansion module with 2 SFP+ 0GbE
ports, Intel82599ES with
non-latching bypass
R3 6B
Expansion module with 2 SFP+ 0GbE
ports, Intel82599ES with latching
bypass
Ethernet Ethernet
Modules for
Option
R258B
Expansion module with 4 RJ45 0G
ports, Intel X540-BT2
Hardware
Acceleration
Module
Cryptographic NA
SATA HDD Support four 3.5” SATA HDD
RAID RAID 0, ,5, 0 via PCH
Storage
Compact
Flash Socket
One CompactFlash
TM
Type I/II
USB Port One external USB 2.0
Console Port One RJ45 Console port (COM , RS232)
Front
Accessible I/O
Management
Port
One MGMT port, Intel i2 0
One IPMI port support, Intel i2 0

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Display Port One VGA pin header
（ R303C need plug in main
board ）
Power Supply Watt 2U 500W ATX redundant power supply
Form Factor 2U rackmounted
LCD Module One 6x2 LCM with four Key buttons
Keypad NA
LED 4x GPO LEDs via R3 9A
GPO4 (Green)
GPO5 (Yellow)
GPO6 (Yellow)
GPO7 (Yellow)
Dimension
（ W x D x H ）
430mm (W) x 639mm (D) x 88mm (H)
( 7.2”W x 25.56”D x 3.52”H)
Operating
Temperature
Operating: 0 ~ 40°C ( 32 ~ 04°F )
Storage
Temperature
-20 ~ 75°C (-4 ~ 67°F)
Mechanical and
En ironment
Humidity 0 ~ 85% relative humidity, non-operating,
non-condensing
Weight pc/CTN, 20 kgs
Certification CE/FCC
1.3 Ordering Information
PL-10590A-A
2U Rack-Mount, Intel Haswell-EP with C6 2 PCH, DDR4, 3 PCIe
slots for Expansion Module , PCIe x8 slot, Console, USB, 2GbE,
SATA, CF
R303C IPMI card with VGA support
R323A Expansion module with 4 x SFP ports and 4 x RJ45 GbE ports,
Intel82580EB
R323B Expansion module with 4 x SFP ports and 4 x RJ45 GbE ports,
Intel82580EB with two pairs bypass function
R324A Expansion module with 8 SFP ports, Intel 82580EB
R325A Expansion module with 8 RJ45 GbE ports, Intel 82580EB
R325B Expansion module with 8 RJ45 GbE ports, Intel 82580EB with
four pairs bypass function

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
R266A Expansion module with 2 SFP+ 0GbE ports, Intel82599ES w/o
re-driver
R333A Expansion module with 2 QSFP+ ports,
Intel® XL7 0
R316A Expansion module with 2 SFP+ 0GbE ports, Intel82599ES with
non-latching bypass
R316B Expansion module with 2 SFP+ 0GbE ports, Intel82599ES with
latching bypass
R258B Expansion module with 4 RJ45 0G ports, Intel X540-BT2
DK002
Cable de elopment kit:
CB-CO5204-00 Cross over 2M
CB-DB9200-0 Null modem cable 2M
CB-EC5200-00 Ethernet cat.5 cable 2M
CB-IPS200-00 KBMS cable, 5CM
CB-IUSB2B-00 USB cable, 25CM
CB-IVGA0 -00 VGA cable, 20CM
CB-RJDB9 -00 RJ-45 to DB-9 cable 2M
1.4 Packaging
Please make sure that the following items have been included in the
package before installation.
. PL- 0590 Appliance
2. Cables (Optional)
3. CD-ROM that contains the following folders ：
4. Manual
4.2 System Driver
4.3 Ethernet Driver
4.4 Utility Tools
If any of the above items are missing or damaged please contact your
dealer or retailer from whom you purchased the PL- 0590. Keep the
box and carton for near-term shipping or storage. After you unpack
the goods, inspect and make sure the packaging is intact. Do not
connect the power adapter to the appliance of if it appears damaged.

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Note: Keep the PL-10590 in the original packaging until you start
installation.

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
1.5 Precautions
Please make sure you properly ground yourself before handling the
PL- 0590 appliance or its system components. Electrostatic discharge
can be easily damage the PL- 0590 appliance.
Do not remove the anti-static packing until you are ready to install the
PL- 0590 appliance.
Ground yourself before removing any system component from its
protective anti-static packaging. To ground yourself, grasp the
expansion slot covers or other unpainted parts of the computer
chassis.
Handle the PL- 0590 appliance by its edges and avoid touching its
components.

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]

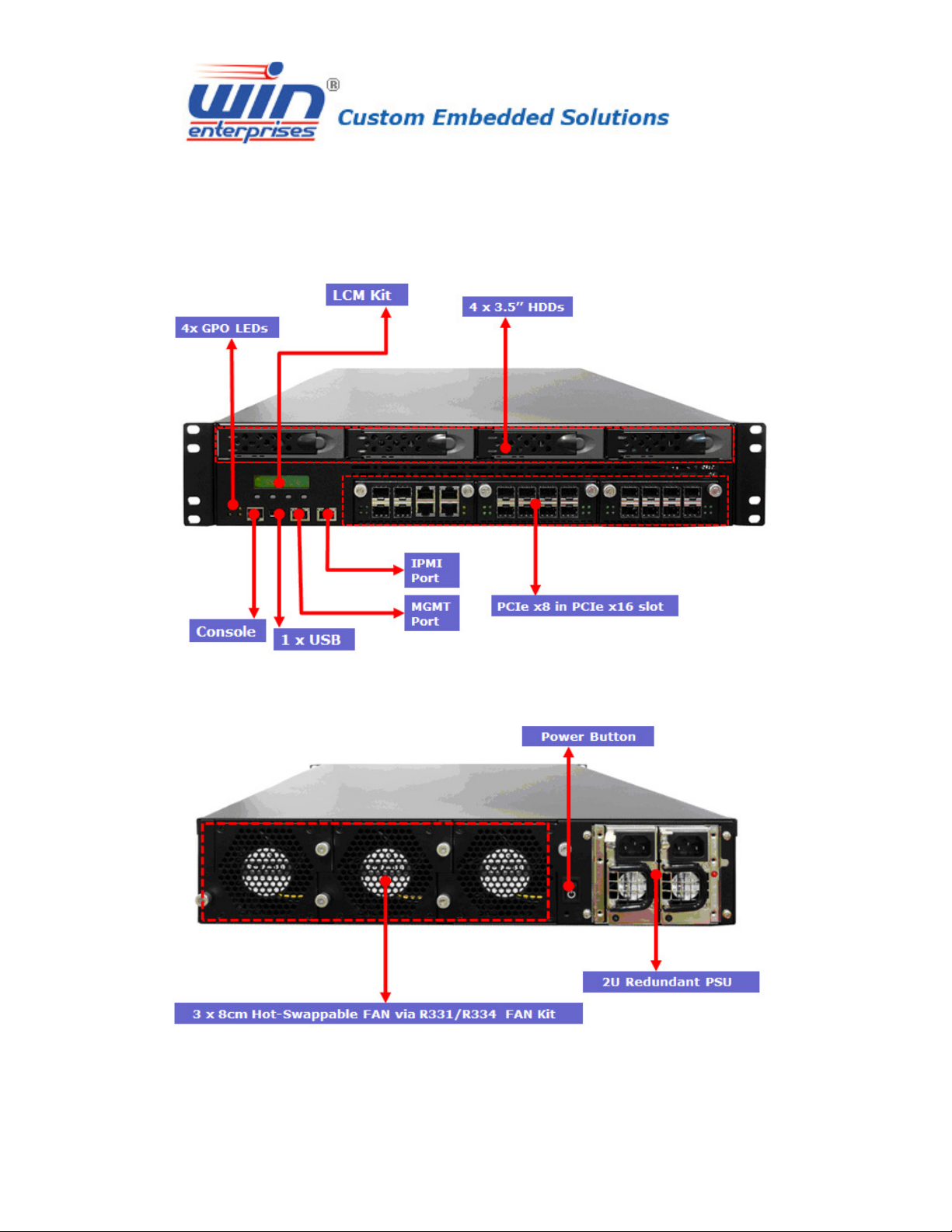

1.6 System Layout
<Front panel features>
<Rear panel features>

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
1.7 Dimensions
1.8 PCIe configuration for LAN module by CPU0/CPU1

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Chapter 2. Connector/Jumper Configuration
MB-1059A Rev.A1 Connector Pin Defined and Jumper Settings
Connector List
Connector Description
CN1 VR12.5 SMBus Header
CN2 POWER Button Connector
CN3 2X4 +12V POWER Connector
CN4 PC E X8 SLOT

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
CN5 2X4 +12V POWER Connector
CN6 Re-Driver Programming Header
CN7 CPLD Programming Header
CN8 2X4 +12V POWER Connector
CN9 PC E X8 SLOT
CN10 CPU0 FAN Connector
CN11 CPU1 FAN Connector
CN12 2X12 ATX POWER Connector
CN13 SP FLASH Programming Header
CN14 FRONT PANEL Connector
CN15 GP Pin Header
CN16 SATA3.0 Connector
CN17 COM Port 2
CN18 LPC Port
CN19 PS/2 KB/MS Connector
CN20 O Connector (To R319)
CN21 SATA3.0 Connector
CN22 VGA Connector
CN23 LCM Backlight Connector
CN24 LPT Port
CN25 SATA3.0 Connector
CN26 SATA3.0 Connector
CN27 O Connector (To R322)
CN28 O Connector (To R322)
CN29 O Connector (To R322)
CN30 PC E X16
夾板式 Connector
CN31 PC E X16
夾板式 Connector
CN32 PC E X16
夾板式 Connector
CN33 PC E X16
夾板式 Connector
SBFAN1 PCH FAN Connector
SYSFAN1 SYSTEM FAN Connector
SYSFAN2 SYSTEM FAN Connector
SYSFAN3 SYSTEM FAN Connector
USB1 USB Connector
CF1 Compact Flash Connector

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
D MM1 PM Connector
CN1 : VR12.5 SMBus Header
PIN Description
1 GND
2 SM_DATA
3 SM_CLK
CN2 : Power Button Connector
PIN Description
1 GND
2 POWER BUTTON
CN3,CN5,CN8 : 2x4 +12V Power Connector
PIN Description PIN Description
1 GND 2 GND
3 GND 4 GND
5 +12V 6 +12V
7 +12V 8 +12V
CN7 : CPLD Programming Header
PIN Description PIN Description
1 TCK 2 GND
3 TDO 4 +3.3V_AUX
5 TMS 6 NC
7 NC 8 NC
9 TDI 10 GND
CN13: SPI FLASH PROGRAMMER CONNECTOR
PIN Description PIN Description
1 SPI POWER 2 GND
3 SPI CS0# 4 SPI CLK
5 SPI MISO 6 SPI MOSI
7 NC 8 FLASH_IO
CN14 : Front Panel Connector

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
PIN Description PIN Description
1 POWER LED+ 2 POWER LED-
3 HDD LED+ 4 HDD LED-
5 RESET 6 GND
7 GND 8 POWER BUTTON
CN15 : GPI Connector
PIN Description
1 GPI4
2 GPI5
3 GPI6
4 GPI7
5 GND
CN17 : COM2 RS-232 Connector
PIN Description PIN Description
1 DCD#2 2 DSR#2
3 RXD#2 4 RTS#2
5 TXD#2 6 CTS#2
7 DTR#2 8 RI#2
9 GND 10 NC
CN18 : LPC Connector
PIN Description PIN Description
1 +3.3V 2 AD0
3 AD1 4 AD2
5 AD3 6 FRAME#
7 RESET# 8 +5V
9 CLK_33MHz 10 PME#
11 GND 12 NA
13 SERIRQ 14 DRQ1#
CN19 : PS2 KB/MS Connector
PIN Description PIN Description
1 KB CLK 2 MOUSE CLK
3 KB DATA 4 MOUSE DATA

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
5 NA 6 NC
7 GND 8 GND
9 KB POWER 10 MOUSE POWER
CN20 : IO Connector (To R319A)
PIN Description PIN Description
1 LAN1_100# 2 LAN1_CON_A+
3 LAN1_1000# 4 LAN1_CON_A-
5 LAN1_ACT# 6 LAN1_CON_B+
7 LAN2_100# 8 LAN1_CON_B-
9 LAN2_1000# 10 LAN1_CON_C+
11 LAN2_ACT# 12 LAN1_CON_C-
13 +3.3V 14 LAN1_CON_D+
15 RTS#1/CTS#1 16 LAN1_CON_D-
17 DTR#1 18 GND
19 TXD#1 20 LAN2_CON_A+
21 RXD#1 22 LAN2_CON_A-
23 DSR#1 24 LAN2_CON_B+
25 GPO70 26 LAN2_CON_B-
27 GPO71 28 LAN2_CON_C+
29 GPO72 30 LAN2_CON_C-
31 GPO73 32 LAN2_CON_D+
33 HDD_LED_N 34 LAN2_CON_D-
35 USB_PP_2 36 +3.3V_AUX
37 USB_PN_2 38 P80_CTRL
39 GND 40 +5V
CN22 : VGA Connector
PIN Description PIN Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VGA_5V 10 GND
11 NC 12 DDC_DATA
13 H_SYNC 14 V_SYNC

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
15 DDC_CLK 16 NC
CN23 : LCM Backlight Connector
PIN Description
1 GND
2 +5V
CN24 : LPT Connector
PIN Description PIN Description
1 STB# 14 AFD#
2 PDR0 15 ERR#
3 PDR1 16 PAR_INIT#
4 PDR2 17 SLIN#
5 PDR3 18 GND
6 PDR4 19 GND
7 PDR5 20 GND
8 PDR6 21 GND
9 PDR7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 GND
USB1 : USB Connector
PIN Description PIN Description
1 USB POWER 2 USB POWER
3 USB 0- 4 USB 1-
5 USB 0+ 6 USB 1+
7 GND 8 GND
9 NC 10 GND

WIN Enterprises, Inc., PH:978-688-2000 Email: [e-mail]
Jumper List
JP1 Clear CMOS
1-2: Normal
2-3: Clear CMOS
JP2
1-2: PC -e
2-3: NCS
JP3 AT /ATX Select
1-2: ATX
2-3: AT
JP4 GP O For Debug
JP5 WDT FOR LAN BY-PASS OR RESET
1-2: RESET
2-3: BYPASS
JP6 RESET to GP O or PCH
1-2: GP O
2-3: PCH
