WIN Enterprises PL-83230 User manual

User’s Manual
WIN Enterprises, Inc. Rev1.2 Jun. 2015
1
Embedded Gaming Board/System Supports 2nd Gen. AMD®
R-Series APU, 4K Display, 3 Displays, 2 GbE, 10 COMs, MRAM,
15W Audio Amp., Various Protected I/O…
PL-83230 / MB-83230

User’s Manual
2
© Copyright WIN Enterprises, All Rights Reserved
Manual Edition 1.0, January, 2015
This document contains proprietary information protected by copyright. All rights are reserved; no
part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original manufacturer assumes
no responsibility for any inaccuracies that may be contained in this manual. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without prior notice.
Trademarks
IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International Business Machine
Corporation
Award is a trademark of Award Software International, Inc
Intel is a trademark of Intel
RTL is a trademark of Realtek
VIA is a trademark of VIA Technologies, Inc
Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered trademarks of
Microsoft Corporation
All other product names mentioned herein are used for identification purpose only and may be
trademarks and/or registered trademarks of their respective companies
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this document, the manufacturer
and distributor assume no liability resulting from errors or omissions in this document, or from the use
of the information contained herein.
For more information on MB-83230 or other WIN products, please visit our website
http://www.win-ent.com .
For technical support send your inquiry to
[e-mail].

User’s Manual
3
Revision History
Rev1.0
Released
Rev1.1
Intrusion I/O
Rev1.2
Development Kit p/n correcon

User’s Manual
4
Table of Contents
Table of Contents.............................................................................................................4
Chapter 1. General Information .....................................................................................5
1.1 Introduction......................................................................................................5
1.2 Specifications ..................................................................................................5
1.3 Ordering Information .................................................................................9
1.4 Packaging.......................................................................................................10
1.5 Precautions.....................................................................................................10
1.6 Board Placement ............................................................................................ 11
1.7 Board /System Dimension ............................................................................13
Chapter 2. Connector/Jumper Configuration...............................................................15
2.1 Connector/Jumper Location and Definition...................................................15
2.2 Connector and Jumper Setting .......................................................................20
Chapter 3. BIOS setting Menu.....................................................................................31
3.1 Main Menu.....................................................................................................31
3.2 Advanced Menu .............................................................................................32
3.3 Chipset Menu.................................................................................................43
3.4 Boot Menu .....................................................................................................50
3.5 Security Menu................................................................................................52
3.6 Save & Exit Menu..........................................................................................53
Chapter 4. Design Resources .......................................................................................54
4.1 System Resources .....................................................................................54
Appendix A: Development Kit (optional)................................................................65

User’s Manual
5
Chapter 1. General Information
1.1 Introduction
, a Box/System leverages the 2nd generation AMD R series APU which-
with excellent computing/graphic capabilities, also included one DVI-D, one
DVI-I, one HDMI display, Dual Giga Ethernet, two USB 3.0, two USB 2.0, two
COM port at edge. Addition gaming interfaces, include eight COM, Audio
amplified output and 64 GPIO by box header. On board 32KB and 2MB
Battery-less backup NVRAM MRAM is supported, maximum size of MRAM up
to 16MB(option). MB-83230 also supports an external battery backup interface for
instant data backup if system power fails. The optional battery pack can extend
main board power for up to 5 minutes. MB-83230 is an all-in-one performance
gaming board/system for applications like casino gaming, multi-player,
multi-display, high-end 3D games, Windows® WES 7 and Linux Ubuntu are
supported.
1.2 Specifications
Board
CPU
AMD® R-series Bald eagle APU Quad/Dual core,
FP3 BGA, up to 2.7GHz
APU, 35W max.
BIOS
AMI® UEFI BIOS (optional 2nd BIOS for security
boot, socket)
Chipset
AMI® A77E
System
Memory
Support two DDR3-2133 SODIMM up to 16GB
Watchdog
Timer
255 levels timer interval, (1sec. to 255min.), setup by
software.
Display
Display Chipset
- Integrated AMD Radeon HD 9000
- Support DirectX® 11.1, UVD 4.2 and VCE 2.0
- OpenGL 4.2
- OpenCL 1.2
Display
interface
Up to three independent display
-HDMI, 4096 x 2160
MB-83230

User’s Manual
6
-DVI-D, 2560 x 1600
-DVI-I, 2560 x 1600
Audio
Audio Chipset
HDA
Power amp.
15W Class-D stereo power amp for each channel;
jumpers for optional volume control external VR
Audio Interface
5+1 channel audio jack on rear edge
Ethernet
Ethernet
2x Gigabit Ethernet
Storage
SSD
One CF socket and NANDriver(option)
2x mSATA Gen3.0 slots
HDD
1x SATA3.0 (6Gb/s) connectors with 4-pin SATA
power connector
Security
CPU Security
AES, RNG, Content protection, Unique board ID
Physical
Security
Onboard Storage (optional)
Software
Security
SMD and optional DIP-8 socket for optional Crypto
Memory
TPM 1.2
Gaming
NVRAM
On-board battery-less 32KB MRAM
On-board 2MB MRAM (support up to 6MB MRAM)
Timers
1x 1mS timer and 4x Programmable timer with
timeout interrupt
EEPROM
DIP 8-pin socket for optional I²C EEPROM
Digital I/O
-ESD protected I/O
-32 x Photo-coupler Protected Input
-28 x 500mA current sink output
-4 x 3A current sink output

User’s Manual
7
FPGA
-All input with programmable de-bounce
-Timer 4+1 with interrupt
-32-bit Random Number Generator
-Lamp outputs with programmable flash and
dimming
-Serial out for external lamps modules for
decoration
-Programmable PWM output
-MRAM data backup by hardware mirror function
-Meter failure detection
Intrusion
Detection
-By battery powered single chip microcontroller
-Operates with and without system power
-8x Intrusion detection inputs
-Logs date/time of latest 100 events
-Events include door status, system
resets/brownouts, …
-On-chip EEPROM backup
Expansion
Expansion slot
1x PCI-E x16 slot (PCIe x8 signal),
Two mini-PCIe socket, each support mSATA, USB,
PCIe.(Default mSATA)
LPC, I2C, SPI header
System I/O
COM
10 x COM (9 bits)
- COM1, COM2 support RS-232 at Rear I/O
- COM3 support RS-232
- COM4 support RS-485
- COM5, COM6 support ccTalk
- COM7, COM8, COM9 support simple RS-232
- COM10 support 1x RS-232
USB
4 x external USB
- 2x USB 3.0 port at rear I/O
- 2x USB 2.0 port at rear I/O
4 x internal USB
- 2 x USB3.0 by pin header
- 2 x USB2.0 by pin header

User’s Manual
8
Hardware monitoring
System Heath
Monitoring
Measurement of CPU core and system temperature
with thermal trip
Power Supply
Voltage
- +DC 12V
- External battery backup interface
Software
O/S
Microsoft® Windows® Windows 7, WES7 and Linux
Ubuntu 12.04 support
Mechanical and Environment
Environmental
Operating Temperature: 0 –60 ºC (32 ºF –140 ºF)
Storage Temperature: -20 –85 ºC (-4 ºF –185 ºF)
Relative Humidity: 10-85 % RH, non-condensing
Compliant
FCC/CE Class A
Dimension
Board : 170mm(D) x 225mm(W)
System : 306.8mm(W) x 175mm(D) x 102mm(H)
Applications
Main
Application
High-end 3D multi-display video slot/poker machine
High-end 3D multi-display amusement machine
High-end vending machine
High-end 3D digital signage

User’s Manual
9
1.3 Ordering Information
Ordering Information
Embedded Gaming Board Support 2nd Gen. AMD®
R-Series APU RX-427BB, 4K Display, 3 Displays, 2 GbE,
10 COMs, MRAM, 15W Audio Amp., Various Protected
I/O…
Embedded Gaming Board Support 2nd Gen. AMD®
R-Series APU RX-225FB, 4K Display, 3 Displays, 2 GbE,
10 COMs, MRAM, 15W Audio Amp., Various Protected
I/O…
Embedded Gaming System Support 2nd Gen. AMD®
R-Series APU RX-427BB, 4K Display, 3 Displays, 2 GbE,
10 COMs, MRAM, 15W Audio Amp., Various Protected
I/O…
Embedded Gaming System Support 2nd Gen. AMD®
R-Series APU RX-225FB, 4K Display, 3 Displays, 2 GbE,
10 COMs, MRAM, 15W Audio Amp., Various Protected
I/O…
Optional
DK-GA2200
Development Kit
- R217A Gaming I/O testing board
- CB-G00010 -02 Cable of R217A of GA -2210
- CB-SATA07-00 S-ATA cable
- CB-IPS200-00 KB/MS cable
- CB-IUSB01-00 USB cable
- CB-COM007-00; COM cable
* Note: All specifications are subject to change without prior notice
MB-8323B
MB-8323A
PL-8323A
PL-8323B

User’s Manual
10
1.4 Packaging
Please make sure that the following items have been included in the package
before installation.
1. MB-83230 board
2. CD-ROM containing the following folders:
(1) Manual
(2) Driver
If any of the above is missing or damaged, please contact your dealer or
retailer from whom you purchased the MB 83230- . Keep the box and carton
for shipping or storage. After you unpacking, inspect and make sure the
packaging is intact. Do not plug the power adapter to the appliance
if it appears damaged.
Note: Keep the MB-83230 in the original packaging until you start installation.
1.5 Precautions
Please make sure you properly ground yourself before handling the MB-83230
board or other system components. Electrostatic discharge can easily
damage the MB-83230 board..
Do not remove the anti-static packing until you are ready to install the MB-83230
board.
Ground yourself before removing any system component from the protective
anti-static packaging. To ground yourself, grasp the expansion slot covers or
other unpainted parts of the computer chassis.
Handle the MB-83230 board by its edges and avoid touching the components
on it.

User’s Manual
11

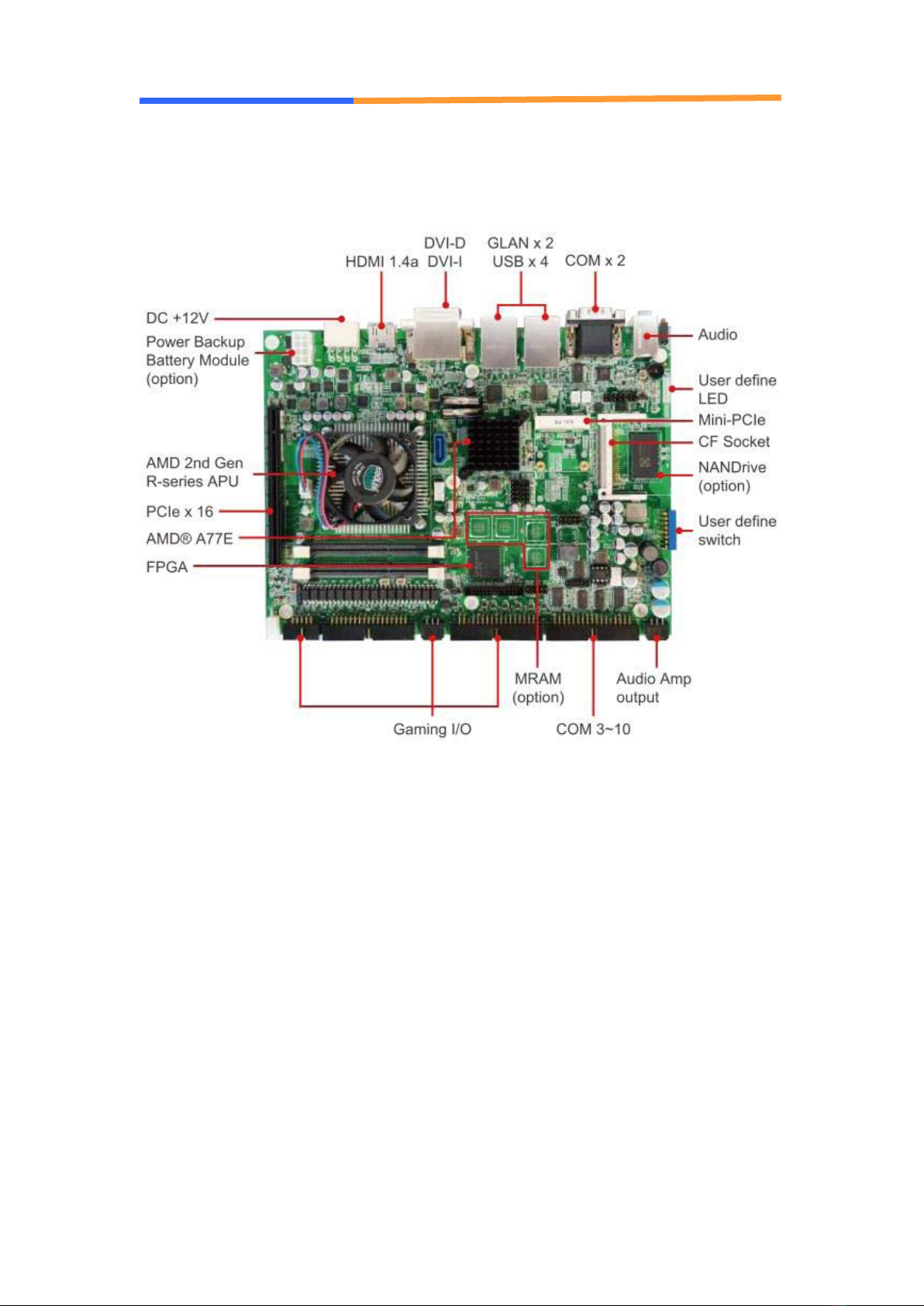

1.6 Board Placement

User’s Manual
12

User’s Manual
13
1.7 Board / System Dimensions

User’s Manual
14

User’s Manual
15
Chapter 2. Connector/Jumper Configurations
2.1 Connector/Jumper Locations and Definitions
Connector:
I/O Cable (option)
CN22
CN24
CN23
CN25
CN27
MB-83230
CN5
CN2
CN6
CN3
CN7
Caution should be taken while using optional I/O cable -- refer to below
table for paring.

User’s Manual
16

User’s Manual
17
Connector List
Connector List
Connector
Description
Connector
Description
CN1
Audio amplifier output connector
CN21
PCI-E X16 connector
CN2
GPO28~31 output connector
CN22
Mini PCIE/M-SATA connector (Full
size)
CN3
Door connector
CN23
SATA connector
CN4
Com3 ~ COM10 connector
CN24
Reset and power button connector
CN5
GPO0~27 output connector
CN25
SATA NANDriver SCID controll
connector
CN6
GPI0~31 input connector
CN26
GPIO73 connector (For debug only)
CN7
GPIO DC input power connector
CN27
Mini PCIE WAN LED
CN8
PIC download connector
CN28
Mini PCIE WAN LED
CN9
External GPIO connector
CN10
FPGA JTAG connector
CN30
Ext. Battery input connector
CN11
Door 7 connector
CN31
LAN1 connector with 2X USB3.0
CN12
LPC connector
CN32
LAN2 connector with 2X USB3.0
CN13
PIC External Battery connector
CN33
1X3 Audio Jack
CN14
PIC Battery connector
CN34
DVI-D/DVI-I connector
CN15
System FAN connector
CN35
COM port (DB-9)
CN16
KB/MS connector (For debug only)
CN36
DC 12V input connector
CN17
USB connector (Header)
CN37
HDMI connector
CN18
USB connector (Header)
CN38
Mini PCIE/M-SATA connector (Full
size)
CN19
SATA power connector
CF1
CF connector
CN20
CPU FAN connector
LED9
1X3 LED

User’s Manual
5
18
Jumper:
J umper Li st
JP1
DDR power select 1.5V/1.35V)
JP2
CRYPTO write protect
JP4
PIC battery power select
JP5
AT/ATX Select
JP6
NAND Driver write protect
JP7
Clear CMOS
JP1
1- 2: DDR power 1.5V
2- 3: DDR power 1.35V
JP2
1- 2: Normal
2- 3: write protect

User’s Manual
19
JP4
1- 2: External 5V
2- 3: +5V
JP5
1- 2: ATX
2- 3: AT
JP6
1- 2: Normal
2- 3: write protect
JP7
1- 2: Normal
2- 3: Clear CMOS

User’s Manual
20
2.2 Connector and Jumper Settings
CN1 : Audio amplifier output connector
Pin
Signal
Pin
Signal
1
SPEAK_R-
2
SPEAK_R+
3
N/C
4
N/C
5
SPEAK_L-
6
SPEAK_L+
CN2 : GPO28~31 output connector
Pin
Signal
Pin
Signal
1
OUT28
2
+12V
3
OUT30
4
OUT29
5
GND
6
OUT31
