Wincor Nixdorf BEETLE/S User manual

BEETLE /S
Modular POS System
User Guide
Edition September 2000

Copyright© Wincor Nixdorf GmbH & Co. KG, 2000
The reproduction, transmission or use of this document or its contents is not
permitted without express authority.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or
design, are reserved.
Delivery subject to availability; technical modifications possible.
Linux™ is a registered trademark of Linus Torvalds
Pentium™ is a registered trademark of the Intel Corporation
MS-DOS™, Windows 95™, Windows 98™, Windows NT™ and Windows CE™ are
registered trademarks of the Microsoft Corporation
BEETLE™ is a registered trademark of Wincor Nixdorf GmbH & Co. KG

Contents
Manufacturer´s Certification ...............1
Tested Safety ...............................1
FCC-Class A Declaration .........................1
Important notes ..............................2
Introduction ........................4
About this manual .............................5
Care of the BEETLE /S ..........................6
Recycling the BEETLE /S .........................6
Warranty..................................7
BEETLE /S .........................8
Overview .................................8
BEETLE /S Peripherals ..........................9
BEETLE /S in a network .........................10
Before switching on the System .....................11
Unpacking and checking the System .................11
Setting up the device .........................11
Cabling of the BEETLE /S.......................11
Connecting to the mains power supply ................12
Disconnecting cables .........................12
Mounting the cable cover .......................13
Basic settings .............................14
Adjusting the loudspeaker.......................14
Light emitting diode (LED) ......................15
Connecting peripherals .........................15
Keyboard (KYBD) ...........................16
Scanners and scales (COM1 - COM4*)................16
Customer display (COM2* or COM4*) ................17
Cashier display (COM3*) .......................17
Monitor ................................17
TFT - LCD display...........................18
Connecting standard PC peripherals (COM1) ............18
Network ................................18
Modular printers ...........................19
Cash drawer (1,2) ...........................19

BEETLE /S - the components ..............20
Overview.................................20
Floppy disk drive.............................22
General ................................22
Inserting a disk ............................23
Removing a disk ...........................23
CD-ROM drive ..............................24
Power Supply ..............................24
Configuration variants ..................25
Submodules for the CPU.........................25
LAN controller 10/100 Mbit (PCI) ...................25
CRT- or TFT-adapter .........................25
Installing the submodules when using a TFT/CRT adapter......25
Installing the submodules .......................27
Change of the hard disk drive ......................27
Installing an expansion card .......................28
Starting up the system..................30
Start and runup behaviour ........................30
Retail Software ......................33
Wincor Nixdorf Store Solutions .....................33
Platforms and products .........................34
Microsoft ...............................34
Linux .................................35
Technology evaluation ........................35
Appendix .........................36
Technical Data for the BEETLE /S....................36
Glossary .................................37
Abbreviations...............................39

Manufacturer´s Certification
The device complies with the requirements of the EEC
directive 89/336/EEC with regard to ‘Electromagnetic
compatibility" and 73/23/EEC “Low Voltage Directive”.
Therefore, you will find the CE mark on the device or packaging.
Tested Safety
The POS system has been provided with the symbol for
“Tested Safety”.
In addition, the BEETLE has received the UL symbol and cUL
symbol.
FCC-Class A Declaration
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
Le présent appareil numérique ne génère pas de bruits radioélectriques
dépassant les limites applicable aux appareils numériques de la “Class A”
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
1
TESTED SAFETY
geprüfte
Sicherheit

Important notes
The modular POS system BEETLE /S conforms to the current safety
standards for data processing equipment.
This device contains a laser of the class 1.
nIf this device is taken from a cold environment into the operating room,
moisture condensation may form. The device must be absolutely dry
before being put into service; an acclimatization period of at least two
hours must therefore be observed.
nThis device is equipped with a safety-tested power cable and may be
connected only to a prescribed grounded-contact power socket.
nWhen setting up the device, ensure that the power socket on the device
and the grounded-contact power socket are easily accessible.
nTo disconnect the device from the supply voltage completely, switch off
the device and disconnect the power plug.
nEnsure that no foreign objects (e.g. office clips) find their way into the
device, as this may lead to electric shocks or short-circuits.
nNever plug in or unplug data communication lines during
thunderstorms.
nProtect devices from vibrations, dust, moisture and heat.
nAlways dispose of used parts, such as batteries, in an environmentally
safe manner.
nThe lithium battery must be disposed of in accordance with local
regulations for special waste.
nIn emergencies (e.g. damaged housing or damaged power cable,
penetration by liquids or foreign bodies), the device must be switched
off immediately, the power plug disconnected and the Customer
Service of Wincor Nixdorf or your dealer must be notified.
The device may only be repaired by authorized qualified personnel.
Unauthorized opening of the device and inexpertly carried-out repairs may
not only seriously jeopardize the safety of the user, but also cancel all
warranty and liability agreements.
Your BEETLE POS system is the result of modern technical innovation. So
please see for according structural and technical surroundings to guarantee
a faultless and efficient work of your BEETLE.
Therefore, you should connect your BEETLE or other IT-devices only to
power supply systems with separately guided protective earth conductor
(PE). This kind of electricity system is known as TN-S network. Do not use
PEN conductors!
IMPORTANT NOTES
2

Please also observe the recommendations of the norm DIN VDE 0100, Part
540, Appendix C2 as well as EN50174-2, §5.4.3.Thus you can help to avoid
possible malfunctions.
3
IMPORTANT NOTES

Introduction
The BEETLE /S is the compact, powerful and economical basis for your
POS system.
The BEETLE conforms to the PC standard. Powerful processors ensure a
quick processing of all operations.

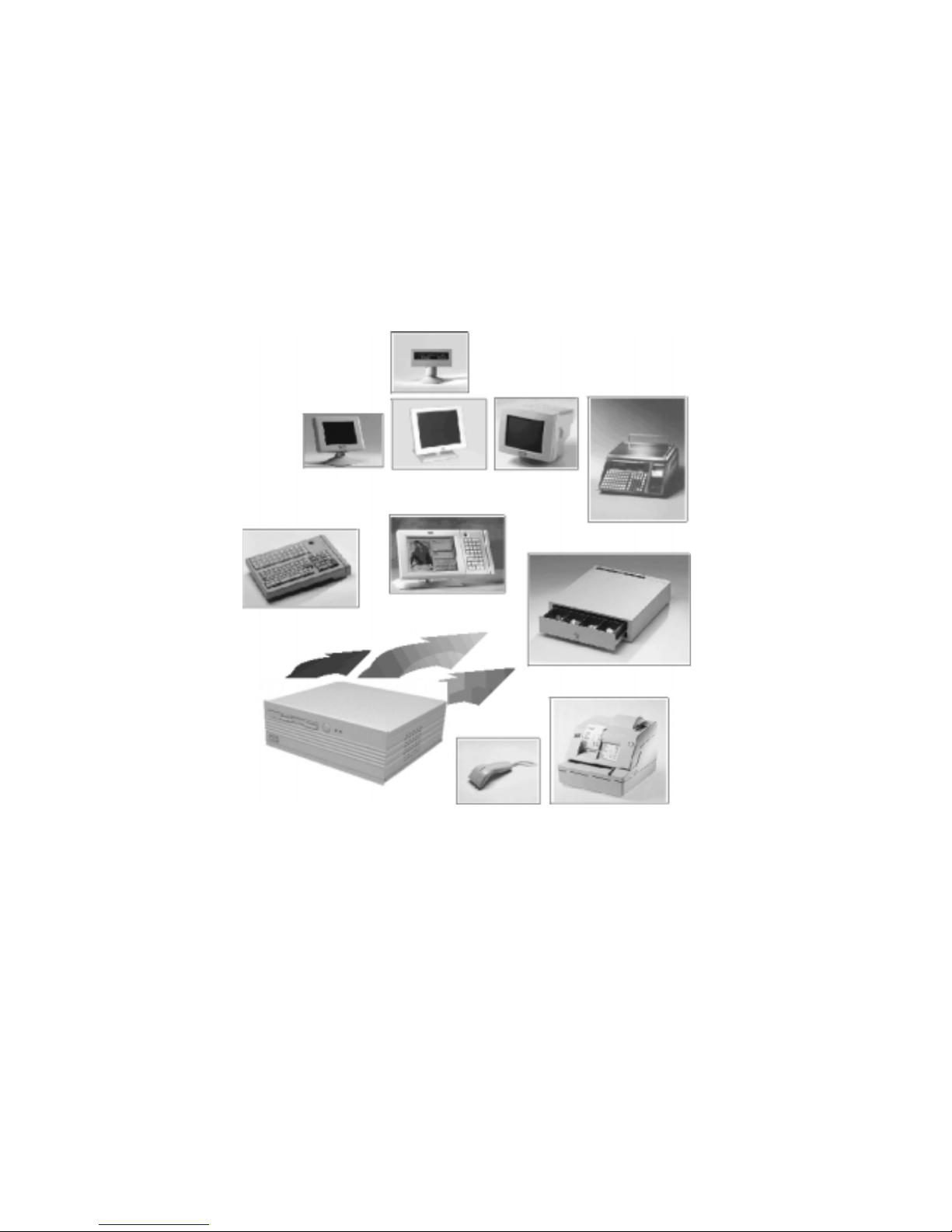

You can connect a variety of different peripheral devices to your BEETLE
and even the choice of the software is not limited to a certain product.
Optional the BEETLE /S can be equipped with a floppy disk drive or a
CD-ROM drive, a hard disk or a compact flash.
This provides you with a considerable degree of flexibility when arranging
the configuration of your POS system.
The BEETLE can also be connected to a network once an appropriate
network card has been installed.
Whatever configuration you need: Wincor Nixdorf offers the right solution.
So, whenever you want to expand your BEETLE /S, please contact your
Wincor Nixdorf GmbH & Co. KG branch office or your dealer.
INTRODUCTION
4

About this manual
This manual describes the modular POS system BEETLE /S.
This documentation is intended to help you work with the POS system and
to serve as a reference work. The detailed table of contents help you find
the desired information quickly and easily.
The first section describes
neverything you need to do before switching on the POS system and
how to connect peripherals to the BEETLE /S.
The second section contains
na brief overview of the components of your BEETLE POS system.
Here, you will also find a detailed description of recurring actions, for
example, how to use the disks.
The third selection describes
nthe possible configuration variants of your BEETLE /S.
The fourth section provides
na genaral overview of the Wincor Nixdorf Retail Software.
Section five
nexplains the start and runup behaviour of the BEETLE /S.
The Appendix
ncontains the most important technical data, a glossary and a list of
abbreviations.
Notes in the manual are marked by this symbol.
This symbol is used for warnings.
The type and scope of application programs depend on the customer’s own
selection; therefore software will not be discussed further in this manual.
Separate manuals are included in the scope of the connectable peripherals.
For this reason, a more detailed description of these devices will not be
provided here. For more information, see the relevant manuals.
5
ABOUT THIS MANUAL

Care of the BEETLE /S
Clean your BEETLE /S at regular intervals with a suitable plastic-surface
cleaner. Make sure that the power plug is disconnected, connector cables
are unplugged and that no liquid finds its way into the device.
Recycling the BEETLE /S
Environmental protection does not begin when
it comes time to dispose of the BEETLE; it
begins with the manufacturer. This product was
designed according to our internal norm
“Environmental conscious product design and
development”
The modular BEETLE /S POS System is manufactured without the use of
CFCs and CCHS and is produced mainly from reusable components and
materials.
The processed plastics can, for the most part, be recycled. Even the
precious metals can be recovered, thus saving energy and costly raw
materials.
Please do not stick labels onto plastic case parts. This would help us to
re-use components and material.
You can protect our environment by only switching on your equipment when
it is actually needed. If possible, even avoid the stand-by-mode as this
wastes energy, too. Also switch your equipment off when you take a longer
break or finish your work.
At this time, there are still some parts that are not reusable. Wincor Nlxdorf
guarantees the environmentally safe disposal of these parts in a Recycling
Center, which is certified pursuant to ISO 9001.
So don’t simply throw your BEETLE POS system on the scrap heap when it
has served its time, but take advantage of the environmentally smart,
up-to-date recycling methods!
Please contact your competent branch or the Recycling Center Paderborn
(for European countries) for information on how to return and re-use devices
and disposable materials under the following fax number:
CARE OF THE BEETLE /S
6
