Wolf CRL-iD-1300 User manual

GB
WOLF GMBH / POSTFACH 1380 / D-84048 MAINBURG / TEL. [phone] / FAX [phone] / www.WOLF.eu
Document no.: 3064361_201710 Subjecttotechnicalmodications
Installationandmaintenanceinstructionsforcontractors
CRL Comfort ventilation unit with
thermal wheel heat exchanger
(Translation of the original)

2 3064361_201710
Tableofcontents
Tableofcontents
1. General / safety information ..................................................................... 3
2. Standards, regulations / disposal ............................................................. 5
3. CRL-iD unit layout .................................................................................... 6
4. CRL-iD appliance versions....................................................................... 8
5. CRL-iH unit layout .................................................................................... 9
6. CRL-iH appliance versions......................................................................11
7. CRL-iDH unit layout................................................................................ 12
8. CRL-iDH appliance versions .................................................................. 14
9. CRL-A unit layout.................................................................................... 15
10. CRL-A appliance versions .................................................................... 17
11. Delivery / handling ................................................................................ 18
12. Unit splitting for handling purposes ...................................................... 20
13. Installation information for external units.............................................. 25
14. Positioning............................................................................................ 26
15. Electrical connection............................................................................. 28
16. Commissioning..................................................................................... 29
17. Maintenance shutdown......................................................................... 36
18. Hygiene checklist.................................................................................. 37
19. Maintenance......................................................................................... 38
20 Notes ..................................................................................................... 41

33064361_201710
1.General/safetyinformation
Generalinformation These installation and maintenance instructions only apply to WOLF CRL
ventilation units. Authorised personnel should read these instructions before
any commissioning or maintenance work. Observe the instructions given in
this document. Installation, commissioning and maintenance work must only
be carried out by trained personnel.
Theseinstructionsshouldbeconsideredanintegralpartoftheunit
supplied,andshouldalwaysbeeasilyaccessible.
Failure to observe these installation and maintenance instructions voids any
WOLF GmbH warranty.
Referencesymbols The following symbols are used in these instructions. This important
informationconcernspersonalaswellasoperationalsafety.
"Safetyinformation"isasetofinstructionswhichyoumustfollowexactly,
topreventrisksorinjuriestoindividuals,anddamagetotheunit.
Dangerthrough"live"electricalcomponents.
Caution:TurnofftheON/OFFswitchbeforeremovingthecasing.
NevertouchelectricalcomponentsorcontactswhentheON/OFFswitch
isintheONposition.Thiscarriesariskofelectrocutionthatcouldresult
ininjuryordeath.
Themainterminalsare"live",evenwhentheON/OFFswitch is in the
OFFposition.
"Pleasenote"designatestechnicalinstructionswhichyoumustobserve
topreventtheunitmalfunctioningoratngdamaged.
Please
note
Only qualied and trained personnel may be appointed for the installation,
commissioning, maintenance and operation of the unit.
Only qualied electricians are permitted to work on the electrical system.
VDE regulations [or local regulations] and those of your local power supply
utility are applicable to electrical installation work.
Only operate the unit within its output range, which is stated in the technical
documentation supplied by WOLF.
Only operate the unit when it is in perfect technical condition. Any faults or
damage which impact or might impact upon the safety or correct function of
the unit must be remedied immediately by qualied personnel.
Only replace faulty components and equipment with original WOLF spare parts.
Theunit may only beused for handling air. Thisair must not contain
anyharmful,combustible,explosive,aggressive,corrosiveorotherwise
dangerous substances, as these would be distributed throughout the
ductsystemorbuilding,wheretheycouldcausearisktothehealthof,
orevenkilltheoccupants,animalsorplantslivingthere.
Please
note
Safetyinformation In addition to installation and maintenance instructions, there are notes attached
to the unit in the form of labels. These must also be observed.

4 3064361_201710
1.General/safetyinformation
Fire The unit does not present a direct risk of re. The small numbers of seals tted
inside the unit can burn away if subjected to external inuences. Wear respiratory
equipment if you ght a re. The usual extinguishing agents such as water,
extinguishing foam or extinguishing powder can be used to extinguish res. As
there are only a small number of ammable seals, the level of pollutants that
could be released in a re is minimal.
Recommendedtemperatures The ventilation unit is designed for air intake temperatures between -20 °C
and +40 °C. For safety reasons, the room temperature in technical equipment
rooms must not fall below 5 °C (risk of frost) or exceed 40 °C. The unit should
be operated in room conditions of between 22 °C and 28 °C at approx. 55 %
relative humidity.
Othertechnical
documents
- WRS-K operating instructions
- MicroMax 370W TWHE control unit operating instructions
- Wiring diagram
- WRS-K conguration wizard
- Commissioning report / Parameter list
Electricalconnection Make the electrical connection in accordance with local regulations.
Once electrical connection work is complete, the installation must be subjected
to a safety test in accordance with VDE 0701-0702 and VDE 0700 part 500,
as otherwise there would be a risk of electric shock that could result in injury
or death.
Beforeworkingontheunit,shutitdownviatheisolator.
Even when the unit has been shut down, voltage will still be present at terminals
and connections of the EC fans. This means there is a risk of electric shock
that could result in injury or death.
Do not touch the EC fans for ve minutes after disconnecting the power across
all poles.
Intendeduse WOLF CRL ventilation units are designed to heat and lter normal air. Max. air
intake temperature: +40 °C. The use of these units in wet rooms or rooms with
explosive atmospheres is not permissible. Handling very dusty or aggressive
media is not permissible.
Any on-site modication or improper use of the unit is not permissible and
WOLF GmbH accepts no liability for any damage caused as a result.
Ventilation units intended for internal installation must be placed in rooms that
meet the requirements of VDI 2050 (VDI 2050, Requirements for technical
equipment rooms - Planning and execution).
According to DIN 1886, tools must be used to open the unit. Wait for the fan to
reach standstill (2 minutes). When the doors are opened, negative pressure
may draw in loose objects, which could destroy the fan or even cause a risk to
life if items of clothing are drawn in.
Removal and disabling of safety and monitoring equipment is prohibited.
Only operate the system in perfect technical condition. Ensure that any faults
or damage that may impact on safety are rectied immediately.
Warnings

53064361_201710
Standardsandregulations - Machinery Directive 2006/42/EC
- Low Voltage Directive 2014/35/EC
- EMC Directive 2014/30/EC
- ErP Directive 2009/125/EC
- DIN EN ISO 12100 Safety of machinery;
general design principles
- DIN EN ISO 13857 Safety of machinery;
safety distances
- DIN EN 349 Safety of machinery;
minimum gaps
- DIN EN 953 Safety of machinery;
guards
- DIN EN 1886 Ventilation for buildings;
central air handling units
- DIN ISO 1940-1 Mechanical vibration;
balance quality requirements
- VDMA 24167 Fans; safety requirements
- DIN EN 60204-1 Safety of machinery;
electrical equipment
- DIN EN 60730 Automatic electrical controls
- DIN EN 61000 -6-2+3 Electromagnetic compatibility
In addition, ÖVE regulations and the local building code apply to Austria.
2.Standards,regulations/disposal
The following standards and regulations apply to installation and operation:
- DIN EN 50106 (VDE 0700-500) Safety of electrical appliances; tests
- DIN VDE 0100 Regulations regarding the installation of
high voltage systems up to 1000 V
- DIN EN 50110-1 (VDE 0105-1) Operation of electrical systems
- DIN VDE 0105-100 Operation of electrical systems; general
stipulations
Disposalandrecycling When the unit reaches the end of its service life, it must only be dismantled by
qualied personnel. Before starting to dismantle the unit, disconnect the power
supply. Power cables must be removed by qualied electricians. Sort and dispose
of metal and plastic parts according to material types and in compliance with
local regulations. Dispose of electrical and electronic components as electrical
waste.

6 3064361_201710

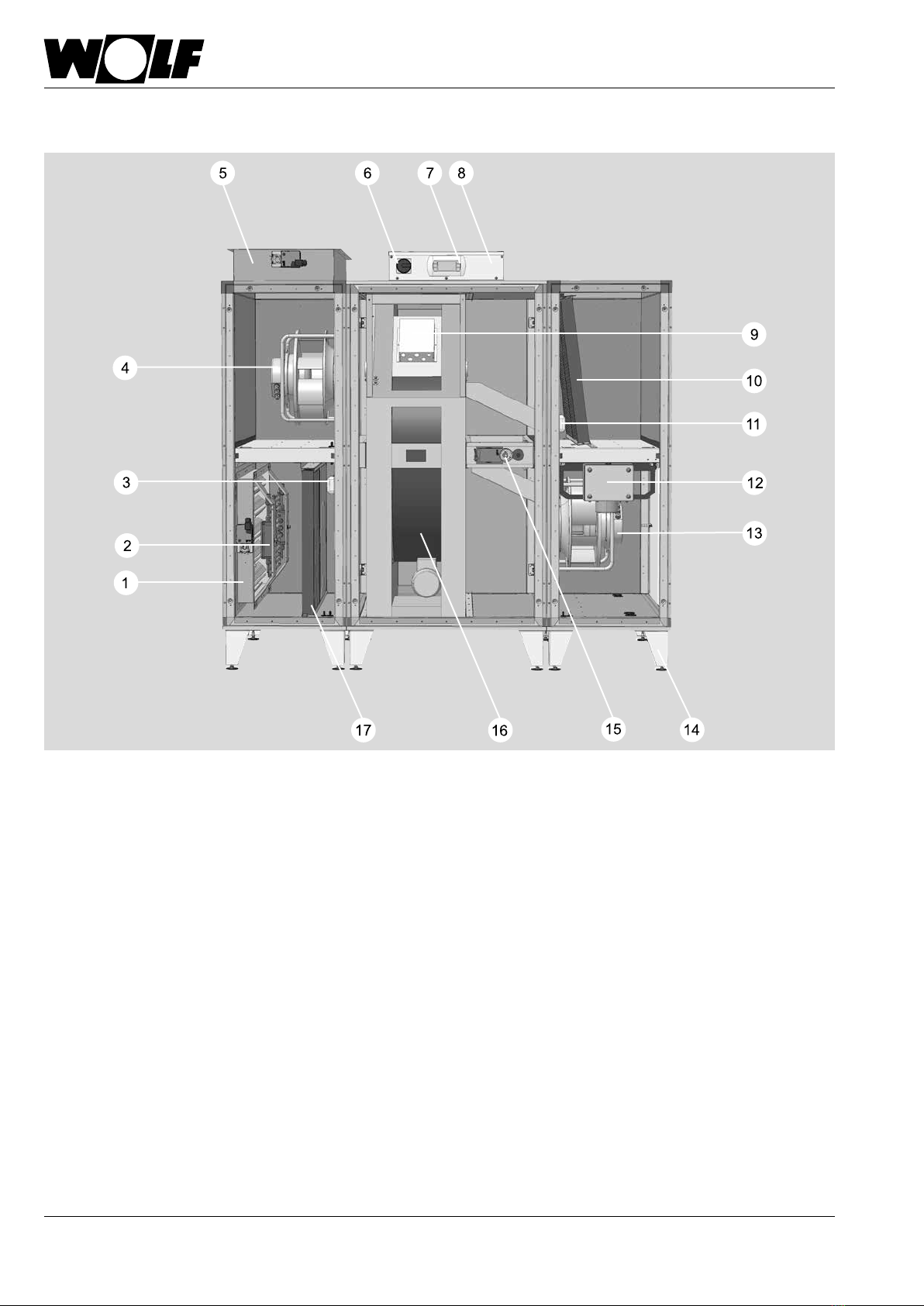

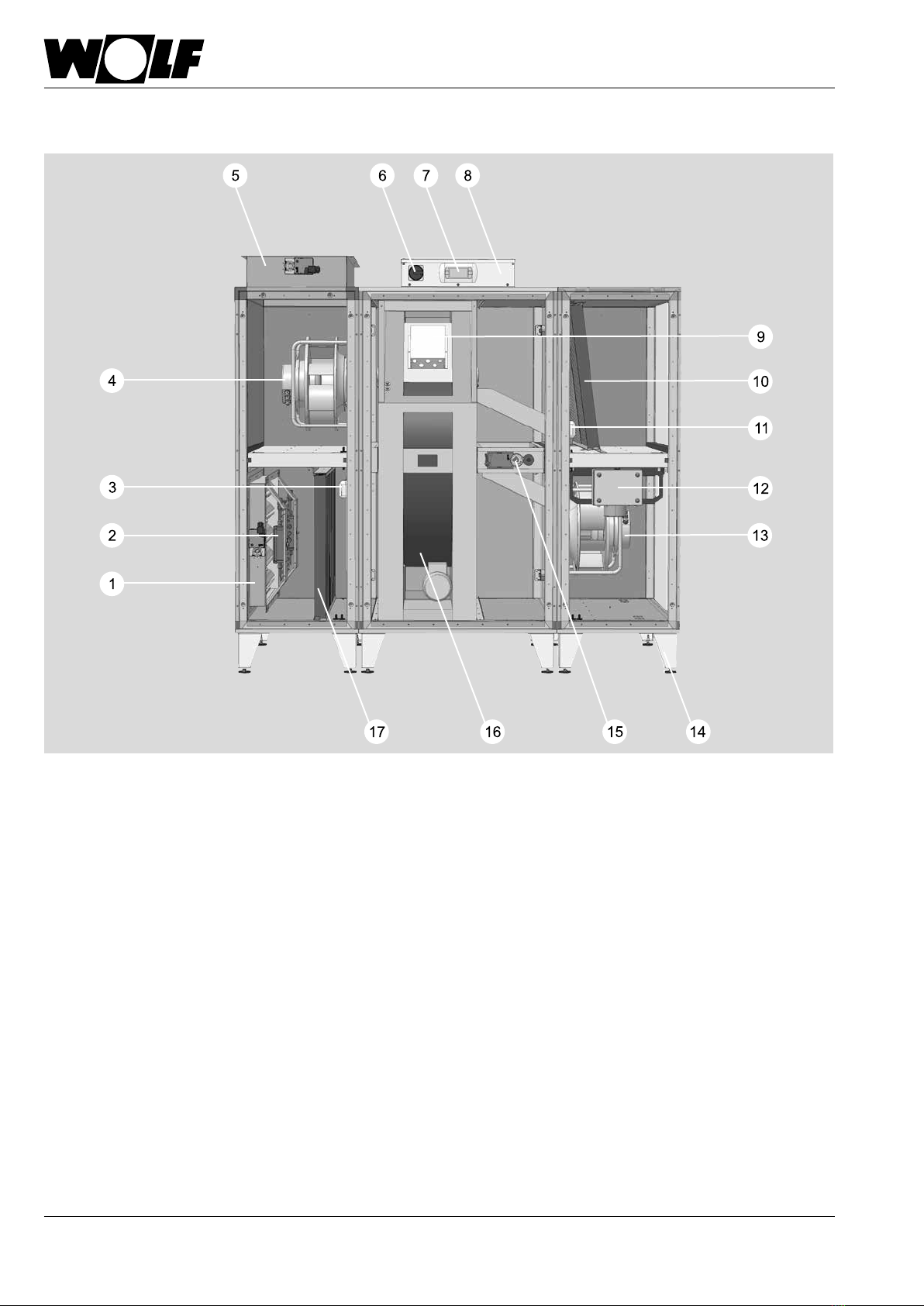

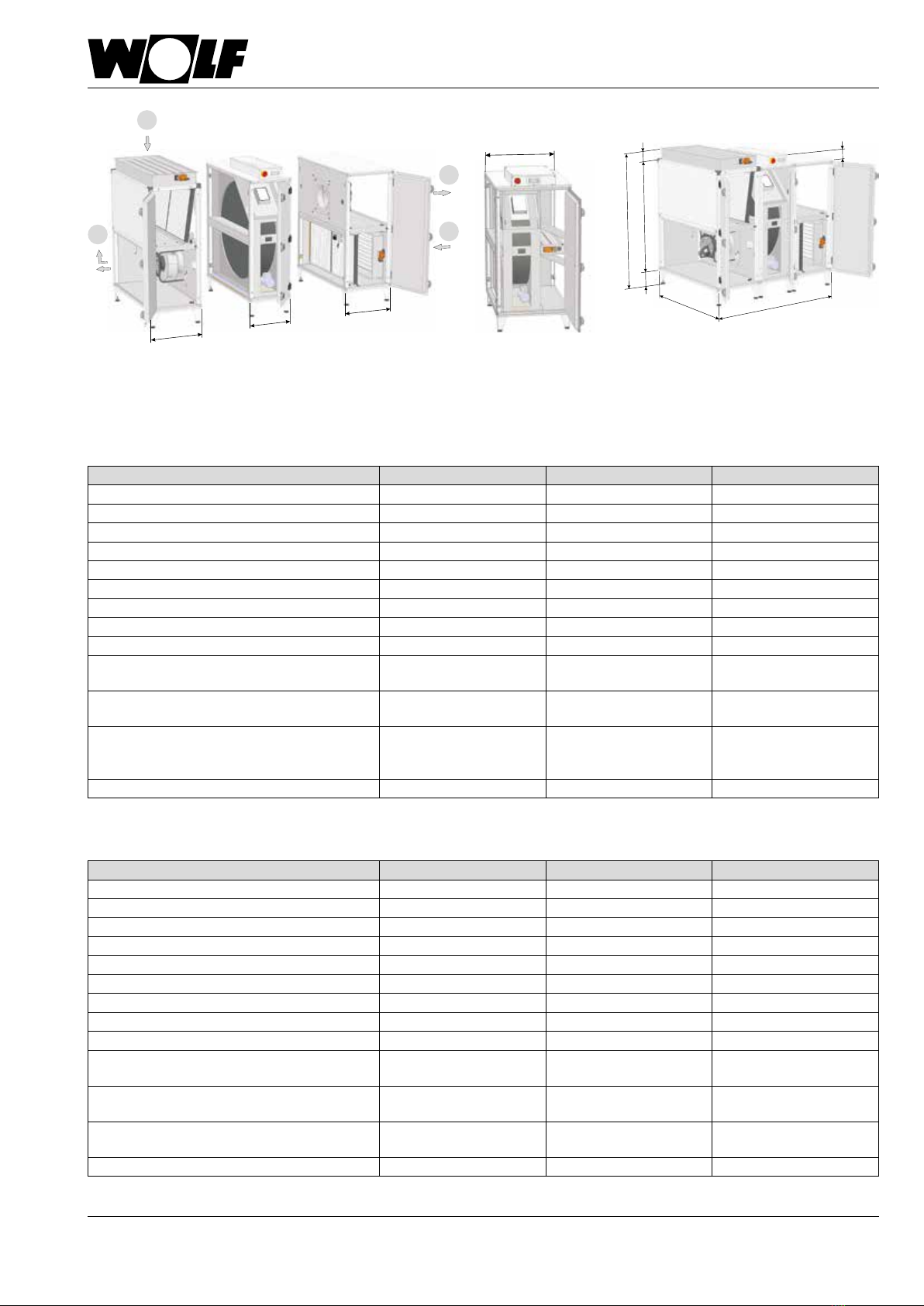

3.CRL-iDunitlayout
CRL-iDComfortthermalwheelheatexchangerventilationunitforinternalinstallation
withvertical/horizontalductconnection

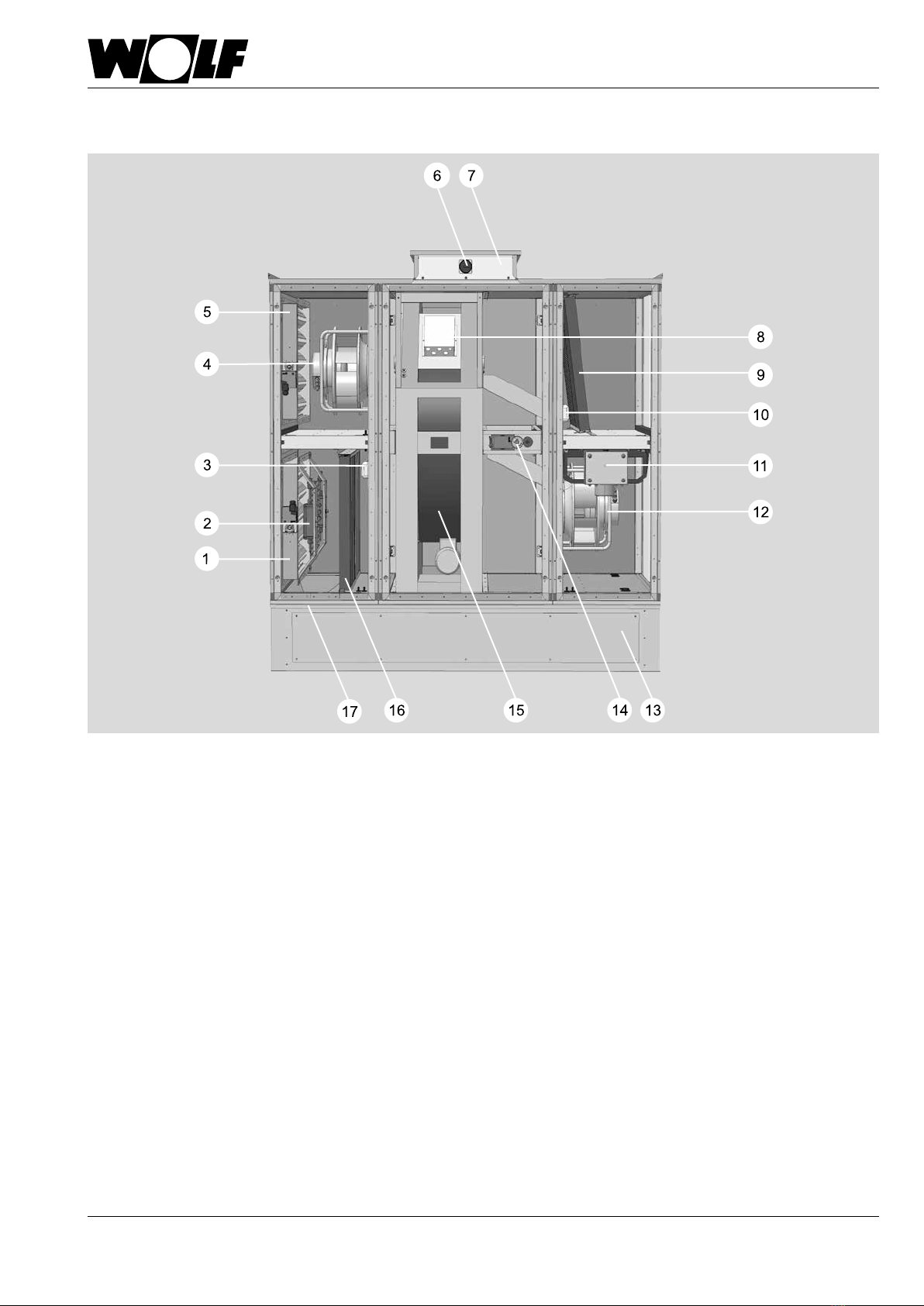

1 Outdoor air damper with servomotor
2 Filter pre-dryer (accessory)
3Differential pressure switch for lter monitoring
4 EC fan, extract air
5Exhaust air ap with actuator
6 Isolator
7BMK programming unit
8 Control panel
9 TWHE control unit
10 M5 compact lter, extract air
11 Differential pressure switch for lter monitoring
12 Electrical booster heater bank available for
CRL-1300/-2500/-3500 (accessories)
13 EC fan, supply air
14 Adjustable feet
15 Quick heater damper with actuator optional for
CRL-1300/-2500/-3500
16 TWHE thermal wheel heat exchanger
17 F7 compact lter, outdoor air

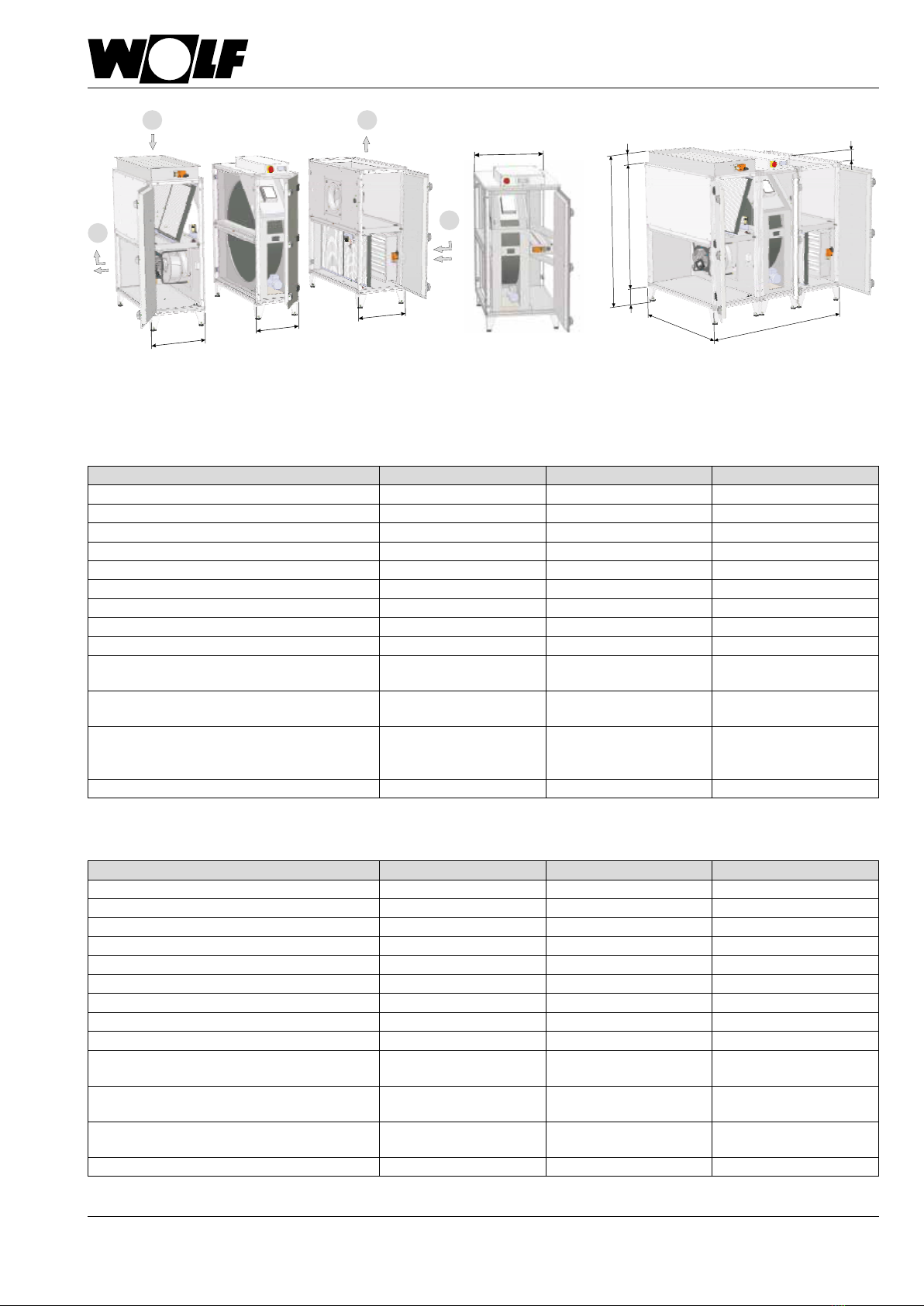

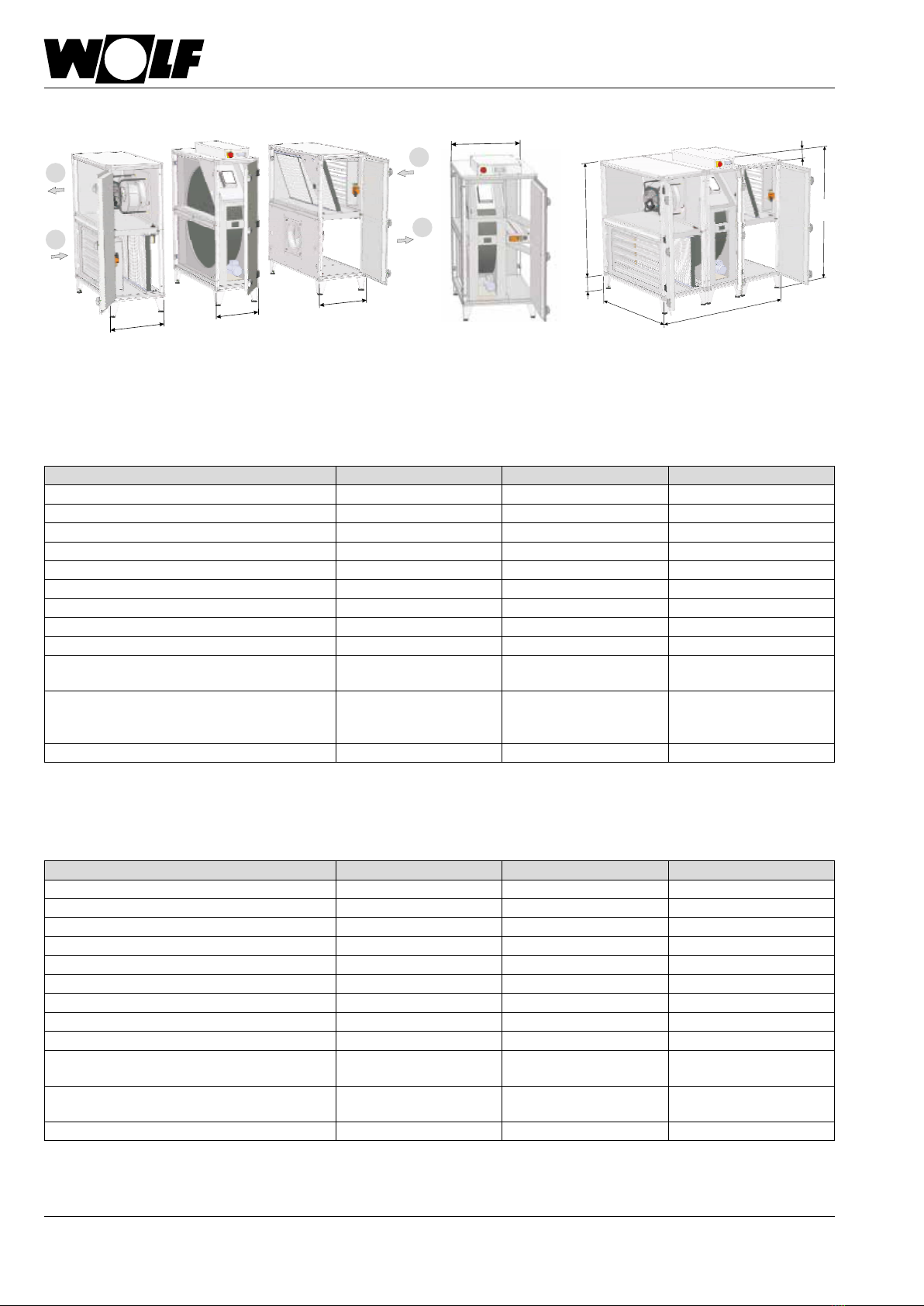

73064361_201710
3.CRL-iDunitlayout
Type CRL-iD-4800 CRL-iD-6200 CRL-iD-9000
Unit components 3 parts 3 parts 3 parts
Length L mm 1728 1932 2136
Length L1 mm 610 712 814
Length L2 (rotor part) mm 508 508 508
Depth T (incl. locks) mm 1360 1665 2070
Overall height mm 1722 1722 1925
Height H mm 1424 1424 1627
Foot height mm 170 170 170
Control unit height mm 122 122 122
Duct connection dimensions,
horizontal air routing mm Li 1222x612 Li 1527x612 Li 1934x714
Duct connection dimensions, vertical
air routing mm Li 1222x510 Li 1527x612 Li 1934x714
Weight kg 590
(180 + 230 + 180)
715
(220 + 275 + 220)
845
(275 + 295 + 275)
Nominal flow rate m³/h 4800 at 450 Pa (ext.) 6200 at 680 Pa (ext.) 9000 at 1000 Pa (ext.)
Type CRL-iD-1300 CRL-iD-2500 CRL-iD-3500
Unit components one-piece one-piece 3 parts
Length L mm 1525 / 1525* 1626 / 1626* 1626 / 1830*
Length L1 mm - - 508
Length L2 (rotor part) mm - - 610 / 814*
Depth T (incl. locks) mm 750 950 1155
Overall height mm 1315 1722 1722
Height H mm 1017 1424 1424
Foot height mm 170 170 170
Control unit height mm 122 122 122
Duct connection dimensions,
horizontal air routing mm Li 612x409 Li 815x612 Li 1019x612
Duct connection dimensions, vertical
air routing mm Li 596x307 Li 799x307 Li 1019x408
Weight kg 266 / 266* 381 / 381*
470 / 490*
(130+210+130)
(130+230+130)*
Nominal flow rate m³/h 1300 at 460 Pa (ext.) 2500 at 600 Pa (ext.) 3500 at 980 Pa (ext.)
* With rapid heat-up damper

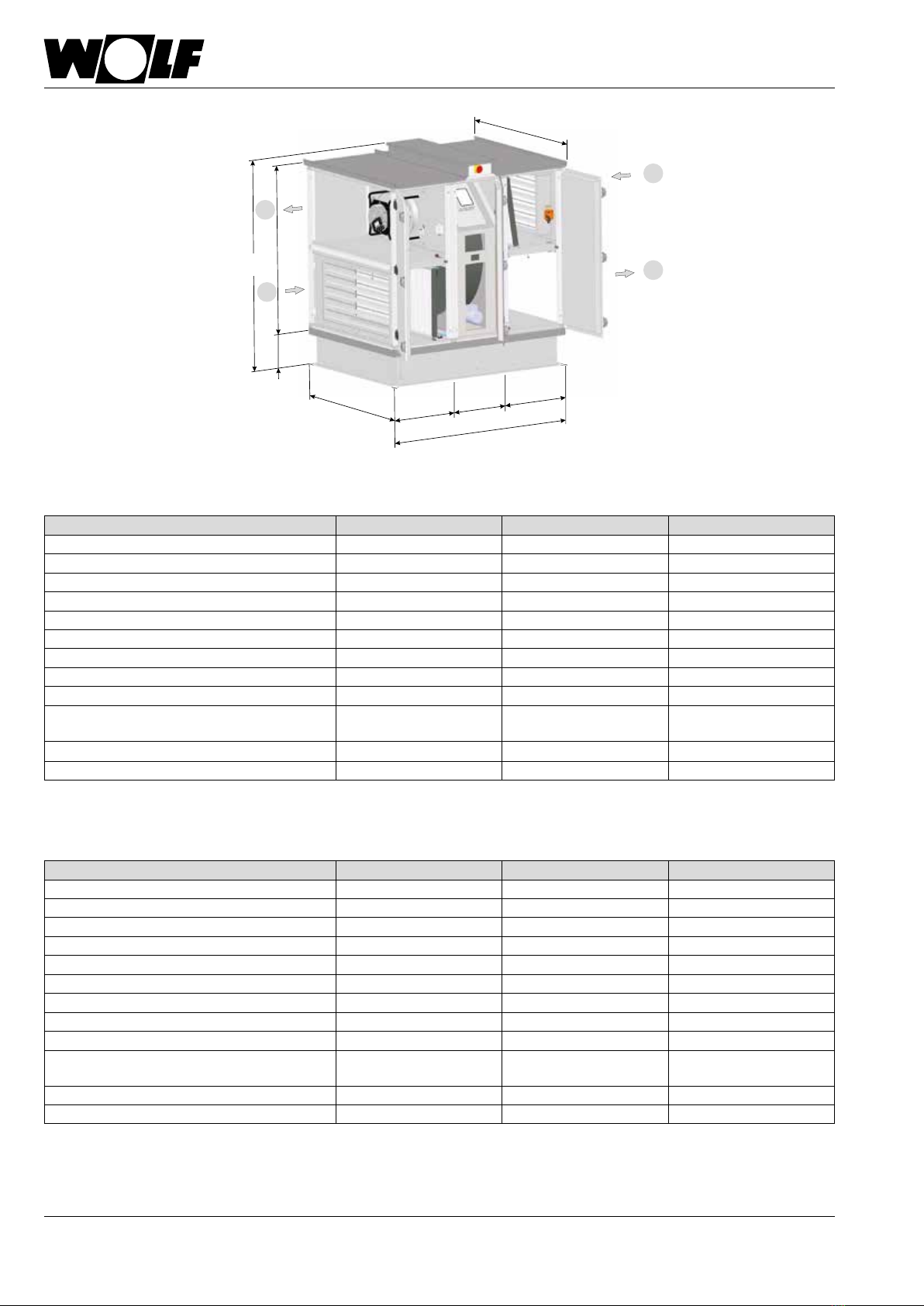

H
TL
170
128 122
L1 L2 L1
L2*
TWHE with rapid heat-
up damper
1 outdoor air
2 exhaust air
24
1 3
H
Total
3 supply air
4 extract air

8 3064361_201710

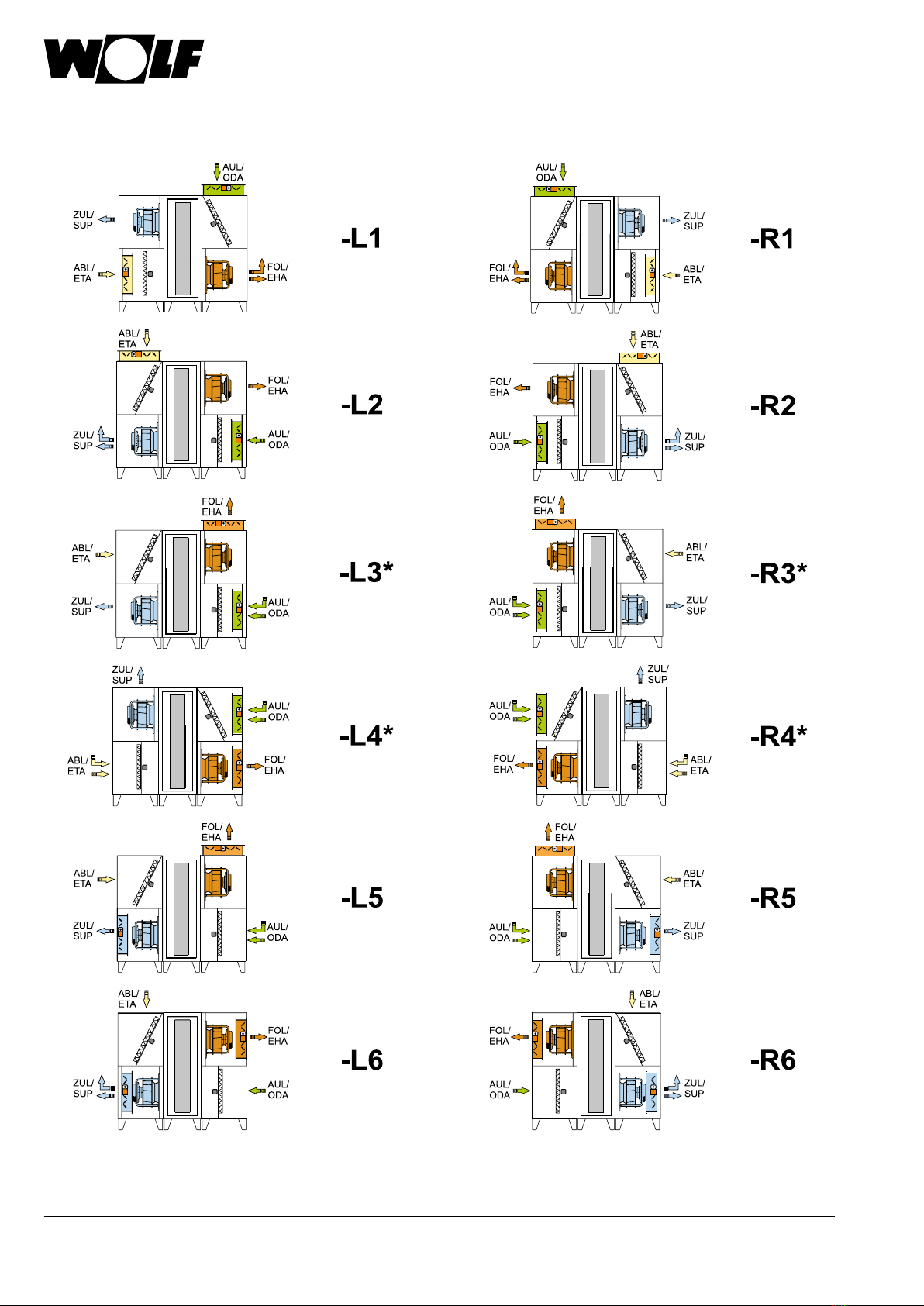

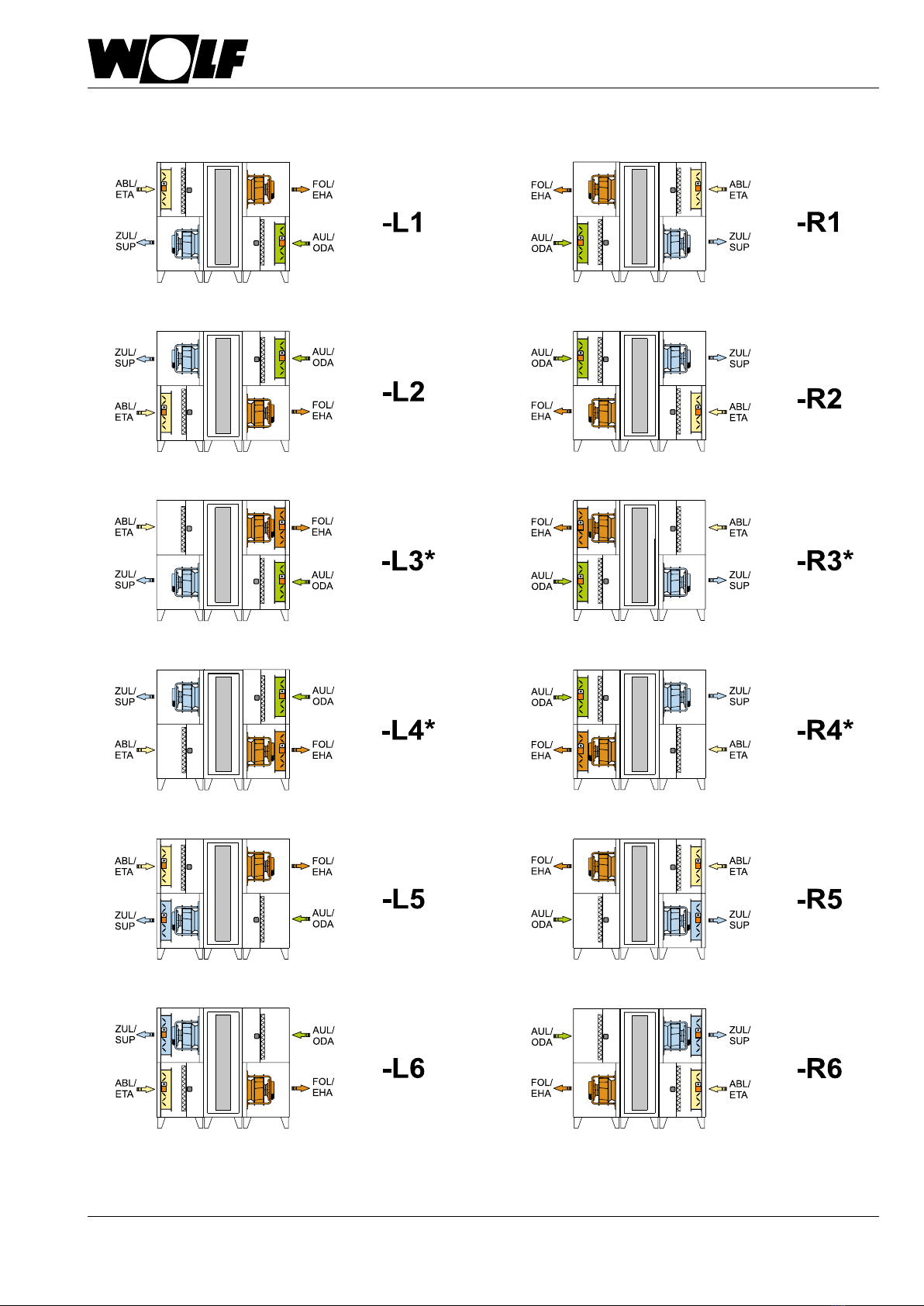

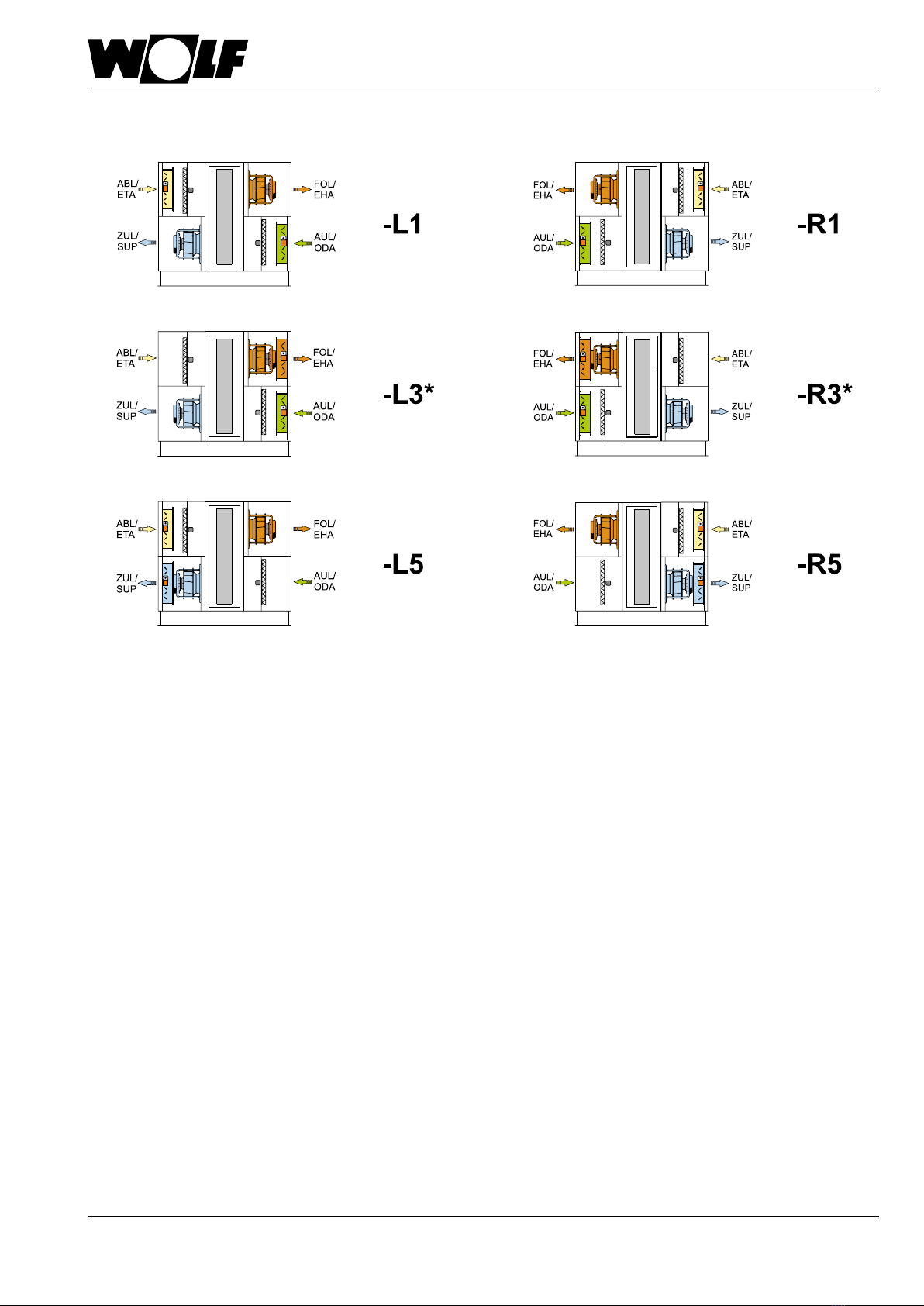

4.CRL-iDapplianceversions
Access side
in supply air direction, left
Access side
in supply air direction, right
* For CRL-1300/-2500/-3500, these versions are available with a rapid heat-up damper.

93064361_201710
5.CRL-iHunitlayout
CRL-iHComfortthermalwheelheatexchangerventilationunitforinternalinstallation
withhorizontalductconnection
1 Outdoor air damper with servomotor
2 Filter pre-dryer (accessory)
3Differential pressure switch for lter monitoring
4 EC fan, extract air
5Exhaust air ap with actuator
6 Isolator
7BMK programming unit
8 Control panel
9 TWHE control unit
10 M5 compact lter, extract air
11 Differential pressure switch for lter monitoring
12 Electrical booster heater bank available for
CRL-1300/-2500/-3500 (accessories)
13 EC fan, supply air
14 Adjustable feet
15 Quick heater damper with actuator optional for
CRL-1300/-2500/-3500
16 TWHE thermal wheel heat exchanger
17 F7 compact lter, outdoor air

10 3064361_201710
Type CRL-iH-1300 CRL-iH-2500 CRL-iH-3500
Unit components one-piece one-piece 3 parts
Length L mm 1525 / 1525* 1626 / 1626* 1626 / 1830*
Length L1 mm - - 508
Length L2 (rotor part) mm - - 610 / 814*
Depth T (incl. locks) mm 750 950 1155
Overall height mm 1309 1716 1716
Height H mm 1017 1424 1424
Foot height mm 170 170 170
Control unit height mm 122 122 122
Duct connection dimensions,
horizontal air routing mm Li 612x409 Li 815x612 Li 1019x612
Weight kg 266 / 266* 381 / 381*
470 / 490*
(130+210+130)
(130+230+130)*
Nominal flow rate m³/h 1300 at 460Pa (ext.) 2500 at 600Pa (ext.) 3500 at 980Pa (ext.)
* With rapid heat-up damper
Type CRL-iH-4800 CRL-iH-6200 CRL-iH-9000
Unit components 3 parts 3 parts 3 parts
Length L mm 1728 1932 2136
Length L1 mm 610 712 814
Length L2 (rotor part) mm 508 508 508
Depth T (incl. locks) mm 1360 1665 2070
Overall height mm 1716 1716 1919
Height H mm 1424 1424 1627
Foot height mm 170 170 170
Control unit height mm 122 122 122
Duct connection dimensions,
horizontal air routing mm Li 1222x612 Li 1527x612 Li 1934x714
Weight kg 590
(180 + 230 + 180)
715
(220 + 275 + 220)
845
(275 + 295 + 275)
Nominal flow rate m³/h 4800 at 450Pa (ext.) 6200 at 680Pa (ext.) 9000 at 1000Pa (ext.)
1 outdoor air
2 exhaust air
3 supply air
4 extract air
2
4
13
L2*
TWHE with rapid heat-
up damper
L1 L2 L1
H
Total
H
TL
170
122
5.CRL-iHunitlayout

113064361_201710
6.CRL-iHapplianceversions
* For CRL-1300/-2500/-3500, these versions are available with a rapid heat-up damper.
Access side
in supply air direction, left
Access side
in supply air direction, right

12 3064361_201710
7.CRL-iDHunitlayout
CRL-iDH Comfortthermalwheelheatexchangerventilationunit,energysavingandconvenientventilation
withvertical/horizontalductconnection
1 Outdoor air damper with servomotor
2 Filter pre-dryer (accessory)
3Differential pressure switch for lter monitoring
4 EC fan, extract air
5Exhaust air ap with actuator
6 Isolator
7BMK programming unit
8 Control panel
9 TWHE control unit
10 M5 compact lter, extract air
11 Differential pressure switch for lter monitoring
12 Elektro-Nachheizregister erhältlich für
CRL- 1300 /-2500 /-3500 (Zubehör)
13 EC fan, supply air
14 Adjustable feet
15 Quick heater damper with actuator optional for CRL-
1300/-2500/-3500
16 TWHE thermal wheel heat exchanger
17 F7 compact lter, outdoor air

133064361_201710
7.CRL-iDHunitlayout
170
122
H
L
T
128
H
L2*
Type CRL-iDH-4800 CRL-iDH-6200 CRL-iDH-9000
Unit components 3 parts 3 parts 3 parts
Length L mm 1728 1932 2136
Length L1 mm 610 712 814
Length L2 (rotor part) mm 508 508 508
Depth T (incl. locks) mm 1360 1665 2070
Overall height mm 1722 1722 1925
Height H mm 1424 1424 1627
Foot height mm 170 170 170
Control unit height mm 122 122 122
Duct connection dimensions,
horizontal air routing mm Li 1222x612 Li 1527x612 Li 1934x714
Duct connection dimensions, vertical
air routing mm Li 1222x510 Li 1527x612 Li 1934x714
Weight kg 590
(180 + 230 + 180)
715
(220 + 275 + 220)
845
(275 + 295 + 275)
Nominal flow rate m³/h 4800 at 450 Pa (ext.) 6200 at 680 Pa (ext.) 9000 at 1000 Pa (ext.)
Type CRL-iDH-1300 CRL-iDH-2500 CRL-iDH-3500
Unit components one-piece one-piece 3 parts
Length L mm 1525 / 1525* 1626 / 1626 1626 / 1830*
Length L1 mm - - 508
Length L2 (rotor part) mm - - 610 / 814*
Depth T (incl. locks) mm 750 950 1155
Overall height mm 1315 1722 1722
Height H mm 1017 1424 1424
Foot height mm 170 170 170
Control unit height mm 122 122 122
Duct connection dimensions,
horizontal air routing mm Li 612x409 Li 815x612 Li 1019x612
Duct connection dimensions, vertical
air routing mm Li 596x307 Li 799x307 Li 1019x408
Weight kg 266 / 266* 381 / 381*
470 / 490*
(130+210+130)
(130+230+130)*
Nominal flow rate m³/h 1300 at 460Pa (ext.) 2500 at 600Pa (ext.) 3500 at 980Pa (ext.)
* With rapid heat-up damper
TWHE with rapid heat-
up damper
1 outdoor air
2 exhaust air
L1
L2
L1
24
1
3
3 supply air
4 extract air
H
Total

14 3064361_201710
8.CRL-iDHapplianceversions
Otherversionsavailable,seeWOLFsizingprogram.
* For CRL-1300/-2500/-3500, these versions are available with a rapid heat-up damper.
Access side
in supply air direction, left
Access side
in supply air direction, right

153064361_201710
9.CRL-Aunitlayout
CRL-A Comfortthermalwheelheatexchangerventilationunitforexternalinstallation(weatherproof)
withhorizontalductconnection
1 Outdoor air damper with servomotor
2 Filter pre-dryer (accessory)
3Differential pressure switch for lter monitoring
4 EC fan, extract air
5Exhaust air ap with actuator
6 Isolator
7 Control panel
8 TWHE control unit
9M5 compact lter, extract air
10 Differential pressure switch for lter monitoring
11 Elektro-Nachheizregister erhältlich für
CRL-1300/-2500/-3500 (Zubehör)
12 EC fan, supply air
13 Base frame
14 Klappe Schnellaufheizung mit Stellmotor optional für
CRL-1300/-2500/-3500
15 TWHE thermal wheel heat exchanger
16 F7 compact lter, outdoor air
17 Connectors for DN 50 trap

16 3064361_201710
H
L
T
T
1
H
1
L
2
L
1
L
1
Type CRL-A-1300 CRL-A-2500 CRL-A-3500
Unit components one-piece one-piece 3 parts
Length L mm 1525 / 1525* 1626 / 1626* 1626 / 1830*
Length L1 mm - - 508
Length L2 (rotor part) mm - - 610 / 814*
Depth T mm 712 915 1118
Overall depth T1 mm 812 1015 1218
Overall height mm 1462 1869 1869
Height H mm 1017 1424 1424
Base frame H1 mm 305 305 305
Duct connection dimensions,
horizontal air routing mm Li 612x409 Li 815x612 Li 1019x612
Weight kg 320 / 320* 445 /445* 530 / 550*
Nominal flow rate m³/h 1300 at 460Pa (ext.) 2500 at 600Pa (ext.) 3500 at 980Pa (ext.)
* With rapid heat-up damper
Type CRL-A-4800 CRL-A-6200 CRL-A-9000
Unit components 3 parts 3 parts 3 parts
Length L mm 1728 1932 2136
Length L1 mm 610 712 814
Length L2 (rotor part) mm 508 508 508
Depth T mm 1322 1626 2034
Overall depth T1 mm 1422 1726 2134
Overall height mm 1869 1869 2072
Height H mm 1424 1424 1627
Base frame H1 mm 305 305 305
Duct connection dimensions,
horizontal air routing mm Li 1222x612 Li 1527x612 Li 1934x714
Weight kg 660 800 960
Nominal flow rate m³/h 4800 at 450Pa (ext.) 6200 at 680Pa (ext.) 9000 at 1000Pa (ext.)
1 outdoor air
2 exhaust air
3 supply air
4 extract air
2
4
1
3
H
Total
9.CRL-Aunitlayout

173064361_201710
10.CRL-Aapplianceversions
Access side
in supply air direction, left
Access side
in supply air direction, right
* For CRL-1300/-2500/-3500, these versions are available with a rapid heat-up damper.

18 3064361_201710
11.Delivery/handling
Delivery CRL ventilation units are supplied in packaging that protects them from dirt
and damage. Upon receipt of the goods, check the unit for possible transport
damage. If there is any damage or even a suspicion of damage, the recipient
must indicate this on the consignment note and have it countersigned by the
haulier. The recipient of the goods must notify WOLF of the relevant facts
without delay.
Dispose of the transport packaging in accordance with local regulations.
Storage Only store the ventilation unit in dry rooms at an ambient temperature
between -25 °C and +55 °C. If it is stored for a long time, ensure
that all apertures are sealed against air and water ingress.
Deliveredcondition

193064361_201710
Unit connectors
Control unit cover
11.Delivery/handling

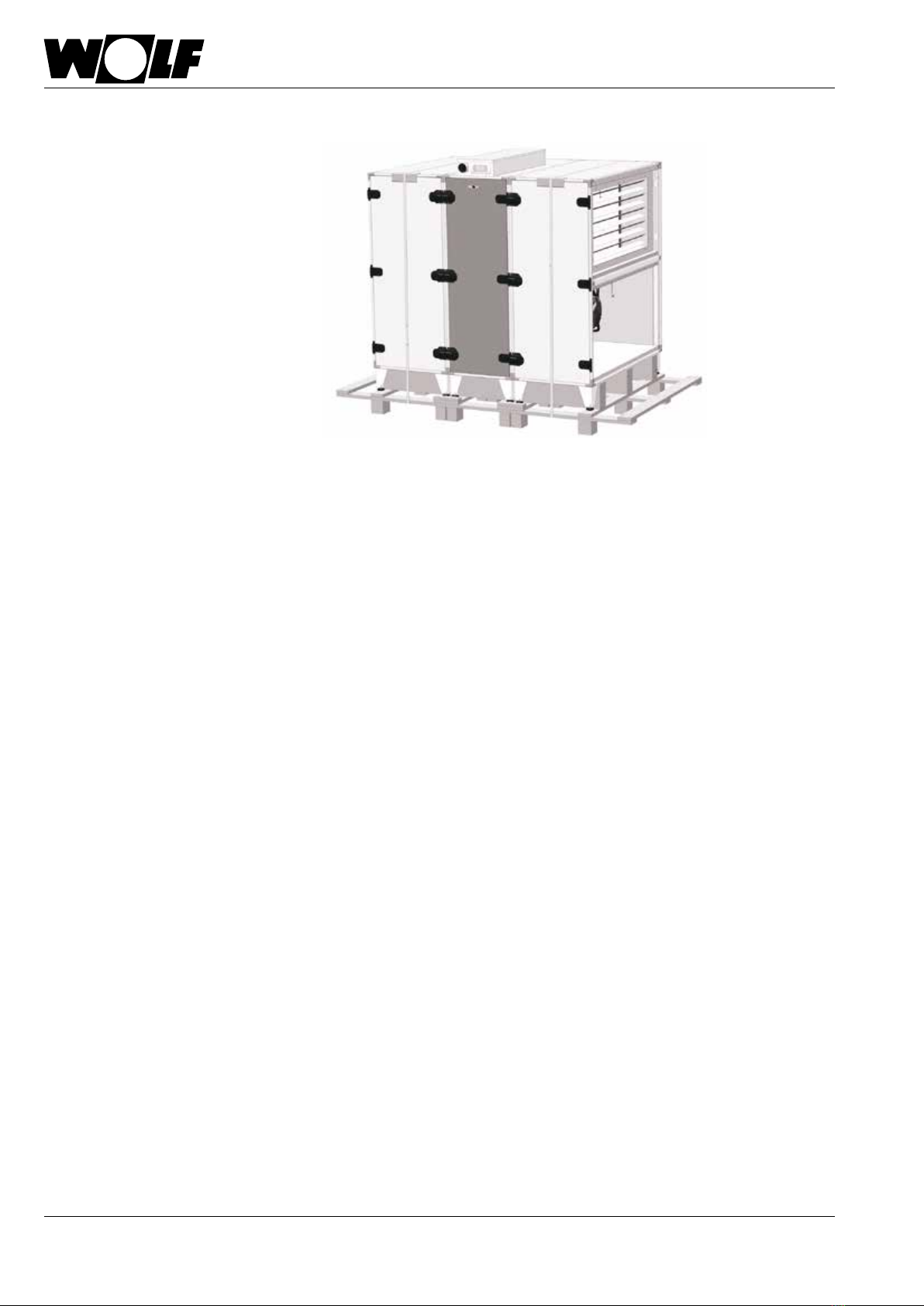

The CRL internal devices in the sizes 3500/ 4800/ 6200/ 9000 can be dismantled
into three parts to make them easier to carry in. (narrow stairwells, lifts, etc.)
The unit sections are connected with hexagon bolts at unit connectors with
captive nuts. Electriclines and control cables canbe disconnected andconnected
again quite simply by means of plug-in connections in the control unit casing.
max. 60°
min. L
L
Generalhandlinginformation Units are supplied fully assembled and fully wired.
Only transport units in their installation position.
Never tilt the unit when transporting it through doorways or in narrow stairwells
(lifts).
Failure to observe these instructions can damage internal components
irreparably.

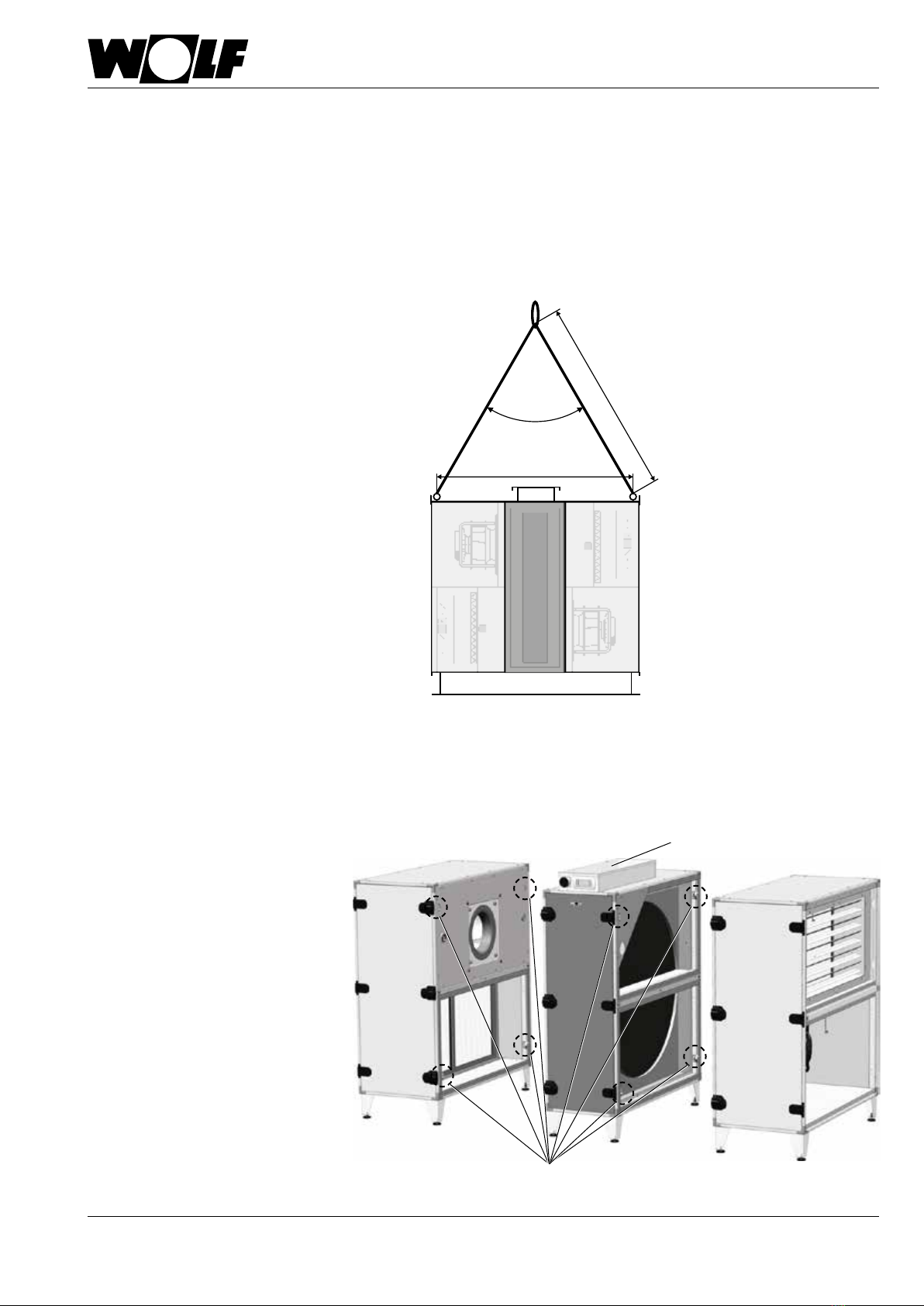

When lifting the CRL-A external units with the aid of eyebolts, use lifting ropes
that provide a minimum eyebolt distance L. Keep ropes at the same length.
Transportofexternal
devices
Transportofinternaldevices

20 3064361_201710
12.Unitsplittingforhandlingpurposes
Assemblingunitsections Before assembling the individual unit sections, ensure that they are
pushedtogethercompletely.
The assembly of cube components can be simplied by using lashing straps.
Position unit sections next to each other and pull them together with lashing
straps. Then screw the components together via the unit connectors. In order
to ensure a secure threaded connection, screw the hexagon bolts manually
into the captive nuts during assembly. Only then should they be tightened, for
example, with an electric screwdriver.
Subsequently, route the wiring harnesses back to the control unit and plug them
in (observe the cable designations).
Remove damper
xing screws
Undo the unit connector bolts with an SW13 spanner to dismantle the unit.
Remove lters before dismantling in order to reach the rear unit connectors.
It may be necessary to remove the dampers in order to gain better access to
the rear unit connectors in this area.
Unit connector
Remove lter
Before dismantling the unit, disconnect the wiring harnesses from the control
unit.
- Remove control unit cover
- Undo cable plug-in connections (Fig. 1)
- Pull wiring harnesses into the slant of the thermal wheel heat exchanger
(Fig. 2)
- Pull wiring harnesses left and right into the external parts (Fig. 3)
Fig. 1 Fig. 2 Fig. 3
Dismantlingoftheinternaldevices
CRL-3500/-4800/-6200/-9000
