Wood Stone MOUNTAIN MT. CHUCKANUT Series User manual

MT. CHUCKANUT
WS-MS-4-(RFG, RFG-IR)-(W)-CE
MT. ADAMS
WS-MS-5-(RFG, RFG-IR)-(W)-CE
MT. BAKER
WS-MS-6-(RFG, RFG-IR)-(W)-CE
MT. RAINIER
WS-MS-7-(RFG, RFG-IR)-(W)-CE
Installation and
Operation Manual
woodstone-corp.com
Revised May 2014
Doc no: M0037.01
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
MOUNTAIN SERIES
Stone Hearth Oven
Gas-Fired European Models

Mountain Series CE
Installation and Operation Manual
2
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
TABLE OF CONTENTS
TABLE OF CONTENTS
MOUNTAIN SERIES� � � � � � � � � � � � � � � � � � � � � � � � � �3
CAUTIONS & WARNINGS � � � � � � � � � � � � � � � � � � � � �4
UNLOADING AND MOVING � � � � � � � � � � � � � � � � � � � �5
INSTALLATION CLEARANCES � � � � � � � � � � � � � � � � � �6
UNLOADING AND MOVING � � � � � � � � � � � � � � � � � � � �8
MANTLE MOUNTING � � � � � � � � � � � � � � � � � � � � � � � �9
FRONT PANEL ASSEMBLY� � � � � � � � � � � � � � � � � � � �10
EXTENSION PANEL ASSEMBLY � � � � � � � � � � � � � � � �11
STUCCO APPLICATION � � � � � � � � � � � � � � � � � � � � � �13
UTILITIES� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �14
TECHNICAL DATA� � � � � � � � � � � � � � � � � � � � � � � � � �15
OVEN VENTING � � � � � � � � � � � � � � � � � � � � � � � � � � �16
FLUE ADAPTER � � � � � � � � � � � � � � � � � � � � � � � � � � �17
VENTING DO’S AND DON’TS� � � � � � � � � � � � � � � � � �18
CONTROLLER (RFG-IR)� � � � � � � � � � � � � � � � � � � � � �24
CONTROLLER (RFG) � � � � � � � � � � � � � � � � � � � � � � � �25
INITIAL START-UP (RFG-IR) � � � � � � � � � � � � � � � � � � �27
OPERATION (RFG-IR) � � � � � � � � � � � � � � � � � � � � � � �28
INITIAL START-UP (RFG) � � � � � � � � � � � � � � � � � � � � �30
OPERATION (RFG) � � � � � � � � � � � � � � � � � � � � � � � � �31
MAINTENANCE � � � � � � � � � � � � � � � � � � � � � � � � � � �32
WOOD BURNING � � � � � � � � � � � � � � � � � � � � � � � � � �33
PERIODIC THERMAL CLEANING � � � � � � � � � � � � � � �34
OPERATIONAL SEQUENCE � � � � � � � � � � � � � � � � � � �35
ELECTRICAL DIAGRAM (RFG-IR) � � � � � � � � � � � � � � �36
ELECTRICAL DIAGRAM (RFG) � � � � � � � � � � � � � � � � �37
LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � �38

Mountain Series CE
Installation and Operation Manual
3
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
MOUNTAIN SERIES
INSTALLATION AND OPERATION MANUAL FOR WOOD STONE
This appliance is for professional use by qualified personnel. This appliance must be
installed by qualified persons in accordance with the regulations in force. This appliance
must be installed with sufficient ventilation to prevent the occurrence of unacceptable
concentrations of substances harmful to health in the room in which it is installed. This
appliance needs an unobstructed flow of fresh air for satisfactory combustion and must
be installed in a suitably ventilated room in accordance with current regulations. This
appliance should be serviced by qualified personnel at least every 12 months, or sooner
if heavy use is expected.
!
WS-MS-(4, 5, 6, 7)-(RFG-IR, RFG)-(W)-CE-(NG, LP)
EUROPEAN MODEL
STONE HEARTH OVENS
NATURAL GAS OR LIQUID PROPANE FUELED
MOUNTAIN SERIES

Mountain Series CE
Installation and Operation Manual
4
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
CAUTIONS & WARNINGS
WOOD STONE MOUNTAIN SERIES GAS-FIRED OVEN OPERATING INSTRUCTIONS
DO NOT THROW THIS MANUAL AWAY
Wood Stone’s gas-fired ovens have been tested and approved by
Intertek Testing Services and are listed to BS EN 203-1: 2005�
0359
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE
Please read this entire manual before you install the oven. Failure to follow instructions may result in property
damage, bodily injury or even death. Contact your local building or fire officials about restrictions and installation
inspection in your area.
FOR YOUR SAFETY: Consult your local gas supplier for a statement outlining a procedure to be followed in the event
you smell gas. Post the statement in a prominent location.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance. Also, always keep the area under and around this appliance free and clear of any and all
combustible materials.
IMPORTANT: It is recommended that this oven be installed, maintained and serviced by authorized professionals.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual at woodstone-corp�com�
For prompt responses to service/maintenance questions, call your distributor�

Mountain Series CE
Installation and Operation Manual
5
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
UNLOADING AND MOVING
DO NOT TURN THE OVEN ON ITS SIDE!
Moving a Wood Stone oven can present challenges to even the most experienced riggers� Secure the proper equipment and make
safety your first priority� Please don’t hesitate to call your distributor for technical support�
LIFTING THE OVEN
1. USING A CRANE
The oven arrives with four lifting eyes attached�When craning a Wood Stone oven,
use a spreader bar with a two-legged sling rigged on each end� The spreader
bar should be of a sufficient length to keep the sling from contacting the oven�
NOTE: Once lifting eyes are no longer needed, remove the lifting eyes one at a
time AND BE SURE TO REPLACE THE BOLTS THAT ATTACH THE OVEN TO THE
STAND.
2. USING A FORKLIFT
Be sure to use a forklift rated, and forks the minimum length, as shown in the
table below� If necessary, fork extensions must be used so the forks extend
through the fork lift pockets to the opposite side of the stand� Lift from either side
as shown� Do not lift from the front or back� The oven is very top heavy, so spread
the forks as far apart as possible�
Model Oven
Approximate
ship weight
Minimum
fork length
required
Required
forklift
capacity
WS-MS-4 Mt� Chuckanut 1,000 Kg� 1�2 m (4') 2,000 Kg
WS-MS-5 Mt� Adams 1,500 Kg 1�5 m (5') 3,000 Kg
WS-MS-6 Mt� Baker 1,900 Kg 1�8 m (6') 3,000 Kg
WS-MS-7 Mt� Rainier 2,400 Kg 2�1 m (7') 4,000 Kg
Lifting eyes
4x4 post
Make fast (straps or chains
should not be allowed to slip)
3. USING A PALLET JACK
Once the oven has been removed from the delivery vehicle, it can easily be moved
on flat surfaces using a pallet jack� To lift the oven with a pallet jack, remove the
front and rear angle iron stabilizers from the base of the oven stand and place a
stout 4x4 post through the fork pocket as shown�
THE OVEN IS VERY TOP-HEAVY. MOVING THE OVEN UP OR DOWN A RAMP OR
INCLINE ON A PALLET JACK IS NOT SAFE!
UNLOADING AND MOVING

Mountain Series CE
Installation and Operation Manual
6
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
INSTALLATION CLEARANCES
CLEARANCES
a. Wood Stone gas-fired oven should have a minimum 25 mm (1") clearance to combustibles from all sides, and
356 mm clearance to combustibles from the top� If building a facade that will contact the oven, use completely non-
combustible materials*� Please note that standard Drywall (or Sheetrock) is considered a combustible� Stucco equipped
ovens must have a minimum 25 mm (1") thick application of non-combustible stucco cement applied to the body of the
oven�
b. Any facade materials 152 mm (6") to either side of the oven doorway and above must be constructed of non-combustible
building materials�
c. Install this oven only on noncombustible floors�
*When noncombustible building materials contact the body of the oven, the respective clearances are transferred to those non-
combustibles�
IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THESE
INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED
CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS OVEN BE
INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
!WARNING: Installation and servicing of this product could expose you to glasswool/ceramic
fibers as well as calcium silicate dust. ALWAYS WEAR RESPIRATORY AND EYE PROTECTION
WHEN INSTALLING OR SERVICING THIS APPLIANCE. Please read this entire manual before
you install the oven. Failure to follow instructions may result in property damage, bodily
injury or even death. Contact your local building or fire officials about restrictions and
installation inspection in your area.
INSTALLATION CLEARANCES

Mountain Series CE
Installation and Operation Manual
7
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
INSTALLATION CLEARANCES
THE FOLLOWING CLEARANCE INFORMATION APPLIES TO ALL
WOOD STONE MOUNTAIN SERIES OVENS
25 mm (1") side clearance to combustible
building materials.
356 mm (14") top clearance to combustible
building materials.
Any facade materials 152 mm (6") to either
side of the doorway of the oven and above
must be NON-COMBUSTIBLE.
Note: 0" side and top clearance to non-com-
bustible materials. However, the respective
clearances to combustibles are transferred
to those non-combustibles.
356 mm (14")
Combustible building material
Non-combustible building material
Any facade wall 152mm (6") to either side
of the oven doorway and above MUST be
of non-combustible construction with no
exceptions�
For use only on noncombustible floors
(installér sur un plancher incombustible
seulement). Non-combustible floor surface
AND provided with a non-combustible floor
covering at least 30" to each side of, and
36" in front of the door opening.

Mountain Series CE
Installation and Operation Manual
8
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
UNLOADING AND MOVING
ASSEMBLY
1. Mount the oven mantle (if provided) directly below the doorway and flush with the floor using the hardware provided�
2. Mount the stainless steel toe kick to the front of the oven stand, near the floor using the hardware provided�
3. Mount the service/intake panel to the brackets on the front of the stand, directly below the doorway, using the hardware
provided�
a. Do not obstruct the flow of combustion and ventilation air between the toe kick and the bottom of the service/
intake panel�
b. This panel is the only access for servicing the gas and electrical components of the oven so it must be left
accessible and removable�
ASSEMBLY INSTRUCTIONS

Mountain Series CE
Installation and Operation Manual
9
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
MANTLE MOUNTING
The initial steps are the same for mounting either a stainless mantle or a bracket for a granite mantle�
INSTALLATION OF GRANITE
After completing the steps outlined above, apply a generous amount of silicone adhesive (provided) to the top of the steel mantle
bracket�
Put the stone in place and apply light
pressure to seat it properly� Make sure that
the angle in the granite lines up with the
angle in the bracket� Allow the sealant to
set for several hours before filling any gap
between the stone slab and the metal bracket
with the silicone sealant (provided)� Clean up
any sealant before it dries�
1. Begin by installing the threaded studs into
the clip nuts below the oven doorway (3 or 4
turns is sufficient)�
2. Position the mantle (or bracket) on the oven,
making sure the rear flange rests on the
floor of the oven (you may need an extra pair
of hands)�
3. Place one stainless steel washer and a cap
nut onto each stud� Tighten the cap nuts so
the mantle is securely held in place�
4. Using the high temperature silicone
(provided), fill any gaps between the oven
hearth and the mantle flange� Gaps between
the mantle flange and the stainless steel
doorway frame may also need to be filled
with a small amount of the silicone sealant�
Clean up any sealant before it dries�
MANTLE MOUNTING

Mountain Series CE
Installation and Operation Manual
10
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
FRONT PANEL ASSEMBLY
Service panel throttle assembly
The throttle knob position can be
adjusted inward or outward by
loosening the clamp and sliding the
throttle knob assembly to the desired
position� Be sure to retighten the clamp
once the throttle knob is in the desired
position�
STANDARD FRONT PANEL AND TOE KICK ASSEMBLY INSTRUCTIONS
AHex-head self-tapping screw� Used to attach
toe kick� 4 total�
BPhillips head 1/4-20 screw� Used to attach
service panel to controller bracket� 2 total�
CPhillips head #10 screw� Used to attach service
panel to throttle knob bracket� 2 total�
D Phillips head self-tapping screw� Used to
secure the sides of the service panel� 8 total�
D
D
B
D
D
B
D
D
D
D
C
C
A
A
Controller
Flame Height Control Knob
Transformer Box
Contains terminal strip for incoming power supply.
NOTE: Have licensed electrician make this electrical connection
Service Panel
Cotter key Flame Height
Control Knob
Throttle bracket
Pointer
collar/
Pointer
Clamp
EMT throttle rod
extension
Throttle valve
Cotter pin
Service panel throttle assembly
FRONT PANEL ASSEMBLY

Mountain Series CE
Installation and Operation Manual
11
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
EXTENSION PANEL ASSEMBLY
OPTIONAL LOWER EXTENSION, THROTTLE ROD AND CONTROLLER ASSEMBLY INSTRUCTIONS
1. After the oven has been leveled, remove
the throttle rod assembly which has been
attached to the inside of the stand for
shipping� Position the lower extension
assembly onto the front of the oven� It
will rest on the guides that are welded to
the oven legs� Attach the assembly to the
oven legs using the 1/4-20 nuts, bolts and
washers�
2. Remove the access panel�
4. Remove the throttle knob/pointer section from the throttle assembly� Slip the clamp off of the throttle knob assembly
and slide it over the EMT throttle rod extension� Slip the front of the EMT throttle rod through the throttle rod bracket
at the front of the oven, then slip the other end of the EMT onto the throttle valve at the back of the oven� Note: The
end of the EMT that goes over the throttle valve is drilled to accept a cotter pin� Attach the EMT throttle rod extension
to the throttle valve using the cotter pin and open the end of the pin slightly to prevent it from falling out� Make
certain the valve is in the full open position by turning the attached throttle rod extension counterclockwise
until it stops.
Continued
3. Attach the controller to
the mounting bracket of
the extension using the
1/4-20 bolts provided�
Flame Height
Control Knob
Throttle bracket
(already attached) Pointer collar /
Pointer assembly
Clamp
EMT throttle
rod extension
Throttle Valve
Cotter pin
Extension panel
throttle assembly

Mountain Series CE
Installation and Operation Manual
12
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
EXTENSION PANEL ASSEMBLY
OPTIONAL LOWER EXTENSION, THROTTLE ROD AND CONTROLLER ASSEMBLY INSTRUCTIONS

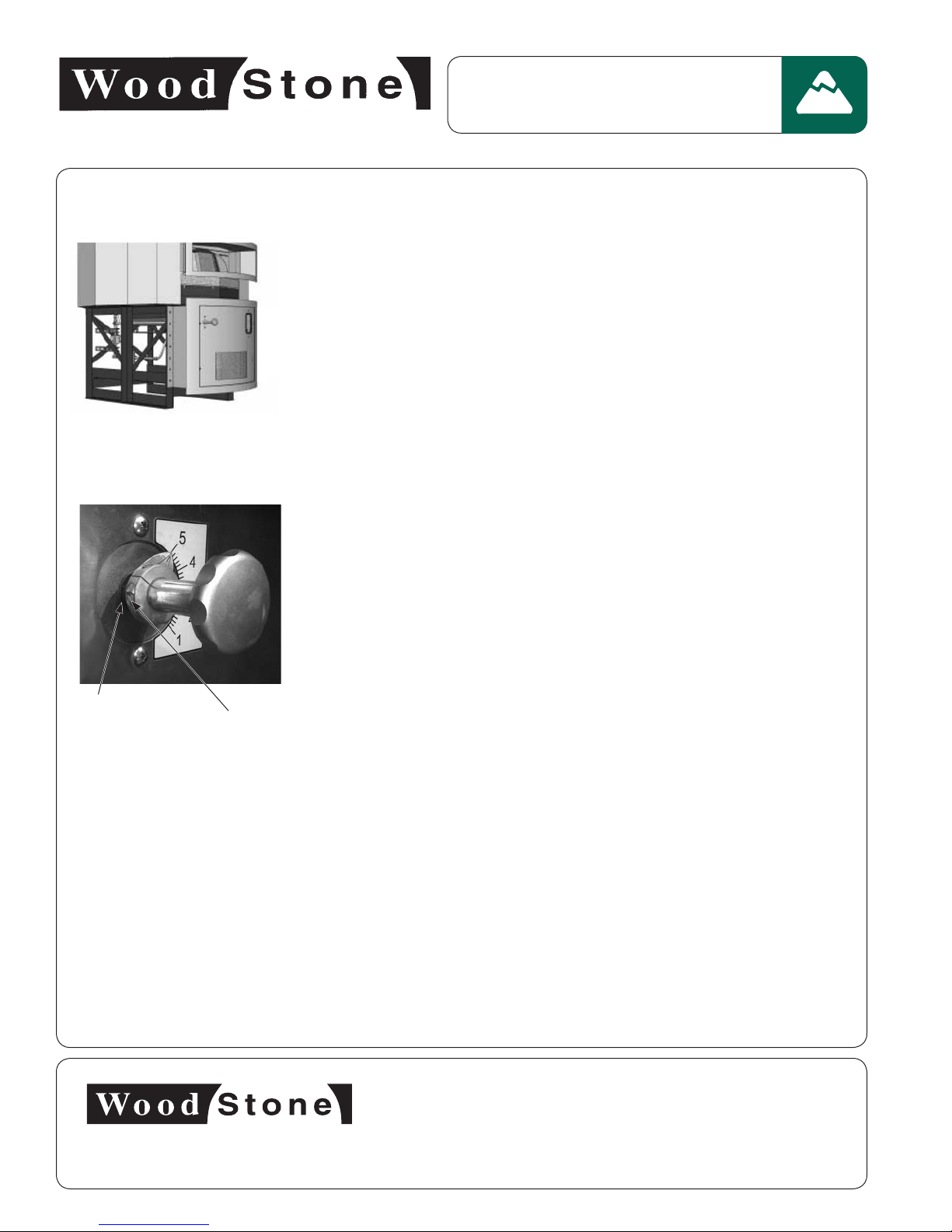

7. CALIBRATING THE POINTER
Loosen the pointer collar set screws using a 3/16" Allen wrench�
Position the attached pointer to “5” on the Flame Height Index
Scale� Tighten the pointer collar in this position� Make certain
the tip of the pointer is at least 3 mm (1/8") away from the index
scale at the tightest point of the rotation of the knob so it does
not scrape�
5. Pass the throttle rod through the throttle bracket (already attached)� Position the pointer
in approximately the 2 o’clock position� Slide the clamp on the EMT over the end of the
throttle rod/knob assembly and Attach the throttle rod to the EMT throttle rod extension
using the compression clamp� On curved façade extensions, make to leave at least 3
mm (1/8") of space between the end of the pointer and the bracket when it is set to a
horizontal position�
6. Reinstall the front panel� Secure the controller with a 1/4-20 screw at the top and bottom�
Use (2) #10 stainless steel sheet metal screws to secure the front panel to the throttle
bracket�
Pointer collar set screws
3 mm (1/8")
minimum clear-
ance

Mountain Series CE
Installation and Operation Manual
13
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166

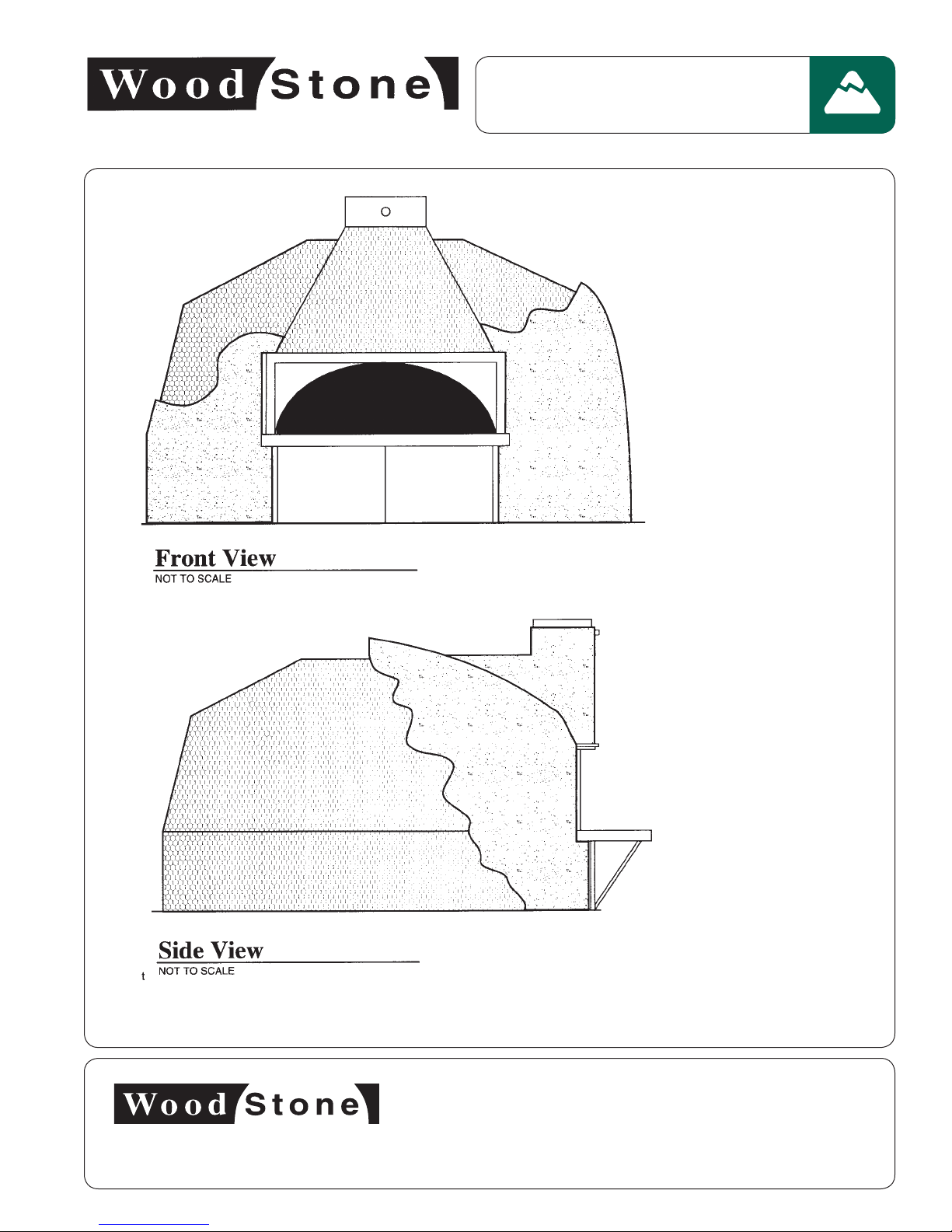

STUCCO APPLICATION
STUCCO APPLICATION
This figure depicts the
application of stucco on a
Wood Stone appliance�
Use no less than 25 mm (1")
of stucco coating to cover all
exposed metal lathing on the
appliance�
Maintain a minimum of 152
mm (6") clearance from
top and 25 mm (1") from
side of the appliance to all
combustible surfaces.
TRADITIONAL
STUCCO MIX
1 part masonry cement
1 part regular cement
5 parts sand
Stucco premix is available
at your local lumber yard or
building supply store�
Follow stucco manufacturer’s
instructions for correct mixing
information�
MINIMUM STUCCO
APPLICATION IS 25 mm
(1")

Mountain Series CE
Installation and Operation Manual
14
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
UTILITIES
!
GAS
DO NOT USE FLAME TO TEST FOR LEAKS
Wood Stone Gas ovens are equipped with a 3/4" (19 mm) female ISO-7 gas connection� Have a licensed gas installer
provide the hookup and test all fittings and pipe connections for leaks� Use approved gas leak detectors (soap
solutions or equivalent) over and around the fittings and pipe connections�
SV-1 AND SV-2 ARE THE GAS CONTROL VALVES THAT OPERATE THE UNDERFLOOR INFRARED BURNER AND
THE INTERIOR RADIANT BURNER, RESPECTIVELY.
NOTE: RFG models are only equipped with the SV-2 valve� SV-1 is located directly behind the service/ intake panel
and in front of the underfloor IR burner� SV-2 is located under the oven to the rear left�
The manifold pressure test port for the underfloor IR burner (served by SV-1) is a plugged nipple tap located near
the left end of the burner manifold. The manifold pressure test port for the radiant burner (served by SV-2) is a
plugged nipple tap located at the base of the T-junction between the SV-2 and the radiant/interior burner. Both
gas valves (SV-1 and SV-2) have an additional plugged nipple tap on the inlet side� The burner manifold pressures
have been adjusted and tested at the factory�
Wood Stone recommends that the oven be equipped with an individual shutoff valve and that this individual
shutoff valve (supplied by others) be left easily accessible. Wood Stone also recommends that inspection and
maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled
intervals and only by professional gas appliance service agencies.
SCOPE OF APPROVALS
NATURAL GAS (METHANE)
G20 @ 20mbar - I2H(20) for use in:
AT, BG, CZ, DK, EE, FI, GR, HR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI, ES, SE, CH, TR and GB
I2E(20/25) for use in: DE, LU and PL
|2E+(20/25) for use in: Be and Fr
I2L(25) for use in: NL
I2HS(25) for use in: HU
PROPANE AND PROPANE BLENDS
I3P(37) for use in: FI, DE, GR, IE, HR, LU, NL, PL, SK, SI, ES, CH, TR and GB
I3P(50) for use in: CY, CZ, MT and SK
I3+(28-30,37) for use in: BE, CY, CZ, EE, FR, GR, IE, IT, LT, LU, LV, PT, RO, SK, ES, CH and GB
I3B/P(30) for use in: BG, CY, CZ, DK, EE, FI, GR, HR, LV, LT, LU, MT, NL, NO, SK, SI, SE and TR
I3B/P(37) for use in: PL
I3B/P(50) for use in: AT, DE, HU, SK and CH

Mountain Series CE
Installation and Operation Manual
15
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
TECHNICAL DATA
Model
Declared Input (kW)
|2H, |2L, |2E, I2ELL |3+ |3B/P |3P
WS-MS-4-RFG-CE 20 17�6 17�6 17�6
WS-MS-4-RFG-IR-CE 33�7 29�9 29�9 29�9
WS-MS-5-RFG-CE 30�8 27�5 27�5 27�5
WS-MS-5-RFG-IR-CE 55�1 46�6 46�6 46�6
WS-MS-6-RFG-CE 30�8 27�5 27�5 27�5
WS-MS-6-RFG-IR-CE 55�1 46�6 46�6 46�6
WS-MS-7-RFG-CE 36 41�6 41�6 41�6
WS-MS-7-RFG-IR-CE 64�5 66�5 66�5 66�5
EN 437 Gas Group |2H, |2E, |2L ,I2ELL |2L |3B/P, |3+ |B/P |3P
Inlet Pressure (mbar) 20 25 28-30/37 50 30/37/50
Model
Valve Outlet Pressure
|2H, |2L, |2E, I2ELL |3+ |3B/P |3P
SV-1 SV-2 SV-1 SV-2 SV-1 SV-2 SV-1 SV-2
WS-MS-4-RFG-CE 12�4 13�6 13�6 17�4
WS-MS-4-RFG-IR-CE 8�7 12�4 17�5 13�6 17�5 13�6 22�4 17�4
WS-MS-5-RFG-CE 11�8 15�6 15�6 20
WS-MS-5-RFG-IR-CE 8�7 11�8 17�5 15�6 17�5 15�6 22�4 20
WS-MS-6-RFG-CE 11�8 15�6 15�6 20
WS-MS-6-RFG-IR-CE 8�7 11�8 17�5 15�6 17�5 15�6 22�4 20
WS-MS-7-RFG-CE 11�5 18�4 18�4 22�7
WS-MS-7-RFG-IR-CE 8�7 11�5 17�9 18�4 17�9 18�4 22�9 22�7
!
ELECTRICAL
Have a licensed electrician connect the transformer terminal strip to a 230 VAC, 5 A circuit. Electrical diagrams
are located on the back of the removable service/air intake panel of the appliance and also at the end of this manual�
PROVIDE DISCONNECT DEVICE: This appliance must be provided with an all-pole type disconnect device in the incoming
power supply so that the appliance can be completely isolated from the power supply�
THIS APPLIANCE MUST BE ELECTRICALLY GROUNDED.

Mountain Series CE
Installation and Operation Manual
16
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
OVEN VENTING
Wood Stone ovens should be vented in accordance with pertinent national, regional and local codes concerning such appliances;
check venting plans with the authority having jurisdiction before proceeding with installation�
The above statement taking precedence, Wood Stone Corporation recommends the following two venting options:
1. The Wood Stone MS Series ovens can be vented as a Type A appliance (with no flue connection), designed to be installed
under an exhaust hood (canopy)� The hood must be a Type 1 (grease rated) hood connected to a (grease rated) duct system�
The venting system must be designed and installed in accordance with all relevant codes pertaining to grease and smoke
producing commercial cooking appliances� Ovens that utilize solid fuel must be vented separately from any non-solid fuel
burning appliances� There may be requirements for interlocking the oven or its gas supply with the ventilation system� Check
with your local code official� Airflow should be adjusted according to the requirements specified by the hood manufacturer
and/or local codes�
OR
2. The oven is also approved as a Type B11 appliance, designed to be connected directly to a chimney which is installed in
accordance with all relevant local and national codes� The chimney system must be installed and constructed to the same
requirements as a duct that serves grease and smoke producing commercial cooking appliances� If venting the oven with this
method, the oven must be vented independently of other equipment� A suitable fan should be used at the end of the duct run
to ensure proper draft in all conditions� Wood Stone does not recommend using an in-line type fan� When installed, the fan
speed/air flow should be adjusted to attain the appropriate duct pressure at the oven flue collar:
DUCT PRESSURE
For gas-fired ovens without solid fuel: 0�25 mbar, (0�1" W�C�)
For any oven utilizing solid fuel: 0�35 mbar, (0�14" W�C�)
This pressure may be checked by inserting the pressure test probe up through the oven doorway to the point where the
duct is connected to the oven flue collar�
FAN TEMPERATURE RATING
The fan must also be of a suitable temperature rating�
For gas-fired ovens without solid fuel the fan must be rated for a minimum of 150 °C (300 °F) continuous�
INTERLOCK SYSTEM
There may be requirements for interlocking the oven or its gas supply with the ventilation system� Check with your local
code official�
OVEN VENTING

Mountain Series CE
Installation and Operation Manual
17
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
FLUE ADAPTER
FLUE ADAPTER
MOUNTAIN SERIES OVENS: FLUE ADAPTER
The flue adapter unit is designed to facilitate connection to a round duct� Use the stainless steel screws and sealant provided to
attach the flue adapter to the exhaust outlet on the oven if it is not already installed� Note: MS-4 ovens come standard with a round
203mm (8") collar and do not require the flue adapter for a direct connection�
Note: If using a Selkirk or other modular-type duct, attach according to the manufacturer’s instructions� Otherwise, the duct must
be attached with a full perimeter weld� All duct must be grease-rated duct� If the oven is going to be enclosed, the flue adapter and
exhaust outlet must be wrapped with an insulating material approved for use with a grease-duct�
Flue adapter
Flue adapter attached
to oven flue collar
If the oven is to be en-
closed, wrap with an
approved insulation.

Mountain Series CE
Installation and Operation Manual
18
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
VENTING DO’S AND DON’TS
VENTING DO'S AND DONT'S
VENTING DO’S AND DON’TS
When installing a Wood Stone Mountain Series oven there are some basic guidelines to follow regarding oven venting that will help
ensure proper operation and performance of the gas burners on the oven� These guidelines will also help prevent damage to the
oven's gas and electrical components due to improper venting and installation� Damage caused by improper venting and installation
is not covered by the oven warranty� This information applies to all Wood Stone Mountain Series (MS) ovens equipped with 1 or
more gas burners�
Most Wood Stone Mountain Series ovens are built into some sort of wall structure or enclosure� This creates the potential for
different venting scenarios that can be detrimental to the operation and performance of the oven burners� Here are some basic
rules that to follow that will ensure a properly functioning oven installation� Illustrated examples are included on the following pages�
RULE 1
The ONLY pathway for air to enter the space beneath the oven should be at the front of the oven at the perforated opening in the
oven service panel provided with the oven, or on ovens equipped with an optional storage box, through the perforations provided
on the oven storage box� This will eliminate the chance of air movement or cross drafts beneath the oven that can disrupt the oven
burners�
RULE 2
DO NOT block the flow of air through the front service panel� It is required to provide necessary combustion air to the oven burners�
Airflow and service access MUST be provided from the front of the oven only at this service panel� DO NOT relocate the oven air
intake (see Rule 1).
RULE 3
To ensure proper venting of the oven, you must use an appropriate exhaust fan as described in this manual� There must also be
an adequate source of make-up air provided to your kitchen space (the room that the oven opens into)� The make-up air supply
should not point directly at the oven� Other than the oven service panel, do not provide make-up air or other ventilation into an
enclosure that surrounds the oven (see Rule 1). Without proper make-up air the oven, (or any gas equipment) will not vent and
operate correctly�
Please see drawings on the following pages.

Mountain Series CE
Installation and Operation Manual
19
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
VENTING DO’S AND DONT’S
DIRECT CONNECT VENTING EXAMPLES
Example 2 is not acceptable because the
combustion air intake is blocked, preventing
combustion air from reaching the oven
burners� The burners will not function properly,
and this will also lead to damage of oven
components�
Example 1 shows a proper installation�
Enclosure around the oven is completely
sealed so that the only air entering the space
beneath the oven comes through the oven
service panel�
Equal air pressure inside and
outside of oven room
Exhaust
flow
direction
is normal
Stud wall
Facade
surface
Air intake area
on removable
service panel
properly
exposed
Intake air flows
through designed
intake vents in the
service panel to
oven burners
1 Acceptable venting
2 Unacceptable venting
Exhaust
flow
direction is
normal
Facade material
improperly placed
over oven air
intake
Insufficient
combustion air
resulting in burner
problems & poor
oven performance
Equal air pressure
inside and outside of
oven room

Mountain Series CE
Installation and Operation Manual
20
An ongoing program of product improvement may require us to change
specifications without notice. WS-MS-(RFG, RFG-IR)-CE,
Revised May 2014 Doc no: M0037.01
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
t. +1.360.650.1111
f. +1.360.650.1166
VENTING DO’S AND DONT’S
HOOD INSTALLATIONS
In addition to the information given for installations using the direct connect venting method, the following information applies to
installations where the oven is being vented using a Type 1 hood� Also refer to the OVEN VENTING section earlier in this manual�
PROPER MOUNTING POSITION FOR THE WOOD STONE HOOD
1. Center the hood from side to side on the oven� Note that in an MS-5, 6 or 7 model, the oven has the round flue adapter
attached� The adapter may prevent the proper positioning of the hood� The flue adapter is attached with screws� (The MS-4
does not require an adapter�) Simply remove the screws to remove the adapter if it is in the way�
2. Pull the hood forward so that the notch, as viewed from the side of the hood, lines up with the front edge of the top of the
oven�
3. Secure the hood to the top of the oven using #10 self tapping screws� The flanges on the hood are pre-drilled� Screw directly
into the top of the oven to secure the hood�
4. Attach grease-rated duct to the outlet on the hood� The hood captures over the oven flue collar and oven doorway� No
connection is made to the oven flue collar�
Continued on next page
