woodmizer BMS200 Guide

BMS200/250 SHARPENER
Safety, Operation, Maintenance
& Parts Manual
BMS200 rev. B.05
BMS250 rev. B.05
Safety is our #1 concern! Read and understand
all safety information and instructions before
operating, setting up or maintaining this machine.
Form #944_en
!
This is the original language
for the manual.

Table of Contents Section-Page
2 CBNdoc121616 Table of Contents
General Contact Information
Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
SECTION 1 SAFETY & GENERAL INFORMATION 1-1
1.1 If You Need To Order Parts ...................................................................................... 1-2
1.2 If You Need Service .................................................................................................. 1-2
1.3 Nomenclature ........................................................................................................... 1-2
1.4 Electrical Safety......................................................................................................... 1-3
1.5 Blade Handling.......................................................................................................... 1-3
1.6 Machine Operation .................................................................................................... 1-3

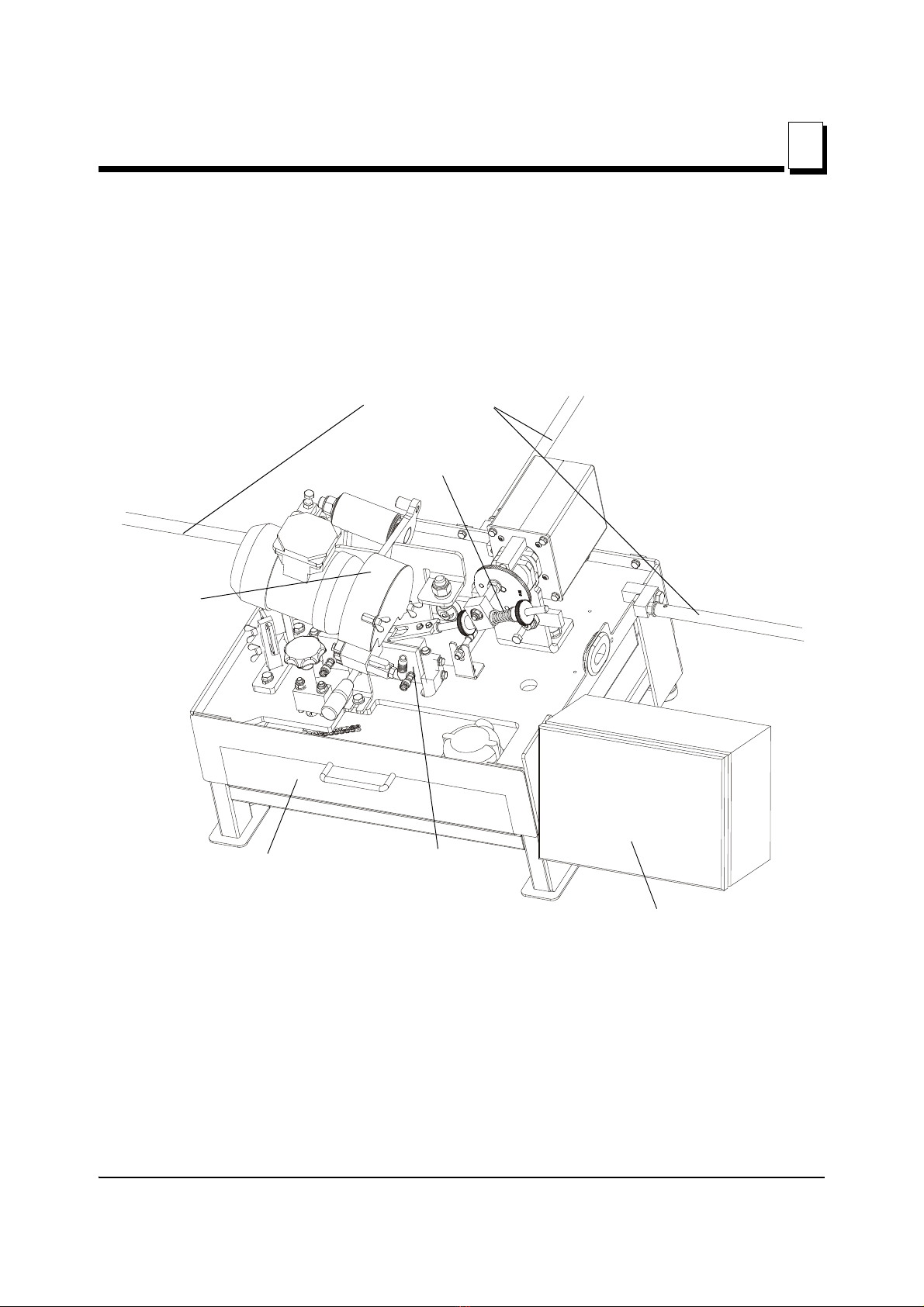

1.7 Sharpener Components.............................................................................................. 1-5
1.8 Overall Dimensions and Other Technical Data......................................................... 1-6
1.9 Noise Level................................................................................................................ 1-7
1.10 Motor Specifications ................................................................................................. 1-7
1.11 Coolant Specifications............................................................................................... 1-7

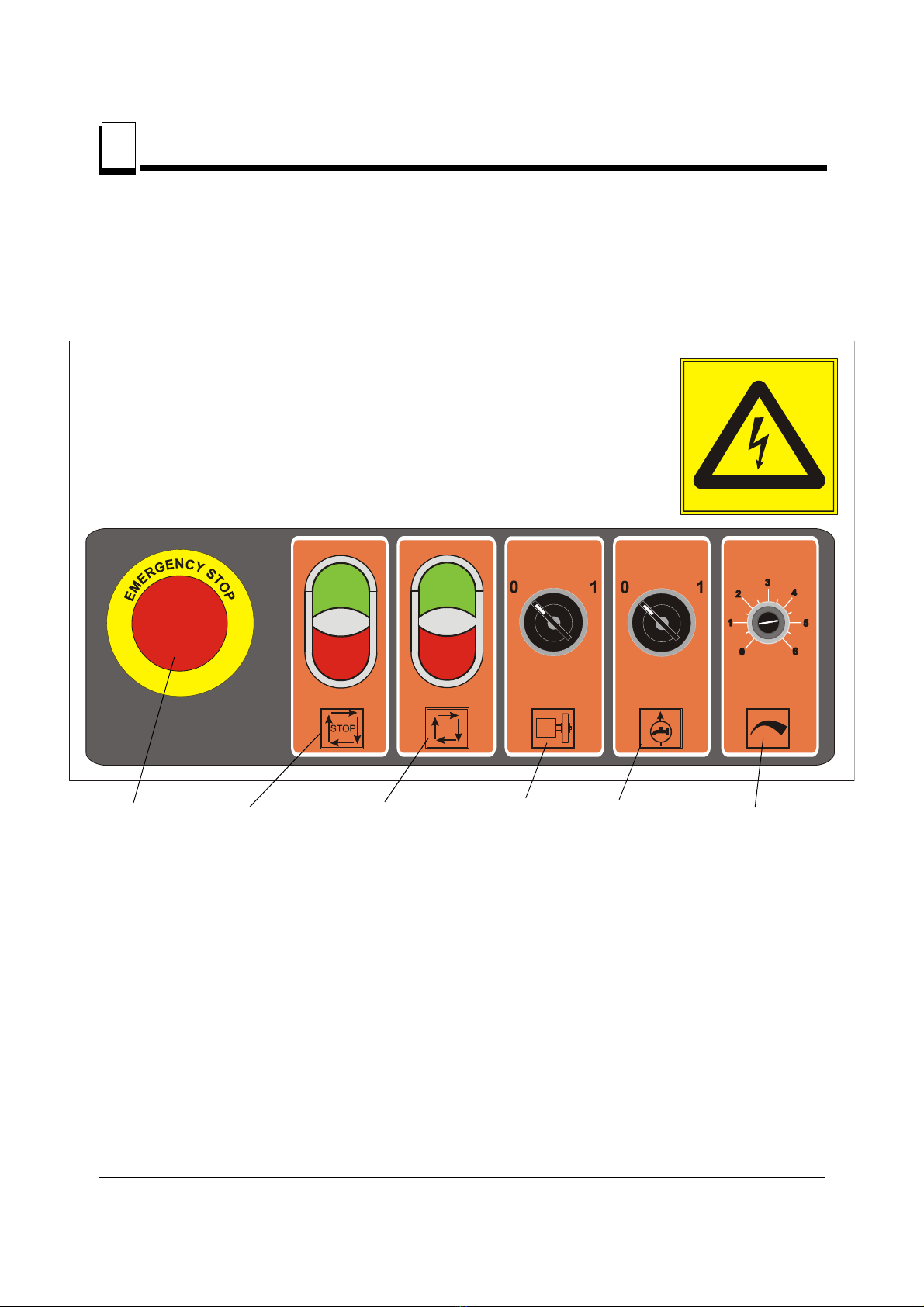

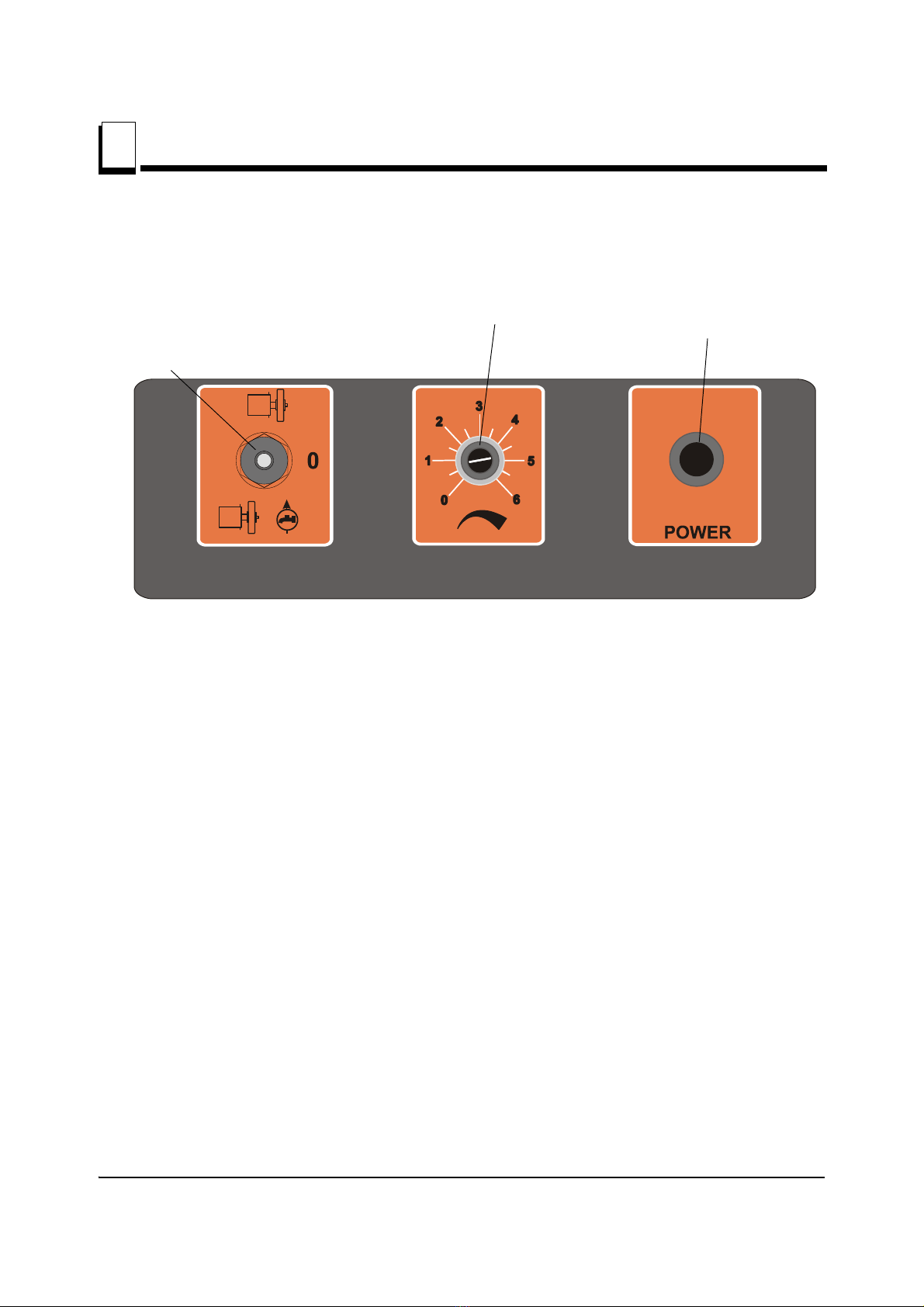

1.12 Control Panel Components........................................................................................ 1-8

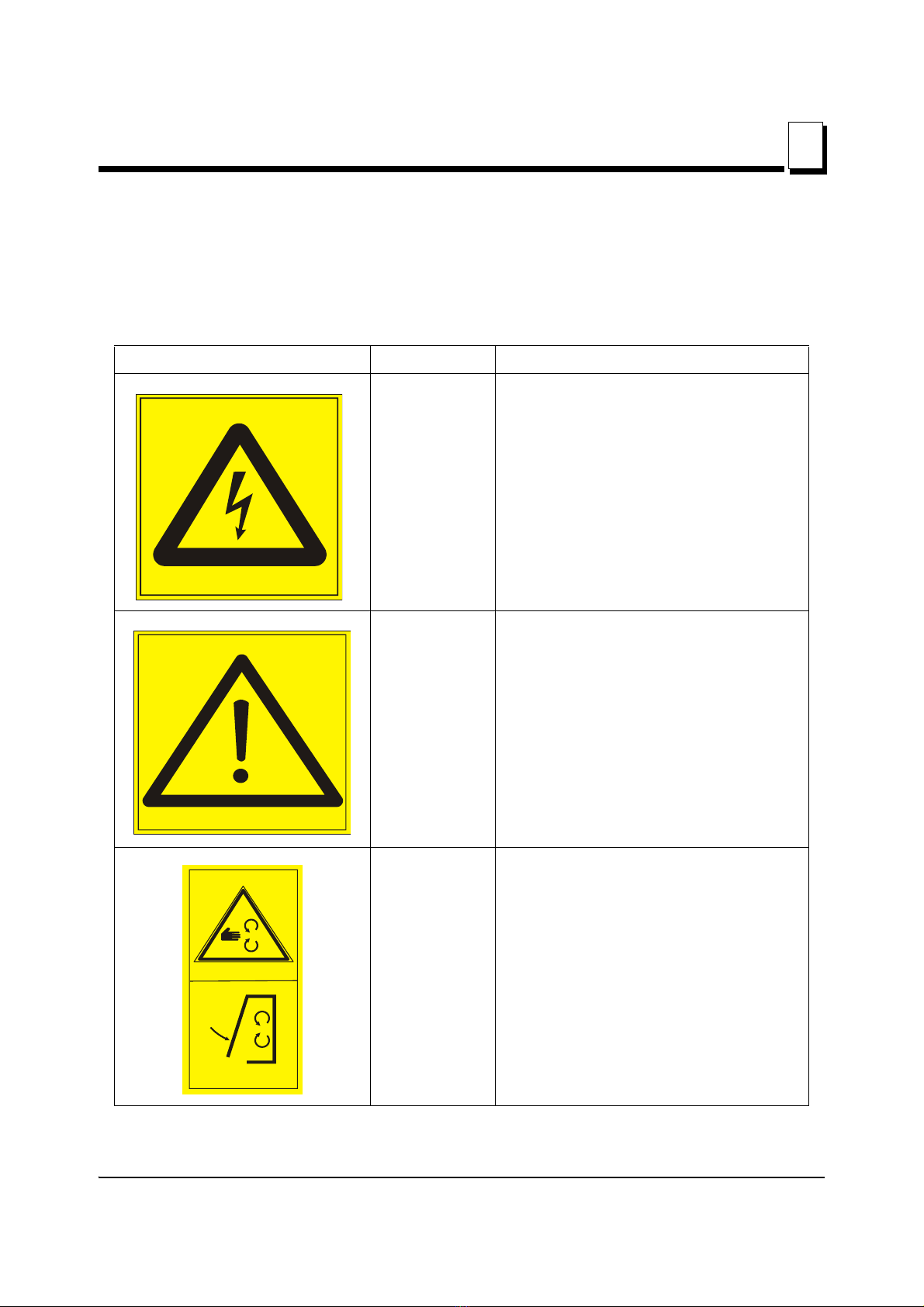

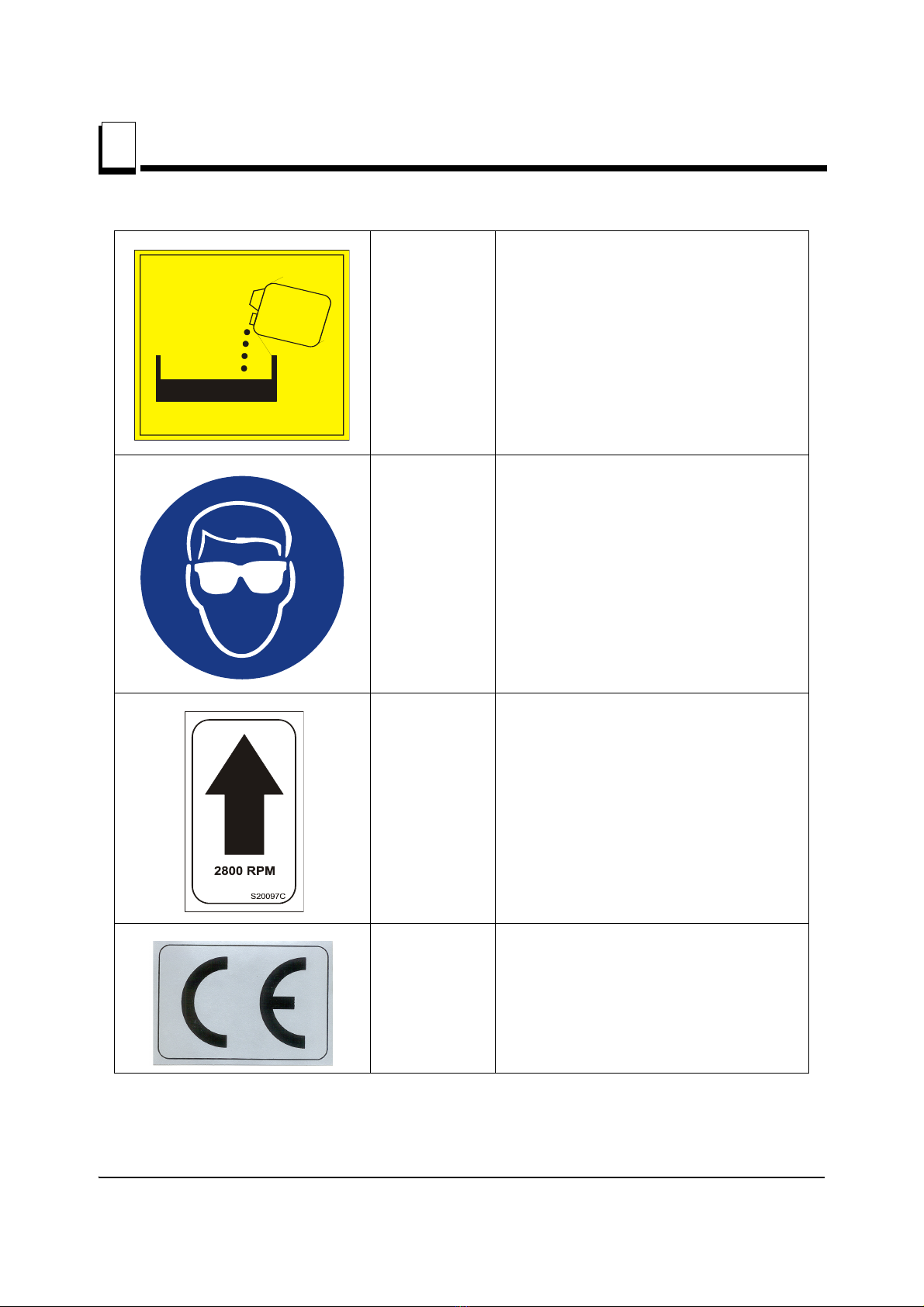

1.13 Warning Decals Description.................................................................................... 1-11
SECTION 2 SETUP & OPERATION 2-1
2.1 Machine Start............................................................................................................. 2-1
2.2 Blade Support and Cover Bumper Installation.......................................................... 2-2
2.3 Blade Height Adjustment .......................................................................................... 2-5
2.4 Grinding Wheel Installation ...................................................................................... 2-6
2.5 Blade Installation....................................................................................................... 2-7
2.6 Face Grind Adjustment.............................................................................................. 2-9
2.7 Grind Depth Adjustment ......................................................................................... 2-12
2.8 Oil Flow Adjustment ............................................................................................... 2-12
2.9 Feed Rate Adjustment ............................................................................................. 2-13
2.10 Magnetic Shut-off (not in BMS200, BMS250 EC Version) ................................... 2-13
2.11 Blade Rejection ....................................................................................................... 2-13
2.12 Operation Overview ................................................................................................ 2-14
2.13 Shutoff .....................................................................................................................2-14
2.14 2" Blade Sharpening................................................................................................ 2-15
SECTION 3 MAINTENANCE 3-1
3.1 Grinding Wheel Replacement ................................................................................... 3-1
3.2 Oil Level....................................................................................................................3-1
SECTION 4 BMS200/BMS250 MAINTENANCE & TROUBLESHOOTING 4-1
4.1 Sharpener Maintenance ............................................................................................. 4-1
4.2 Blade Sharpening Tips .............................................................................................. 4-2
SECTION 5 ALIGNMENT 5-1
5.1 Sharpener Head Stop Alignment ............................................................................... 5-1
5.2 Sharpener Alignment................................................................................................. 5-2

Table of Contents Section-Page
Table of Contents
SECTION 6 STANDARD OPERATING PROCEDURE 6-1
6.1 Sharpening alignment: BMS 250 ......................................................................... 6-1
6.2 Properly sharpened teeth ....................................................................................... 6-4
6.3 ReSharp process ............................................................................................. 6-6
SECTION 7 REPLACEMENT PARTS 7-1
7.1 How To Use The Parts List ...................................................................................... .7-1
7.2 Blade Support Assembly .......................................................................................... 7-2
7.3 Grinder Asembly ....................................................................................................... 7-3
7.4 Sharpener Mounting Plate ......................................................................................... 7-6
7.5 Blade Clamp Assembly ............................................................................................. 7-7
7.6 Oil Pump/Pan, Control Box, BMS250 ...................................................................... 7-9
7.7 Oil Pump/Pan, Control Box, BMS200 .................................................................... 7-11
7.8 Cam Assembly......................................................................................................... 7-13
7.9 Cover Assembly ...................................................................................................... 7-15
7.10 Alignment tool&Blade ProfileTemplate ................................................................. 7-17

Table of Contents Section-Page
4 CBNdoc121616 Table of Contents
Manufacturer Data:
IMPORTANT! Read the entire Operator's Manual before
operating the sharpener. Take notice of all safety warnings
throughout this manual and those posted on the equipment.
Keep this manual with this equipment at all times,
regardless of ownership.
*Wood-Mizer®is a registered trademark of Wood-Mizer Products, Inc.
Wood-Mizer Industries, Ltd.
Nagórna 114
62-600 Koło
Poland
Tel. [phone]
Wood-Mizer Products, Inc.
8180 West 10th St.
Indianapolis, IN 46214
USA
Tel. [phone]
!

Getting Service
Wood-Mizer is committed to providing you with the latest technology, best quality and strongest
customer service available on the market today. We continually evaluate our customers’ needs to
ensure we’re meeting current wood-processing demands. Your comments and suggestions are
welcome.
General Contact Information
From Europe call your local distributor or our European Headquarters and Manufacturing Facility in
Koło, Nagórna 114 St, Poland at [phone]. From the continental U.S., call our U.S.
Headquarter 8180 West 10th St.Indianapolis, IN 46214, toll-free at 1-800-525-8100. Ask to speak
with a Customer Service Representative. Please have your machine identification number and your
customer number ready when you call. The Service Representative can help you with questions
about the operation and maintenance of your machine. He also can schedule you for a service call.
Office Hours:
Please have your vehicle identification number and your customer number ready when you call.
Wood-Mizer will accept these methods of payment:
Visa, Mastercard, or Discover
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on size and
quantity of order.
Technical data are subject to change without prior notice.
Actual product may differ from product images. Some illustrations show machines with optional
equipment.
Country Monday - Friday Saturday Sunday
Poland 7 a.m.- 3 p.m. Closed Closed
US 8 a.m.- 5 p.m. 8 a.m.- 12 p.m Closed

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
EUROPE UNITED STATES
European Headquarters
Wood-Mizer Industries Sp. z o.o.
Nagórna 114, 62-600 Koło, Poland
Tel.: [phone]
Fax: [phone]
www.woodmizer.eu
World Headquarters
Wood-Mizer LLC
8180 West 10th Street
Indianapolis,Indiana 46214-2400,
USA
Tel.: [phone]
Fax: [phone]
www.woodmizer.com
BELARUS
MOST-GRUPP
Siemashko 15, k.3
Minsk 2200116
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SWITZERLAND Stefan Wespi
Maschinen u. Geräte
Spezialarbeiten GmbH
Eichistraße 4
6353 Weggis
Tel.: +41-(0)41 - 3900312
GSM: +41-(0)79 - 9643594
[email protected]
RUSSIA Dariusz Mikołajewski
OOO WOOD-MIZER INDUSTRIES
141031, Moscow
Reg., Mytishenski raj., pos. Veshki,
Zavodskaja str., 3B
Tel.Fax: [phone]
Tel.Fax: [phone]
e-mail: [email protected]
BULGARIA Kalin Simeonov
Ecotechproduct
38 Star Lozenski pat str.
Sofia 1186
Tel.: [phone]
Tel.: [phone]
Tel:/Fax
: [phone]
Kalin Simeonov
GSM: [phone]
e-mail: [email protected]
HUNGARY Wiktor Turoczy
Wood-Mizer Hungary K.F.T.
Szonyi Ut 67., 2921 Komárom
Tel.:/Fax: [phone]
e-mail: [email protected]
RUSSIA Far East Wladimir Głazaczew
“WM Service”
Krasnoretchenskaya Str.111
680006 Khabarovsk
Tel.:/Fax: [phone]
e-mail: [email protected]

CROATIA Krešimir Pregernik
Pregimex d.o.o.
S. Batušiæa 31, 10090 Zagreb
Tel.:/Fax: [phone]
Krešimir Pregernik
GSM: [phone]
e-mail: [email protected]
ITALY Pasquale Felice
Wood-Mizer Italia Srl
Cda. Capoiaccio SN
86012 Cercemaggiore
Campobasso
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SERBIA Dragan Markov
Wood-Mizer Balkan d.o.o.
Svetosavska GA 3/3; P. Fah 25
23 300 Kikinda
Tel.:/Fax: [phone]
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Miroslaw Greill
Wood-Mizer CZ s.r.o.
Osvaldova 91
339 01 Klatovy-Luby
Tel.:/Fax: [phone]
Fax: [phone]
Miroslaw Greill
GSM: [phone]
e-mail: [email protected]
SLOVAKIA Wiktor Turoczy
Wood-Mizer Danubia s.r.o.
Hadovce 5, 94501 Komárno
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Lubomir Kudlik
Wood-Mizer Moravia
Sovadinova 6
69002 Breclav
Tel.:/Fax: [phone]
Lubomir Kudlik
GSM: [phone]
e-mail: [email protected]
LATVIA Vilmars Jansons
OBERTS Ltd
Gaujas str. 32/2
LV-2167 Marupe, Rigas Raj.
Tel.: [phone]
Fax: [phone]
Vilmars Jansons
GSM: [phone]
Andris Orols
GSM: [phone]
e-mail: [email protected]
TURKEY
Er-Ka Ahsap Profil Kerestecilik San.
ve Tic. Ltd. Sti.
Adana Keresteciler Sitesi 191 sk No.41
ADANA
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
FINLAND Howard Blackbourn
Oy Falkberg Jordbruk Ab
Falkintie 220
25610 Ylonkyla
Tel.: [phone]
Fax: [phone]
Howard Blackbourn
GSM: [phone]
e-mail: [email protected]
LITHUANIA Andrius Zuzevicius
UAB Singlis
Savanoriu pr. 187, 2053 Vilnius
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
Dmitrij Gaiduk
GSM: [phone]
e-mail: [email protected]
UKRAINE Ivan Vinnicki
MOST UKRAINA
bul. Myru 3, Bajkivtsi Ternoplskyj r-j
Ternopolska oblast
47711 Ukraine
Tel/Fax: [phone]
GSM: [phone]
GSM: [phone]
E-mail: [email protected]
FRANCE Tizoc Chavez
Wood-Mizer France
556 chemin des Embouffus,
ZAC des Basses Echarrieres
38440 SAINT JEAN DE BOURNAY
Tel: [phone]
GSM: [phone]
Mail: [email protected]
NORWAY Odd Edvoll
Wood-Mizer Nordic AS
Vardelia 17, 2020 Skedsmokorset
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
e-mail: [email protected]
UNITED KINGDOM & IRELAND
Wood-Mizer UK
Hopfield Barn
Kenward Road, Yalding
Kent ME18 6JP, UK
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
SLOVENIA Jan Fale
FAMTEH d.o.o.
Gacnikova pot 2,
2390 Ravne na Koroskem
Tel.: [phone]
Fax: [phone]
Jan Fale
GSM: [phone]
e-mail: [email protected]
Matjaz Kolar
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]

GERMANY Klaus Longmuss
Wood-Mizer Sägewerke GmbH
Dorfstraße 5, 29485 Schletau
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
Klaus Longmuss
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]
Subagent:
SWEDEN Kjell Larsson
Mekwood AB
Slingan 14, 812 41 Gästrike-Hammarby
Tel.: [phone]
Kjell Larsson
GSM: [phone]
e-mail: [email protected]
IRELAND
Wood-Mizer Ireland
Stephen Brennan
Cum Lahardane Ballina County Mayo
Tel:[phone]
E-mail: [email protected]
Subagents:
DENMARK Brian Jensen
Arnborgvej 9, 7330 Brande- Fasterholt
Tel.: [phone]
Fax: [phone]
Brian Jensen
GSM: [phone]
e-mail: [e-mail]
ROMANIA Adrian Echert
SC WOOD-MIZER RO SRL
TRANSILVANIEI Nr. 5
Sibiu, Cisnadie 555300
Tel.:/Fax: : [phone]
GSM: [phone]
e-mail: [email protected]
Regional Manager - Asia
Wood-Mizer Asia Pte Ltd.
James Wong
Tel: [phone]
Fax: [phone]
WWW: www.woodmizerasia.com
E-mail: [email protected]
Netherlands Chris Dragt
Lange Brink 77d,
7317 BD Apeldoorn
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
Subagent:
ROMANIA M. Echert
S.C. Echert Comprod s.r.l
Str. Schitului Nr. 6, Apt.7 etajul-1
725 70 Vatra Dornei, Romania
Tel.:/Fax: [phone]
Tel. : [phone]
Regional Manager - Africa
Wood-Mizer Africa
Jean-Jacques Oelofse
UNIT 3, LEADER PARK, NO: 20 CHARIOT
ROAD
STORMILL, EXT 5, Roodepoort,
Johannesburg
Tel: [phone]
Fax: [phone]
Jean-Jacques Oelofse E-mail:
[email protected]
Jean-Jacques Oelofse
Skype:jean.jacques.pierre.oelofse
USA World Headquarters Canadian Headquarters
Serving North & South America, Oceania, East Asia
Wood-Mizer LLC
8180 West 10th Street
Indianapolis, IN 46214
Phone: [phone] or 800.553.0182
Customer Service: 800.525.8100
Fax: [phone]
Email: [email protected]
Serving Canada
Wood-Mizer Canada
396 County Road 36, Unit B
Lindsay, ON K9V 4R3
Phone: [phone] or 877.357.3373
Fax: [phone]
Email: [e-mail]
Brazil Headquarters Europe Headquarters
Serving Brazil
Wood-Mizer do Brasil
Rua Dom Pedro 1, No: 205 Bairro: Sao Jose
Ivoti/RS CEP:93.900-000
Tel: [phone]/ +55 51
3563-4784
Email: [e-mail]
Serving Europe, Africa, West Asia
Wood-Mizer Industries Sp z o.o.
Nagorna 114
62-600 Kolo, Poland
Phone: [phone]
Fax: [phone]
Branches & Authorized Sales Centers
For a complete list of dealers, visit www.woodmizer.com

Safety & General Information
Safety & General Information AS80doc121616 1-1
1
SECTION 1 SAFETY & GENERAL INFORMATION
This symbol calls your attention to instructions concerning your personal safety. Be sure
to observe and follow these instructions. This symbol accompanies a signal word.
The word DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury. WARNING suggests a potentially hazardous situation
which, if not avoided, could result in death or serious injury. CAUTION refers to potentially
hazardous situations which, if not avoided, may result in minor or moderate injury to
persons or equipment. Read all safety instructions before operating this equipment and
observe all safety warnings!
Warning stripes are placed on areas where a single decal would be insufficient. To avoid
serious injury, keep out of the path of any equipment marked with warning stripes.
Read and observe all safety instructions before operating this equipment! Also read any
additional manufacturer’s manuals and observe any applicable safety instructions
including dangers, warnings, and cautions.
Always be sure that all safety decals are clean and readable. Replace all damaged safety
decals to prevent personal injury or damage to the equipment. Contact your local
distributor, or call your Customer Service Representative to order more decals.
Always properly dispose of all by-products, including debris, coolant and oil.
Safety instructions are listed in this section by the following operations:
Electrical Safety
Blade Handling
Machine Operation

1-2 AS80doc121616 Safety & General Information
Safety & General Information
If You Need To Order Parts
1
1.1 If You Need To Order Parts
From Europe call your local distributor or our European Headquarters and Manufacturing
Facility in Kolo, Nagórna 114 St, Poland at [phone]. From the continental U.S.,
call our US Headquarters and Manufacturing Facility in Indianapolis, 8180 West 10th
Street, USA at 1-800-525-8100. Please have the machine identification number and your
customer number ready when you call. Wood-Mizer will accept these methods of
payment:
Visa, Mastercard, or Discover
COD
Prepayment
Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on
size and quantity of order. In most cases, items will ship on the day they are ordered.
Second Day and Next Day shipping are available at additional cost.
1.2 If You Need Service
From Europe call your local distributor or our European Headquarters and Manufacturing
Facility in Kolo, Nagórna 114 St, Poland at [phone]. From the continental U.S.,
call our US Headquarters and Manufacturing Facility in Indianapolis, 8180 West 10th
Street, USA at 1-800-525-8100. Ask to speak with a Customer Service Representative.
Please have your machine identification number and your customer number ready when
you call. The Service Representative can help you with questions about the operation and
maintenance of your moulder. He can also schedule you for a service call.
Office Hours:
1.3 Nomenclature
Country Monday - Friday Saturday Sunday
Poland 700-1500 Closed Closed
US 8 a.m.- 5 p.m. 8 a.m.- 12 a.m Closed
Machine Name Version Electric Standards Code Voltage Code
BMS 200 S50Hz EU standards A230V 1ph
TABLE 1-1

Safety & General Information
Electrical Safety
Safety & General Information AS80doc121616 1-3
1
Possible combinations:
1.4 Electrical Safety
DANGER! Make sure all electrical installation, service
and/or maintenance work is performed by a qualified
electrician and is in accordance with applicable electrical
codes.
DANGER! HAZARDOUS VOLTAGE can cause shock,
burns, or death. SHUT OFF & LOCK OUT
POWER before performing service in any area of this
machine. DO NOT restore power until all access panels are
replaced and secured.
WARNING! Always turn off and disconnect power at control
console AND at main supply circuit breaker before
performing any service to the machine.
DANGER! It is recommended that a 30mA Ground Fault
Interrupter (GFI) be used.
1.5 Blade Handling
WARNING! Always wear gloves and eye protection when
handling bandsaw blades. Keep all persons away from
area when coiling or carrying a blade (4 meters at least).
1.6 Machine Operation
CAUTION! Read thoroughly the operator’s manual before
operating the sharpener.
Model Version Voltage
code
Standard
code
Description
BMS 200 M U Sharpener / economy /1x110V 60Hz/ UL
BMS 200 ASharpener / economy /1x230V 50Hz/
BMS 200 A U Sharpener / economy /1x230V 60Hz/ UL
BMS 250 M U Sharpener / personal /1x110V 60Hz/ UL
BMS 250 A U Sharpener / personal /1x230V 60Hz/ UL
BMS 250 A S Sharpener / personal /1x230V 50Hz/ CE

1-4 AS80doc121616 Safety & General Information
Safety & General Information
Machine Operation
1
DANGER! Make sure all guards and covers are in place
and secured before operating the sharpener. Failure to do
so may result in serious injury.
DANGER! Keep all persons away from moving parts when
operating this machine (2 meters at least). Failing to do so
will result in serious injury.
DANGER! Always keep hands away from moving bandsaw
blade. Failure to do so will result in serious injury.
WARNING! Always wear eye, ear, respiration, and foot
protection when operating this machine. Failure to do so
may result in serious injury.
WARNING! Secure all loose clothing and jewelry before
operating this machine. Failure to do so may result in
serious injury or death.
WARNING! The sharpener should not be operated by
persons allergic to ACP-1 oil or its vapors.
CAUTION! The sharpener’s work-stand should be
equipped with a 4 kg or bigger dry powder extinguisher.
CAUTION! The machine has to be used only for sharpen-
ing blades. Otherwise the guarantee will expire.
CAUTION! The machine has to be used only with oil
vapour extractor.
IMPORTANT! The illumination at the operator's position
should be at least 300lx1
1.. The light source can not cause stroboscopic effect.
!

Safety & General Information
Sharpener Components
Safety & General Information AS80doc121616 1-5
1
1.7 Sharpener Components
The BMS250 sharpener is designed for sharpening only Wood-Mizer blades with 9.29,
10.30, 13.29, 7.34, 7.39 and 4.32 profiles.
See Figure 1-1. The major components of the sharpener are shown below.
FIG. 1-2
CBNSH03C
Blade Support Arms
Cam Index Assembly
Grinder
Assembly
(Sharpener
Head)
Clamp
Assembly
Oil Pan/Filter Magnets
Control Box

1-6 AS80doc121616 Safety & General Information
Safety & General Information
Overall Dimensions and Other Technical Data
1
1.8 Overall Dimensions and Other Technical Data
See Table 1-2. The overall dimensions and the weight of the BMS250 sharpener
(without the blade support arms) are listed below.
See Figure 1-3. The figure below shows the overall dimensions of the BMS250
sharpener with the blade support arms installed.
Length Width Height Weight
BMS250
Sharpener
627mm
24,68"
845mm
33,26"
590mm
23,22"
83kg
183 lb
Sharpener
packaged in carton
680mm
26,77"
960mm
37,80"
620mm
24,40"
90kg
198,4 lb
TABLE 1-2
FIG. 1-4
CBNSH36B

Safety & General Information
Noise Level
Safety & General Information AS80doc121616 1-7
1
1.9 Noise Level
See Table 1-3. The noise level produced by the BMS250 sharpener is given below 1.
1.10 Motor Specifications
See Table 1-4. The grinder motor specifications are listed below.
1.11 Coolant Specifications
See Table 1-5. The table below lists the coolant specifications.
Noise Level
BMS250 61,3 dB (A)
TABLE 1-3
1. The measured values refer to emission levels, not necessarily to noise levels in the
workplace. Although there is a relation between emission levels and exposure levels, it is
not possible to determine with certainty if preventives are needed or are not needed. The
factors affecting a current level of noise exposure during work are inter alia room
characteristics and characteristics of other noise sources, e.g. number of machines and
machining operations nearby. Also, the permissible exposure level value may vary
depending on country. This information enables the machine’s user to better identify
hazards and a risk .
Motor Manufacturer Model Power Other Data
Electric Besel, Poland SEKg 56 2C2 0.18kW 1.5 A, 2800 r.p.m.
TABLE 1-4
Oil Type Manufacturer Freezing Point Flash Point Autoignition Point
ACP-1E 1
1 Waste oil must be disposed of in complance with applicable state and local regulations.
Orlen -20 C
-4 F
Above
140 C
284 F
250 C
482F
TABLE 1-5




1-8 AS80doc121616 Safety & General Information
Safety & General Information
Control Panel Components
1
1.12 Control Panel Components
See Figure 1-5. The BMS250 control panel components and their descriptions are shown
below.
Disconnect button
Turns on/off the sharpener power and the oil pump.
Press "0" on the disconnect switch to turn the sharpener power off (e.g. before
servicing or when the sharpener is not in use). NOTE: Press "0" on the disconnect
switch before opening the control box door. Disconnect and lock out power supply
before servicing!
To reconnect power to equipment, press "1" on the disconnect swirch.
FIG. 1-6
I
0
I
0
S10364-P3
CBNSH35D
Feed Rate Dial
Emergency
Stop
Disconnect
Switch
Cam Motor
Start/Stop Switch
Grinder Motor
Start/Stop Switch
Coolant Pump
Start/Stop Switch

Safety & General Information
Control Panel Components
Safety & General Information AS80doc121616 1-9
1
Feed Rate Dial
Controls cam speed.
Rotate dial as necessary to increase or decrease cam speed.
Grinder Motor Start/Stop Switch
Starts/Stops grinder motor.
Cam Motor Start/Stop Button
Press the Cam Motor Start Switch to start the cam motor. NOTE: Place the Feed
Rate Dial in the "0" position before starting the cam motor.
Press the Cam Motor Stop Switch to turn the cam motor off and unclamp the blade.
Coolant Pump Start/Stop Switch
Starts/Stops coolant pump.
Emergency Stop
Stops the sharpener operation.
In case of any dangerous situation or any incorrectness in the sharpener operation,
press the emergency stop button. The button will be locked.
To release the emergency stop button, turn it clockwise.

1-10 AS80doc121616 Safety & General Information
Safety & General Information
Control Panel Components
1
See Figure 1-7. The control panel components of the BMS200 version and their
descriptions are shown below.
Grinder Motor and Coolant Pump Start/Stop Switch
Starts/Stops grinder motor and coolant pump. Move the switch to upper position to
start the grinder motor only (it can be used to adjust the sharpener). Move the switch to
lower position to start the grinder motor and the coolant pump.
Feed Rate Dial
Controls cam speed.
Rotate dial as necessary to increase or decrease cam speed. Turn the dial to "0"
position to stop the cam.
Power ON/OFF Button
Turns on the power to all motors of the sharpener. NOTE: Place the Feed Rate Dial
in the "0" position before turning on the power.
FIG. 1-8
Feed Rate Dial
Power
ON/OFF
Button
Grinder Motor and
Coolant Pump
Switch

Safety & General Information
Warning Decals Description
Safety & General Information AS80doc121616 1-11
1
1.13 Warning Decals Description
See Table 1-6. The pictographic decals that warn and inform the user are shown and
described below.
TABLE 1-6
Decal View Decal No. Description
S10364-P3 "Hazardous voltage".
086362 General warning symbol
099220 CAUTION! Close all guards and covers before
starting the machine.
S10364-P3
086362
099220

1-12 AS80doc121616 Safety & General Information
Safety & General Information
Warning Decals Description
1
095961 "Use ACP-1 oil."
S12004G-1 CAUTION! Always wear safety goggles when
operating the sharpener!
S20097C 2800 RPM - Motor rotation direction
P85070 CE safety certification
TABLE 1-6
095961
OIL
ACP-1
