Xerox WorkCentre Pro 65 User manual

XEROX
CopyCentre / WorkCentre Pro Auditron Report Software
User Manual
Software Version 3.3
May 2004
This software application is used to periodically collect or modify Auditron data on the
CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90.
Contact Xerox if you have any questions about using this software and a specific CopyCentre
C65/C75/C90 WorkCentre Pro 65/75/90 model.
System Administrators, Key Operators, Electronic Auditron Administrators or their
representatives who manage Auditron data should use this tool.
701P41817

Xerox Corporation
Global Knowledge & Language Services
800 Phillips Road - Bldg 845-17S
Webster, New York 14580
USA
©2004 by Xerox Corporation. All rights reserved.
Copyright protection claimed includes all forms and matters of copyrighted material and information now allowed
by statutory or judicial law or hereinafter granted, including without limitation material generated from the software
programs that are displayed on the screen such as icons, screen display looks, etc.
XEROX®, The Document Company® and the stylized X and identifying product names and numbers are registered
trademarks of XEROX CORPORATION or Xerox (Europe) Limited. Xerox Canada is a licensee of all the
trademarks.
Adobe is a trademark of Adobe Systems Incorporated. Microsoft, Microsoft Excel, Windows, Windows 95,
Windows 98, Windows NT, Windows 2000, Windows XP are registered trademarks of Microsoft Corporation. All
brand names and product names used in this document are trademarks, registered trademarks, or trade names of
their respective holders.

Table of Contents
Overview...................................................................................................................................... 4
Minimum System Requirements................................................................................................4
Auditron Report Software Overview........................................................................................ 5
Electronic Auditron Administration Report...............................................................................5
Electronic Auditron Usage Report .............................................................................................6
Types of Auditron Accounts shown on the reports....................................................................7
Collecting Data via Serial Cable................................................................................................8
Data Collection via Modem...................................................................................................... 12
Processing Information Offline ............................................................................................... 18
Tips for modifying the data file................................................................................................18
Writing Information to the CopyCentre/WorkCentre Pro........................................................19
Troubleshooting for writing a file to the CopyCentre/WorkCentre Pro...................................20
Clear All Accounts ...................................................................................................................20
Known problems with the Auditron Report Software.......................................................... 22
If you have difficulty with this software ..................................................................................22
Local and remote COM port Setup Tips ..................................................................................23
If your computer has a modem..............................................................................................23

Overview
The CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90 has an integrated usage tracking and
control system known as the Internal Auditron. The Auditron provides the capability to track the
number of copies made by an individual user or copies charged to an account accessed by
multiple users.
The Auditron Report Software allows you to collect this data from the Xerox CopyCentre
C65/C75/C90 WorkCentre Pro 65/75/90 using a PC. Data can either be collected with a direct
connection to the machine, or can be remotely collected through a telephone line connection.
In order to establish the Auditron, a person referred to as the Auditron Administrator assigns
accounts to users (User Accounts) and assigns a User Number to each User Account. This User
Number, when entered at the machine, allows the user to make copies. The Administrator can
also assign any of the following Access Rights to any of the User Accounts:
• Machine Administrator
• Auditron Administrator
• General Accounts
Minimum System Requirements
• PC with 90 MHz. Pentium Processor
• Microsoft Windows 95 (Service Pack 1 or OSR2), Windows 98, or Windows NT 4.0 (Service
Pack 3), Windows 2000, Windows XP
• 10 MB free on Hard Drive
• 32 MB RAM for Windows 95 or Windows 98, 64 MB for Windows NT 4.0
• A spare serial connection and a standard 9-pin serial (RS-232) throughput cable (for use only
when the PC is directly connected to the machine to collect data)
• Modem, PC phone access and Sixth Sense phone connection to the CopyCentre C65/C75/C90
WorkCentre Pro 65/75/90 (for remote data collection)
• CD-ROM drive or Floppy Drive
• Microsoft Access 97 or higher is recommended if data is to be collected in the .mdb format
• Adobe Acrobat Reader 3.0 or higher to view the instructions

Auditron Report Software Overview
This software provides access only to the Auditron information described in these instructions.
It cannot provide access to any image(s) or information that has been printed, is currently being
printed, or is in the queue to be printed. The software captures two types of data.
Electronic Auditron Administration Report

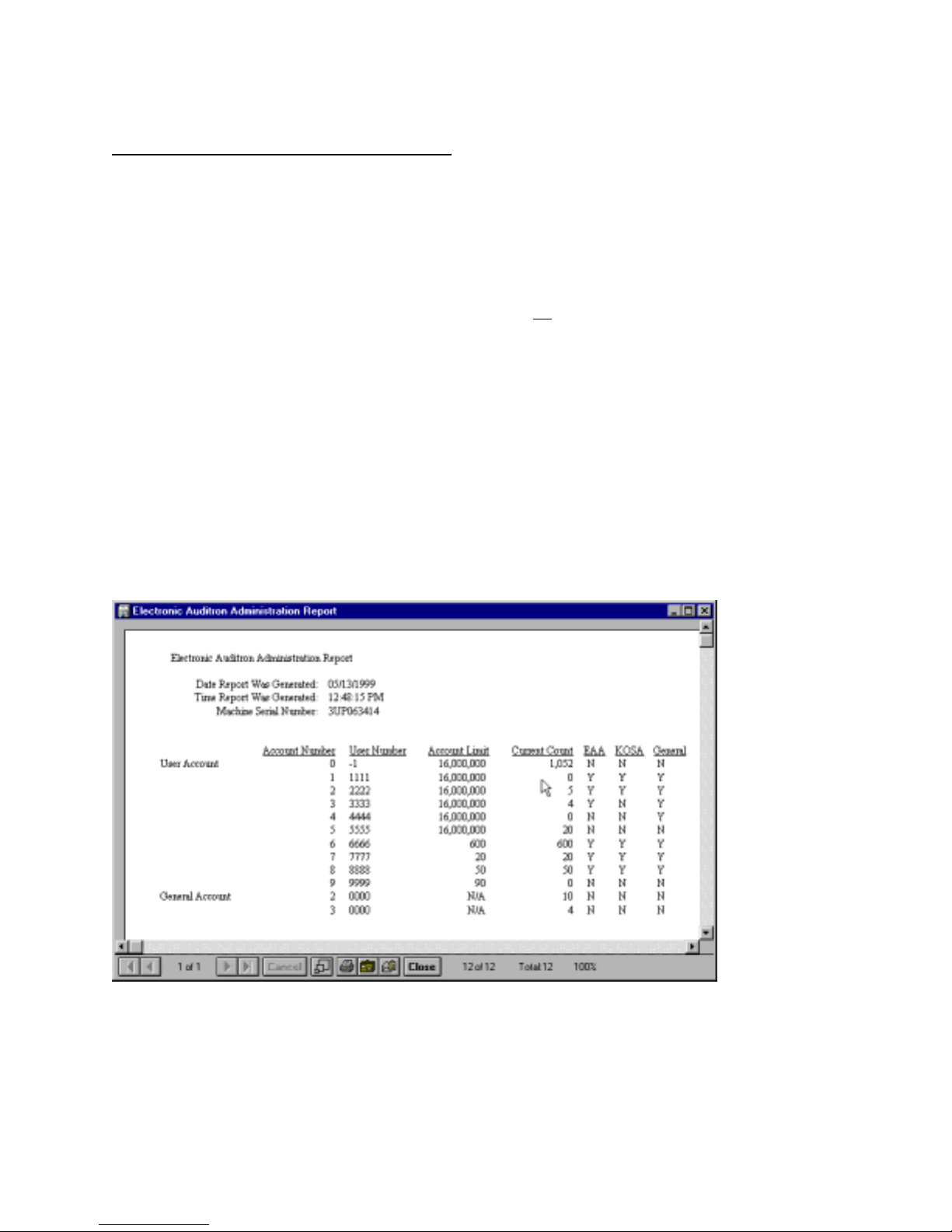

The Electronic Auditron Administration Report shows all of the details of the Active Accounts.
Active Accounts are User Accounts that have a User Number assigned to them or General
Accounts with a Copy Count. Information provided includes:
• User Numbers for all active user accounts (i.e. those with User Numbers assigned)
• the maximum number of copies available to each active User Account
• the Access Rights assigned to each active User Account
• the Current Counter value for each active User Account
• additionally, this report captures the copy counts from all active General Accounts (i.e.
those which have been used and contain a copy count)
This report is only available to someone with Auditron Administrator rights. This software will
collect data only from active accounts. A sample report is displayed below.
5

Note:
EAA stands for Electronic Auditron Administrator (an account with Auditron Administrator access
rights).
KOSA stands for Key Operator / System Administrator (an account with Machine Administrator
access rights to Tools).
General – indicates whether the account has the ability to charge copies to a General Account.
Electronic Auditron Usage Report
The Electronic Auditron Usage Report shows the copy count in each active User Account and
in each active General Account. This report does not include sensitive information, such as User
Numbers, Access Rights, or Account Limits. Anyone with an Auditron account can capture the
data for the Electronic Auditron Usage Report.
6

Types of Auditron Accounts shown on the reports
User Account 0: The Auditron reserves User Account 0 to count copies made when the
Auditron is disabled to accommodate those who may disable off the Auditron during the
working hours and enable during non-working hours. This counter is captured and displayed as
a part of the report and is reset when all Auditron counters are reset.
User Account 1: This account is reserved for the Machine Administrator and always possesses
Machine Administrator and Auditron Administrator access rights. This account will count all
copies made by the Machine Administrator who uses Account 1.
User Accounts 2 and beyond are for other users. The Machine Administrator can authorize
additional access rights including Machine Administrator, Auditron Administrator, and General
Accounts to any of these accounts.
General Accounts: The optional General Accounts can be made available to the owner of any
User Account. Once they have logged on with their User Number, users with General Account
rights can charge copies to any General Account, rather than to their own User Account.
For more information on establishing and using the CopyCentre C65/C75/C90 WorkCentre Pro
65/75/90 Internal Auditron, refer to the Quick Reference Guide.
7

Collecting Data via Serial Cable
To collect data locally, you will need: a 9-pin serial throughput cable and a valid User Number.
1. Locate and open the 3-inch by 3-inch cover at the left rear of the Document Glass cover to
expose two connectors – the smaller one is the 9-pin serial connector.
2. Connect a 9-pin serial throughput cable between the serial connector on the machine and the
PC. This cable will have rectangular connectors on both ends.
3. Select Start, then Programs, and Auditron Report Software to open the Connection
Selection window.
4. In the Connection Selection window, select Local.
If this is the first time this program has been used, the Connection Selection window will
display the default assignments for Local Setup and Remote Setup. Check that the Local
Setup assignment is correct for your computer. Refer to Setup Tips at the end of this
document to determine the port used by your computer’s spare serial connection.
5. Select OK. The PC window will briefly display the configuration of the CopyCentre
C65/C75/C90 WorkCentre Pro 65/75/90 in the Connection Manager window. Select Close
if the Connection Manager screen has not been set to close automatically. If you want the
screen to automatically close, check the Auto Close box.
If the PC is not connected to the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90 at this
time, a window will briefly appear with a message to check the connection. The software
will continually attempt to establish communications. If a successful connection has not
been made within five minutes, the software will cease trying and will leave a window with a
request to Core Functionality not detected, please try again.
8

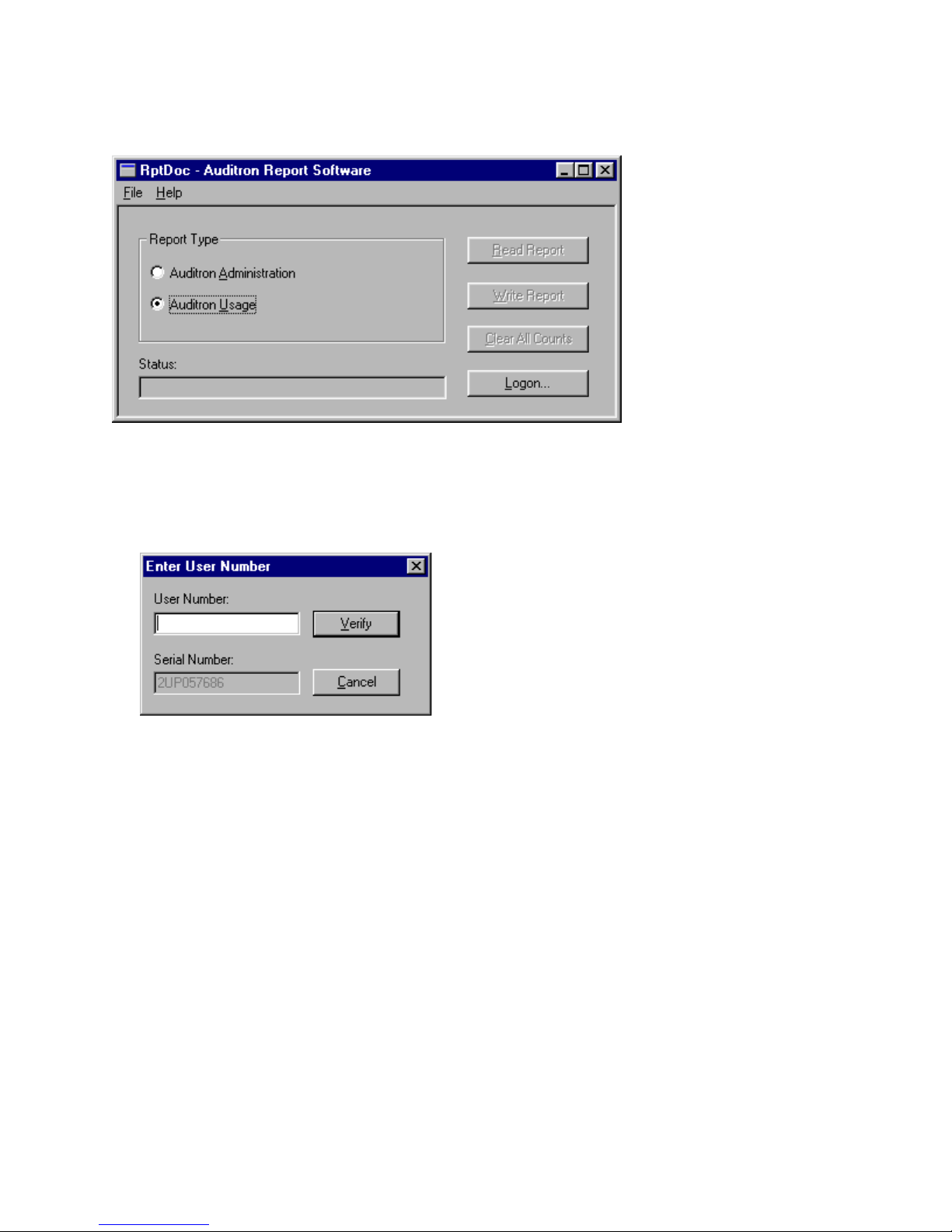

6. Select Logon on the RptDoc window. The Read/Write and Clear All functions will be
available after you logon.
7. Enter the Auditron User Number in the Enter User Number window then select Verify. If
the User Number is valid, the Enter User Number window will automatically close.
If the User Number is not valid, an error message will be displayed. Close the message
window, clear the erroneous User Number, and reenter. Click on the Verify button to
continue.

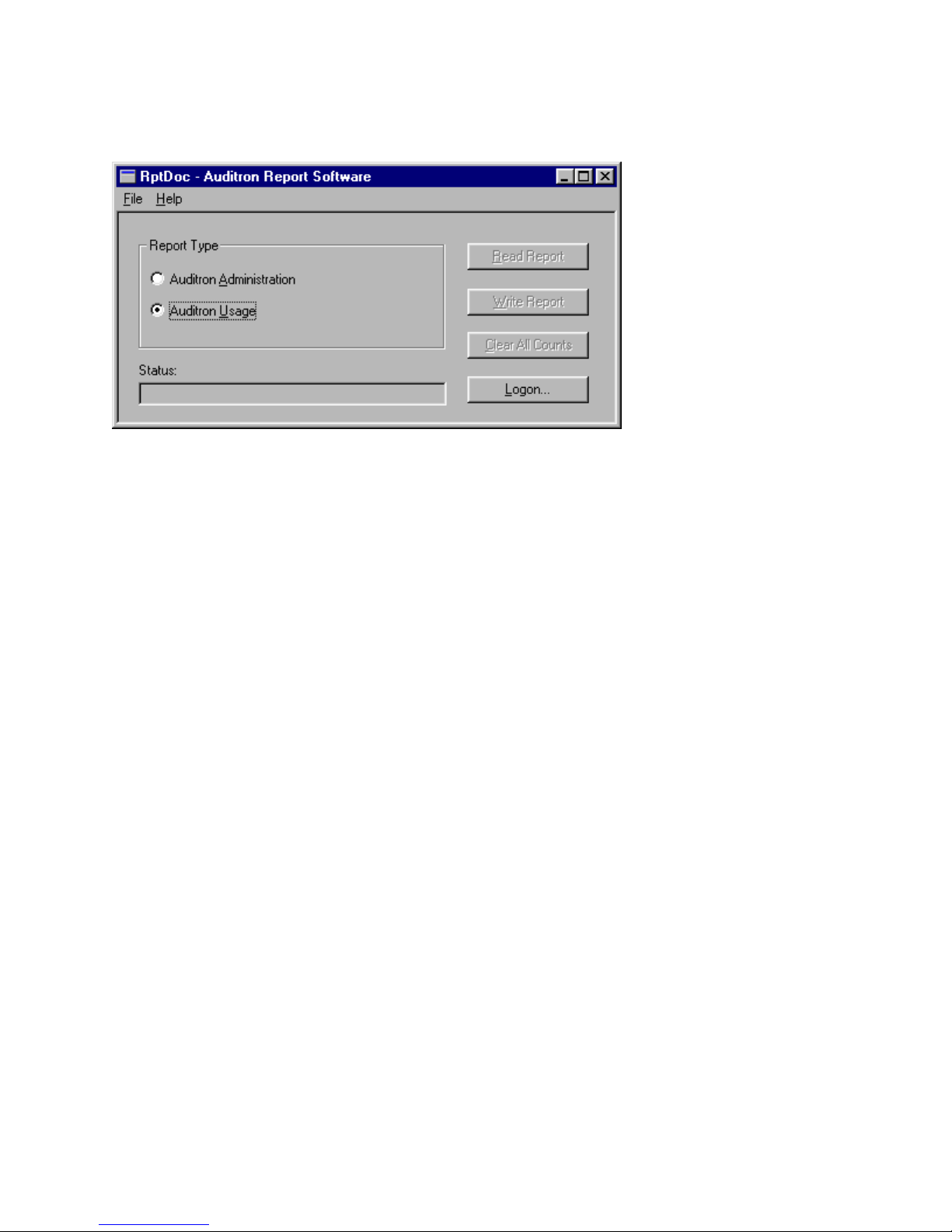

8. Choose either Auditron Administration or Auditron Usage report from the RptDoc window.
If the User Number is associated with a User Account that is assigned Auditron
Administrator rights, you will be able to select either the Auditron Usage Report or the
Auditron Administration Report. If it does not have Auditron Administrator rights, you can
only select the Usage Report.
9

9. Click on the Read Report button.
The program retrieves the data at a rate of approximately two accounts per second. The time
to acquire the data is affected by the number of active accounts in the Auditron. If a total of
250 accounts are active, the data transmission takes slightly over 2 minutes.
When data transmission is complete the report type you selected will be displayed on your
PC screen. You can review it on the screen, print it, or save it as a file.

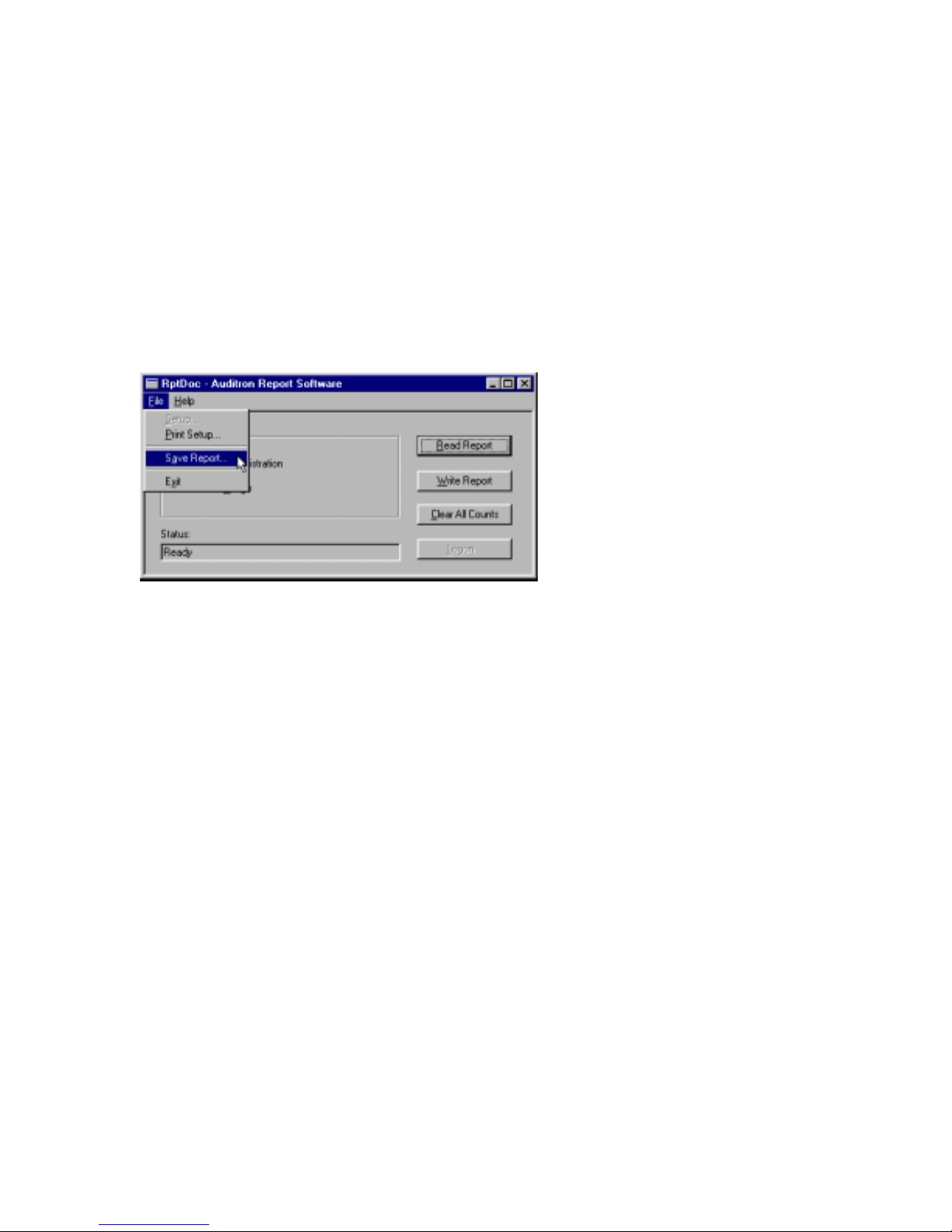

10. Close the Report window. To import this information into a database or spreadsheet
application, first, close the Report window and then click on File, then Save Report in the
RptDoc window.
10

On the Save Report Window, choose either: Microsoft Access Format or Comma Separated
(csv). Note: csv format is appropriate for use with Microsoft Excel and other applications.
Enter the file name and use the Browse button to change the save location. Note: Only
information saved in the csv file format can be transmitted to the CopyCentre C65/C75/C90
WorkCentre Pro 65/75/90.
Click OK. The PC will display a message acknowledging successful copying of the file. You
must close and reopen the program to connect to a different machine.
11. Disconnect the Serial Cable and PC from the machine.
Note: if the Serial Cable is disconnected at any time before the RptDoc window is closed, a
Communication Status window appears and notifies you that communications have been
interrupted. This window may be closed without reconnecting the cable if all of the accounts
have been captured.
11

Data Collection via Modem
You will need the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90 Serial Number, the
phone number for the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90, and a valid Auditron
User Number to successfully collect Auditron data via the telephone connection.
1. Ensure that the PC’s modem is connected to the phone line.

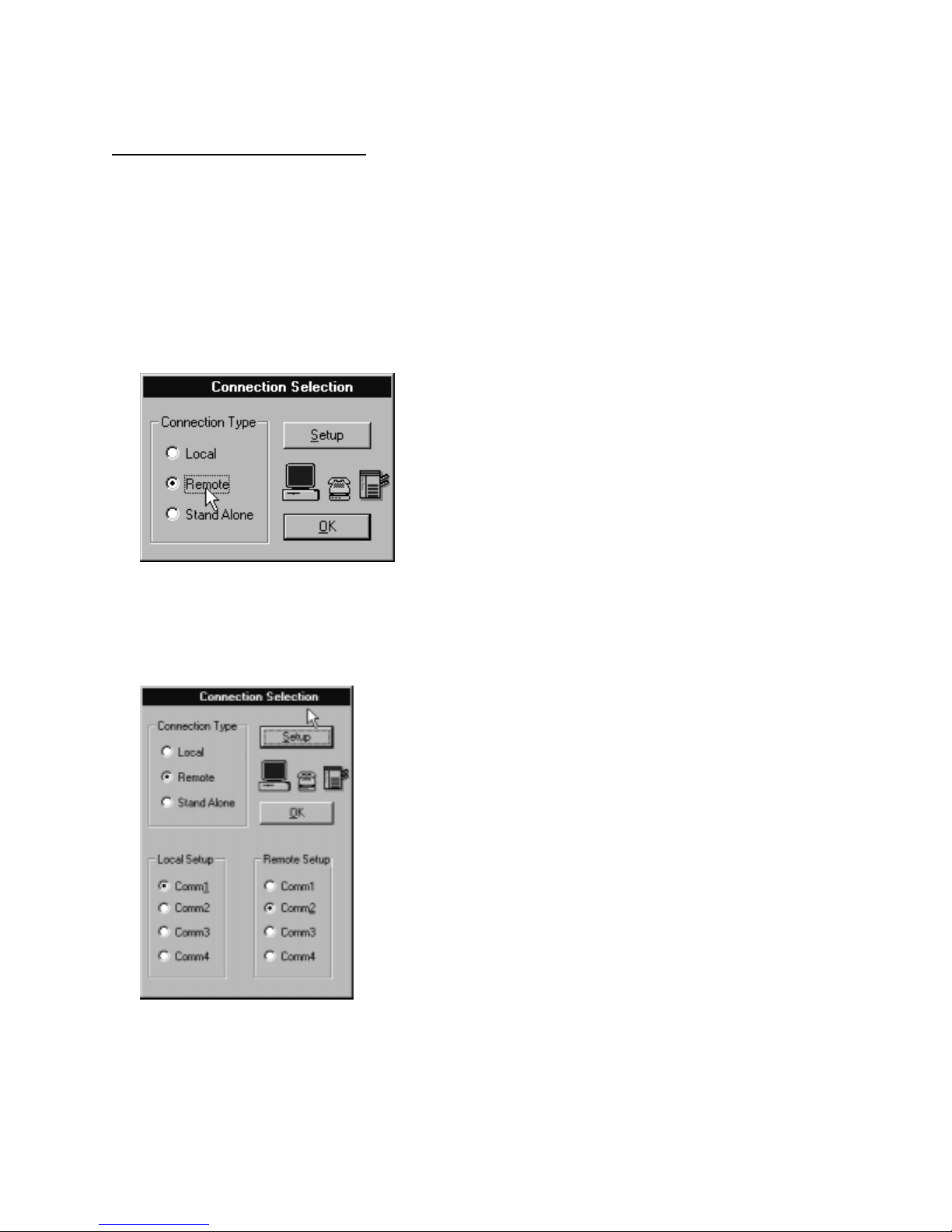

2. Select Start, then Programs, and then Auditron Report Software to display the Connection
Selection window.
3. Select Remote.
If this is the first time this program has been used, the Connection Selection window will
display the default assignments for Local Setup and for Remote Setup. Check that the
Remote Setup matches the actual port used by your PC’s modem. Refer to Setup Tips at the
end of this document to determine the Port that your modem uses.
Note: The local and remote ports
assigned must be different.
12

4. Select OK.

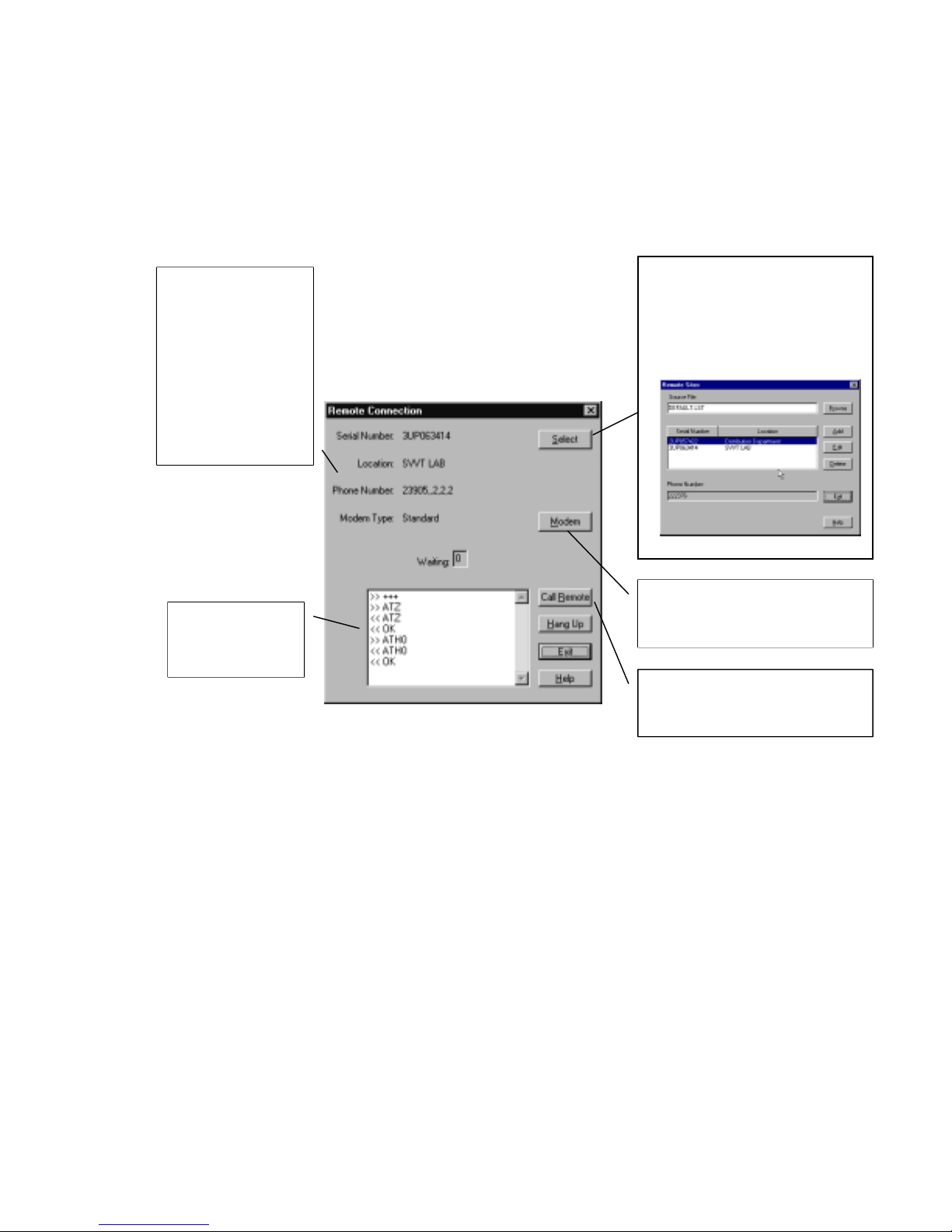

The Remote Connection window will appear.
The window will accept commands after a string of modem validation commands have
stopped and <<OK is displayed. This may take approximately 20 seconds.
Press the Select button to
access the Remote Sites
window. Use the
add/edit/delete buttons to
change the Remote Sites list
Modem
validation
commands
Access to advance modem
commands
Click to dial the currently
displayed location
Information for the
last location dialed
If this is the first
time the program is
used, the words No
E
ntr
y
will be
displayed.
Click the Select button to select a different machine to access. You can also add/edit/delete
dialing information for other machines.
If you want to call the phone number that is displayed in the window, click on the Call
Remote button.
Click on Exit when finished with this screen.
Note: If a call is not initiated within five minutes, a window will appear with a message –
Core functionality was not detected – please try again. The program will close, requiring
you to start again.
13

Use the following examples when entering the telephone numbers.
Local number When calling numbers connected to your local exchange simply enter
the telephone number. Entering 555-1212 would dial number 555-
1212. If your exchange allows the use of abbreviated numbers simply
enter the abbreviated number.
External number When calling a number that requires a dialing prefix to access an
outside line, simply add the additional number and a comma. For
example, entering 9,555-1212 would dial 9 (to gain access to outside
line), then pause for two-seconds (to wait for an outside line), then dial
555-1212.
Phone Share Device When calling a machine that is on a line sharing device such as the
Xerox Phone Share or the Stealth AccuPol-3 (with the machine plugged
into address 2 on the device), Entering 555-1212,,2,2,2 would dial 555-
1212, then pause four seconds (to wait for the call to go through), then
dial 2 to connect to the CopyCentre C65/C75/C90 WorkCentre Pro
65/75/90.
Note:
- The ,, provides enough time for the line sharing device to respond to
the call
- The last sequence of ,2 is repeated three times to ensure reliable
connection to the machine.
5. Select Call Remote and wait for the next window to appear. The connection is established
when <<Connect 19200 is displayed. The modem connection speed display may differ
depending upon your modem and line conditions.
If any of the following error signals occurs, check the indicated causes and retry.
• If the message No Dialtone is displayed, your PC’s modem may not be connected to
the phone line.
• If the message No Carrier is displayed, your CopyCentre C65/C75/C90 WorkCentre
Pro 65/75/90 may not be connected to the phone line or it may be turned off. The
Reference Guide shows the location of the phone line connection to the CopyCentre
C65/C75/C90 WorkCentre Pro 65/75/90 in the Activating the Sixth Sense… section.
• In either of these error conditions, a window may eventually appear with a message:
Cannot Establish Reliable Connection.
14

6. Upon successful connection, the Connection Manager window will briefly display the
configuration of the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90.
Select OK if the Connection Manager screen has not been set to close automatically. If you
want the screen to automatically close, click on the Auto Close box.
7. Select Logon on the RptDoc window to display the Enter User Number window.
8. Enter a valid User Number and correct Serial Number in the Enter User Number window.
Click on the Verify button to proceed.
• When the User Number and Serial Number are validated, the Enter User Number
window will close and the RptDoc window remains open.
• If either is not valid, an error message will be displayed. Close the message window,
clear the erroneous User Number or Serial Number, and reenter. Click on Verify to
continue.
If the User Number is associated with a User Account that is assigned Auditron
Administrator rights, you will be able to select either the Auditron Usage Report or the
Auditron Administration Report. If it does not have Auditron Administrator rights, you can
only select the Usage Report.
15

9. Select Report Type: either Auditron Administration or Auditron Usage report.
The Auditron Administration Report lists detail for all the Auditron’s User Accounts that
have a User Number assigned, including User Access numbers, Account Limits, and Access
Rights. It will also display General Account information if they are active.
The Auditron Usage Report only lists the copy count in each active User Account and in
each active General Account. See page 3 of this document for more detailed information.
10. To download information from the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90,
select Read Report.
The program retrieves the data at a rate of approximately one account per second. The more
accounts you retrieve, the longer your connection time.
When data transmission is complete, the program will build the report you selected. You can
review it on the screen or print it.
16

To save a report, so you can import the information into a database or spreadsheet
application, first, close the Report window and then click on File, then Save Report in the
RptDoc window.
Choose either: Microsoft Access Format or Comma Separated (csv). Note: Only
information saved in the csv file format can be transmitted to the CopyCentre C65/C75/C90
WorkCentre Pro 65/75/90.
Use the Browse button to navigate to the location where you wish to save your file. Enter the
file name and Click OK. The PC will display a message acknowledging successful copying
of the file. You must close and reopen the program to connect to a different machine.
17

Processing Information Offline
After the information is collected, it can be imported into a variety of off-the-shelf software
applications where it can be processed further.
After you save the file, simply import the data file into your application. The illustration
below shows how a csv file will appear after it has been imported into Microsoft Excel.
Tips for modifying the data file
• After you import it into your application, you will probably need to adjust row and column
widths in order to see all the data.
• To add additional accounts, copy a row with the type of account you desire and paste it in the
new location. Edit the pasted rows as appropriate. At a minimum, the account number and
User Number will need to be changed.
• User Numbers cannot be repeated or contain non-numeric characters.
• Under Account Type, the number 1 indicates a General Account and 0 indicates a User
Account. If the access information is blank and the file is written to the CopyCentre
C65/C75/C90 WorkCentre Pro 65/75/90, the machine will assume no access is required.
• Under the Access Columns (Auditron Administrator, Machine Administrator and General
Accounts), 1 indicates access permitted, and 0 indicates no access.
18

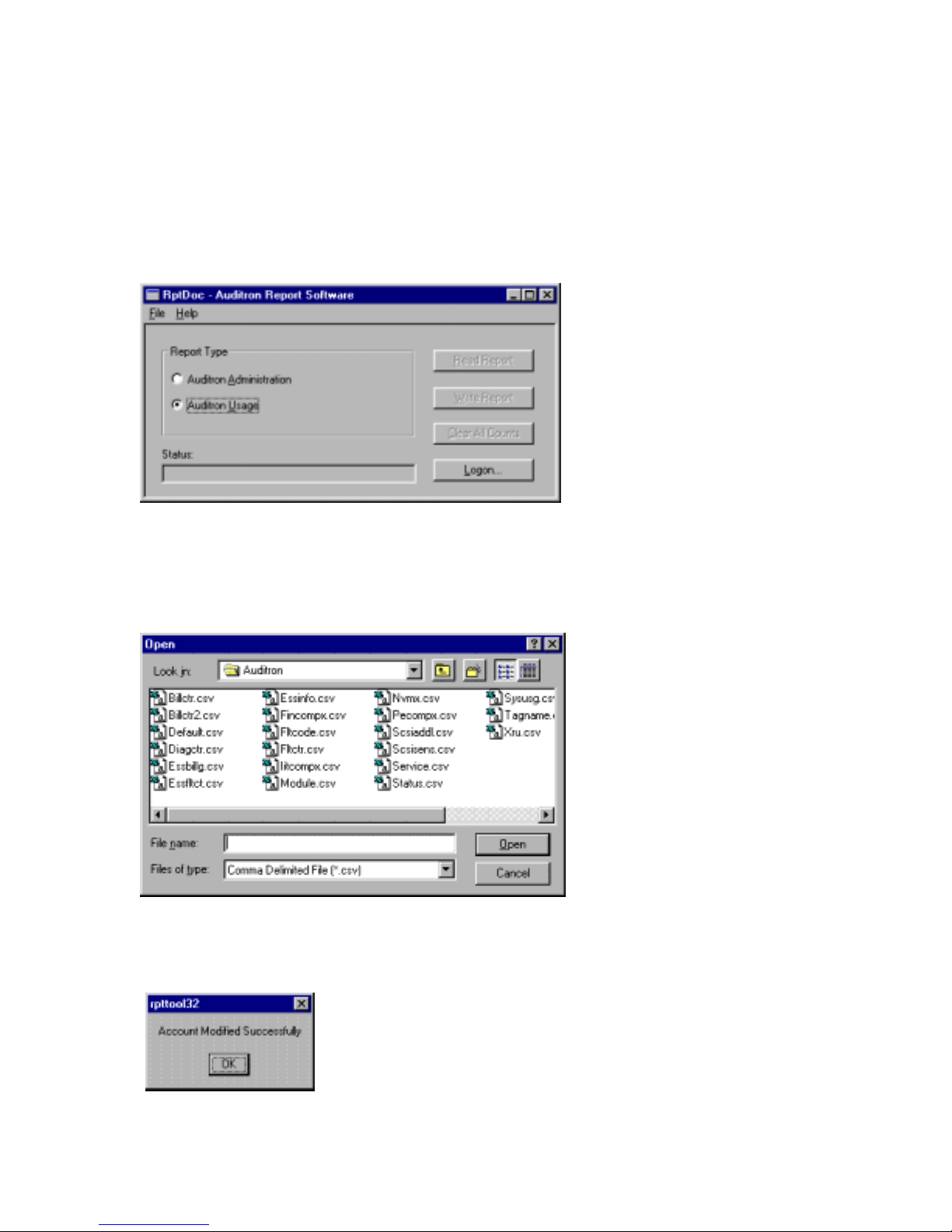

Writing Information to the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90
To write data to the CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90, you require a User
Number with Electronic Auditron Administrator rights and a CSV formatted file containing the
same information as an Auditron Administration report.
1. Simply click on the Write Report button on the RptDoc screen.
2. An Open window will appear allowing you to select the appropriate file. Select a CSV
formatted file.
3. Click the Open button, and the data will automatically transfer to the CopyCentre
C65/C75/C90 WorkCentre Pro 65/75/90. A message will appear when the transfer is
completed.
19

Troubleshooting for writing a file to the CopyCentre C65/C75/C90 WorkCentre Pro
65/75/90
If you tried to write information to the CopyCentre C65/C75/C90 WorkCentre Pro
65/75/90 and received an error message, check for the following.
1. There cannot be any repeated User Numbers.
2. The User Number 1111 is reserved for account number 1. It cannot be used for any
other account.
3. There may be a typo such as non-numeric characters in the User Number or other
input field.
4. The User Number cannot be greater than 12 digits.
5. The number of accounts you are trying to write to the CopyCentre C65/C75/C90
WorkCentre Pro 65/75/90 is greater than the number of accounts initialized on the
Auditron system. For information on initializing the Auditron to create potential user
and general Accounts, refer to the CopyCentre C65/C75/C90 WorkCentre Pro
65/75/90 Reference Guide.
6. Only a csv file created from an Auditron Administration Report can be written to the
CopyCentre C65/C75/C90 WorkCentre Pro 65/75/90. It must contain all the columns
in an Auditron Administration report. An Auditron Usage Report in csv format
cannot be written to the machine.
Clear All Accounts
20
