Xycom 3510T User guide

3510T/3510KP &
3512T/3512KP
Flat-Panel Industrial PCs
P/N 350003A


1999 XYCOM AUTOMATION AUTOMATION, INC. Printed in the United States of America

Xycom Automation Revision Record
Revision Description Date
A Manual Released 5/99
Trademark Information
Brand or product names are registered trademarks of their respective owners.
Windows is a registered trademark of Microsoft Corp. in the United States and other countries.
Copyright Information
This document is copyrighted by Xycom Automation Incorporated (Xycom Automation) and shall not be
reproduced or copied without expressed written authorization from Xycom Automation.
The information contained within this document is subject to change without notice. Xycom Automation
does not guarantee the accuracy of the information.
United States FCC Part 15, Subpart B, Class A EMI Compliance Statement:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
For European Users - WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
INSTALLATION: Electromagnetic Compatibility WARNING
The connection of non-shielded equipment interface cables to this equipment will invalidate FCC EMI and European Union EMC
compliance and may result in electromagnetic interference and/or susceptibility levels which are in violation of regulations which
apply to the legal operation of this device. It is the responsibility of the system integrator and/or user to apply the following
directions which relate to installation and configuration:
1. All interface cables must include shielded cables. Braid/foil type shields are recommended. Communication cable connectors
must be metal, ideally zinc die-cast backshell types, and provide 360 degree protection about the interface wires. The cable
shield braid must be terminated directly to the metal connector shell, ground drain wires alone are not adequate.
2. Protective measures for power and interface cables as described within this manual must be applied. Do not leave cables
connected to unused interfaces or disconnected at one end. Changes or modifications to this device not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
3. EMC compliance is, in part, a function of PCB design. Third party add-on AT/XT peripheral PCB assemblies installed within
this apparatus may void EMC compliance. FCC/CE compliant PCB assemblies should always be used where possible.
XYCOM AUTOMATION can accept no responsibility for the EMC performance of this apparatus after system integrator/user
installation of PCB assemblies not manufactured and/or expressly tested and approved for compliance by XYCOM
AUTOMATION. It is the responsibility of the system integrator/user to ensure that installation and operation of such devices
does not void EMC compliance.
Xycom Automation
750 North Maple Road
Saline, MI 48176–1292
734-429-4971 (phone)
734-429-1010 (fax)

i
Table of Contents
Chapter 1 - Introduction ..........................................................................................................................1-1
Product Overview .................................................................................................................................................. 1-1
Standard Features................................................................................................................................................ 1-1
Optional Features................................................................................................................................................ 1-3
Unpacking the System ........................................................................................................................................... 1-3
Quick Start-up........................................................................................................................................................ 1-4
Chapter 2 - Testing ...............................................................................................................................................2-1
Preparing for the Tests ....................................................................................................................................... 2-1
Running the Tests ............................................................................................................................................... 2-3
Chapter 3 – Installation............................................................................................................................3-1
3510T/12T Front Panel.......................................................................................................................................... 3-1
3510KP/3512KP Front Panel.............................................................................................................................. 3-2
I/O Panel ............................................................................................................................................................. 3-4
Back Panel .......................................................................................................................................................... 3-5
Power Panel ........................................................................................................................................................ 3-6
Preparing the System ............................................................................................................................................. 3-8
Installing Internal Hardware Options..................................................................................................................... 3-8
DRAM and Additional DRAM Single In-line Memory Modules (SIMMs) ....................................................... 3-8
PC/AT and PCI Boards....................................................................................................................................... 3-9
Installing External Hardware Options.................................................................................................................... 3-9
External Floppy................................................................................................................................................... 3-9
Front Connector Access.................................................................................................................................... 3-12
Custom Logo..................................................................................................................................................... 3-12
Customized Keypad Inserts (3510KP/3512KP only)........................................................................................ 3-13
Installing Operating Systems ............................................................................................................................... 3-15
Installing Drivers ................................................................................................................................................. 3-15
Video Drivers.................................................................................................................................................... 3-16
Touchscreen Drivers ......................................................................................................................................... 3-16
Miscellaneous Drivers....................................................................................................................................... 3-18
Using a Touchscreen............................................................................................................................................ 3-19
Using a Pointing Device with a Touchscreen.................................................................................................... 3-20
Calibrating the Touchscreen ............................................................................................................................. 3-20
Installing the System into a Panel ........................................................................................................................ 3-20
Mounting Considerations.................................................................................................................................. 3-21
System Power.................................................................................................................................................... 3-22
Excessive Heat.................................................................................................................................................. 3-22
Electrical Noise................................................................................................................................................. 3-22
Line Voltage Variation...................................................................................................................................... 3-23
Mounting the Unit............................................................................................................................................. 3-26
System Cutout Dimensions ............................................................................................................................... 3-27
Power Supply....................................................................................................................................................... 3-28

3510T/3510KP/3512T/3512KP System Manual
ii
Hazardous Locations Installations ....................................................................................................................... 3-28
Safety Agency Approval ...................................................................................................................................... 3-29
Definitions ........................................................................................................................................................ 3-32
Enclosures......................................................................................................................................................... 3-33
Power Switch .................................................................................................................................................... 3-33
Cable Connections ............................................................................................................................................ 3-33
Operation and Maintenance .............................................................................................................................. 3-34
Chapter 4 – Keypad Utility Program (3510KP/3512KP) ........................................................................4-1
Loading the PKIM Utility...................................................................................................................................... 4-1
Using the Keypad Utility ....................................................................................................................................... 4-1
Utility Batch Mode ............................................................................................................................................. 4-2
Main Menu............................................................................................................................................................. 4-2
Exit...................................................................................................................................................................... 4-3
Files Menu .......................................................................................................................................................... 4-3
Macros Keypad Type Menu................................................................................................................................ 4-3
Macros Edit Menu .............................................................................................................................................. 4-4
Upload Menu ...................................................................................................................................................... 4-6
Download Menu.................................................................................................................................................. 4-7
Utilities Menu ..................................................................................................................................................... 4-7
Codes ................................................................................................................................................................... 4-77
Chapter 5 – Maintenance .........................................................................................................................5-1
Preventive Maintenancs ......................................................................................................................................... 5-1
Fuse Replacement ............................................................................................................................................... 5-1
Fan Filter Replacement ....................................................................................................................................... 5-2
Chemical Compatibility ...................................................................................................................................... 5-2
Compatible Lubricants........................................................................................................................................ 5-3
Compatible Cleaning Agents .............................................................................................................................. 5-4
Non-compatible Cleaning Agents ....................................................................................................................... 5-4
Spare Parts List ................................................................................................................................................... 5-4
Product Repair Program/Returning a Unit to Xycom Automation...................................................................... 5-5
Appendix A – Technical Specifications................................................................................................. A-1
Appendix B – Block Diagram.................................................................................................................. B-1
Appendix C – Pinouts.............................................................................................................................. C-1
Appendix D - Replacing Flat Panel Display Bulbs ............................................................................... D-1

1-1
Chapter 1 - Introduction
Product Overview
The 3510/3512 Flat-panel Industrial Computers combine a PC/AT™ computer with
a flat-panel display to offer a powerful, compact package for the factory floor and
other harsh environments. The PC features an open architecture to meet a wide
variety of applications that require both a powerful PC and a durable industrial
enclosure. The system integrates a computer card cage, mass storage, display, and
power supply in a truly industrial form factor.
The 3510/3512 systems include:
•A three-slot ISA/PCI backplane which accommodates ¾ length expansion cards
•Flat panel displays
•3510 – 10.4” – 640x480 VGA (TFT)
•3512 – 12.1” – 800x600 SVGA (TFT)
•Touchscreen versions 3510T/3512T
•Keypad version (3510KP/3512KP)
•Keypad and touchscreen units (3510KPT/3512KPT)
•Hard disk drive facilities
The front panels of the units are sealed to NEMA 4/4X/12 and IP65 (3510/3512
only), standards and are protected by an impact-resistant shield. The 3510KP and
3512KP versions are sealed to NEMA 4/4X/12.
The processor board combines all the functions of a complete IBM PC/AT
compatible computer on a single industrially hardened circuit board. Refer to the
Xycom CPU manual for more information on processor and hardware features.
The system’s modular design allows easy access to expansion boards, switches,
power supply, flat-panel display, and disk drives.
Standard Features (3510)
The 3510 units come standard with the following CPU:
•AHIP4+ board high performance 133 MHz, AMDAm5x86CPU
•72-pin EDO DRAM SIMM supports (16, 32, and 64 Mbytes)
•32-pin CMOS RAM site

3510T/3510KP/3512T/3512KP System Manual
1-2
•PCI 64 bit video controller, 1 Mbyte video RAM
•PCI local-bus IDE controller
•Two serial COM ports with one as RS-232 and one configurable as RS-
232, or RS-485
•Parallel port
•VGA port
Standard Features (3512)
The 3512 units come standard (optional on 3510) with the following CPU:
•AHIP6+ CPU
•Celeron ® or Pentium II technology
•PCI 64 bit video controller, 2 MB video RAM
•PCI local-bus IDE controller
•Two 168-pin SDRAM DIMMs that support 32, 64, 128, and 256 MB
options
•Two USB ports
•100MHz front side bus with Pentium II processors
Standard Features (Both Units)
•Flash BIOS
•5.75” mounting depth (6.5” with external floppy option)
•External floppy connector
•Flat-panel display
•10.4” TFT or 10.4” active color TFT (640x480) (3510)
•12.1” TFT or 12.1” active color TFT (800x600) (3512)
•Three AT bus ¾ length expansion slots
•Two ISA slots
•One ISA/PCI slot
•IR Port (IrDA, HPSIR, AND ASKIR compatible)
•Rear PS/2 keyboard port and mouse port (also front PS/2 keyboard port on
3510KP and 3512KP)

Chapter 1 – Introduction
1-3
•Keypads (3510KP/3512KP)
•32 relegendable function keys (64 with the F/A function)
•Numeric, PC control, and Alpha keypads
•Status LEDs
•Power
•Disk
•Com
•Input
•3.5” external floppy option, side access
•MS-DOS (if Windows 95 or Windows NT®is ordered, MS-DOS is not
included)
•3510/3512 front panel sealed to meet NEMA 4/4X/12 and IP65 specifications
when panel mounted
•3510KP/3512KP (KPTs) front panel sealed to meet NEMA 4/4X/12
specifications when panel mounted
•UL listed for use in Class I, Division 2 hazardous locations (not available on
units with fieldbus or control option boards installed)
Optional Features (All Units)
Following are optional features available for the units:
•Processor speed options
•Touchscreen-resistive technology with less than 1.5% linearity error
•9460-DRVNT, Windows NT touchscreen driver (included if Windows NT is
ordered preinstalled)
•9460-DRVOS/2 touchscreen driver
•Larger capacity IDE hard drives and solid state drives
•Preinstalled Windows 95 or Windows NT
•9000-EXF, hot installable external floppy drive
•9000-FKA, NEMA 4 front access panel for floppy port and keyboard port
•9000-RF1 19-inch Rack Mount Adapter Plate (9460, 9462)
•9000-FFK Front Floppy Kit
•9000-RFC 19-inch Floppy Door Plate

3510T/3510KP/3512T/3512KP System Manual
1-4
•2005-RMA 19 inch Rack Mount Adapter Plate (3510KP, 3512KP)
Unpacking the System
When you remove the system from its box, verify that you have the parts listed
below. Save the box and inner wrapping in the event you need to reship the unit.
•3510T/3512T or Keypad version
•Documentation kit, which includes:
•Power connector
•Diagnostic software diskette
•14 10-32 hex nuts (2 spares)
•Clip-on Ferrite for mouse cables
•Cable clamp and screw (for strain relief of power cord)
•3510/3512 manual
•CPU manual (CD-ROM)
•Utility diskettes
•Business reply card
If you ordered the system with a touchscreen installed, you will also receive a
touchscreen driver diskette and manual.
Quick Start-up
This section gives you the steps to get the systems up and running without explaining
the capabilities and options of the system.
Warning
Turn off power to the unit and disconnect the power cord before making any
adjustments to the inside or outside of the computer.
To prepare the system for use, perform the following steps.
1. Attach optional keyboard to the keyboard port.
2. Attach other optional equipment following the instructions in Chapter 3.
3. Attach the power cord from the power receptacle to a properly grounded 115/230
VAC, 50-60 Hz outlet, or 24 VDC outlet, whichever applies. (See Chapter 3,
Creating a Power Cable.)

Chapter 1 – Introduction
1-5
4. Turn on the power to the unit. The system will boot up into the operating system.
5. Install application software via the external floppy, the network, or the IR port.

2-1
Chapter 2 - Testing
On units with MS-DOS, Xycom Automation provides diagnostic tests to verify the
operation of the system hardware functions. If any of these tests fails, either you do
not have the correct default setting or there is a failure. Check the default settings
and run the tests again. If another failure occurs, contact Xycom Automation’s
Product Repair & Customization Department (see Chapter 5).
Note
Remove device drivers and memory resident programs (TSRs) that are
installed on your system before you run Xycom diagnostics. If you do
not, unexpected failures may occur.
Make sure the BIOS setup menus are configured properly (factory-set configuration).
To enter the BIOS setup menus,
•Press F2 after the POST RAM test has completed.
•Make the necessary changes by following directions on the screen.
•Press ESC.
•Press ENTER twice to save the settings and exit.
Refer to your CPU manual for more information on the Setup Menu.
Preparing for the Tests
To test your system, you need the following equipment:
•Floppy disk drive
•IBM PC/AT or PS/2-compatible
•Xycom System Test Disk 3.5 inch, DS/DD disk (bootable), Xycom part number
99290-001
•Centronics-compatible printer cable
•Parallel printer (Centronics-style interface)
•Two serial loopback test connectors (refer to Figure 2- 1 for pinouts)
•Formatted 3.5-inch, DS/HD (1.44 Mbyte) disk

2-2
3510T/3510KP/3512T/3512KP System Manual
Perform the following steps before starting the system tests:
1. Place the CPU board jumpers and switches to the factory set positions. Refer to
your CPU manual for these settings.
2. Plug the female end of the AC power cable into the side of the unit and the male
end into a properly grounded outlet.
3. Connect the serial loopback connector(s) and the printer cable to the appropriate
connectors and connect a PC/AT or PS/2 keyboard. Figure 2-1, Serial Loopback
Connections, illustrates the wiring necessary for the loopback connection.
4. Default the CMOS setup to the factory settings.

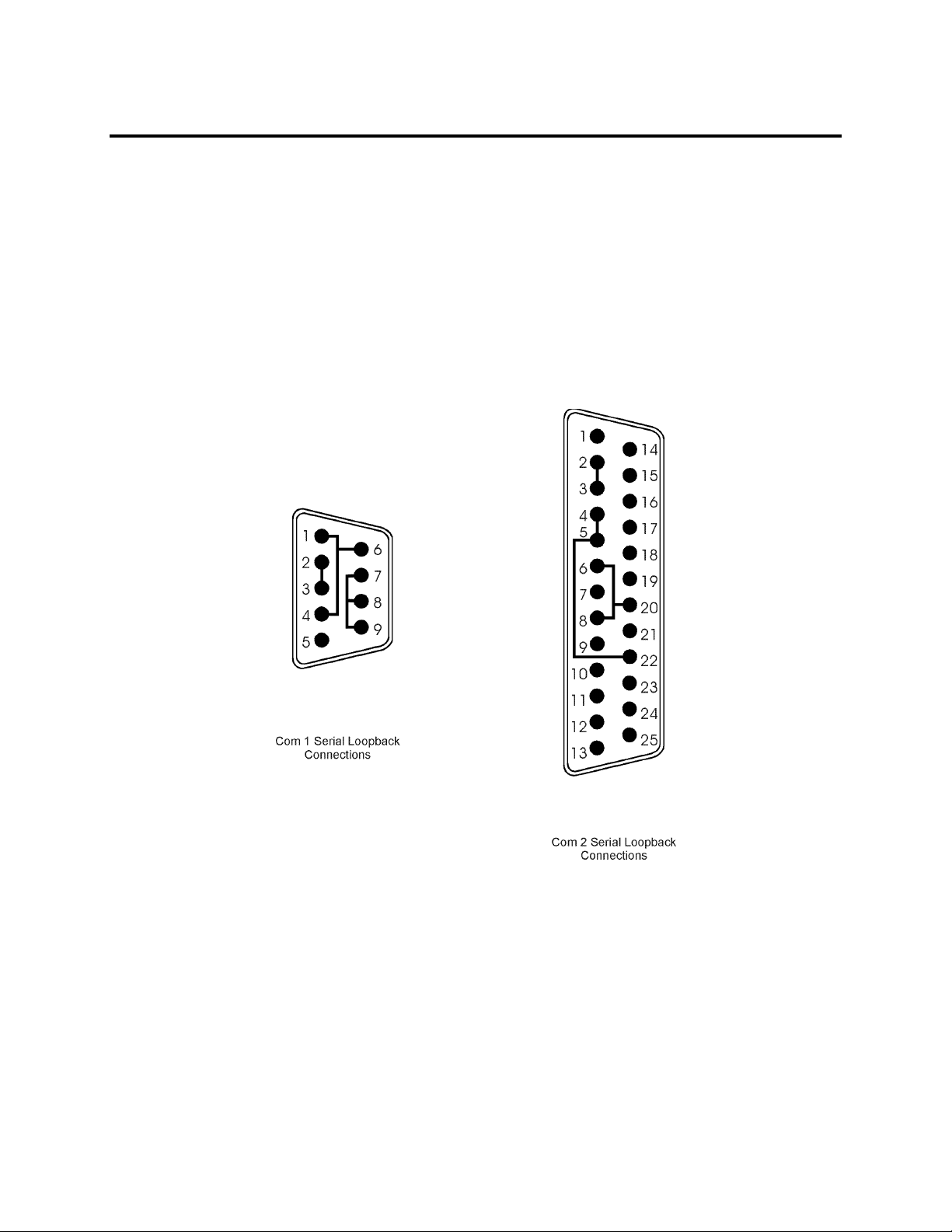

Figure 2- 1. Serial Loopback Connections

2-3
Chapter 2 - Testing
Running the Tests
To run the test, insert the diagnostics disk into drive A. Turn on the computer (the
diagnostics program will boot-up). Figure 2- 2 shows the Main Menu.
Copyright 1990-1996, Xycom, Inc. All rights reserved.
Diagnostic Tests Sequence/Selection Menu (Rel. xx)
1. WILL pause on error
2. SINGLE PASS test mode
3. Save setup to file
4. Extract setup from a file
5. Auto-select tests
6. Deselect all tests
7. Quit and exit to DOS
8. Return to previous screen
A) RAM Test
B) Video RAM Test
C) Extended RAM Test
D) Real Time Clock Test
E) COM1 Serial Port Test
F) COM2 Serial Port Test
G) COM3 Serial Port Test
H) COM4 Serial Port Test
I) Math Coprocessor Test
J) Video Adjustments Test
K) Video Interface Test
L) Speaker Port Test
M) LPT1: Printer Port Test
N) LPT2: Printer Port Test
O) C: Hard Drive Interface Test
P) D: Hard Drive Interface Test
Q) A: Floppy Drive Interface Test
R) B: Floppy Drive Interface Test
S) Keyboard, Keypad Tests
≡= Test Selected
[ENTER]=START TESTING
Use the letters to move the cursor and select/deselect, or use the arrow keys to move,
then use the [SPACE] key to select/deselect a test or function.
Figure 2- 2. Main Menu
Note
Please read the DIAG.TXT file on the diagnostics disk for detailed
information about the tests.
Note
Avoid repeated running of any hard disk diagnostic utility, if you use the
Solid State (Flash) drive option. The Flash drive has a limited number of
writes to each logical sector. Repeated writes from a diagnostic utility
will prematurely shorten the life of the drive.

3-1
Chapter 3 – Installation
This chapter illustrates the installation of and the options for the 3510/3512. The
figures on the next several pages show the internal and external components on the
front and back panels of the unit to help you locate features relevant to installation.
Front Panel
The 3510 and 3512 come with a NEMA 4/4X/12 and IP65 sealed front panel. The
panel protects the system’s interior when the system is properly panel mounted.
3510/12 Front Panel
Figure 3-1. 3510/3512 Front Panel
Feature Description
Display The 3510 comes with a 10.4-inch TFT Active Matrix Color LCD flat panel.
Impact-resistant shields protect the displays from breakage. The 3512
comes with a 12.1” TFT Active Matrix Color LCD flat panel. Impact-
resistant shields protect the displays from breakage. If a touchscreen is
factory installed, the touchscreen is backed by heat-annealed safety glass
replacing the impact-resistant shield.

3510/3510KP/3512/3512KP System Manual
3-2
Feature Description
Diagnostic LEDs Following is a description of the LEDs and what it means when they're lit:
Power Lit when the system has power
Disk Lit when the computer is accessing the disk drive
COM Lit when there is communication activity on one of the serial ports,
including communication between the computer module and the
touchscreen (if on COM2) or a serial mouse.
Input Lit when the unit has a touchscreen (LED gets brighter when a
touch input is detected) or a key is pressed
During power-up, firmware on the processor board checks the hardware
configuration against the configuration stored in the CMOS memory.
IR (Infrared) The IR port transceiver is located behind this window. The IR port is IrDA
and ASKIR compliant. You can connect the unit to any IrDA compatible
device. You must load special software (not included) to use this feature.
The infrared (IR) link is designed to operate at a distance of 0 to 1 meter.
Enable the interface through the BIOS setup menu. Note: When the IR
port is chosen in the system BIOS, COM2 is not available.
Keyboard Port Access
(Optional front access)
The 3510/3512 supports one PS/2 keyboard. Front access options are
available with the use of the 9000-FKA Front floppy/keyboard access kit
(not shown). The access is a PS/2 stacked mini-din located on the side of
the unit. Warning: To maintain safe conditions, do not use an external
keyboard and/or mouse port when the unit is operating in a hazardous
environment.
Floppy Disk Drive (Optional) The 3510/3512 has front access options available. (Refer to the External
Floppy Option section within this chapter.)
3510KP/3512Kpand 3510KPT/3512KPT Front Panel
The 3510KP/3512KP comes with a NEMA/4/4X/12 sealed front panel. The panel
protects the system’s interior when the system is properly panel mounted. Figure 3-2
illustrates the front panel with keypad.

Chapter 3-Installation
3-3
Figure 3-2. 3510KP/12KP Front Panel
Feature Description
Display The 3510KP/3512KP comes with a 10.4-inch (640 x 420) TFT
flat panel display or a 12.1-inch SVGA (800 x 600) TFT flat
panel display.
Diagnostic LEDs The 3510KP/3512KP features status LEDs on the front panel,
which allow you to monitor system operation. Following is a
description of the LEDs and what it means when they're lit:
Power Lit when the system has power
Disk Lit when the computer is accessing the disk drive
COM Lit when there is communication activity on one of the
serial ports, including communication between the
computer module and the touchscreen (if on COM2) or a
serial mouse.
Input Lit when the unit has a touchscreen; the LED gets
brighter when a touch input is detected or a key is
pressed.
F/A key Indicates the keypads are in alpha mode
Function and User-Defined Keys These 32 relegendable function keys (64 using the F/A keys)
provide easy access to familiar routines. (F/A keys can be used
for alpha and symbol entry). See the Customizing Keypad
Inserts section in this chapter for details on customizing your
keypad inserts.
Numeric/Cursor Control Keypad The purpose of data entry keypads are for entering data and
moving the cursor.
PF10 Key (Keypad Configuration Key) This key reconfigures your keypad.

3510/3510KP/3512/3512KP System Manual
3-4
Feature Description
Keyboard Port (3510KP/3512KP)
(front access)
The 3510KP/3512KP provides both front and rear accessible
PS/2 keyboard connectors. The front accessible connector is
located on the lower right side of the front panel. The rear
accessible connector is located on the side of the unit.
Note: Only one keyboard port on the 3510/3512KP can be used
at a time.
Note: The installation of the touchscreen driver determines
whether a second pointing device will function correctly. If you
are using a mouse with a touchscreen, please review the
Touchscreen Driver Installation instructions.
I/O Panel
COM 2
RS-232
PARALLEL RS-232
COM 1
RS-485 MOUSE
KEYBD
VIDEO
LID
LID
REMOVAL
SCREW (2)
ETHERNET
PORT
MOUNTING
STUD (12)
FRONT PANEL
EXPAN
S
I
O
N
S
L
O
T
S
(
3
)
USB PORT (2)
Figure 3-3. System I/O Panel
Feature Description
Parallel Port The parallel printer port (LPT1) is a DB-25 pin female connector. This port provides a
standard PC compatible printer interface. An external push-button reset option is
available. Consult the CPU board manual for the jumper which controls this option.

Chapter 3-Installation
3-5
Feature Description
COM Ports COM1 is RS-232/485 compatible. RS/232 is connected to the lower nine-pin stacked
DB connector. The top part of this stack is the RS/485 version of the same port. Since
these connectors are attached to the same port, you can use only one at a time. COM2
is the male 25-pin DB connector. COM2 is dedicated to the IR port, the touchscreen
controller, or the 25-pin connector. Only one option can be used at a time.
Note: If you ordered Windows NT, the driver is on disk and a copy of the driver file is
on the hard drive. This operating system only supports COM2. Therefore, the
touchscreen will be on COM2, and COM2 will not be available for other use.
Keyboard Port The keyboard port is a PS/2 stacked mini-din that allows you to attach a PC/AT
keyboard either at the front or side of the unit. The keyboard port on the side of the unit
is the lower connector. Do not use when in the presence of a hazardous environment.
Note: You cannot use both keyboard ports on the 3510KP/3512KP at the same time.
Mouse Port The mouse port is a PS/2 stacked mini-din that allows you to attach a mouse at the
side of the unit. If you receive a unit with a touchscreen, this port may be covered with
a label stating that the port is not functional as shipped. This is dependent upon the
operating system installed.
Note: If the unit has a touchscreen and MS-DOS, Windows 3.x or Windows 95, the
touchscreen is configured for the mouse port, making the mouse port unavailable.
Reconfigure the touchscreen for use on COM2 to make mouse port functional.
Warning: To maintain a safe condition, do not use an external keyboard and/or
mouse port when the unit is operating in a hazardous environment.
Video Port The video port is a 15-pin D-sub VGA connector at the side of the unit. This connector
supports any standard VGA connection. The video port is shipped disabled. This port is
active if an LCD flat panel is not connected. A jumper can be used to switch between
the VGA port and the LCD flat panel. To use both a video display on the video port and
the flat panel display, you must enable “Simultaneous Video” on the Advanced Menu in
the BIOS setup. Refer to the CPU manual for details.
USB Universal Serial Bus (not available with AHIP4+ CPU)
Ethernet Port
(optional)
This port provides a 10BASE-T/100BASE-TX autosensing Ethernet connection.

3510/3510KP/3512/3512KP System Manual
3-6
Back Panel
Figure 3-4. System Back Panel
Feature Description
Fasteners There are two protruding captive screws (lid removal screws)
along the top of the back panel. Loosen these screws to remove
the lid. There are four flush captive screws located across the
top and bottom of the back panel. Loosen these screws (using a
Phillip-head screwdriver) to remove the front panel.
Note: If your system has a touchscreen, disconnect the
touchscreen cable from the CPU board before removing the back
of the system from the front bezel.
External Floppy Disk Drive (Optional) You can install an external floppy disk drive to the back of the
system. Front access options are also available.

Chapter 3-Installation
3-7
Power Panel
Figure 3-5. Bottom Panel with Power Connector and External Floppy Connector
Feature Description
Power Connector This is a three-pin connector. Refer to the special hazardous
location installation instructions later in this chapter.
External Floppy Drive Connector This is a 26-pin connector.
Product ID Label The product ID label is located on the bottom panel
Fan and Filter The filter can be replaced or removed for cleaning. See Chapter 5
for details on the fan filter assembly.
Preparing the System
Read this chapter first, comply with all the safety requirements, then mount the unit
according to the following instructions.
1. Locate a position that meets the required specifications
2. Do a panel cutout. The dimensions are given in this chapter.
3. Install optional equipment following the instructions in Installing Internal
Hardware Options and Installing External Hardware Options in this chapter.
4. Create the power cable. Refer to the Creating a Power Cable section in this
chapter.
5. Mount the system and properly secure the unit into the panel. See Installing the
System section in this chapter.
6. Attach one end of the power cord to the power receptacle and the other end to a
properly grounded 115/230 VAC, 50-60 Hz outlet or a 24 VDC outlet,
whichever applies (refer to the Hazardous Location Installations section later in
this chapter).

3510/3510KP/3512/3512KP System Manual
3-8
7. Turn on power to the system. The system will boot up to the operating system
installed.
8. Install the application software via a floppy drive.
If a touchscreen has been factory installed along with MS-DOS, the mouse port is
unavailable. The unit will arrive with a sticker placed over the port. If you would like
to reconfigure the touchscreen to use the COM2 port, follow the instructions in the
Using a Touchscreen section in this chapter.
Installing Internal Hardware Options
Caution
Turn off the unit before installing internal hardware.
Warning
The installation of expansion boards may void safety and/or EMC
compliance.
Remove the lid to install internal hardware options.
DRAM and Additional DRAM Single In-line Memory Modules (SIMMs)
You can order your system CPU factory-configured for many configurations of
DRAM. You can reconfigure the DRAM capacity by changing the DRAM SIMMs
on your board. For more information, refer to the CPU manual.
PC/AT and PCI Boards
1. Check that the memory and I/O configuration of the board you want to install
does not conflict with the CPU and I/O memory maps in your CPU board
manual.
2. Remove the lid.
3. Remove the ORB screw in the desired track.
4. Slide the PC/AT expansion board into a corresponding rail.
5. Push the board into the backplane connectors.
Note
Do not force the boards or apply uneven pressure.
