Xycom 4117T User manual



2007 XYCOM AUTOMATION, LLC Printed in the United States of America
4117T
17” Light Duty Industrial PC

Revision Record
144811(B)
Revision Description Date
A Manual Released 9/06
B Name change, correct where applicable with document 4/07
Part Number 144811 (B)
Trademark Information
Xycom and Xycom Automation are trademarks of Xycom Automation, L.L.C.
Xycom Automation, L.L.C. now is referred to as Pro-face through a D.B.A. The Pro-face name and logo will replace
the Xycom name and logo on all documents where possible.
Pro-face is a trademark of Digital Electronics Corporation.
Brand or product names may be registered trademarks of their respective owners. Windows®is a registered
trademark of Microsoft Co the United States and other countries.
Copyright Information
This document is copyrighted by Xycom Automation, L.L.C. (Xycom) and shall not be reproduced or copied without
expressed written authorization from Xycom Automation, L.L.C.
The information contained within this document is subject to change without notice. Pro-face does not guarantee the
accuracy of the information.
United States FCC Part 15, Subpart B, Class A EMI Compliance Statement:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his or her own expense.
For European Users - WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
INSTALLATION: Electromagnetic Compatibility WARNING:
The connection of non-shielded equipment interface cables to this equipment will invalidate FCC EMI and European
Union EMC compliance and may result in electromagnetic interference and/or susceptibility levels which are in
violation of regulations applying to the legal operation of this device. It is the responsibility of the system integrator
and/or user to apply the following directions relating to installation and configuration:
All interface cables must include shielded cables. Braid/foil type shields are recommended. Communication cable
connectors must be metal, ideally zinc die-cast backshell types, and provide 360-degree protection about the
interface wires. The cable shield braid must be terminated directly to the metal connector shell, ground drain wires
alone are not adequate.
Protective measures for power and interface cables as described within this manual must be applied. Do not leave
cables connected to unused interfaces or disconnected at one end. Changes or modifications to this device not
expressly approved by the manufacturer could void the user’s authority to operate the equipment.
EMC compliance is, in part, a function of PCB design. Third party add-on AT/XT peripheral PCB assemblies installed
within this apparatus may void EMC compliance. FCC/CE compliant PCB assemblies should always be used where
possible. PRO-FACE can accept no responsibility for the EMC performance of this apparatus after system
integrator/user installation of PCB assemblies not manufactured and/or expressly tested and approved for
compliance by PRO-FACE. It is the responsibility of the system integrator/user to ensure that installation and
operation of such devices does not void EMC compliance.

i 144811(B)
Table of Contents
CHAPTER 1 – INTRODUCTION .................................................................................................................................1
GENERAL INFORMATION ...............................................................................................................................................1
Standard Features ...............................................................................................................................................1
LCD Display .........................................................................................................................................................2
Touch Screen.......................................................................................................................................................2
FRONT AND SIDE PANELS ............................................................................................................................................4
UNPACKING THE SYSTEM .............................................................................................................................................5
QUICK STARTUP .........................................................................................................................................................5
CHAPTER 2 — INSTALLATION .................................................................................................................................6
INSTALLATION OVERVIEW.............................................................................................................................................6
MECHANICAL DIMENSIONS............................................................................................................................................8
MOUNTING OPTIONS....................................................................................................................................................9
Panel Mounting ....................................................................................................................................................9
Wall Mounting ....................................................................................................................................................11
Arm Mounting.....................................................................................................................................................13
CHAPTER 3 – ICPMB-7570 MOTHERBOARD.........................................................................................................14
ICPMB-7570 CPU Board ...................................................................................................................................14
Product Overview...............................................................................................................................................14
Specifications.....................................................................................................................................................14
Graphics Support ...............................................................................................................................................15
Display ...............................................................................................................................................................15
Internal Graphics Features ................................................................................................................................15
Intel® Embedded Graphics Drivers ...................................................................................................................15
ICPMB-7570E CPU BOARD LAYOUT ........................................................................................................................16
Jumper Settings .................................................................................................................................................17
JP2: Clear CMOS Setup ....................................................................................................................................17
JP4: CF card setup ............................................................................................................................................18
JP5: LCD voltage setup .....................................................................................................................................18
JP6: RS-232/485 Setup(for COM3) ...................................................................................................................18
Connector Pin Outs............................................................................................................................................19
AMI BIOS SETUP ....................................................................................................................................................28
Starting Setup ....................................................................................................................................................28
Using Setup .......................................................................................................................................................30
SETUP SUBMENU: MAIN .............................................................................................................................................30
SETUP SUBMENU: ADVANCED..............................................................................................................................31
CPU CONFIGURATION...............................................................................................................................................32
IDE CONFIGURATION ................................................................................................................................................33
PRIMARY IDE MASTER ..............................................................................................................................................34
FLOPPY CONFIGURATION ...........................................................................................................................................37
SUPER I/O CONFIGURATION.......................................................................................................................................38
H/W HEALTH CONFIGURATION ...................................................................................................................................40
REMOTE ACCESS CONFIGURATION .............................................................................................................................41
USB CONFIGURATION ...............................................................................................................................................42
CHAPTER 4 – MAINTENANCE ................................................................................................................................61
GENERAL PREVENTIVE MAINTENANCE.........................................................................................................................61
Fuse Replacement.............................................................................................................................................61
RECOMMENDED HARD DRIVE PREVENTIVE MAINTENANCE .............................................................................................61
PRODUCT REPAIR PROGRAM / RETURNING A UNIT TO PRO-FACE ...................................................................................62
CHAPTER 5 – TROUBLESHOOTING.......................................................................................................................63
DIAGNOSTIC TESTING ................................................................................................................................................63
RUNNING THE TESTS .................................................................................................................................................65
REINSTALLING OPERATING SYSTEMS ..........................................................................................................................66

4117T Light Duty Industrial PC Table of Contents
ii 144811(B)
Windows



2000 Reinstallation...........................................................................................................................66
Windows XP®Reinstallation ..............................................................................................................................66
INSTALLING DRIVERS .................................................................................................................................................67
Video Drivers .....................................................................................................................................................67
Touch Screen Drivers ........................................................................................................................................67
Miscellaneous Drivers........................................................................................................................................68
APPENDIX A TECHNICAL SPECIFICATIONS.........................................................................................................69
HARDWARE SPECIFICATIONS ......................................................................................................................................69
* NOMINAL POWER IS MEASURED FOR A BASE CONFIGURATION ONLY. ANY ADDITIONAL EXPANSION AND/OR
DEVICES WILL INCREASE THE INPUT POWER REQUIRED.ENVIRONMENTAL SPECIFICATIONS .....................................69
ENVIRONMENTAL SPECIFICATIONS ..............................................................................................................................70
APPENDIX B – POWER-ON SELF-TEST MESSAGES............................................................................................71
POST MESSAGES ....................................................................................................................................................71
POST BEEP ............................................................................................................................................................71
ERROR MESSAGES....................................................................................................................................................71
APPENDIX C – HOW TO UPGRADE A NEW BIOS .................................................................................................75
BIOS UPDATE PROCEDURE.......................................................................................................................................75
RECOVERING YOUR OLD BIOS ..................................................................................................................................76

1 144811(B)
Chapter 1 – Introduction
General Information
The 4117T 17" LCD TFT Panel PC, takes advantage of a modern flat-panel display,
ICPMB-7560 CPU board, drive spaces and a power supply for minimum size. It is an
IBM PC/AT® compatible computer specially designed to meet the applications for
light duty environments.
Standard Features
The 4117T comes standard with the following features:
•
••
• ICPMB-7570 CPU board equipped with a high performance socket Pentium®M
1.4GHz CPU with 400 MHz front system bus and 2MB cache
•
••
• 4X AGP video controller
•
••
• 10/100 and 10/100/1000 Base T Ethernet ports
•
••
• 2 USB 2.0 ports
•
••
• Audio (in/out/mic)
•
••
• Three RS-232 serial ports
•
••
• Video, printer, and PS/2 ports
•
••
• 17” flat panel TFT XGA (1280 x 1024) LCD
•
••
• 100-240 VAC, 50-60 Hz power supply
•
••
• Analog resistive touch screen
•
••
• Internal 80GB hard disk drive
•
••
• Slim line CD-R/W with DVD-ROM drive
•
••
• 2 DDR 333 sockets, 512MB SDRAM DIMM
•
••
• 1 half-length of PCI expansion port
•
••
• AC power supply
•
••
• NEMA 4/4X/12 front panel
•
••
• RoHS compliant
•
••
• Windows® XP Operating System
Optional Features:
•
••
• DDR 333 1GB - 2GB SDRAM DIMM
•
••
• DVD +/-RW
•
••
• Windows® 2000 Operating System

4117T Light Duty Industrial PC Chapter 1 – Introduction
2 144811(B)
LCD Display
Table 1-1 identifies the features of the 4117T LCD display.
Table 1-1. 4117T LCD Display Specifications
Display Model AUO
Display Type 17” TFT color
Resolution 1280 x 1024
Maximum colors 16.2M
Brightness 300 cd/m2
Touch Screen
Table 1-2 identifies important specifications of the 4117T touch screen.
Table 1-2. 4117T Touch Screen Specifications
Touch Screen Model Description
Screen Type Eight wire analog resistive touch screen
Resolution Continuous
Light Transmission Typical value 75%
Surface Hardness 4H (Test condition: ASTM D3363-92A)
Support Driver Supports Windows 2000/XP
The figures on the next several pages show the internal and external components on
the front and back panels of the unit to help you locate features relevant to
installation.
Figure 1-1. I/O Panel

4117T Light Duty Industrial PC Chapter 1 – Introduction
3 144811(B)
Back Panel
The diagram below shows the back panel of the 4117T. For maintenance, installation
or upgrade, first remove the back cover by unfastening 13 screws as shown in the
diagram below.
Figure 1-2. System Back Panel
Caution
Before any installation or un-installation, please take precautions to prevent
damage to the components due to static electricity.

4117T Light Duty Industrial PC Chapter 1 – Introduction
4 144811(B)
Front and Side Panels
One CD R/W- DVD is accessible from the side of the chassis.
Figure 1-3. Right Side View
Figure 1-4. Left Side View
Logo

4117T Light Duty Industrial PC Chapter 1 – Introduction
5 144811(B)
Unpacking the System
When you remove the system from its shipping container, verify that you have the
parts listed below. Save the box and inner wrapping in the event you need to reship
the unit.
•
••
• 4117T Unit
•
••
• Documentation kit, which includes:
 Power cable
 Twelve panel mounting clamps
 Documentation and Support Library CD-ROM
 Operating System Recovery Media or retail operating system (CD-
ROM)
Quick Startup
This section gives you the steps to get the system up and running without explaining
the capabilities and options.
Warning
Remove power from the unit and disconnect the power cord before making any
adjustments to the inside or outside of the computer.
To prepare the system for use, perform the following steps.
1. Attach optional keyboard to the keyboard port, and optional mouse to the mouse
port.
2. Confirm that the 100-240 VAC selector switch on the power supply is set
appropriately.
3. Attach the power cord from the power receptacle to a properly grounded 100-
240 VAC, 50-60 Hz outlet.
4. Turn on power to the unit (via an outlet power switch if applicable). The system
will boot up into the operating system.
5. Install application software via the CD-ROM, or the network.

6 144811(B)
Chapter 2 — Installation
Installation Overview
The rugged design of the 4117T unit allows it to be installed in most industrial
environments. The system is generally placed in a NEMA 4/4X/12 enclosure to
protect against contaminants such as dust, and moisture. Metal enclosures also help
minimize the effects of electromagnetic radiation that nearby equipment can generate.
Read the following sections carefully to be sure that you are complying with all the
safety requirements.
1. Select a NEMA rated enclosure and place the unit to allow easy access to the
system ports (see other sections in this chapter and Appendix A).
 To assure a NEMA 4 seal choose an approved enclosure that has a 14-
gauge (0.075 in/1.9 mm thick steel or 0.125 in/3.2 mm thick aluminum)
front face.
 Be sure to account for the unit’s depth when choosing the depth of the
enclosure.
2. Create a cutout in the enclosure (see Figure 2-2).
 Be sure to place the unit at a comfortable working level
 Make sure the area around the cutout is clean and free from metal burrs
3. Mount the unit in an upright position and properly secure the unit into the panel.
 Tighten the twelve panel mounting clamps to 25 inch-pounds (2.8
Newton-meters / 28Kgf cm).
4. Attach one end of the power cord to the power receptacle on the unit and the
other end to a properly grounded 100-240 VAC, 50-60 Hz outlet.
5. Turn on power to the system. The system will boot up the installed operating
system.
6. Install the application software via a CD-ROM, or the network.
Additional aspects to take into account when mounting your 4117T unit:
•
••
• Consider locations of accessories such as AC power outlets and lighting (interior
lighting and windows) for installation and maintenance convenience
•
••
• Prevent condensation by installing a thermostat-controlled heater or air
conditioner
•
••
• To allow for maximum cooling, avoid obstructing the airflow

4117T Light Duty Industrial PC Chapter 2 – Installation
7 144811(B)
•
••
• Place any fans or blowers close to the heat generating devices. If using a fan,
make sure that outside air is not brought into the enclosure unless a fabric or
other reliable filter is used. This filtration prevents conductive particles and other
harmful contaminants from entering the enclosure.
•
••
• Do not select a location near equipment that generates excessive electromagnetic
interference (EMI) or radio frequency interface (RFI). Examples of these types
of equipment are: high power welding machines; induction heating equipment;
and large motor starters.
•
••
• Place incoming power line devices (such as isolation or constant voltage
transformers, local power disconnects, and surge suppressers) away from the
system. The proper location of incoming line devices keeps power wire runs as
short as possible and minimizes electrical noise transmitted to the unit.
•
••
• Make sure the location does not exceed the unit’s shock, vibration, and
temperature specifications
•
••
• Install the unit in the rack or panel in such a way as to ensure that it does not
cause a hazard from uneven mechanical loading
•
••
• Incorporate a readily-accessible disconnect device in the fixed wiring on
permanently connected equipment
•
••
• Avoid circuit overloading of the supply circuit

4117T Light Duty Industrial PC Chapter 2 – Installation
8 144811(B)
Mechanical Dimensions
Front Panel: 17.79” (451.61 mm) x 13.99”(355.25 mm) x 0.39”(9.79 mm) (WxHxD)
Cabinet: 15.1” (339.98 mm) x 12.91” (328 mm) x 4.94” (125.41 mm) (WxHxD)
Note: All dimensions in mm)

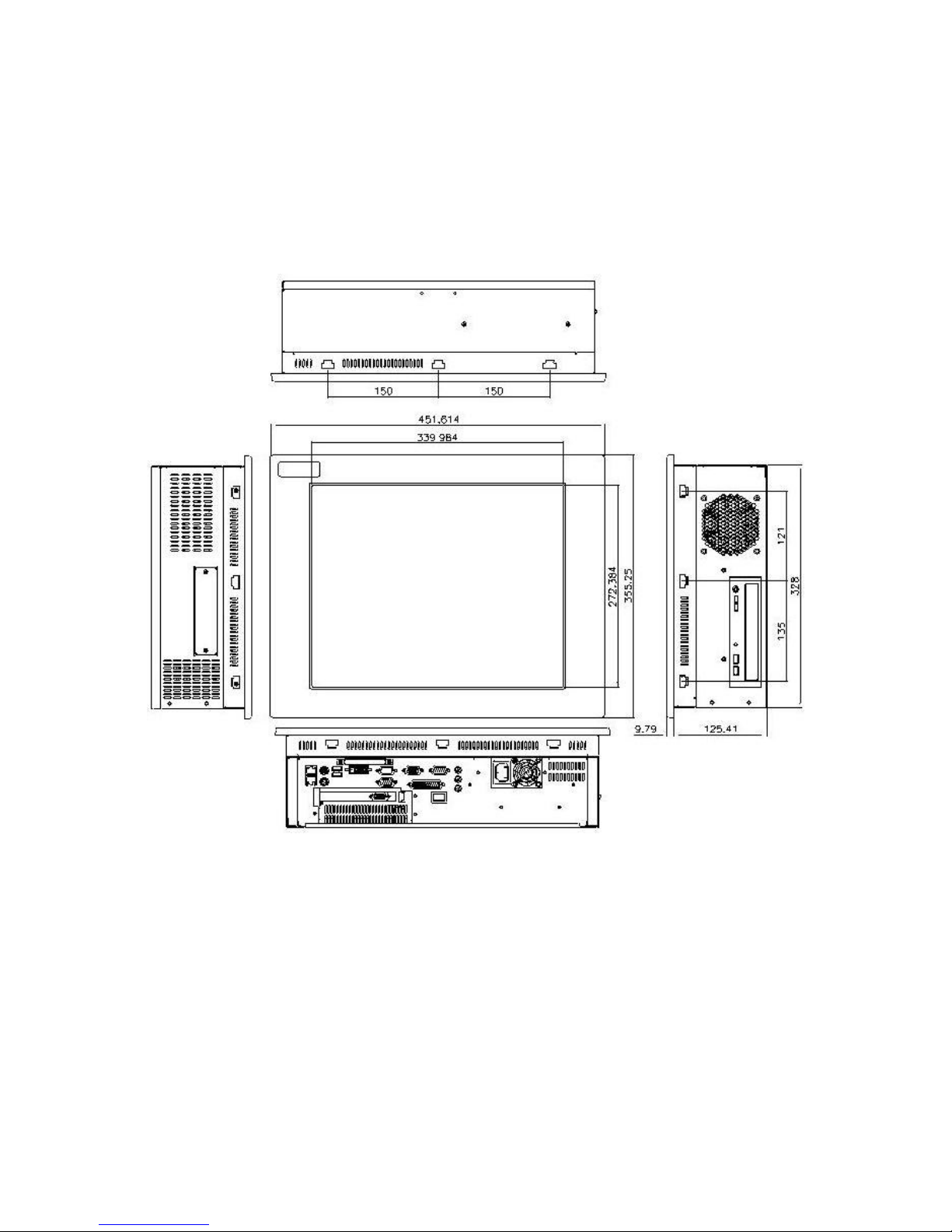

Figure 2-1. Unit Dimensions

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation
9 144811(B)
Mounting Options
The 4117T can be mounted to a panel, to the wall, or to an arm. The following
sections describe each mounting option for the 4117T.
Panel Mounting
The 4117T is designed for panel mounting. Before mounting the 4117T to the panel,
check the cut out dimensions as shown in Figure 2-2. Then, mount it to the panel
using twelve supporters, as shown in the Figure 2-3 and Figure 2-4 (see next page).
Figure 2-2. Panel Cutout Dimensions
13.59” (344.93mm)
13.1” (332.74mm)

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation
10 144811(B)
Figure 2-3. Panel Mounting Diagram
Figure 2-4 Panel Mounting Diagram

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation
11 144811(B)
Wall Mounting
The 4117T is suitable for wall mount using the included brackets and hardware. See
Figure 2-5 for wall mounting bracket. See Figure 2-7, Figure 2-8 and Figure 2-9 for
wall-mounting diagrams
.
Figure 2-5. Wall Mounting Bracket
Figure 2-6. Chassis Support Screws

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation
12 144811(B)
Figure 2-7. Wall Mounting Diagram – Install wall-mounting hook
Figure 2-8. Wall Mounting Diagram – Mount the bracket

4117T Thin Line Industrial Flat Panel PC Chapter 2 – Installation
13 144811(B)
Arm Mounting
The 4117T also accommodates 75/100 mm interface pads for arm mounting. Figure
2-9 gives the dimensions for arm mounting.
All dimensions in mm
Figure 2-9. Arm Mounting Dimensions

14 144811(B)
Chapter 3 – ICPMB-7570 Motherboard
ICPMB-7570 CPU Board
Product Overview
The 4117T is equipped with a ICPMB-7570 Socket 479 Pentium M with CPU control
board. It is equipped with a high-performance processor and advanced high
performance multi-mode I/O.
Specifications
The following section lists some of the features of the 855GME and the ICH4
chipsets. For more information on these two chipsets please refer to the Intel website.
 400 MHz system bus delivers a high-bandwidth connection between the processor
and the platform
 Integrated graphics utilizing Intel® Extreme Graphics 2 technology
 AGP 4X support
 Three USB host controllers provide high-performance peripherals with 480 Mbps of
bandwidth, while enabling support for up to six USB 2.0 ports (only two available on
the I/O panel).
 The latest AC '97 implementation delivers 20-bit audio for enhanced sound quality
and full surround sound capability
 LAN Connect Interface (LCI) provides flexible network solutions such as 10/100 Mbps
Ethernet and 10/100 Mbps Ethernet with LAN manageability
 Dual Ultra ATA/100 controllers, coupled with the Intel® Application Accelerator
support faster IDE transfers to storage devices
 PCI Local Bus Specification, Revision 2.2-compliant with support for 33 MHz PCI
operations.
 ACPI Power Management Logic Support
 Enhanced DMA controller, Interrupt controller, and timer functions
 Supports Audio Codec ’97, Revision 2.3 specification
 Alert On LAN* (AOL) and Alert On LAN 2* (AOL2)

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup
15 144811(B)
Graphics Support
The graphics features listed below are all integrated on the 855GME chipset.
Display
 Analog display support
 Dual independent pipe support
o Concurrent: different images and native display timings on each display
device
o Simultaneous: same images and native display timings on each display
device
 DVO (DVOB and DVOC) support
o Digital video out ports DVOB and DVOC with 165 MHz dot clock on each 12-
bit interface; two 12-bit channels can be combined to form one dual-channel
24-bit interface with an effective dot clock of 330 MHz
o Compliant with DVI Specification 1.0
 Dedicated Local Flat Panel (LFP) LVDS interface
Internal Graphics Features
 Core frequency
o Display core frequency of 133 MHz
o Render core frequency of 133 MHz
Intel® Embedded Graphics Drivers
 Graphics interface support
o GDI and DirectX* DirectDraw* with overlay for Windows* XP, Windows*
2000, and Windows* Embedded XP
o XFree86*, XAA, and Xv for Linux*
 Multi-monitor support
o Multiple programmable configurations
o Dual independent display
o DVO device support/TV-Out
 Dynamic display-mode support
o User definable and extensible
 Embedded video BIOS
o Common port interface support
o Full VGA compatibility

4117T Light Duty Industrial PC Chapter 3 – ICPMB-7570 CPU Board & BIOS Setup
16 144811(B)
ICPMB-7570E CPU Board Layout
Figure 3-1. ICPMB-7570E Board Layout
