OWNER’S MANUAL
1B0-F8199-E0
CW50RS

EAU04576 INTRODUCTION
Welcome to the Yamaha world of motorcycling!
As the owner of the CW50R , you are benefiting from Yamaha's vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your CW50R . The owner's manual
does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. o, remember to put safety first!

EAU00005
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! OUR SAFET IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the
scooter operator, a bystander, or a person inspecting or repairing the scooter.
A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.
NOTE : A NOTE provides key information to make procedures easier or clearer.
NOTE :
•This manual should be considered a permanent part of this scooter and should remain with it even if the
scooter is subsequently sold.
•Yamaha continually seeks advancements in product design and quality. Therefore, while this manual
contains the most current product information available at the time of printing, there may be minor
discrepancies between your scooter and this manual. If you have any questions concerning this manual,
please consult your Yamaha dealer.

EW000002
PLEASE READ THIS MANUAL CAREFULL AND COMPLETEL BEFORE OPERATING THIS
SCOOTER.
IMPORTANT MANUAL INFORMATION

EAUM0023
CW50RS
OWNER'S MANUAL
© 2003 by MBK INDUSTRIE
1st Edition, January 2003
All rights reserved
Any reprinting or unauthorized use
without the written permission of
MBK INDUSTRIE
is expressly prohibited.
Printed in France.

11 GIVE AFETY THE RIGHT OF WAY
2 DE CRIPTION
3 IN TRUMENT AND CONTROL FUNCTION
4 PRE-OPERATION CHECK
5 OPERATION AND IMPORTANT RIDING POINT
6 PERIODIC MAINTENANCE AND MINOR REPAIR
7 COOTER CARE AND TORAGE
8 PECIFICATION
9 CON UMER INFORMATION
EAU00009
TABLE OF CONTENTS
2
3
4
5
6
7
8
9

GIVE AFETY THE RIGHT OF WAY .................................................1-1
EAU00021
EW000015
GIVE SAFET THE RIGHT OF WA
1

GIVE SAFET THE RIGHT OF WA
1
cooters are fascinating vehicles, which can give you an unsurpassed feeling of power and freedom. However,
they also impose certain limits, which you must accept; even the best scooter does not ignore the laws of
physics.
Regular care and maintenance are essential for preserving value and operating condition of your scooter.
Moreover, what is true for the scooter is also true for the rider: good performance depends on being in good
shape. Riding under the influence of medication, drugs and alcohol is, of course, out of the question. cooter
riders — more than car drivers — must always be at their mental and physical best. Under the influence of
even small amounts of alcohol, there is a tendency to take dangerous risks.
Protective clothing is as essential for the scooter rider as seat belts are for car drivers and passengers.
Always wear a complete scooter suit (whether made of leather or tear-resistant synthetic materials with
protectors), sturdy boots, scooter gloves and a properly fitting helmet. Optimum protective wear, however,
should not encourage carelessness. Although full-coverage helmets and suits, in particular, create an illu-
sion of total safety and protection, motorcyclists will always be vulnerable. Riders who lack critical self-
control run the risk of going too fast and are apt to take chances. This is even more dangerous in wet
weather. The good motorcyclist rides safely, predictably and defensively — avoiding all dangers, including
those caused by others.
Enjoy your ride!
1-1

GIVE SAFET THE RIGHT OF WA
1
1-2
EAU02964
Further safe-riding points
•Be sure to signal clearly when making turns.
•Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could slide.
Apply the brakes slowly when stopping on a wet surface.
•low down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
•Be careful when passing parked cars. A driver might not see you and open a door in your path.
•Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers become
extremely slippery when wet. low down and cross them with caution. Keep the scooter upright, otherwise
it could slide out from under you.
•The brake lining could get wet when you wash the scooter. After washing the scooter, check the brakes
before riding.
•Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap), and a
bright colored jacket.
•Do not carry too much luggage on the scooter. An overloaded scooter is unstable. Use a strong cord to
secure any luggage to the carrier. A loose load will affect the stability of the scooter and could divert
your attention from the road.

EAU01161
DESCRIPTION
Left view..............................................................................................2-1
Right view ...........................................................................................2-2
2

2
DESCRIPTION

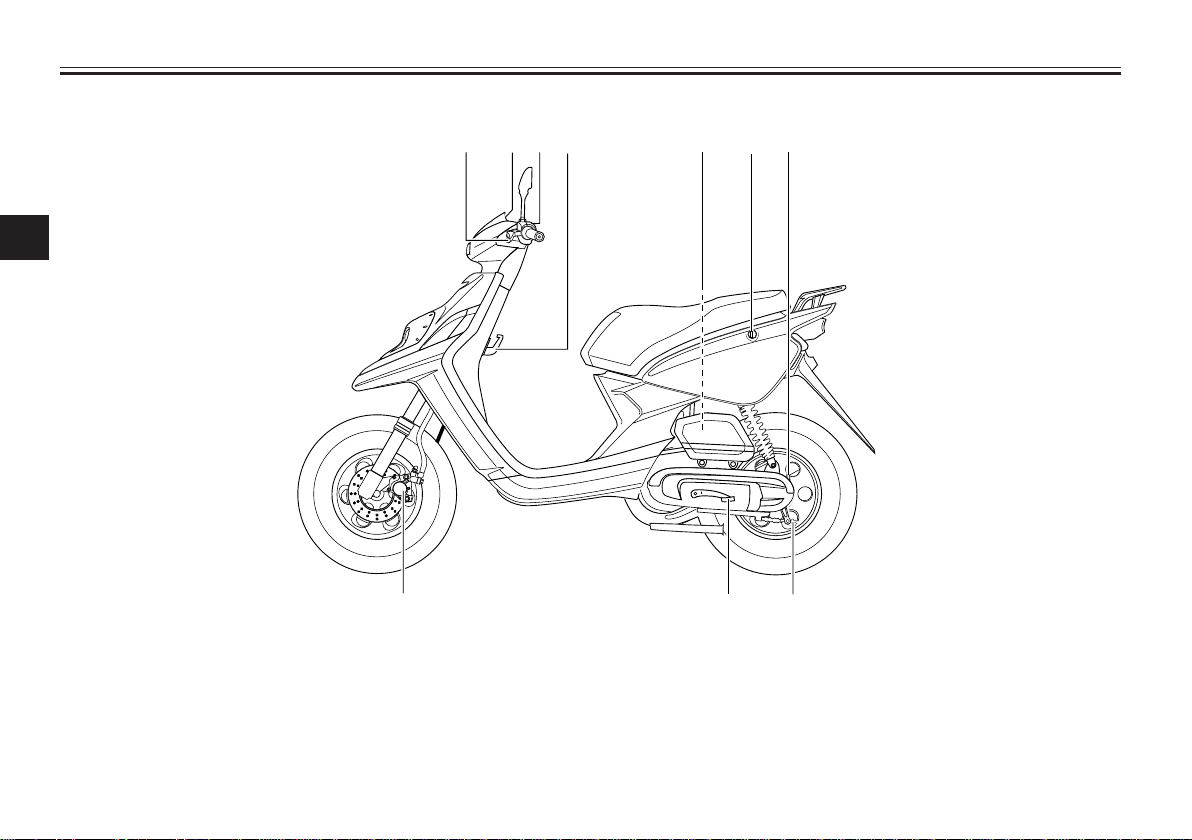

Left view
2-1
1234 567
98
10
1. Rear brake lever (Page 3-5)
2. peedometer unit (Page 3-3)
3. Left handlebar switches (Page 3-4)
4. Luggage hook (Page 3-10)
5. Air filter element (Page 6-7)
6. eat lock (Page 3-8)
7. Final transmission oil filler cap (Page 6-6)
8. Rear brake adjusting nut (Page 6-11)
9. Kickstarter (Page 3-8)
10. Front brake pads (Page 6-12)

2
DESCRIPTION

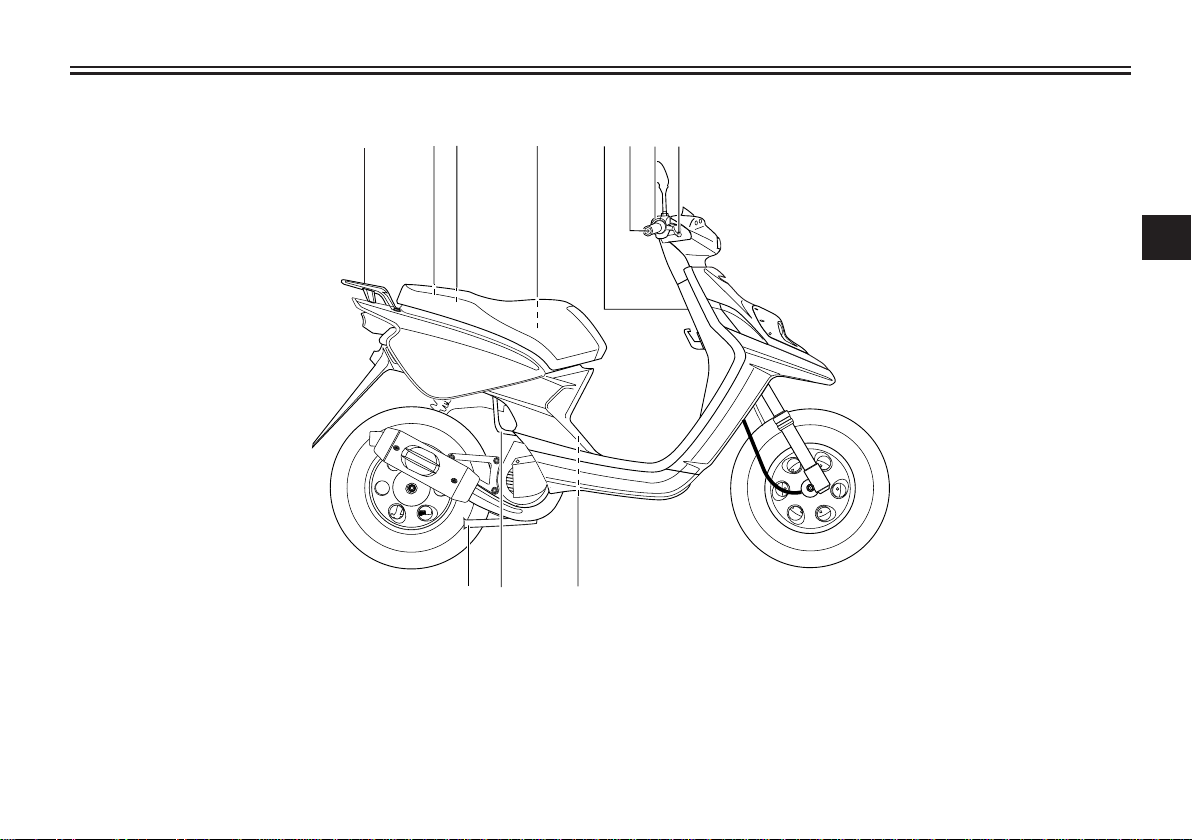

Right view
2-2
11 1213 14 1516 1718
192021
11. Rear carrier (page 3-10)
12. Oil tank cap (page 3-5)
13. Fuel tank cap (page 3-5)
14. torage compartment (page 3-8)
15. Main switch / steering lock (page 3-1)
16. Throttle grip (page 6-15)
17. Right handlebar switches (page 3-4)
18. Front brake lever (page 3-4)
19. Battery (fuse) (page 6-17 — 6-19)
20. ecuring bracket (page 3-11)
21. Centerstand (page 6-15)

EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
Main switch / steering lock ..................................................................3-1
Indicator and warning lights ................................................................3-2
peedometer unit................................................................................3-3
Fuel gauge ..........................................................................................3-3
Handlebar switches.............................................................................3-4
Front brake lever.................................................................................3-4
Rear brake lever .................................................................................3-5
Fuel and 2-stroke engine oil tank caps ...............................................3-5
Fuel .....................................................................................................3-6
2-stroke engine oil...............................................................................3-7
Catalytic converter ..............................................................................3-7
tarter (choke) lever ...........................................................................3-7
Kickstarter ...........................................................................................3-8
eat.....................................................................................................3-8
torage compartment .........................................................................3-8
Adjusting the shock absorber assembly .............................................3-9
Carrier ...............................................................................................3-10
Luggage hook ...................................................................................3-10
ecuring bracket ............................................................................... 3-11
3

3
INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering. The various
positions are described below.
PUSH
ZAUM0332
EAU00038
OFF “ ”
All electrical systems are off. The key
can be removed.
EAU04470
*
The 2-stroke engine oil level warning
light should come on. ee page 3-2 for
an explanation of the engine oil level
warning light.
EAUM0074
LOCK “ ”
The steering is locked, and all electrical
systems are off. The key can be
removed.
To lock the steering
1. Turn the handlebars all the way
to the left.
2. Push the key in from the “ ” po-
sition, release it, and then turn it
to “ ”.
3. Remove the key.
To unlock the steering
Insert the key and turn it to “ ”.
EW000016
Never turn the key to “ ” or “ ”.
while the scooter is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the scooter is stopped
before turning the key to “ ” or
“”.
NOTE :
Remove the key from the main switch
when the scooter will be left
unattended.
3-1
EAU04384
ON“ ”
All electrical circuits are supplied with
power, the taillight and meter lighting
come on, and the engine can be
started. The key cannot be removed.
NOTE :
The headlight comes on as soon as the
engine is started.

INSTRUMENT AND CONTROL FUNCTIONS
3
EAU03034
Indicator and warning lights
EAU00057
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
1. High beam indicator light “ ”
2. Turn signal indicator light “ ”
3. Oil level warning light “ ”
EAU00063
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
3-2
11
23
ZAUM0176
EC000000
Do not operate the scooter until you
know that the engine oil level is
sufficient.
EAUM0077
Oil level warning light “ ”
This warning light comes on when the
key is in the “*” position or when the
oil level in the 2-stroke engine oil tank
is low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with 2-
stroke engine oil of either JA O grade
"FC" or I O grades "EG-C" or "EG-D".
The warning light should go off after the
2-stroke engine oil tank has been
refilled.
NOTE :
If the warning light does not come on
when the key is in the “*” position or
does not go off after the 2-stroke engine
oil tank has been refilled, have a
Yamaha dealer check the electrical cir-
cuit.

3
INSTRUMENT AND CONTROL FUNCTIONS

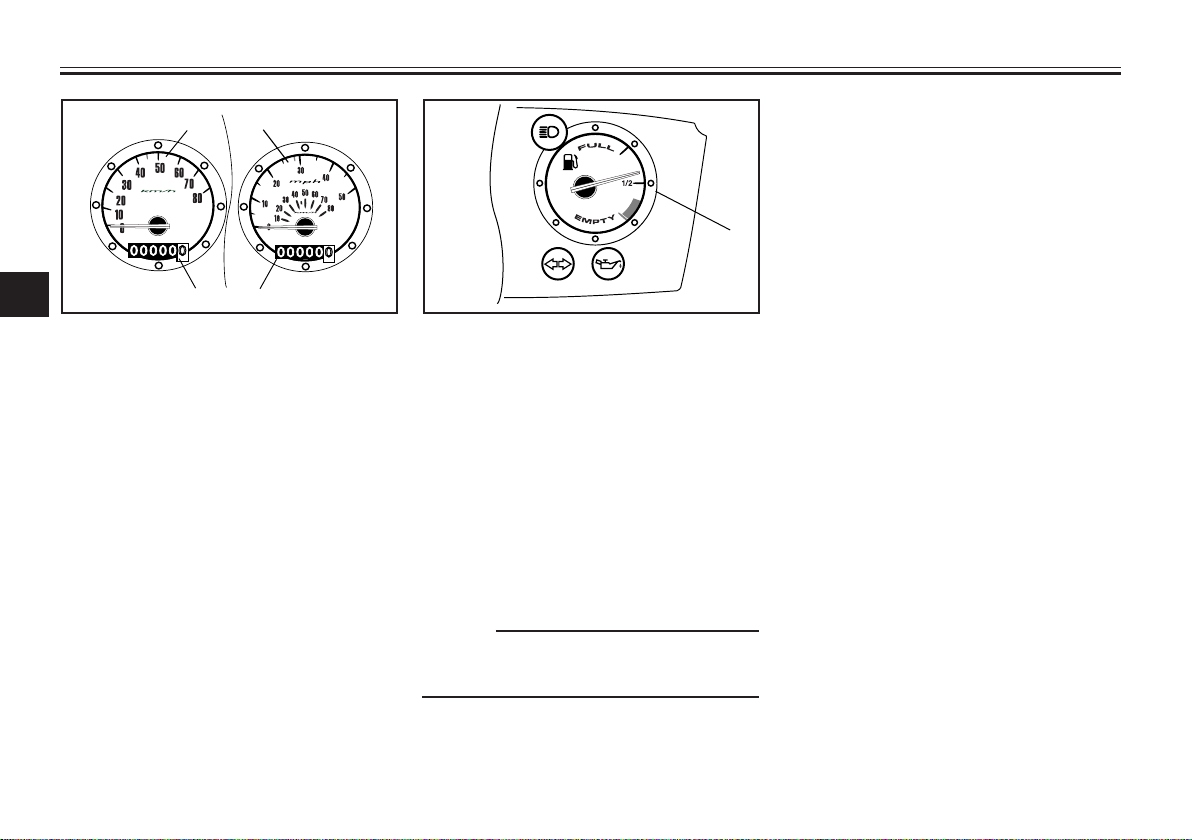

1. peedometer
2. Odometer 1. Fuel gauge
EAU00098
Speedometer unit
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows riding speed. The
odometer shows the total distance
traveled.
EAU00113
Fuel gauge
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards "E" (Empty) as the fuel
level decreases. When the needle
reaches "E", refuel as soon as possi-
ble.
NOTE :
Do not allow the fuel tank to empty itself
completely.
3-3
1
ZAUM0178
1
2
1
2
ZAUM0177
UK ONL
