Yeti 160E User manual

YETI 160E
OWNER’S MANUAL

TABLE OF CONTENTS
BRAND OVERVIEW 03
FRAME FEATURES 04
GEOMETRY 05
SETUP 06
MAINTENANCE 08

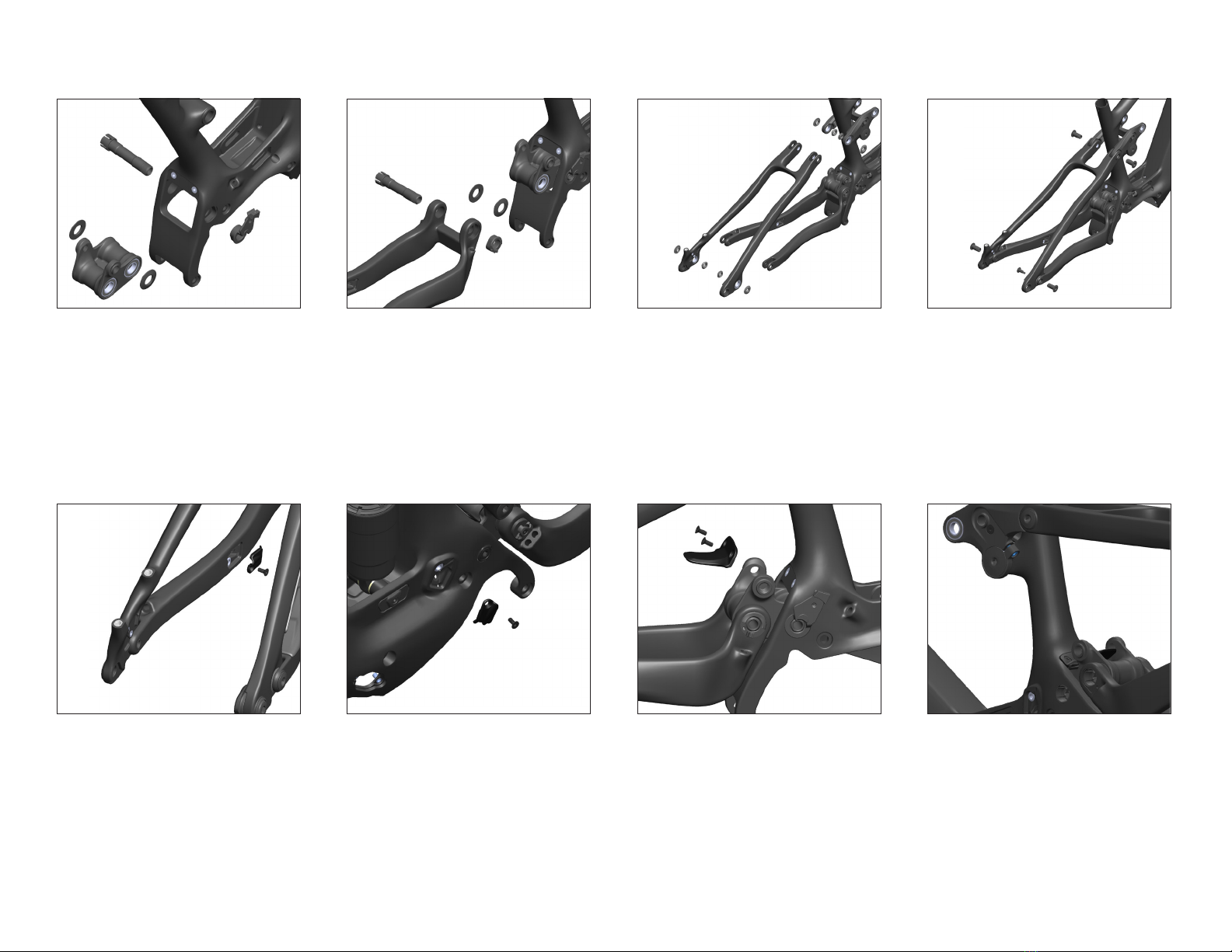

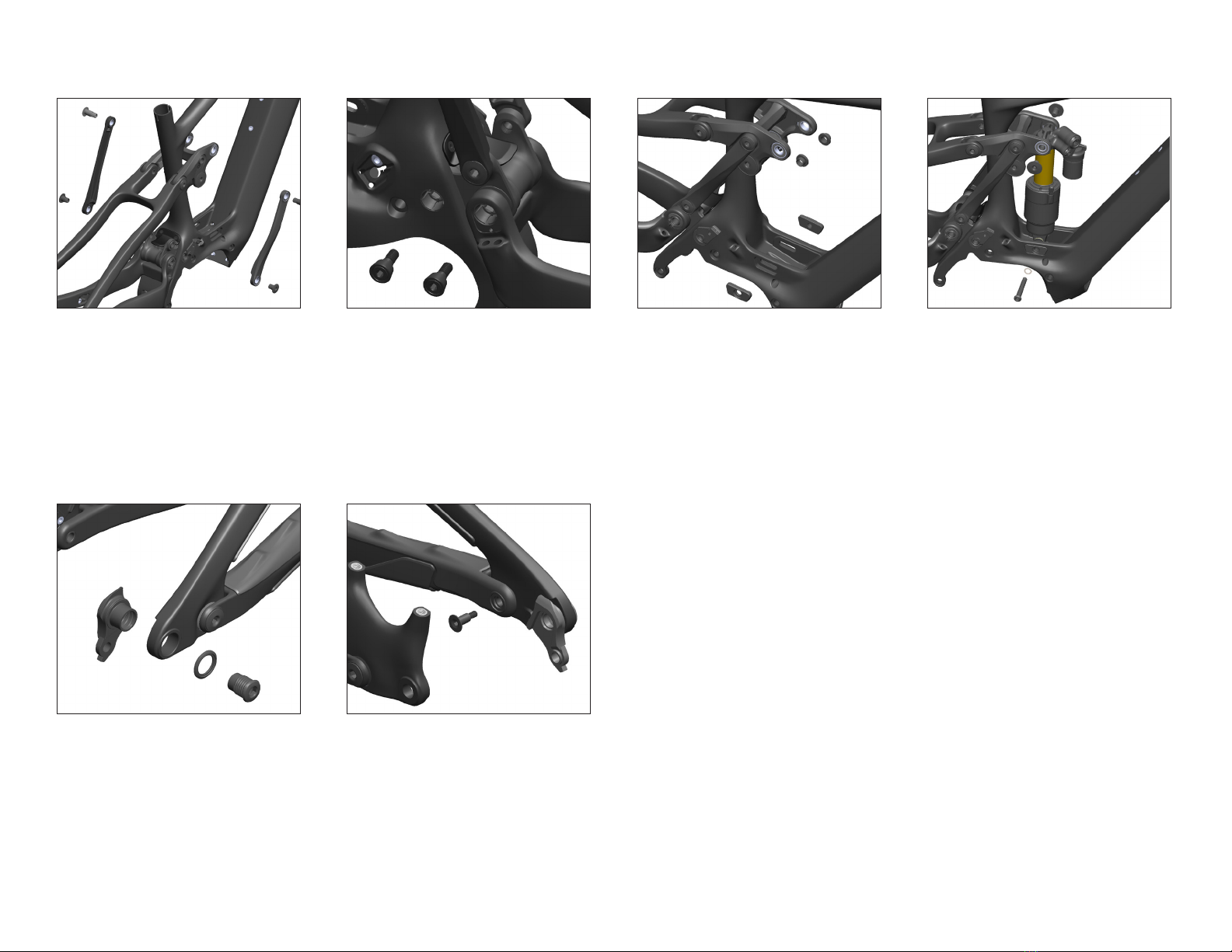

FRAME ASSEMBLY 09

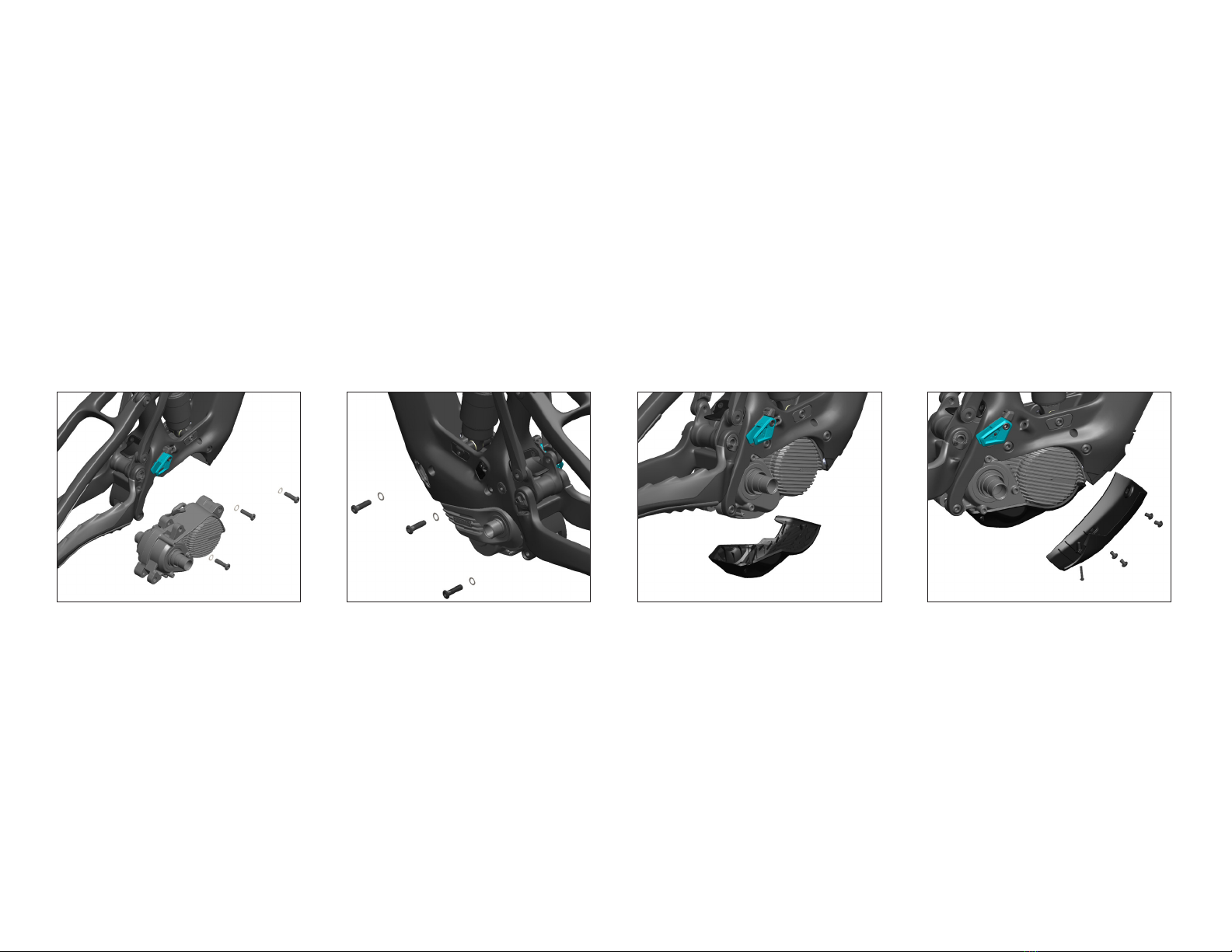

E-COMPONENT ASSEMBLY 12

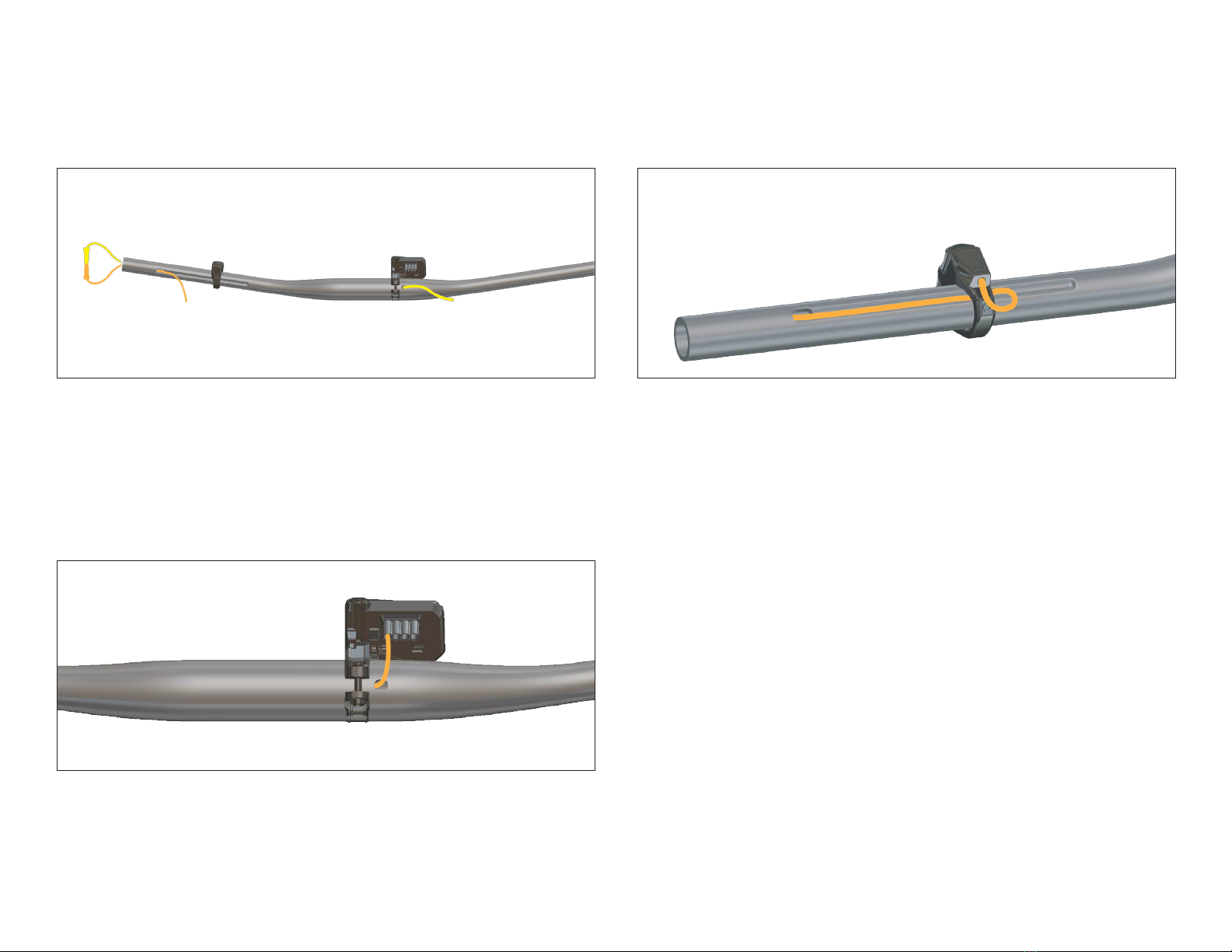

HANDLEBAR WIRING 16

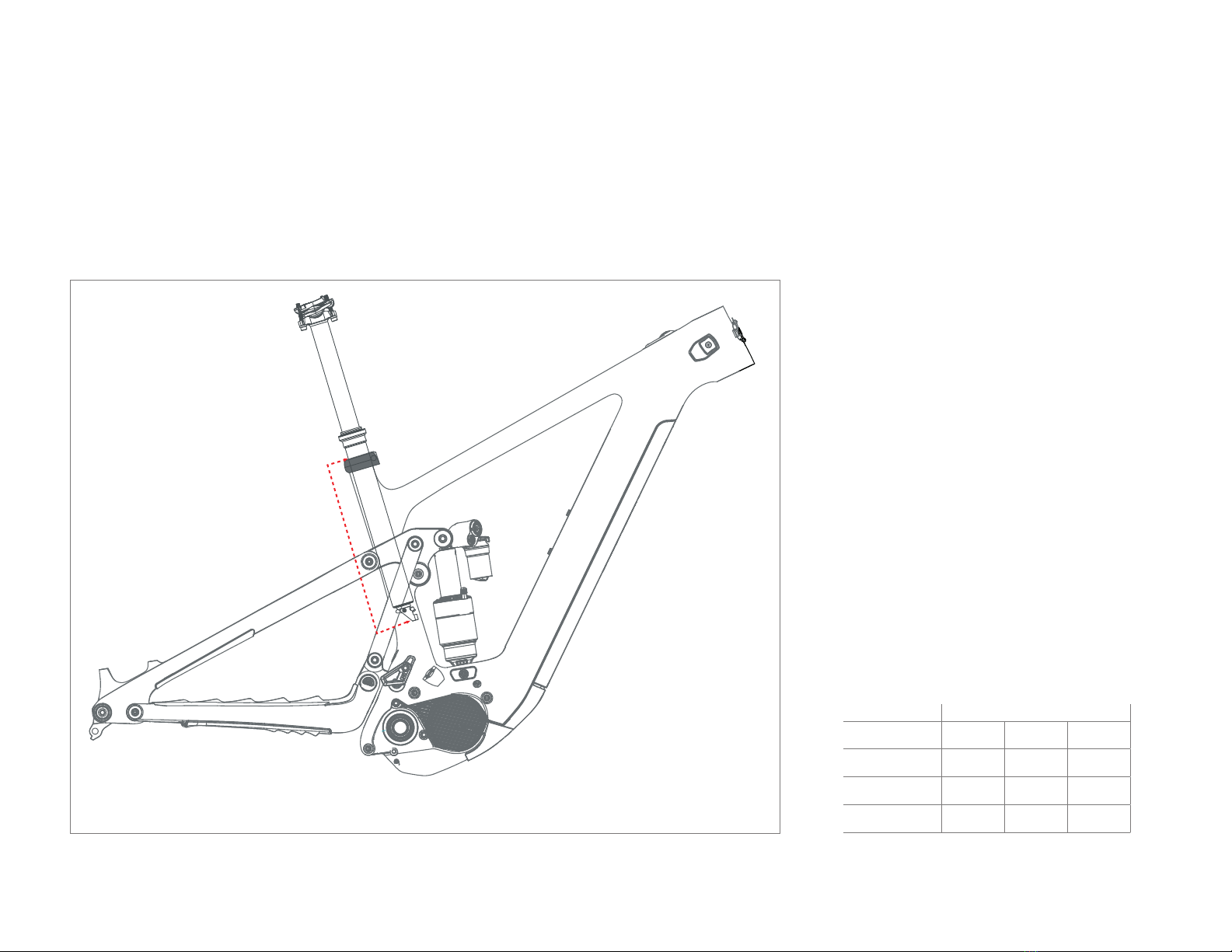

FOX TRANSFER POST INSERTION GUIDE 17
EXPLODED VIEW 18
ASSEMBLY BILL OF MATERIAL 19
REBUILD KITS 21
ADDITIONAL INFORMATION 24
WARRANTY 25

YETI 160E | OWNER’S MANUAL 3 TABLE OF CONTENTS |
CONGRATULATIONS
ON YOUR PURCHASE
OF A NEW YETI.
We are condent your new bicycle will
exceed your expectations for value,
performance, and ride quality. Each
frameset and component has been custom
specied and designed to enhance your
riding experience. Whether you are a
beginner cyclist, or a seasoned pro, your
Yeti bicycle will provide endless hours of
two-wheeled fun.
This model specic manual is designed to
be used in conjunction with the general Yeti
Owner’s Manual and the manuals supplied
by the suspension manufacturers. If you
did not receive the Yeti owner’s manual or
the manual provided by the suspension
manufacturer, download the materials o
the Internet, or contact your local dealer.
Bicycling can be a hazardous activity
even under the best of circumstances.
Proper maintenance of your bicycle is your
responsibility and when done properly helps
reduce the risk of injury and damage to your
bicycle. The 160E is made specically for
o-road use only.
This manual outlines basic setup and
maintenance recommendations of your new
Yeti. Because it is impossible to anticipate
every situation or condition that may occur
during the assembly, setup, and maintenance
of your bicycle, Yeti recommends that all
service and repairs be performed by your
local authorized Yeti Dealer.
This manual contains many “Warnings” and
“Cautions” concerning the consequences
of failure to maintain or inspect your bicycle.
The word “Warning” indicates a potentially
hazardous situation in which, if not avoided,
could result in serious injury or death.
The word “Caution” indicates a potentially
hazardous situation in which, if not avoided
may result in minor injuries or damage to
your bicycle or a component of your bicycle.
Be sure to read and understand all of the
Warnings and Cautions listed in the manual.
WARNING: Make sure you review and understand the warnings, instructions, and content of this manual and
accompanying manuals for your bicycle.
WARNING: Technological advances have made bicycles and bicycle components more complex and the pace of
innovation is increasing. It is impossible for this manual or the accompanying manuals to provide all the information
required to properly repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical
for you to have work performed by an authorized Yeti retailer.
WARNING: Mounting biking is an inherently dangerous activity. The user frequently performs “Unsafe Maneuvers,” so
be aware, and make sure you have the requisite skills to operate a mountain bike. This risk is assumed by the user.

YETI 160E | OWNER’S MANUAL 4
FEATURES
TABLE OF CONTENTS |
THE LOWDOWN
ON THE 160E AND
ITS FEATURES.
1 SIXFINITY PATENT PENDING SUSPENSION SYSTEM
The 160E delivers 160MM of travel with our patent pending Sixnity Technology. Ecient
pedaling performance pairs with a supportive yet active feel when the going gets rough.
2 HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM
High modulus carbon provides a sti, strong and light weight chassis.
3 FLOATING COLLET AXLE SYSTEM ON PIVOTS EXTENDS BEARING LIFE
Floating colleted pivot axles help create a sti interface between the front and rear triangles
of the frame. Enduro Max sealed bearings keep things moving freely at the pivots.
4 POWERFUL EP8 DRIVE UNIT AND RANGE EXTENDING 630WH BATTERY
Driven by Shimano’s EP8 drive unit you have 85 Nm of torque at your disposal. Paired with
a 630Wh battery, you can focus less on battery life and more on shredding miles of trail.
5 LEVERAGE RATE FLIP CHIP
Unique to Yeti’s Sixnity suspension platform has the ability to change the leverage rate.
Flip the rate chip to suit your riding style, the trail of the day.
6 INTEGRATED HEAD TUBE (41MM/52MM)
Using an integrated head tube design on the 160E allows for a larger head tube
with more area, which results in increased stiness, and lower overall ride height without
compromising any performance.
7 CUSTOM REINFORCED FRAME COVERS AND RIBBED CHAIN GUARDS TO
DECREASE CHAIN SLAP NOISE
Custom reinforced frame covers keep the frame protected from any direct impacts and
prevents dirt and debris from damaging critical frame components. Reducing the annoying
sounds caused by chain slap, the 160E ribbed rubber chainstay and seatstay guards keep
things quiet while riding and protect the frame.
8 INTERNALLY MOLDED CARBON TUBES AND CABLE TRAYS FOR HASSLE-FREE
CABLE ROUTING AND A QUIET BIKE
The 160E is designed with rattle-free cable ports, down tube cable trays and internally
molded routing tubes in the chainstay keeping the bike quiet and clean looking while
reducing cable rub and overall maintenance.
9 INTEGRATED AXLE AND UNIVERSAL DERAILLEUR HANGER SYSTEM
Dedicated 12 x 148 Boost dropouts with SRAM’s universal derailleur hanger provide
strength, stiness and easy hanger and wheel installation.
10 UNINTERRUPTED SEAT TUBE FOR COMPATIBILITY WITH LONGER TRAVEL
DROPPER POSTS
Getting the saddle out of the way allows you to tear down the steepest descents without
worrying if your saddle is going to buck you. The 160E’s uninterrupted seat tube design lets
you t the longest dropper possible for your saddle height.
FRAME FEATURES

YETI 160E | OWNER’S MANUAL 5
GEOMETRY
TABLE OF CONTENTS |

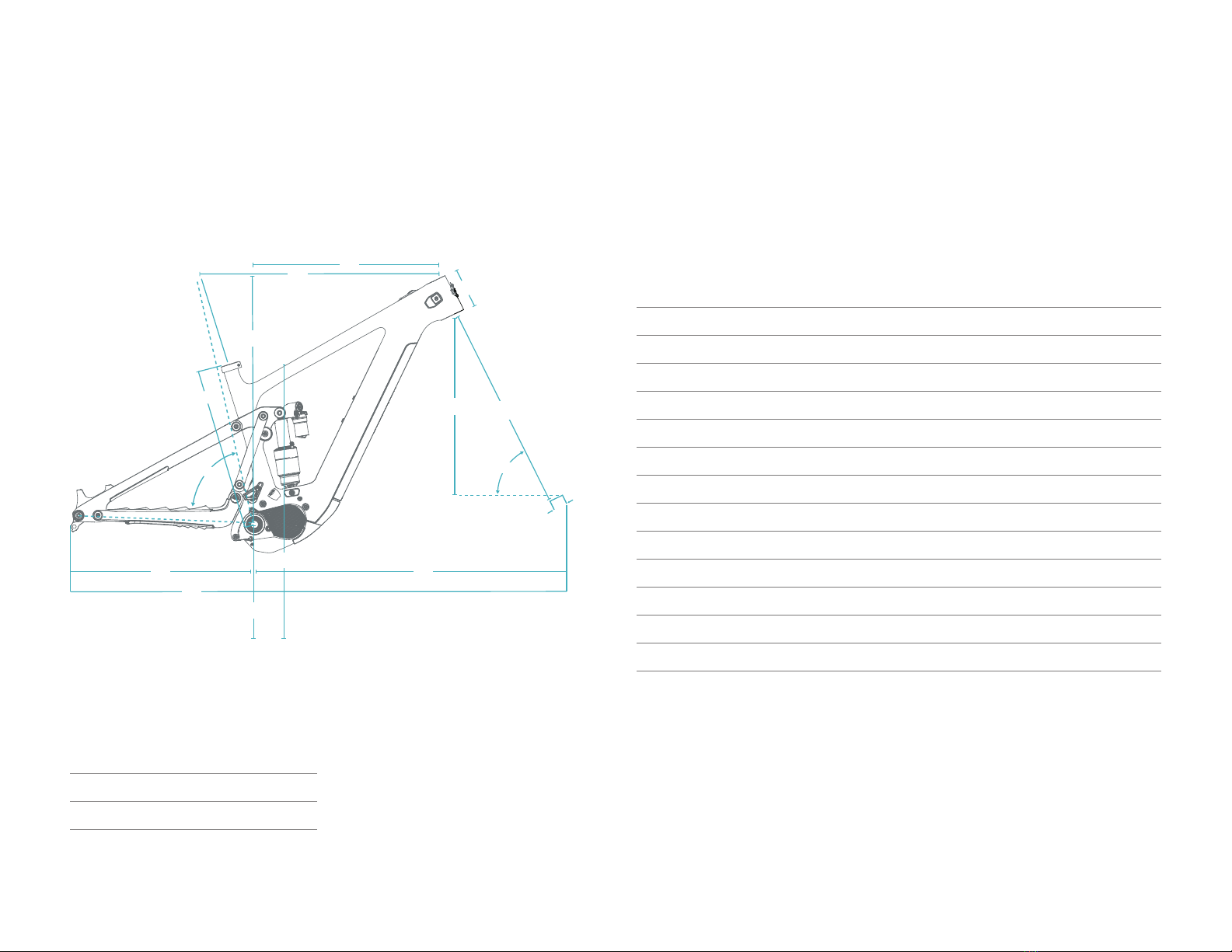

GEOMETRY
SM MD LG XL
ASEAT TUBE LENGTH 380.0 410.0 450.0 495.0
BEFF. TOP TUBE LENGTH 560.9 591.8 613.4 641.5
CHEAD TUBE ANGLE˚ 64.5 64.5 64.5 64.5
DEFF. SEAT TUBE ANGLE˚ 78.0 78.0 78.0 78.0
ECHAINSTAY LENGTH 446.0 446.0 446.0 446.0
FWHEELBASE 1208.3 1239.7 126 2.1 1291.9
GEST. BB HEIGHT 350.0 350.0 350.0 350.0
HSTANDOVER 754.0 754.0 754.0 754.0
IHEAD TUBE LENGTH 95.0 98.3 103.8 114.9
JFORK (AXLE TO CROWN) 583.7 583.7 583.7 583.7
KFORK OFFSET 44.0 44.0 44.0 44.0
LSTACK 617.0 620.0 625.0 635.0
MREACH 430.0 460.0 480.0 505.0
NFRONT CENTER 762.3 793.7 816.1 845.9
OVERTICAL FORK TRAVEL 153.4 153.4 153.4 153.4
M
B
L
I
J
O
C
N
H
G
E
F
D
A
K
FOX 38 / 170MM FORK
FIT
SMALL 5'1" (155 cm) – 5'7" (170 cm)
MEDIUM 5'5" (165 cm) – 5'11" (180 cm)
LARGE 5'10" (178 cm) – 6'3" (191 cm)
X-LARGE 6'1" (185 cm) – 6'7" (200 cm)

YETI 160E | OWNER’S MANUAL 6
SETUP
TABLE OF CONTENTS |
SETUP
SADDLE HEIGHT
− Loosen headtube port that the dropper housing runs through and ensure dropper
housing moves freely, unless using wireless dropper post.
− Loosen the seat collar and adjust to your desired height.
WARNING: DO NOT EXCEED THE MINIMUM INSERTION DEPTH MARKED ON THE SEATPOST
− Once you have adjusted the seatpost to your desired height, re-tighten the seat post
collar and headtube port bolt to their recommended torque specication.
SUSPENSION / TIRE SETUP
− Visit https://shocksetup.yeticycles.com/bikes for complete instructions on setting up
your front and rear suspension and recommended tire pressures.
WARNING: Only make suspension adjustments while completely stopped and not moving.
− Check tire pressure before every ride.
WARNING: Do not exceed max tire pressure that is labeled on the sidewall of the tire. Too low
of tire pressure could lead to pressure loss known as burping and increase the chance of tire
and rim damage.
− The 160E has a ip chip that adjusts the bikes leverage rate. The frame comes stock in 30%.
− To adjust the leverage rate up or down by 5%, support the rear wheel and remove the
lower shock bolt.
− Take out the stock 30% rate chips and replace with the additional chip set that came
with your frame.
− Position the chips in the direction you would like to move the leverage rate and
reinstall the lower shock bolt with the addition of a small amount of blue Loctite 242
on the bolt threads.
− If more setup information is required, please talk to a certied Yeti dealer or reference
the suspension manufacturers manuals that came with the bike or visit their website.
COCKPIT SETUP
− Loosen the stem bolts to adjust handlebar. Do not loosen the bolts that secure the
stem to the steerer tube to make this adjustment.
− Roll the bars and re-torque to manufacturers recommended settings.
− Loosen the bolts securing the brake and shift controls and move them so that they are
safely accessible while operating the bike.
− The brake and shift controls can be adjusted by moving them side to side or rolled
up and down to achieve desired location. Torque controls to the manufacturers
recommended torque specication once desired position is achieved.
CHARGING
− The battery ships partially charged so the system must be fully charged prior to rst use.
− Pull the charging cover up and away from the charging port. It will stay connected to
the charging port.
− Before installing charging plug, ensure proper alignment of charger plug.
− If installed properly the light on the charger will illuminate indicating the battery
is being charged.
− Charging time will vary based on starting charge level. With the supplied EC-60002
charger it will take 10.2 hours to reach full charge from a fully drained battery.
− After battery is fully charged remove charger plug from charging port and replace
port cover.
− Please note, an adaptor is needed for o bike charging of the battery. BT-E8035
• Align adaptor and install on battery.
• Plug charger into battery adapter per the above steps.
WARNING: Do not attempt to charge the bike while riding the bike.
− See STEPS manual for further operation and safety information.
INITIAL SETUP SHOULD BE PERFORMED BY A CERTIFIED
MECHANIC PRIOR TO MAKING ADJUSTMENTS OR FIRST USE.

YETI 160E | OWNER’S MANUAL 7
SETUP
TABLE OF CONTENTS |
TURNING ON/OFF THE SYSTEM
− Push down power button on the toptube and hold briey to turn on or o the system.
− The battery must be charged for system to turn on.
− Power cannot be turned on while the battery is charging.
− If the bike has not moved for 10 minutes, the power will shut o automatically.
− Ensure the bike is stationary prior to powering on the system.
MODE SELECTION
− The support mode can be selected using the mode switch on the left side of the
handlebars once the power has been turned on.
− Toggle between the 4 modes, O, Eco, Trail and Boost, by pushing the up or down
buttons on the mode switch. The direction of mode selection can be customized in the
Shimano E-Tube app.
− To activate Walk mode, push and hold the button that decreases the support until walk
mode appears on the display. The bike must be stationary in order to enter walk mode.
Release and push and hold again to start the walk assist.
− Walk support will only be active when the button is pushed and held.
− Further mode switch operation information can be found in the Shimano mode switch
user manual included with you bike or inline at https://www.shimano-steps.com/
DISPLAY OPERATION
− See Shimano STEPS user manual provided with your bike or at the Shimano STEPS
website, https://www.shimano-steps.com/, for operation instructions.
E-TUBE PROJECT
− System updates and system customization is all available through the Shimano E-Tube
app.
− Download the E-Tune app on your phone and enable Bluetooth to connect to your bike.
− Follow the E-Tube app instructions on the Steps website for connection, updates and
customization guidance.
− For more information go to the Shimano E-Tube website, https://bike.shimano.com/

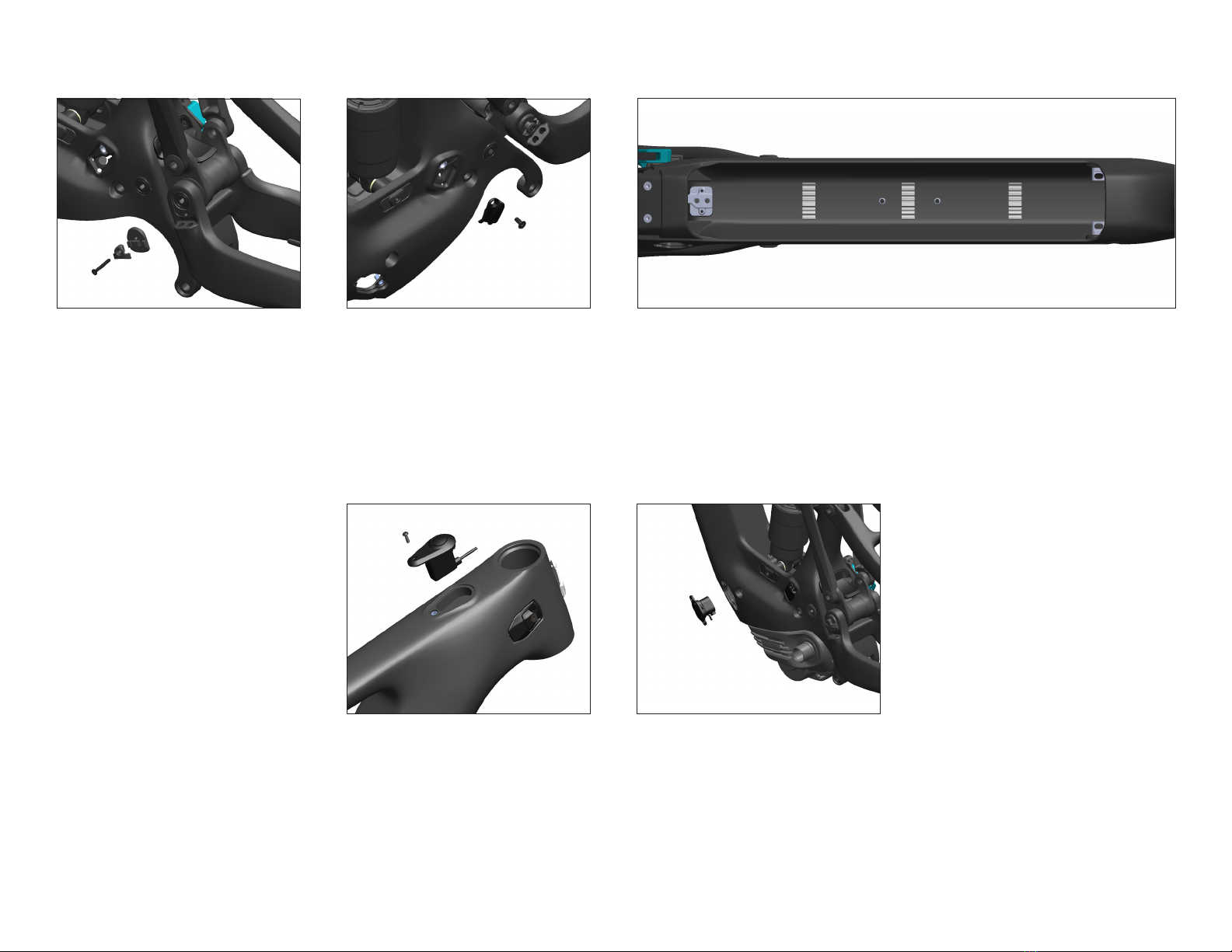

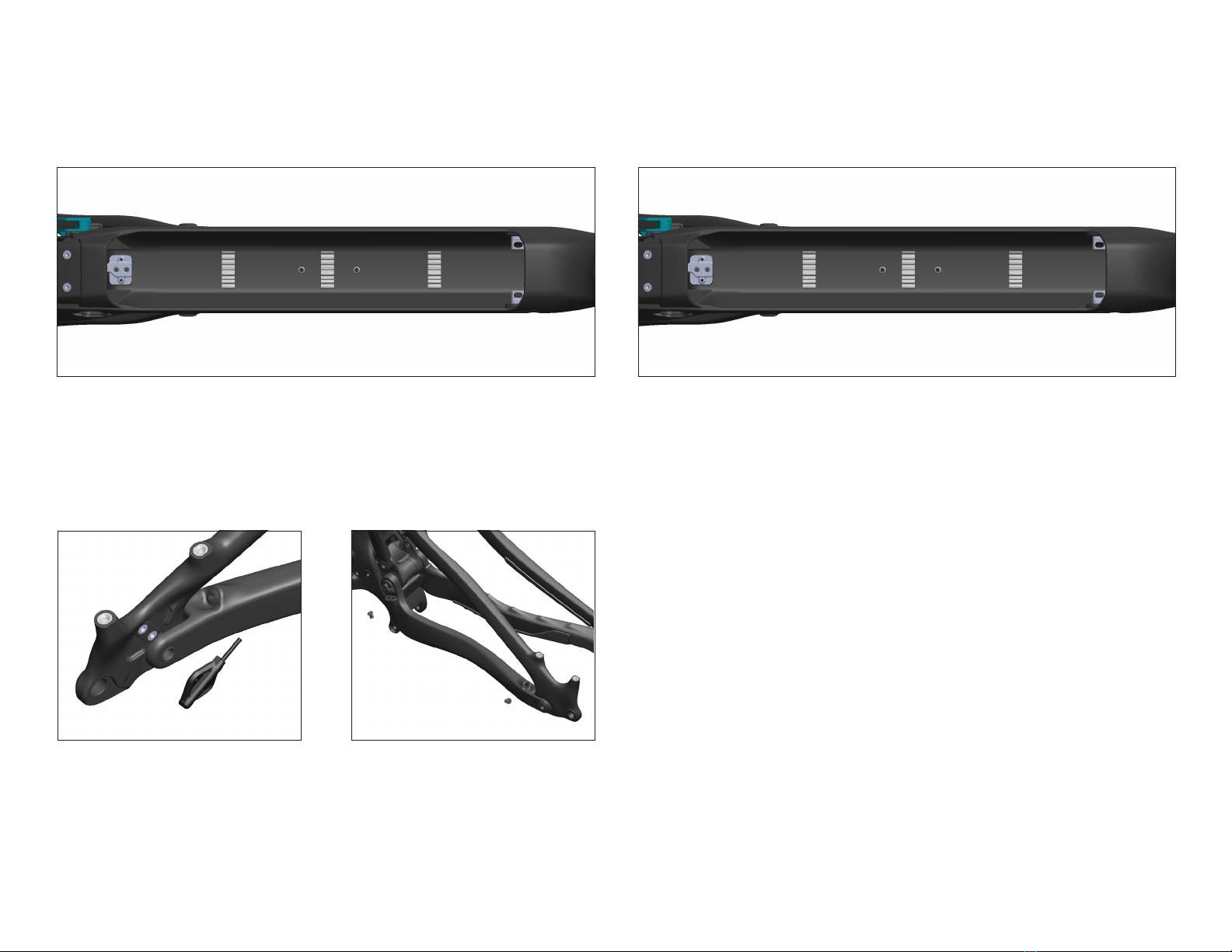

BATTERY REMOVAL AND INSTALLATION
− To remove the battery, insert a M4 allen wrench into the small hole at the top of the
battery guard.
WARNING: Do not remove the collet bolt or axle that is on the non drive side of the down tube
near the head tube.
− Ensure the wrench is secure in the latch bolt head and turn clockwise ¼ turn until the
battery releases and falls onto the secondary catch.
− Supporting the battery with your hands, insert your nger between the frame and the
battery cover and depress the catch to release the battery fully.
− Lower the top of the battery down and then pull the battery out from the lower mount.
− To reinstall the battery, insert the bottom of the battery into the lower mount in the frame.
− Ensure the lower mount is properly seated then press the upper part of the battery into
the top mount until you hear 2 clicks.
− Double check that the battery is fully secured, and it is not resting on the secondary catch.
SETUP CONTINUED
INITIAL SETUP SHOULD BE PERFORMED BY A CERTIFIED
MECHANIC PRIOR TO MAKING ADJUSTMENTS OR FIRST USE.

YETI 160E | OWNER’S MANUAL 8
MAINTENANCE
TABLE OF CONTENTS |
KEEP YOUR YETI
FRESH AND CLEAN
MAINTENANCE OVERVIEW
Following these guidelines will help maintain the performance of your bicycle and prevent
more serious problems from arising. It is important to remember that service intervals can
vary depending on climate, trail conditions and riding frequency. Servicing your bike requires
special knowledge and tools. If you are unsure about working on your own bicycle, contact your
authorized Yeti Dealer for more information on general bicycle maintenance.
This owner’s manual should be used in addition to the manuals supplied with you bike by the
component manufacturers. If those manuals are missing, most component manuals can be found
on the component manufacturers website or contact your local dealer.
Any component of the SHIMANO STEPS system should only be serviced by a certied mechanic.
All STEPS related service should be taken to a Yeti authorized dealer and not attempted by the user.
Before any maintenance is performed be sure
to turn o the E drive system and remove battery.
TORQUE
Yeti strongly recommends using a torque wrench when assembling your frame. Torque
specications for individual parts on the 160E are listed below, as well as in the step by step
assembly instructions later in the manual. For general bicycle maintenance please consult the
torque specications of the component you are adjusting.
SCHEDULE
BEFORE EACH RIDE MONTHLY 3 MONTHS ANNUALLY
Clean and lube chain •
Check tire pressure •
Clean bike of mud and debris •
Check brake function •
Ensure all cable ends are covered with crimped cable end caps •
Check rims for deformations or cracks •
Check shock pressure •
Check for loose bolts and tighten, if necessary •
Check headset and tighten/loosen, if necessary •
Check for rmware updates using e-tube app •
Thuroughly clean pivot points with a rag (do not lubricate) •
Check / replace brake pads •
Check tires for wear •
Check spoke tension, retention, if necessary •
Check chain for wear, replace if necessary •
Complete tune-up performed by an authorized Yeti Dealer •
KEY TORQUE SPECS
ITEM # DESCRIPTION TORQUE (NM)
4.8 Main pivot axle 20
4.14 Clevis pivot bolt, M12 12
4.42 Collet axle, 10mm long head 12
4.9 Collet wedge bolt, large 14
4.12 Link, pivot hardware, male, 15MM 15
4.36 Universal derailleur hanger 25
4.21 Motor mount screw, M8 BHCS 12
4.44 Collet wedge bolt, small 8
4.11 Shock bolt, M10 12
4.59 Tie link bolt, long 12
4.10 Tie link bolt, short 12

YETI 160E | OWNER’S MANUAL 9
FRAME ASSEMBLY
TABLE OF CONTENTS |
FRAME ASSEMBLY
YETI TIPS
Make sure your tools are in good condition. A worn
allen key can round the hex on a bolt not allowing
for proper torque. Torque settings are listed
throughout the instructions. It is important to prep
all bolt threads. The instructions denote whether to
use a Loctite compound or grease.
PREP HARDWARE PER THE ASSOCIATED ASSEMBLY DRAWING
• 1x SHCS M5 x 14L (4.3.6): Blue Loctite 243
• 2x 15mm Collet Axle (4.8): Grease shaft and head
• Small (4.45) and Large (4.9) Collet Wedge Bolts: Grease wedge and threads
• 2x Short (4.10) and 2x Long (4.61) Tie Link Pivot Bolts: Blue Loctite 243
• 2x Upper Shock Bolts (4.11): Blue Loctite 243
• 1x Rocker Link Pivot Bolt, Male (4.12): Blue Loctite 243
• 1x Rocker Link Pivot Axle (4.13): Grease shaft
• 4x M12 Clevis Bolts (4.14): Blue Loctite 243
• 4x Main Pivot Race Extenders (4.15): Grease inner surface
• 4x each 12/15mm Race Reducers, Small (4.16) and Large (4.17)
• 2x 12/10mm Race Reducer (4.18): Grease reducer OD
• 6x Motor Mount Bolts (4.21): Blue Loctite 243
• 2x M5 H20 Bolts (4.34): Grease
• 1x Derailleur Hanger Stop Screw (4.36): Blue Loctite 243
• 2x M5 x 12L FHCS (4.39): Blue Loctite 243
• 1x M10 Collet Axle, Long Head (4.43): Grease shaft and head, Blue Loctite 243 on threads
• 1x M8 Lower Shock Bolt (4.46): Blue Loctite 243
• 1x CS Guard Retension Screw (4.64): Blue Loctite 243
WARNING: Service on Yeti bicycles requires special
knowledge and tools. Yeti Cycles recommends that
all service and repairs be performed by an authorized
Yeti Dealer-
WARNING: All frame components must be installed
for proper function of this bike. Removal of any frame
component could result in frame damage and injury.
TOOLS NEEDED
• 1.5mm allen key
• 2mm allen key
• 2.5mm allen key
• T10 Torx
• T30 Tamper-Resistant Torx
• 3mm allen key
• 4mm allen key
• 5mm allen key
• 6mm allen key
• 10mm allen key
• Guide pin tool (Or two)
• Torque wrench
• Grease
• Blue (243) Loctite
01
Apply grease to the bearing bores of the rear SS
Pivot. Press 2x 3802 Bearing (4.31) using provided
tools. Make sure bearings are fully pressed into
rear triangle.
03
Assemble the non-drive side Rocker Link (4.3),
Rocker Bridge (4.60), and drive-side Rocker Link
(4.2) together using 2X M5 FHCS (4.39). To help
align the Rocker links and Bridge, you may also
temporarily install the upper Timing Link bolts
(4.61)
02
If not already completed, install non-drive side
Rocker Pinch Bolt (4.3.6) into non-drive side
Rocker Link but leave loose. Press/Slide 1x
15/17mm Bearing Reducer (4.3.5) into the inside
of each lower bearing on drive-side and non-drive
side Rocker Links. Make sure reducer is fully
seated in bearing.
04
Install Rocker Link Assembly to the Front Triangle
and secure with Link Pivot Axle (4.13) and male
Link Pivot Bolt (4.12). Make sure pinch bolt on non-
drive side Rocker Link allows bearing to oat and
secure ush onto frame.
Torque Link Pivot hardware to 15 Nm.

YETI 160E | OWNER’S MANUAL 10
FRAME ASSEMBLY
TABLE OF CONTENTS |
05
Lightly grease the bore and collet nut interface
on the Front Triangle main pivot interface Install
Lower Switch Link Assembly (4.1) with two Race
Extenders (4.15) into the Front Triangle and secure
with 15mm Collet Axle (4.8) and Chain guide
Mount Collet Nut (4.47).
Torque to 20-25 Nm
10
Install Switch Link Fender (4.38) to the Front
Triangle using 2X FHCS (4.20) Torque to 2.5 Nm or
until snug.
07
Install 2x Bearing Reducer, Large Flange (4.17)
and 2x Bearing Reducer, Small Flange (4.16) to the
outides and insides of the Rocker Link Assembly
rear bearings.
Repeat for seatstay Clevis interface.
06
Lightly grease bore and collet nut interface of
chainstay main pivot interface. Install remaining
15mm Race Extenders (4.15) onto Lower Link (4.1)
and place chainstay onto Link. Secure with 15mm
Collet Axle (4.8) and Cable Clamp Collet Nut (4.58).
Torque to 20-25 Nm
11
Tighten non-drive side Rocker Link pinch bolt
and torque to 5-6 Nm Torque the 2X M4 FHCS
securing the Rocker Links and Bridge to 5 Nm.
Note: This bolt must be loosened prior to link
removal.
08
Install seatstay onto frame, aligning rst at the
Rocker Link Assembly. Use 12mm guide pin to
align and secure with 2X Clevis Bolt (4.14). Align
the chainstay and seatstay clevis interface using
12mm Guide Pin and secure with 2X Clevis Bolt
(4.14).
Torque all clevis bolts to 12 Nm
09
Install Cable Port Cover, Single (4.27) to the inside of the chainstay non-drive side surface and secure
lightly with M4 FHCS (4.20).
Repeat installation of port cover on Front Triangle non-drive side.

YETI 160E | OWNER’S MANUAL 11
FRAME ASSEMBLY
TABLE OF CONTENTS |
12
Install Timing Link (4.4) and Timing Link (4.5) onto
the Rocker Link Assembly using 2X Tie Link Bolt,
Long (4.61) and to the Switch Link Assembly (4.1)
using 2X Tie Link Bolt, Short (4.10).
Torque all Tie Link bolts to 12 Nm.
13
Install 2X Collet Wedge Bolt, 15mm (4.9) into the
two 15mm Collet Axles at the main pivot.
Torque to 14-15Nm.
QC CHECK: Cycle Rear Triangle through to make
sure motion is smooth.
15
Install UDH Derailleur Hanger (4.37)
into seatstay.
Torque (left-hand thread) to 25 Nm.
16
Install chainstay Guard Retention Screw (4.64)
through chainstay Guard and into the opposing
clevis bolt.
Tighten until snug - be careful to not
overtighten!
Note: This bolt must be loosened prior to removing
the Clevis Bolt (4.14) it threads into.
14
Install 2X 12/10mm Reducer (4.18) on the insides of the front Rocker Link bearings. Install Shock into frame
using 2X Upper Shock Bolt (4.11). Secure lower eyelet with 30% Shock Chips (4.29 & 4.30), 8mm x 63L
Shoulder Screw (4.46) and Washer (4.28).
Torque fasteners to 12 Nm

YETI 160E | OWNER’S MANUAL 12
E-COMPONENT ASSEMBLY
TABLE OF CONTENTS |
03
Route rear brake housing forward, ensuring a
generous strain relief from caliper to cable port
entry to account for motion between chainstay and
seatstay. Secure to chainstay with a Single Port
Cover (4.27) and M4 FHCS (4.20)
04
Route brake housing into Front Triangle ensuring
adequate strain relief between front and rear
triangle. Route brake housing up either the left-
most or right-most channel in cable trays and exit
the non-drive side port hole on the headtube.
01
If installing a wired drivetrain, route a length of
shifter housing from the non-drive side headtube
port (lower hole), down the downtube being
secured in the second-from-left opening in the
cable trays.
02
Route shifter housing past the lower battery
mount pad and into the motor cavity. Exit the
housing from the front triangle port and loop over
the top of the Collet Nut clamp features and into
the drive-side chainstay.
05
Install Speed Sensor (4.6.7) to the Seatstay with
supplied Shimano M3 fasteners.
Tighten to 0.6Nm (hand tight).
Route E-wire through the chainstay ensuring adequate
strain relief. Exit the chainstay and loop sensor wire
with brake housing into the Front Triangle.
06
Install 2X Grommet (4.32) around sensor wire
at each chainstay port and push into frame
until ush.
FIRST OPERATIONS MAY BE PERFORMED IN A STAND OR FLIPPED UPSIDE DOWN,
DEPENDING ON BUILDER PERSONAL PREFERENCE.
E-COMPONENT ASSEMBLY

YETI 160E | OWNER’S MANUAL 13
E-COMPONENT ASSEMBLY
TABLE OF CONTENTS |
09
Install Base, Housing Clamp (4.53) underneath
brake housing and sensor wire and secure with
Clamp, Housing Clamp (4.54) and M3 FHCS
(4.33).
Tighten hand-tight.
11
If assembling a non-wireless seatpost kit, route
length of dropper/shifter housing starting at the
drive-side Lower Cable Port. Clip housing into
Management Trays in the rst or second-position
from drive-side. Pass the housing on either side of
the battery mount insert, into the motor cavity, and up
the seattube. Ensure adequate length from head tube
and out of seat tube to ensure setup compatibility.
10
Clamp shifter housing and sensor wire to
the rear Main Pivot Collet Nut (4.57) and secure
with Housing Clamp (4.56) and M3 SHCS (4.55).
Tighten hand-tight.
12
Route a 1200 mm Shimano E-wire down the
downtube. Insert into drive-side Upper cable port
and route down downtube securing in one of the
small E-wire channels. Route wire through non-
drive side pass-through past battery mount.
Leave approx. 6-8” of wire exposed from headtube
port exit.
13
Route a 1200 mm Shimano E-wire down the
downtube. Insert into drive-side upper cable
port and route down downtube securing in one
of the small E-wire channels. Route wire through
non-drive sides pass-through past battery mount.
Leave approx. 6-8” of wire exposed from
headtube port exit.
14
Install the Satellite Power Switch (4.6.6) into the top of
the Top Tube. Tuck front lip of switch in before placing
ush. Secure with provided Shimano screw (4.6.5).
Tighten hand-tight (Shimano spec: 0.6 Nm) Route
switch wire down downtube securing in the remaining
E-wire channel. Route through non-drive side pass-
through past the battery mount.
15
Route the Satellite Charge Port harness (square
plug) out the hole in the frame non-drive side and
attach the Satellite Charge Port (4.6.3) outside of
the frame.
16
Attach the main power cable harness (circular plug)
into the motor. Pay attention to the keying by aligning
the arrow on the harness clip to the motor receptacle.
ALL BATTERY MOUNT ADJUSTMENTS SHOULD BE PERFORMED BY AUTHORIZED YETI
CYCLES DEALER. DO NOT ATTEMPT TO ADJUST ANY OF THE HARDWARE RELATED
BATTERY MOUNT.

YETI 160E | OWNER’S MANUAL 14
E-COMPONENT ASSEMBLY
TABLE OF CONTENTS |
19
Tuck E-wire bundle inside motor cavity using
the open space on the non-drive side. Carefully
lower motor into frame. E-wire bundle and main
power harness should group and route along the
non-drive side up to in front of the motor and into
the downtube.
17
Plug the E-wires into the motor on the
non-drive side receptacle using Shimano
E-wire tool.Computer and Remote Switch wires
can be plugged into either circular port. Speed
Sensor wire end is keyed and will only t into
one corresponding keyed port on the motor.
Use caution to make sure the correct port is
being used.
18
Using 2-4 small zip ties, bundle the group
of E-wires cleanly together, adding loops as
necessary. Keep bundle as close to frame and
motor as possible to minimize free length.
Make sure that brake, shifter (if applicable), and
dropper (if applicable) housing is routed cleanly
from downtube into motor cavity and can be
pushed relatively easily up against the frame wall.
20
Using care to not pinch E-wires or crimp any
housing, gently press motor into cavity until
fasteners can be loosely installed. Install 6x Motor
Mount Shoulder Screw (4.21) with Washer (4.28)
through frame and into Motor.
TIGHTEN DRIVE-SIDE SCREWS FIRST.
Torque to 12 Nm
21
After drive-side screws have been torqued,
tighten non-drive side screws. The motor
bushings should extract and ll space against
the frame.
Torque remaining screws to 12 Nm.
22
Attach the Motor Guard (4.67) to the Motor using
2X supplied Shimano phillips screws (hand-tight).
Install screws into the two side holes in the guard.
23
Attach the Lower Edge Guard (4.66 - appropriate
size for bike) over the Lower Edge Guard.
Secure using 4x M5 BHCS (4.62) and 1x M3 BHCS
(4.65) through the Motor Guard and into the Motor.
Tighten M3 screw until snug (hand-tight), and M5
BHCS to approximately 2 Nm or until hand-tight.

YETI 160E | OWNER’S MANUAL 15
E-COMPONENT ASSEMBLY
TABLE OF CONTENTS |
27
Install OnesUp O-Ring onto the Chainguide Mount
Shoulder Bolt (4.50). Secure OneUp Components
Chainguide (outer and inner, 4.51 and 4.52) with
Shoulder Bolt (4.50) onto the Chainguide Mount
Collet Nut (4.47).
28
Install Housing Clamp, Chainguide Mount (4.48)
around shifter housing (if applicable) and onto the
Chainguide Mount Collet Nut (4.47) using 1x M3
FHCS (4.49). Tighten until snug. If overtightened,
shifting performance can be eected.
29
Install Cable Clamp, chainstay Collet Nut (4.57)
onto the Collet Nut, Housing Clamp (4.58) by
inserting the small tab under the collet nut
overhang. Secure with M3 x 10L Cap Screw
(4.56). Tighten screw until snug around housing,
or hand-tight if assembling a wireless drivetrain kit.
If overtightened, shifting performance can
be eected.
32
Install Shimano Chainring onto Motor and secure
with chainring Lockring. Note that Lockring is
LEFT HAND thread. Torque to 35-45 Nm using
crow’s foot attachment. Ensure chainring sits in
between chainguide halves.
31
Install a Shift + E Cable Port Cover (4.24) or E-Only
Cable Port Cover (4.25) (kit-dependent) with a Cable
Port Cove Base (4.22) onto the drive-side headtube
and secure with M4 FHCS (4.19). Tighten until snug.
Install a Shift + Brake Cable Port Cover (4.23) or
Brake-Only Cable Port Cover (4.26) (kit-dependent)
with a Cable Port Cover Base (4.22) onto the non-
drive side headtube and secure with M4 FHCS
(4.19). Tighten until snug.
30
Install Base, Housing Clamp, chainstay Collet
Head (4.54) and Clamp, Housing Clamp, chainstay
Collet Head (4.55) into the non-drive side collet
head in the chainstay with a M3 x 25L FHCS (4.33).
Ensure that brake line and speed sensor wire have
adequate strain relief to the front triangle and not
being pulled, tugged, or bent throughout travel.
Tighten clamp around Speed Sensor wire and
brake housing until snug (hand-tight).
33
Install Shimano cranks per manufacturer
instructions. Install crankarm cap and tighten to
0.7 - 1.5 Nm. Torque 2X Crank Arm pinch bolts to
12-14 Nm
25
Install Battery (4.6.2) into the downtube. Battery
should clip in rmly and latch without pinching any
wires or housing. Install Battery Guard (4.7) onto
the Battery using 4x M4 BHCS (4.63). Snug the 4x
BHCS until hand-tight.
26
Install Battery Guard (4.7) onto the Battery using 4x
M4 BHCS (4.63). Snug the 4x BHCS until hand-tight.

YETI 160E | OWNER’S MANUAL 16
E-COMPONENT ASSEMBLY
TABLE OF CONTENTS |
01
- Insert the mode switch wire (Orange) in the hole in the left side of the handlebar and push until it exits the
left side of the bar end.
- Using an internal cable routing tool (Yellow), insert the tool into the hole near the center of the handlebar
and push through until it exits the left side bar end.
- Connect the mode switch wire (Orange) to the internal cable routing tool (Yellow) and pull the internal
cable routing tool back through the hole at the center of the handlebar.
03
- Install the Shimano cycle computer onto the handlebar, directly to the right of the stem. Use a 3mm hex
wrench to tighten the clamp bolt to 0.8Nm (7.1 in-lb).
- The wire from the mode switch routes through the handlebar and connects into the left port of the cycle
computer. After connecting the mode switch wire, tuck the excess wire back into the handlebar.
02
- Install the mode switch in the correct location next to the grip on the rider’s left side of the handlebar.
Take care to ensure the mode switch wire is aligned in the groove under the bar and passes under the
clamp before connecting to the mode switch. Use a 3mm hex wrench to tighten the mode switch clamp
bolt to 1.5Nm (13.8 in-lb). Ensure that the mode switch wire is seated in the groove when installing the
grip to avoid damaging the wire.
HANDLEBAR WIRING

YETI 160E | OWNER’S MANUAL 17
E-COMPONENT ASSEMBLY
TABLE OF CONTENTS |
FOX TRANSFER POST
INSERTION GUIDE
FOX TRANSFER POST SIZE
FRAME SIZE 125 150 175
SMALL 195 225 225
MEDIUM 225 258 258
LARGE 228 258 290
X-LARGE 228 258 290
MAX INSERTION (X)
Measure from top of seattube to bottom of dropper post as shown below (measurements in mm)
NOTE: Saddle centered on straight length of rails
For more information on Yetis Cycle’s Shock Setup guide,
visit https://shocksetup.yeticycles.com/bikes
x

YETI 160E | OWNER’S MANUAL 18
EXPLODED VIEW
TABLE OF CONTENTS |
4.17
4.31
4.16
4.36
4.14
4.32
4.20
4.27
4.57
4.56 4.55
4.32
2.3
4.8
4.9
4.53
4.54
4.33
4.14
4.21
4.28
4.6.1
4.20
4.37
4.7
4.6.2
4.44
4.42
4.43
4.41
4.6.3
4.6.4
4.6.4
4.274.20
4.39
4.13
4.11
4.17
4.2
4.18
4.3.6
4.16
4.12
4.11
4.17
4.59
4.5
4.4
4.15
4.8
4.9
4.1
4.49
4.52
4.50
4.51
4.46
4.47
4.48
4.66
4.67
4.28
4.45
4.6.6
5
4.19
4.23
4.22
4.24
4.19
4.26
4.25
4.6.8
4.6.7
4.35
4.34
4.21
4.28
4.10
4.3.5
4.2.5
4.60
4.63
4.64
4.61
4.40
4.58
1
4.38
4.62
4.65
4.3
4.30
4.29
PREP KEY
GREASE
LOCTITE
NYLON
PATCH
4.59
4.10
EXPLODED VIEW

YETI 160E | OWNER’S MANUAL 19
ASSEMBLY BILL OF MATERIAL
TABLE OF CONTENTS |
160E ASSEMBLY
BILL OF MATERIAL
ITEM
NO. STOCK CODE DESCRIPTION UNIT QT Y.
1N/A 160E FRONT TRIANGLE ASSEMBLY 1
2N/A 160E CHAINSTAY ASSEMBLY 1
2.2 400100218 160E CHAINGUARD - CS LOWER 1
2.3 400100219 160E CHAINGUARD - CS UPPER 1
3N/A 160E SEATSTAY ASSEMBLY 1
3.2 400100217 160E CHAINGUARD - SS 1
4N/A 160E SMALL PARTS ASSEMBLY 1
4.1 N/A 160E LOWER LINK ASSEMBLY 1
4.1.1 300040526 160E LOWER LINK 1
4.1. 2 300020042 BEARING, 6902-2RS, 15 X 28 X 7 4
4.1.3 300030323 SPACER, 18 X 15.2 X 35.65L 2
4.2 N/A 160E ROCKER LINK DS ASSEMBLY 1
4. 2.1 300040535 160E ROCKER LINK DS UPPER 1
4.2.2 300020056 ROCKER LINK BEARING, 6901-2RS, 12x24x6 1
4.2.3 300020001 BEARING, 6903-2RS, 17 X 30 X 7 1
4.2.4 HNA00000BA
00000000000 BEARING, 3802-2RS, 15 X 24 X 7 1
4.2.5 300030333 REDUCER, 15 X 17 X 2L, 24MM FLANGE 1
4.3 N/A 160E ROCKER LINK NDS ASSEMBLY 1
4. 3 .1 300040534 160E ROCKER LINK NDS UPPER 1
4.3.2 300020056 ROCKER LINK BEARING, 6901-2RS, 12x24x6 1
4.3.3 300020001 BEARING, 6903-2RS, 17 X 30 X 7 1
4.3.4 HNA00000BA
00000000000 BEARING, 3802-2RS, 15 X 24 X 7 1
4.3.5 300030333 REDUCER, 15 X 17 X 2L, 24MM FLANGE 1
4.3.6 300030168 SHCS, M5 X 0.8, 14L, BLACK 1
4.4 N/A 160E TIMING LINK - DS ASSEMBLY 1
4.4.1 300040527 160E TIMING LINK - DS 1
4.4.2 300020057 BEARING, 11197 LLU MAX, BO (11X19X7) 2
4.5 N/A 160E TIMING LINK - NDS ASSEMBLY 1
4. 5 .1 300040528 160E TIMING LINK - NDS 1
4.5.2 300020057 BEARING, 11197 LLU MAX, BO (11X19X7) 2
4.6 N/A 160E E-BIKE COMPONENTS KIT ASSEMBLY 1
4.6.1 N/A MOTOR-DU-EP800 1
4.6.2 N/A BATTERY-BTE8036, 630Wh 1
4.6.3 N/A PORT-SATELLITE, SHIMANO EW-CP100 1
4.6.4 N/A BATTERY MOUNT, BME8031A 1
4.6.6 N/A SWITCH-SATELLITE, SHIMANO EW-SW300 1
4.6.7 N/A SPEED SENSOR, SHIMANO SM-DUE11 1
4.6.8 100190010 MAGNET MOUNT, WHEEL SPEED SENSOR, 30.5MM RADIUS 1
4.7 400100220 160E DT BATTERY GUARD 1
4.8 300030324 COLLET AXLE, 15MM X 69.25L, M15X1.5 2
4.9 300030334 COLLET WEDGE SUB-ASSEMBLY 15MM, M3 THREADED WEDGE BOLT 2
4.10 300030326 BOLT, M10X1.0X15, 11X6.5 SHOULDER 2
4.11 300030327 160E BOLT SHOCK M10X1 2
4.12 300030328 BOLT, MALE ROCKER, 15MM X 16.5L, M10X1.0 1
4.13 300030329 AXLE, LINK PIVOT, 15MM X 66.5L, M10X1 1
4.14 300030330 BOLT, CLEVIS, M12X1.0, 12 x 25.75L, M5 INTERNAL THREAD 4
4.15 300030347 INNER RACE EXTENSION 15MM MP 4
4.16 300030335 INNER RACE REDUCER 12/15MM, 3.5L. 21 FLANGE 4
4.17 300030336 INNER RACE REDUCER 12/15MM, 3.25L, 25 FLANGE 4
4.18 300030337 160E INNER RACE EXTENSION 10MM 2
4.19 300030175 SCREW, FH, M4 X 0.7, 20L 2
4.20 300030173 SCREW, FH, M4 X 0.7, 10L 4
4.21 300030359 SHOULDER BOLT, M8 X 1.25 X 33L 6
4.22 300040524 CABLE PORT COVER, HEAD TUBE, 2 PIECE 2
4.23 300040522 CLAMP, HT PORT DOUBLE, PA6 1
4.24 300040522 CLAMP, HT PORT SINGLE W/ E, PA6 1
4.25 300040522 CLAMP, HT PORT E ONLY, PA6 1
4.26 300040521 CLAMP, HT PORT SINGLE, PA6 1
4.27 300040518 COVER-CABLE PORT, SINGLE, RIGHT EXIT 2
4.28 300030069 WASHER 8.5 X 12.5 X 0.5 MM 7
4.29 300030350 SHOCK MOUNT CHIP, 160E, 25/35%, NONTHREADED 1
4.30 300030351 SHOCK MOUNT CHIP, 160E, 25/35%, THREADED 1
4.31 HNA00000BA
00000000000
BEARING, 3802-2RS, 15 X 24 X 7 2
4.32 300040533 GROMMET, 2.4 WIRE, 6.5 PORT 2

YETI 160E | OWNER’S MANUAL 20
ASSEMBLY BILL OF MATERIAL
TABLE OF CONTENTS |
4.33 300030169 SCREW, FH, M3 X 0.5, 25L, SS, BLK OXIDE 1
4.34 300030010 SHCS, M5 X 0.8, 16L 2
4.35 300030148 WASHER 5.1 X 8.9 X 1.0 MM 2
4.36 300060080 SRAM UNIVERSAL HANGER 1
4.37 400100216 160E ST FENDER 1
4.38 300030355 SHCS, FLAT HEAD, M5 X 0.8 X 14 2
4.39 300060078 YETI SEAT CLAMP, BOLT ON, 31.6 1
4.45 300030360 SHOULDER BOLT, M8 X 1.25 X 63L 1
4.46 300030352 COLLET NUT, M15X1.5, KEYED, CHAINGUIDE MOUNT 1
4.47 300030339 HOUSING CLAMP, GUIDE/COLLET NUT MOUNT 1
4.48 300030353 FHCS, M3 X 0.5, 8L, SS, BLK OXIDE 1
4.49 300030342 SHOULDER BOLT, M5 X 0.8, CHAIN GUIDE MOUNT 1
4.50 N/A OUTER GUIDE, ONEUP COMPONENTS, 2019-PRESENT 1
4.51 N/A INNER GUIDE, ONEUP COMPONENTS, 2019-PRESENT 1
4.52 N/A O-RING, CHAIN GUIDE, 10MM OD X 1.8MM THICK 1
4.53 300030343 BASE, HOUSING CLAMP, CS COLLET HEAD 1
4.54 300030344 CLAMP, HOUSING CLAMP, CS COLLET HEAD 1
4.55 300030354 SHCS, M3 X 0.5, 10L, SS, BLK OXIDE 1
4.56 300030340 CLAMP, CS COLLET NUT, 160E 1
4.57 300030345 COLLET NUT, M15X1.5, KEYED, CABLE CLAMP 1
4.58 300040536 160E BRIDGE - UPPER LINK 1
4.59 300030325 SHOULDER SCREW, 11MM X 27L, M10 X 1.0X10.5L THREAD, ALLOY 2
4.60 300030171 BHCS, M5 X 0.8 X 8L 4
4.61 300030313 BHCS, M4 X 0.7 X 10L 4
4.62 300030332 SHOULDER SCREW, STEPPED, 7.5 X 21.5L, M5 X 0.8, ALUMINUM 1
4.63 300030356 BHCS, M3 X 0.5 X 18L 1
4.64 400100221 160E LOWER DT GUARD - MEDIUM 1
4.65 N/A MOTOR COVER, SHIMANO DC-EP800, LOWER 1
4.66 300030348 SHOCK MOUNT CHIP, 160E, 30%, NONTHREADED 1
4.67 300030349 SHOCK MOUNT CHIP, 160E, 30%, THREADED 1
5N/A 160E SHOCK ASSEMBLY 1
