Yeti 575 2012 User manual
YETI CYCLES
600 Corporate Circle, Unit D
Golden, CO 80401
888.576.9384
www.yeticycles.com
owner’s manual
2012 yeti 575
4. 5.
table of Contents
BRAND OVERVIEW 06
FRAME FEATURES 08
GEOMETERY 10
MAINTENANCE SCHEDULE 12
SETUP
OVERVIEW 14
SHOCK SETUP RP23 15
QUICK START GUIDE RP23 16
SHOCK SETUP RP2 17
QUICK START GUIDE RP2 18
CABLE/LINE SETUP 20
TECHNICAL
ASSEMBLY OVERVIEW 22
CHIP SYSTEM 26
EXPLODED VIEWS 28
REBUILD KITS 30
LEGAL
WARRANTY 32
CONTACT INFORMATION 33
6. 7.6. 7.
welCome to the tribe.
Congratulations on your
purChase of a new yeti.
Warning: Make sure you review and understand the warnings, instructions, and content of this manual and accompanying
manuals for your bicycle.
Warning: Technological advances have made bicycles and bicycle components more complex and the pace of innovation is
increasing. It is impossible for this manual or the accompanying manuals to provide all the information required to properly
repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have work
performed by an authorized Yeti retailer.
8. 9.
the 575 is the original
all mountain rig.
1.
2.
3.
4.
5.
6.
7.
8.
1. YETI PURE TUBING
2. ISCG 03’ TABS
3. HYDROFORMED REAR TRIANGLE
4.
5. REAR SHOCK BY FOX RACING SHOX
6. DROPOUTS 12MM X 142 THRU AXLE OR 135MM QR
7. CABLE STOPS FOR HEIGHT ADJUSTABLE SEATPOST
8. DIRECT MOUNT FRONT DERAILLEUR
C
K
F
E
GH
I
B
A
D
J
10. 11.
geometry 150 mm fork
160 mm fork
fit
*All measurements are in inches
XS SM MD LG XL
A16.0 17.5 18.5 20.5 20.5
B22.0 23.0 24.0 25.0 25.8
C66.8 66.8 66.8 66.8 66.8
D71.6 71.6 71.6 71.6 71.6
E16.9 16.9 16.9 16.9 16.9
F42.7 43.8 44.8 45.9 46.7
G13.6 13.6 13.6 13.6 13.6
H28.9 29.4 29.4 29.4 29.4
I4.1 4.9 4.9 5.5 5.5
J21.5 21.5 21.5 21.5 21.5
K1.5 1.5 1.5 1.5 1.5
X-SMALL
SMALL
MEDIUM
LARGE
X-LARGE
XS SM MD LG XL
A16.0 17.5 18.5 20.5 20.5
B21.8 22.8 23.8 24.8 25.8
C68.0 68.0 68.0 68.0 68.0
D72.8 72.8 72.8 72.8 72.8
E16.9 16.9 16.9 16.9 16.9
F42.4 43.5 44.5 45.6 46.4
G13.3 13.3 13.3 13.3 13.3
H28.5 29.1 29.1 29.1 29.1
I4.1 4.9 4.9 5.1 5.1
J20.5 20.5 20.5 20.5 20.5
K1.5 1.5 1.5 1.5 1.5
12. 13.
WEEKLY
MONTHLY
3 MONTHS
ANNUALLY
keep your new yeti
fresh and Clean
overview torque
key torque speCs
CLEAN AND LUBE CHAIN
CHECK TIRE PRESSURE
CLEAN BIKE OF MUD AND DEBRIS
CHECK BRAKE FUNCTION
CHECK SHOCK PRESSURE, IF APPLICABLE
CHECK FOR LOOSE BOLTS AND TIGHTEN, IF NECESSARY
CHECK HEADSET AND TIGHTEN / LOOSEN, IF NECESSARY
REPLACE BRAKE PADS, IF NECESSARY
CHECK TIRES FOR WEAR
CHECK SPOKE TENSION AND RETENTION, IF NECESSARY
CHECK CHAIN FOR WEAR AND REPLACE IF NECESSARY
COMPLETE TUNE-UP PERFORMED BY AN AUTHORIZED YETI DEALER
PART NUMBER DESCRIPTION
300030110 BOLT-TI-MALE M6X1 12 MM 90-95
HNA0000ABA0000000005 BOLT-ALLOY-MALE M6X1 12MM 60-65
300030189 PIVOT PIN BOLT M10 X 1 X 22 115-125
300030194 BOLT CAP SCKT HD M4X.7X10 25-30
300030139 BOLT FLAT HD M4X.7X16 5-10
sChedule
14. 15.
shoCk setup
FOX.SHOX.
yeti tips tools needed
01. air pressure rp23 02. sag rp23
03. pro pedal rp23
16. 17.
shoCk setup
04. rebound rp23
*All clicks are counted clockwise, rotating from the all the
way out or counter - clockwise dial position.
ADJUSTMENT SETTING
RIDER WEIGHT PLUS 20-30 PSI
10-15
REBOUND *5 CLICKS
PRO-PEDAL LEVER OPEN
PRO-PEDAL KNOB POSITION 1
quiCk start guide - rp23
01. air pressure rp2 02. sag rp2
03. pro pedal rp2
18. 19.
04. rebound rp2
*All clicks are counted clockwise, rotating from the all the
way out or counter - clockwise dial position.
ADJUSTMENT SETTING
RIDER WEIGHT PLUS 20-30 PSI
10-15
REBOUND *5 CLICKS
PRO-PEDAL LEVER OPEN-DESCENDING / PROPEDAL-CLIMBING
quiCk start guide - rp2
20. 21.
Caution: The failure to properly route shifter housing can cause malfunction of the shift mechanism and
unexpected shifting of gears.
Cable setup
yeti tips
01. rear derailleur
02. front derailleur
03. rear brake
22. 23.
assembly
yeti tips tools needed
Warning: Service on Yeti bicycles requires special knowledge
and tools. Yeti Cycles recommends that all service and
repairs be performed by an authorized Yeti Dealer
Grease
01. 02.
03. 04.
24. 25.

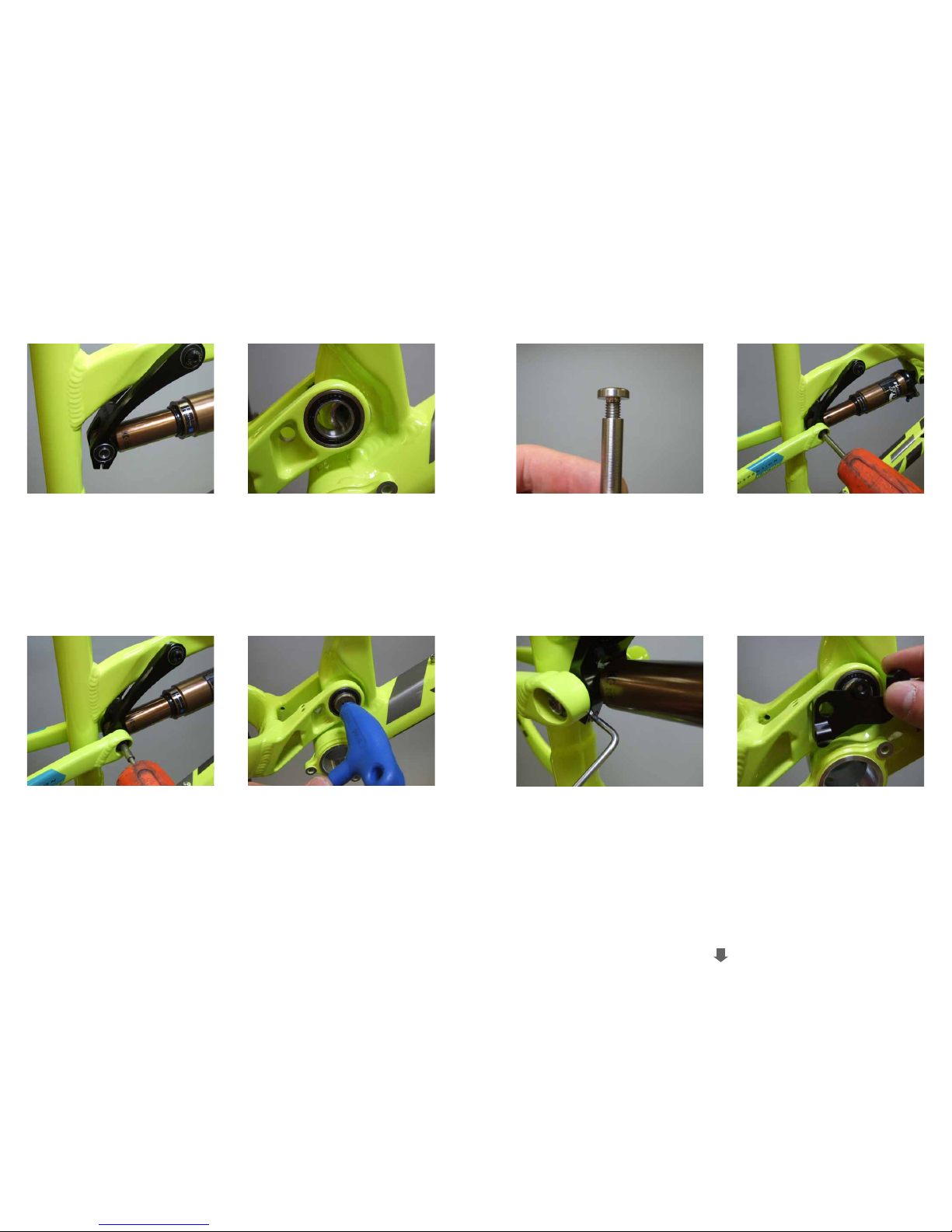

assembly
05. 06.
08.07.
assembly
09. 10.
11. 12.
26. 27.

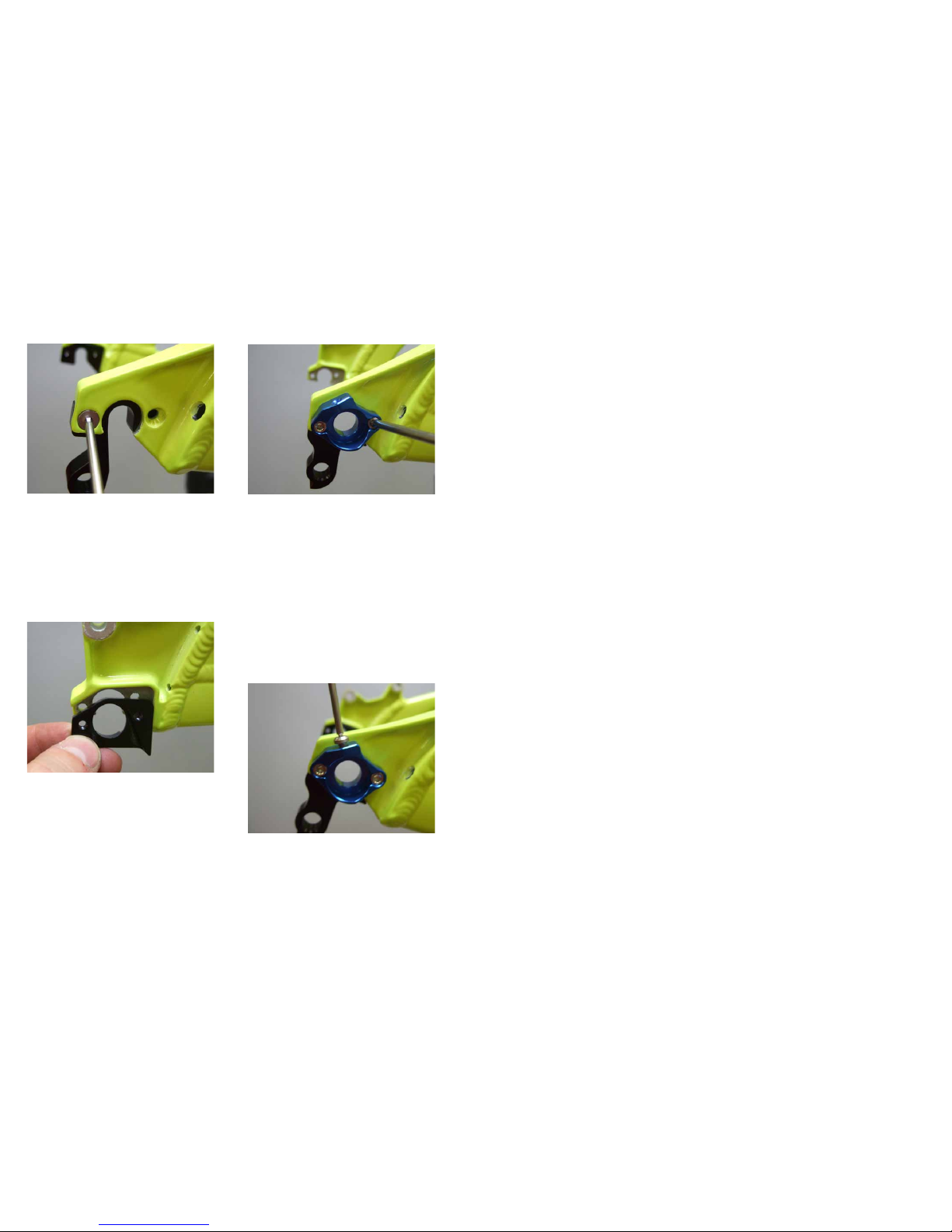

Chip system
02.
04.
01.
03.
2
1
3
4
4
4
4
4
4
5
5
66
7
7
7
8
9
9
9
9
10
10
10
10
11
11
28. 29.
exploded views
PART # DESCRIPTION QTY
1 NA 575 FRONT TRIANGLE 1
2 NA 575 SWINGARM 1
3 300040235 575 DOGBONE 1
4 300020032 BEARING 398 2RS MAX DOUBLE ROW 6
5 300020030 BEARING 3903 2RS MAX 2
6 300030194 BOLT CAP SCKT HD M4X.7X10 2
7 300030139 BOLT FLAT HD M4X.7X16 3
8 300030191 STUD-TI-FEMALE 8X57.5MM 1
9 300030069 WASHER 8.5X12.5X0.5 MM 4
10 300030062 WASHER 6.5X12.5X0.5 MM 4
11 300030110 BOLT-TI-MALE M6X1 12 MM 2
12 NA 1
13 300020020 2
14 300020034 REDUCER FOX 8X22MM 2
15 300020035 REDUCER 8MM X 7.5MM 2
16 300030189 PIVOT PIN BOLT M10 X 1 X 22 1
17 300030188 PIVOT PIN 17X7.5/10X1THRD 52.4 1
18 100130040 FD E-TYPE COVER PLATE 1
19 300030140 CUSTOM BOLT M5X12 1
20 300030141 CUSTOM BOLT M5X18 1
21 HNA0575ABA00000000000 2012 575 FD MOUNT 1
22 300040398 BOLT-ON CABLE GUIDE TRIPLE 3
23 300060061 QR INSERT DER HANGER 1
24 300040386 QR INSERT NON-DRIVE 1
25 300030221 BOLT FLAT HEAD M4X.7X9 4
26 HNA0000ABA0000000001 BOLT-ALLOY-FEMALE 8.0X31MM 1
27 HNA0000ABA0000000002 BOLT-ALLOY-FEMALE 8.0X40.5MM 1
28 HNA0000ABA0000000005 BOLT-ALLOY-MALE M6X1 12MM 3
29 HNA0000ABA0000000000 BOLT-ALLOY-FEMALE 8.0X16.5MM 1
30. 31.
rebuild kits
PART # DESCRIPTION QTY
HNA0575M00AA00MST0000 575 MASTER REBUILD KIT 1
300020020 2
300020030 BEARING 3903 2RS DOUBLE ROW 2
300020032 BEARING 398 2RS MAX DBL ROW 6
300030062 WASHER 6.5X12.5X0.5 MM 4
300030069 WASHER 8.5X12.5X0.5 MM 4
300030110 BOLT-TI-MALE M6X1 12MM 2
300030139 BOLT FLAT HD M4X7X16 3
300030188 PIVOT PIN 17X7.5/10X1THRD 52.4 1
300030189 PIVOT PIN BOLT M10 X 1 X 22 1
300030191 STUD-TI-FEMALE 8X57.5MM 1
300030194 BOLT CAP SCKT HD M4X.7X10 2
HNA0000ABA00000000000 BOLT-ALLOY-FEMALE 8.0X16.5MM 1
HNA0000ABA00000000001 BOLT-ALLOY-FEMALE 8.0X31MM 1
HNA0000ABA00000000002 BOLT-ALLOY-FEMALE 8.0X40.5MM 1
HNA0000ABA00000000005 BOLT-ALLOY-MALE M6X1 12MM 3
HNA0575M00AA00BRG0000 575 BEARING REBUILD KIT 1
300020030 BEARING 3903 2RS DOUBLE ROW 2
300020032 BEARING 398 2RS MAX DBL ROW 6
32.
warranty
YETI LIMITED (1) ONE YEAR FRAME WARRANTY
(applies to 303 WC / 4X / DJ)
YETI LIMITED (2) TWO YEAR FRAME WARRANTY
(applies to AS-R 5C / AS-R 5A / AS-R Carbon / SB66-A / SB66-C / SB95 / 575 / ARC / Big Top
29’R)
ADDITIONAL CONDITIONS
*The above warranties have been in effect since January 2012. For warranty information on Yeti
frames sold prior to that date please consult your local authorized dealer.
NO FAULT REPLACEMENT POLICY
PRODUCT LIFE CYCLE
DISCLAIMER
*If you have a warranty concern, please contact your authorized Yeti dealer.
YETI CYCLES
600 Corporate Circle, Unit D
Golden, CO 80401
www.yeticycles.com
BUSINESS HOURS
Monday-Friday
