YOKOGAWA SC4A User manual

IM 12D07J01-10E-E
11th edition
Instruction
Manual
Model SC4A, SC41 SC42,
SC49, SX42
Specific Conductivity
sensors
YOKOGAWA

IM 12D07J01-10E-E
(BG)
Всички улътвания за продукти от серията
ATEX Ex ce лредлагат на английски език.
Ако се нуждаете oт улътвания за продукти oт
серията Ex на родния ви eзик, ce свържете c
най-близкия oфис или представителство на
фирма Yokogawa.
(CZ)
Všechny uživatelské příručky pro výrobky, na
něž se vztahuje nevýbušné schváleni ATEX Ex,
jsou dostupné v angličtině. Požadujete-li pokyny
týkající se výrobků s nevýbušným schválením ve
vašem lokálním jazyku, kontaktujte prosím vaši
nejbližší reprezentačni kancelář Yokogawa.
(D)
Alle Betriebsanleitungen für ATEX Ex bezogene
Produkte stehen in den Sprachen Englisch. Sollten
Sie die Betriebs- anleitungen für Ex-Produkte in
Ihrer Landessprache benötigen, setzen Sie sich
bitte mit Ihrem örtlichem Yokogawa-Vertreter in
Verbindung.
(DK)
Alle brugervejledninger for produkter relateret til
CE er tilgængelige på engelsk. Skulle De ønske
yderligere oplysninger om håndtering af CE
produkter på eget sprog, kan De rette henvendelse
herom til den nærmeste Yokogawa afdeling eller
forhandler.
(EST)
Kõik ATEX Ex toodete kasutamisjuhendid on
esitatud inglise keeles. Ex seadmete muukeelse
dokumentatsiooni saamiseks pöörduge lähima
lokagava (Yokogawa) kontori või esindaja poole.
(E)
Todos los manuales de instrucciones para
los productos antiexplosivos de ATEX están
disponibles en inglés. Si desea solicitar las
instrucciones de estos artículos antiexplosivos en
su idioma local, deberá ponerse en contacto con
la oficina o el representante de Yokogawa más
cercano.
(F)
Tous les manuels d’instruction des produits ATEX
Ex sont disponibles en langue anglaise. Si vous
nécessitez des instructions relatives aux produits
Ex dans votre langue, veuillez bien contacter votre
représentant Yokogawa le plus proche.
(GB)
All instruction manuals for ATEX Ex related
products are available in English. Should you
require Ex related instructions in your local
language, you are to contact your nearest
Yokogawa office or representative.
(GR)
Ολα τα εγχειριδια λειτουργιας των προιοντων
με ATEX Ex διατιθενται στα Αγγλικα. Σε
περιπτωση πον χρειαζεοτε οδηγιεξ σχετικα με Ex
στην τοπικη γλωσσα παρακαλονμε επικοινωνηστε
με το πλησιεστερο γραφειο τηζ Yokogawa η
αντιπροσωπο τηξ.
(H)
Az ATEX Ex mûszerek gépkönyveit angol
nyelven adjuk ki. Amennyiben helyi nyelven kérik
az Ex eszközök leírásait, kérjük keressék fel a
legközelebbi Yokogawa irodát, vagy képviseletet.
(I)
Tutti i manuali operativi di prodotti ATEX
contrassegnati con Ex sono disponibili in inglese.
Se si desidera ricevere i manuali operativi di
prodotti Ex in lingua locale, mettersi in contatto
con l’ufficio Yokogawa più vicino o con un
rappresentante.

IM 12D07J01-10E-E
(LV)
Visas ATEX Ex kategorijas izstrâdâjumu
Lietoðanas instrukcijas tiek piegâdâtas
angïu valodâs. Ja vçlaties saòemt Ex ierîèu
dokumentâciju citâ valodâ, Jums ir jâsazinâs ar
firmas Jokogava (Yokogawa) tuvâko ofisu vai
pârstâvi.
(LT)
Visos gaminiø ATEX Ex kategorijos
Eksploatavimo instrukcijos teikiami anglø
kalbomis. Norëdami gauti priestaisø Ex
dokumentacijà kitomis kalbomis susisiekite su
artimiausiu bendrovës Yokogawa biuru arba
atstovu.
(M)
Il-manwali kollha ta’ l-istruzzjonijiet għal prodotti
marbuta ma’ ATEX Ex huma disponibbli bl-Ingliż.
Jekk tkun teħtieģ struzzjonijiet marbuta ma’ Ex
fil-lingwa lokali tiegħek, għandek tikkuntattja lill-
eqreb rappreżentan jew uffiććju ta’ Yokogawa.
(NL)
Alle handleidingen voor producten die te maken
hebben met ATEX explosiebeveiliging (Ex)
zijn verkrijgbaar in het Engels. Neem, indien u
aanwijzingen op het gebied van explosiebeveiliging
nodig hebt in uw eigen taal, contact op met de
dichtstbijzijnde vestiging van Yokogawa of met
een vertegenwoordiger.
(P)
Todos os manuals de instruções referentes aos
produtos Ex da ATEX estão disponíveis em
Inglês. Se necessitar de instruções na sua língua
relacionadas com produtos Ex, deverá entrar em
contacto com a delegação mais próxima ou com
um representante da Yokogawa.
(PL)
Wszystkie instrukcje obsługi dla urządzeń w
wykonaniu przeciwwybuchowym Ex, zgodnych
z wymaganiami ATEX, dostępne są w języku
angielskim. Jeżeli wymagana jest instrukcja obsługi
w Państwa lokalnym ję zyku, prosimy o kontakt z
najbliższym biurem Yokogawy.
(RO)
Toate manualele de instructiuni pentru produsele
ATEX Ex sunt in limba engleza. In cazul in care
doriti instructiunile in limba locala, trebuie sa
contactati cel mai apropiat birou sau reprezentant
Yokogawa.
(S)
Alla instruktionsböcker för ATEX Ex
(explosionssäkra) produkter är tillgängliga på
engelska. Om Ni behöver instruktioner för dessa
explosionssäkra produkter på annat språk, skall
Ni kontakta närmaste Yokogawakontor eller
representant.
(SF)
Kaikkien ATEX Ex-tyyppisten tuotteiden
käyttöhjeet ovat saatavilla englannin-. Mikäli
tarvitsette Ex-tyyppisten tuotteiden ohjeita
omalla paikallisella kielellännne, ottakaa yhteyttä
lähimpään Yokogawa-toimistoon tai -edustajaan.
(SK)
Všetky návody na obsluhu pre prístroje s ATEX
Ex sú k dispozícii v jazyku anglickom. V prípade
potreby návodu pre Ex-prístroje vo Vašom
národnom jazyku, skontaktujte prosím miestnu
kanceláriu firmy Yokogawa.
(SLO)
Vsi predpisi in navodila za AEX Ex sorodni
pridelki so pri roki v anglišèini. Èe so Ex sorodna
navodila potrebna v vašem tukejnjem jeziku,
kontaktirajte vaš najbliši Yokogawa office ili
predstaunika.

IM 12D07J01-10E-E
CONTENTS
1. PREFACE 1
1.1 Introduction 1
1.2 Unpacking and Checking 1
1.3 Warranty and Service 1
1.4 Serial Number definition 2
2. MODEL SC4A 3
2.1. General Specifications 3
2.1.1. Measuring elements 3
2.1.2. Materials 3
2.1.3. Functional specifications (at 25°C) 4
2.1.4. Dynamic specifications 4
2.1.5. Operating range 4
2.1.6. Regulatory standards (only for SC4A with fixed cable) 5
2.1.7. Shipping details 7
2.1.8. Environmental conditions 7
2.1.9. Mechanical specifications 7
2.2. Installation of SC4A sensors 7
2.2.1. Typical installation SC4A-*-AD with standard options 7
2.2.2. Typical installation SC4A-E-SA (SB, SC) with standard options / spare parts 8
2.2.3. Typical installation SC4A-*-PR 9
2.3. Dimensions SC4A sensors 9
2.4. Wiring SC4A sensors 10
2.5. Modelcode SC4A sensors 11
2.6. Spare parts SC4A 12
3. MODEL SC41, SC42 AND SC49 13
3.1. General Specifications 13
3.1.1. Measuring elements 13
3.1.2. Materials 13
3.1.3. Functional specifications (at 25°C) 14
3.1.4. Dynamic specifications 14
3.1.5. Operating range 14
3.1.6. Regulatory standards (only for SC42 with Amphenol connector) 15
3.1.7. Shipping details 16
3.1.8. Environmental conditions 16

IM 12D07J01-10E-E
3.2. Installation of SC41/SC42/SC49 sensors 17
3.2.1. Typical installation of SC41/SC42/SC49 sensor
in FF40 Flow fittings/ FS40 Flow fitting assemblies 17
3.2.2. Typical installation of SC41/SC42/SC49 sensor in FD40 Immersion fitting 22
3.3 Dimensions SC41/SC42/SC49 sensors. 23
3.4. Wiring SC41/SC42/SC49 sensors 25
3.5 Modelcode SC41/SC42/SC49 25
4. MODEL SX42 26
4.1. General Specifications 26
4.1.1. Measuring elements 26
4.1.2. Materials 26
4.1.3. Functional specifications (at 25°C) 26
4.1.4. Operating range 26
4.1.5. Regulatory standards (not applicable for sensors with suffix code -BV or -NV) 28
4.1.6. Shipping details 29
4.1.7. Environmental conditions 29
4.2. Installation of SX42 sensors 29
4.3. Dimensions SX42 sensors 29
4.4. Wiring SX42 sensors 29
5. GENERAL CALIBRATION AND MAINTENANCE PROCEDURE 31
5.1. Calibration of the sensor 31
5.2. Periodic maintenance of the sensor 31
6. PROTECTION OF ENVIRONMENT (USE IN CHINA) 32
7. CHEMICAL COMPATABILITY CHART 33

IM 12D07J01-10E-E

IM 12D07J01-10E-E
1
1. PREFACE
1.1 Introduction
The sensor, model SC4A, SC41, SC42, SC49 and SX42, and associated fitting program is
designed to meet the most common installation requirements in terms of material compatibility,
process connections and flow dynamics. The various installation possibilities are described and
illustrated in this Instruction Manual.
Model SC4A sensors, available in a Stainless Steel or Titanium version with fixed cable or
Variopin connector, in combination with WU10/WE10-cable are intended for the low conductivity
applications. These sensors are designed in a convenient compact style, and can be inserted
directly in process pipework using available fittings or adapters.
Model SC41, SC42 and SC49 sensors, available in various materials such as Epoxy, Stainless
Steel, PTFE and PVDF, are intended to suit most process conditions. The sensors are provided
either with a Amphenol connector to fit the Yokogawa WU40 cable or Variopin connector to fit with
Yokogawa WU10/WE10-cable. A wide range of flow and immersion fittings makes it possible to
install the sensors in a permanent or semi-permanent location.
Model SX42 sensors have a Stainless Steel body and ceramic insulation, especially designed to
withstand high temperatures and high pressures. The flanged model has an integral connection box,
the threaded models are provided with a Amphenol connector to fit the Yokogawa WU40 cable or
Variopin connector to fit with Yokogawa WU10/WE10-cable.
All sensors have a pre-calibrated cell constant and a built-in temperature element for automatic
temperature compensation. Sensors with the Variopin connector are equipped with an ID-chip
in which callibration information is stored for easy setup when connected to a SENCOM Smart
Adapter model SA11-C1. For metal sensors a 3.1 material certificate is included. The sensors,
except those equipped with Variopin connector, are ATEX certified for installation in zone 0
environments when connected to a certified intrinsically safe Yokogawa analyser, model SC202S
or FLXA21 or a certified intrinsically safe circuit with defined output parameters (see General
Specifications of each sensor for details).
1.2 Unpacking and Checking
Upon delivery, unpack the sensor carefully and inspect it to ensure that it is not damaged during ship-
ment. If damage is found, retain the original packing material and immediately notify the carrier and the
relevant local Yokogawa Sales office. Make sure the Model Code and Serial Number on the sensor are
the same as on the packing list. Also check if option(s) that were ordered, are included and correct.
1.3 Warranty and Service
Yokogawa products are guaranteed free from defects in workmanship and materials under
normal use and service for a period of (typically) 12 months from the date of shipment from the
manufacturer. Individual Sales organizations can deviate from the typical warranty period, and the

IM 12D07J01-10E-E
2
1.4 Serial Number definition
The serial number is defined by nine (9) alphanumeric characters:
X1X2Production location, N3 for Yokogawa Process Analyzers Europe B.V.
X3X4Year/Month code
X5X6X7X8X9Tracking number
Example: N3P600028
Method used for year/month numbering
Table 1: Production Year code Table 2: Production Month code
Year Year code Year Year code Month Month code
2014 P 2026 3 January 1
2015 R 2027 4 February 2
2016 S 2028 5 March 3
2017 T 2029 6 April 4
2018 U 2030 7 May 5
2019 V 2031 8 June 6
2020 W 2032 9 July 7
2021 X 2033 A August 8
2022 Y 2034 B September 9
2023 Z 2035 C October A
2024 1 2036 D November B
2025 2 2037 E December C
conditions of sale relating to the original purchase order should be consulted. Damage caused
by wear and tear, inadequate maintenance, corrosion, or by the effects of chemical processes is
excluded from this warranty coverage. In the event of a warranty claim, the defective goods should
be sent (freight paid) to the Service Department of the relevant Yokogawa Sales office for repair or
replacement (at Yokogawa’s discretion).
The following information must be included in the letter accompanying the returned goods:
• Model Code and Serial Number.
• Original Purchase Order and Date.
• Length of time in service and description of the process.
• Description of the fault and circumstances of the failure.
• Process/environmental conditions that may be related to the failure of the sensor.
• Statement as to whether warranty or nonwarranty service is requested.
• Complete shipping and billing instructions for return of material, plus the name and phone number
of a contact person that can be reached for further information.
• Clean Statement Returned goods that have been in contact with process fluids must be
decontaminated and disinfected prior to shipment. Goods should carry a certificate to this effect,
for the health and safety of our employees. Material Safety Data sheets must be included for all
components of the process to which the sensor (options) have been exposed.

IM 12D07J01-10E-E
3
2. MODEL SC4A
2.1. General Specifications
2.1.1. Measuring elements
2-electrode measuring system
Pt1000 temperature sensor
2.1.2. Materials
Wetted parts sensor:
Body & electrodes SC4A-T-AD : Titanium grade 2 or 3
SC4A-S-AD : Stainless Steel AISI 316L
SC4A-E-SA (SB, SC): Stainless Steel AISI 316L
SC4A-T-PR : Titanium grade 2 or 3
SC4A-S-PR : Stainless Steel AISI 316L
O-ring SC4A-*-AD : Viton
SC4A-E-SA (SB, SC): EPDM FDA approved
SC4A-*-PR : Viton
Insulation : PEEK 450G, FDA migration tested
Wetted parts adapters/fitting:
/PS, /FF SC4A-*-AD : Stainless Steel AISI 316L
/PF SC4A-*-AD : PVDF
/SA1(2), /SB1(2), /SC1 SC4A-E-SA (SB, SC): Stainless Steel AISI 316L
Cable:
Versions with integrated cable only:
Conductors : tinned copper 0.6 mm2
Outside shield : braid, tinned copper, 85% coverage
Insulator : Polyester for conductors, for colors see
Section 2.4
TPE-O for outer jacket, color black
Variopin connector:
Contacts : Gold plated
Material : Nickel plated brass
Insulation : Peek, UL94-VO
IP class : IP67

IM 12D07J01-10E-E
4
2.1.3. Functional specifications (at 25°C)
Temperature element : Pt1000 to IEC 751
Nominal Cell Constant (C.C.) : 0.02 cm-1 or 0.1 cm-1
Note: The SC4A temperature sensor is designed for measurement compensation and for
indication. It is NOT designed for process temperature control.
2.1.4. Dynamic specifications
Response time temperature t90 : < 1 min.
2.1.5. Operating range
Conductivity at actual process temperature : 1 µS * C.C. – 50 mS * C.C.

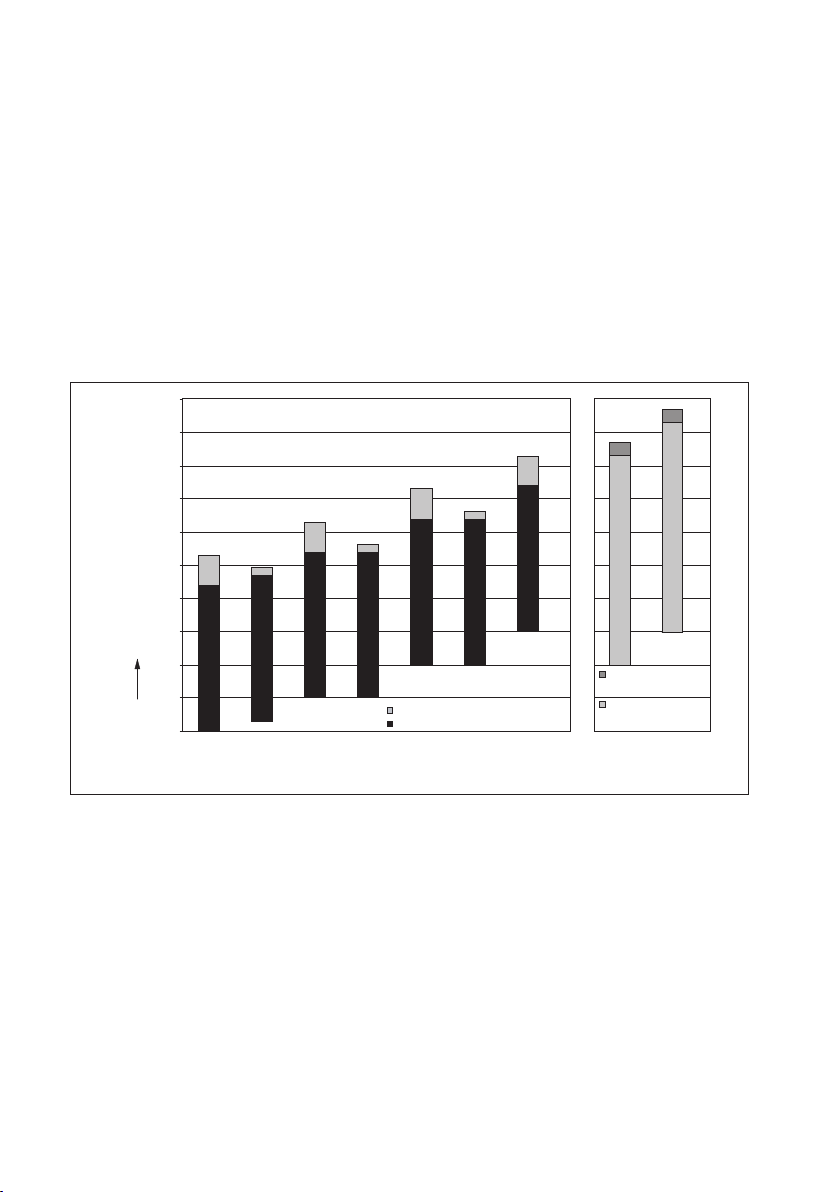

Fig. 1 Measuring range of conductivity sensors
Process temperature Stainless Steel : 0°C to 110°C (32°F to 230°F)
& Titanium type : 135°C (275°F) for a short period of time during
sterilization.
Process temperature in combination : 0°C to 80°C (32°F to 176°F)
with PVDF fitting
Process pressure Stainless Steel & Titanium type : 0 to 10 bar (0 to 142 PSIG)
Process Pressure in combination with PVDF fitting: See Fig. 2
SC42-SP34
SX42-SX34
(0.01/cm)
SC4A-002
(0.02/cm)
SC42-SP24
SX42-SX24
(0.1/cm)
SC4A-010
(0.1/cm)
SC42-EP14
(1/cm)
SC42-
EP15/EP16
(1/cm)
SC42-EP04
SC42-FP04
SC42-TP04
(10/cm)
SC450/SC202/FLXA21/ FLXA202
DC402
SC42-EP18
(1/cm)
SC42-EP08
SC42-FP08
SC42-TP04
(10/cm)
100 000 000.00
10 000 000.00
1 000 000.00
100 000.00
10 000.00
1 000.00
100.00
10.00
1.00
0.10
0.01
µS/cm
SC450/FLXA21/
FLXA202
SC202

IM 12D07J01-10E-E
5
Cable length for
• SC4A with fixed cable or SC4A with Variopin
directly connected to Flexa analyzer : max. 60 meter with WU10/WE10
(possibly in combination with WF10 cable
and BA10 junction box}
• For suffix -VS combined with SA11 : 3 meter WE10 cable (as option) combined
with SA11 Smart Adapter
SA11 Smart Adapter : Directly connected to the analyzer using a
WU11 cable up to 100 meters
or
Connected to a BA11 connetion box
using WU11 cable upto 100 m. The BA11
connection box is connected to the analyzer
using a WU11 cable up to 100m.
2.1.6. Regulatory standards (only for SC4A with fixed cable)
- ATEX : Directive 2014/34/EU
by applying:
EN 60079-0
EN 60079-11
EN 60079-26
Certificate no. : DEKRA 14ATEX0074 X
II 1 G Ex ia IIC T4… T6 Ga
Fig. 2 Pressure vs temperature
010 20 30 40 50 60 70 80 100 120 140 160
bar
2
4
6
8
10
12 SS / Ti
PVDF

IM 12D07J01-10E-E
6
- IECEx
Applying standards : IEC 60079-0
: IEC 60079-11
: IEC 60079-26
Certificate no. : IECEx DEK 14.0032X
Ex ia IIC T4…T6 Ga
Conformity : EAC (Eurasia)
TS (Taiwan)
- Electrical data for ATEX/IECEx : For sensor input circuit connected to
A certified intrinsically safe circuit with the following
maximum values:
Ui = 14.4 V; Ii = 116.5 mA; Pi = 0.342 W
or
Certified intrinsically safe Yokogawa Contact
Conductivity transmitter Model FLXA21 series or
Model SC202S series.
The effective internal capacitance Ci and the
effective internal inductance Li of the sensor depends only
upon the properties and length of the integral cable.
Special conditions (X) : T6 for Tamb. -30°C to 40°C
T5 for Tamb. -30°C to 95°C
T4 for Tamb. -30°C to 130°C
Impact on the product shall be avoided.
Electrostatic charges on the enclosure shall be avoided.
From the safety point of view the circuits shall be
assumed to be connected to earth.
Regulatory standards (all types)
CE : Decision 768/2008/EC
- Pressure : Directive 2014/68/EU
Applying article : 4.3 (Sound Engineering Practice)
- RoHS2 : Directive 2011/65/EU
Applying category : 9 (Industrial monitoring and control instruments)

IM 12D07J01-10E-E
7
2.1.7. Shipping details
Package size (LxWxH) : 220 x 220 x 90 mm (8.7 x 8.7 x 3.6 inch)
Package weight : 0.5 to 1.7 kg (1.1 to 3.8 lbs), depends on sensor type
and cable length
2.1.8. Environmental conditions
Storage temperature : -30°C to 50°C (-22°F to 122°F)
2.1.9. Mechanical specifications
Surface roughness SC4A-*-AD : 0.8 µm
SC4A-E-SA (SB, SC) : 0.5 µm
SC4A-*-PR : 0.8 µm
2.2. Installation of SC4A sensors
For optimum measurement results, the SC4A sensor should be installed in a location that
offers an acceptable representation of the process composition and DOES NOT exceed the
specifications of the sensor.
2.2.1. Typical installation SC4A-*-AD with standard options
The SC4A-*-AD sensor can be installed in the process using optional ¾” NPT adapters. These
adapters are available in Stainless Steel (/PS) and in PVDF (/PF); see figure 3 for the mounting
sequence. The sensor can also be installed in an optional Stainless Steel flow fitting (/FF) using
option /PS, see figure 4 for details.
3/4 “NPT
Fig. 3 Mounted sensor
with the option /PF and /PS
Fig. 4 Dimensional drawing /FF
with the option /PS
1/4 “NPT
1/4 “NPT
30(1.18”)
100 (3.94”)

IM 12D07J01-10E-E
8
2.2.2. Typical installation SC4A-E-SA (SB, SC) with standard options / spare parts
The typical installation of the SC4A-E-SA sensor is done by using a standardized 25 mm port.
Stainless Steel welding sockets are available as straight version (spare part /SA1) or 15° angled
version (spare part /SA2). Both versions are delivered with mounting nut.
In figure 5 an example is shown how to install the sensor using spare part /SA1.
Sensors SC4A-E-SB and SC4A-E-SC are installed by tri-clamp method.
For the SB version two Stainless Steel tri-clamps are available, in a 1” size
(spare part /SB1) or in a 1½“ size (spare part /SB2).
The SC version has just one Stainless Steel tri-clamp in a 2” size (spare part /SC1).
/SA1
51 (2.00")
55 (2.16")

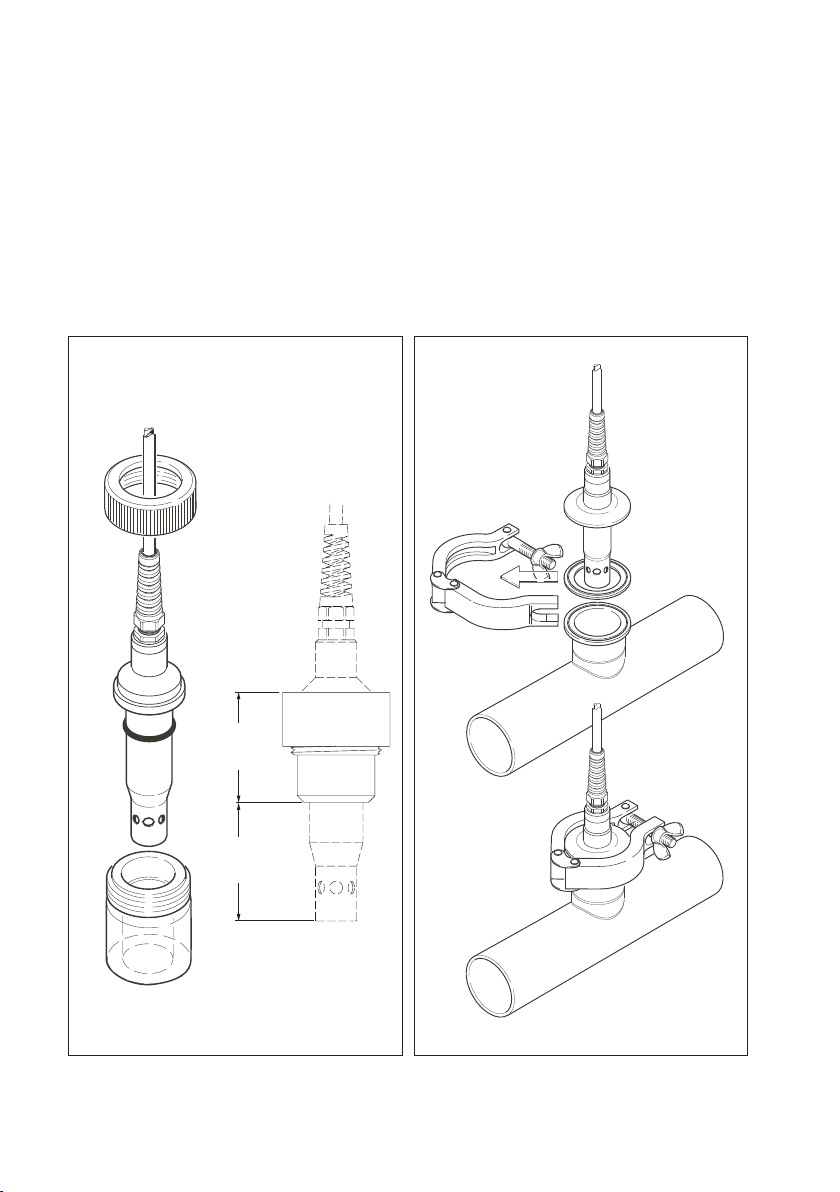

Fig 5. Mounted SC4A-E-SA sensor
with sparepart/ SA1
Fig 6 Mounted SC4A-E-SB sensor

IM 12D07J01-10E-E
9
2.2.3. Typical installation SC4A-*-PR
The installation of the SC4A-*-PR sensor is done using the Model PR10 retractable fitting.
The mounting procedure of the sensor is explained in the Instruction Manual of this fitting.
2.3. Dimensions SC4A sensors
units in mm (inch)
Ø 19,1
(0.75")
90(3.55")
Ø 25
(1.00")
Ø 38 x 5
(1.50 x 0.20)
95 (3.74")
25
(1.00”)
Ø50,4
(1.98")
Ø19
(0.75")
1 - 1.5 "
tri-clamp
2 "
tri-clamp
Ø25
(1.00")
80 (3.15")
Ø63,9
(2.52")
M19x1.5
48 (1.89")
19.8
Ø 24.9
Ø 19.1
152 (5.98")
152 (5.98")
95 (3.74")
70 (2.75")
41
52
Ø 27.5
Ø 19.1
Ø 64
Ø 25 Ø 50.5
Ø 19.1 Ø 19.1
2 "
tri-clover 1" - 1
1
/
2
"
tri-clover
70
80
Ø 19,1
(0.75")
90(3.55")
Ø 25
(1.00")
Ø 38 x 5
(1.50 x 0.20)
95 (3.74")
25
(1.00”)
Ø50,4
(1.98")
Ø19
(0.75")
1 - 1.5 "
tri-clamp
2 "
tri-clamp
Ø25
(1.00")
80 (3.15")
Ø63,9
(2.52")
M19x1.5
48 (1.89")
19.8
Ø 24.9
Ø 19.1
152 (5.98")
152 (5.98")
95 (3.74")
70 (2.75")
41
52
Ø 27.5
Ø 19.1
Ø 64
Ø 25 Ø 50.5
Ø 19.1 Ø 19.1
2 "
tri-clover 1" - 1
1
/
2
"
tri-clover
70
80
Fig 7. SC4A-AD Fig. 8. SC4A-SA Fig. 9. SC4A-PR
Ø 19,1
(0.75")
90(3.55")
Ø 25
(1.00")
Ø 38 x 5
(1.50 x 0.20)
95 (3.74")
25
(1.00”)
Ø50,4
(1.98")
Ø19
(0.75")
1 - 1.5 "
tri-clamp
2 "
tri-clamp
Ø25
(1.00")
80 (3.15")
Ø63,9
(2.52")
M19x1.5
48 (1.89")
19.8
Ø 24.9
Ø 19.1
152 (5.98")
152 (5.98")
95 (3.74")
70 (2.75")
41
52
Ø 27.5
Ø 19.1
Ø 64
Ø 25 Ø 50.5
Ø 19.1 Ø 19.1
2 "
tri-clover 1" - 11/2"
tri-clover
70
80
Fig. 10 : Dimensions of SC4A-SB/SC sensor
Ø 19,1
(0.75")
90(3.55")
Ø 25
(1.00")
Ø 38 x 5
(1.50 x 0.20)
95 (3.74")
25
(1.00”)
Ø50,4
(1.98")
Ø19
(0.75")
1 - 1.5 "
tri-clamp
2 "
tri-clamp
Ø25
(1.00")
80 (3.15")
Ø63,9
(2.52")
M19x1.5
48 (1.89")
19.8
Ø 24.9
Ø 19.1
152 (5.98")
152 (5.98")
95 (3.74")
70 (2.75")
41
52
Ø 27.5
Ø 19.1
Ø 64
Ø 25 Ø 50.5
Ø 19.1 Ø 19.1
2 "
tri-clover 1" - 11/2"
tri-clover
70
80

IM 12D07J01-10E-E
10
2.4. Wiring SC4A sensors
The SC4A sensors are provided with a fixed sensor cable or Variopin connector to fit the WU10/WE10
cable up to 20 meters. When a longer cable run is necessary (maximum cable run is 60 meters), this
can be done by using the WF10 extension cable in combination with the BA10 connection box. The
connection of the integral cable and WF10 cable to the Yokogawa Contact Conductivity analyser are
given in table 3.
Table 3. Definition fixed sensor cable, WF10 cable and analyser
Cable wire color Cable wire color WF10 SC terminal # Signal description
White Red 11 Temperature
Brown Blue 12 Temperature
Green Clear (Core of Brown coax) 13 Inner electrode
Yellow Yellow 14 Outer electrode
Black Clear (Core of White coax) 15 Inner electrode
Pink White (Shield of White coax) 16 Outer electrode
Table 4. Definition VP sensor cable, WU10/WE10 cable and analyser
WU10/WE10 Color SC
A Core brown Ui
B Shield brown Ii
C Core white Uo
D Shield white Io
E Red T1
F Blue T2
G Yellow VCC ID chip
H Green Data ID chip
Drain wire Black Shield
Note: Sensors with Variopin contain an embedded ID chip which is recognized to work with
SA11 Smart Adapter model SA11-C1
Note: WU10-V-D type

IM 12D07J01-10E-E
11
2.5. Modelcode SC4A sensors
Model Suffix Code Option code Description
SC4A 19 mm conductivity sensor
material -T Titanium Grade 2 or 3
-S Stainless steel AISI 316L (SS)
-E EPDM FDA
fitting-type -AD For adapter mounting
-PR For retractable mounting
-SA For sanitary purposes
-SB 1-1½” tri-clamp
-SC 2” tri-clamp
sensor-length -09 9 cm 1)
-15 15 cm
-NN Fixed length
cellconstant -002 0.02/cm
-010 0.1/cm
connection type -03 Fixed cable with wirepins, 3 m
-05 Fixed cable with wirepins, 5 m
-10 Fixed cable with wirepins, 10 m
-15 Fixed cable with wirepins, 15 m
-20 Fixed cable with wirepins, 20 m
-VS No Cable; Variopin connector
with SENCOM ID-chip 2)
-T1 Pt1000
/PS 3/4” stainless steel adapter
/PF 3/4” PVDF adapter
/FF Flow fitting stainless steel AISI 316L 3)
Note 1: Suffix -AD-09 not available with -VS.
Note 2: Suffix -VS not ATEX/IECEx certified.
Note 3: With option /FF: option /PS is mandatory.

IM 12D07J01-10E-E
12
2.6. Spare parts SC4A
Adapters SC4A-*-AD sensor
Part no. Description Process connection Material Quantity
K1542DF /PS 3/4” NPT adapter Stainless Steel 1
K1542CW /PF 3/4” NPT adapter PVDF 1
K1598AC /FF Flow fitting Stainless Steel 1
Adapters SC4A-E-SA sensor
Part no. Description Process connection Material Quantity
K1542FA /SA1 Straight welding socket Stainless steel 1
K1542FB /SA2 Angled welding socket Stainless steel 1
Spare parts for adapters SC4A-E-SA sensor
Part no. Description Quantity
K1520EJ Straight weld-in adapter without mounting nut, Stainless Steel 1
K1520EK Angled weld-in adapter without mounting nut, Stainless Steel 1
Spare parts for SC4A-E-SA sensor
Part no. Description Quantity
K1542DL O-ring set, EPDM FDA, 20.3 x 2.62 3
K1542DK O-ring set, Viton, 20.3 x 2.62 3
Adapters SC4A-E-SB sensor
Part no. Description Process connection Material Quantity
K1542FC /SB1 Tri-clamp 1” Stainless Steel 1
K1542FF /SB2 Tri-clamp 1½“ Stainless Steel 1
Spare parts for adapters SC4A-E-SB sensor
Part no. Description Quantity
K1500BN Clamp seal ring, EPDM FDA, 1” ~ 1½“ 1
K1542DG Clamp seal ring, Viton, 1“ 3
K1542DH Clamp seal ring, Viton, 1½“ 3
Adapters SC4A-E-SC sensor
Part no. Description Process connection Material Quantity
K1542FE /SC1 Tri-clamp 2” Stainless Steel 1
Spare parts for adapters SC4A-E-SC sensor
Part no. Description Quantity
K1500BP Clamp seal ring, EPDM FDA, 2“ 1
K1542DJ Clamp seal ring, Viton, 2“ 3
Spare parts for SC4A-*-PR sensor
Part no. Description Quantity
K1500BE O-ring set, Viton, 15.6 x 1.78 10
K1500ED O-ring set, Kalrez, 15.6 x 1.78 1

IM 12D07J01-10E-E
13
3. MODEL SC41, SC42 AND SC49
3.1. General Specifications
3.1.1. Measuring elements
2-electrode for SC41/SC42-SP series; SC41/SC42-EP04 (EP14); SC41/SC42-EP15 (EP16) series
4-electrode for SC42/SC49-EP08 (EP18); SC42/SC49-FP08 (TP08)
Pt1000 temperature sensor
3.1.2. Materials
Wetted parts sensor:
Body SC41/SC42/SC49-SP/SV : Stainless Steel AISI 316L
SC41/SC42/SC49-EP : Glass filled epoxy resin
SC41/SC42/SC49-FP/FV : PVDF, Glass
SC41/SC42/SC49-TP/TV : Glass filled PTFE, Glass
Electrodes SC41/SC42/SC49-SP/SV : Stainless Steel AISI 316L
SC41/SC42/SC49-EP : Graphite impregnated with epoxy resin
SC41/SC42/SC49-FP/FV : Platinum
SC41/SC42/SC49-TP/TV : Platinum
O-ring SC41/SC42/SC49-SP/SV : Viton
SC41/SC42/SC49-FP/FV : Viton
SC41/SC42/SC49-TP/TV : Kalrez™
For the -FP/FV and -TP/TV the supplied O-ring for sealing in the fitting is Viton.
Insulation -SP/SV : PEEK 450G, FDA migration tested
Connector:
Amphenol: Contacts : gold plated
Plug : Polyamide
Variopin: Contacts : gold plated
Material : Nickel-plated brass
Insulation : PEEK, UL94-V0
IP class : IP67

IM 12D07J01-10E-E
14
3.1.3. Functional specifications (at 25°C)
Temperature element SC41, SC49 : Ni100
Temperature element SC42 : Pt1000 to IEC 751
Nominal Cell Constant SC41/SC42/SC49-SP/SV24 : 0.1 cm-1
SC41/SC42/SC49-SP/SV34 : 0.01 cm-1
SC41/SC42/SC49 (EP08) : 10 cm-1
SC41/SC42/SC49-EP14 (EP18) : 1 cm-1
SC41/SC42/SC49-EP15 (EP16) : 1 cm-1
SC41/SC42/SC49-FP/FV : 10 cm-1
SC41/SC42/SC49-TP/TV : 10 cm-1
Note: The SC41/SC42/SC49 temperature sensor is designed for measurement compensation
and for indication. It is NOT designed for process temperature control.
3.1.4. Dynamic specifications
Response time temperature t90
SC41/SC42/SC49-SP/SV24 : < 3 min.
SC41/SC42/SC49-SP/SV34 : < 1 min.
SC41/SC42/SC49-EP04 (EP08) : < 3 min.
SC41/SC42/SC49-EP14 (EP18) : < 2 min.
SC41/SC42/SC49-EP15 (EP16) : < 3 min.
SC41/SC42/SC49-FP/FV : < 1 min.
SC41/SC42/SC49-TP/TV : < 1 min.
3.1.5. Operating range
Conductivity at actual process temperature : 1 µS * C.C. – 200 mS * C.C.
See Fig. 2: Measuring range of conductivity sensors section 2.1.5
Temperature SC41/SC42/SC49-SP/SV : 0°C to 150°C (32°F to 302°F)
SC41/SC42/SC49-EP : 0°C to 110°C (32°F to 230°F)
SC41/SC42/SC49-FP/FV : 0°C to 110°C (32°F to 230°F)
SC41/SC42/SC49-TP/TV : 0°C to 110°C (32°F to 230°F)
Pressure SC41/SC42/SC49-SP/SV : 0 to 10 bar (0 to 142 PSIG)
SC41/SC42/SC49-EP : 0 to 10 bar (0 to 142 PSIG)
SC41/SC42/SC49-FP/FV : 0 to 10 bar (0 to 142 PSIG)
SC41/SC42/SC49-TP/TV : 0 to 2 bar (0 to 28 PSIG)
Cable length for
Sensors with Amphenol connector or
Variopin connector directly connected
to Flexa analyzer : max. 60 meter with WU10 or WU10 in
combination with WF10 cable and BA10
junction box
For sensors with suffix -VS combined with SA11 : Optional 3 meter WE10 cable combined with
SA11 Smart Adapter
